FM 4-20.112 AIRDROP OF SUPPLIES AND EQUIPMENT: RIGGING TYPICAL SUPPLY LOADS (February 2009) - page 10





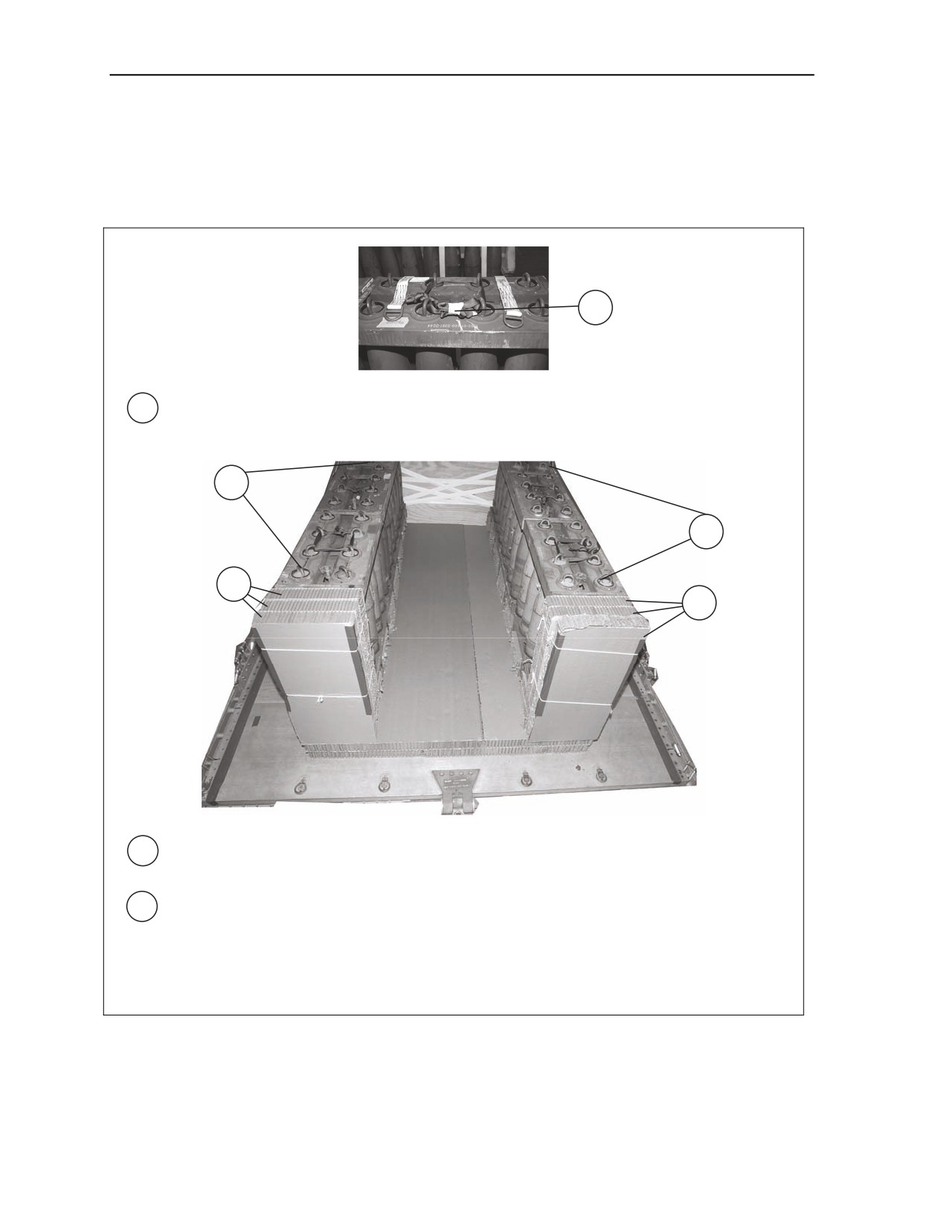

Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
BUILDING AND POSITIONING PARACHUTE STOWAGE
PLATFORM
8-45. Build and position the parachute stowage platform as shown in Figure 8-37.
1
2

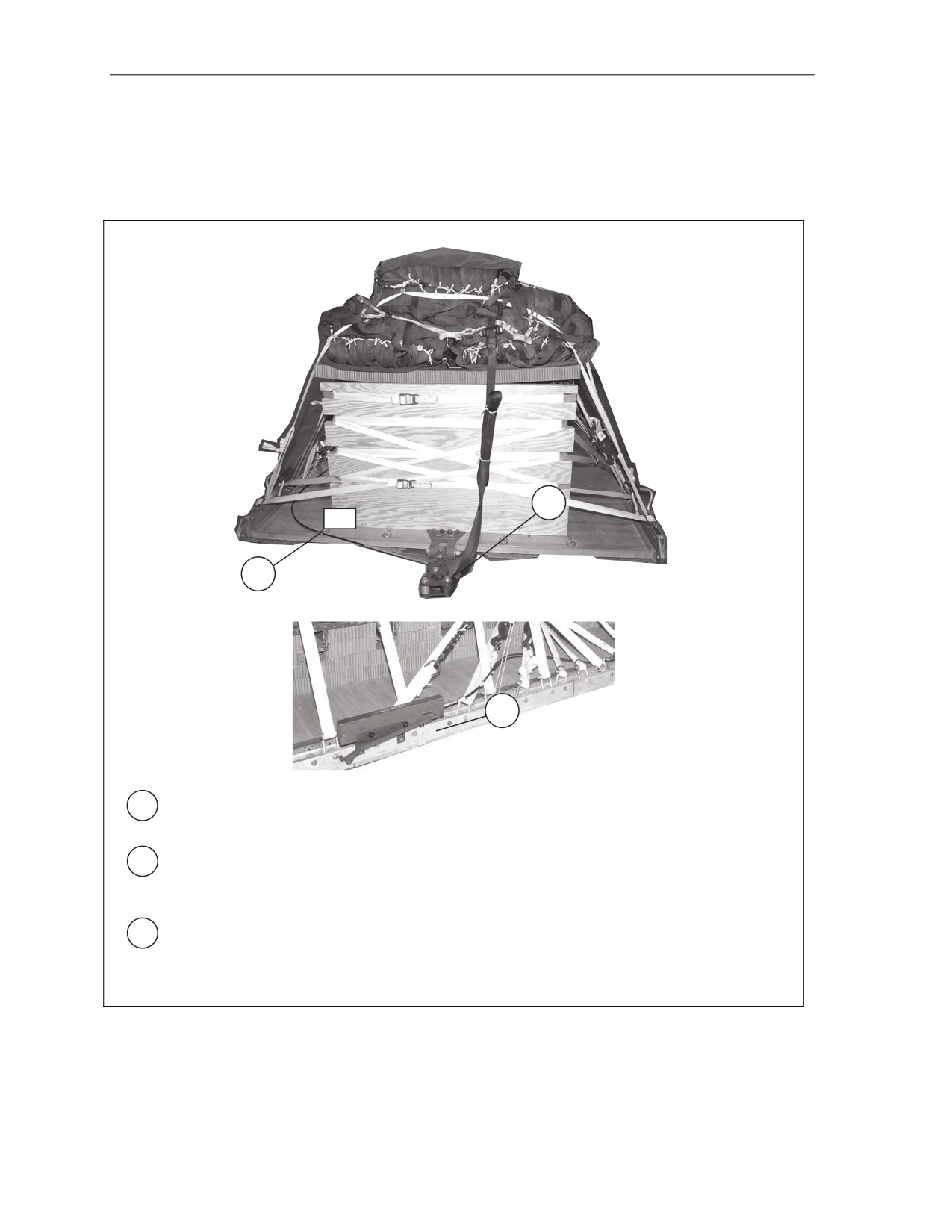

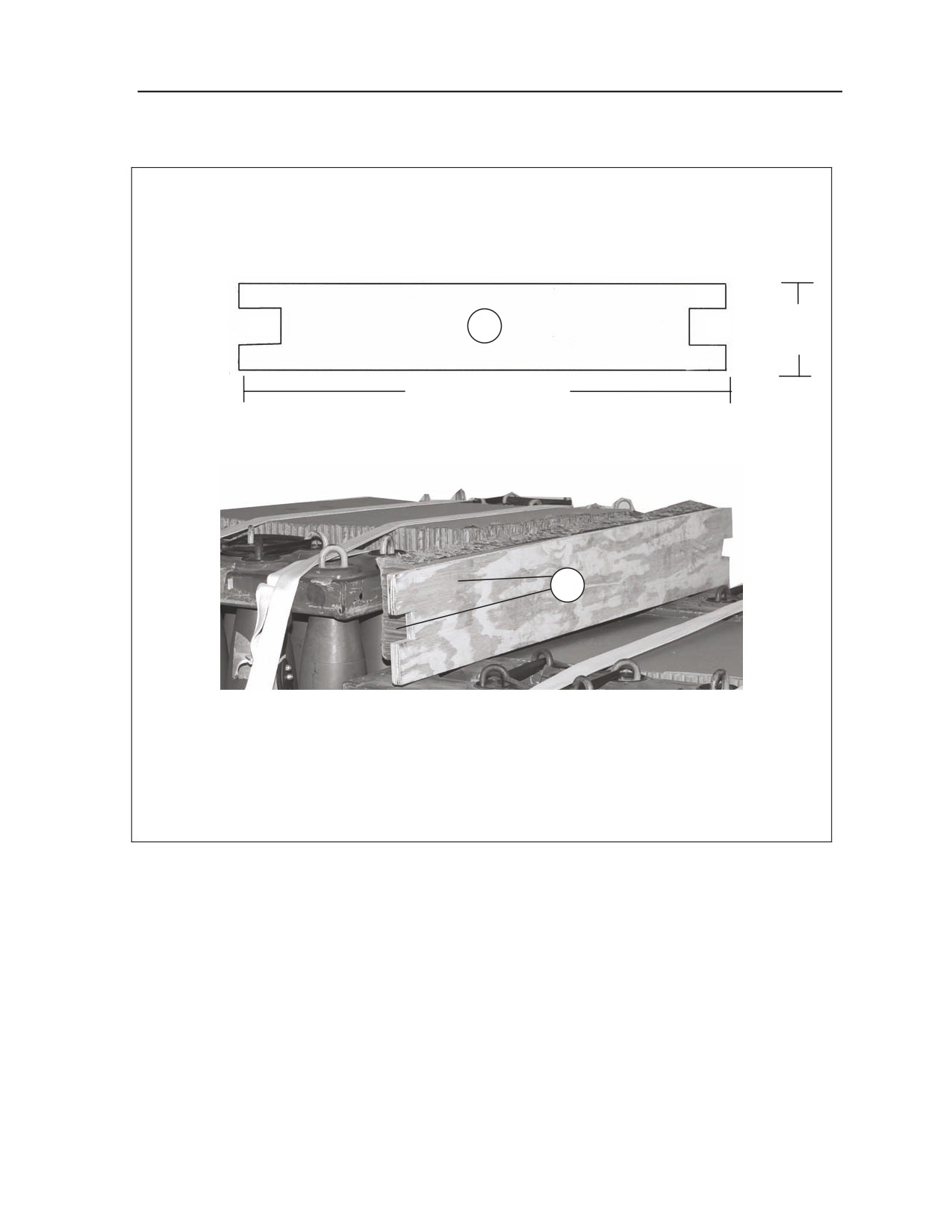

1 Position one 36- by 60-inch piece of honeycomb flush on the rear edge of the ammunition
stack. Tape the edges of the honeycomb with 2-inch adhesive tape and secure the
honeycomb to the lateral lashings with type III nylon cord.
2 Position another 36- by 60-inch piece of honeycomb flush against the first piece of
honeycomb. Tape the edges of the honeycomb with 2-inch adhesive tape and secure the
honeycomb to the lateral lashings with type III nylon cord. Make sure the deadman’s tie
and suspension slings are on top of the honeycomb.

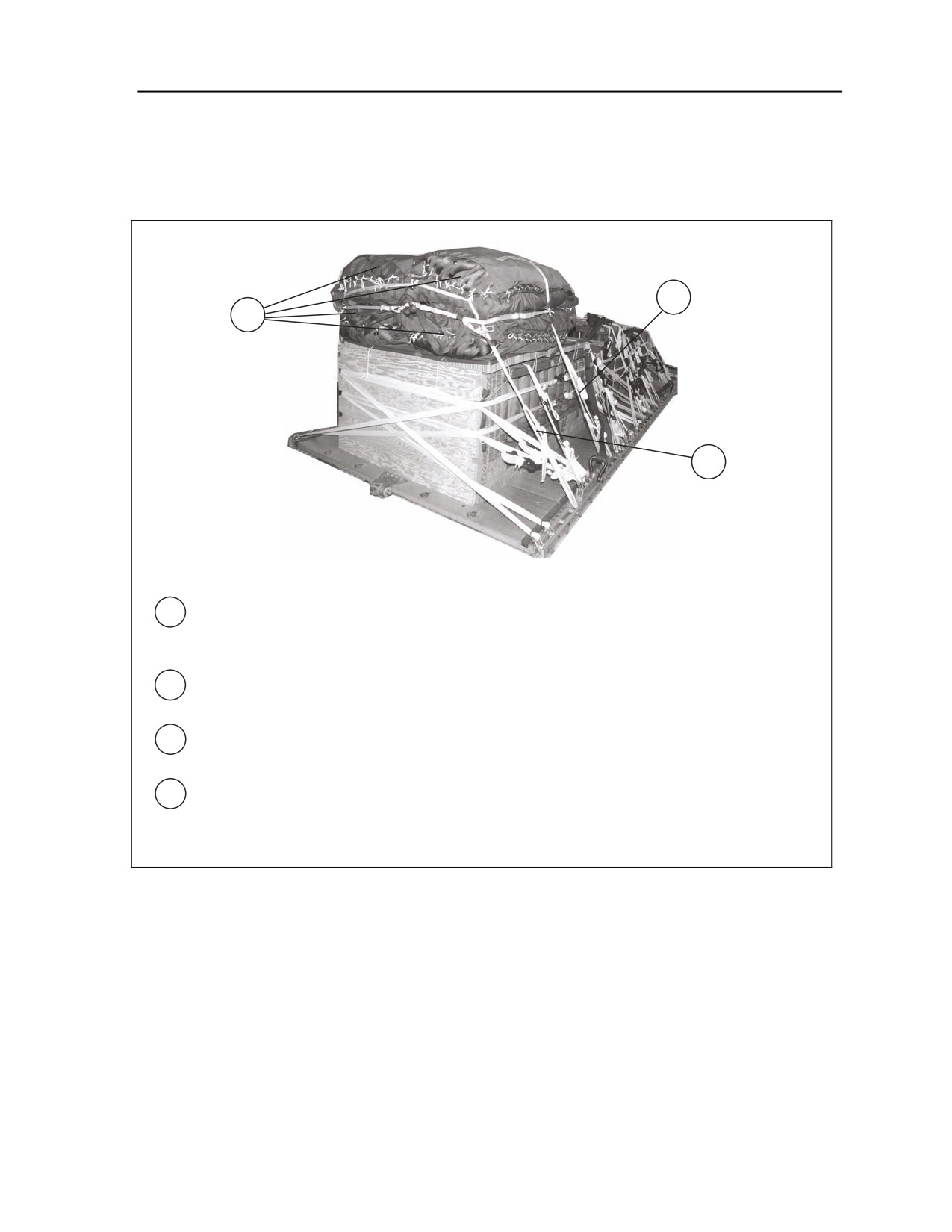

Figure 8-37. Parachute Stowage Platform Positioned and Secured
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-89
Chapter 8
PREPARING AND STOWING CARGO PARACHUTES
8-46. Prepare and stow the cargo parachutes according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-38.
4
1
2
3

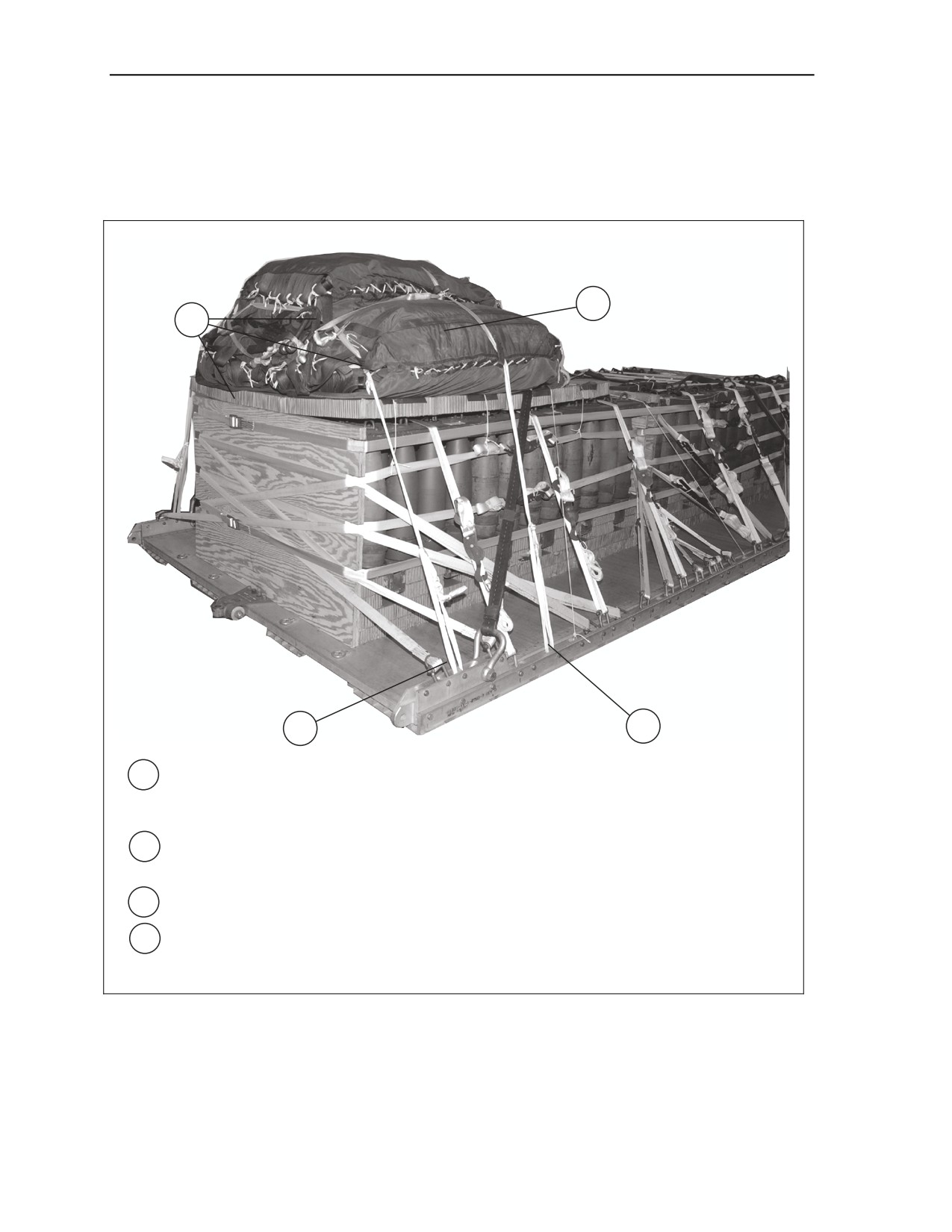

1 Prepare, position, and stow three G-11B cargo parachutes on top of the pre-positioned
honeycomb according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
2 Install the rear cargo parachute restraint using type VIII nylon webbing on the second
bushing on the rear suspension link.
3 Install the front cargo parachute restraint using type VIII nylon webbing on bushing 27.
4 Install the parachute release straps according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 8-38. Cargo Parachutes Prepared and Stowed
8-90
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
INSTALLING THE RELEASE SYSTEM
8-47. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-39.
3
2
1
2
3
4
1 Prepare and install the M-1 cargo parachute release on the front portion of the honeycomb
parachute platform and attach the suspension slings and riser extensions.
2 Safety the top and bottom of the release to convenient places on the load with type III
nylon cord according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
3 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton
webbing.
4 Tie the two sections of the deadman’s tie together in the center with a length of type I, 1/4-
inch cotton webbing.
Figure 8-39. M-1 Cargo Parachute Release Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-91
Chapter 8
INSTALLING THE EXTRACTION SYSTEM
8-48. Install the extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 8-40.
3
D8
2
1

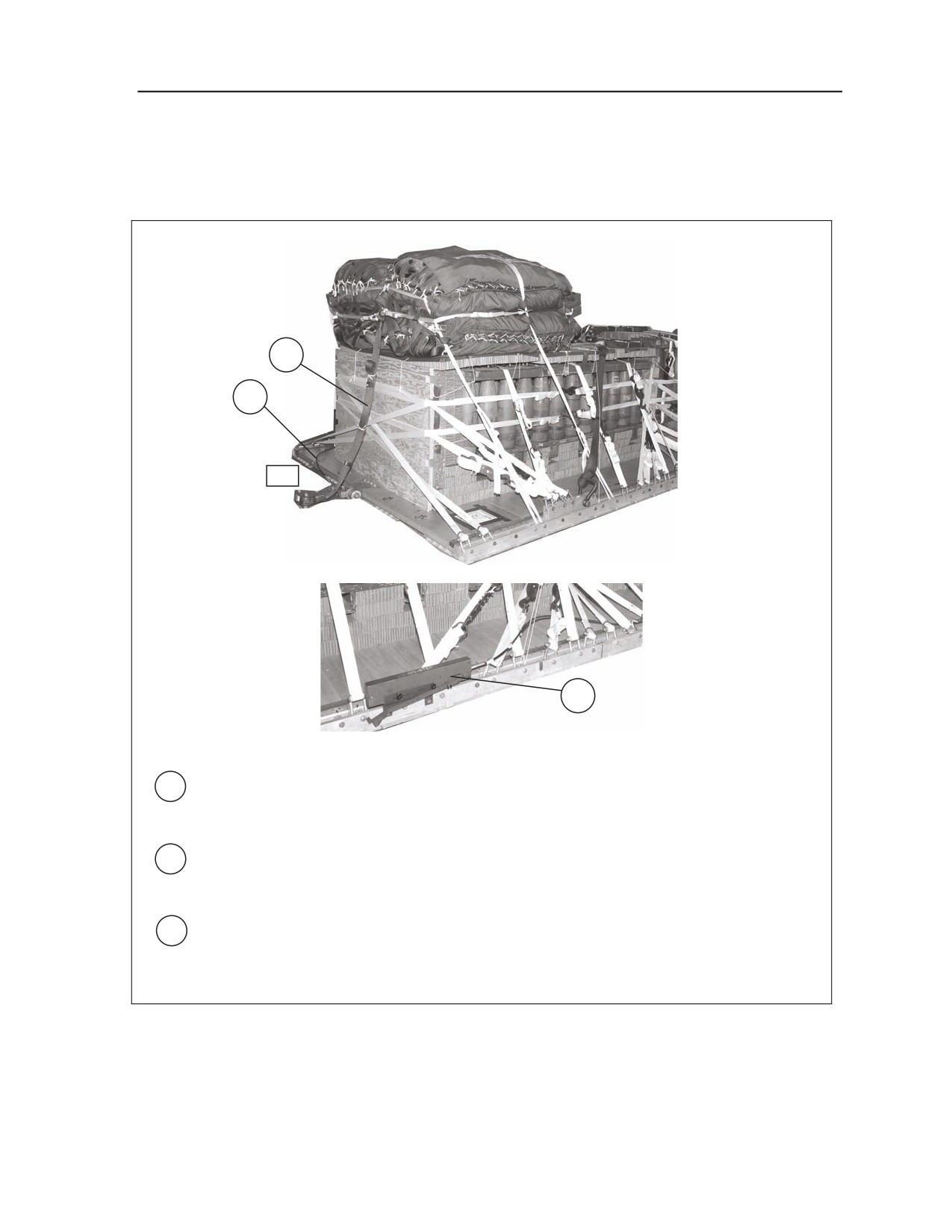

1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the front mounting holes for the EFTC brackets.
2 Install a 16-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to tiedown ring D8 with one turn of type I,
1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 8-40. Extraction System Installed
8-92
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
8-49. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
8-50. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
8-51. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 8-41. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
8-52. Use the equipment listed in Table 8-3 to rig this load.
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-93
Chapter 8
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight:
11,460 pounds
Minimum Weight
5,040 pounds
Maximum Suspended Weight
14,250 pounds
Height
73 inches
Width
108 inches
Overall Length
192 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
96 inches
Extraction System with 24-foot cable (adds 18 inches to length of platform)
EFTC

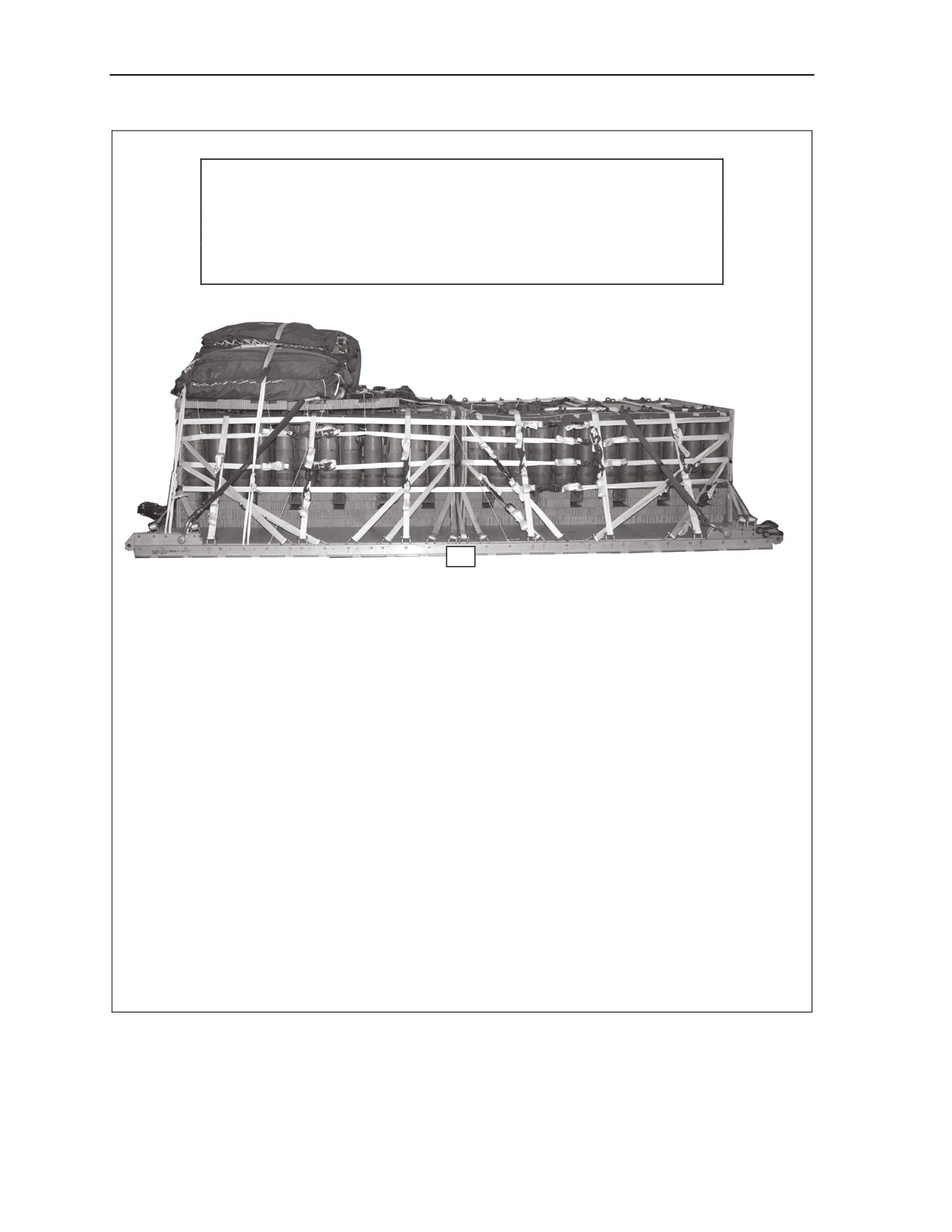

Figure 8-41. 155-MM Ammunition (MACS PAC) Rigged on a 16-Foot, Type V Platform for Low-
Velocity Airdrop
8-94
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
Table 8-3. Equipment Required for Rigging 155-MM Ammunition (MACS PAC) Rigged on a
16-Foot, Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
8305-00-880-8155
Clevis, suspension: 1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5785
Coupling, airdrop, extraction force transfer with
As required
16-foot cable
1
1670-00-360-0328
Cover, clevis, large
3
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8310-00-958-3685
Felt, ½-inch thick
As required
1670-01-183-2678
Leaf, extraction line (line bag) (add 2 for C-17)
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop), type XXVI
1
1670-01-468-9178
140-foot (6-loop), type XXVI
1
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
1670-01-493-6418
Link assembly, two-point:
1
5351-00-010-4659
Nail, steel wire, common 8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb
44 sheets
Parachute:
1670-01-016-7841
Cargo, G-11
3
1670-00-063-3716
Cargo, extraction, 22-foot
1
1670-01-063-3715
Cargo, extraction, 15-foot for C-17
1
Platform, airdrop, type V, 16-foot
1
1670-00-128-4981
Plywood, ¾- by 48- by 96-inches
8 sheets
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
48
1670-01-162-2381
Tandem link
4
1670-01-097-8817
Release, cargo parachute, M-1
1
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-95
Chapter 8
Table 8-3. Equipment Required for Rigging 155-MM Ammunition (MACS PAC) Rigged on a
16-Foot, Type V Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
1670-01-062-6313
60-foot (3-loop), type XXVI nylon webbing
4
5340-00-040-8219
Strap parachute release, multicut
2
7501-00-266-5016
Tape, adhesive, 2-inch
As required
7501-00-266-6710
Tape, masking
As required
1670-00-937-0271
Tiedown assembly, 15-foot
52
1670-01-483-8259
Towplate release mechanism (H-block) (C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-268-2455
Tubular, 1/2-inch, OD 7
As required
8305-00-268-2455
Tubular, 1-inch
As required
8305-00-263-3591
Type VIII webbing
As required
8-96
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
SECTION IV-RIGGING THE MACS PAC ON A 20-FOOT, TYPE V PLATFORM
DESCRIPTION OF LOAD
8-53. Ninety-six 155-mm projectiles, 79 power canisters and 15 fuse cans are rigged for low-velocity
airdrop on a 20-foot, type V platform. The load uses three G-11B cargo parachutes. Refer to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 for the weight limitations and for
the number of parachutes to be used.
Notes.
1. The load shown is using metal crates. However, wooden crates may be used with three
lashings and a load binder.
2. If the metal locking rods are missing, three lashings, D-rings and load binders will be needed.
PREPARING PLATFORM
8-54. Prepare a 20-foot, type V platform as shown in Figure 8-42.
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-97
Chapter 8
CLEVISES
30A THROUGH 1A
LEFT
REAR
FRONT
RIGHT
CLEVISES
30 THROUGH 1
Step:
1. Inspect, or assemble and inspect, a 20-foot, type V platform as outlined in TM 10-1670-268-
20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a suspension bracket on each platform using side rail holes 6, 7, 8, 33, 34, and 35.
4. Install clevises on bushings 1 and 2 of each front tandem link.
5. Install clevises on bushings 1, 2, 3, and 4 of each front suspension bracket.
6. Install clevises on bushings 2, 3, and 4 of each rear suspension bracket.
7. Starting at the front of each platform side rail, install clevises on the bushings bolted to holes
5, 10, 13, 14, 15, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 39, and 40.
8. Starting at the front of the platform, number the clevises 1 through 30 on the right side, and
1A through 30A on the left side.
9. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.

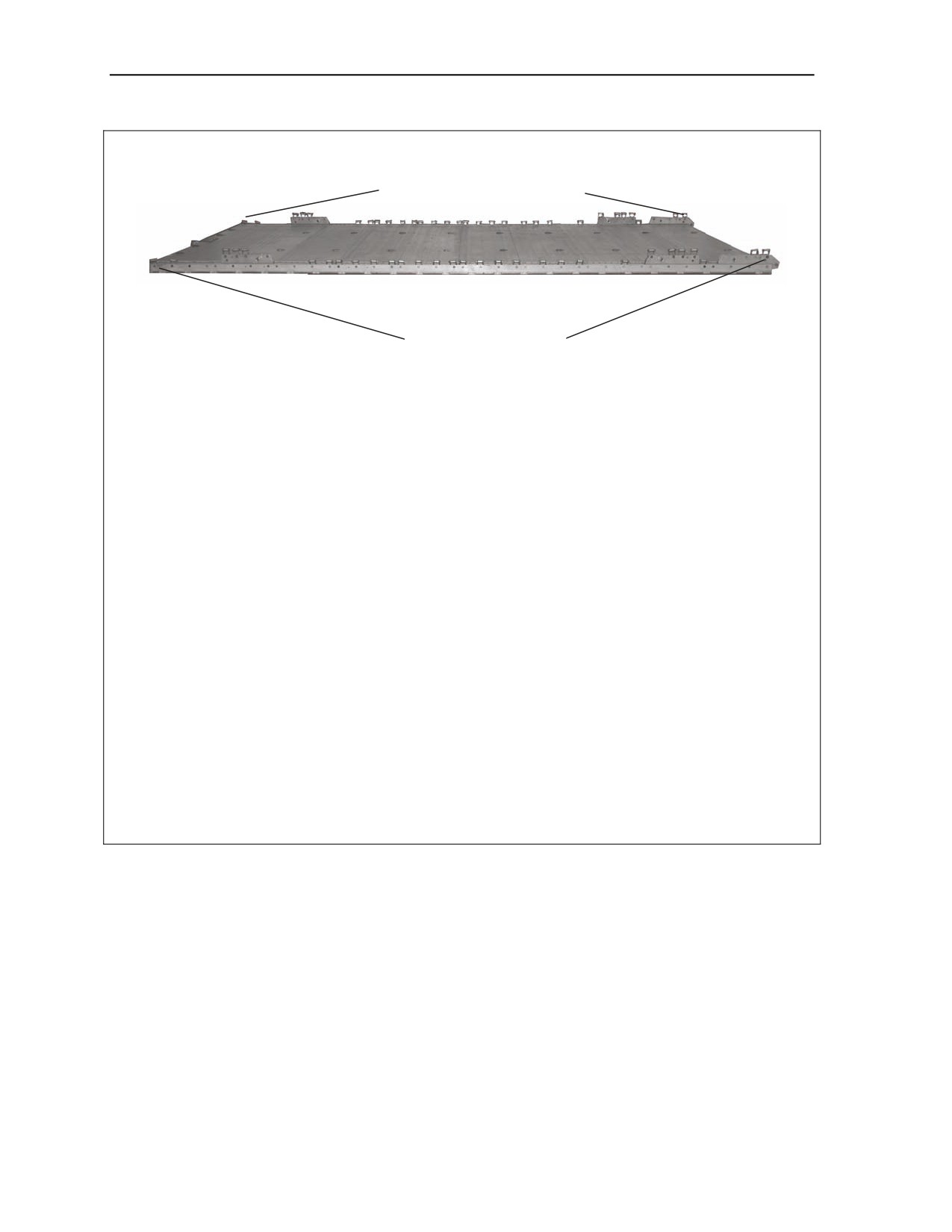

Figure 8-42. Platform Prepared
8-98
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop

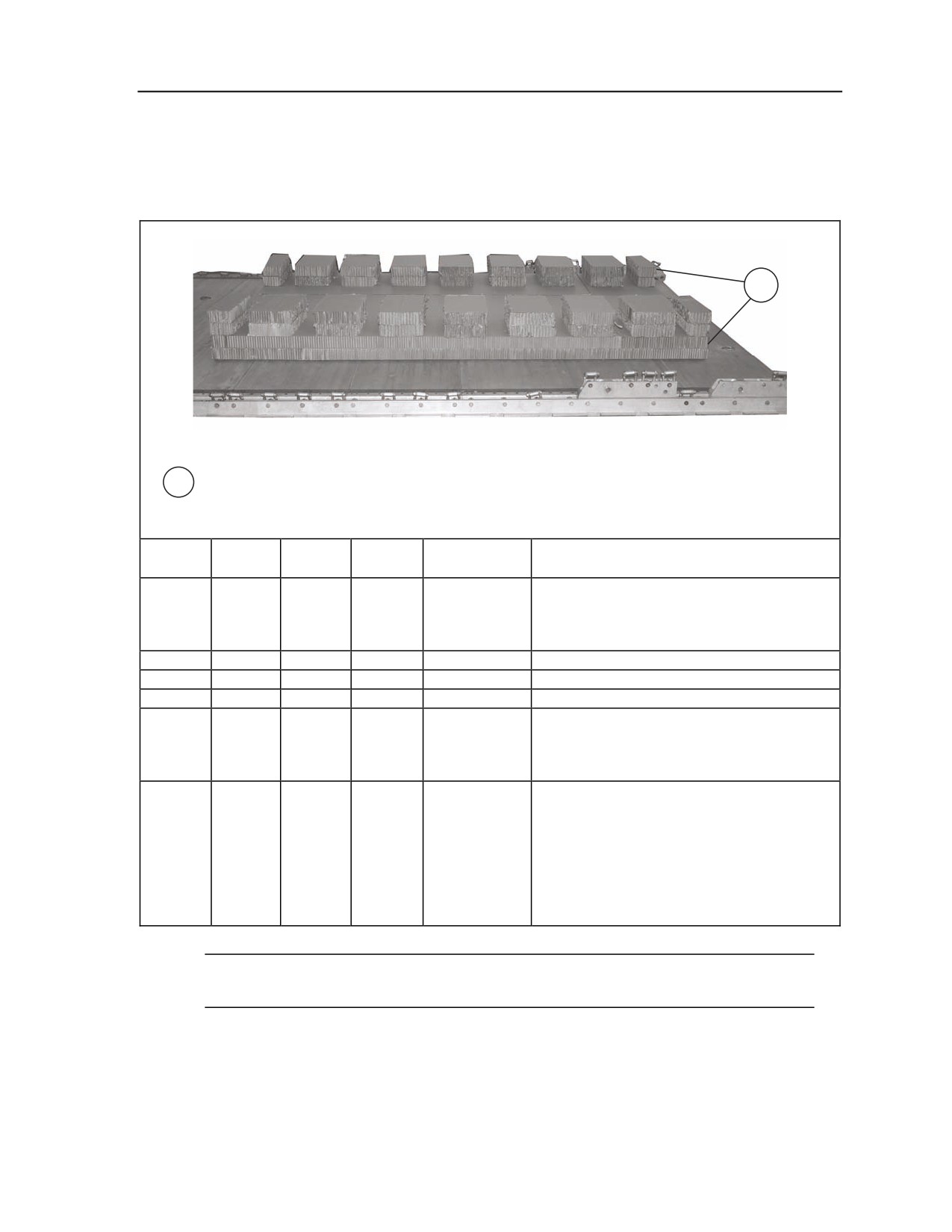

BUILDING AND POSITIONING HONEYCOMB STACK 1
8-55. Prepare honeycomb stack 1 and position stack 1 as shown in Figure 8-43.
1
1 Position stack 1 centered 12 inches from the front edge of the platform.
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
1
2
36
96
Honeycomb
Form a two layer base 117 inches long
and 60 inches wide. Alternate the layers
of honeycomb. Center the stack 12 inches
from the front edge of the platform.
2
24
96
Honeycomb
Included with the first step.
2
24
21
Honeycomb
Included with the first step.
2
36
21
Honeycomb
Included with the first step.
8
15
5
Honeycomb
Make four stacks of two. Place the stacks
of honeycomb on each corner of the base
with the
5-inch sides on the
117-inch
sides of the honeycomb.
28
15
10
Honeycomb
Form fourteen stacks of two. Center a
stack of honeycomb along each 117-inch
side of the base, with the 10-inch sides
facing the left and right sides of the
platform. Evenly space two layer pieces of
honeycomb between the center and
corner pieces. The spaces between the
pieces are 4 1/2 inches.
Note. Do not glue the 15- by 5 and 15- by 10-inch honeycomb stacks to the base stack. Slight
adjustments may be necessary as you place the projectiles.
Figure 8-43. Honeycomb Stack 1 Prepared and Positioned on the Platform
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-99
Chapter 8
POSITIONING AND SECURING THE FIRST AMMUNITION STACK
8-56. Position and secure the first ammunition stack according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-44.

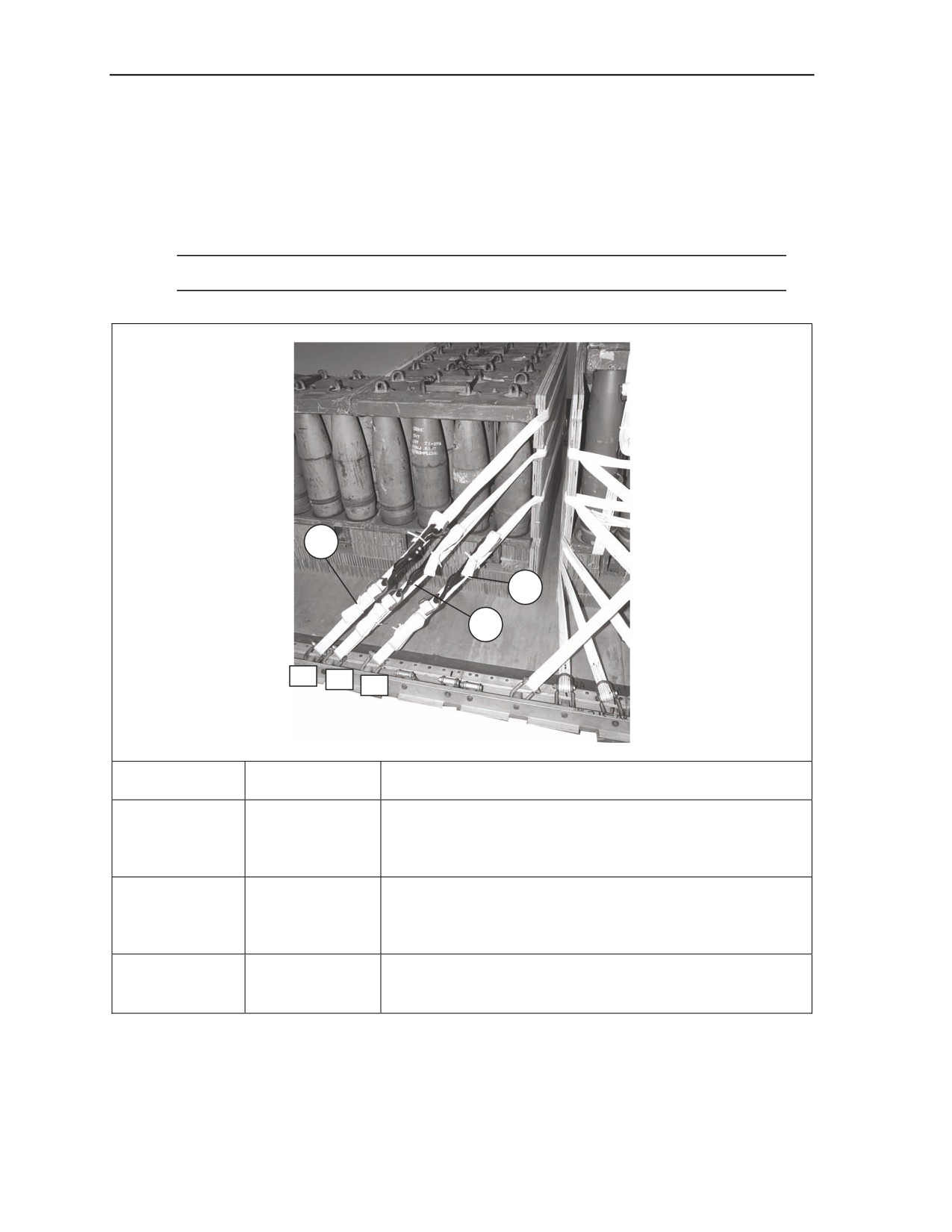

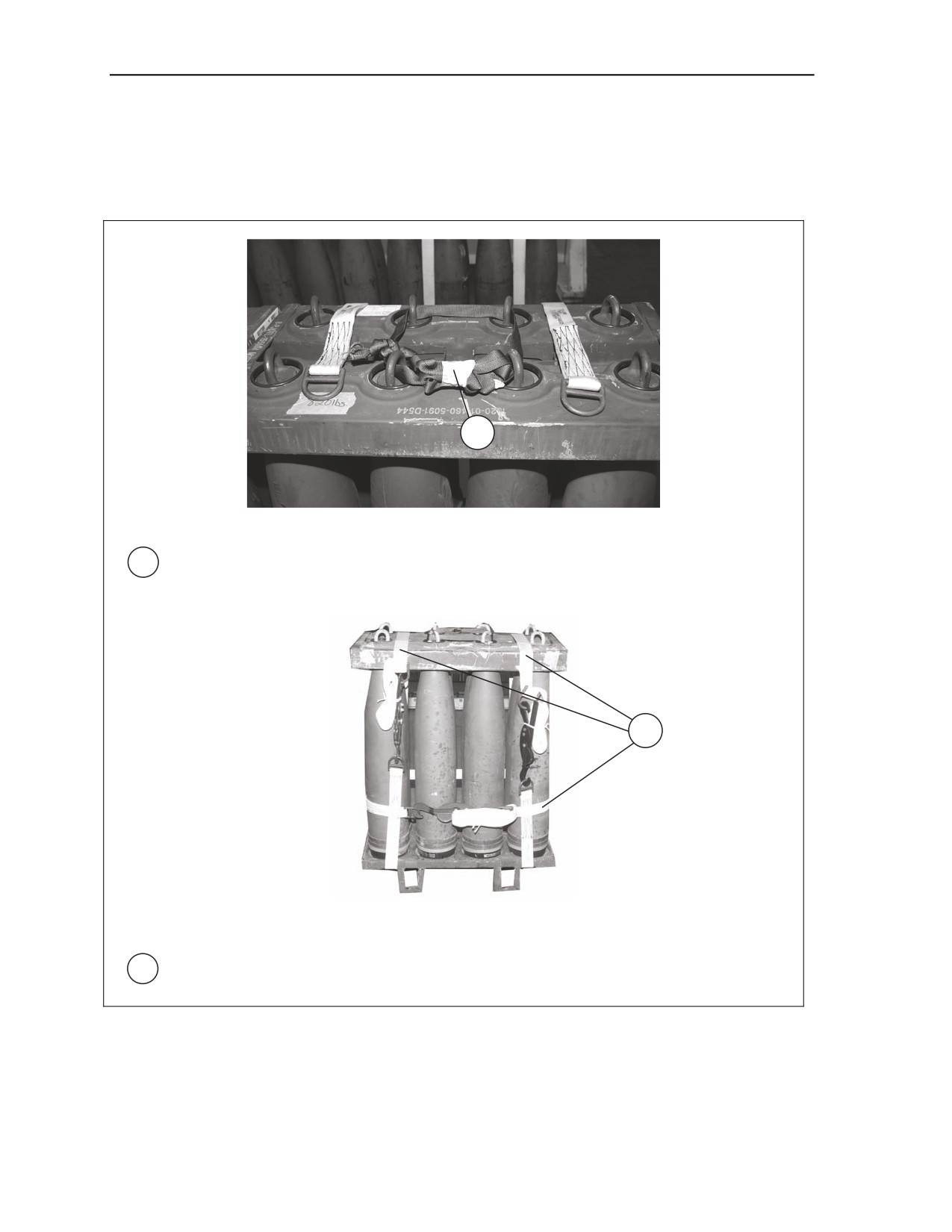

1

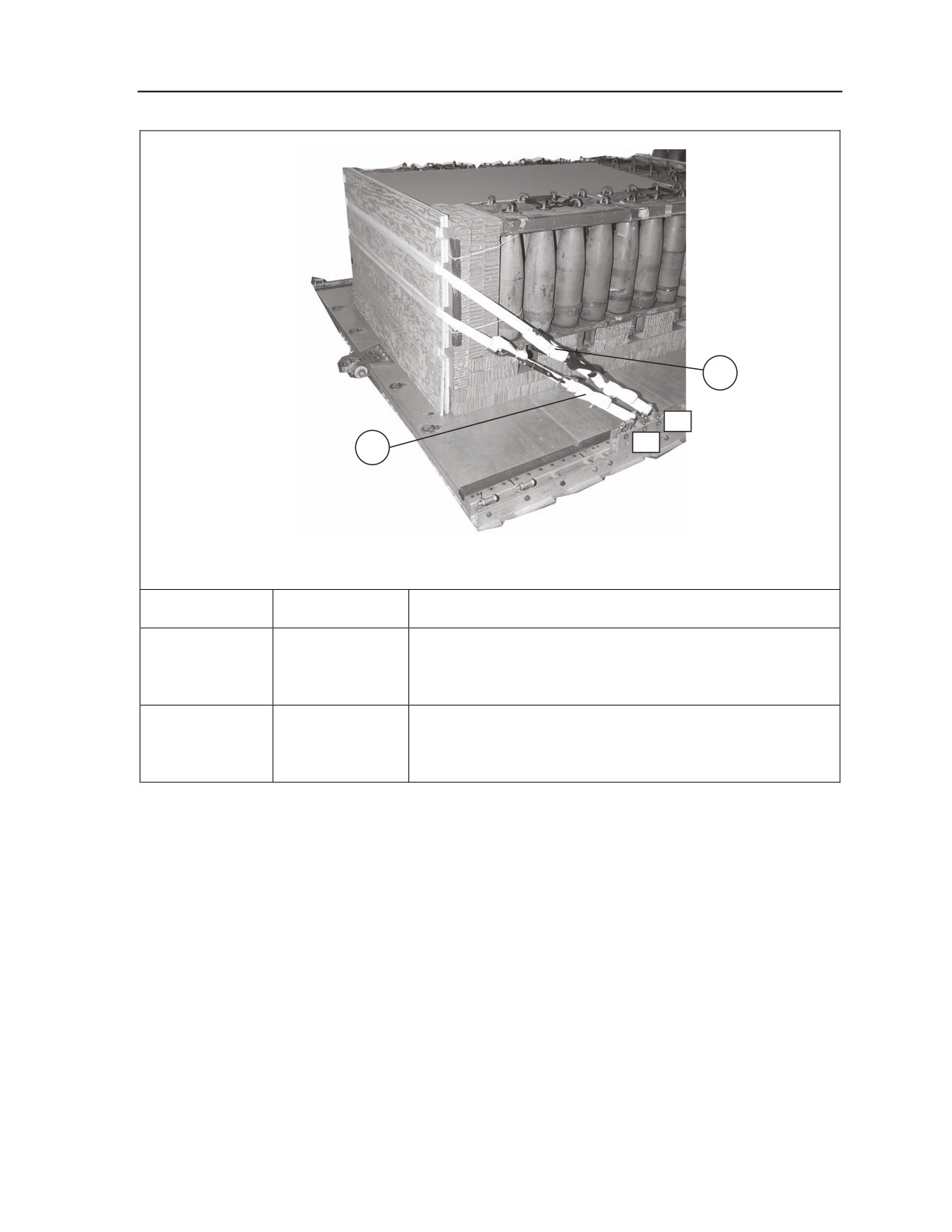

1 Tie the four center eyelets of each bundle together with 1-inch tubular nylon webbing.
Secure with a surgeon’s knot locking knot and cover with cloth backed tape. Use for lifting
purposes only.
2
Note. The racks of projectiles will need three lashings if the locking pins of the racks are missing.
2 Lash the racks of the M483A1 if the locking pins are missing.

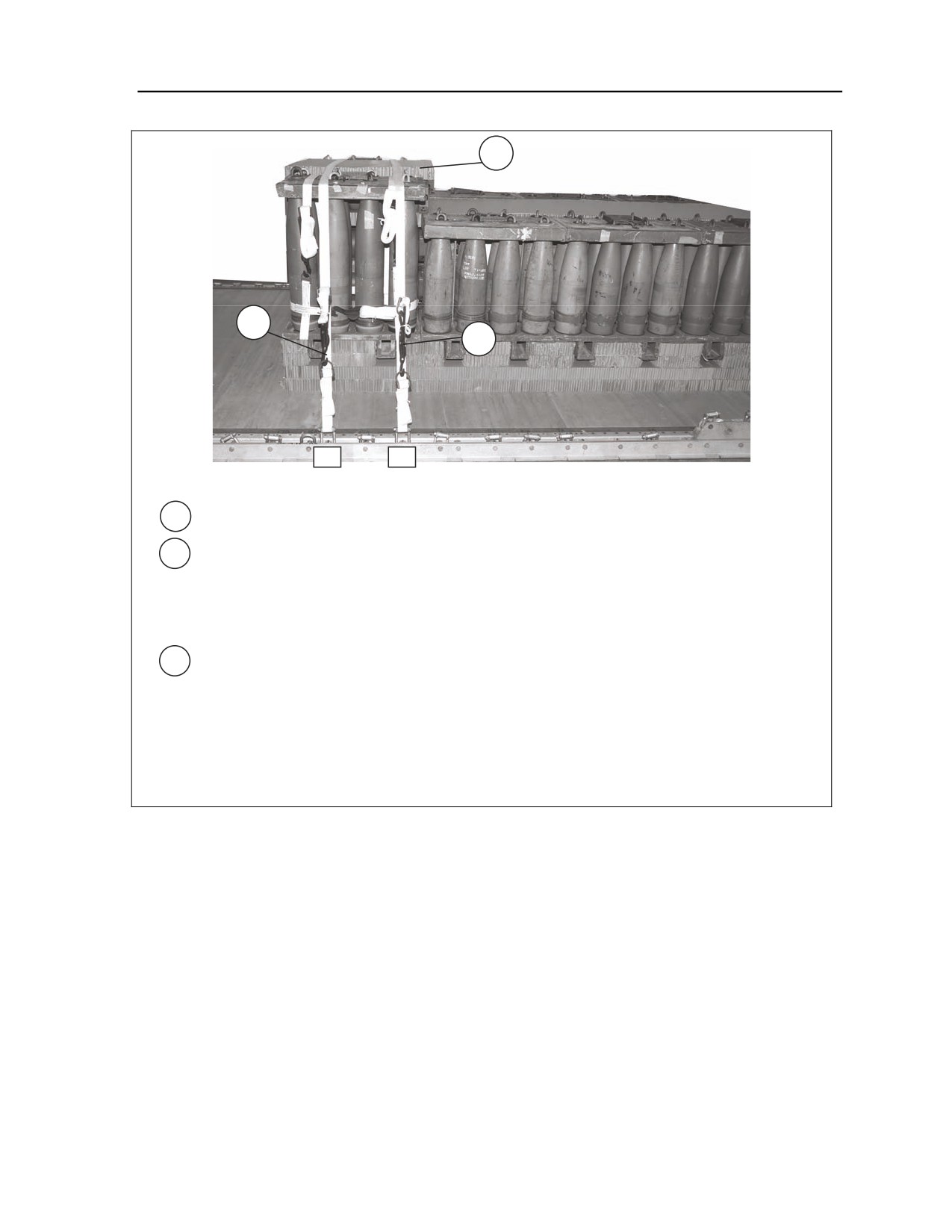

Figure 8-44. Ammunition Positioned and Secured
8-100
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
3
4

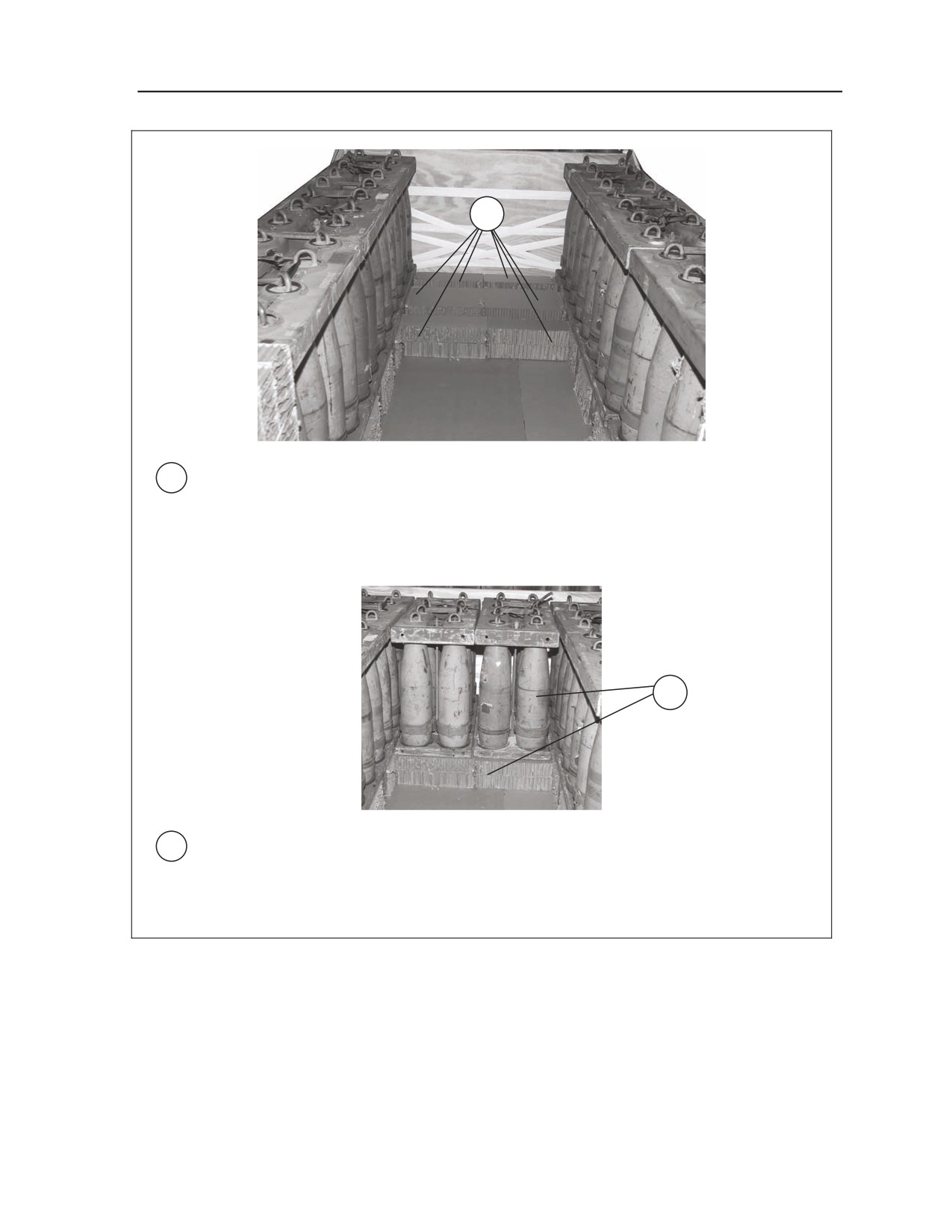

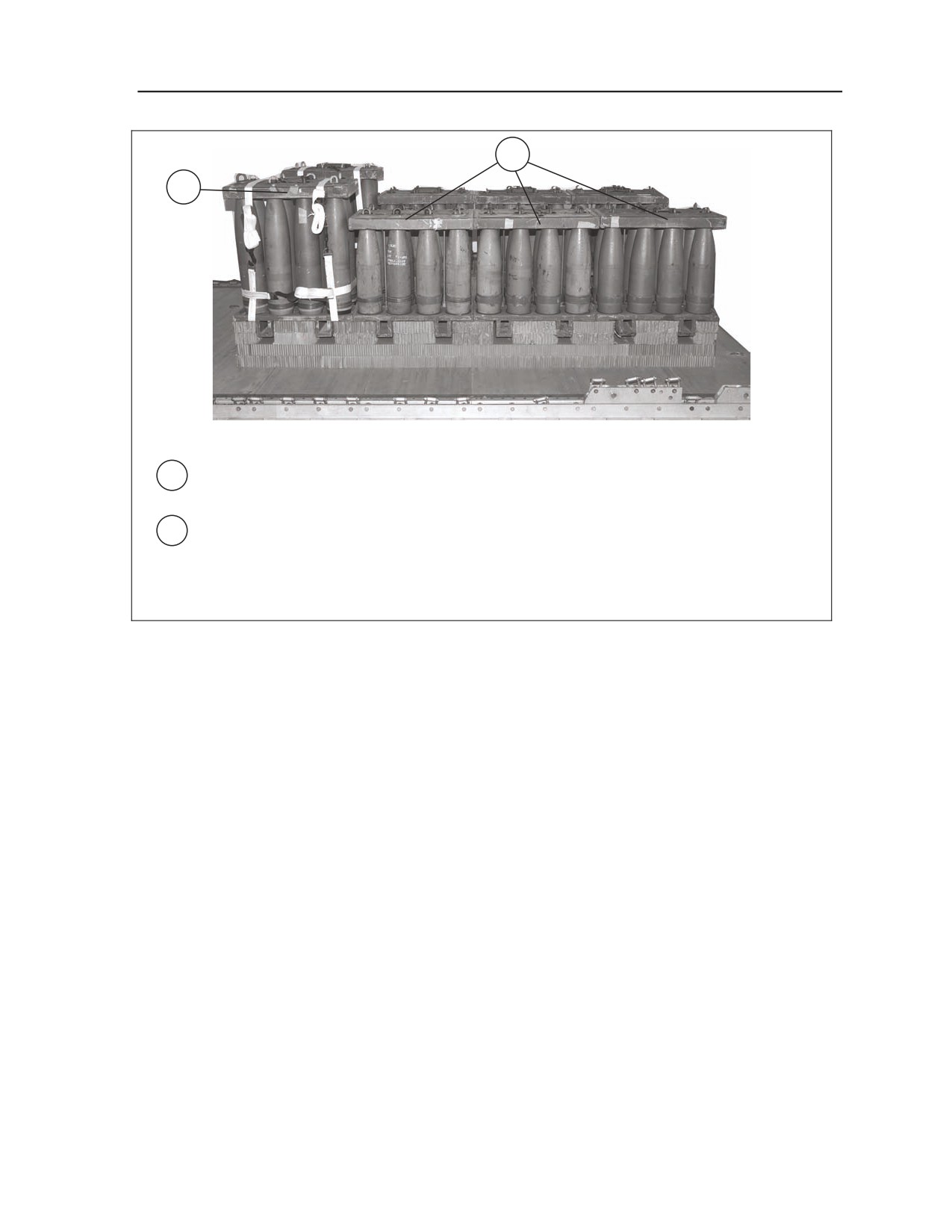

3 Position three sets of M107 projectiles flush on stack 1 on each side starting from the front.
Fit the skids on the bottom of the racks into the slots in the honeycomb stack.
4 Position an M483A1 projectile set flush on each side of the rear edge of stack 1. Fit the
skids on the bottom of the racks into the slots in the honeycomb stack.
Figure 8-44. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-101
Chapter 8
5

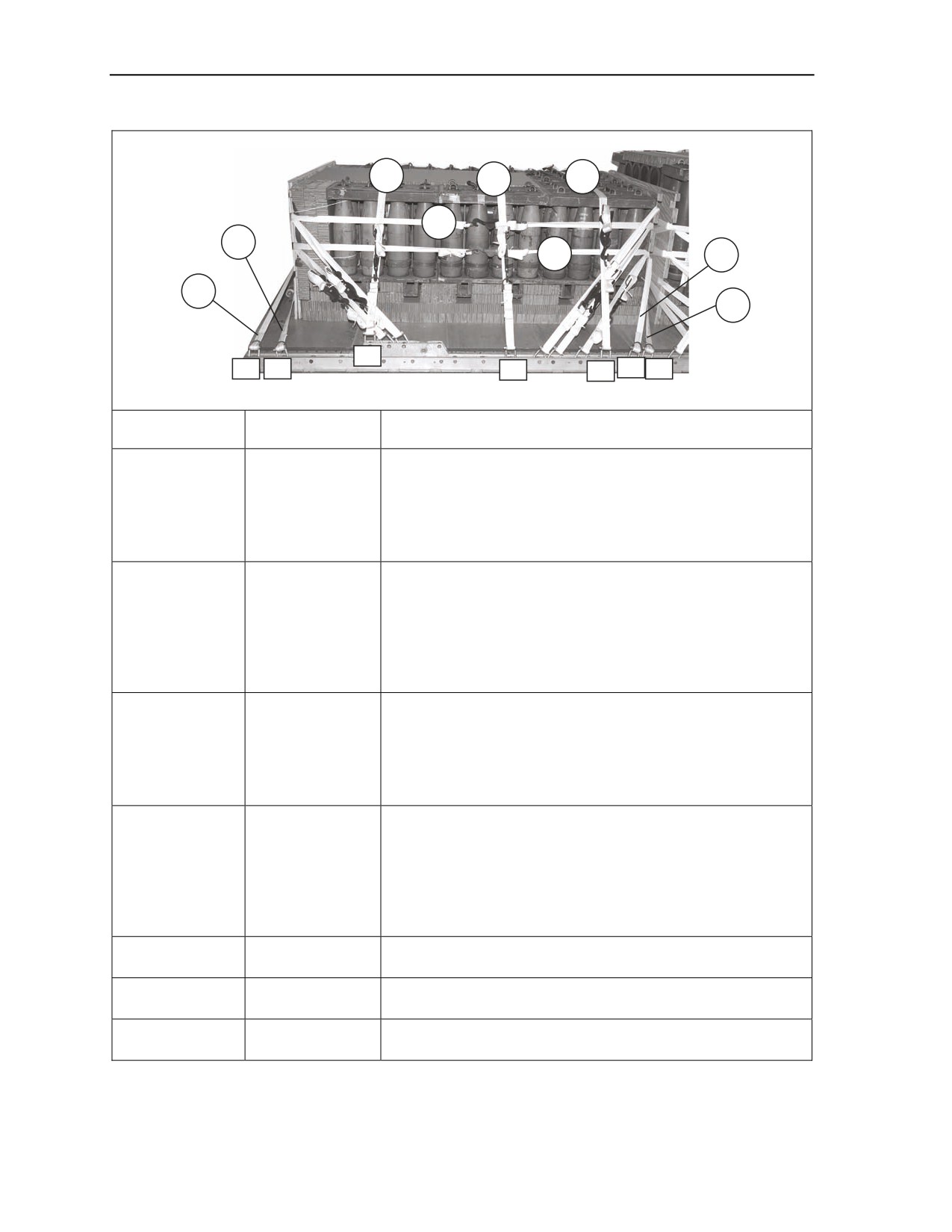

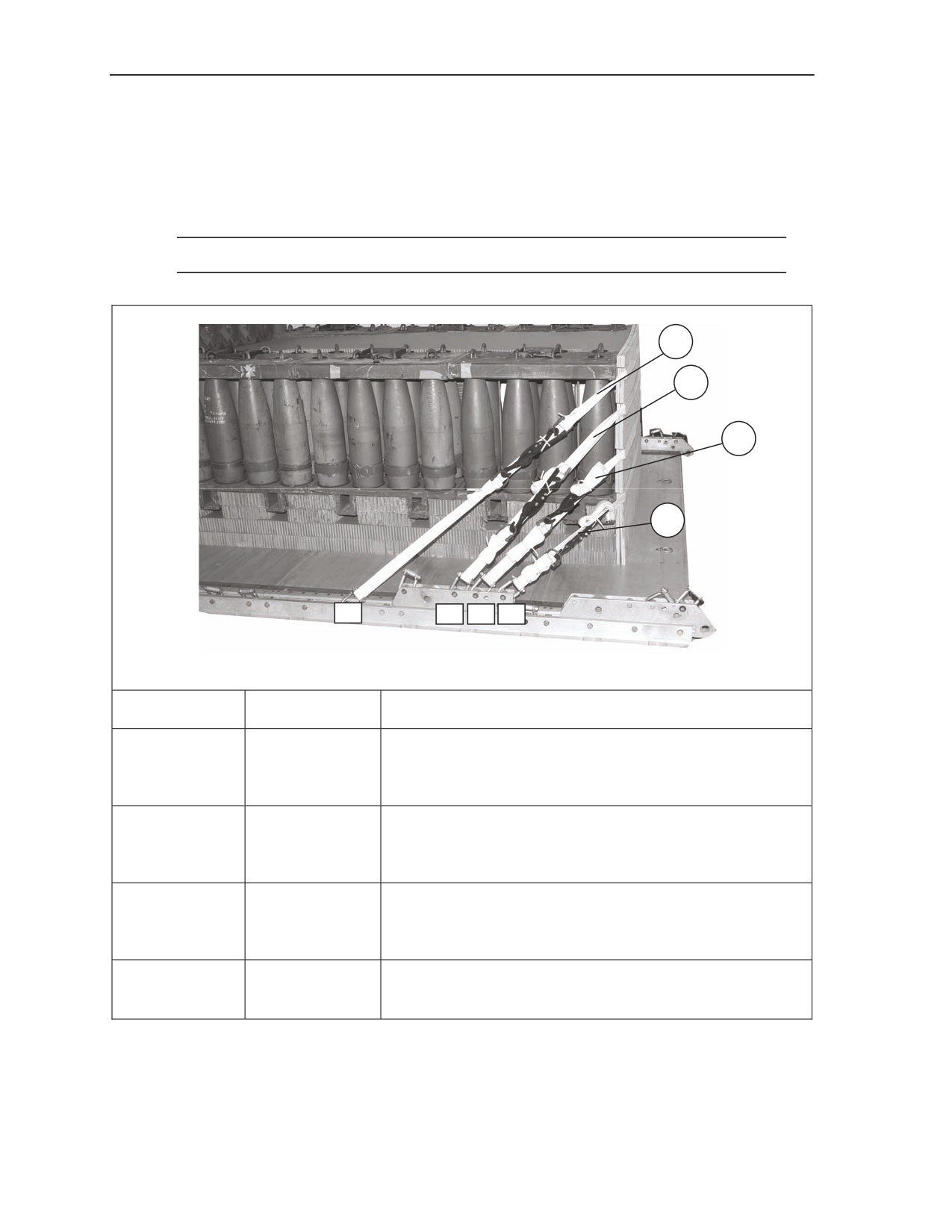

6
5

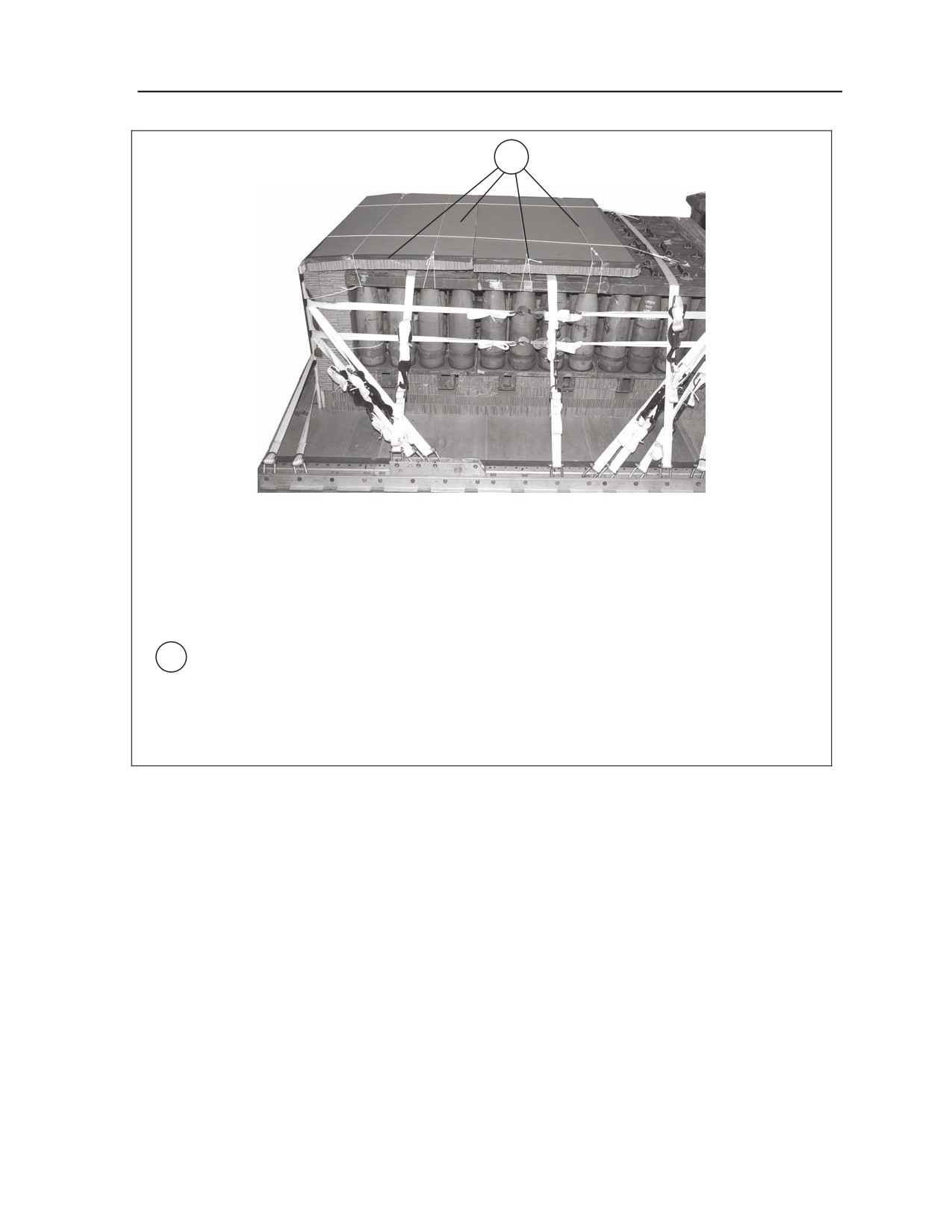

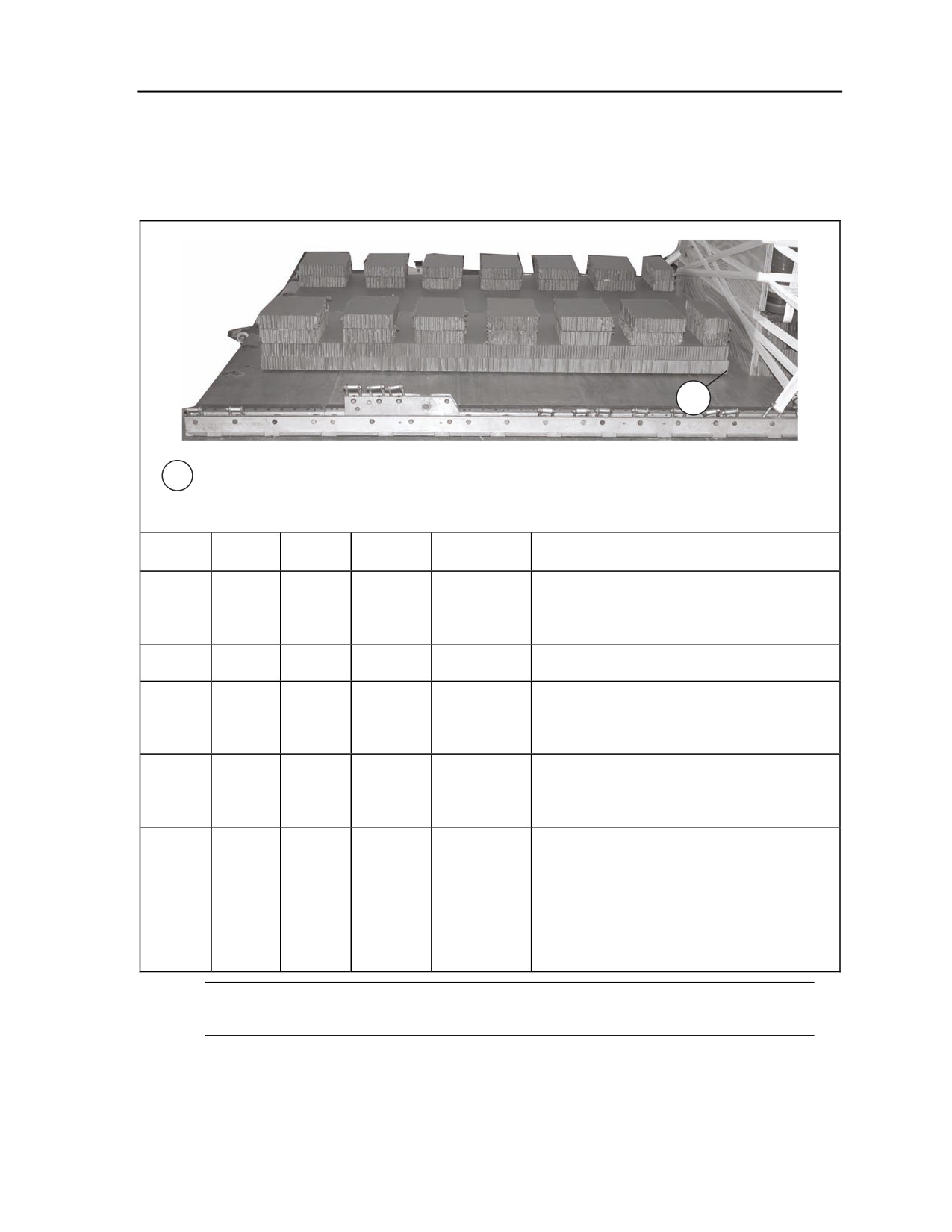

5 Place a 15-foot tiedown lashing 10 inches from the front and rear edge of honeycomb
stack 1 in a right to left direction according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.

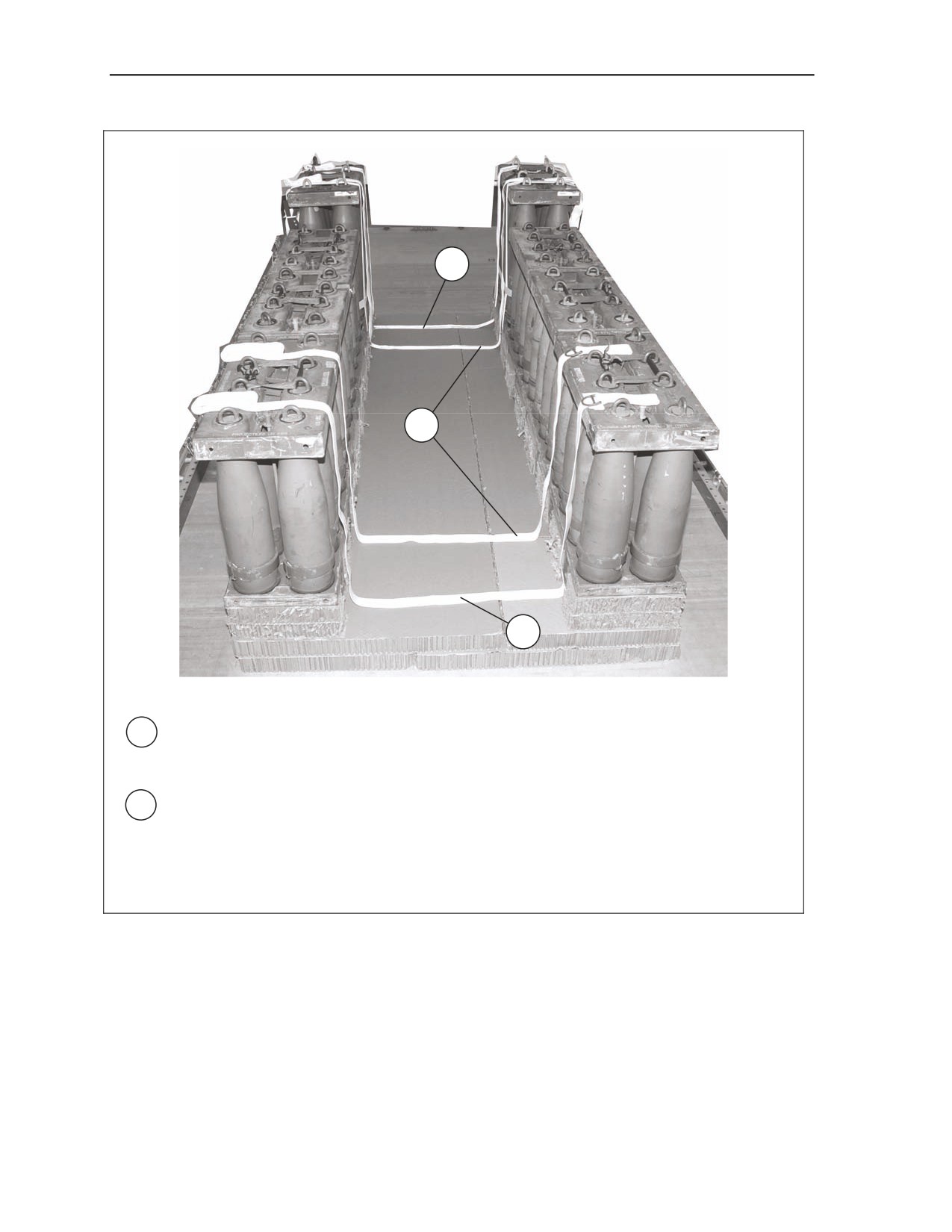

6 Place a 15-foot tiedown lashing 24 inches from the front and rear edge of honeycomb
stack 1 in a right to left direction according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 8-44. Ammunition Positioned and Secured (Continued)
8-102
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
13
14
12
11
10
9
8
7

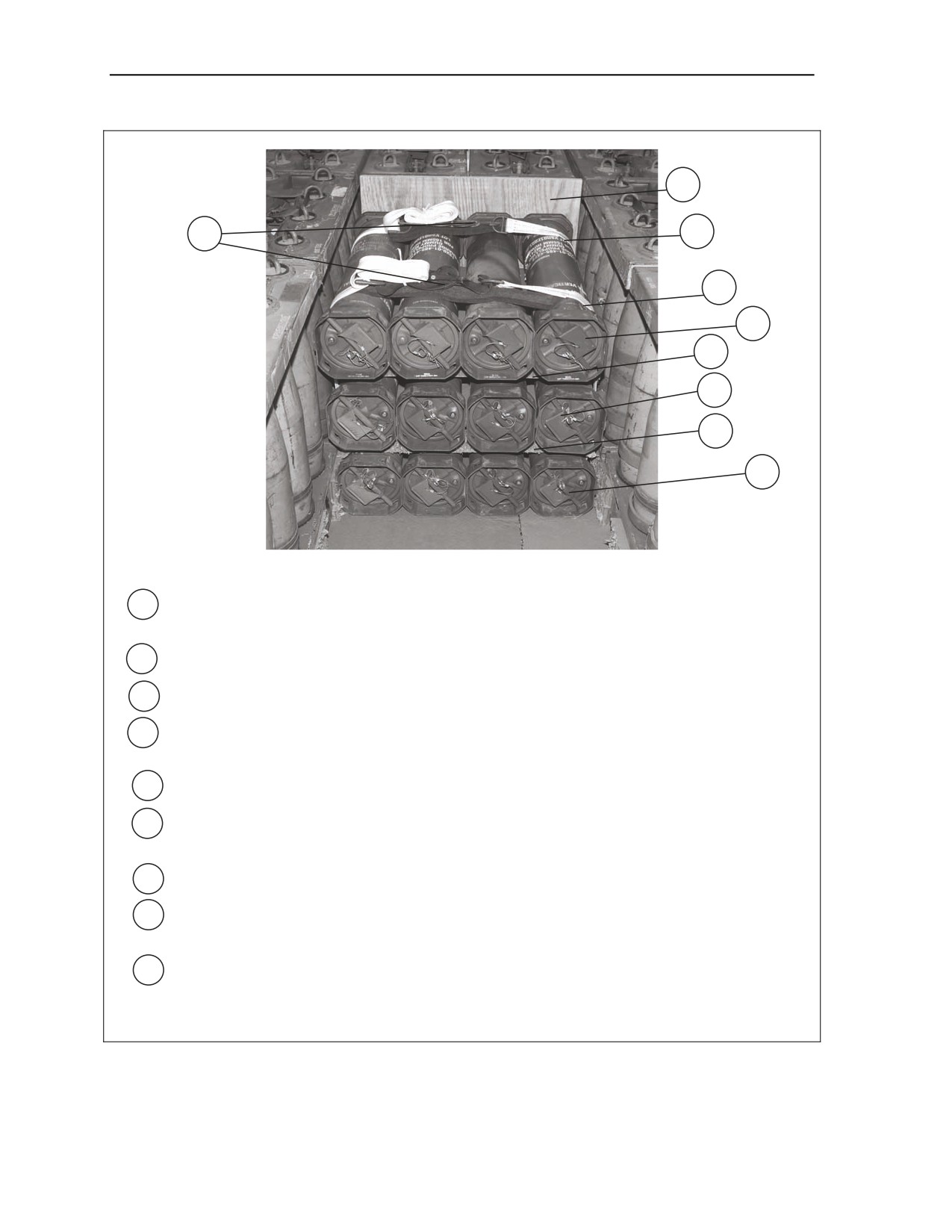

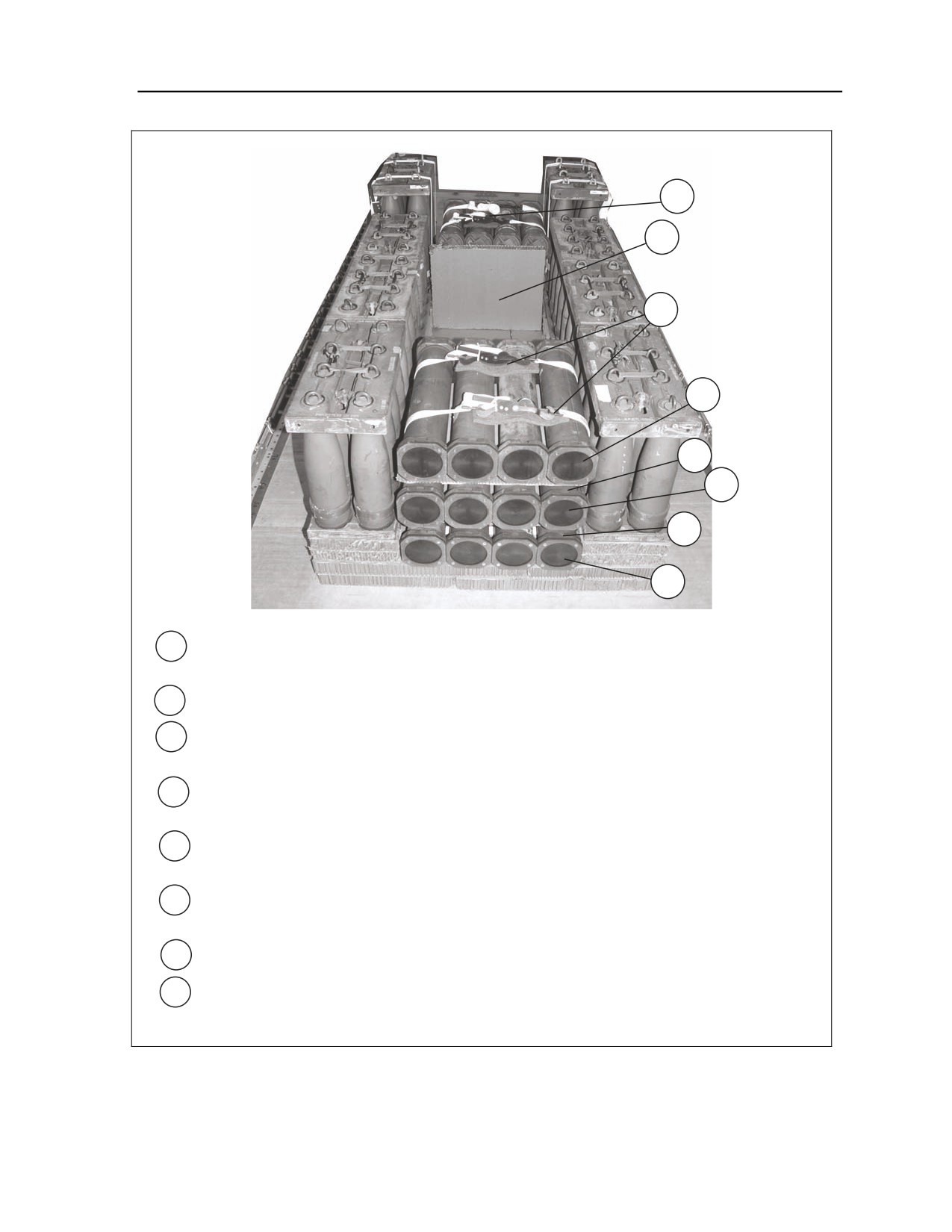

7 Position four powder canisters on each of the front pre-positioned lashings with the
canister flush with the front edge.
8 Place a 30- by 24-inch piece of honeycomb over each group of four canisters.
9 Place a second layer of powder canisters on top of the 30- by 24-inch piece of honeycomb
which was placed over each group.
10 Place a second layer of 30- by 24-inch honeycomb over the second layer of each canister
group.
11 Place a third layer of four powder canisters on top of the 30- by 24-inch piece of
honeycomb over each group.
12 Secure the pre-positioned lashings over the canisters. Pad the area between the canisters
and the load binders with a piece of felt.
13 Repeat steps 7 through 12 on the rear edge.
14 Cut a 30- by 24-inch piece of honeycomb and place it to the front of the rear set of
projectiles.
Figure 8-44. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-103
Chapter 8
15

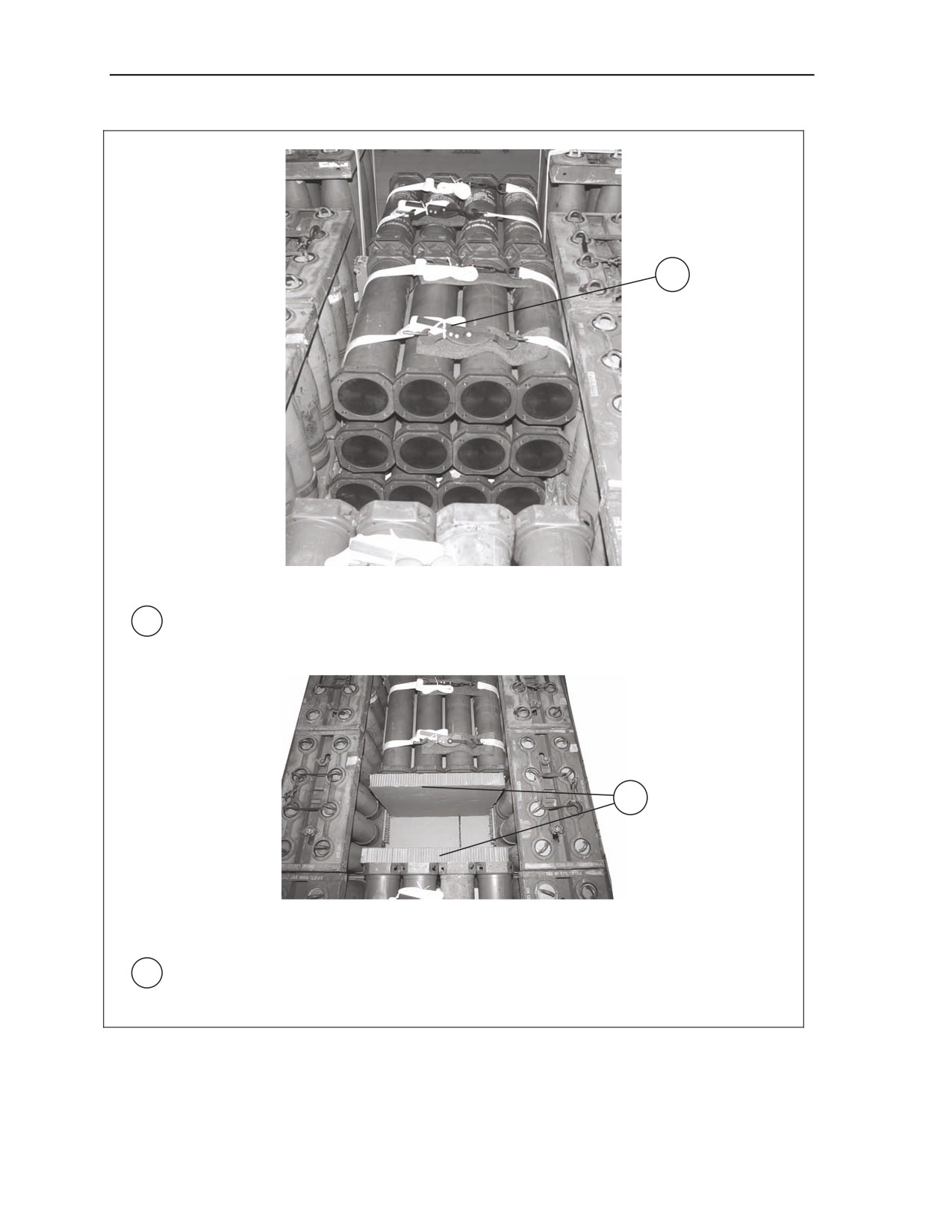

15 Repeat steps 7 through 12 and place the canisters to the front of the rear canisters against
the honeycomb placed in step 14.
16

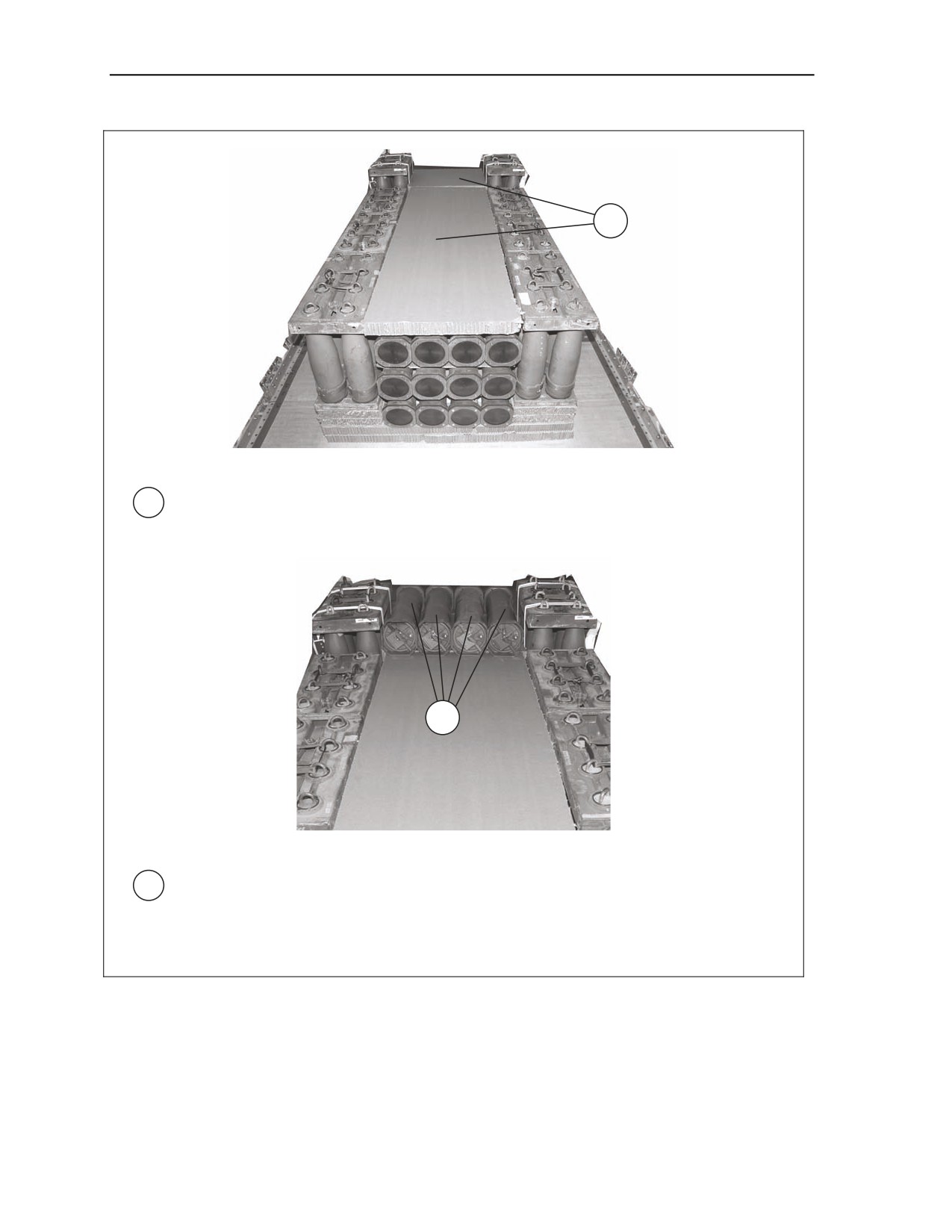

16 Cut two 30- by 24-inch pieces of honeycomb and place in front of the middle canisters and
to the rear of the first group of canisters.
Figure 8-44. Ammunition Positioned and Secured (Continued)
8-104
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
21

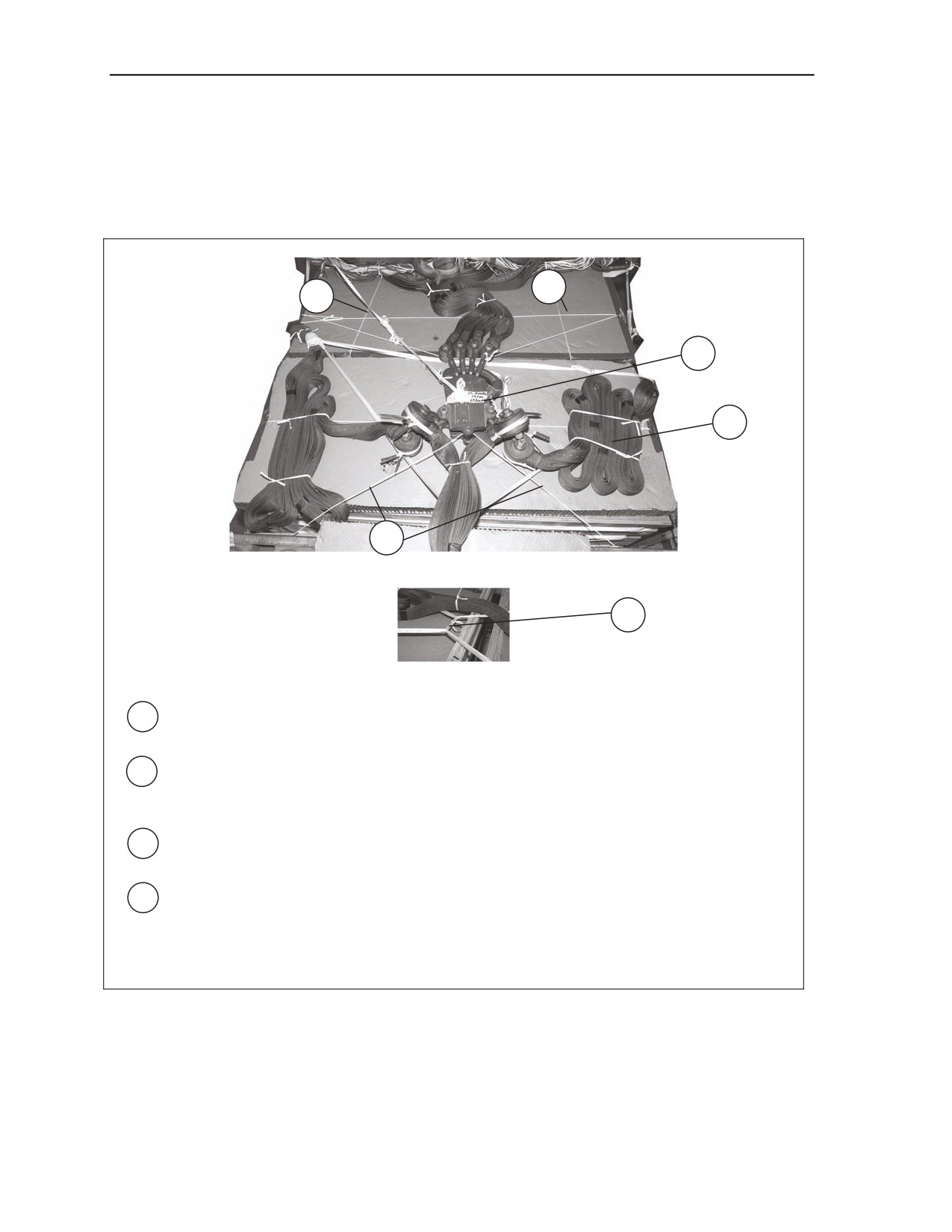

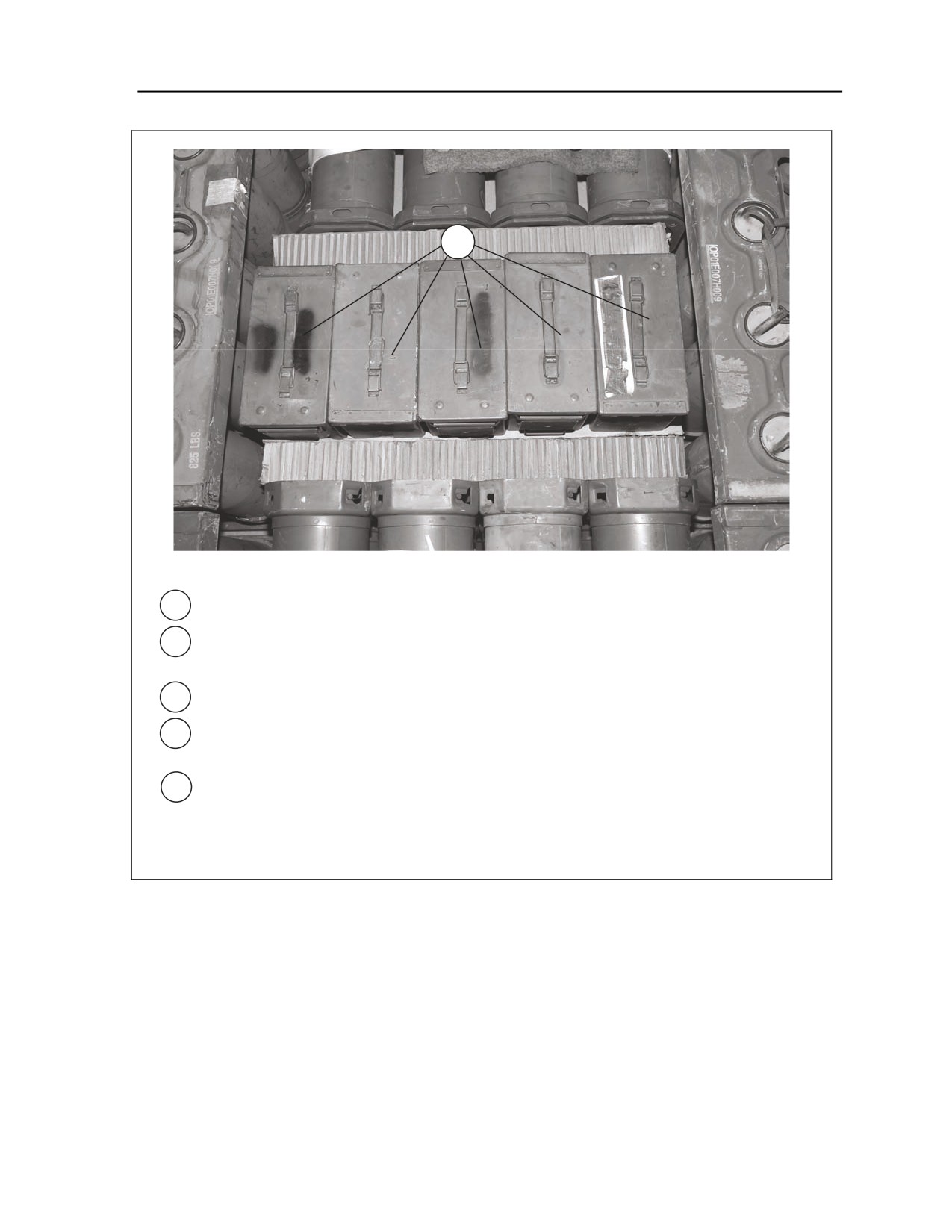

17 Place five fuse cans in the open space formed by step 16. (Not shown)
18 Cut a 12- by 30-inch piece of honeycomb to fit and position it over the fuse cans. (Not
shown)
19 Place five fuse cans on top of the honeycomb in step 18. (Not shown)
20 Cut a 12- by 30-inch piece of honeycomb to fit and position it over the fuse cans. (Not
shown)
21 Place five fuse cans on top of the honeycomb placed in step 20.
Figure 8-44. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-105
Chapter 8
22

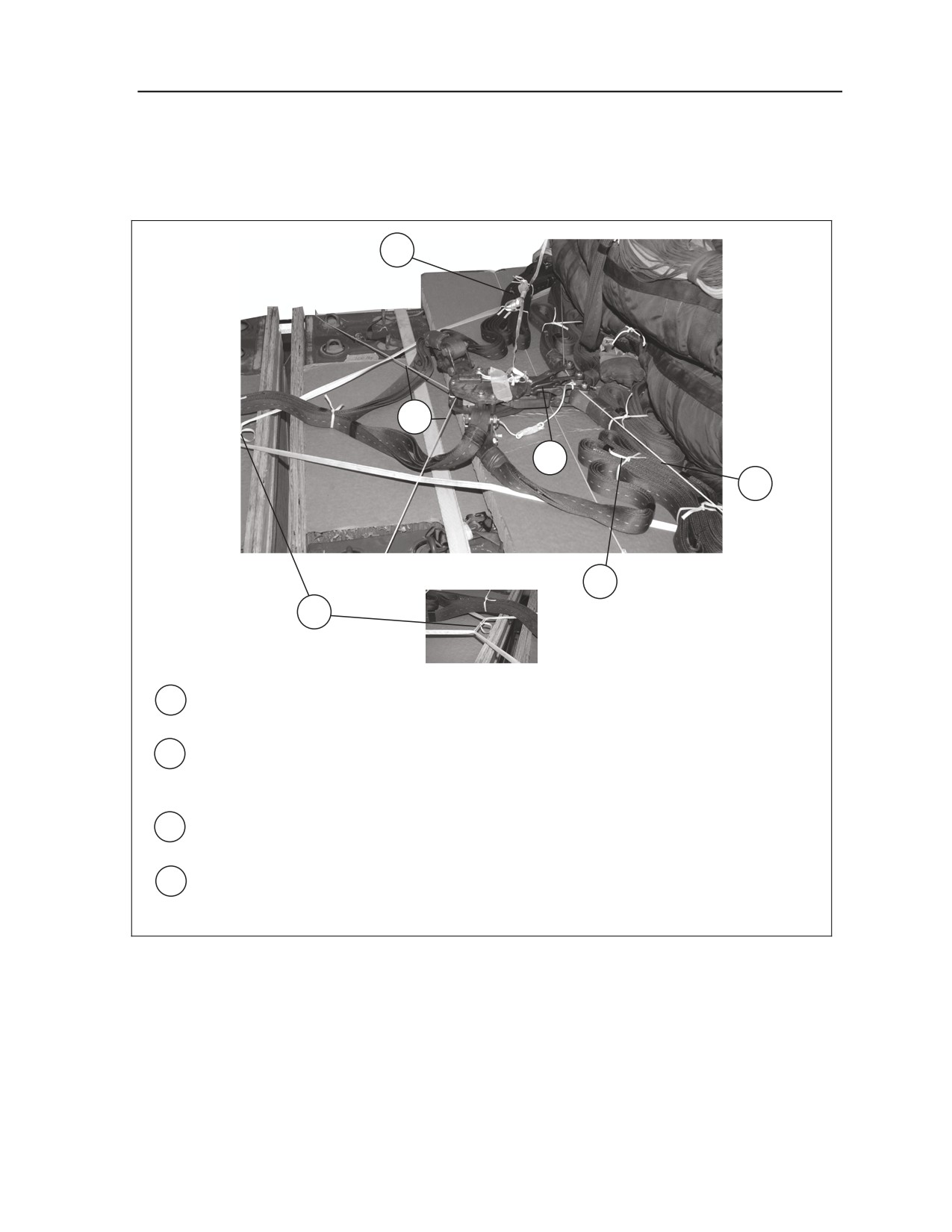

22 Cut and center a 30- by 89-inch and a 29- by 31 ½-inch piece of honeycomb over the
canisters.
23

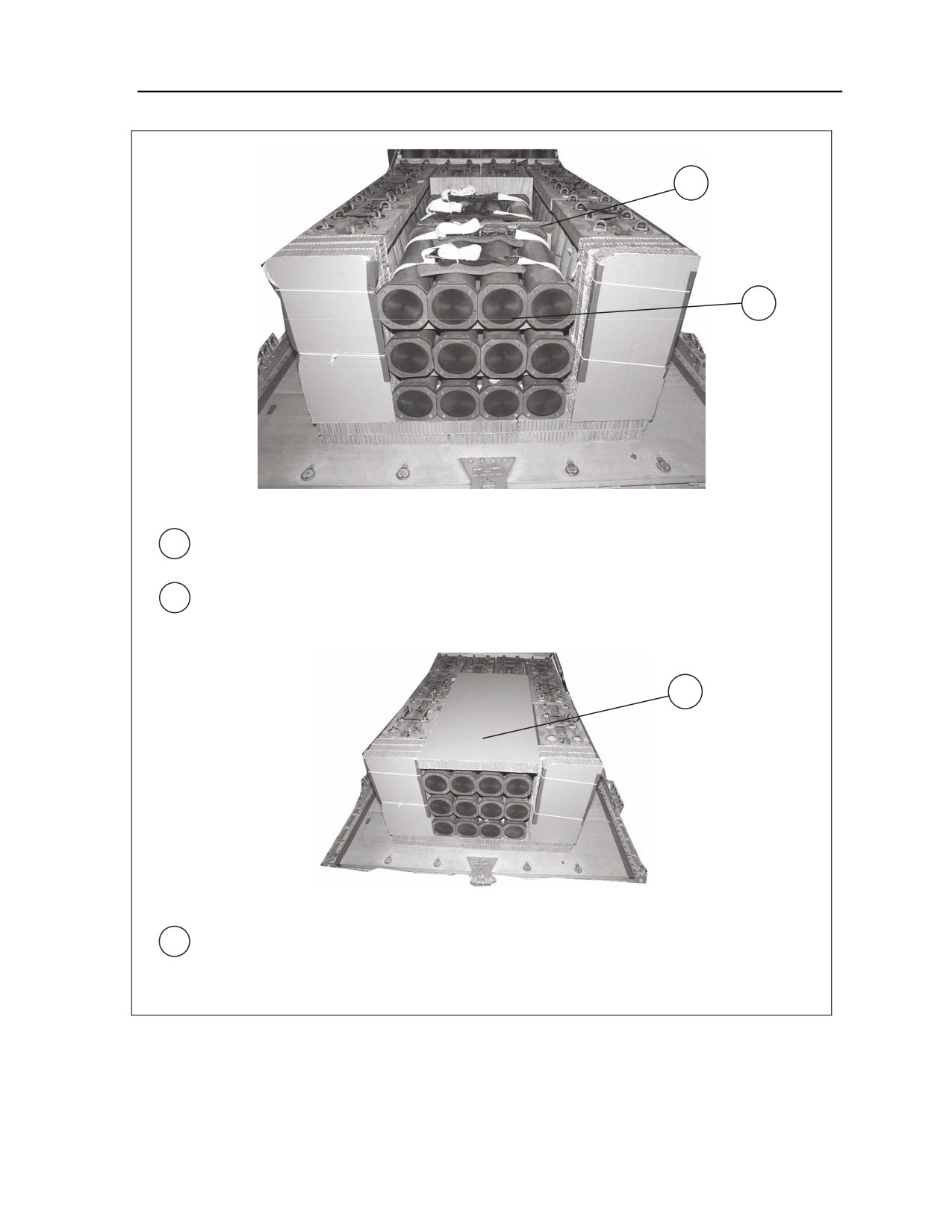

23 Position four canisters flush with the rear edge of the honeycomb at the rear of stack 1.
Figure 8-44. Ammunition Positioned and Secured (Continued)
8-106
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
25
26
25
15
13

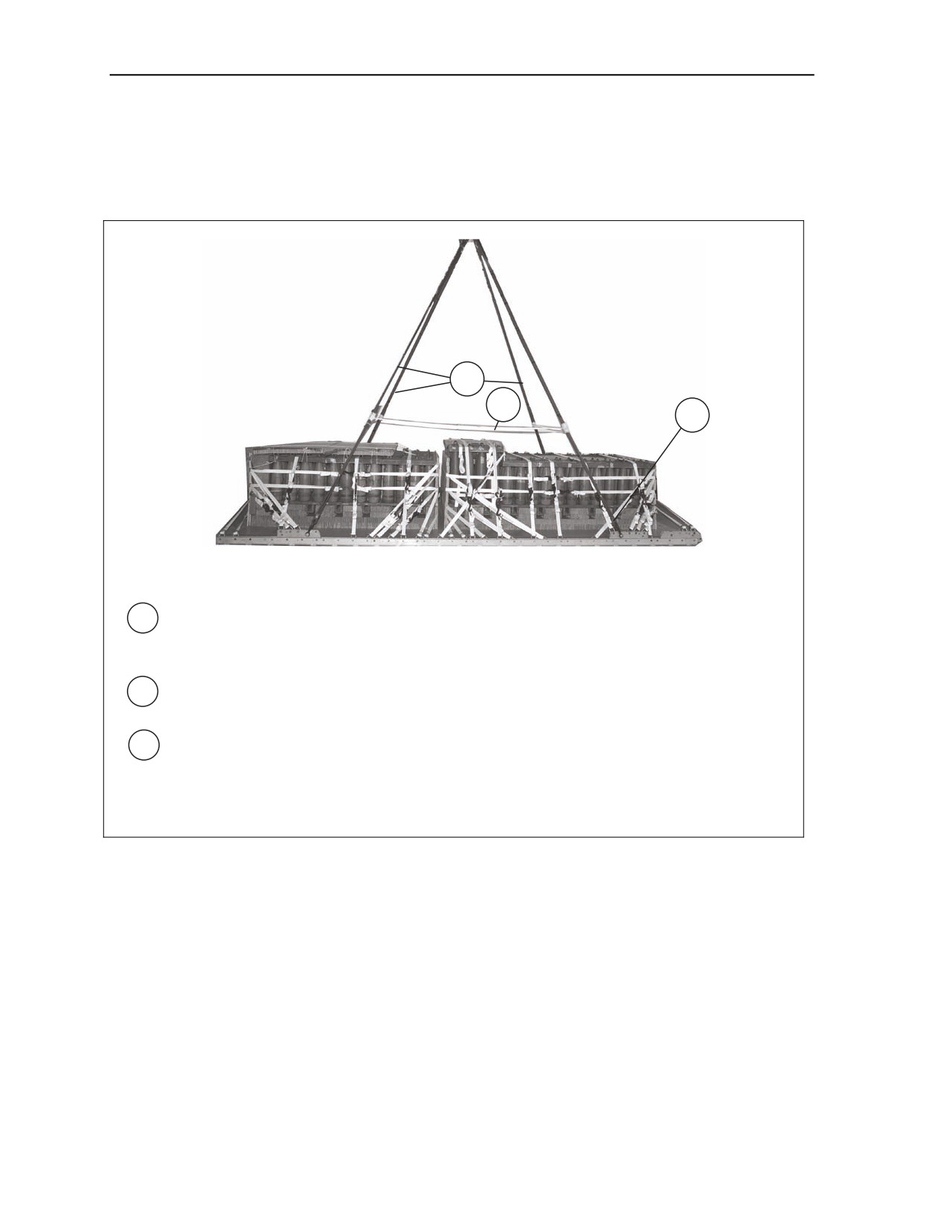

24 Cut and position a 31- by 32 ½-inch piece of honeycomb over the four canisters.
25 Route the free end of a 30-foot lashing through clevis 13, over the right side of the M483A1
projectiles, over the honeycomb in step 24, over the left side of the M483A1 projectiles,
through clevis 13A and back the same route toward clevis 13. Secure with a load binder on
the right side of stack 1 according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
26 Route the free end of a 30-foot lashing through clevis 15, over the right side of the M483A1
projectiles, over the honeycomb in step 24, over the left side of the M483A1 projectiles,
through clevis 15A and back the same route toward clevis 15. Secure with a load binder on
the right side of stack 1 according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 8-44. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-107
Chapter 8
CONSTRUCTING ENDBOARDS

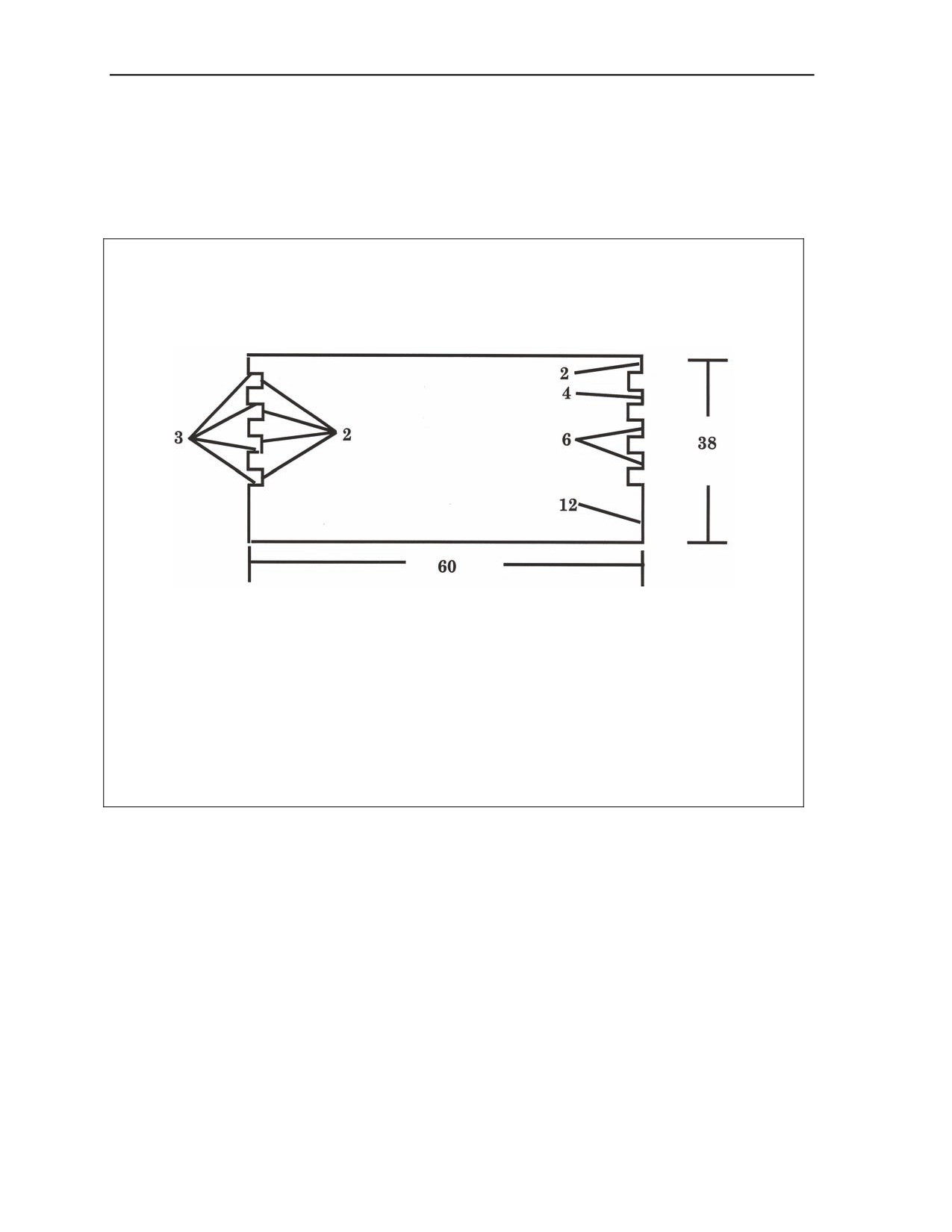

8-57. Construct five endboards as shown in Figure 8-45.
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
Step:
1. Cut eight 3/4- by 60- by 38-inch pieces of plywood.
2. Make 2- by 3-inch cutouts as shown.
3. Nail two pieces of plywood flush together with 6d nails to make the four endboards.
4. Pad the cutouts with cellulose wadding and tape.
Figure 8-45. Endboards Constructed
8-108
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
Notes.
1. This drawing is not to scale.
2. All dimensions are in inches.
2
2
3
5
3
8
60
5
Step:
5. Cut an endboard and a 54- by 8-inch piece of honeycomb, as shown above, to be placed
behind the endboard. Place the endboard in front of the four canisters on top of stack 1.
Figure 8-45. Endboards Constructed (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-109
Chapter 8
LASHING THE FIRST AMMUNITION STACK AND USING THE
FIRST AND SECOND ENDBOARDS
8-58. Lash the first ammunition stack according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and use the first and second set of endboards as shown in Figure 8-46.
Note. Place two endboards at the front of stack 1 and two endboards to the rear of stack 1.
4
3
2
1
8
6
5
4

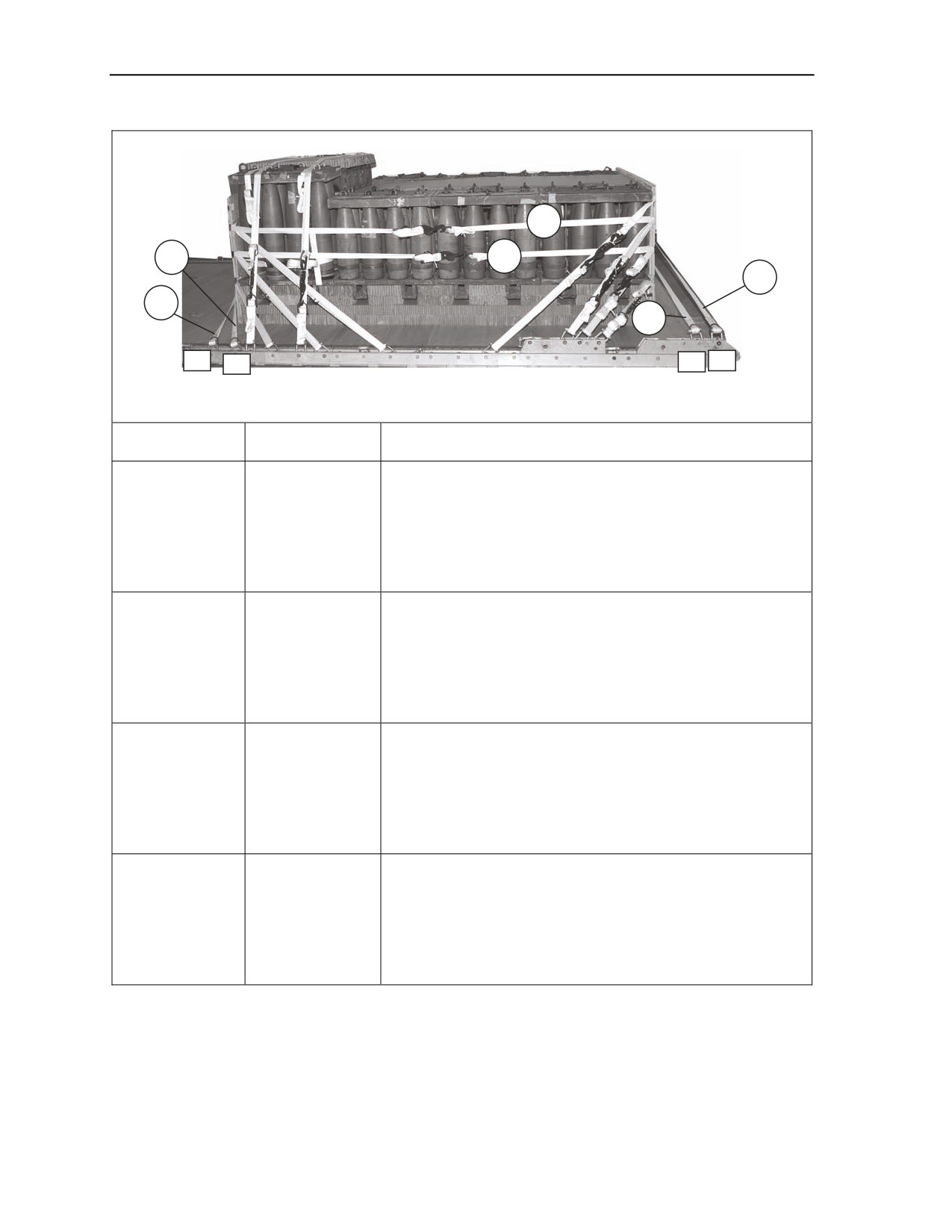

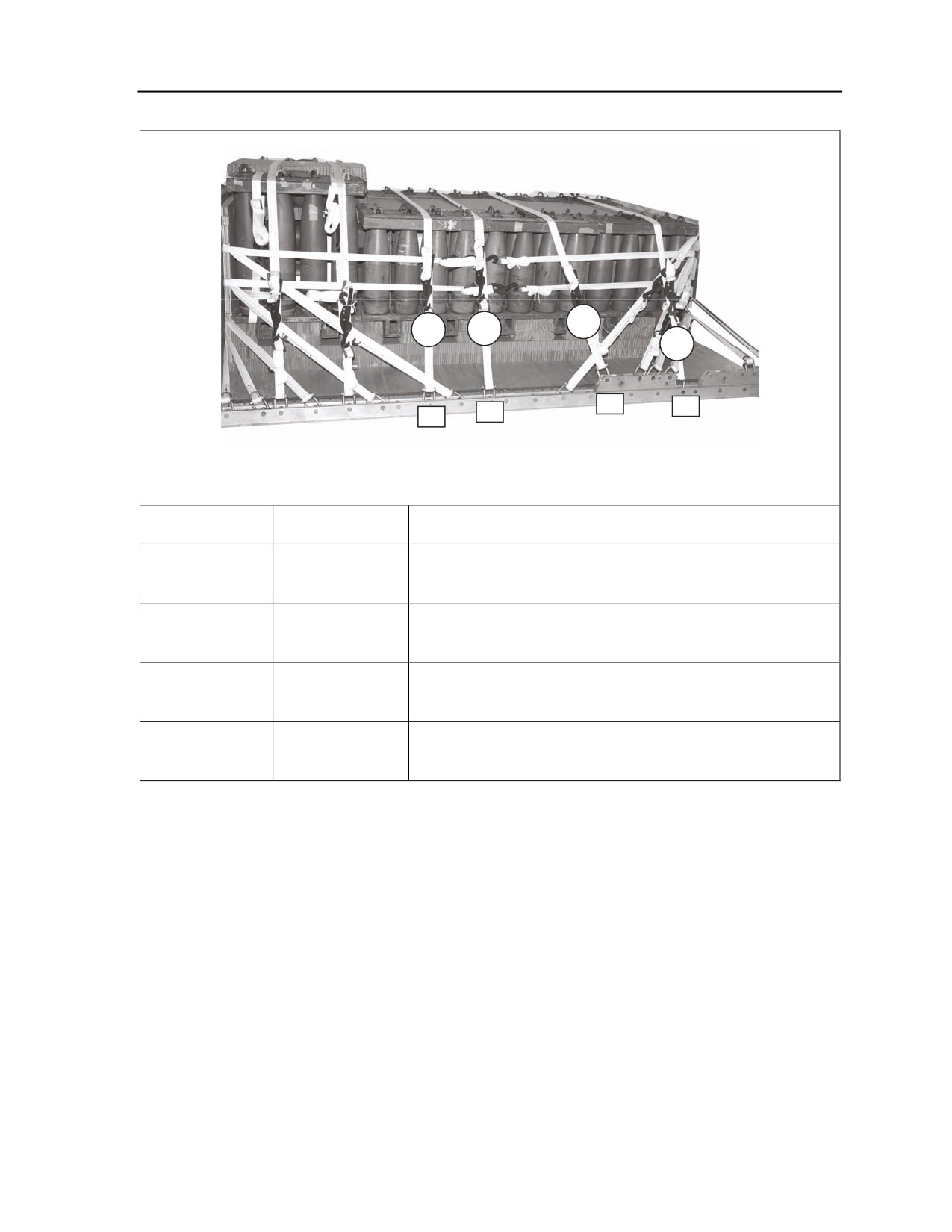

Lashing Number
Tiedown Clevis
Instructions
Number
1
4 and 4A
Pass a 30-foot lashing through both clevises and through
the fourth cutout from the top of the front endboard. Secure
the lashing to the front right side with two D-rings and a load
binder.
2
5 and 5A
Pass a 30-foot lashing through both clevises and through
the third cutout from the top of the front endboard. Secure
the lashing to the front right side with two D-rings and a load
binder.
3
6 and 6A
Pass a 30-foot lashing through both clevises and through
the second cutout from the top of the front endboard.
Secure the lashing to the right side with two D-rings and a
load binder.
4
8 and 8A
Pass a 30-foot lashing through both clevises and through
the top cutout of the front endboard. Secure the lashing to
the right side with two D-rings and a load binder.

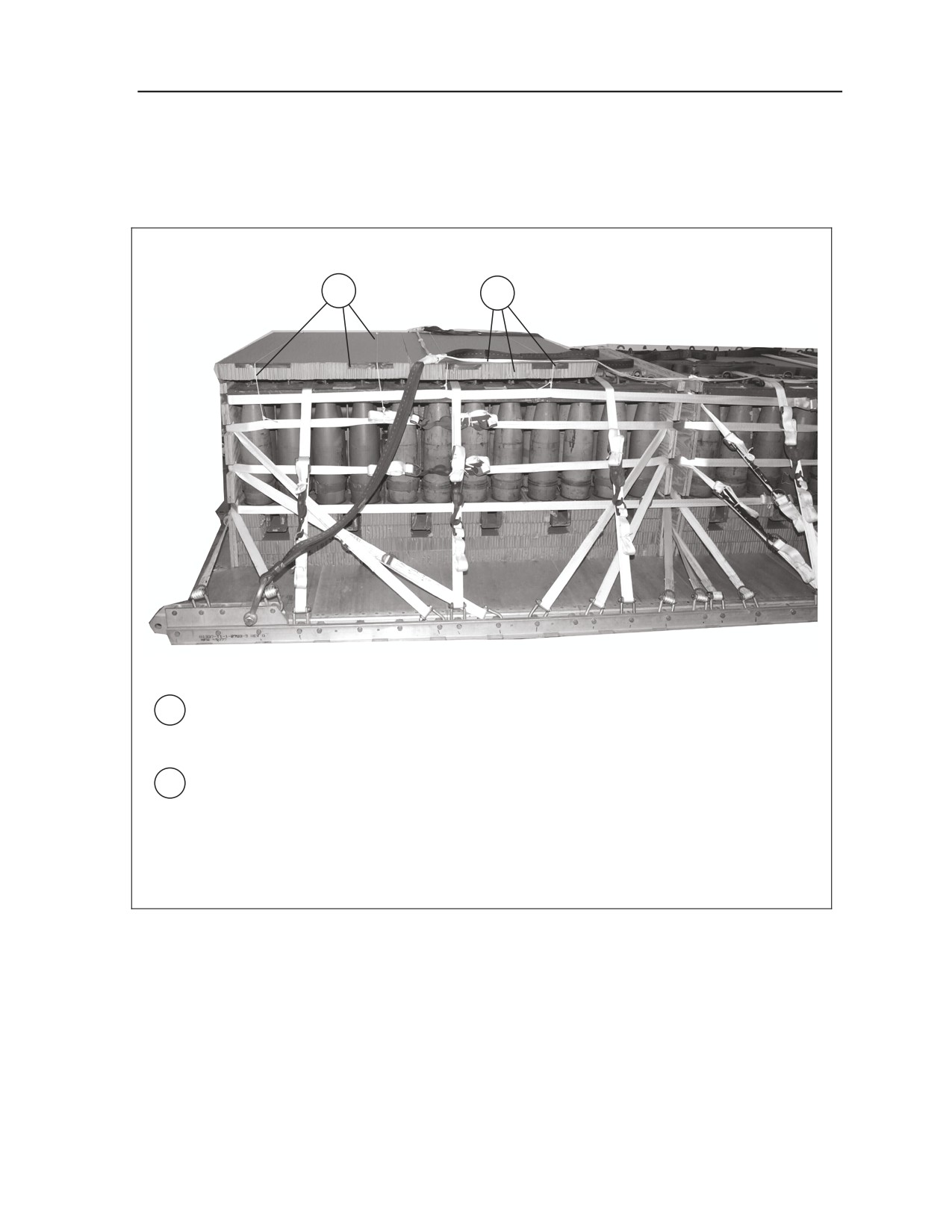

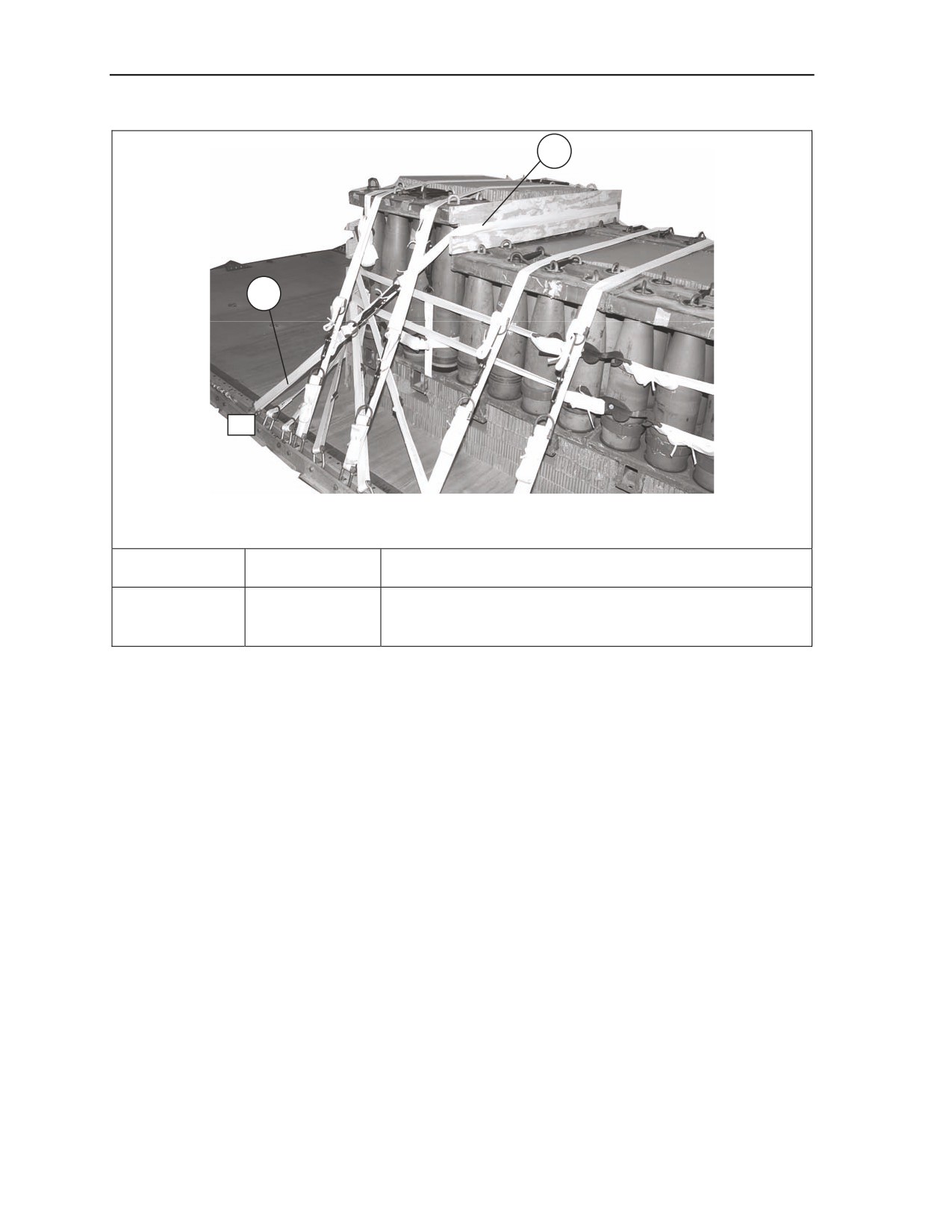

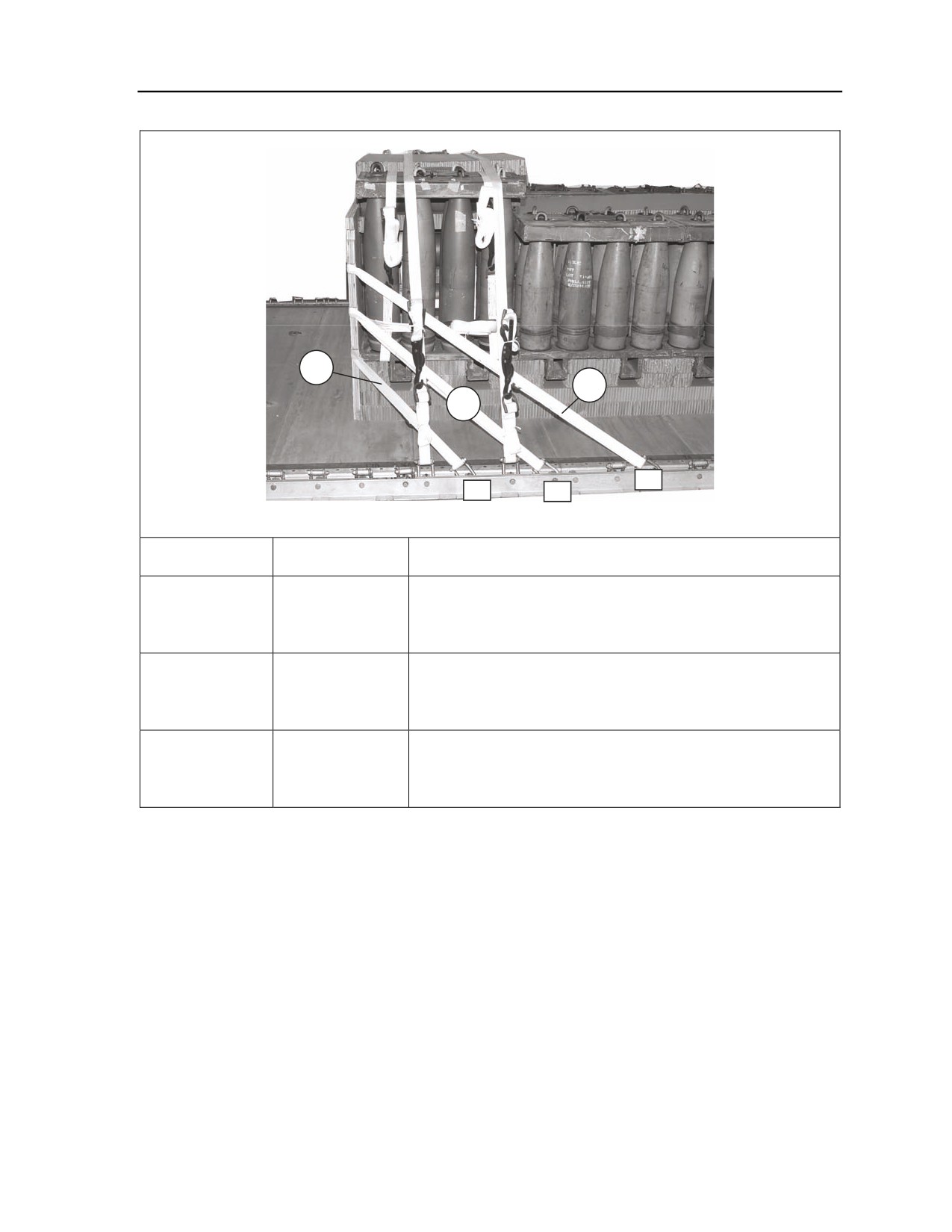

Figure 8-46. First Ammunition Stack Lashed Using the First and Second Endboards
8-110
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
7
5
6
10
14
12
Lashing Number
Tiedown Clevis
Instructions
Number
5
10 and 10A
Pass a 30-foot lashing through both clevises and through
the second cutout from the top of the rear endboard. Secure
the lashing to the rear left side with two D-rings and a load
binder.
6
12 and 12A
Pass a 30-foot lashing through both clevises and through
the third cutout from the top of the rear endboard. Secure
the lashing to the rear left side with two D-rings and a load
binder.
7
14 and 14A
Pass a 30-foot lashing through both clevises and through
the fourth cutout from the top of the rear endboard. Secure
the lashing to the rear left side with two D-rings and a load
binder.
Figure 8-46. First Ammunition Stack Lashed Using the First and Second Endboards
(Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-111
Chapter 8
9
10
11
8
8
10
17
2
1
16
Lashing Number
Tiedown Clevis
Instructions
Number
8
1 and 17
Route a 15-foot lashing through clevis 1 and through its
own D-ring. Route the lashing through the second cutout
from the top of the front endboard of the left side. Route a
15-foot lashing through clevis 17 and through its own D-
ring. Route the lashing through the second cutout from the
top of the rear endboard on the left side. Secure with a load
binder and D-rings on the left side.
9
1A and 17A
Route a 15-foot lashing through clevis 1A and through its
own D-ring. Route the lashing through the second cutout
from the top of the front endboard of the right side. Route a
15-foot lashing through clevis 17A and through its own D-
ring. Route the lashing through the second cutout from the
top of the rear endboard on the right side. Secure with a
load binder and D-rings on the right side.
10
2 and 16
Route a 15-foot lashing through clevis 2 and through its
own D-ring. Route the lashing through the third cutout from
the top of the front endboard of the left side. Route a 15-foot
lashing through clevis 16 and through its own D-ring. Route
the lashing through the third cutout from the top of the rear
endboard on the left side. Secure with a load binder and D-
rings on the left side.
11
2A and 16A
Route a 15-foot lashing through clevis 2A and through its
own D-ring. Route the lashing through the third cutout from
the top of the front endboard of the right side. Route a 15-
foot lashing through clevis 16A and through its own D-ring.
Route the lashing through the third cutout from the top of
the rear endboard on the right side. Secure with a load
binder and D-rings on the right side.
Figure 8-46. First Ammunition Stack Lashed Using the First and Second Endboards
(Continued)
8-112
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
13
15
14
12
7
3
9
11
Lashing Number
Tiedown Clevis
Instructions
Number
12
3 and 3A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side with two
D-rings and a load binder.
13
7 and 7A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side with two
D-rings and a load binder.
14
9 and 9A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side with two
D-rings and a load binder.
15
11 and 11A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side with two
D-rings and a load binder.
Figure 8-46. First Ammunition Stack Lashed Using the First and Second Endboards
(Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-113
Chapter 8
16
16
18
Lashing Number
Tiedown Clevis
Instructions
Number
16
18 and 18A
Pass a 30-foot lashing through both clevises and to the
front of the four canisters on top of stack 1. Secure the
lashing on the right side with two D-rings and a load binder.
Figure 8-46. First Ammunition Stack Lashed Using the First and Second Endboards
(Continued)
8-114
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
BUILDING AND POSITIONING HONEYCOMB STACK 2
8-59. Prepare and position honeycomb stack 2 as shown in Figure 8-47.
1
1 Position honeycomb stack 2 centered 5 inches from the rear edge of stack 1.
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
2
2
36
96
Honeycom
Form a two layer base 96 inches long and
b
60 inches wide. Alternate the layers of
honeycomb. Center the stack 5 inches
from the front edge of stack 1.
2
24
96
Honeycom
Included with the first step.
b
4
15
5
Honeycom
Make two stacks of two. Place the stacks
b
of honeycomb on the front corners of the
base with the 5-inch sides on the 96-inch
sides of the honeycomb.
4
15
11 1/2
Honeycom
Make two stacks of two. Place the stacks
b
of honeycomb on the rear corners of the
base with the 11 ½-inch sides on the 96-
inch sides of the honeycomb.
20
15
10
Honeycom
Form five stacks of two. Center a stack of
b
honeycomb along each 96-inch side of
the base, with the 10-inch sides facing the
left and right sides of the platform. Evenly
space the two layer pieces of honeycomb
between the center and corner pieces.
The spaces between the pieces are 4 ½-
inches.
Note. Do not glue the 15- by 5 and 15- by 10-inch honeycomb stacks to the base stack. Slight
adjustments may be necessary as you place the projectiles.
Figure 8-47. Honeycomb Stack 2 Prepared and Positioned on the Platform
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-115
Chapter 8
POSITIONING AND SECURING THE SECOND AMMUNITION
STACK
8-60. Position and secure the second ammunition stack as shown in Figure 8-48.
1
1 Tie the four center eyelets of each bundle together with 1-inch tubular nylon webbing for
lifting purposes only.
2
2
3
3
2 Position three sets of M107 projectiles flush on stack 2 on each side starting from the front.
Fit the skids on the bottom of the racks into the slots in the honeycomb stack.
3 Cut four 15- by 21-inch pieces of honeycomb and position two pieces of honeycomb at the
rear of each row of M107 projectiles. Cut two 15- by 31-inch pieces of honeycomb and
position one piece at each end of the projectiles. Tape the edges and secure the three
pieces on each side with two pieces of type III nylon cord to the last projectile in each row.
Figure 8-48. Ammunition Positioned and Secured
8-116
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
4
4 Cut eight pieces of 5- by 15-inch and four pieces of 10- by 15-inch honeycomb. Construct
four stacks of two 5- by 15-inch and two 10- by 15-inch pieces. Position two 5- by 15-inch
pieces flush with the front edge of stack 2. The 15-inch side will be flush with the 60-inch
side. Position the two 10- by 15-inch stacks 5 inches from the stacks previously positioned.
Position the remaining two 5- by 15-inch stacks 5 inches from the10- by 15-inch stacks.
5
5 Position two racks of M107 projectiles on the honeycomb stacks from step 4.
Figure 8-48. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-117
Chapter 8
6
14
7
8
13
12
11
10
9
6 Cut a ¾- by 30- by 31-inch piece of plywood and position it to the rear of the M107
projectiles.
7 Pre-position a 15-foot lashing 10 inches from the board placed in step 6 routed widthwise.
8 Place a second 15-foot lashing 15 inches from the first lashing.
9 Position four powder canisters on the pre-positioned lashings with the canister flush against
the plywood.
10 Place a 30- by 24-inch piece of honeycomb over each group of four canisters.
11 Place a second layer of four powder canisters on top of the 30- by 24-inch piece of
honeycomb over each group.
12 Place a second layer of 30- by 24-inch honeycomb over the second layer of canisters.
13 Place a third layer of four powder canisters on top of the 30- by 24-inch piece of honeycomb
over each group.
14 Secure the pre-positioned lashings over the canisters. Pad between the canisters and load
binders with a piece of felt according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 8-48. Ammunition Positioned and Secured (Continued)
8-118
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
15
16
15 Cut a 30- by 31-inch piece of honeycomb and position the piece to the rear of the
canisters.
16 Repeat steps 7 through 14 to the rear of 30- by 31-inch piece of honeycomb. The stack will
be flush with the rear edge of stack 2.
17
17 Cut and position a 31- by 67-inch piece of honeycomb over the cell flush with the rear
edge.
Figure 8-48. Ammunition Positioned and Secured (Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-119
Chapter 8
LASHING THE SECOND AMMUNITION STACK AND USING THE
THIRD AND FOURTH ENDBOARDS
8-61. Lash the second ammunition stack and use the third and fourth endboards according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-49.
Note. Place two endboards at the front of stack 2 and two endboards to the rear of stack 2.
19
17
18
24
23
22
Lashing Number
Tiedown Clevis
Instructions
Number
17
22 and 22A
Pass a 30-foot lashing through both clevises and through
the third cutout from the top of the front endboard. Secure
the lashing to the front right side with two D-rings and a load
binder.
18
23 and 23A
Pass a 30-foot lashing through both clevises and through
the second cutout from the top of the front endboard.
Secure the lashing to the front right side with two D-rings
and a load binder.
19
24 and 24A
Pass a 30-foot lashing through both clevises and through
the top cutout of the front endboard. Secure the lashing to
the front right side with two D-rings and a load binder.
Figure 8-49. Second Ammunition Stack Lashed Using the Third and Fourth Endboards
8-120
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
20
26
21
27
Lashing Number
Tiedown Clevis
Instructions
Number
20
26 and 26A
Pass a 30-foot lashing through both clevises and through
the second cutout from the top of the rear endboard. Secure
the lashing to the rear right side with two D-rings and a load
binder.
21
27 and 27A
Pass a 30-foot lashing through both clevises and through
the third cutout from the top of the rear endboard. Secure
the lashing to the rear right side with two D-rings and a load
binder.
Figure 8-49. Second Ammunition Stack Lashed Using the Third and Fourth Endboards
(Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-121
Chapter 8
28
27
26
23
24
25
24
22
22
28
30
29
25
21
20
19
Lashing Number
Tiedown Clevis
Instructions
Number
22
19 and 30
Route a 15-foot lashing through clevis 19 and through its
own D-ring. Route the lashing through the front second cut-
out from the top on the left side. Route a 15-foot lashing
through clevis 30 and through its own D-ring. Route the
lashing through the rear third cutout from the top on the left
side. Secure with a load binder and D-rings on the left side.
23
19A and 30A
Route a 15-foot lashing through clevis 19A and through its
own D-ring. Route the lashing through the front second cut-
out from the top on the right side. Route a 15-foot lashing
through clevis 30A and through its own D-ring. Route the
lashing through the rear second cutout from the top on the
right side. Secure with a load binder and D-rings on the
right side.
24
20 and 29
Route a 15-foot lashing through clevis 20 and through its
own D-ring. Route the lashing through the front third cut-out
from the top on the left side. Route a 15-foot lashing
through clevis 29 and through its own D-ring. Route the
lashing through the rear third cutout from the top on the left
side. Secure with a load binder and D-rings on the left side.
25
20A and 29A
Route a 15-foot lashing through clevis 20A and through its
own D-ring. Route the lashing through the front third cut-out
from the top on the right side. Route a 15-foot lashing
through clevis 29A and through its own D-ring. Route the
lashing through the rear third cutout from the top on the
right side. Secure with a load binder and D-rings on the
right side.
26
21 and 21A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side.
27
25 and 25A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side.
28
28 and 28A
Pass a 30-foot lashing through both clevises and over the
top of the load. Secure the lashing on the right side.
Figure 8-49. Second Ammunition Stack Lashed Using the Third and Fourth Endboards
(Continued)
8-122
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
1
1 Cut two 36- by 60-inch pieces of honeycomb. Position the first piece flush with the rear
edge of stack 2. Position the second piece to the front of the first piece. Tape the edges
and secure the parachute platform to convenient points on the load.
Figure 8-49. Second Ammunition Stack Lashed Using the Third and Fourth Endboards
(Continued)
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-123
Chapter 8
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE
8-62. Install the suspension slings and deadman’s tie according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-50.
2
3
1
1 Pass one end of a 16-foot (4-loop), type XXVI nylon suspension sling through the bell
portion of a large suspension clevis. Bolt the clevis to the suspension hole of the right front
suspension bracket.
2 Install on the left front suspension bracket and the right rear and left rear suspension
brackets a 16-foot (4-loop), type XXVI nylon suspension sling as in step 1.
3 Raise the slings and install the deadman's tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Figure 8-50 Suspension Slings and Deadman’s Tie Installed
8-124
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
PREPARING AND STOWING CARGO PARACHUTES
8-63. Prepare and stow the cargo parachutes according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-51.
3
1
2
1 Prepare, position, and stow four G-11B cargo parachutes on top of the pre-positioned
honeycomb according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
2 Install the rear cargo parachute restraint using type VIII nylon webbing on bushings 36 and
36A.
3 Install the front cargo parachute restraint using type VIII nylon webbing on bushings 31 and
361.
4 Install the parachute release straps according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 8-51. Cargo Parachutes Prepared and Stowed
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-125
Chapter 8
INSTALLING THE RELEASE SYSTEM
8-64. Prepare, attach, and safety an M-2 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 8-52.
2
2
1
3
2
4
1 Prepare and install the M-2 cargo parachute release on the front portion of the honeycomb
parachute platform and attach the suspension slings and riser extensions.
2 Safety the top and bottom of the release to convenient places on the load with type III
nylon cord according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5.
3 S-fold and tie any excess suspension slings with one turn of type I, 1/4-inch cotton
webbing.
4 Tie the two sections of the deadman’s tie together in the center with a length of type I, 1/4-
inch cotton webbing.
Figure 8-52. M-2 Cargo Parachute Release Installed
8-126
FM 4-20.112/TO 13C7-1-8
20 February 2009
Rigging 155-Millimeter (MM) Ammunition Modular Artillery Charge System Package (MACS PAC) on a
Type V Platform for Low-Velocity Airdrop
INSTALLING THE EXTRACTION SYSTEM
8-65. Install the extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 8-53.
3
2
D10
1
1 Install the components of the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5. Use the front mounting holes on the left side of the
platform for the EFTC brackets.
2 Install a 24-foot EFTC cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and safety the cable to tiedown ring D10 with one turn of type
I, 1/4-inch cotton webbing.
3 Attach a 9-foot (2-loop), type XXVI nylon sling according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 to be used as a deployment line. S-fold
the excess and tie it in two places with type I, 1/4-inch cotton webbing.
Figure 8-53. Extraction System Installed
20 February 2009
FM 4-20.112/TO 13C7-1-8
8-127
Chapter 8
PLACING EXTRACTION PARACHUTE
8-66. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
8-67. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
8-68. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 8-54. Complete Shipper’s Declaration for Dangerous Goods. If
the load varies from the one shown, the weight, height, CB, and parachute requirements must be
recomputed.
EQUIPMENT REQUIRED
8-69. Use the equipment listed in Table 8-4 to rig this load.
8-128
FM 4-20.112/TO 13C7-1-8
20 February 2009















Content      ..     8      9      10
