FM 4-20.108 Airdrop of Supplies and Equipment: Rigging Military Utility Vehicles (SEPTEMBER 2007) - page 2





Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
4
4 Secure the previously positioned lashings on top and side of the box.
6
5
11
10
5 Route a lashing through clevis 10 and back through its own D-ring, over the box and load bind
to clevis 10A.
6 Rout a lashing through clevis 11 and back through its own D-ring, over the box and load bind
to clevis 11A.

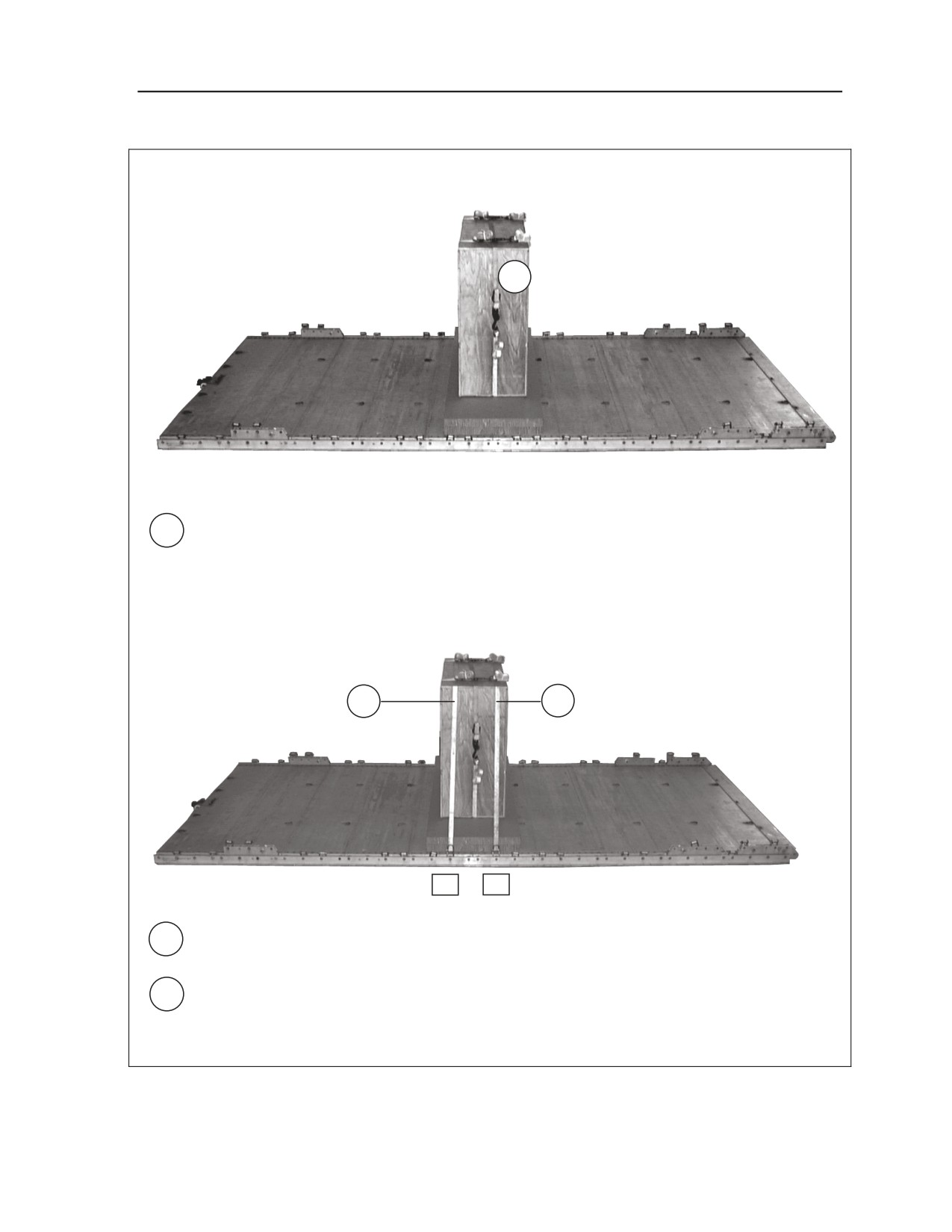

Figure 2-6. Equipment Box Positioned and Lashed (Continued)
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-7
Chapter 2
10
8
14
13
8
7
9
7
7 Route a lashing through clevis 8A and back through its own D-ring, through the lower rear
cutouts of the box, load bind to clevis 8.
8 Route a lashing through clevis 7A and back through its own D-ring, through the upper rear
cutouts of the box. Route a lashing through clevis 7 and back through its own D-ring and
load bind the lashings together.
9 Route a lashing through clevis 13A and back through its own D-ring, through the lower
front cutouts of the box, load bind to clevis 13.
10 Route a lashing through clevis 14A and back through its own D-ring, through the upper
front cutouts of the box. Route a lashing through clevis 14 and back through its own D-ring
and load bind the lashings together.
Figure 2-6. Equipment Box Positioned and Lashed (Continued)
2-8
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop

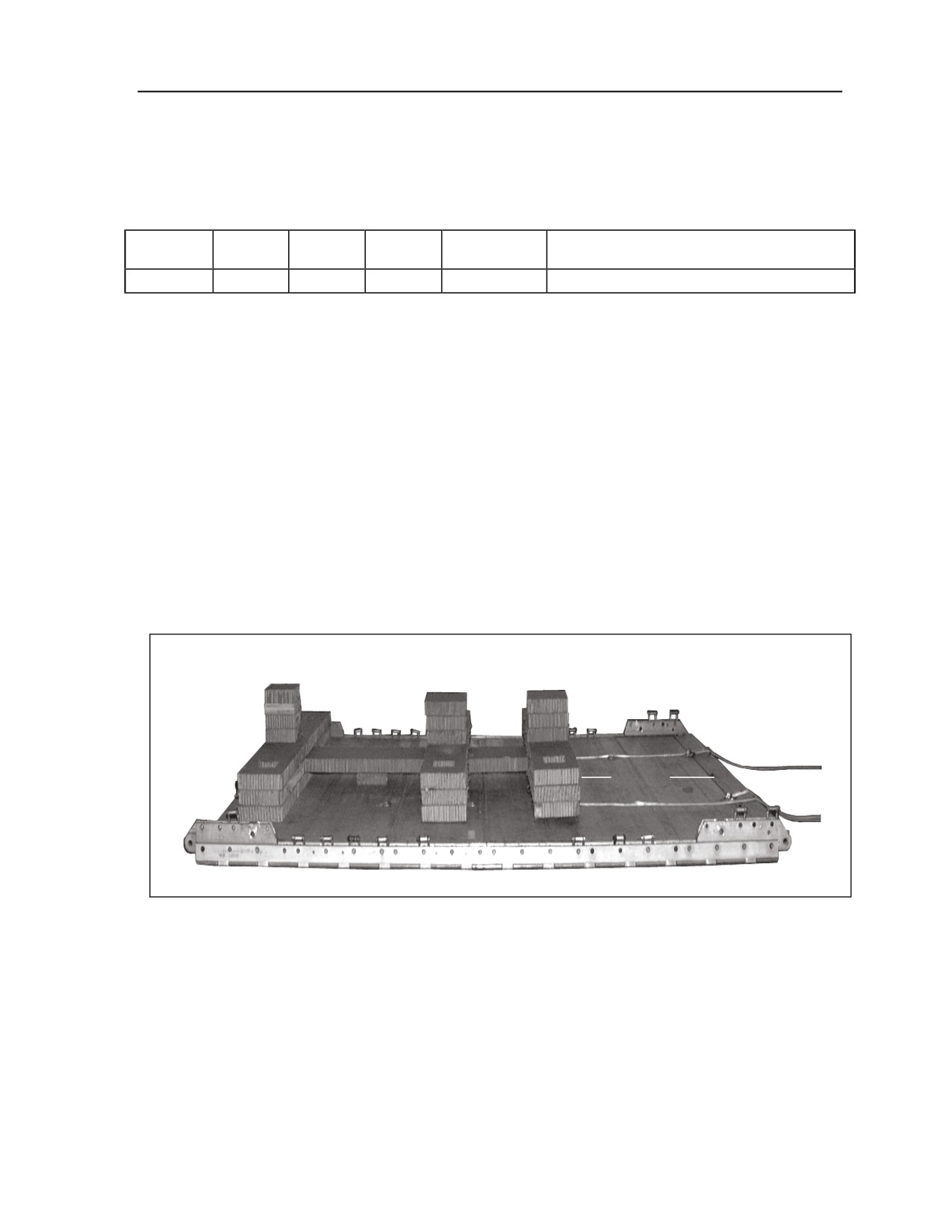

POSITIONING M-GATOR HONEYCOMB STACKS

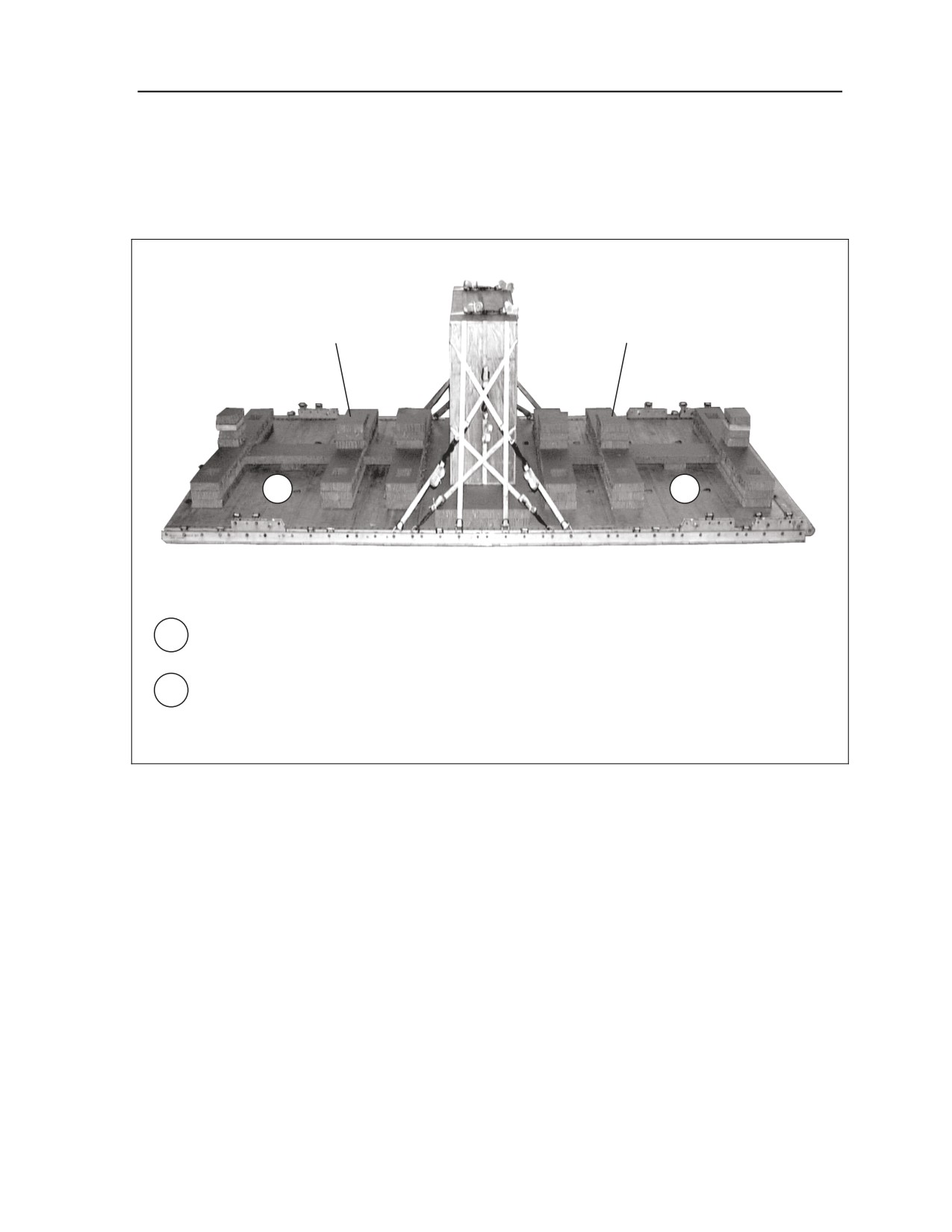

2-9. Position honeycomb stacks 1 and 3 on the platform as shown in Figure 2-7.
Stack 3
Stack 1
2
1
1 Pre-position honeycomb stack 1 behind the tie-down rings on the front panel and centered
left to right.
2 Pre-position honeycomb stack 3 in front of extraction bracket bolts on the rear edge of the
platform and centered left to right.
Figure 2-7. Honeycomb Stacks 1 and 3 Positioned on Platform
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-9
Chapter 2
POSITIONING LOAD

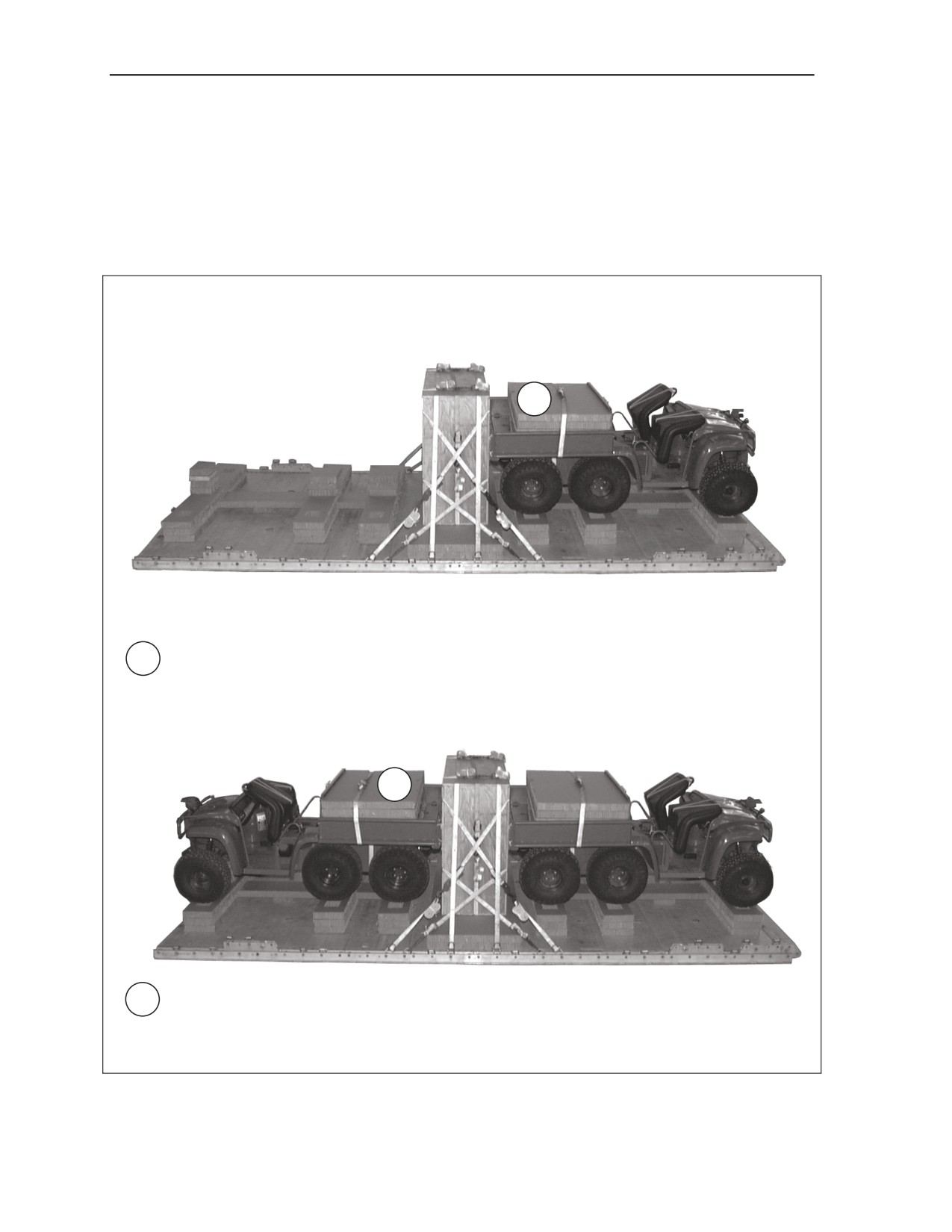

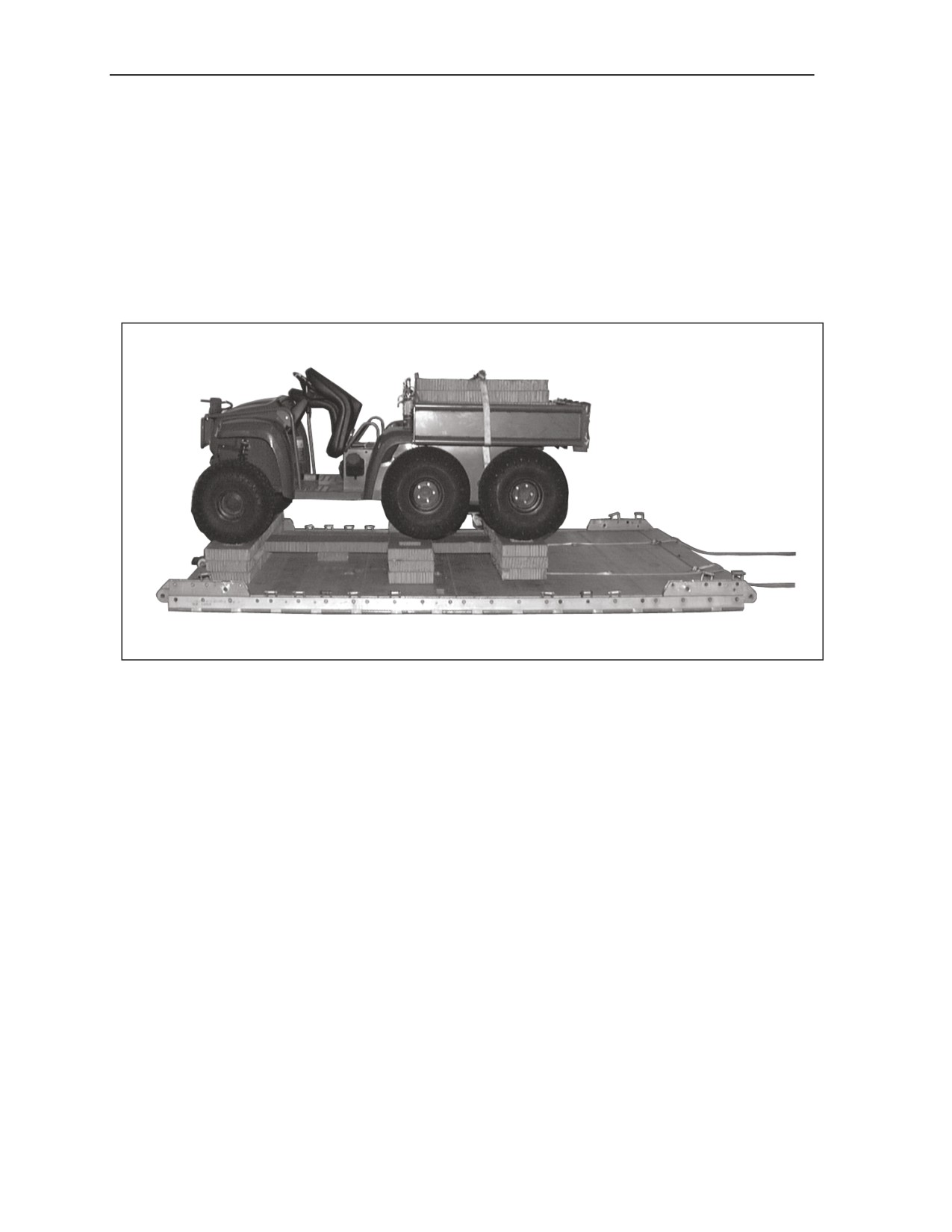

2-10. Use four 12-foot (2-loop), type XXVI, nylon slings to lift and position the M-Gator. Attach large
clevis assemblies to each sling. Using two front and two rear lifting points, attach one clevis to each lifting
point. Position the M-Gators as shown in Figure 2-8.
1
1 Position the front M-Gator on honeycomb stack 1 ensuring the felt on the tailgate is against
the center equipment box. Adjust the honeycomb stack so each tire will be centered over a
cutout in the honeycomb stack.
2
2 Position the rear M-Gator on honeycomb stack 3 ensuring the felt on the tailgate is against
the center equipment box. Each tire will be centered over a cutout in the honeycomb stack.

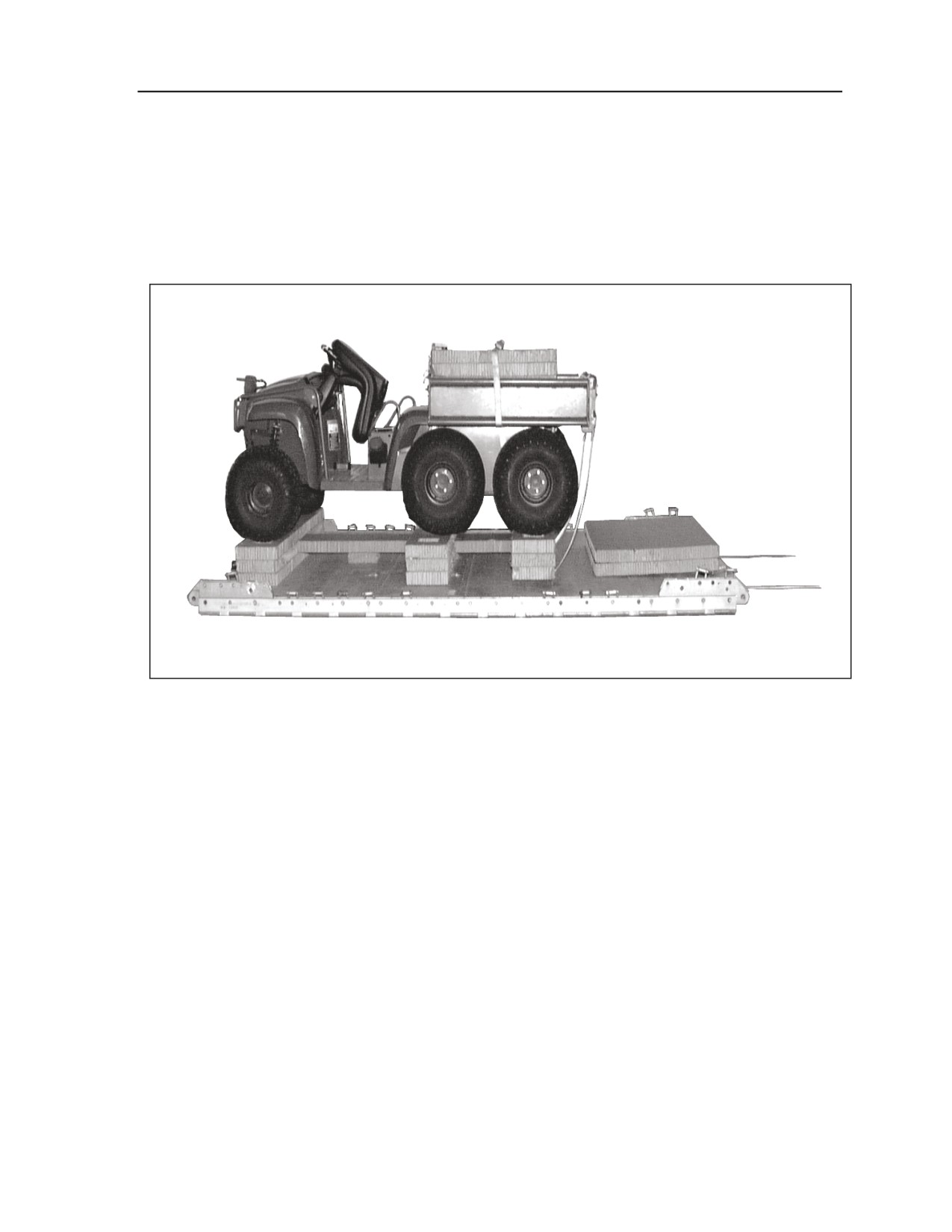

Figure 2-8. M-Gators Positioned
2-10
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop

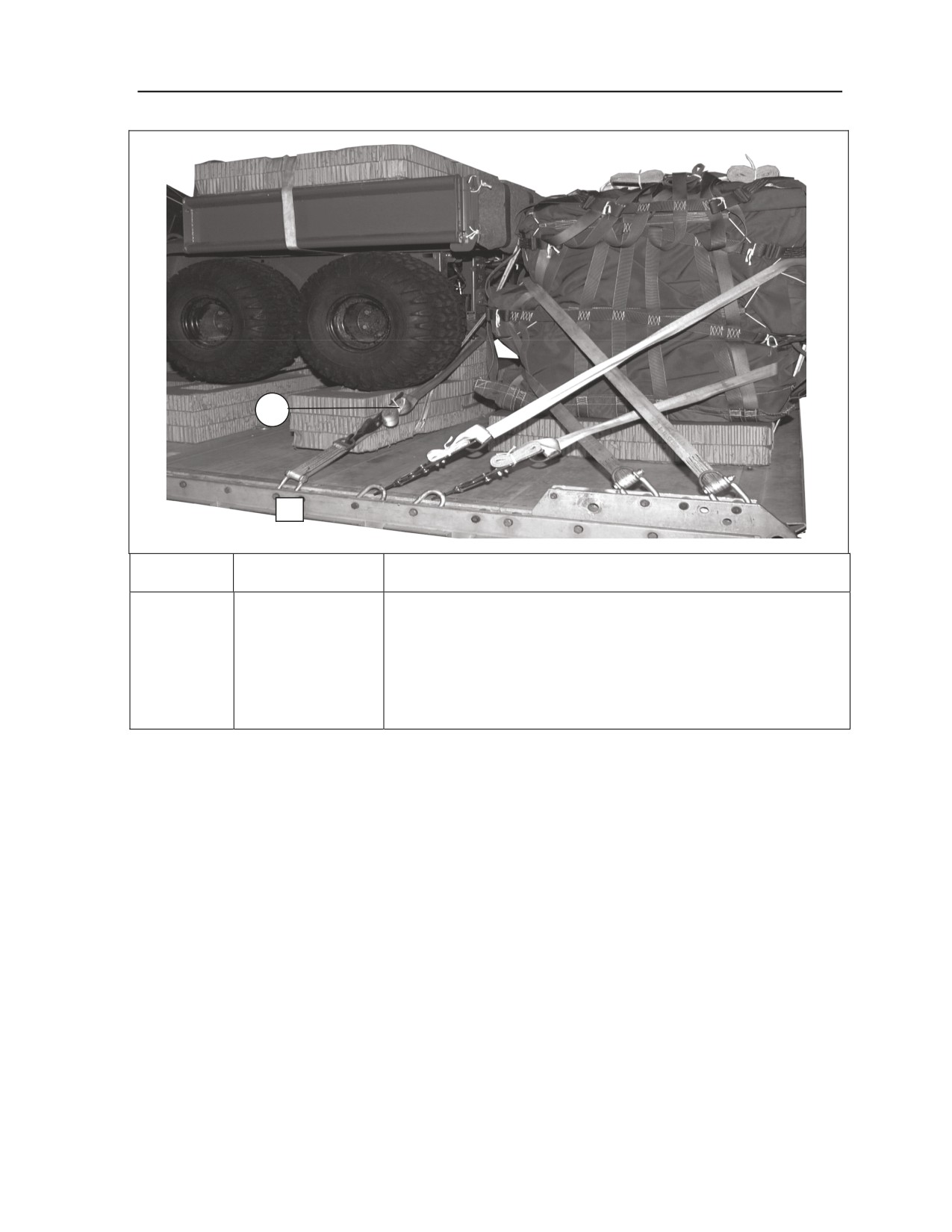

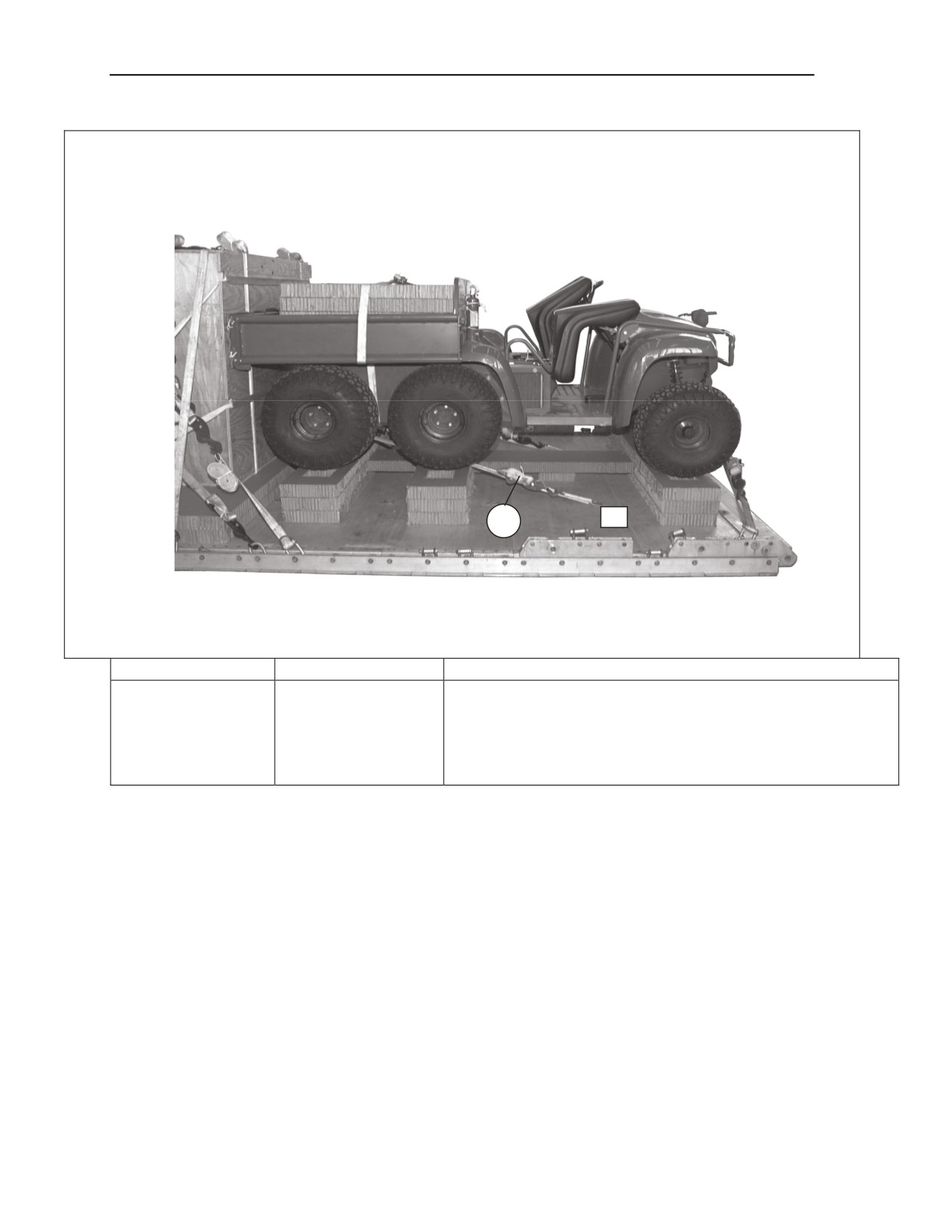

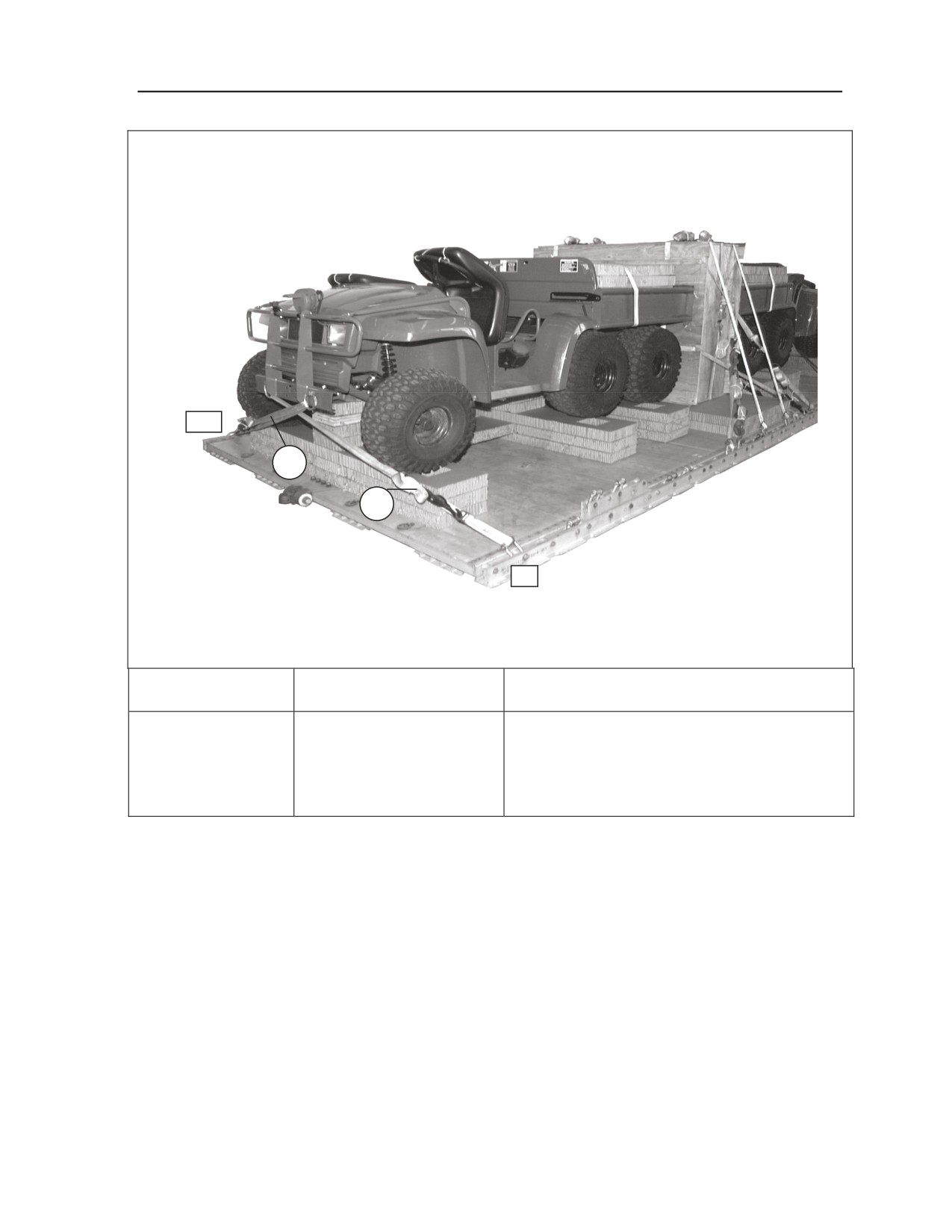

LASHING M-GATORS

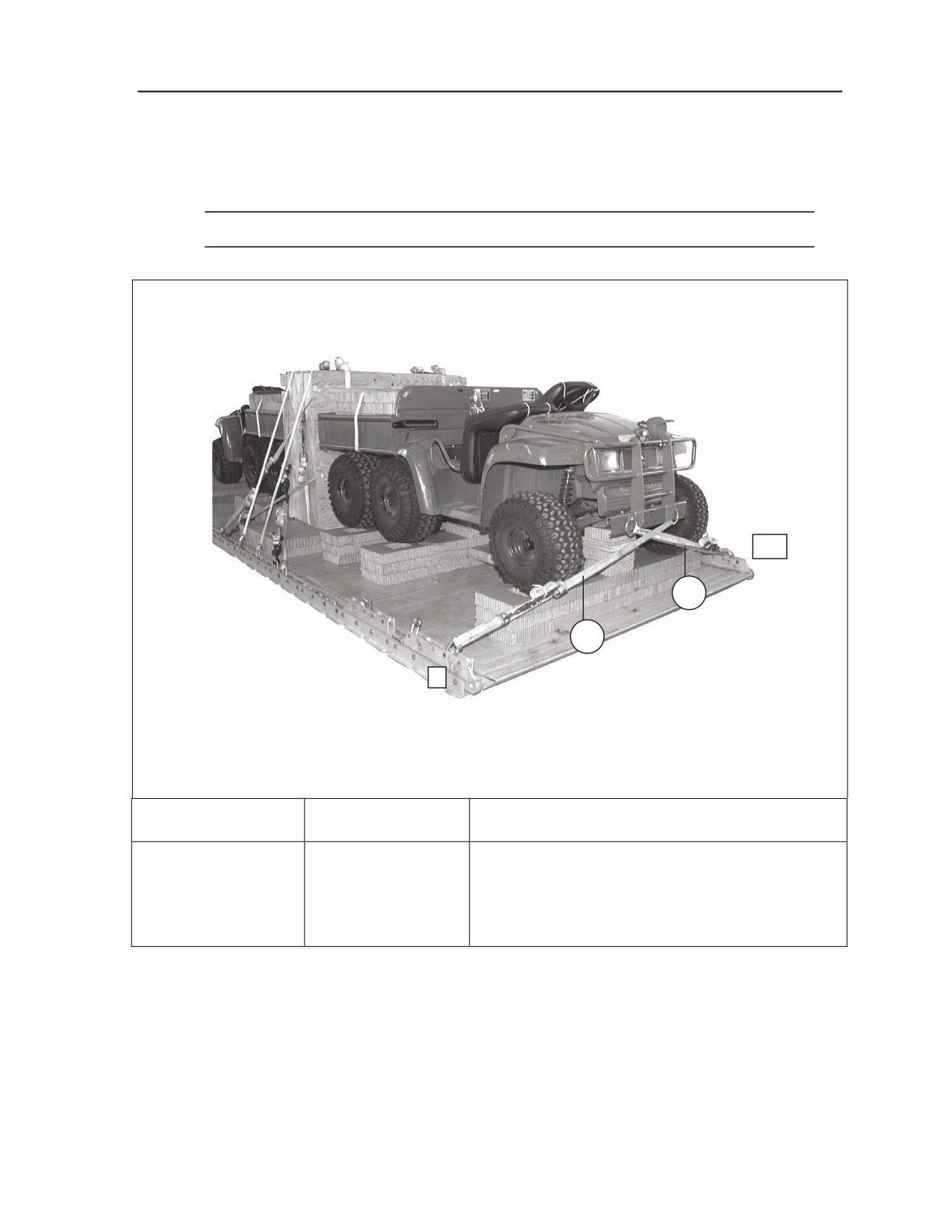

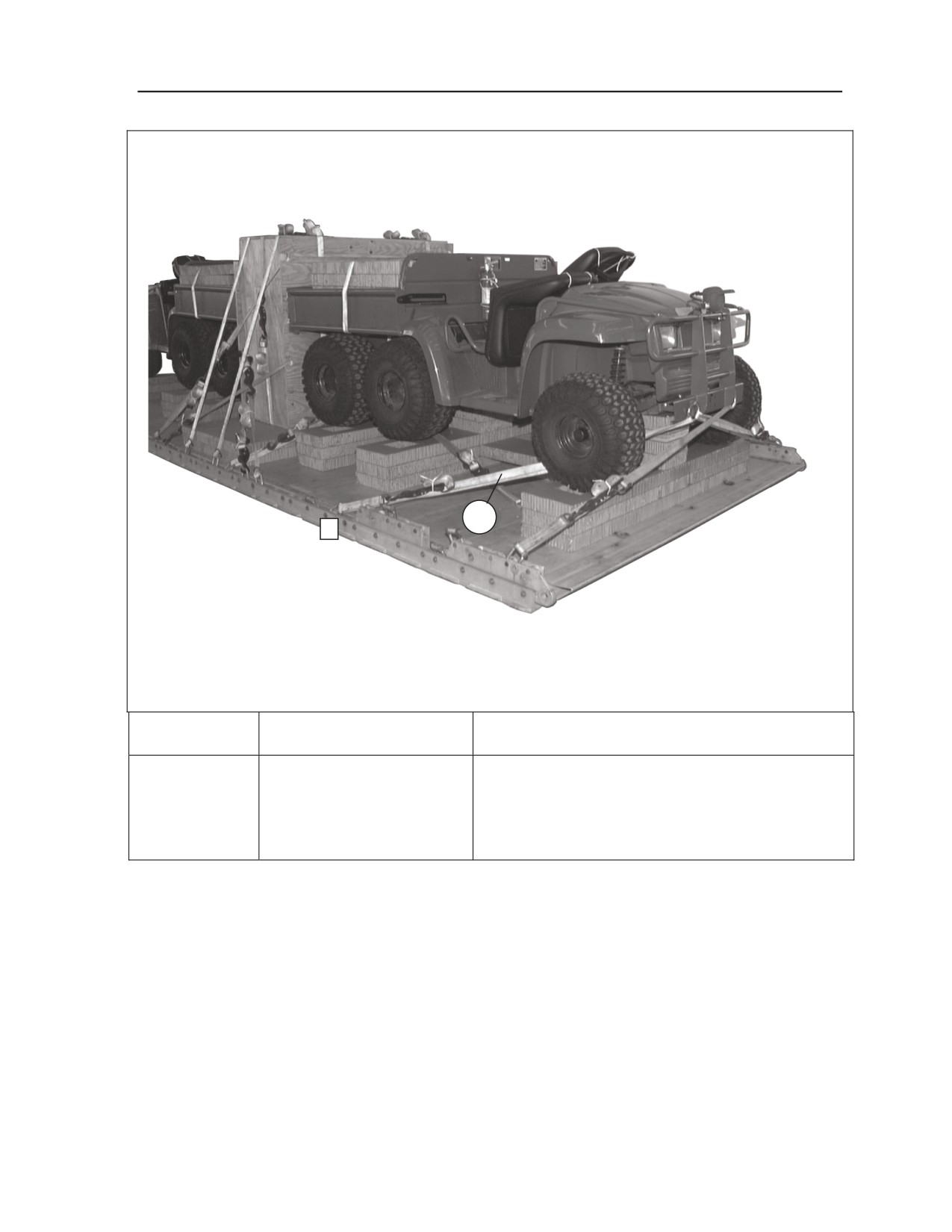

2-11. Lash the M-Gators to the platform according to FM 4-20.102/MCRP 4-11.3J /NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figures 2-9 through 2-15.
Note. Place all load binders near the platform in case adjustments to the lashings are needed.
1A
2
1
1

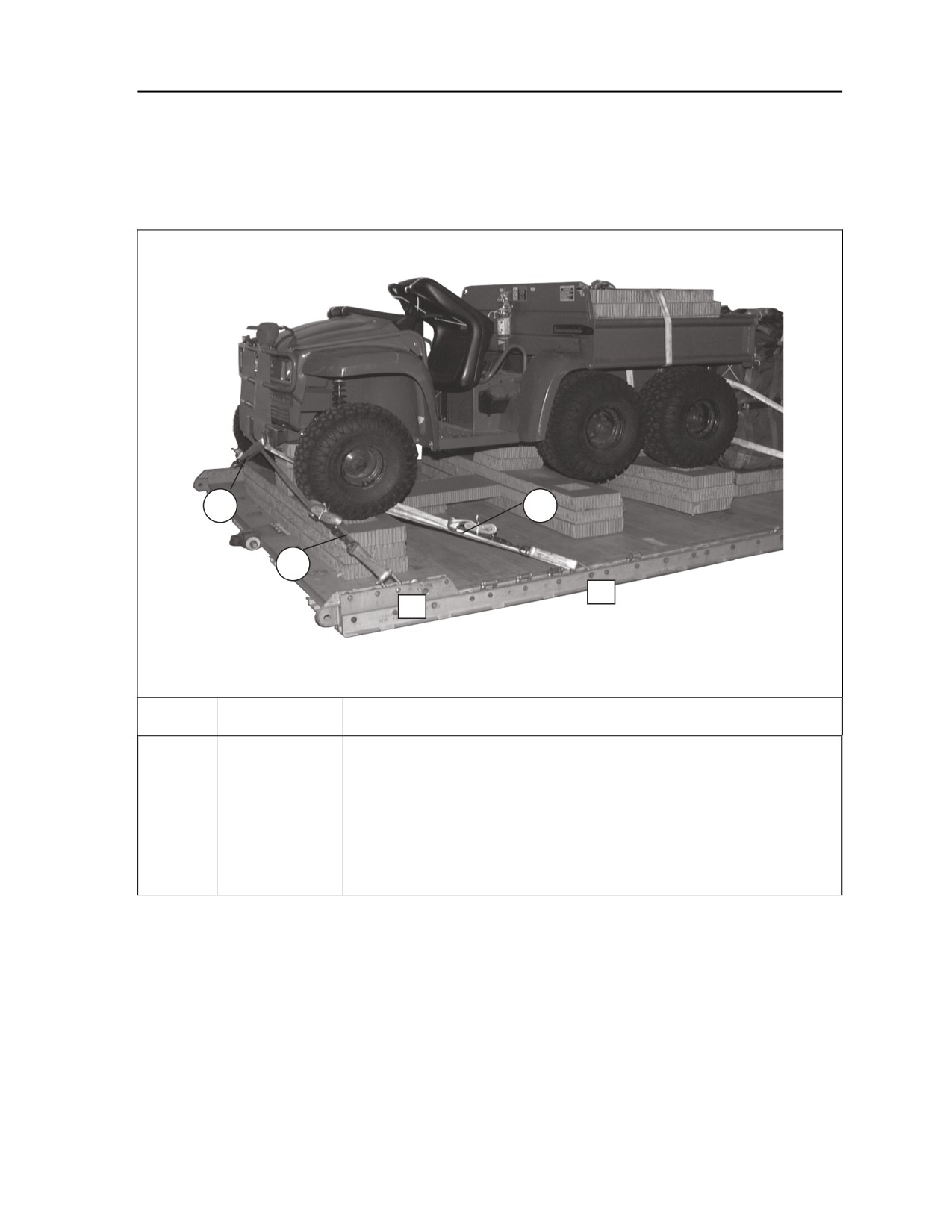

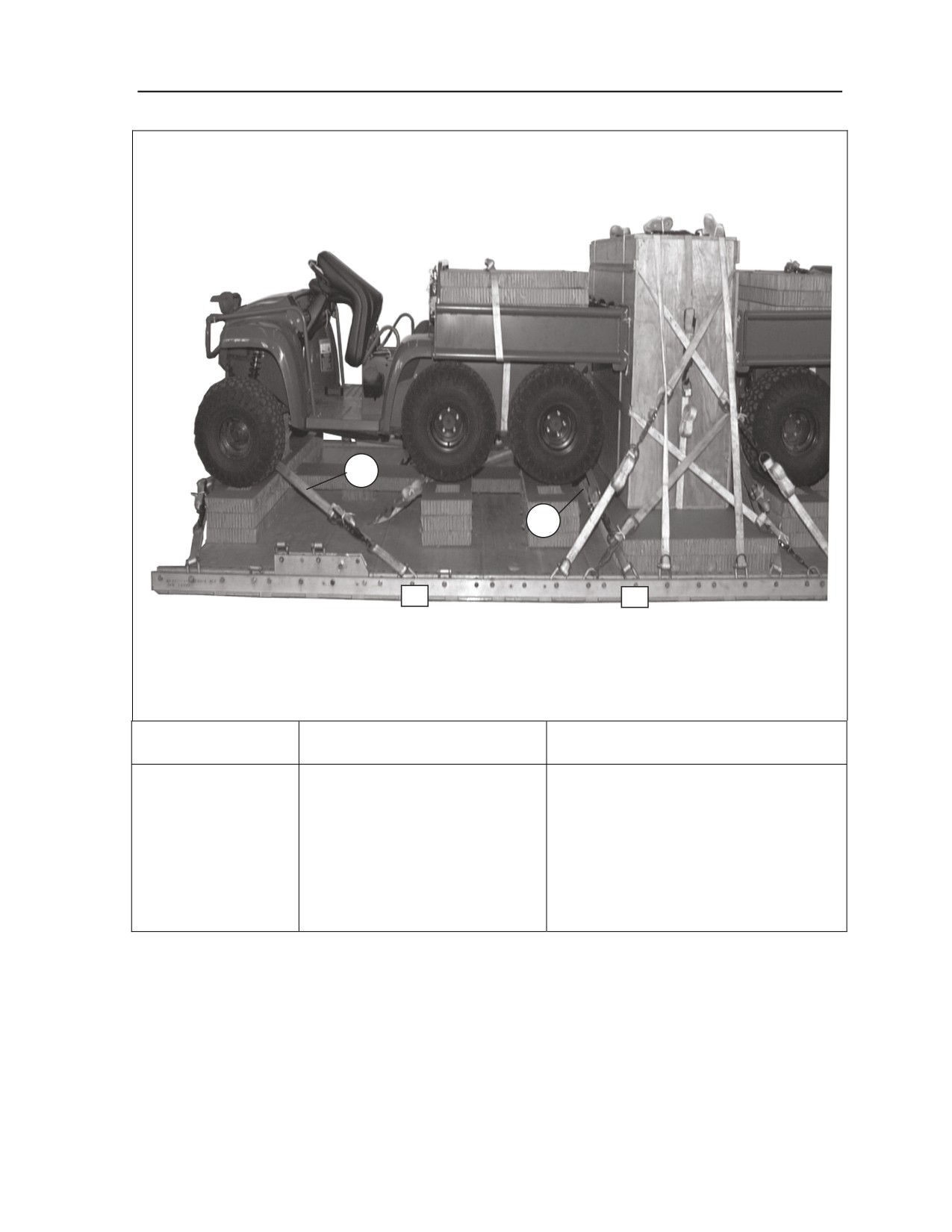

Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing through:
1
1
Front left tie-down point.
2
1A
Front right tie-down point.

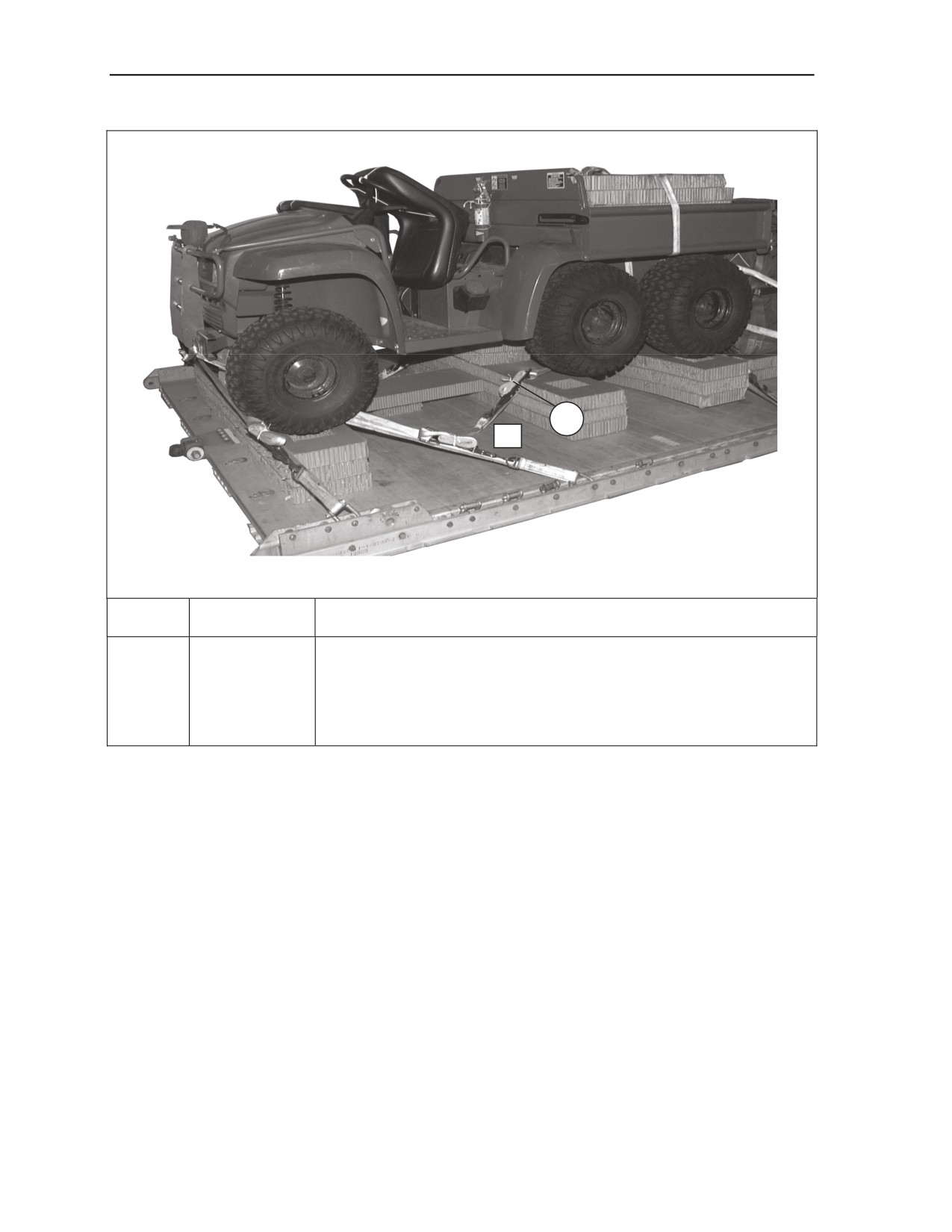

Figure 2-9. Lashings 1 and 2 Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-11
Chapter 2
3
A2
z

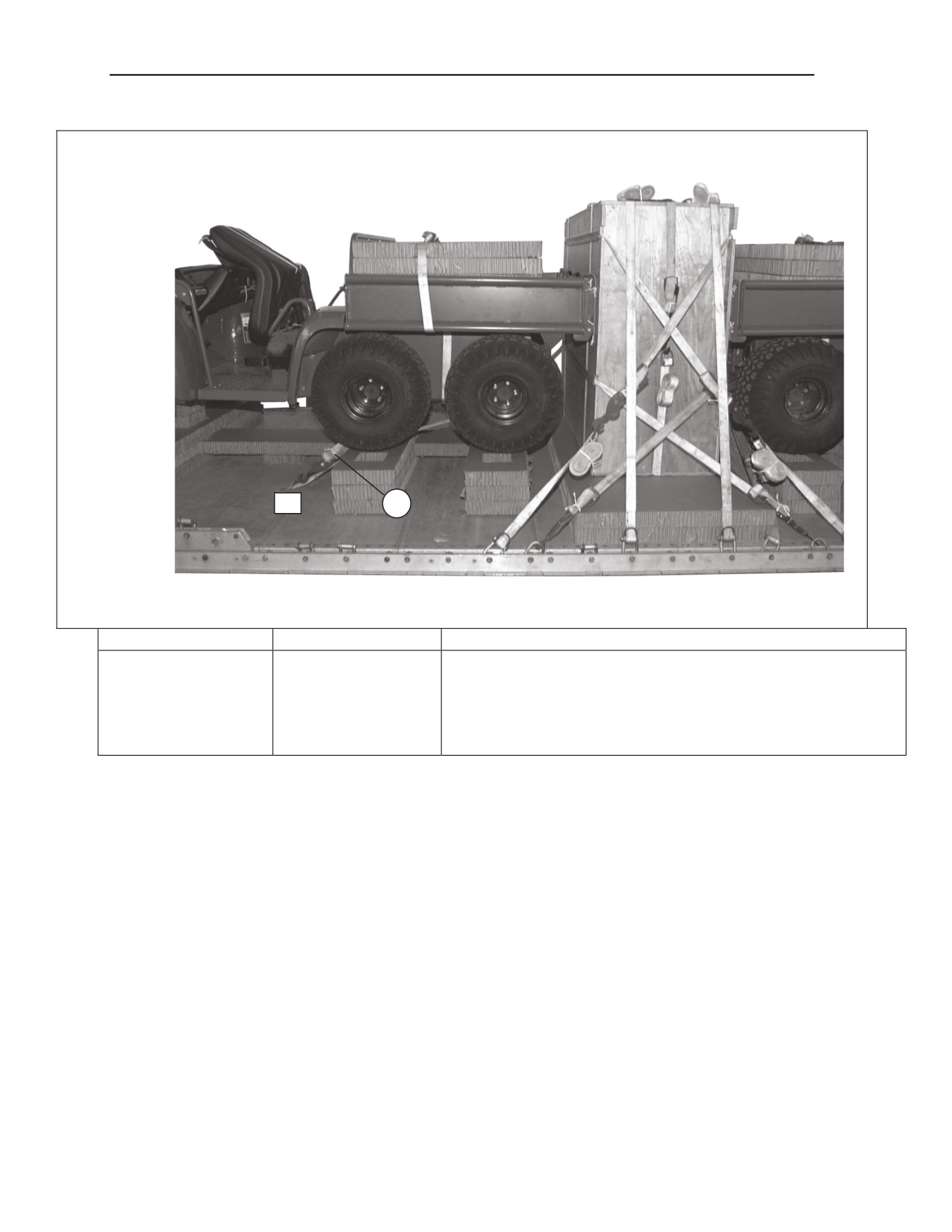

Lashing Number
Deck Ring Number
Instructions
Pass lashing through:
3
A2
Left rear tie-down point.
4
B2
Right rear tie-down point. (Not Shown)
Figure 2-10. Lashings 3 and 4 Installed
2-12
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
5
5
Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing through:
5
5
Front right tie-down point.
6
5A
Front left tie-down point.
(Not Shown)
Figure 2-11. Lashings 5 and 6 Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-13
Chapter 2
7
9
Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing through:
7
9
Rear left tie-down point.
8
9A
Rear right tie-down point. (Not Shown)
Figure 2-12. Lashings 7 and 8 Installed
2-14
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
20A
10
9
20
Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing through:
9
20
Front right tie-down point.
10
20A
Front left tie-down point.
Figure 2-13. Lashings 9 and 10 Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-15
Chapter 2
9A
11
z
Lashing Number
Deck Ring Number
Instructions
Pass lashing through:
11
9A
Left rear tie-down point.
12
9B
Right rear tie-down point. (Not Shown)

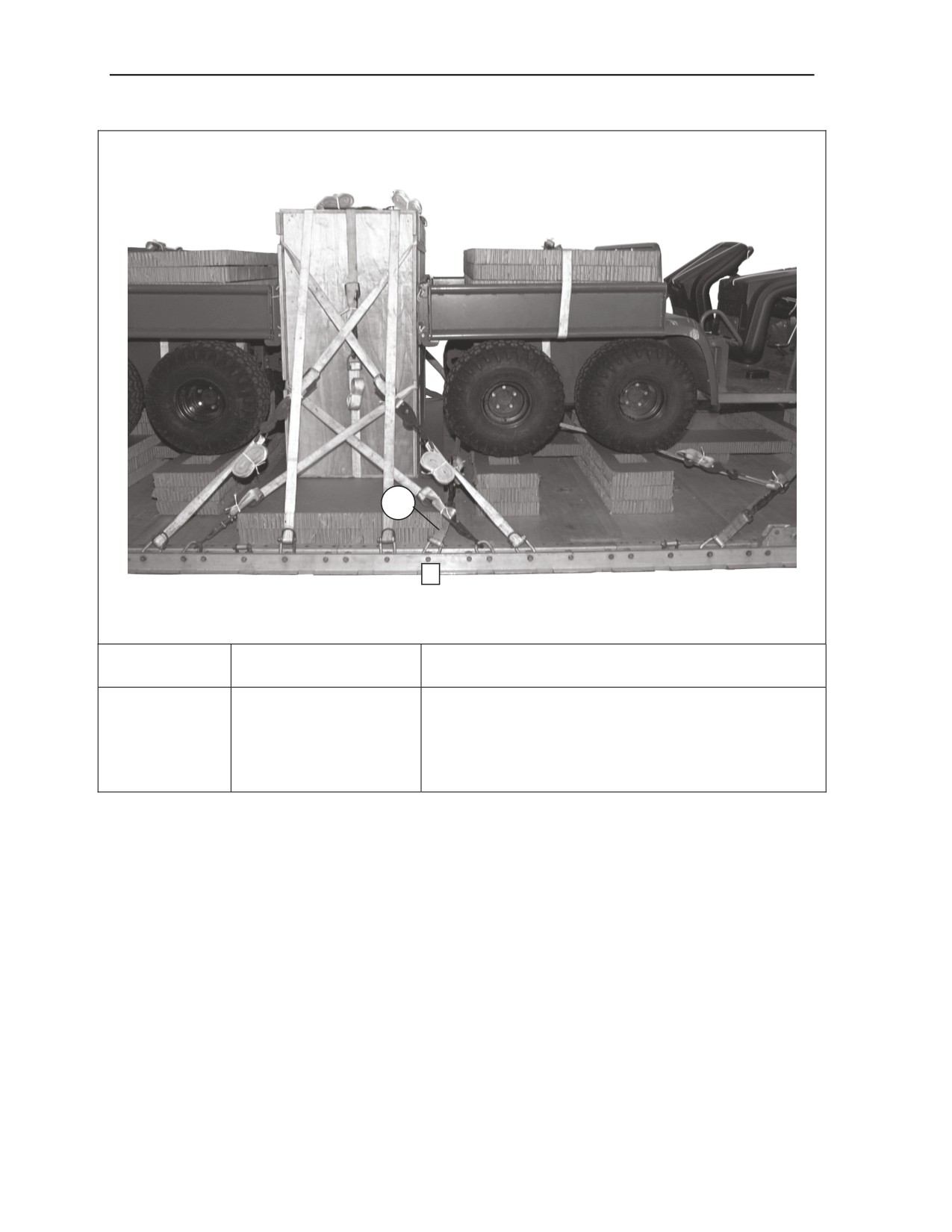

Figure 2-14. Lashings 11 and 12 Installed
2-16
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
13
15
16
12
Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing through:
13
16
Front left tie-down point.
14
16A
Front right tie-down point.
(Not Shown)
15
12
Right rear tie-down point.
16
12A
Left rear tie-down point.
(Not Shown)
Figure 2-15. Lashings 13 through 16 Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-17
Chapter 2
POSITIONING M-GATOR BOXES

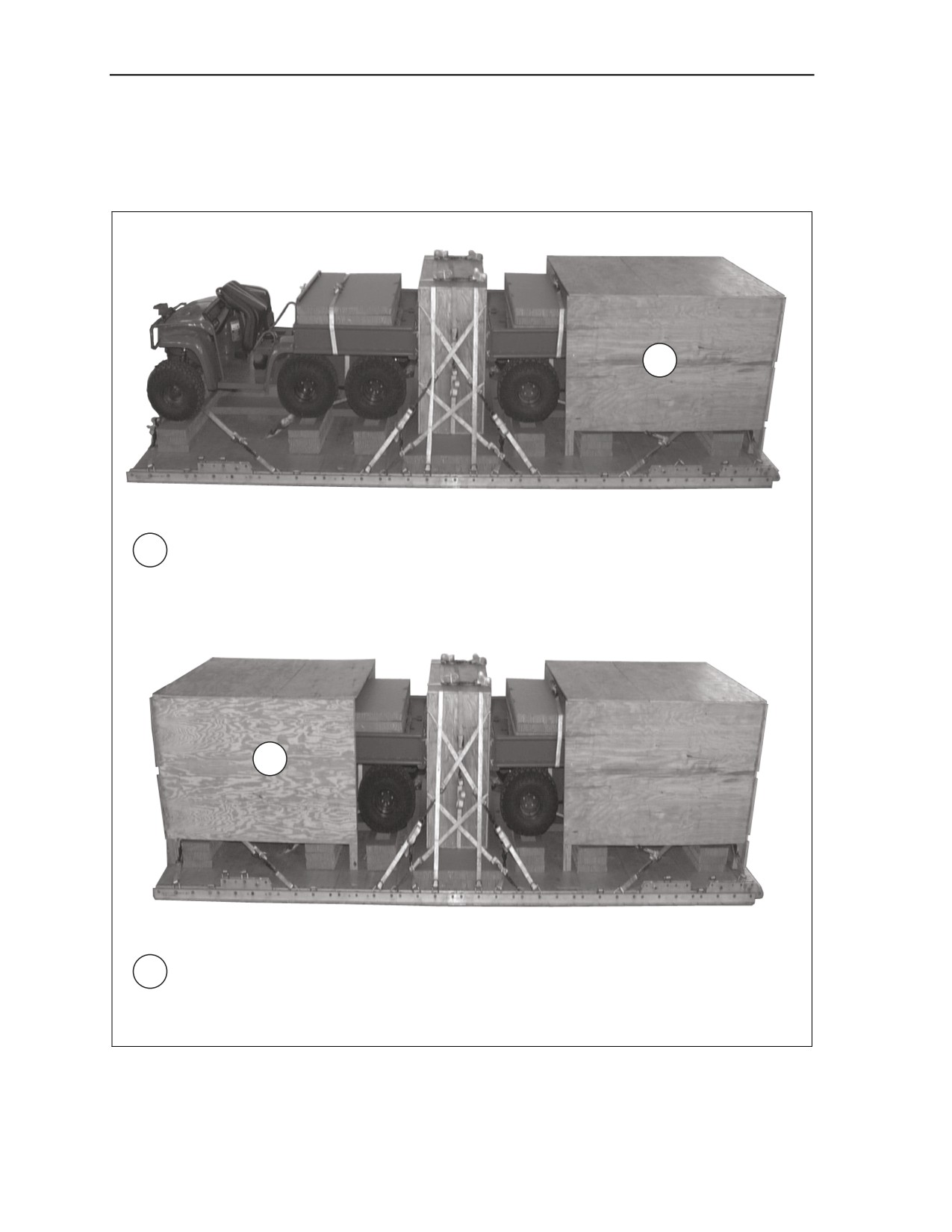

2-12. Position M-Gator boxes as shown in Figure 2-16.
1
1 Position the front box over the front M-Gator aligning the bottom front edge of the box with
the front edge of the platform.
2
2 Position the rear box over the rear M-Gator aligning the bottom front edge of the box with
the rear edge of the platform.
Figure 2-16. M-Gator Boxes Positioned
2-18
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop

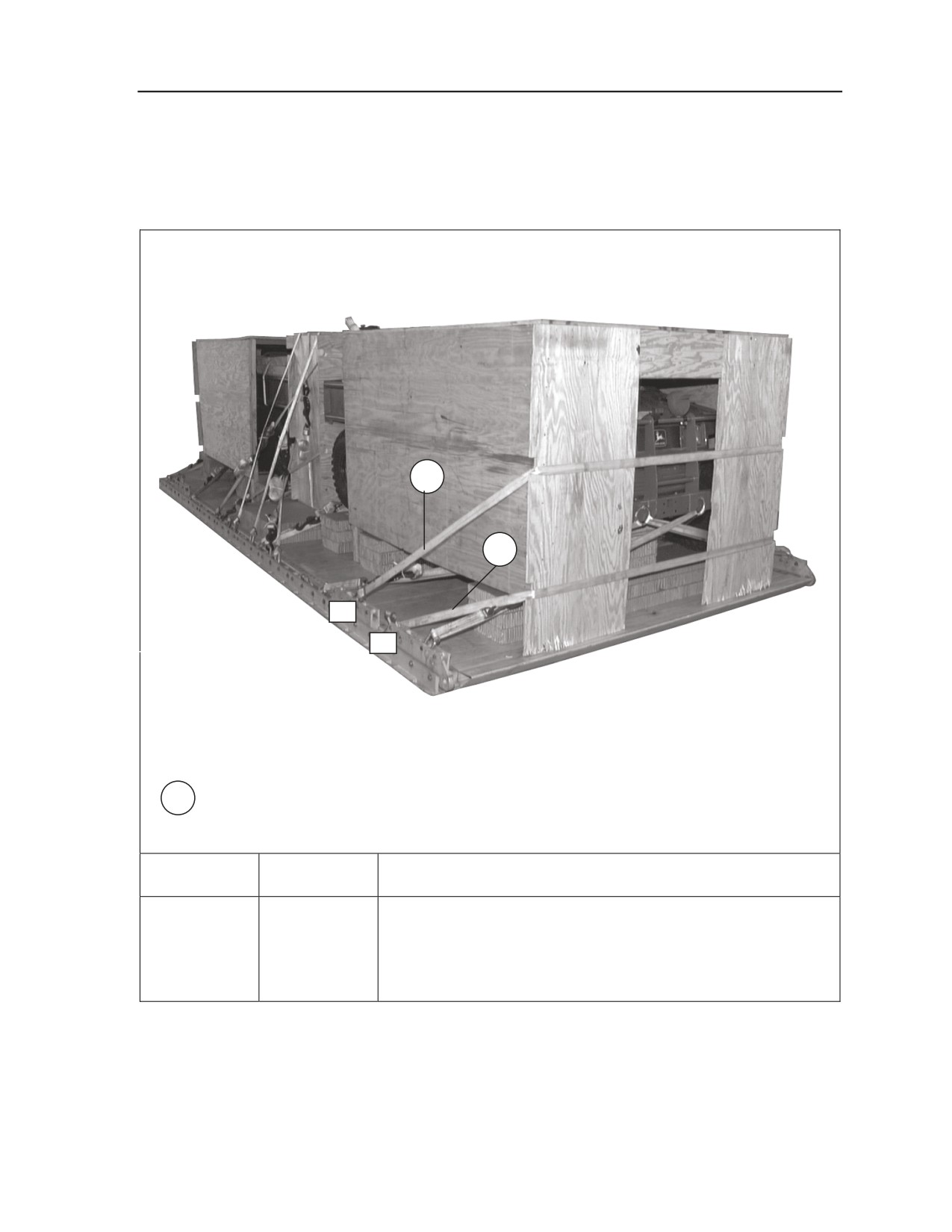

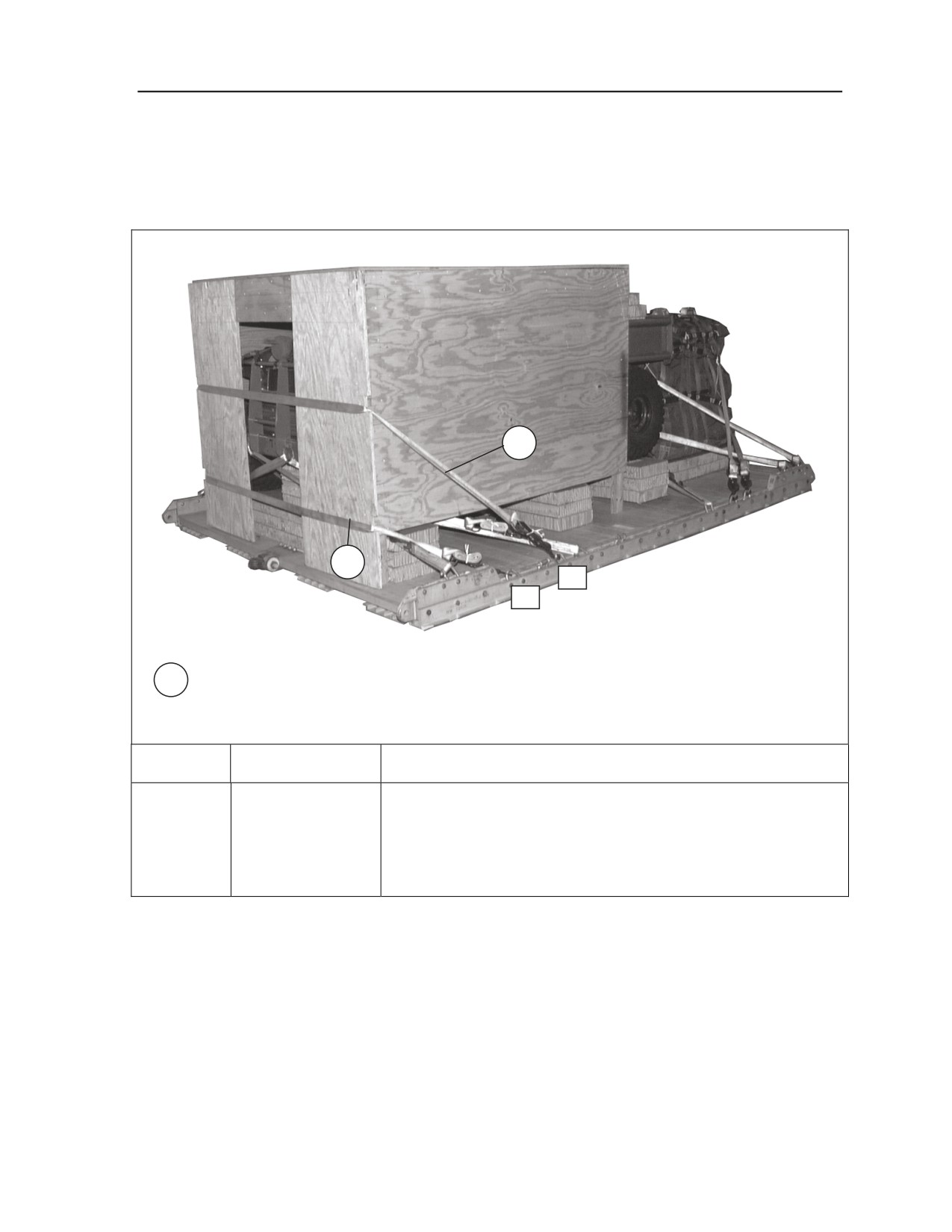

LASHING M-GATOR BOXES

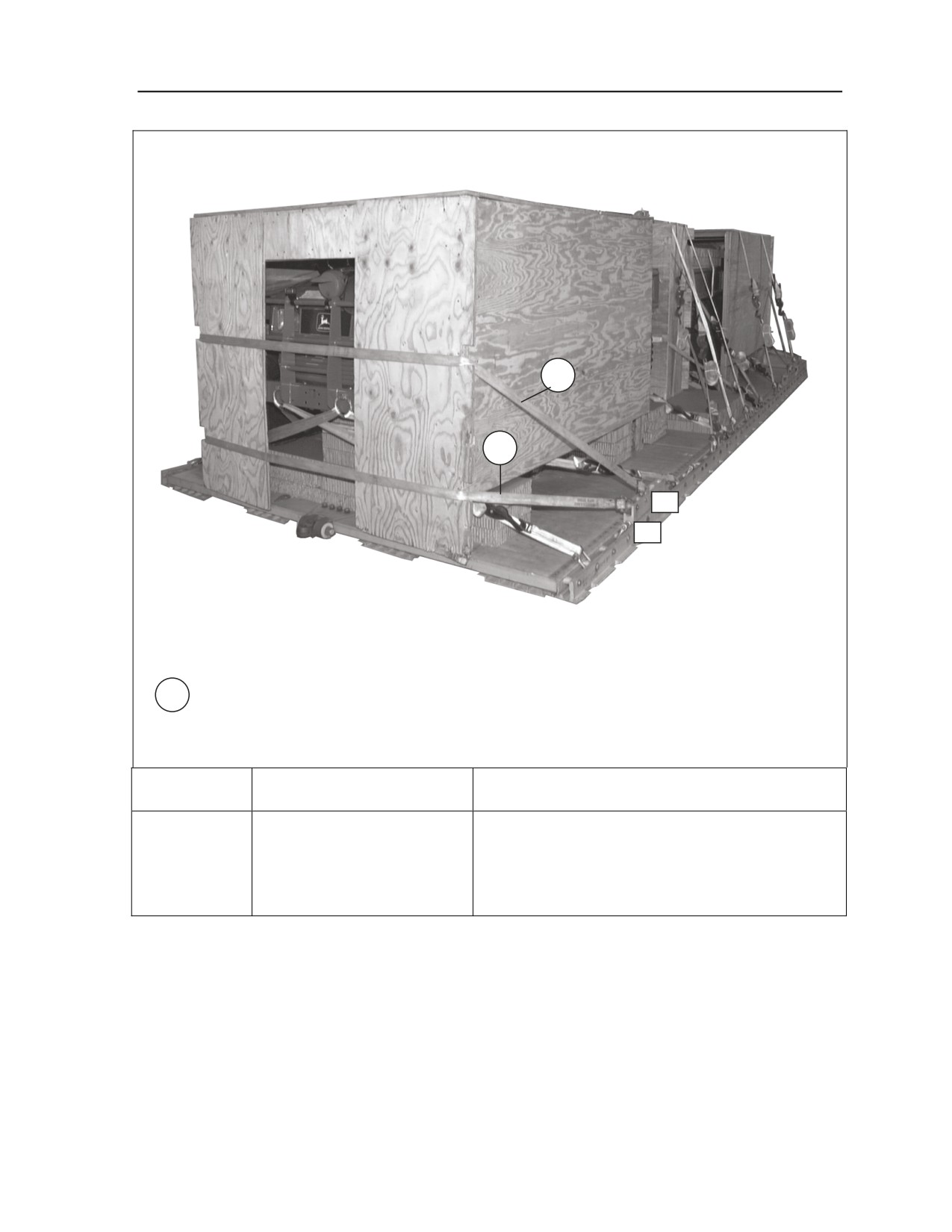

2-13. Lash the M-Gator boxes to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-17.
18
17
4
3
1 Route a lashing through clevis 3 and back through its own D-ring, and pull strap taut.
Repeat the same steps for clevis 4. Bind to clevises 3A and 4A.
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing through:
17
3 and 3A
Front lower cutouts of front box.
18
4 and 4A
Front upper cutouts of front box.

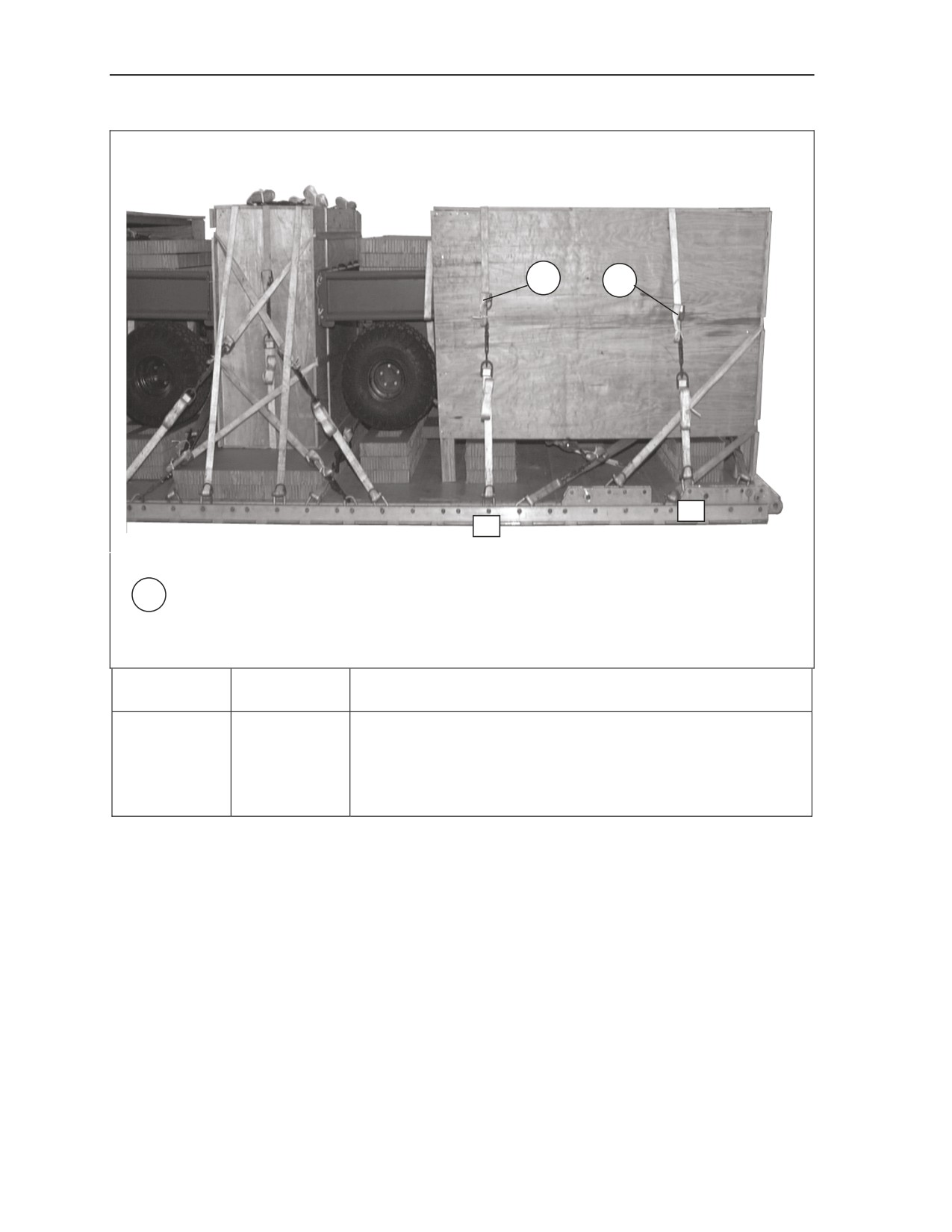

Figure 2-17. M-Gator Boxes Lashed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-19
Chapter 2
20
19
2
6
2 Route a lashing through clevis 2 and back through its own D-ring, and pull strap taut.
Repeat the same steps for clevises 2A, 6, and 6A.
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing through:
19
2 and 2A
Over top of box and bind on right side of box.
20
6 and 6A
Over top of box and bind on right side of box.
Figure 2-17. M-Gator Boxes Lashed (Continued)
2-20
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
21
22
17
18

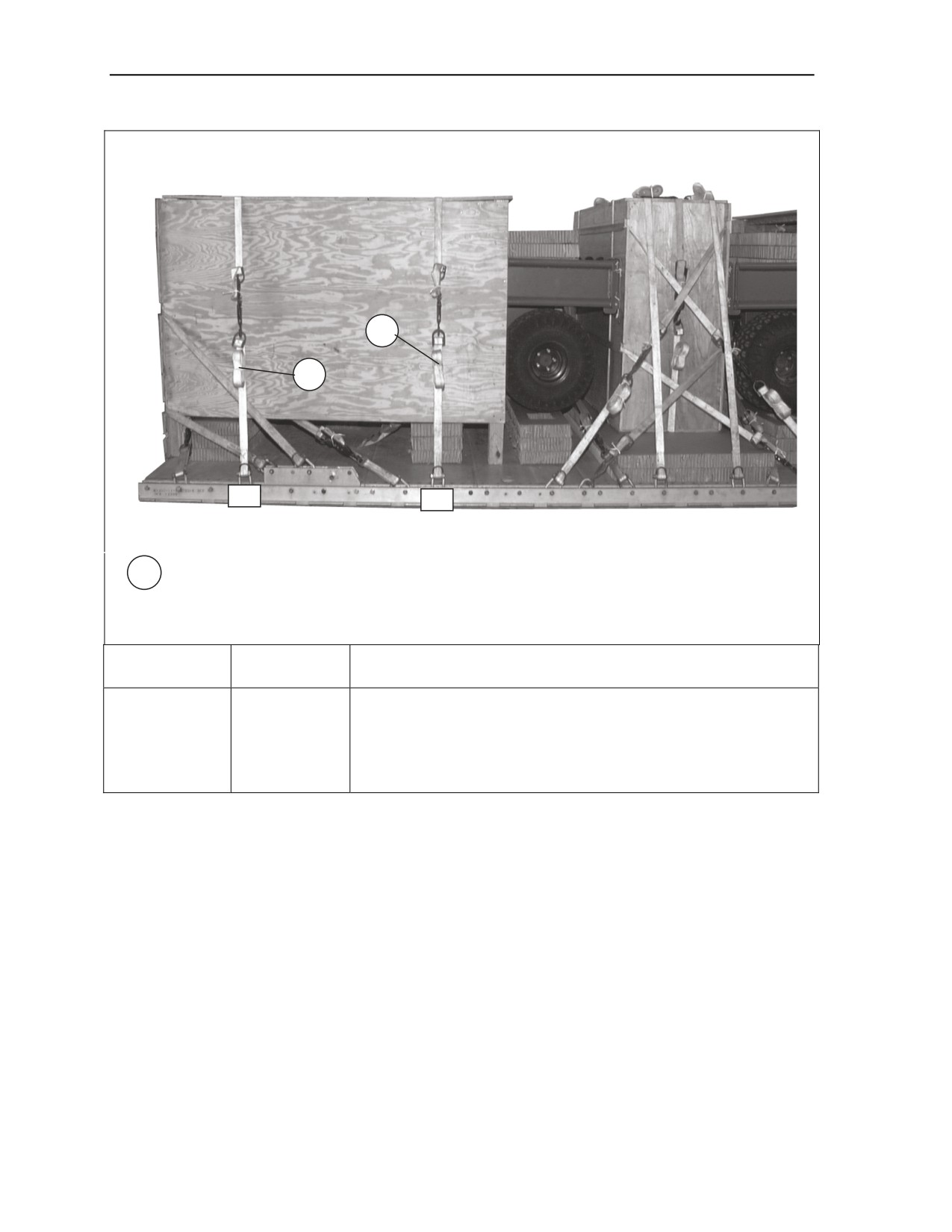

3 Route a lashing through clevis 17 and back through its own D-ring, and pull the strap taut.
Repeat the same steps for 17A, 18, and 18A. Bind to clevises 17A and 18A.
Lashing
Tie-down
Instructions
Number
Clevis Number
Pass lashing through:
21
17 and 17A
Front upper cutouts of rear box.
22
18 and 18A
Front lower cutouts of rear box.
Figure 2-17. M-Gator Boxes Lashed (Continued)
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-21
Chapter 2
23
24
19
15
4 Route a lashing through clevis 15 and back through its own D-ring, and pull strap taut.
Repeat same steps for clevises 15A, 19, and 19A.
Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing through:
23
15 and 15A
Over top of box and bind on left side of box.
24
19 and 19A
Over top of box and bind on left side of box.
Figure 2-17. M-Gator Boxes Lashed (Continued)
2-22
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop

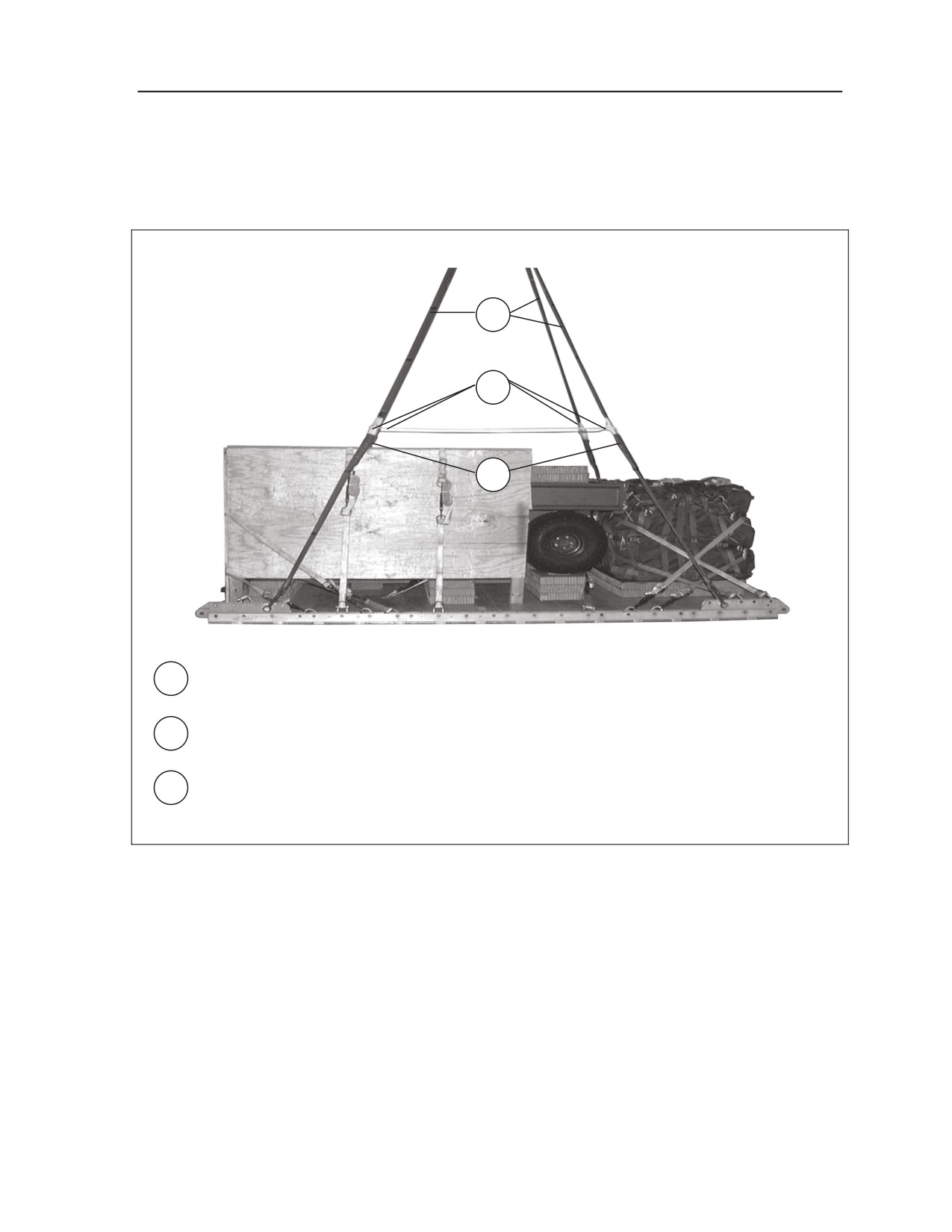

INSTALLING SUSPENSION SLINGS

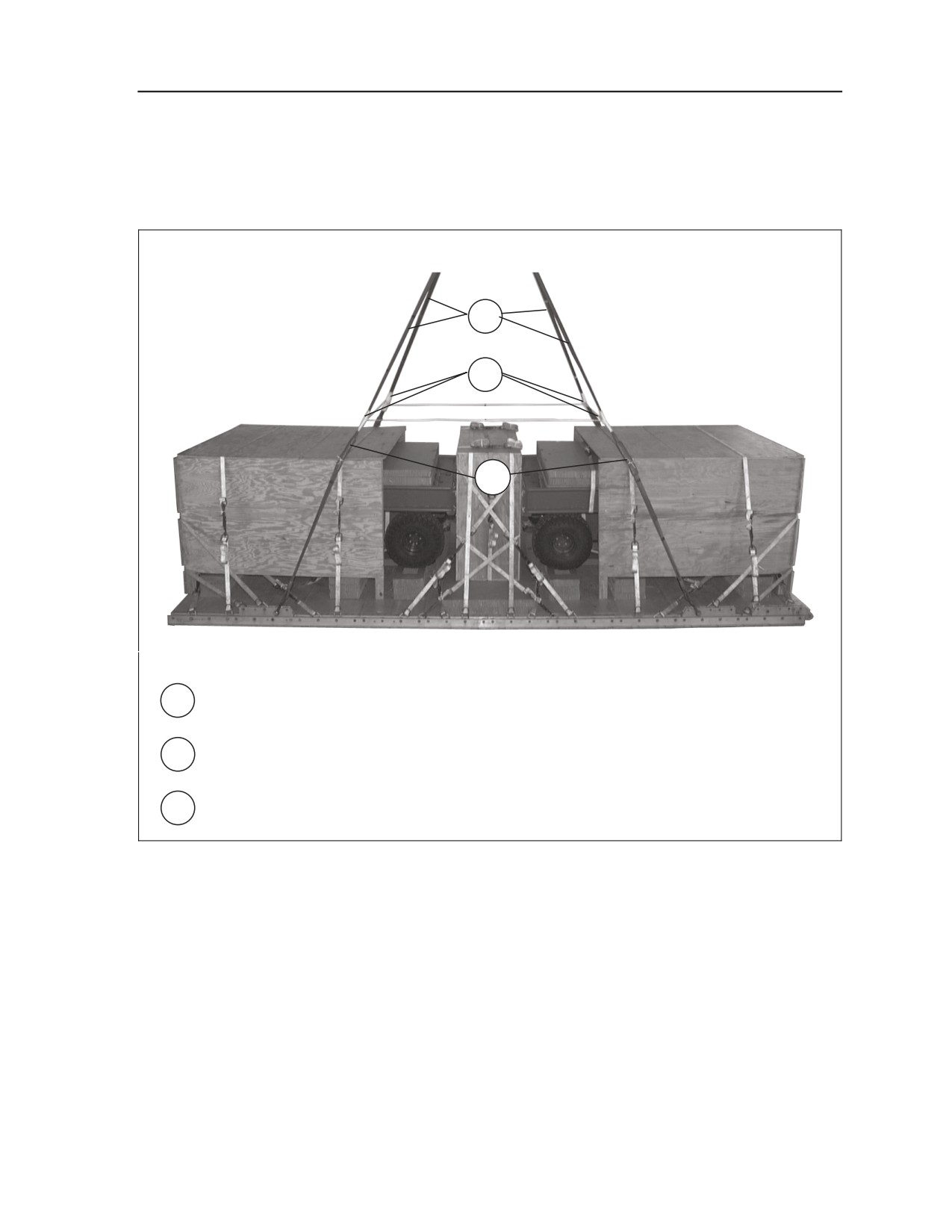

2-14. Install four 16-foot (2-loop), type XXVI nylon slings as suspension slings according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-18.
1
2
3
1 Attach a 16-foot (2-loop), type XXVI nylon sling to each of the four suspension bracket links
using a large clevis.
2 Raise the slings above the load and install the deadman’s tie as outlined in FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3 Felt and tape each sling where they make contact with the boxes.
Figure 2-18. Suspension Slings Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-23
Chapter 2

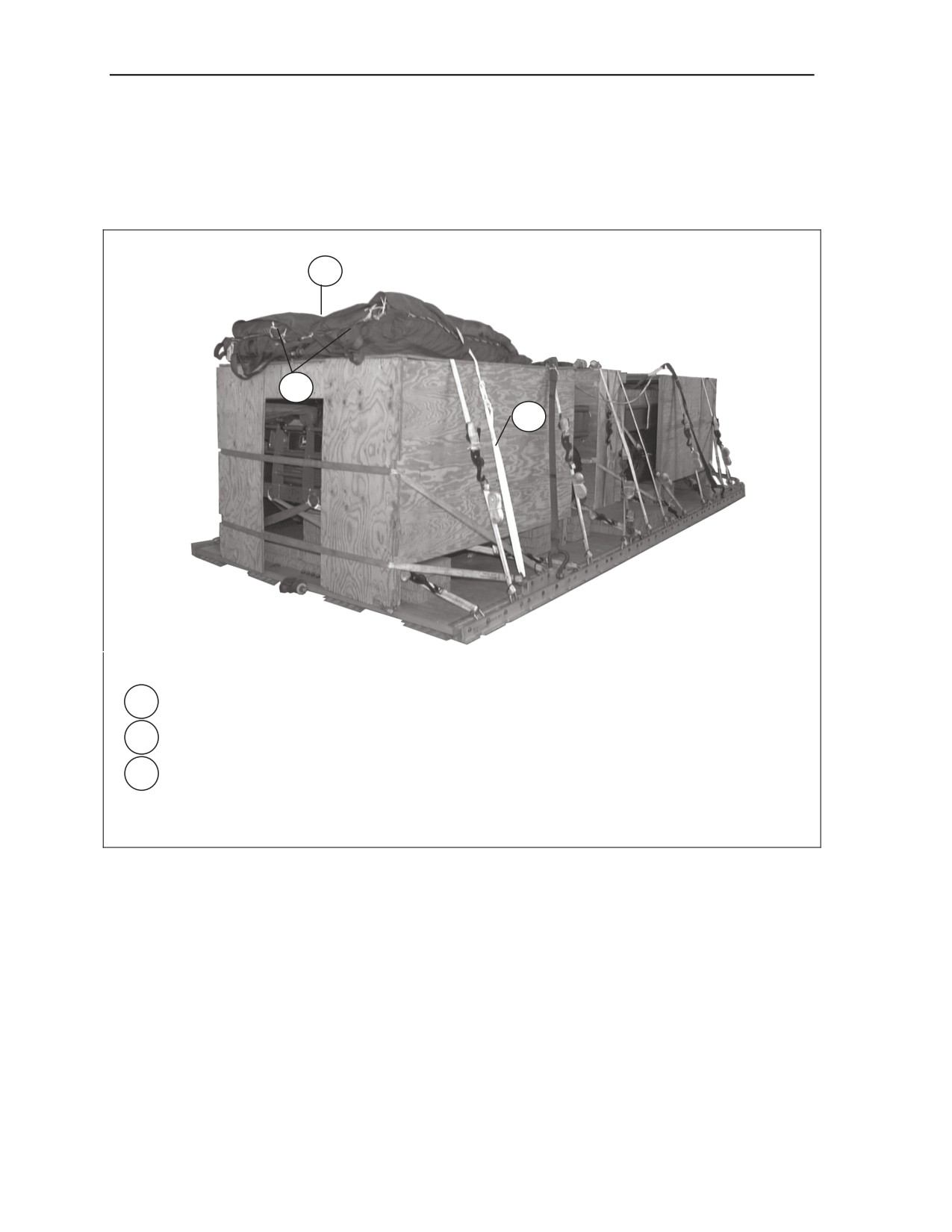

STOWING CARGO PARACHUTES

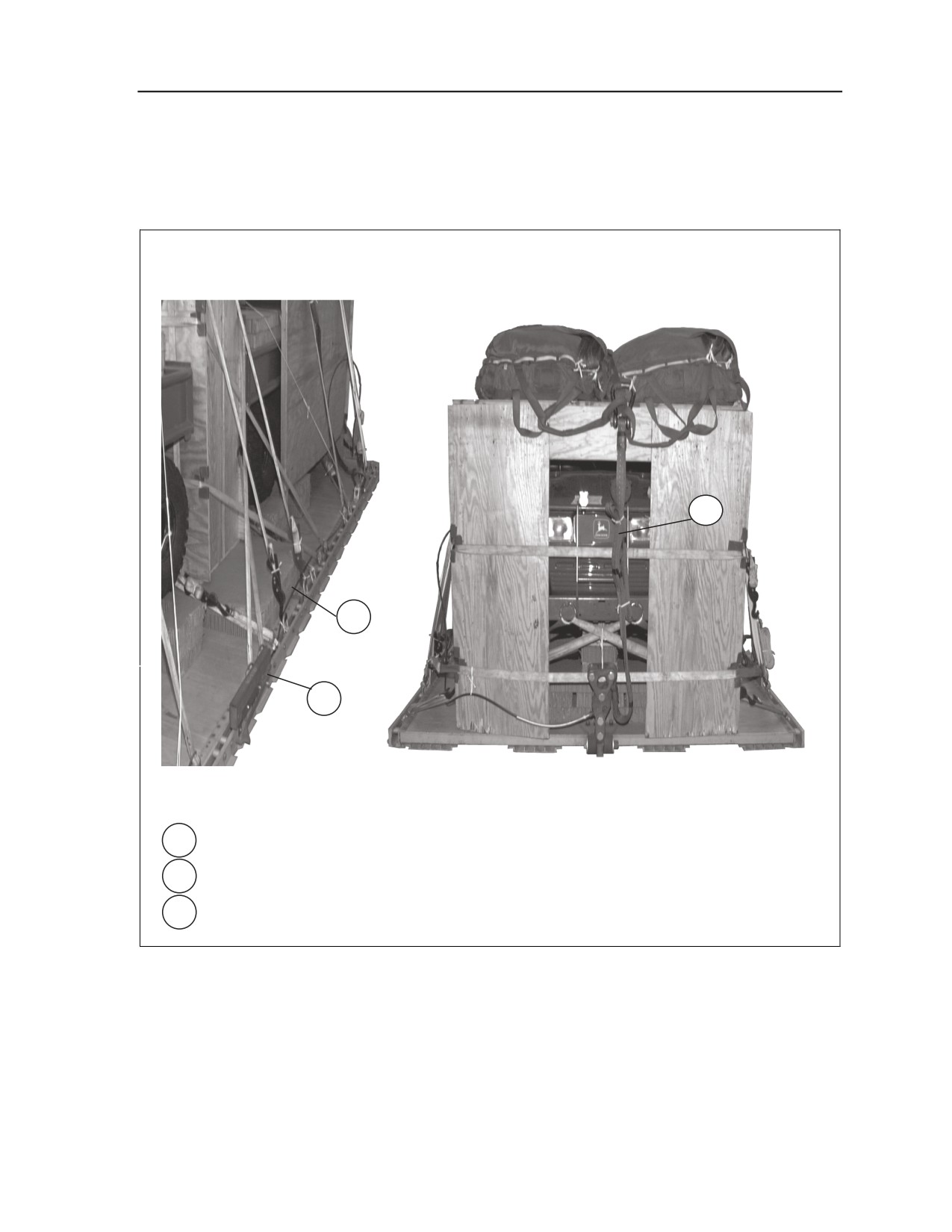

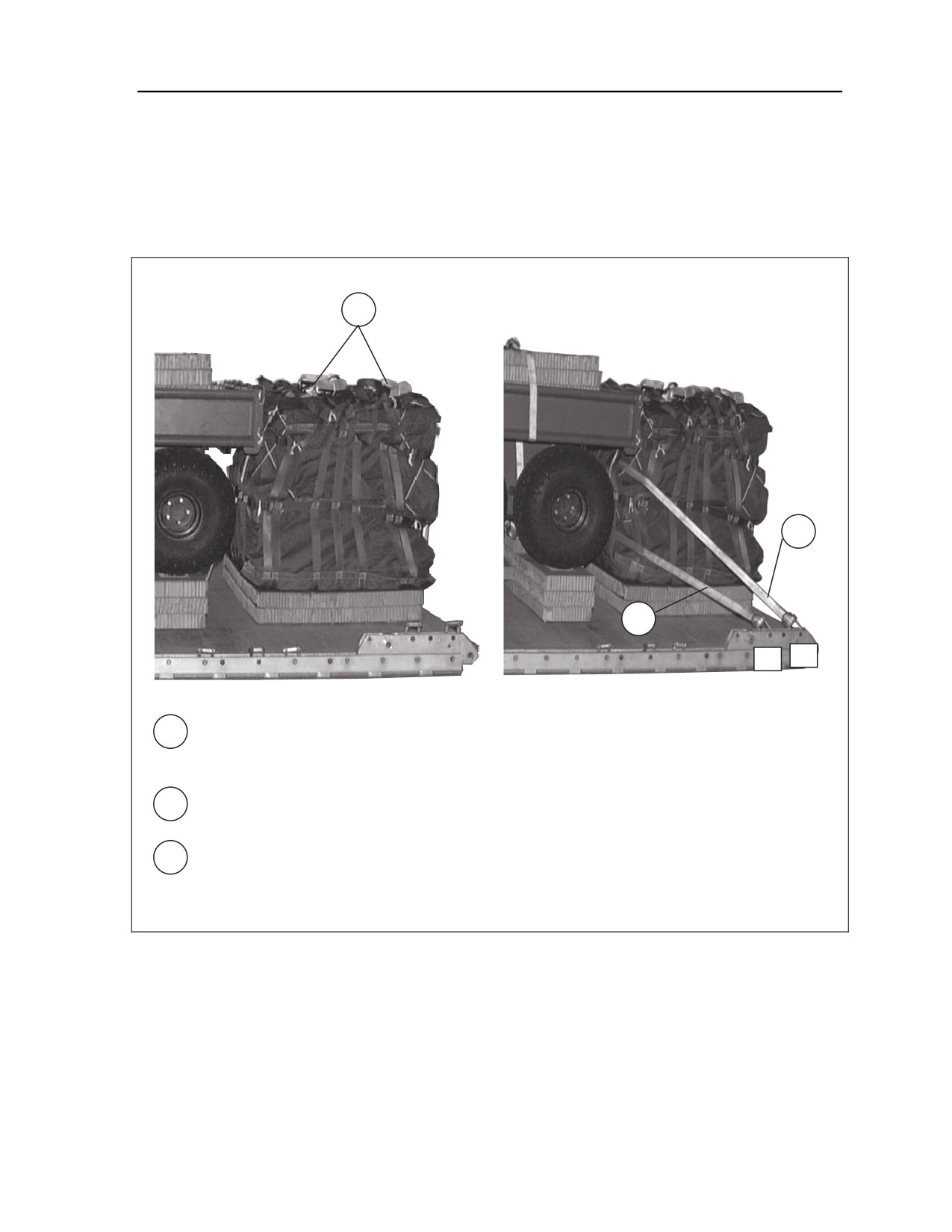

2-15. Prepare, stow, and restrain two G-11 cargo parachutes according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 as shown in Figure 2-19.
3
1
2
1 Place two G-11 cargo parachutes on the front edge of the rear M-Gator box.
2 Restrain the parachutes with type VIII nylon webbing to clevises 18 and 18A.
3 Install the parachute release strap according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 2-19. Cargo Parachutes Stowed
2-24
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
INSTALLING EXTRACTION SYSTEM

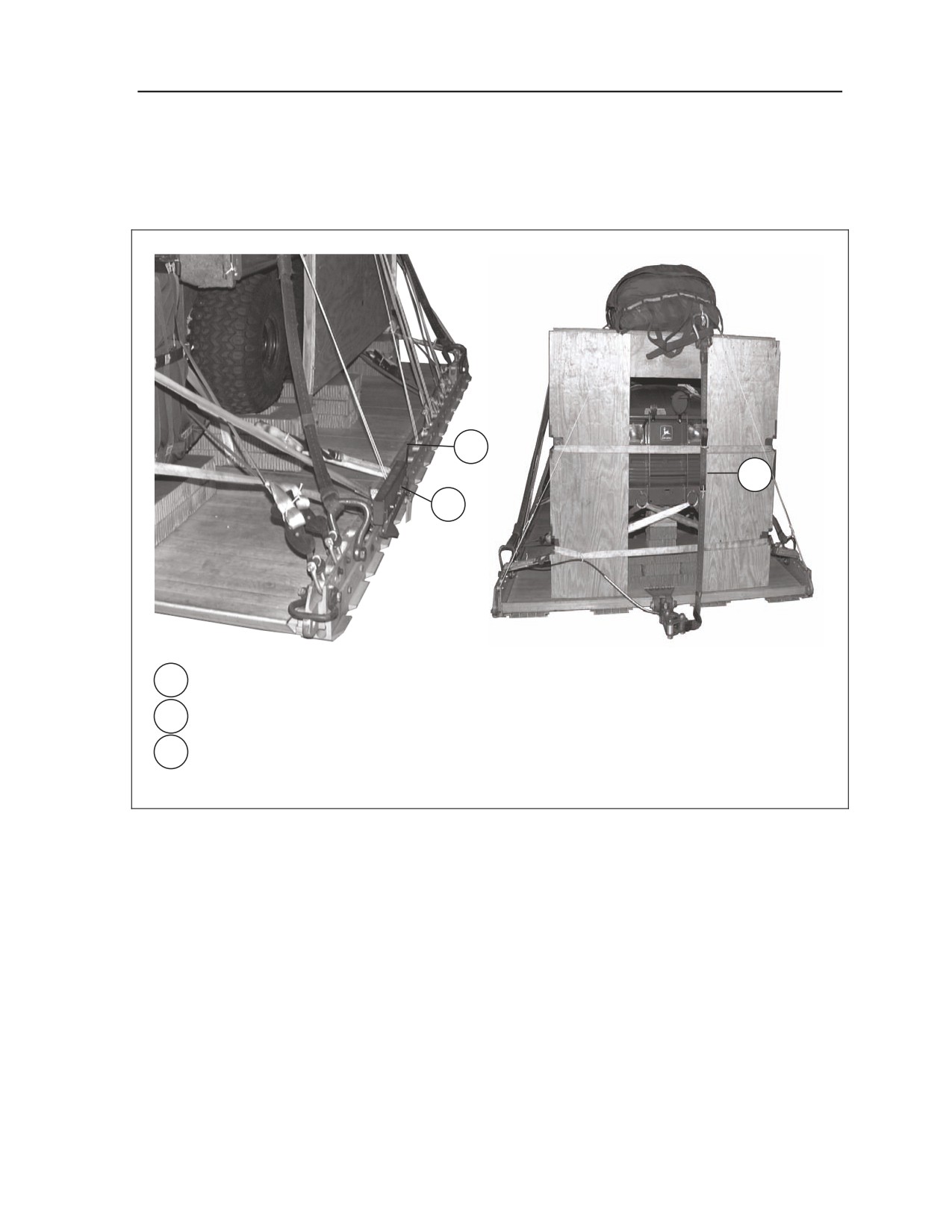

2-16. Install the Extraction Force Transfer Coupling (EFTC) according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 as shown in Figure 2-20.
3
2
1
1 Install EFTC actuator mounting brackets using rear mounting holes.
2 Install a 20-foot cable.
3 Attach a 9-foot (2-loop), type XXVI nylon sling for the deployment line.
Figure 2-20. Extraction System Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-25
Chapter 2
INSTALLING PARACHUTE RELEASE

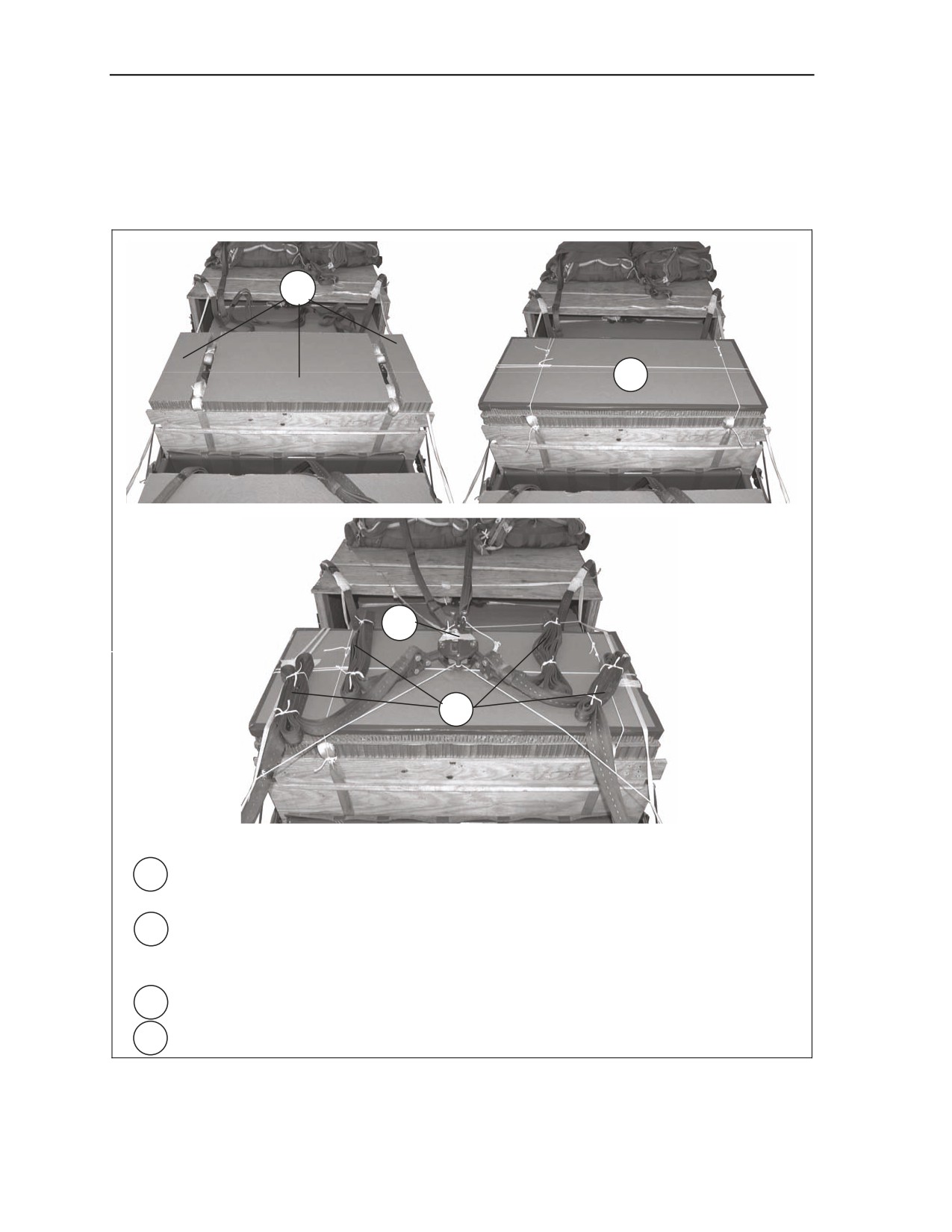

2-17. Prepare and install an M-1 cargo parachute release system according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 as shown in Figure 2-21.
1
2
3
4
1 Cut one piece of honeycomb to fit between the lashings and two pieces to fit outside the
lashings on top of the equipment box. Each piece will be 25 1/2 inches wide.
2 Cut a 58 1/2-inch by 25 1/2-inch piece of honeycomb and place it on top of the three
pieces previously placed on top of the equipment box. Tape the outer edges and secure
with type III nylon cord.
3 Place the M-1 release on the equipment box and safety it to convenient places on the load.
4 Fold and secure any slack in the suspension slings.
Figure 2-21. Parachute Release Installed
2-26
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
POSITIONING EXTRACTION PARACHUTE
2-18. Select the extraction parachute and extraction line needed using the extraction line requirements in
FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and extraction line on the load for installation inside the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
2-19. Select and install provisions for emergency restraints according to the emergency aft restraint
requirements in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.

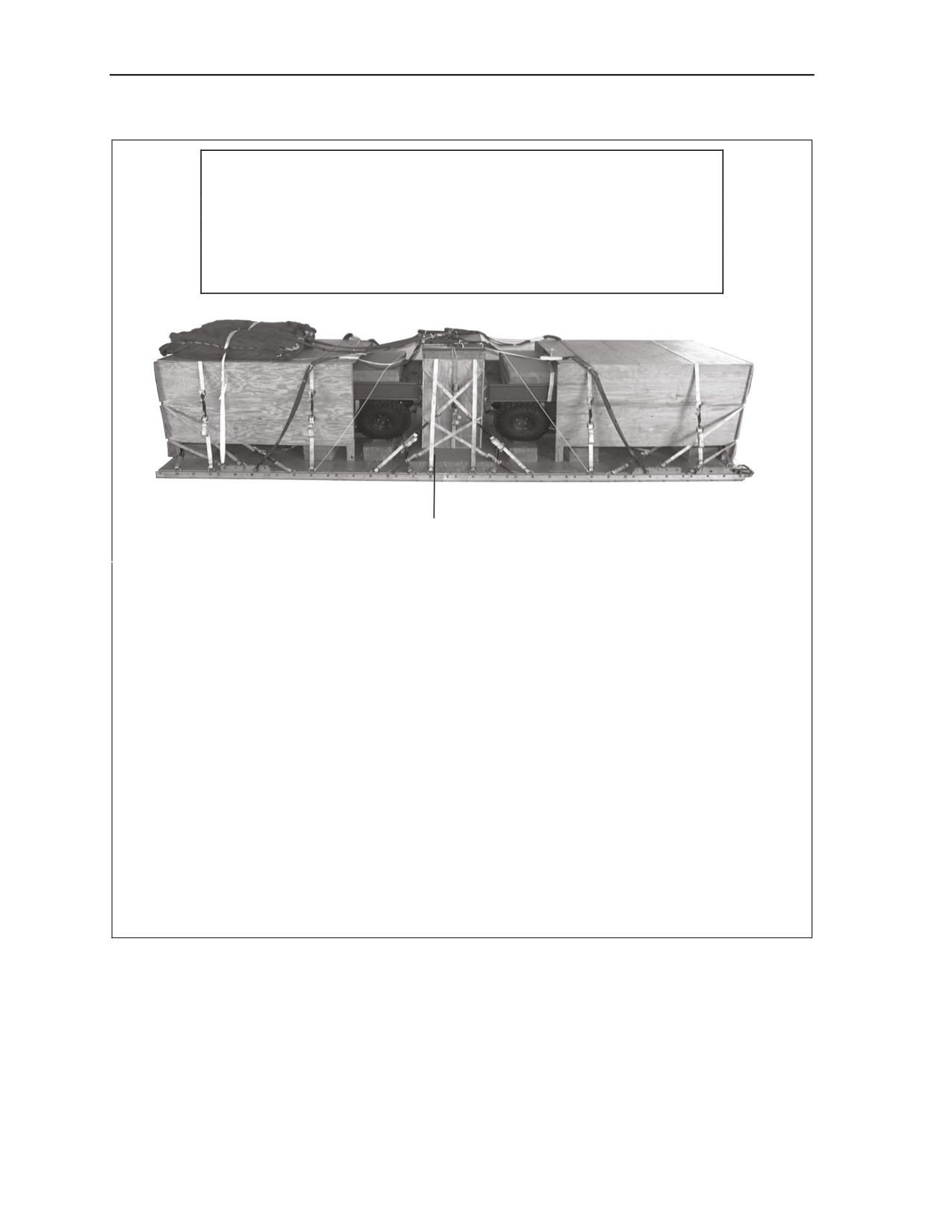

MARKING RIGGED LOAD
2-20. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 2-22. Complete the Shipper’s Declaration for Dangerous
Goods. If the load varies from the one shown, the weight, height, and CB must be recomputed.
EQUIPMENT REQUIRED
2-21. The equipment required to rig this load is listed in Table 2-1.
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-27
Chapter 2
CAUTION
Make the final rigger inspection required by FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MM0-010/TO 13C7-1-5 and AR 59-4/
OPNAVINST 4630.24C/AFJ 13-210(I)/MCO 13480.1B before the
load leaves the rigging site.
CB

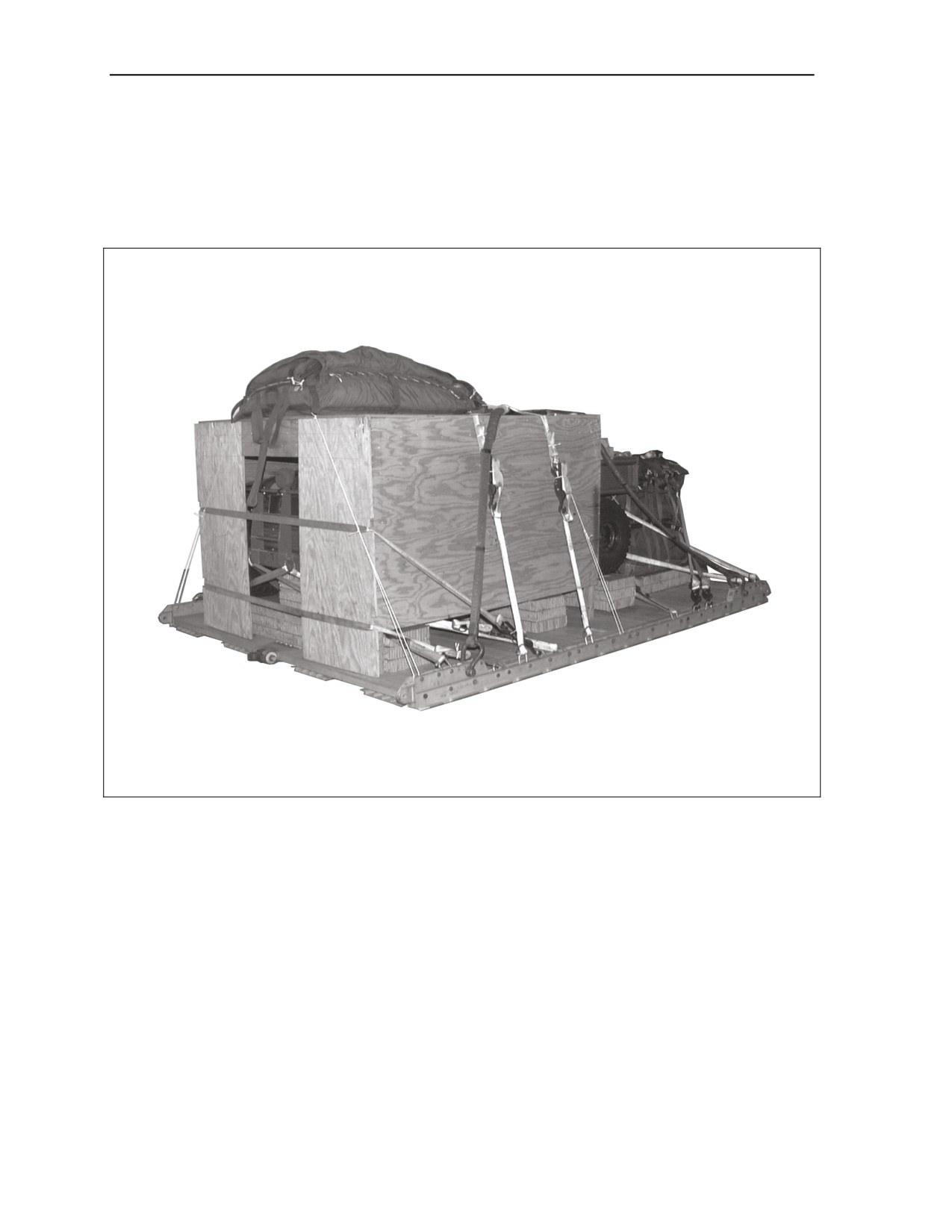

RIGGED LOAD DATA
Weight
8,520 pounds
Maximum Load Allowed
10,000 pounds
Height
78 inches
Width
108 inches
Overall Length
258 inches
Overhang: Front (box)
2 1/2 inches
Rear
0 inches
Center of Balance (CB) (from front edge of platform)
124 inches
Extraction System with 12-foot cable (adds 18 inches to length of platform)
EFTC
Figure 2-22. M-Gator Rigged on a 20-Foot Type V Platform for Low-Velocity Airdrop
2-28
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging Two Military Utility Vehicles (M-Gator) and Equipment Box on a 20-Foot, Type V Platform for
Low-Velocity Airdrop
Table 2-1. Equipment Required for Rigging the M-Gator and Equipment Box on a 20-Foot,
Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
1670-01-035-6054
Bridle, extraction line lead, (line bag for C-17)
1
4030-00-090-5354
Clevis, large
5
1670-00-360-0328
Cover, clevis, large
2
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
1670-00-434-5783
Coupling assembly, airdrop, EFTC, w / 20-ft cable
1
1670-01-475-1990
Extraction Parachute Jettison System (EPJS)
1
8305-00-191-1101
Felt, ½-inch
As required
8305-00-290-5584
Felt, 3/16-inch
As required
1670-01-183-2678
Leaf, extraction line (line bag)(add 2 for DES)
2
Line Multi-Loop:
For deployment line:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
For drogue:
1670-01-064-4452
60-ft (1-loop), type XXVI nylon webbing (DES)
1
For extraction:
1670-01-064-4452
60-ft (3-loop), type XXVI nylon (C-130 aircraft)
1
1670-01-107-7652
140-ft (3-loop), type XXVI nylon (C-17 aircraft)
1
For riser extension:
1670-01-062-6301
20-ft (2-loop), type XXVI nylon webbing
1
For suspension:
1670-01-062-6303
16-ft (2-loop), type XXVI nylon webbing
4
Link:
1670-01-493-6418
Assembly small, two-point, 3 ¾-inch
1
1670-01-493-6418
Assembly small, two-point, 3 ¾-inch (C-17 drogue)
1
1670-01-072-5637
Jettison, C-130 (DES)
1
1670-01-483-8259
Link, Parachute connector (TRM H-block) (C-17)
1
Lumber:
5510-00-220-6146
2- by 4-inch
As required
5510-00-220-6148
2- by 6-inch
As required
5530-00-128-4981
Plywood, ¾-inch sheet
9 sheets
Nail, steel wire, common:
5315-00-010-4659
8d
As required
1670-00-753-3928
Pad, energy-dissipating, honeycomb,
20 sheets
Parachute:
1670-01-016-7841
G-11
1
1670-00-063-3715
22-ft, Extraction, Cargo (for C-130 and C-17)
1
1670-01-063-3717
15-ft, Extraction Drogue (DES)
1
10 September 2007
FM 4-20.108 /TO 13C7-2-491
2-29
Chapter 2
Table 2-1. Equipment Required for Rigging the M-Gator and Equipment Box on a 20-Foot,
Type V Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Platform, airdrop, type V, 8-ft:
1670-01-353-8425
Bracket assembly, component (EFTC)
1
1670-01-353-8424
Bracket, assembly, extraction
1
1670-01-162-2372
Clevis, load tie-down
40
1670-01-162-2381
Link, Tandem, link sups. assembly
2
1670-01-247-2389
Link, Suspension Bracket
4
1670-01-097-8816
Release, cargo parachute, M-1,
1
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down cargo, A/C, 15-ft webbing
46
Webbing:
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
8305-00-268-2411
Cotton, type I, 1/4-inch
As required
8305-00-082-5752
Nylon, tubular, 1/2-in, natural
As required
8305-00-263-3591
Nylon, type VIII
As required
2-30
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Chapter 3
Rigging One Military Utility Vehicle (M-Gator) and an A-22
Cargo Bag on a 12-Foot, Type V Platform for Low-Velocity
Airdrop
DESCRIPTION OF LOAD
3-1. This load consists of one John Deere Diesel, which has been named the M-Gator, and one A-22
cargo bag. The minimum the A-22 cargo bag can weigh is 800 pounds and the maximum weight is 1,000
pounds. It is rigged on a 12-foot type V platform. The load shown has a rigged weight of 4,630 pounds.
It has an overall length of 162 inches, width of 108 inches, height of 78 inches, and a center of balance of
68 inches. The load is rigged with one G-11 cargo parachute.
PREPARING PLATFORM
3-2. Inspect, or assemble and inspect, a 12-foot type V platform as outlined in TM 10-1670-268-
20&P/TO 13C7-52-22. Prepare a 12-foot platform using 22 tie-down clevises as shown in Figure 3-1.
BUILDING M-GATOR BOX
3-3. Build the M-Gator box as outlined in Chapter 1, paragraph 1-7.
PREPARING M-GATOR
3-4. Prepare the M-Gator according to Chapter 1, paragraph 1-4 and Chapter 2, paragraph 2-5.
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-1
Chapter 3
Clevises
11A through 1A
Left
REAR
FRONT
Right
Clevises
11 through 1
1. Install a tandem multi-purpose link to the front of each platform side rail using holes 1, 2, and
3.
2. Install a tandem multi-purpose link to the rear of each platform side rail using holes 22, 23,
and 24.
3. Install a clevis on bushings 1 and 3 of each front tandem link.
4. Install a clevis on bushing 2 of each rear tandem link.
5. Starting at the front of each platform side rail, install clevises on the bushings bolted on holes
6, 7, 9, 15, 17, 18, 19, and 20.
6. Starting at the front of the platform, number the clevises 1 through 11 on the right side and
1A through 11A on the left side.
7. Label the deck rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
8. Route a lashing through deck ring A1 and back through its own D-ring, repeat for tie-down
rings B1, A3, and B3.

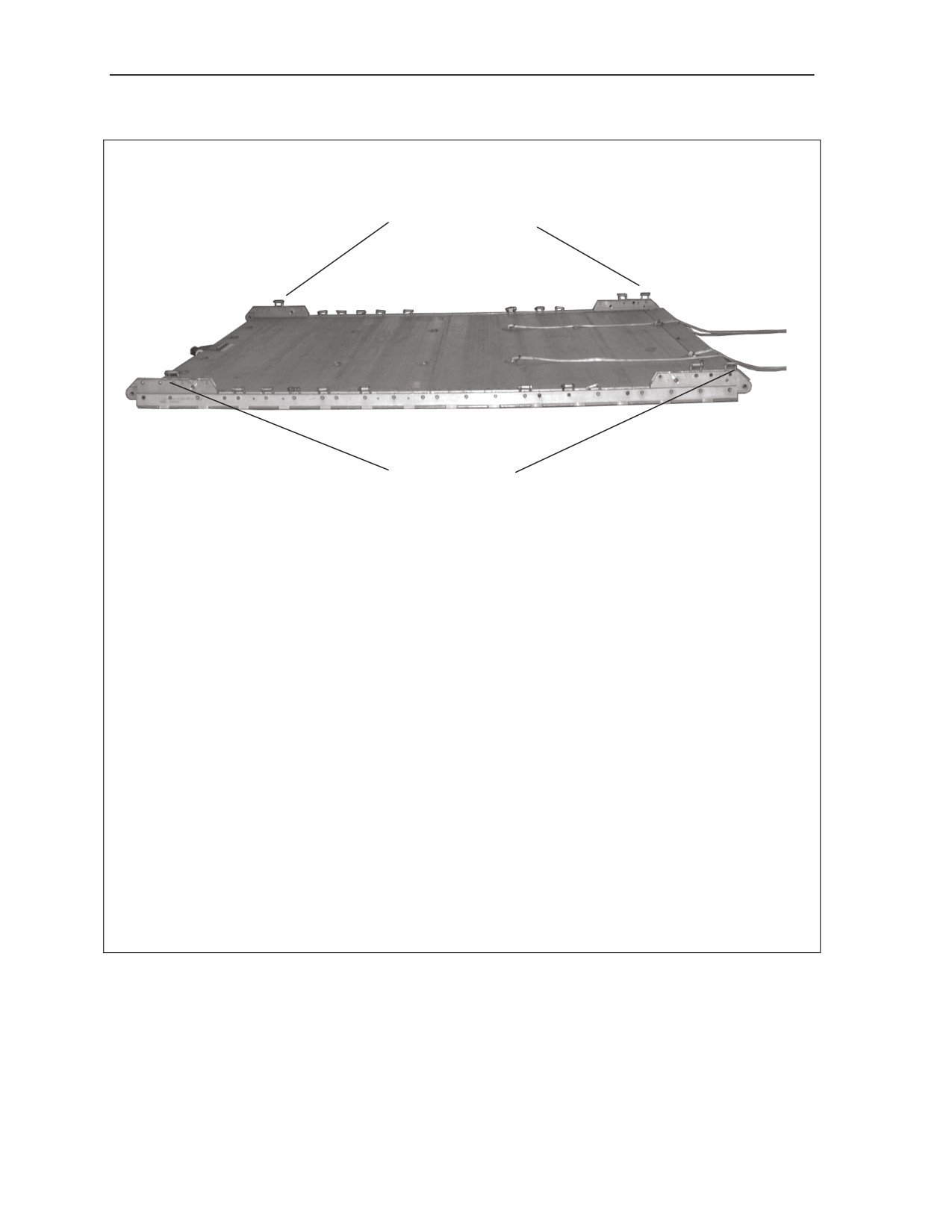

Figure 3-1. Platform Prepared
3-2
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
BUILDING HONEYCOMB STACKS
3-5. Refer to paragraph 1-3 for building honeycomb stack 1. Build honeycomb stack 2 as shown in
Figure 3-2.
Stack
Pieces
Width
Length
Material
Instructions
Number
(Inches)
(Inches)
2
2
51
36
Honeycomb
Glue and place one on top of each other.
Figure 3-2. Honeycomb Stack 2 Prepared
POSITIONING HONEYCOMB STACK 1
3-6. Position honeycomb stack 1 centered left to right and 47 1/2 inches from the front edge of the
platform and as shown in Figure 3-3.
47 1/2"
Figure 3-3. Honeycomb Stack 1 Positioned
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-3
Chapter 3
POSITIONING LOAD
3-7. Use four 12-foot (2-loop), type XXVI nylon suspension slings to lift and position the M-Gator.
Attach large clevis assemblies to each sling. Using two front and two rear lifting points, attach one clevis
to each lifting point. Position the M-Gator with the rear of the vehicle facing the front of the platform.
Align the rear edge of the M-Gator frame with the front edge of the honeycomb stack and center. Each tire
will be centered over a cutout in the honeycomb stack as shown in Figure 3-4.
Figure 3-4. M-Gator Positioned
3-4
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
POSITIONING HONEYCOMB STACK 2
3-8. Temporarily place the pre-positioned lashings from deck-rings A3 and B3 over the tailgate. Position
honeycomb stack 2 on the front edge of the platform, centered left to right. Ensure the 51 inch length is
across the platform as shown in Figure 3-5.
Figure 3-5. Honeycomb Stack 2 Positioned
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-5
Chapter 3

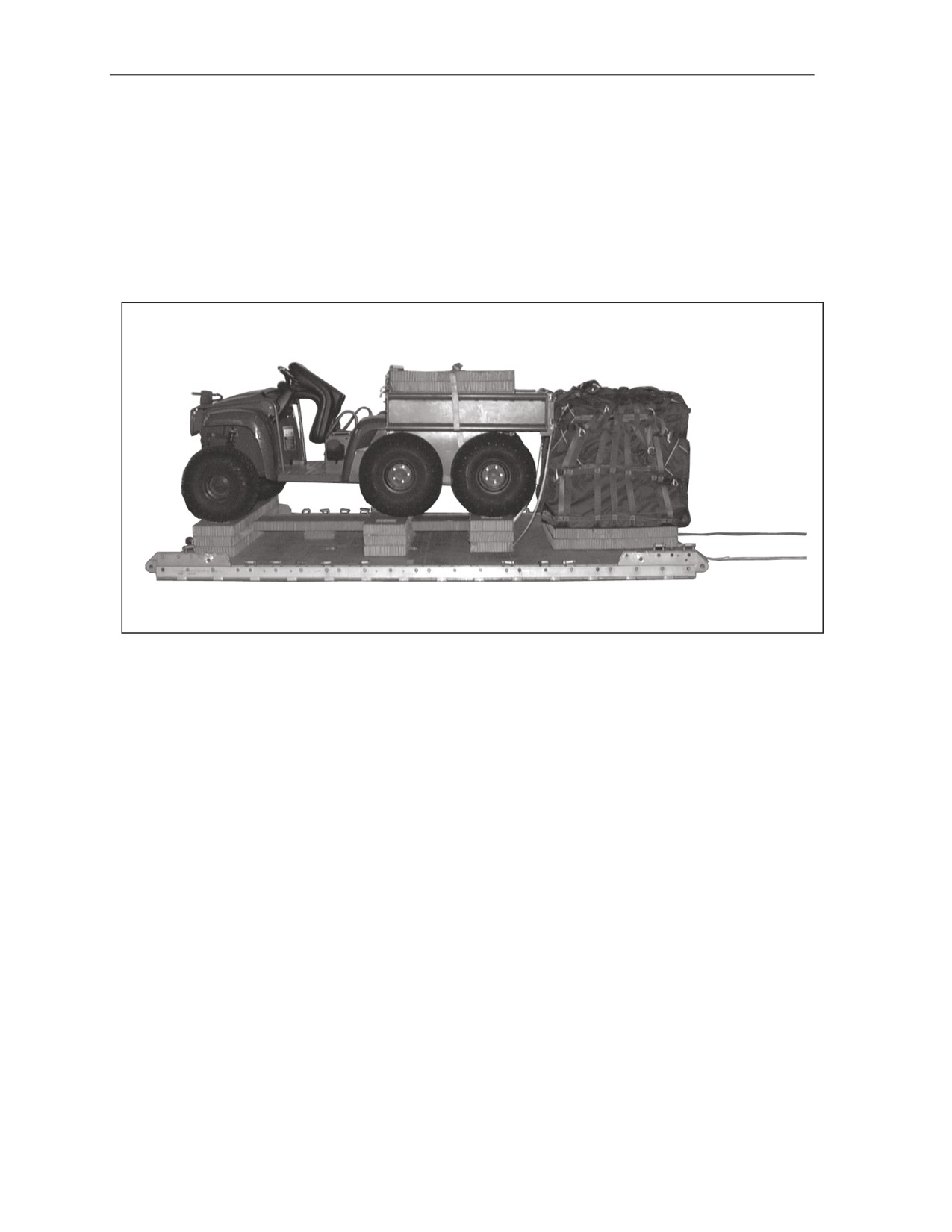

RIGGING AND POSITIONING THE A-22 CARGO BAG
3-9. Rig the A-22 cargo bag as described in FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11. The A-22
cargo bag weight limitations are 800 pounds minimum to 1,000 pounds maximum of unit specific
equipment. Position the A-22 container on stack 2. Place the A-22 container against the tailgate of the M-
Gator so there is no overhang as shown in Figure 3-6.
Figure 3-6. A-22 Cargo Bag Positioned
3-6
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop

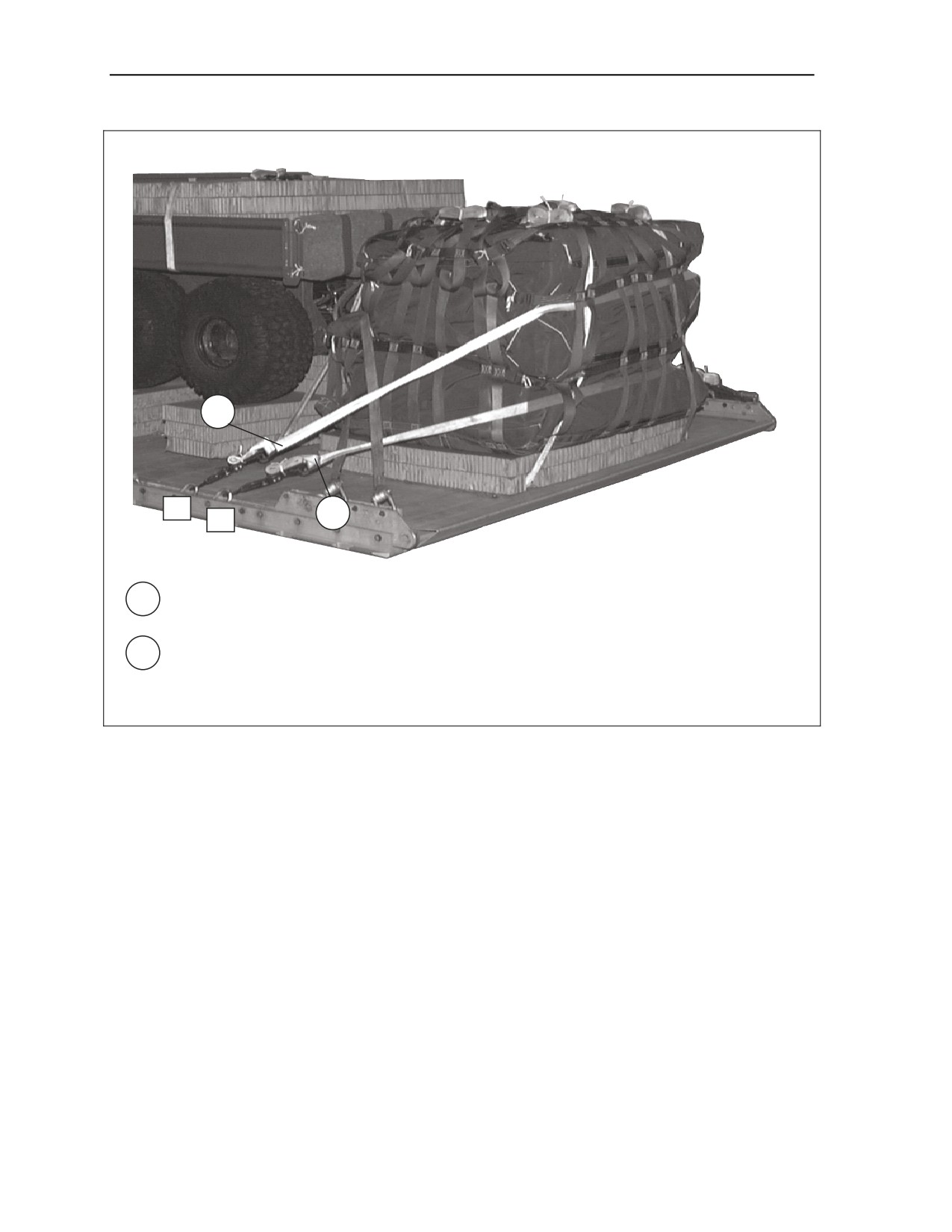

LASHING THE A-22 CARGO BAG
3-10. Lash the A-22 cargo bag to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-7.
1
2
3
1
2
1 Route the pre-positioned lashings under the A-22 cargo bag webbing, deck ring A1 load
binds to deck ring A3, tie-down ring B1 load binds to tie-down ring B3, and load bind on top of
A-22 cargo bag.
2 Route a lashing through clevis 1 and back through its own D-ring, route it through the rear
middle webbing on the A-22 cargo bag and load bind to clevis 1A.
3 Route a lashing through clevis 2 and back through its own D-ring, route it through the rear
lower webbing on the A-22 cargo bag and load bind to clevis 2A.
Figure 3-7. A-22 Cargo Bag Lashed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-7
Chapter 3
5
4
4
3
4 Route a lashing through clevis 3A and back through its own D-ring. Route it through the front
lower webbing on the A-22 cargo bag and load bind to clevis 3.
5 Route a lashing through clevis 4A and back through its own D-ring. Route it through the front
middle webbing on the A-22 cargo bag and load bind to clevis 4.
Figure 3-7. A-22 Cargo Bag Lashed (Continued)
3-8
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
LASHING M-GATOR
3-11. Lash the M-Gator to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figures 3-8 through 3-10.
2
3
1
7
11
Lashing
Tie-down Clevis
Instructions
Number
Number
Pass lashing through:
1
11
Front right tie-down point.
2
11A
Front left tie-down point.
(Not Shown)
3
7
Front left tie-down point.
4
7A
Front right tie-down point.
(Not Shown)
Figure 3-8. Lashings 1 through 4 Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-9
Chapter 3
5
5A
Lashing
Deck Ring
Instructions
Number
Number
Pass lashing through:
5
A5
Left rear tie-down point (do not tighten).
6
B5
Right rear tie-down point (do not tighten).
Figure 3-9. Lashings 5 and 6 Installed
3-10
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
7
5
Lashing
Tie-down Clevis
Instructions
Number
Number
Pass lashing through:
7
5
Rear right tie-down point (do not tighten).
8
5A
Rear left tie-down point (do not tighten).
Tighten lashings 5 and 6, then 7 and 8.
Figure 3-10. Lashings 7 and 8 Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-11
Chapter 3

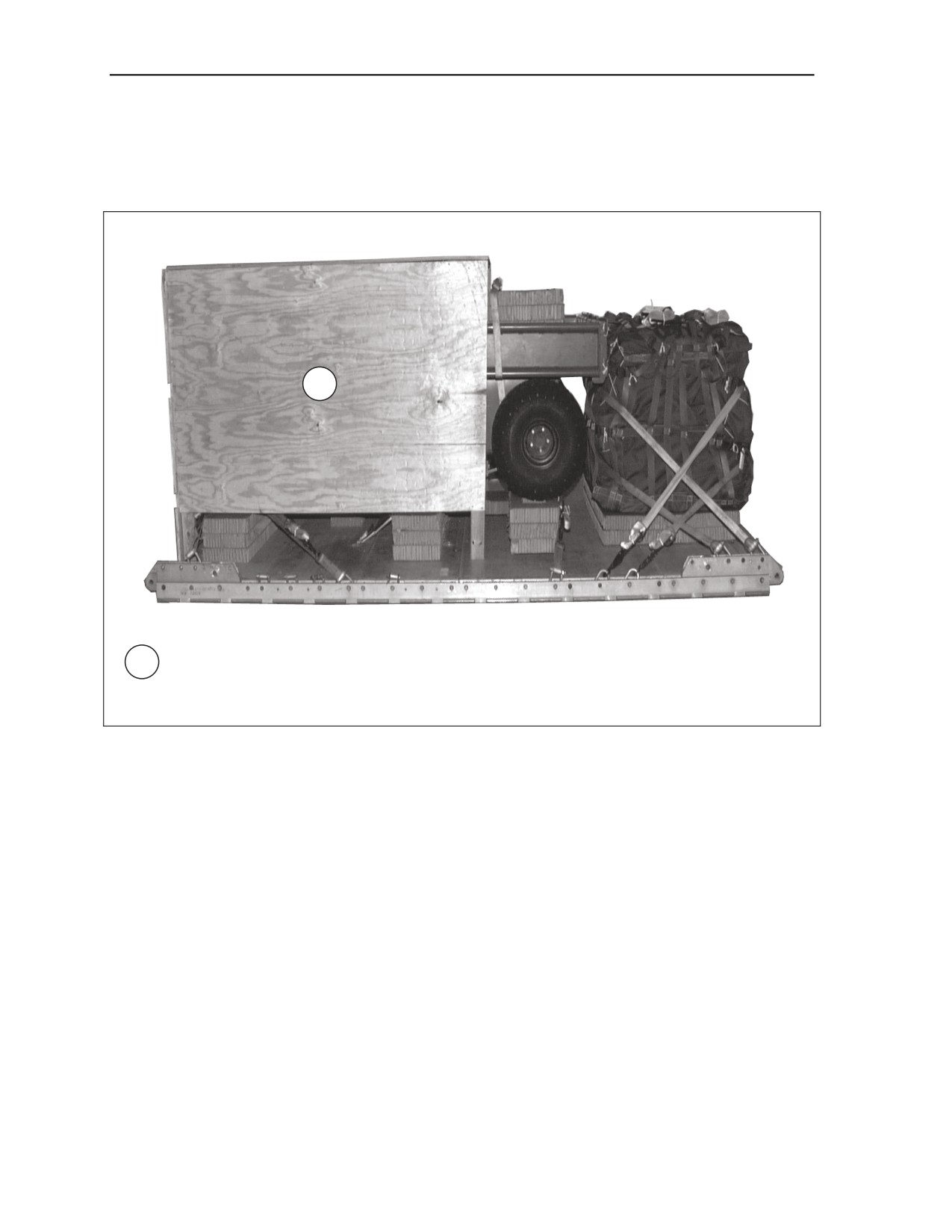

POSITIONING M-GATOR BOX
3-12. Position M-Gator box as shown in Figure 3-11.
1
1 Position the box on the platform, aligning the front bottom edge of the box with the platform
rear edge.
Figure 3-11. M-Gator Box Positioned
3-12
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
LASHING M-GATOR BOX
3-13. Lash the M-Gator box to the platform according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-
AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-12.
BOX LEFT SIDE
BOX FRONT
1
2
8
10
1 Route a lashing through clevis 8A and back through its own D-ring, and pull the strap taut.
Repeat the same steps for clevis 10A.
Lashing
Tie-down Clevis
Instructions
Number
Number
Pass lashing through:
1
8A and 8
Top rear cutouts of box.
2
10A and 10
Bottom rear cutouts of box.
Figure 3-12. M-Gator Box Lashed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-13
Chapter 3
4
3
9
6
Lashing Number
Tie-down
Instructions
Clevis Number
Pass lashing:
3
6 and 6A
Over top of box and bind on left side of box.
4
9 and 9A
Over top of box and bind on left side of box.
Figure 3-12. M-Gator Box Lashed (Continued)
3-14
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
INSTALLING SUSPENSION SLINGS
3-14. Install four 16-foot (2-loop), type XXVI, nylon slings as suspension slings according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-13.
1
2
3
1 Attach a 16-foot (2-loop), type XXVI, nylon sling to each of the four tandem links using a large
clevis.
2 Raise the slings above the load and install the deadman’s tie as outlined in FM 4-20.102/
MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3 Felt and tape each sling where they make contact with the box or load.
Figure 3-13. Suspension Slings Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-15
Chapter 3
STOWING CARGO PARACHUTE
3-15. Prepare, stow, and restrain one G-11 cargo parachute on the front edge of the M-Gator box
according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in
Figure 3-14.
Figure 3-14. Cargo Parachute Stowed
3-16
FM 4-20.108 /TO 13C7-2-491
10 September 2007
Rigging One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot, Type V Platform for
Low-Velocity Airdrop
INSTALLING EXTRACTION SYSTEM
3-16. Install the Extraction Force Transfer Coupling (EFTC) according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-15.
2
3
1
1 Install EFTC actuator mounting bracket using front mounting holes.
2 Install a 12-foot cable.
3 Attach a 9-foot (2-loop), type XXVI nylon sling for the deployment line.
Figure 3-15. Extraction System Installed
10 September 2007
FM 4-20.108 /TO 13C7-2-491
3-17















Content      ..      1      2      3      ..
