Scion tC. Instruction - part 29

452

6-1. Specifications

tC_OM_OM21056U_(U)

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition

Maximum inflation
pressure

The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire

Recommended infla-
tion pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)

Curb weight

The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine

453

6-1. Specifications

6

Veh

icle speci

fic

a

tions

tC_OM_OM21056U_(U)

Tire related term

Meaning

Maximum loaded
vehicle weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant
weight

150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1

*

 that

follows

Occupant distribution

Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1

*

 below

Production options
weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

454

6-1. Specifications

tC_OM_OM21056U_(U)

Tire related term

Meaning

Vehicle capacity
weight (Total load
capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load
on the tire

The load on an individual tire that is determined
by distributing to each axle its share of the
maximum loaded vehicle weight, and dividing
by two

Vehicle normal load
on the tire

The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occu-
pant weight (distributed in accordance with
Table 1

*

 below), and dividing by two

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between components
in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the cen-
terline of the tread

Carcass

The tire structure, except tread and sidewall
rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or
sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber com-
pounds

455

6-1. Specifications

6

Veh

icle speci

fic

a

tions

tC_OM_OM21056U_(U)

Tire related term

Meaning

Cracking

Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material

CT

A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and the
tire is designed to fit on the underside of the
rim in a manner that encloses the rim flanges
inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire

Innerliner separation

The parting of the innerliner from cord material
in the carcass

Intended outboard
sidewall

(a) The sidewall that contains a whitewall,

bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or

(b) The outward facing sidewall of an asym-

metrical tire that has a particular side that
must always face outward when mounted
on a vehicle

Light truck (LT) tire

A tire designated by its manufacturer as prima-
rily intended for use on lightweight trucks or
multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry
for a given inflation pressure

456

6-1. Specifications

tC_OM_OM21056U_(U)

Tire related term

Meaning

Maximum load rating

The load rating for a tire at the maximum per-
missible inflation pressure for that tire

Maximum permissible
inflation pressure

The maximum cold inflation pressure to which
a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or
innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of
the sidewalls of an inflated tire, including eleva-
tions due to labeling, decorations, or protective
bands or ribs

Passenger car tire

A tire intended for use on passenger cars, mul-
tipurpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adja-
cent plies

Pneumatic tire

A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load

457

6-1. Specifications

6

Veh

icle speci

fic

a

tions

tC_OM_OM21056U_(U)

Tire related term

Meaning

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

Section width

The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands

Sidewall

That portion of a tire between the tread and
bead

Sidewall separation

The parting of the rubber compound from the
cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or
greater than 110, compared to the ASTM
E-1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight Line
on Snow-and Ice-Covered Surfaces, and which

is marked with an Alpine Symbol (

) on at

least one sidewall

Test rim

The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire

Tread

That portion of a tire that comes into contact
with the road

458

6-1. Specifications

tC_OM_OM21056U_(U)

*

: Table 1

 Occupant loading and distribution for vehicle normal load

for various designated seating capacities

Tire related term

Meaning

Tread rib

A tread section running circumferentially
around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear indicators
(TWI)

The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire
assembly securely during testing

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution in

a normally loaded vehi-

cle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second

seat

11 through 15

5

2 in front, 1 in second
seat, 1 in third seat, 1

in fourth seat

16 through 20

7

2 in front, 2 in second
seat, 2 in third seat, 1

in fourth seat

459

6

Veh

icle speci

fic

a

tions

tC_OM_OM21056U_(U)

6-2. Customization

Customizable features

Item

Function

Default setting

Customized

setting

Smart key
system and
wireless
remote con-
trol
(

P. 3048)

Automatic door lock
function to be activated
if door is not opened
after being unlocked

On

Off

Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked

60 seconds

30 seconds

120 seconds

Operation signal
(Emergency flashers)

On

Off

Operation signal
(Buzzer)

On

Off

Open door warning
function
(when locking the vehi-
cle)

On

Off

Your vehicle includes a variety of electronic features that can be per-

sonalized to suit your preferences. Programming these preferences

requires specialized equipment and may be performed by your Scion

dealer.

Some function settings are changed simultaneously with other functions
being customized. Contact your Scion dealer for further details.

460

6-2. Customization

tC_OM_OM21056U_(U)

Item

Function

Default setting

Customized

setting

Wireless
remote con-
trol
(

P. 48)

Wireless remote control

On

Off

Unlocking operation

Driver’s door

unlocked in one

step, all doors

unlocked in two

steps

All doors

unlocked in one

step

Operation signal
(Buzzer volume)

Level 7

Level 1 to 6

Off

Panic function

On

Off

Smart key
system
(

P. 30)

Smart key system

On

Off

Smart door unlocking

Driver’s door

All the doors

Number of permissible
times of continuous
smart lock

Twice

Unlimited

461

6-2. Customization

6

Veh

icle speci

fic

a

tions

tC_OM_OM21056U_(U)

Item

Function

Default setting

Customized

setting

Door lock
(

P. 54)

Unlocking using a key

Driver’s door

unlocked in one

step, all doors

unlocked in two

steps

All doors

unlocked in one

step

Speed-detecting auto-
matic door lock function

Off

On

Opening drivers door
unlocks all doors

Off

On

Shifting gears to P
unlocks all doors

On

Off

Shifting gears to posi-
tion other than P locks
all doors

On

Off

Automatic
light off
system
(

P. 202)

Time elapsed before
the headlights automat-
ically turn off after the
doors are closed

30 seconds

Off

60 seconds

90 seconds

462

6-2. Customization

tC_OM_OM21056U_(U)

Item

Function

Default setting

Customized

setting

Illumination
(

P. 250)

Time elapsed before
lights turn off

15 seconds

7.5 seconds

30 seconds

Operation when the
doors are unlocked

On

Off

Operation after the
engine switch is turned
to the “LOCK” position
(vehicles without a
smart key system) or
the “ENGINE START
STOP” switch is turned
to OFF (vehicles with a
smart key system)

On

Off

Operation when you
approach the vehicle
with the electronic key
on your person (vehi-
cles with a smart key
system)

On

Off

Seat belt
reminder
(

P. 380)

Vehicle speed linked
seat belt reminder
buzzer

On

Off

463

6

Veh

icle speci

fic

a

tions

tC_OM_OM21056U_(U)

6-3. Initialization

Items to initialize

Item

When to initialize

Reference

Maintenance required
reminder light
(U.S.A. only)

• After the maintenance is performed.

P. 282

Tire pressure warning
system
(U.S.A. only)

• When rotating front and rear tires

which have different tire inflation
pressures

• When changing the tire size

P. 316

The following items must be initialized for normal system operation

in cases such as after maintenance is performed on the vehicle.

For owners

7

465

tC_OM_OM21056U_(U)

Reporting safety defects

for U.S. owners ..............  466

Seat belt instructions

for Canadian owners
(in French) .....................  467

SRS airbag instructions

for Canadian owners
(in French) .....................  469

466

tC_OM_OM21056U_(U)

Reporting safety defects for U.S. owners

If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Scion, a marque of Toyota Motor Sales,
U.S.A., Inc. (Toll-free: 1-866-707-2466).

If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Scion, a marque of Toyota Motor Sales, U.S.A., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov.

467

7

F

o

r o
w

ners

tC_OM_OM21056U_(U)

Seat belt instructions for Canadian owners (in French)

The following is a French explanation of seat belt instructions

extracted from the seat belt section in this instruction.

See the seat belt section for more detailed seat belt instructions in
English.

469

7

F

o

r o
w

ners

tC_OM_OM21056U_(U)

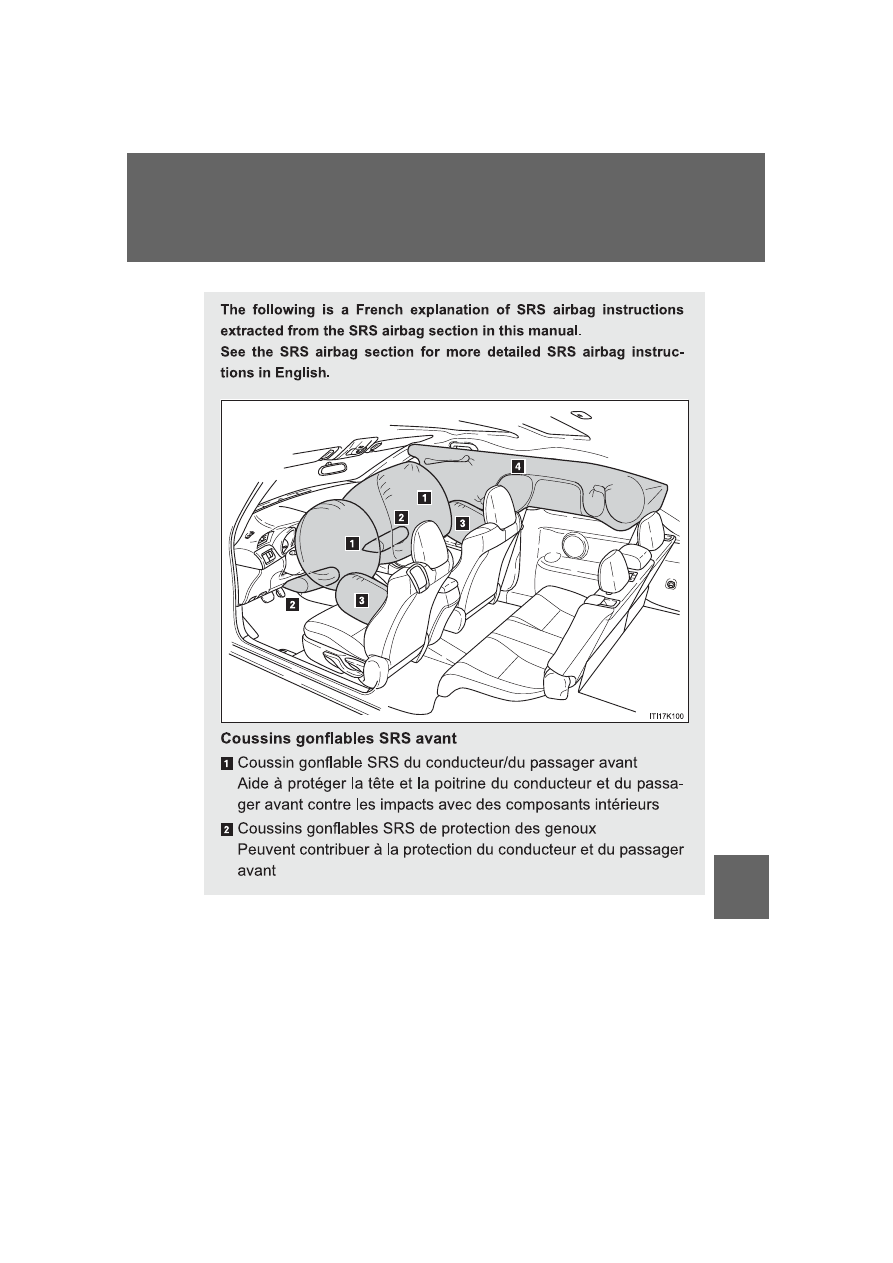

SRS airbag instructions for Canadian owners (in French)
