5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

■

The compact spare tire

●

The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare
tire. (

P. 439)

■

After completing the tire change (U.S.A. only)

The tire pressure warning system must be reset. (

P. 315)

■

When using the compact spare tire (U.S.A. only)

As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.

■

If you have a flat front tire on a road covered with snow or ice

Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.

Replace the flat front tire with the tire removed from the rear of
the vehicle.

Fit tire chains to the front tires.

STEP

1

STEP

2

STEP

3

404

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

CAUTION

■

When using the compact spare tire

●

Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.

●

Do not use more than one compact spare tire simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-
ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.

■

When storing the compact spare tire

Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.

■

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:

●

ABS & Brake assist

●

VSC

●

TRAC

●

Cruise control

■

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.

The compact spare tire is not designed for driving at high speeds. Failure
to observe this precaution may lead to an accident causing death or seri-
ous injury.

5

W
hen

 troub

le
arises

405

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

CAUTION

■

Using the tire jack

Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.

●

Always check that the tire jack is securely set to the jack point.

●

Do not put any part of your body under the vehicle while it is supported
by the jack.

●

Do not start or run the engine while your vehicle is supported by the
jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to
replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

406

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

CAUTION

■

Replacing a flat tire

Observe the following precautions to reduce the risk of death or serious
injury:

●

Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.

• Have the wheel nuts tightened with a torque wrench to 76 ft

•

lbf

(103 N

•

m, 10.5 kgf

•

m) as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by
your Scion dealer.

• When installing the wheel nuts, be sure to install the wheel nuts

with the tapered end facing inward. (

P. 330)

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.

■

When stowing the flat tire

●

Make sure the rear seats are in their original position.

●

Secure it using a tire tie-down belt. Otherwise, the flat tire may fly out
in case of the sudden braking or an accident, resulting in death or seri-
ous injury.

5

W
hen

 troub

le
arises

407

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

NOTICE

■

Do not drive the vehicle with a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.

■

Be careful when driving over bumps with the compact spare tire
installed on the vehicle

The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.

■

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.

■

When replacing the tires (U.S.A. only)

When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valves and transmit-
ters (U.S.A. only)

When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (

P. 315)

408

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

If the engine will not start

If the engine will not start even though correct starting procedures

are being followed (

P. 165, 169), consider each of the following

points:

■

The engine will not start even though the starter motor
operates normally.

One of the following may be the cause of the problem:

● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● The engine may be flooded.

Try to restart the engine again following correct starting proce-
dures. (

P. 165, 169)

● There may be a malfunction in the engine immobilizer system.

(

P. 102)

■

The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.

One of the following may be the cause of the problem:

● The battery may be discharged. (P. 417)
● The battery terminal connections may be loose or corroded.

■

The starter motor does not turn over (vehicles with a smart
key system)

The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(

P. 410)

5

W
hen

 troub

le
arises

409

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

■

The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.

One of the following may be the cause of the problem:

● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 417)
● There may be a malfunction in the steering lock system (vehi-

cles with a smart key system).

Contact your Scion dealer if the problem cannot be repaired, or if
repair procedures are unknown.

410

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Emergency start function (vehicles with a smart key system)

When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally:

Set the parking brake.

Shift the shift lever to P (automatic transmission) or N (instruction
transmission).

Turn the “ENGINE START STOP” switch to ACCESSORY
mode.

Press and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal (automatic
transmission) or brake and clutch pedals (instruction transmis-
sion) firmly.

Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Scion
dealer.

STEP

1

STEP

2

STEP

3

STEP

4

5

W
hen

 troub

le
arises

411

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

If the shift lever cannot be shifted from P (automatic transmission)

If the shift lever cannot be shifted with your foot on the brake pedal,

there may be a problem with the shift lock system (a system to pre-

vent accidental operation of the shift lever). Have the vehicle

inspected by your Scion dealer immediately.

The following steps may be used as an emergency measure to

ensure that the shift lever can be shifted:

Set the parking brake.

Vehicles without a smart key system:
Turn the engine switch to the “ACC” position.
Vehicles with a smart key system:
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.

Depress the brake pedal.

Pry the cover up with a flat-
head screwdriver or equiva-
lent tool.

To prevent damage to the
cover, cover the tip of the
screwdriver with a rag.

Press the shift lock override
button.

The shift lever can be shifted
while the button is pressed.

STEP

1

STEP

2

STEP

3

STEP

4

STEP

5

412

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

If you lose your keys

New genuine Scion keys can be made by your Scion dealer using the

other key and the key number stamped on your key number plate.

5

W
hen

 troub

le
arises

413

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

If the electronic key does not operate properly



Locking and unlocking the doors and key linked functions

Using the mechanical key
(

P. 27) in order to perform the

following operations:

Locks all the doors

Unlocks all the doors

Turning the key rearward unlocks
the driver’s door. Turning the key
once again unlocks the other
doors.



: If equipped

For vehicles with a smart key system: If communication between the

electronic key and vehicle is interrupted (

P. 30) or the electronic

key cannot be used because the battery is depleted, the smart key

system and wireless remote control cannot be used. In such cases,

the doors can be opened or the engine can be started by following

the procedure below.

414

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Starting the engine

Automatic transmission

Ensure that the shift lever is in P and depress the brake pedal.

Touch the Scion emblem side of
the electronic key to the
“ENGINE START STOP” switch.

If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm
will sound to indicate that the start
function cannot detect the key.

Press the “ENGINE START STOP” switch within 10 seconds
of the buzzer sounding, keeping the brake pedal depressed.

In the event that the “ENGINE START STOP” switch still cannot be
operated, contact your Scion dealer.

STEP

1

STEP

2

STEP

3

5

W
hen

 troub

le
arises

415

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Instruction transmission

Shift the shift lever to N and depress the clutch pedal.

Touch the Scion emblem side of
the electronic key to the
“ENGINE START STOP” switch.

If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm
will sound to indicate that the start
function cannot detect the key.

Press the “ENGINE START STOP” switch within 10 seconds
of the buzzer sounding, keeping the clutch pedal depressed.

In the event that the “ENGINE START STOP” switch still cannot be
operated, contact your Scion dealer.

STEP

1

STEP

2

STEP

3

416

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

■

Stopping the engine

Shift the shift lever to P (automatic transmission) or N (instruction transmission)
and press the “ENGINE START STOP” switch as you normally do when
stopping the engine.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(

P. 336)

■

Changing “ENGINE START STOP” switch modes

Automatic transmission
Within 10 seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch.
The engine does not start and modes will be changed each time the switch
is pressed. (

P. 172)

Instruction transmission
Within 10 seconds of the buzzer sounding, release the clutch pedal and
press the “ENGINE START STOP” switch.
The engine does not start and modes will be changed each time the switch
is pressed. (

P. 172)

5

W
hen

 troub

le
arises

417

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

If the vehicle battery is discharged

The following procedures may be used to start the engine if the vehi-

cle’s battery is discharged.

You can also call your Scion dealer or a qualified repair shop.

If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle by follow-
ing the steps below.

Open the hood. (

P. 294)

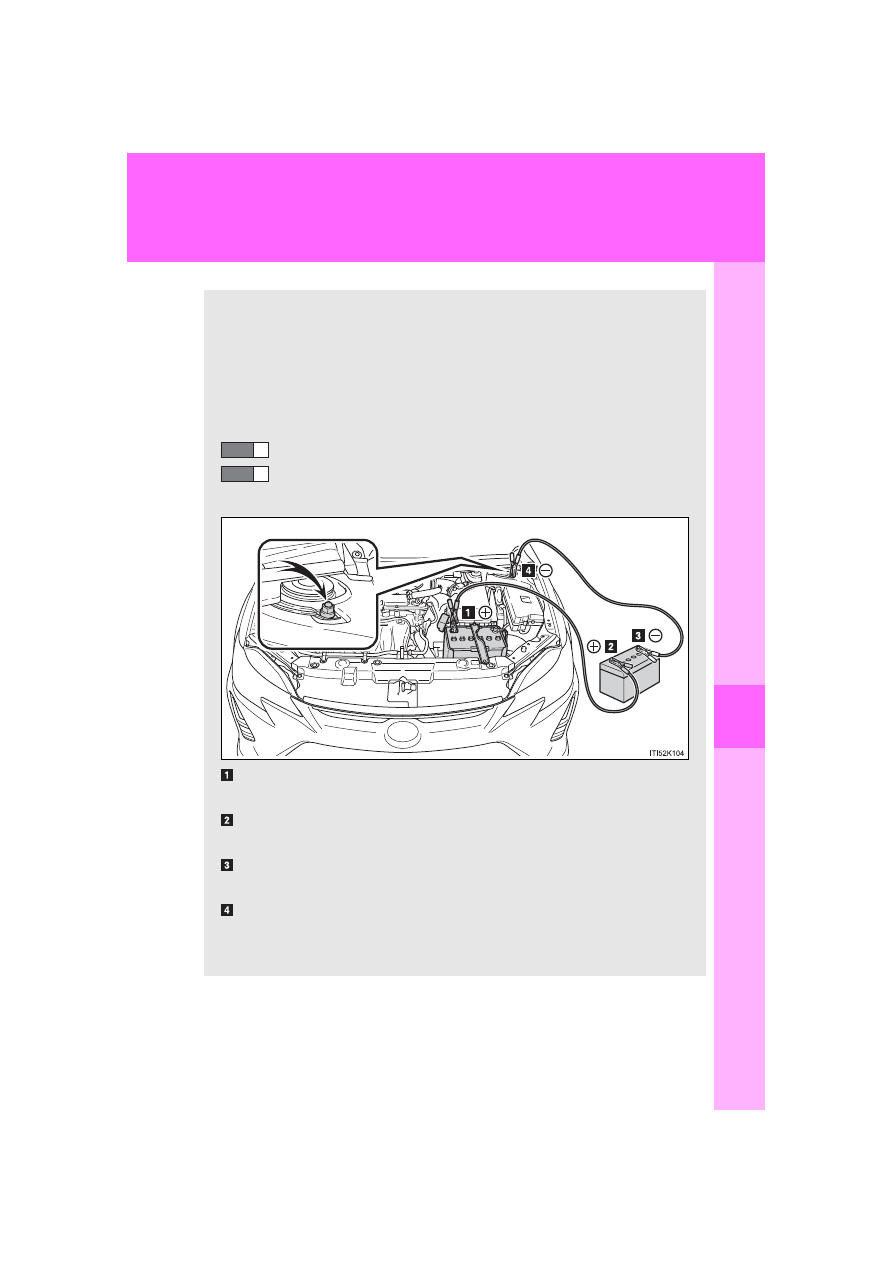

Connect the jumper cables according to the following pro-
cedure:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.

Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.

Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.

Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

STEP

1

STEP

2

418

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

■

Starting the engine when the battery is discharged (vehicles with an
automatic transmission)

The engine cannot be started by push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the audio system while the engine is off.

●

Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.

Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.

Vehicles with a smart key system only: Open and close any
of the doors of your vehicle with the “ENGINE START
STOP” switch off.

Maintain the engine speed of the second vehicle and start
the engine of your vehicle by turning the engine switch to
the “ON” position (vehicles without a smart key system) or
turning the “ENGINE START STOP” switch to IGNITION
ON mode (vehicles with a smart key system).

Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order from which they were con-
nected.

Once the engine starts, have the vehicle inspected at your Scion
dealer as soon as possible.

STEP

3

STEP

4

STEP

5

STEP

6
