COMPONENT LOCATION
(SOUND SYSTEM AND RADIO
NAVIGATION SYSTEM) (fig. 3)

1 - Front speaker on dashboard

(tweeter) and in doors (mid-
range/woofer)

2 - Sound system or radio navigation

system

3 - Rear speaker (woofer)

4 - Radio aerial

5 - Maxi fusebox

6 - Fusebox

7 - CD-CHANGER wire (in the car

radio set version, only where pro-
vided)

8 - GPS aerial (radio navigation sys-

tem only).

fig. 3

P4C00426

4C168-176 ING  11-03-2008  12:03  Pagina 171

172

G

ELECTRICAL CONNECTION
DIAGRAM (fig. 4)

1 - Connection on the branching box

for powering the relays

2 - Terminal box

3 - Left taillight

4 - Relay for the power supply of the

trailer’s left-hand direction indicator

5 - Relay for the power supply of the

trailer’s right-hand direction indicator

6 - Right taillight

7 - 7-pole socket

8 - Rear left grounding point

9 - Connection between dashboard

cables and rear cables

10 - 7.5A fuse

List of cable colour codes

B=White - G - Yellow - L=Blue - M=Brown - N=Black - R=Red - V=Green

TOW HITCH

fig. 4

P4C00170

4C168-176 ING  11-03-2008  12:03  Pagina 172

173

G

For mechanical connections, the fol-

lowing must be used:

– “CUNA 501” 1

st

class ball coupling

(CUNA NC 138-40 table);

– “CUNA 501” 1

st

class socket cou-

pling (CUNA NC 438-40 table).

For the electric connection a 7-pole,

12 Volt coupling must be used
(CUNA UNI 9128).

The electric coupling must be fixed

on a special mount to be attached to
the ball coupling.

The electrical functions for the cou-

pling must be connected as illustrated
in (fig. 5).

In addition to the electrical connec-

tions (illustrated in the diagram that
follows), only the lead for powering
an electric brake and the lead to
power a light inside the trailer not ex-
ceeding 15W may be connected to the
car’s electrical system.

The electric brake must be powered

directly from the battery by means of
a lead with a cross-section no less
than 2.5 sq. mm.

Location of the components
on the car:

1. Left taillight (rear foglight con-

nection) - 2. Right taillight (brake
lights connection) - 3. Pole socket -
4. Trailer direction indicators power
supply relays - 5. High-amp fusebox
- 6. Branching box.

TOW HITCH INSTALLATION
(fig. 5)

The tow hitch must be fixed to the

body by an expert in accordance with
the following instructions and with
any additional instructions or infor-
mation provided by the tow hitch
manufacturer.

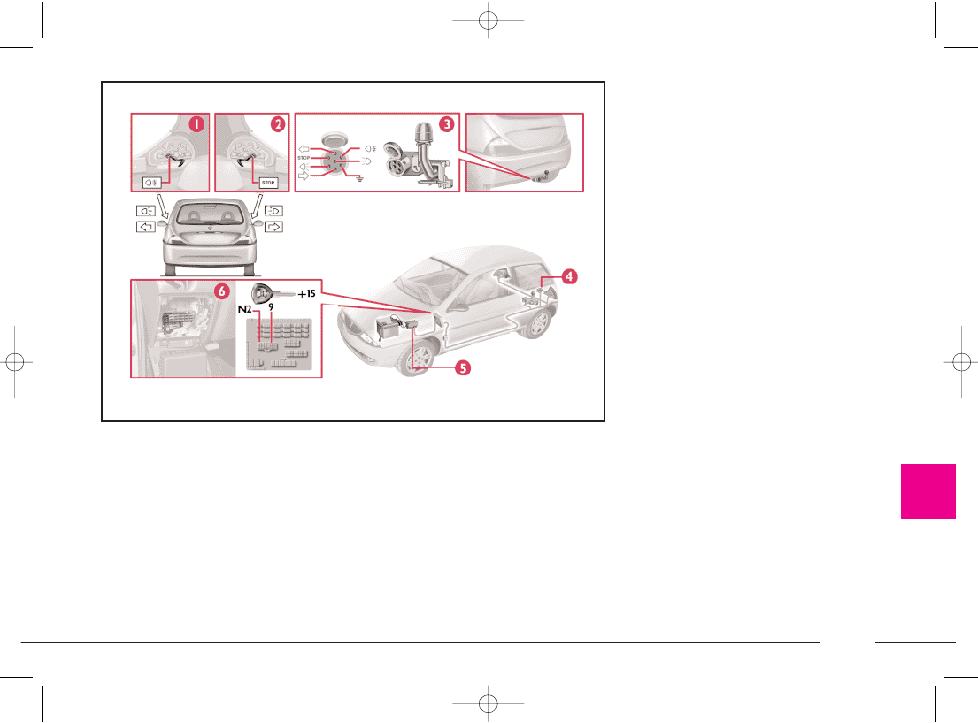

fig. 5

P4C00416

4C168-176 ING  11-03-2008  12:03  Pagina 173

174

G

The underbody plate must be wider

than the plate in the boot. Further-
more, the edge of the plate must be
turned up to avoid sharp corners
coming into contact with the body.

The tow hitch must be anchored to

the body without any drilling or trim-
ming of the rear bumper that would
be visible when the tow hitch is re-
moved.

IMPORTANT A clearly visible plate

of a suitable size and made of suitable
material saying:

MAX LOAD ON THE BALL

COUPLING 70 kg

must be fixed at the height of the ball
coupling.

FITTING INSTRUCTIONS

The body of the tow hitch (fig. 6)

must be fixed using 7 M10 screws at
the points indicated with the sym-
bol

Ø.

All the anchorage points must have

suitable internal reinforcements made
of steel, 3 mm thick

Æ.

After installation, the

holes for the retaining
screws must be sealed to

prevent the infiltration of exhaust
gases.

(*) Alternative value according to the tow hitch fitted.

fig. 6

P4C00307

Min. area in contact with the plates: 150 cm

2

Spare wheel

compartment flat centre

Outer rear

wall line

Ground

Min. area in contact

with the plates: 176 cm

2

Vehicle centreline

(vehicle fully laden)

Vehicle

centreline

Spare wheel

centre

Seen from X

Seen from A

4C168-176 ING  11-03-2008  12:03  Pagina 174

P4C20002

175

G

RF REMOTE CONTROL:
MINISTERIAL HOMOLOGATION

The homologation codes for the RF remote control fitted in the car are given below.

International Country

Homologation

code

motoring

code

A

Austria

B

Belgium

CH

Switzerland

D

Germany

E

Spain

F

France

GR

Greece

I

Italy

NL

Netherlands

P

Portugal

H

Hungary

–

PL

Polonia

_
