Adjusting backrest
inclination

Operate lever A or lever B-fig. 40 to

adjust the required backrest portion,

take the backrest to position and then

release.

Adjusting from inside the boot

Fore/aft adjustment

Operate on handles  F and G-fig. 39

to adjust the required seat portion by

pushing the seat forwards or back-

wards.

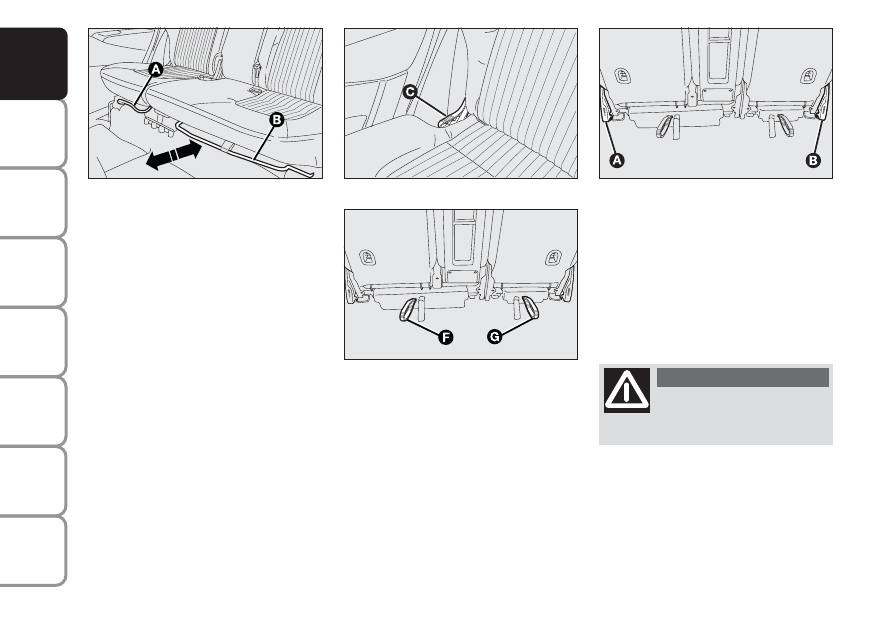

SLIDING REAR SEATS

Adjusting from inside the
passenger compartment

Fore/aft adjustment

Respectively lift the lever  A-fig. 37

or the lever B to adjust the required

seat portion, then push the seat back

or forwards.

Adjusting backrest inclination

Push the lever C-fig. 38, move the

backrest to position and then release

it.

To prevent irregular operation: press

the lever  C as far as it will go.

fig. 37

L0D0047m

fig. 38

L0D0252m

fig. 39

L0D0253m

fig. 40

L0D0049m

Make sure that the seats
are correctly secured after

making the adjustments.

WARNING

41

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

To arrange the central unit back in

vertical position, operate lever  D-fig.

42 again (one on each side) and re-

align the unit with the side backrests

and make the safety clip Eclick.

Using the compartment inside
the central unit

The central unit is provided with a

compartment B-fig. 43.

To use the compartment B press but-

ton C and lift up the cushion.

Adjusting the central unit from
the inside

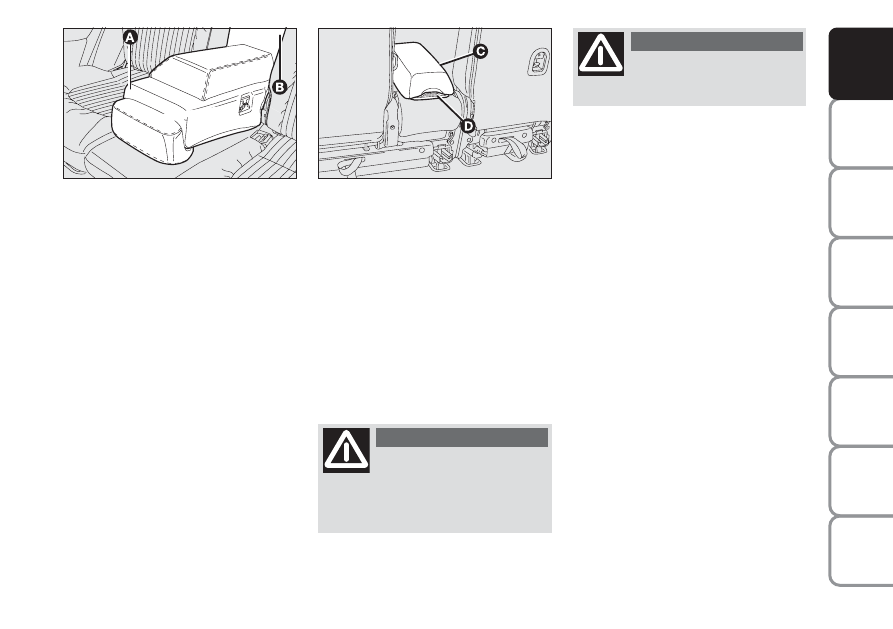

To move the central unit to the hori-

zontal position:
❒ operate the lever D-fig. 42 (one

per side)

❒ fully lower the central unit
❒ release the lever.
The cup holder A-fig. 41 (for ver-

sions/markets, where provided) can

be used when the central unit is all

down and the head restraint is re-

moved.

fig. 41

L0D0051m

fig. 42

L0D0050m

fig. 43

L0D0358m

After releasing the lever,
always check that the seat

is locked on the guides by trying to
move it backwards and forth. If it
is not locked, the seat may move
unexpectedly and make you loose
control of the car.

WARNING

For maximum safety, keep
the back of your seat up-

right, lean back into it and make
sure the seat belt fits closely across
your chest and hips.

WARNING

42

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Relax position (driver’s side)

Proceed in the same way, this time re-

moving the head restraint from the

driver’s seat (see the “Head restraint”

paragraph in this chapter).

IMPORTANT Refer to the  “Expand-

ing the boot” chapter for moving the

seats to expand the boot.

Relax position (passenger side)
fig. 45

To arrange the seat in relax position,

with the door open:
❒ arrange the passenger’s seat in

table position  (see “Arranging the

seat in table position” paragraph

in this chapter);

❒ push the rear seat forward as far

as it will go fig. 46;

❒ push the passenger’s seat (in table

position) as far back as it will go;

❒ remove the rear window shelf (see

the “Removing the rear window

shelf” paragraph in this chapter);

❒ recline the rear seat backrest to the

required position.

Adjusting the central unit from
the boot

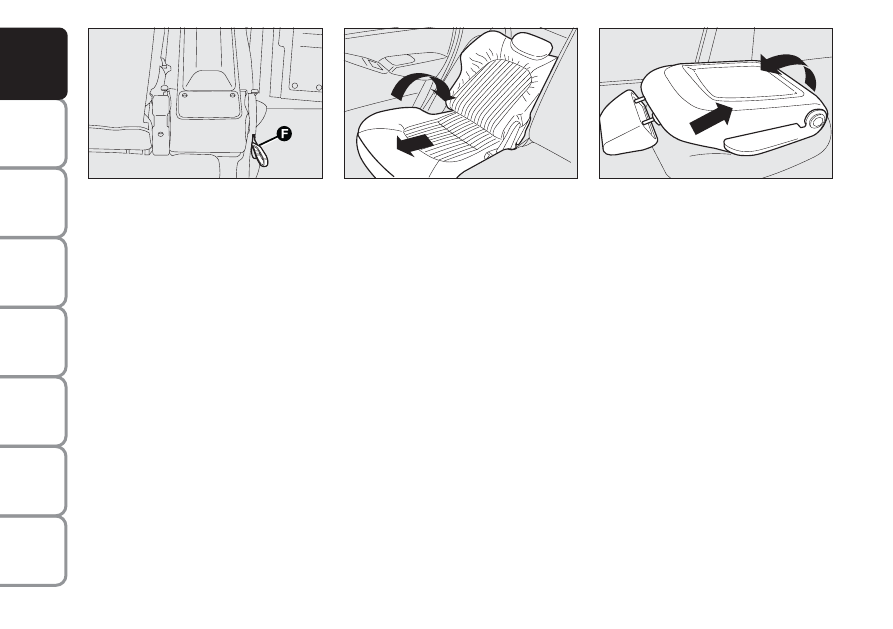

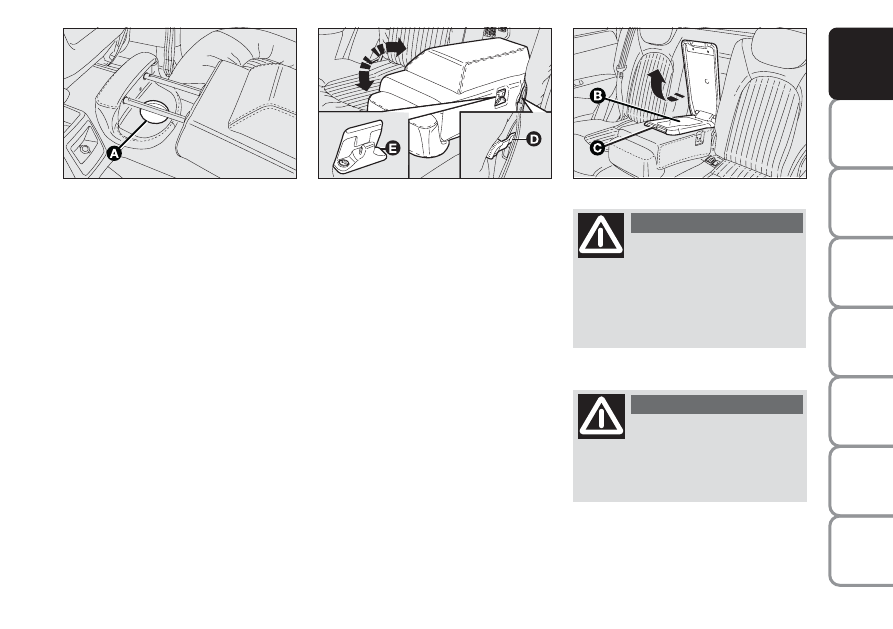

Pull the ribbon F-fig. 44 and push

forward the upper part of the back-

rest until the retainer clicks. Accom-

pany the backrest to the horizontal

position and release the ribbon F. Re-

verse the operation to reposition the

backrest in vertical position and make

sure that the retainer clicks.

fig. 44

L0D0255m

fig. 45

L0D0242m

fig. 46

L0D0243m

43

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Adjusting the central unit
and using the ski compartment

The central unit may be lowered and

used as rear armrest. Access to the ski

compartment B-fig. 47 can be ob-

tained in this manner.

The compartment B may be used for

transporting long items (e.g. skis). In-

sert the item from the boot.

It is advisable to remove the cushion

C to prevent damage.

IMPORTANT Avoid putting the cush-

ion C in the boot in contact with

heavy loads to prevent damage.

Removing the cushion

The cushion C-fig. 48 can be re-

moved.

To remove the cushion: operate the

button D and extract if from the cen-

tral unit.

To refasten: press the button D to re-

lease it from the retainer on the seat-

back and make sure that it fastened

well.

fig. 47

L0D0249m

fig. 48

L0D0344m

Secure heavy loads in the
ski compartment to pre-

vent them from being hurled for-
ward in case of crashes or sudden
braking.

WARNING

All adjustments must be
made with the car station-

ary.

WARNING

Fixed rear seats
(for versions/markets, where provided)

See the “Expanding the boot” para-

graph for how to fold the seat.

44

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

REAR SIDE AND CENTRAL
(for versions/markets, where provided)

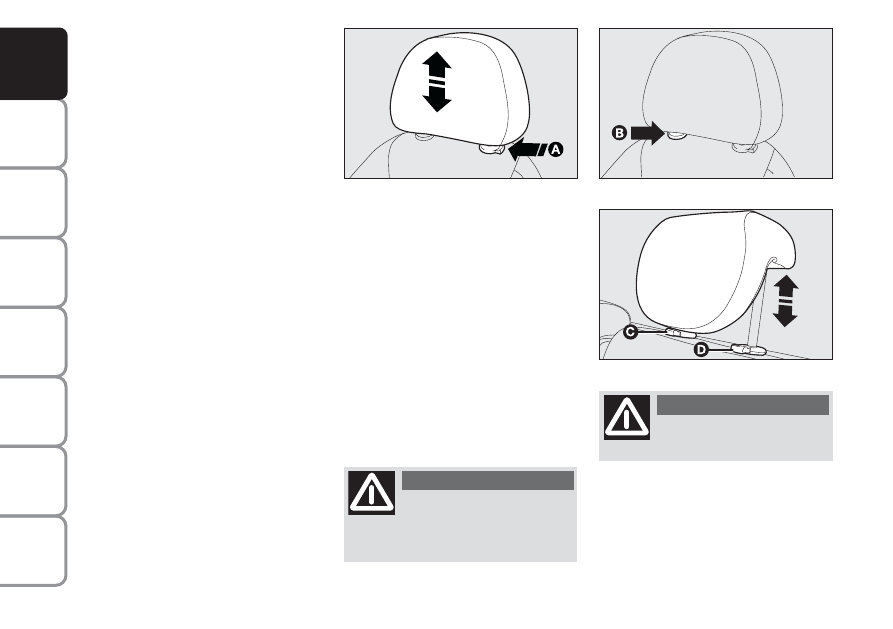

The head restraints can be adjusted in

height.

To raise them, simply move the head

restraints up until you hear the click.

To lower them, press button C-fig.

51.

To extract them (not needed for nor-

mal configurations) press button

D-fig. 51.

HEAD RESTRAINTS

FRONT

The head restraints can be adjusted in

height.

To adjust the height: pull the head re-

straint upwards or press button A-fig.

49 and push it downwards. Make sure

that is clicks at the end of the opera-

tion.

Extracting the head restraint

Press button  B-fig. 50 to extract the

head restraint.

fig. 49

L0D0052m

fig. 50

L0D0237m

If side bags are fitted, us-
ing seat covers other than

those from  Lineaccessori Lancia
is dangerous.

WARNING

fig. 51

L0D0053m

Travelling without head
restraints is dangerous.

WARNING

45

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

ADJUSTING THE
STEERING WHEEL

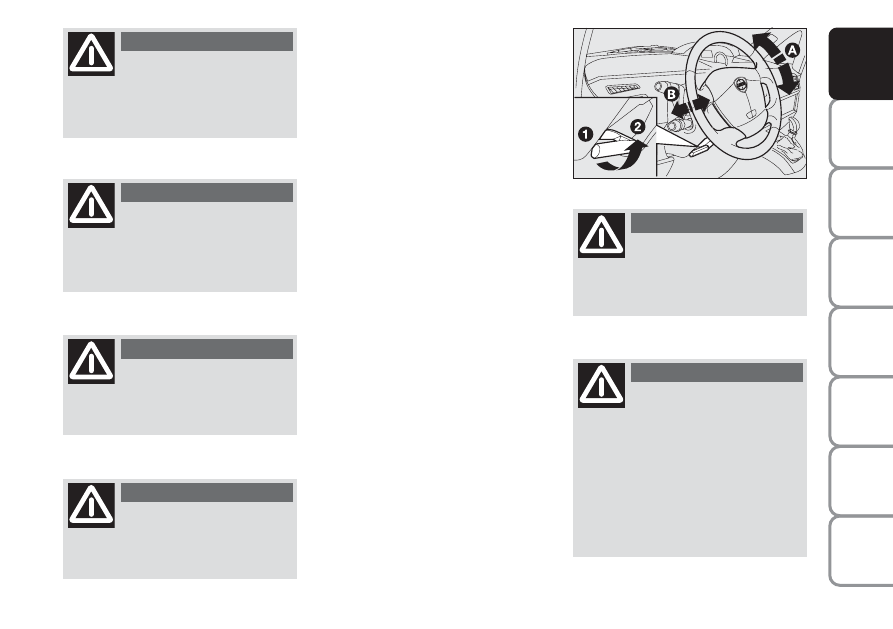

The steering wheel can be adjusted in

height A-fig. 52 and in depth B.

To carry out the adjustment, proceed

as follows:
❒ release the lever by pulling it to-

wards the steering wheel (position

2);

❒ adjust the steering wheel as re-

quired;

❒ release the lever  by pushing it for-

wards (position 1);

Saddle-shaped rear head
restraints optimise visibil-

ity and must always be raised it
when an occupant is present.

WARNING

fig. 52

L0D0382m

Any adjustment of the
steering wheel position

must be carried out only with the
car stationary and the engine
turned off.

WARNING

It is absolutely forbidden
to carry out whatever af-

ter-market operation involving
steering system or steering column
modifications (e.g.: installation of
anti-theft device) that could badly
affect performance and safety,
cause the lapse of warranty and
also result in non-compliance of
the car with homologation require-
ments.

WARNING

The head restraints must
be adjusted so that they

support your neck and not your
head. Only in this way may they
perform their protective action.

WARNING

To optimise head restraint
protective action, adjust

the seat back upright and keep
your head as close as possible to
the head restraint.

WARNING

To refit the head restraint,
arrange it the right way

and then proceed as for checking
that it is locked.

WARNING

46

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Adjust with the vehicle stationary and

the handbrake applied.

The mirror demister will be turned on

automatically by the rear window

heater.

Folding

When required (for example when the

mirror causes difficulty in narrow

spaces) it is possible to fold the mir-

ror moving it from position 1to posi-

tion 2-fig. 55.

REARVIEW
MIRRORS

INTERNAL MIRROR

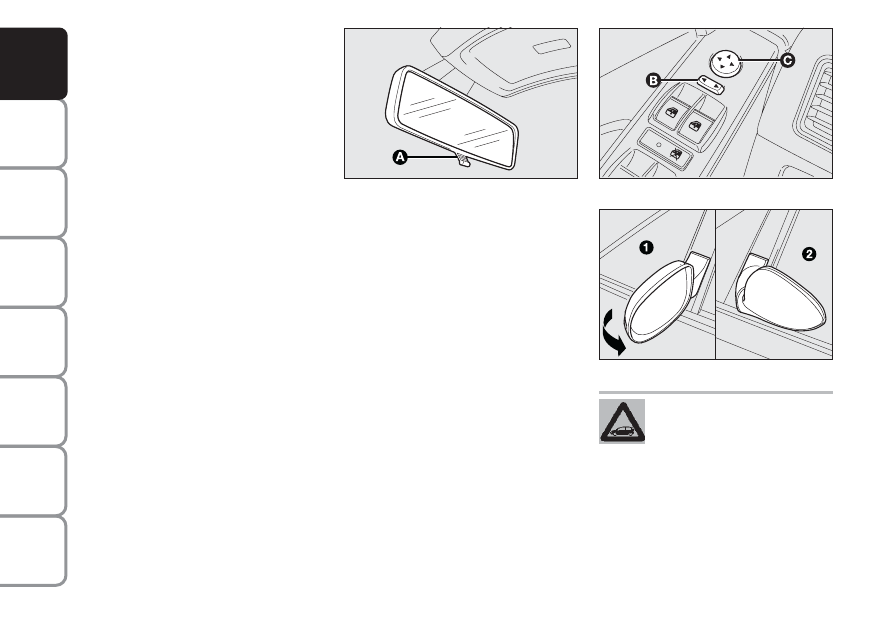

The mirror is fitted with a safety de-

vice that causes its release in the event

of a violent impact with the passen-

ger.

It can be moved using the lever A-fig.

53to two different positions:  normal

or antiglare.

DOOR MIRRORS

The mirrors can only be ad-

justed/folded with the ignition in the

MAR position.

To carry out the adjustment, proceed

as follows:
❒ use switch B-fig. 54 to select the

mirror required (left or right);

❒ to adjust the mirror move the

switch C in the four directions.

fig. 53

L0D0056m

When driving the mirrors
shall always be in position
1-fig. 55.
As the driver’s door mirror

is curved, it may slightly alter the
perception of distance.

fig. 54

L0D0058m

fig. 55

L0D00499m

47

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

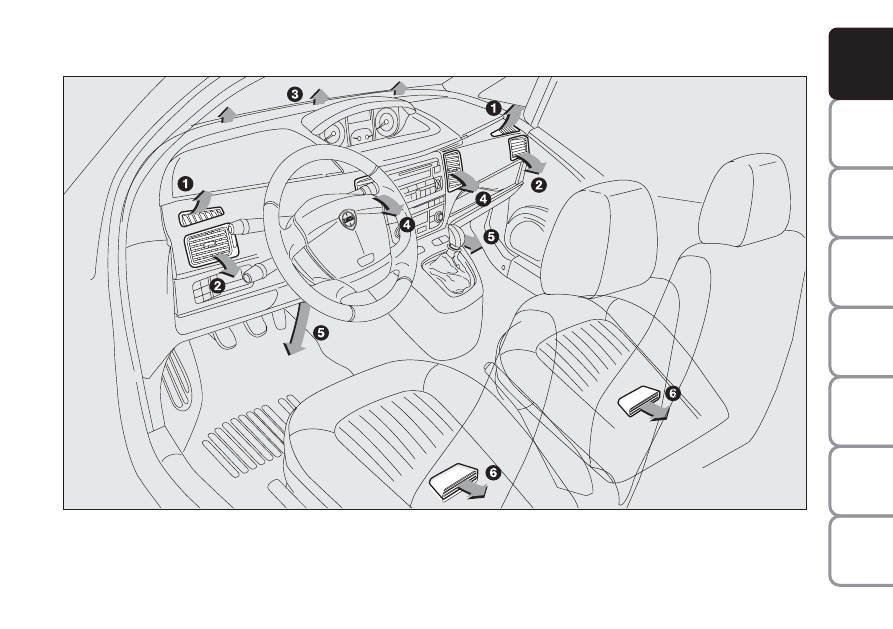

HEATING/CLIMATE CONTROL SYSTEM

fig. 56

1. Fixed vents for defrosting/demisting the side windows - 2. Adjustable side air vents - 3. Fixed windscreen de-

froster/demister vents - 4. Adjustable central vents - 5. Lower vents - 6. Rear passenger lower vents.

L0D0383m

48

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

CONTROLS

A fan and fan speed knob

B air temperature knob (for mixing warm/cool air)

C heated rear window on/off button

D climate control compressor on/off button;

E air distribution selection ring

F air recirculation knob.

MANUAL CLIMATE CONTROL SYSTEM

(for versions/markets, where provided)

CENTRAL AND SIDE VENTS
fig. 57-58

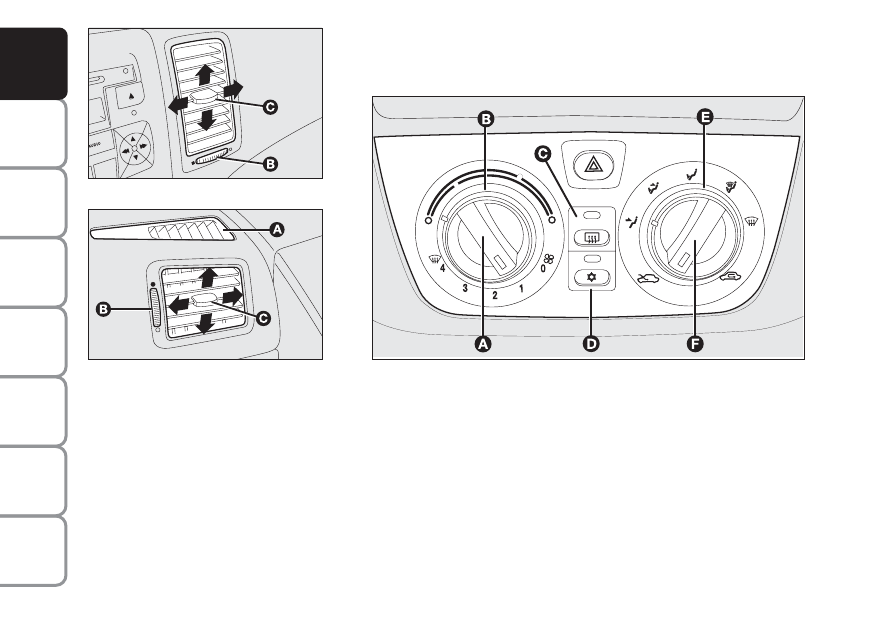

A Fixed vents for defrosting/demi-

sting side windows.

B Vent open/closed control

C Vent direction and air flow control

fig. 57

L0D0061m

fig. 58

fig. 59

L0D0062m

L0D0064m

49

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

AIR DISTRIBUTION

The ring E is used to make fresh air

reach the entire passenger compart-

ment. There are five selections:
« air from central vents and side

vents 2 and 4;

Δ air from central side vents  2 and

4 and downward vents 5 and 6

(bi-level function);

≈ air downwards  5 and 6;

ƒ

air downwards 5 and 6 and to the

windscreen 3;

-

for demisting and defrosting the

windscreen 3 and the front side

windows 1.

ACTIVATING THE INTERNAL
AIR RECIRCULATION

Position the knob  F-fig. 59 to

…

.

It is advisable to switch internal air

recirculation on while standing in

queues or in tunnels to prevent the in-

troduction of polluted air. Do not use

the function for a long time, particu-

larly if there are many occupants on

board, to prevent the windows from

misting up.

IMPORTANT The air recirculation

system makes it possible to reach the

required  heating or cooling condi-

tions faster. Do not use the air recir-

culation function on rainy/cold days

as it would considerably increase the

possibility of the windows misting in-

side.

SETTING THE TEMPERATURE

Proceed as follows:

Turn the ring B-fig. 59 (indicator

pointing to the red sector) rightwards

to turn the temperature up or left-

wards to turn it down;

ADJUSTING THE FAN SPEED

To ventilate the passenger compart-

ment properly proceed as follows:
❒ fully open the central  4 and side

2 air vents;

❒ turn the ring B-fig. 59 to the blue

sector;

❒ turn knob A to the required speed;
❒ turn the ring E to «;
❒ stop internal air recirculation by

turning knob F to

Ú

.

50

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

Window demisting

In the event of considerable outside

moisture and/or rain and/or consid-

erable differences in temperature in-

side and outside the passenger com-

partment, perform the following pre-

ventive demisting procedure:
❒ stop internal air recirculation by

turning knob F-fig. 59 to

Ú

.

❒ turn knob B to the red section;
❒ turn knob A to 2;
❒ turn ring  E to

-

or to position

ƒ

if the windows are not

demisted.

IMPORTANT The climate control sys-

tem is very useful for demisting the

windows: simply press D to operate

the system and demist the windows.

FRONT WINDOW FAST
DEMISTING/
DEFROSTING (WINDSCREEN
AND SIDE WINDOWS)

Proceed as follows:
❒ turn knob B to the red section;
❒ turn knob A to 4

-

;

❒ turn ring  E to

-

;

❒ stop air recirculation by turning

knob F to

Ú

.

After demisting/defrosting, operate

the controls normally used to restore

the required comfort.

QUICK HEATING

Proceed as follows:
❒ close all the vents on the dash-

board;

❒ turn the ring B-fig. 59 to the red

sector;

❒ turn knob Ato 4

-

;

❒ turn ring  E to

≈

.

51

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

HEATED REAR WINDOW AND

DOOR MIRROR

DEMISTING/DEFROSTING
(for versions/markets, where provided)

Press button C-fig. 59 to activate the

function. The LED in the button will

light up when the function is on.

The function is timed and automati-

cally deactivated by the system after

a given time. Press C again to switch

it off before.

IMPORTANT Do not apply stickers

on the inside of the rear window over

the heating filaments to avoid dam-

age that might cause it to stop work-

ing properly.

Cooling

Proceed as follows:
❒ stop internal air recirculation by

turning knob F-fig. 59 to

Ú

.

❒ turn ring B clockwise to increase

the temperature;

❒ turn knob A anticlockwise to re-

duce the fan speed.

LOOKING AFTER THE SYSTEM

Run the climate control system for at

least 10 minutes every month during

the winter. Have the system inspected

at a Lancia Dealership before the

summer.

AIR CONDITIONING
(cooling and dehumidifying)

Proceed as follows:
❒ turn the ring B-fig. 59 to the blue

sector to select the temperature;

❒ turn knob A to the required speed;
❒ turn the ring E to

«

;

❒ turn the knob F to

…

.

❒ press button D

√

(the LED on the

button will light up).

52

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

The temperature of the air taken in is

always controlled automatically de-

pending on the temperature set on the

display (except when the system is

turned off or under certain conditions

when the compressor is off. The fol-

lowing parameters and functions can

be manually set:
❒ air temperature on driver/front

passenger side;

❒ fan speed (continuous variation);
❒ air distribution to five positions

(driver/front passenger side);

❒ compressor on;
❒ one-zone/two-zone distribution pri-

ority;

❒ fast demist/defrost function;
❒ air recirculation;
❒ heated rear window;
❒ system off.

❒ compressor activation (to cool/

dehumidify air);

❒ air recirculation.
All functions may be manually

changed. In order words, you may se-

lect one or more functions and change

the parameters as required. Auto-

matic control of the manually

changed functions will be suspended:

the system will change override your

settings only for safety related reasons

(e.g. risk of misting up).

Manual selections will always have

higher priority over automatic settings

and will be stored until the user

switches the system back to automatic

mode, except for the cases in which

the system will intervene for particu-

lar, safety-related reasons.

You can adjust one function automat-

ically and have the automatic system

control all the others.

The amount of air introduced into the

passenger compartment is indepen-

dent from speed of the car because the

fan is controlled by the electronic sys-

tem.

AUTOMATIC TWO-
ZONE CLIMATE
CONTROL SYSTEM

(for versions/markets, where provided)

GENERAL INFORMATION

The two-zone automatic climate con-

trol system distributes air in the pas-

senger compartment in two zones:

driver’s and passenger’s side.  Tem-

perature is controlled on the basis of

an “equivalent temperature” princi-

ple; in other words, the system con-

tinuously works to keep the comfort

level inside the car constant and to

compensate for possible variations of

external conditions, including sun ra-

diation detected by a specific sensor.

The automatically controlled para-

meters and functions are:
❒ air temperature at the vents on dri-

ver/front passenger side;

❒ air at vents on driver/front passen-

ger side;

❒ fan speed (continuous air flow vari-

ation);

53

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

CONTROLS

A: MONO function button (set tem-

perature alignment)

B: climate control compressor on/off

button;

C: air recirculation on/of button

D: climate control system information

display

L: fan speed up/down

M: driver side air distribution buttons

N: AUTO function button (automatic

operation) and temperature set-

ting knob driver side

E: climate control system off button

F: MAX-DEF button (windscreen

quick defrosting/demisting)

C: heated rear window on/off button

H: AUTO button (automatic opera-

tion) and passenger side tempera-

ture knob

I: passenger side air distribution but-

tons

fig. 60

L0D0065m

54

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

During completely automatic system

operation, you can vary the set tem-

perature, the air distribution and the

fan speed using the corresponding

buttons or knobs at any time: the sys-

tem will automatically change settings

to adapt to the new request.

During fully automatic operation

(FULL AUTO), the word FULL will

diasspear if the air distribution, air

speed, compressor and/or recircula-

tion settings are changed. In this way,

the functions will switch from auto-

matic to manual control until AUTO

is pressed again. The fan speed is the

same in all the zones of the passenger

compartment.

With on or more manually set func-

tions, the introduced air temperature

is still managed automatically by the

system, except for when the compres-

sor is off: in the case, the air intro-

duced into the passenger compart-

ment cannot be cooler than the out-

side air.

During fully automatic operation, the

only functions that are enabled man-

ually are:
❒ MONO to uniform the tempera-

ture and the air distribution on

front passenger or rear passenger

zones to the driver’s zone;

❒

…

air recirculation, to keep it

always on or off;

❒

-

to speed up demisting/defro-

sting of windscreen, side windows,

rear window and door mirrors;

❒

(

to demist/defrost the heated

rear window and the external

rearview mirrors.

USING THE CLIMATE
CONTROL SYSTEM

The system can be started in different

ways, but it is advisable to press one

of the AUTO buttons and then to turn

the knobs to set the temperatures re-

quired on the display.

The system manages two passenger

compartment zones: the driver and

passenger can therefore select different

temperatures. The maximum differ-

ence between the two zones is 7°C.

The system will start running auto-

matically in this way and the set com-

fortable temperature will be reached

as quickly as possible. The system ad-

justs the temperature, amount and

distribution of air delivered to the

passenger compartment. In addition,

it manages the recirculation function

to engage the climate control system

compressor.

55

SAFETY

ST

AR

TING

AND DRIVING

W

A

RNING

LIGHTS AND

MESSAGES

IN AN

EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICA-

TIONS

INDEX

DASHBOARD

AND

CONTROLS

This function may be used to heat up

the passenger compartment as fast as

possible and exploit the system po-

tential to the maximum. The function

uses the maximum coolant tempera-

ture while air and fan speed distribu-

tion are managed by the system ac-

cording to conditions.

Specifically, if the heating fluid is not

warm enough, the fan will not start

up at the maximum speed immedi-

ately to limit introducing excessively

cool air into the passenger compart-

ment.

All manual settings will be allowed

when this function is on.

To switch the function off, simply turn

the temperature knob anticlockwise

and set the required temperature.
❒ LO function (maximum cooling):
select by turning the temperature

knob anticlockwise under the mini-

mum value (16 °C). It can be oper-

ated from either by the driver or by

the front passenger  (by selecting the

MONO function).

This function is used to adjust the

temperature in the passenger com-

partment when the driver only is in

the car.

To go back to separate air and tem-

perature distribution in the two zones

of the passenger compartment, sim-

ply turn the knobs H or press  (A-

MONO) when the LED on the button

is on.

Turn the knobs either all to the right

or all to the left to the extreme  HI or

LO positions to use the maximum

heating or maximum cooling func-

tions:
❒ HI function (maximum heating):
select by turning the temperature

knob clockwise over the maximum

value (32 °C). It can be operated from

either by the driver or by the front

passenger (by selecting the MONO

function).

CONTROLS

H-N air
temperature setting
knobs

Turn the knobs clock-

wise or anticlockwise

to turn the tempera-

ture up or down in the

front left zone (knob

N) and the right zone

(knobH) of the pas-

senger compartment

respectively.

The system manages two passenger

compartment zones: the driver and

passenger can therefore select different

temperatures. The maximum differ-

ence between the two zones is 7°C.

The set temperature is shown on the

display near the knobs.

Press  A (MONO) to automatically

align the temperature in the front pas-

senger zone to the driver’s side tem-

perature. The same temperature can

be set in both zones by turning knob

N on driver’s side.
