MG ZS. Instruction - part 1





PREFACE

Introduction

The Owner's Handbook

This handbook describes all of the vehicles and standard
equipment speciication within the model range. Some of
the information therefore, may not apply to your particular
car.

Always remember that if you have any queries concerning
the operation or speciication of your car, your MG
Authorised Repairer will be glad to advise you.

Status at Time of Printing

MG operates a policy of constant product improvement
and therefore reserves the right to change speciications
without notice at any time.

Whilst every effort is

made to ensure complete accuracy of the information
in this publication, no liabilities for inaccuracies or the
consequences thereof, including loss or damage to
property, or injury to persons, can be accepted by the
manufacturer or MG Authorised Repairer who supplied
the publication, except in respect of personal injury caused
by the negligence of the manufacturer or MG Authorised
Repairer.

Symbols Used

The following symbols used within the handbook call your
attention to speciic types of information.

Warning

This warning symbol identiies procedures
that must be followed precisely,

or

information that must be considered with
great care, in order to reduce the risk of
personal injury or serious damage to the car.

Important

IMPORTANT

The statements stated here must be followed strictly,
otherwise your car could be damaged.

Note

Note: This describes helpful information.

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

This symbol indicates that parts described must be
disposed of by authorised persons or bodies to protect
the environment.

Asterisk
An asterisk (*) appearing within the text, identiies features
or items of equipment that are either optional, or are only
itted to some vehicles in the model range.

Illustration Information

Identiies components being explained.

Identiies movement of components being
explained.

All illustrations in this handbook are based on a RHD
vehicle except where LHD model is stated.

In an Emergency

IMPORTANT

Remember the breakdown safety code

If a breakdown occurs while travelling:
• Wherever possible, consistent with road safety and

trafic conditions, the car should be moved off the
main thoroughfare, preferably into a lay-by. If a
breakdown occurs on a motorway, pull well over to
the inside of the hard shoulder.

• Switch on hazard lights.
• If available, position a warning triangle or a lashing

amber light 50 to 150 metres (150 to 500 ft) behind
your vehicle to warn approaching trafic. Note it is a
legal requirement of some countries that a warning
triangle is carried in the vehicle, if in doubt consult
the local highways agency for further information.

• Consider evacuating passengers through nearside

doors onto the verge to reduce risk of injury in the
event of collision.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Vehicle Identiication Information

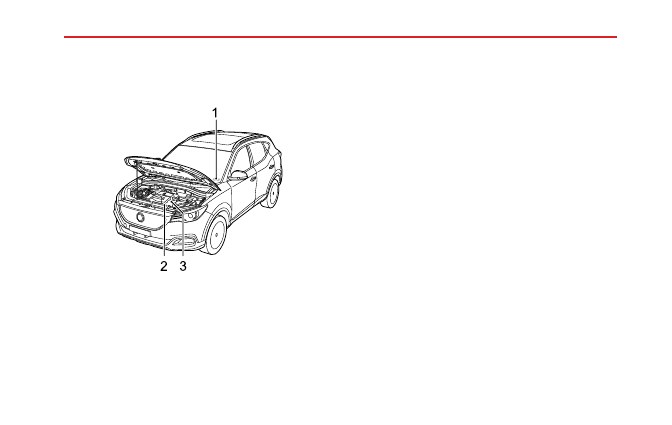

Vehicle Identiication

1 Vehicle Identiication Number (VIN)

2 Engine Number

3 Transmission Number

Always quote the Vehicle Identiication Number (VIN)
when communicating with the MG Authorised Repairer. If
your communication concerns the engine or transmission,
it may be necessary to quote these numbers too.

Vehicle Identiication Location
VIN Location
• Stamped on a plate visible through the bottom left hand

corner of the windscreen.

• On the vehicle identiication plate.
• Stamped on the loor panel in the RHF footwell adjacent

to the RHF seat.

• Stamped above the inner side of the tailgate visible by

opening the tailgate.

Note: The vehicle diagnostic socket is located under
the RH side of the fascia panel. The VIN information
can be accessed using the SAIC Diagnostic Scan Tool.

Engine Number Location

Stamped on the front - right of the cylinder block. (View
from the front end of the vehicle)

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Transmission Number Location

Stamped on the upper face of the transmission housing
in the engine compartment. The transmission number of
some vehicles is on the right transmission housing (viewed
from the front end of the vehicle), which can be seen when
the vehicle is lifted. Please contact an MG Authorised
Repairer.

Vehicle Identiication Label

The vehicle identiication label contains the following
information.
• Type Approval Number
• Vehicle Identiication Number (VIN)
• Gross Vehicle Weight
• Gross Tracking Weight
• Max Front Axle Weight
• Max Rear Axle Weight
• Paint Code
• Trim Code

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Location of Vehicle Identiication Label
The identiication label is located at the lower side of the
right B pillar.

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Instruments and Controls

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

1 Power Window Switch

2 Exterior Rearview Mirrors and Headlamp Levelling

Adjustment Switch

3 Ignition Switch

4 Wiper/Washer Control

5 Horn Button

6 Driver Airbag

7 Instrument Pack

8 Indicator and Main Beam Stalk Switch

9 Onboard Entertainment System

10 Entertainment Controls

*

11 Front Passenger Airbag

12 Heating/Air Conditioning Controls

13 Gear Shift Lever

14 Cruise Stalk Switch

15 Clutch Pedal

*

16 Brake Pedal

17 Accelerator Pedal

18 Bonnet Release Handle

19 Fuel Filler Flap Release Handle

9

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Instrument Pack

Speedometer

Indicates the vehicle speed (1), in mph and km/h.

Tachometer

Indicates the engine speed (2), ×1000 rpm.

IMPORTANT

To protect the engine from damage, never allow the
pointer to remain in the red sector of the gauge for
prolonged periods.

Fuel Gauge

The quantity of fuel in the tank is indicated by the number
of segments illuminated. There are 8 segments in total
(3). When only one segment illuminates, the low fuel
warning lamp below the information centre will illuminate,
accompanied by an audible warning. If the fuel continues
to fall to a critical state, the leftmost segment and low fuel
warning lamp will lash simultaneously, accompanied by an
audible warning.

IMPORTANT

If the low fuel warning lamp illuminates, refuel at the
earliest opportunity.

10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

The arrow to the right of the fuel gauge symbol

in the display indicates that the fuel iller is located on the
right of the vehicle.

11

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Information Centre

The information centre provides the following information:

1 Digital Clock

2 Vehicle Information Display

3 Odometer/Distance Until Next Service

4 Gear Display and Gear Shift Indication

Digital Clock

Displays the current time in digital form.

Odometer

With the ignition switch in the ON position, it displays total
distance the car has travelled.

Next Service

With the ignition switch in the ON position, the distance
until next service will be shown for several seconds in
the odometer display area of the information centre, this
indicates the remaining distance until the next service, and
then change to total mileage.

Note: When the remaining distance is below 1000
miles the display will lash the remaining mileage
before reverting to the odometer. To reset the next
service indicator please contact an Authorised MG
Repairer.

12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Gear Display and Gear Shift Indication

With the ignition switch in the ON position, it displays the
current gear position of the transmission (P

*

、R、N、

D

*

、1、2、3、4、5、6

*

、S

*

). If "EP" is displayed, it

indicates a fault with the automatic transmission. When
the Up or Down arrow is displayed at the right side of
the gear position, it indicates the driver to upshift or
downshift when the conditions permit. Refer to "Instruction
Transmission" and "Automatic Transmission" in “Starting
and Driving” section.

Vehicle Information Display

The vehicle information display screen provides the
followings:

1 Warning Information

2 Trip Computer Menu

3 Settings

Warning Information
The vehicle information display uses the following icons to
convey warning information to the driver.

Icon

Action

Indicating to the driver to close all doors,
bonnet and tailgate.

Indicating to the driver that the selected
speed has been exceeded.

13

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Icon

Action

Indicating to the driver that ASL system
is standby. If the activation conditions
are not satisied, the text "STANDBY"
lashes.

Indicating to the driver that ASL system
is active. When the current vehicle speed
exceeds the target speed, the ASL icon
and target speed value will lash. Refer
to "Active Speed Limit (ASL) System" in
"Starting and Driving" section.

Indicating to the driver that ASL system
has a fault. Seek an MG Authorised
Repairer for service.

Trip Computer
With the ignition switch in the ON position, the trip
computer functions can be selected as follows:

Note: The trip computer display operation modes vary
with model coniguration.

Right Hand Steering Wheel Switches

*

• Press the left/right buttons on the right of steering

wheel to switch between the trip computer display
items.

• Press OK button on the right of steering wheel to

conirm or long press OK to reset.

• Press the up/down key on the right of steering wheel to

make adjustment.

14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

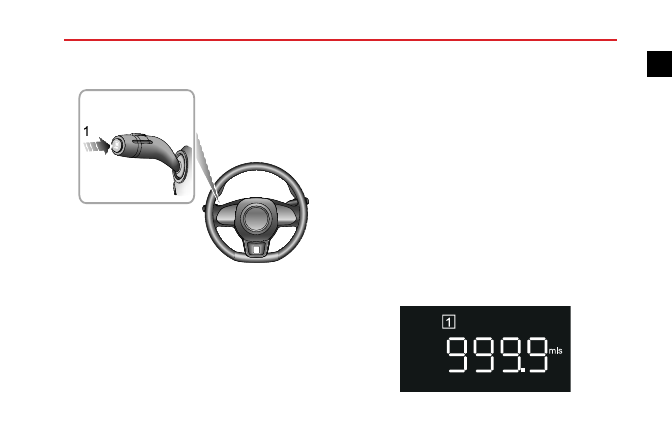

Trip Computer Switch

*

• Short press the trip computer button (1) on the end of

the indicator/main beam switch to switch between the
trip computer display items.

• Long press the trip computer button (1) on the end of

the indicator/main beam switch to select or operate the
trip computer display items.

The trip computer comprises the following information:

1 Trip 1

2 Journey Time 1

3 Average Speed 1

4 Average Fuel Consumption 1

5 Trip 2

6 Journey Time 2

7 Average Speed 2

8 Average Fuel Consumption 2

9 Fuel Range to Empty

10 Instantaneous Fuel Consumption

Trip 1

15

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Displays the driven distance of the current journey or since
last reset. This value will be automatically reset 1 hour after
the ignition is switched off and can also be reset by a long
press of the OK button in the right hand steering wheel
switch or trip computer button.

Note: Reset any item of Trip 1, Journey Time 1,
Average Speed 1, Average Fuel Consumption 1, and
other items will also be reset.

Journey Time 1

Displays the driving time of the current journey or since
last reset. This value will be automatically reset 1 hour
after the ignition is switched off and can also be reset by
a long press of the OK button in the right hand steering
wheel switch or trip computer button.

Average Speed 1

Displays the average speed from the current journey or
since last reset. This value will be automatically reset 1
hour after the ignition is switched off and can also be reset
by a long press of the OK button in the right hand steering
wheel switch or trip computer button.

Average Fuel Consumption 1

16

-------------------------------------------------------------------------------------------------------------------------------------------------------------
