Smart 2012. Audio system navigation, multimedia. Instruction

Press the available numbers (shown in

white) one after another.

The colon between the hours and minutes

is entered automatically.

Press

The setting is accepted and the "Time

entry" menu appears.

Setting the time format

You can set the format to 24-hour or 12-hour

(AM/PM).

Call up the "Time entry" menu

(

page 24).

The entry on the right beside

12 hour

mode

shows the current setting.

Press

12 hour mode

The entry on the right beside

12 hour

mode

changes.

Setting the time zone

Call up the "Time entry" menu

(

page 24).

The entry on the right beside

Time

zone

shows the current setting.

Press

Time zone

A list appears for the selection of the

time zone. The currently selected time

zone is identified by the O symbol.

Press 9 or : to scroll in the list.

Select the desired time zone.

The O symbol indicates the currently

set time zone.

Setting summer time

If no summer time conversion takes place

in the time zone selected, this menu item

is not available.

Call up the "Time entry" menu

(

page 24).

Press

Summer time

Depending on the previous status,

summer time is switched on O or off

ª.

System settings
Calling up the system settings menu

Press

Extras

in the main menu

(

page 10).

Press

Options

in the extras menu.

The general settings menu appears.

Press

System settings

System settings

General

sett

ings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Increasing the volume for audio AUX

In some cases, the volume of the external

audio device may be quieter or louder, or

the usual maximum possible volume may be

lower. On some devices, it is possible to

adjust the volume separately. In this case,

start at a medium volume and increase it

gradually. This enables you to determine

whether the system is able to play the music

at high volume without distorting it.

Call up the system settings menu

(

page 25).

Press

Auxiliary gain

in the menu.

The level (level, value) on the right

beside the entry changes. You can select

level 0 (no volume increase), 1 or 2.

Setting the language

You can use this function to determine the

language for the menu displays and the

navigation announcements. The selected

language affects the characters available

for entry. When you set the system language,

the language for the Voice Control System

changes at the same time (

page 57). If

the Voice Control System does not support

this language, voice commands are not

possible.

Call up the system settings menu

(

page 25).

The entry on the right beside

Language

shows the current setting.

Press

Language

The list of languages appears. The

currently selected language is

identified by the O symbol.

Press 9 or : to scroll in the list.

Select the desired language.

Audio system navigation/multimedia

loads the language and switches back to

the system settings menu.

Selecting a keyboard

The keyboard selection affects the

selection options in the input menus

(keyboard layout, special character entry).
You can select the following keyboard

settings:

Alphabetical

German (German "QWERTZ" computer

keyboard)

English (UK)

French

Cyrillic

Call up the system settings menu

(

page 25).

The entry on the right beside

Keyboard

shows the current setting.

Press

Keyboard

A list appears.

Select the desired keyboard.

Audio system navigation/multimedia

loads the keyboard and switches back to

the system settings menu.

Setting the standby time

After it has been switched off, audio system

navigation/multimedia switches to

standby mode in which it consumes more

System settings

Gene

ral

settings.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

power. In this mode, the device is ready for

use quickly after being switched on again.
Standby mode is terminated after a defined

time period (standby time). The device is

now switched off and changes to the energy-

saving operating mode. You can set the

standby time individually.

The standby time is preset to 18 h.

Setting a low standby time is

recommended when, for example, the

battery charge is low.
If audio system navigation/multimedia

is operated while the engine is switched

off, the device also goes into standby

mode after 30 minutes. You will see a

warning message to this effect.

Call up the system settings menu

(

page 25).

The entry to the right of

Standby time

shows the current setting.

Press

Standby time

in the menu.

A settings menu appears.

Press = or Ì to adjust the standby

time. You can select values between 1 and

24 h.

Press

Audio system navigation/multimedia

saves that value and returns to the system

settings menu.

Changing the security code

Entering a four-digit security code serves

to protect against theft. The security code

must be entered after disconnecting the

battery, for example.
The security code is set to "0000" at the

factory. It is recommended that you change

the security code.

Memorize the changed security code. If

you have incorrectly entered the

security code ten times, audio system

navigation/multimedia is locked. In

this case, you must have audio system

navigation/multimedia unlocked at a

smart Center.

Call up the system settings menu

(

page 25).

Press

Security code

An input menu appears for the entry of the

current security code.

To enter the current (old) code: press the

numbers one after another.

Press

to confirm the entry.

An input menu appears for the entry of the

new security code.

To enter the new code: press the numbers

one after another.

Press

to confirm the entry.

The

Please

Please confirm

confirm again

again

entry prompt

appears.

To confirm the new code: enter the new

code again and press

The

New code saved

message appears.

The new security code is requested when

audio system navigation/multimedia is

switched on again.

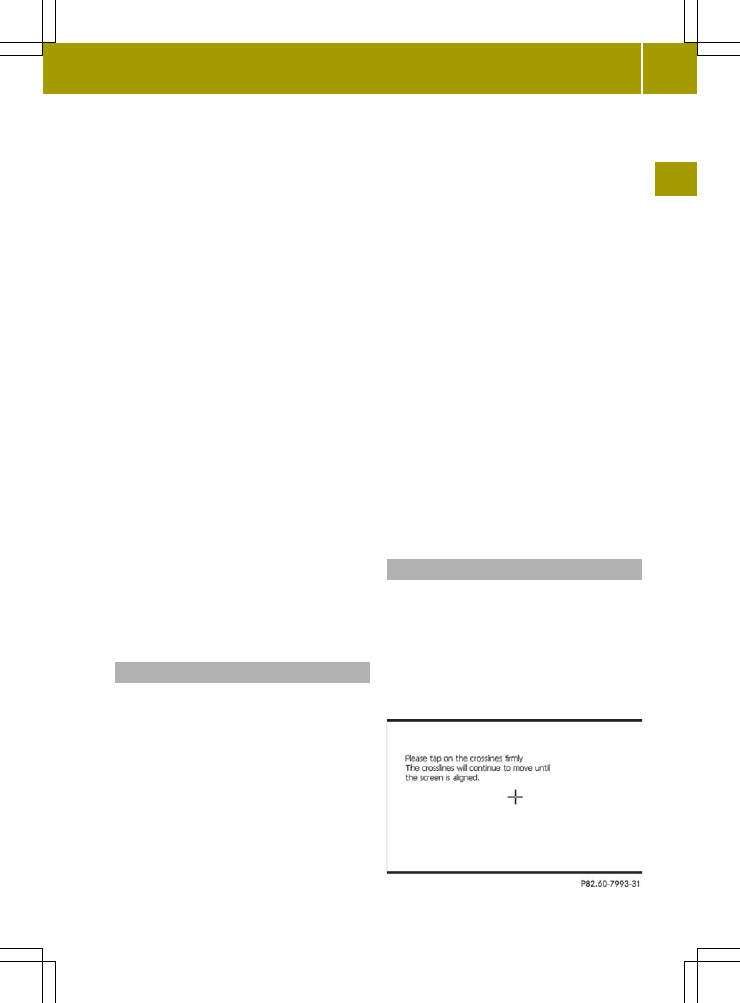

Calibrating the touch screen

The touch screen is calibrated before

delivery. Recalibrate it if it no longer

responds precisely to your entries.

Call up the system settings menu

(

page 25).

Press

Touch calibration

An entry prompt is shown.

System settings

General

sett

ings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press the cross.

The cross moves across the screen.

Repeat this action until the system

settings menu appears.

Loading the factory settings

Audio system navigation/multimedia can

be reset to the factory settings. Amongst

other things, this will delete all personal

data (e.g. station presets, entries in the

destination memory and in the list of

previous destinations in the navigation

system, phone book entries). Resetting is

recommended before handing over or

selling the vehicle, for example.

Call up the system settings menu

(

page 25).

Press

Factory settings

The

Please confirm to load the

factory settings

entry prompt

appears.

Press

To cancel the reset to factory settings:

press &.

Displaying product information

Product information includes:

the serial number

the software package number

The serial number can be used to

identify audio system navigation/

multimedia unambiguously.

Call up the system settings menu

(

page 25).

Press

Product information

Updating the digital map

The digital maps generated by the map

software become outdated in the same way

as conventional road maps. Optimal route

guidance can only be provided by

the navigation system in conjunction with

the most up-to-date map software.
Map software can be updated at your smart

Center. You will need to provide the

following information: the vehicle

identification number, the name of the

vehicle owner and the device code of your

audio system navigation/multimedia

(

page 55).

System settings

General

sett

ings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Introduction
Safety notes

WARNING

For safety reasons, only enter a new

destination when the vehicle is stationary.

When you are driving, another passenger

should enter the destination. Read the

Operator's Instruction and select the route

before driving.
Bear in mind that at a speed of just 30 mph

(approximately 50 km/h), your vehicle is

covering a distance of 44 feet

(approximately 14 m) every second.
The device calculates the route to the

destination without taking account of the

following, for example:

traffic lights

stop and give way signs

merging lanes

parking or stopping in a no parking/no

stopping zone

other road and traffic rules and

regulations

narrow bridges

WARNING

The device may give incorrect navigation

commands if the actual street and traffic

situation does not match the data in the

digital map. Digital maps do not cover all

areas nor all routes in an area. For

example, a route may have been diverted or

the direction of a one-way street may have

changed.
For this reason, you must always observe

road and traffic rules and regulations

during your journey. Road and traffic rules

and regulations always have priority over

the system's driving recommendations.

WARNING

Navigation announcements are intended to

direct you while driving without diverting

your attention from the road and driving.

Please always use this feature instead of

consulting the map display for directions.

Consulting the symbols or map display for

directions may cause you to divert your

attention from driving and increase your

risk of an accident.

General notes

Operational readiness of the navigation

system

The navigation system must determine the

position of the vehicle before first use or

whenever operational status is restored.

Therefore, you may have to drive for a while

before the position of the vehicle can be

determined precisely.

GPS reception

Correct functioning of the navigation

system depends, amongst other things, on

GPS reception. In certain situations, GPS

reception may be impaired, there may be

interference or there may be no reception

at all, e.g. in tunnels or parking garages.

Available/unavailable functions

Functions that are currently available are

highlighted, functions that are currently

unavailable are grayed out.

Entry restriction

You can enter an address only when the

transmission selector lever is in position

j (see vehicle Operator's Instruction). The

For safety reasons, entry is not

possible while driving!

message

otherwise appears and you cannot make any

entries.

To hide the message: press &.

Introduction

Navigati

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Switching navigation mode on/off

Switching on navigation mode

To switch on navigation mode: press the

t button.

The main menu appears.

Press

Navigation

You will see the navigation start screen.

The

The driver is responsible for

safe

safe driving

driving and

and to

to follow

follow traffic

traffic

regulations. DO NOT operate any

function on this device while

driving. Park vehicle first.

note

then appears

Press

and confirm the note.

Option 1: the

Would you like to start

in Easy

Easy or

or Expert

Expert mode?

mode?

prompt appears

when the navigation is switched on for the

first time.
Easy mode makes the basic functions for

settings, destination entry and route

guidance available.
Expert mode provides additional

functions, such as:

point of interest entry

alternative routes

display of the maximum permissible

speed in the map with an audible warning

if you exceed the speed limit

route plotting (GPS track)

Press

Easy

Expert

The navigation main menu is shown in

Easy or Expert mode. You can switch

between Easy and Expert mode

(

page 32).

Option 2: the navigation system shows the

display that was exited before switching

off.

Navigation main menu

Example: Expert mode

Switching off navigation mode

Press 1 at the top right of the

navigation menu.

Introduction

Navigatio

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Basic settings
Easy and Expert modes

Introduction

You can select Easy or Expert mode when switching on navigation mode (

page 31) or

switch between the two modes in the settings menu.

Easy/Expert mode overview

Function

Easy mode

Expert mode

Navigation main

Enter address

Last locations

Favorites (destination

memory)

Enter address

Last locations

Favorites (destination memory)

Changing the route

Route information

Points of interest

Settings menu

Route options

Display

Program settings

Voice output

Route options (additionally: route

type, alternative routes)

Display (additionally: intersection

zoom, map colors)

Program settings (additionally:

displaying the speed limit on the

map, route recording)

Voice output

Points of interest on the map

Route calculation

Standard route

Standard route and alternative

routes

Route guidance

functions

Route guidance functions

Quick menu: allows fast access to

six individually selectable

functions

Plotting the GPS track

Setting Easy/Expert mode

Option 1: select the mode when the

you want to start in Easy or

Expert mode?

prompt is shown when

switching on navigation mode for the

first time.

Option 2: press the d symbol at the

bottom right of the navigation main menu

(

page 31).

The settings menu appears.

Basic settings

Navigation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

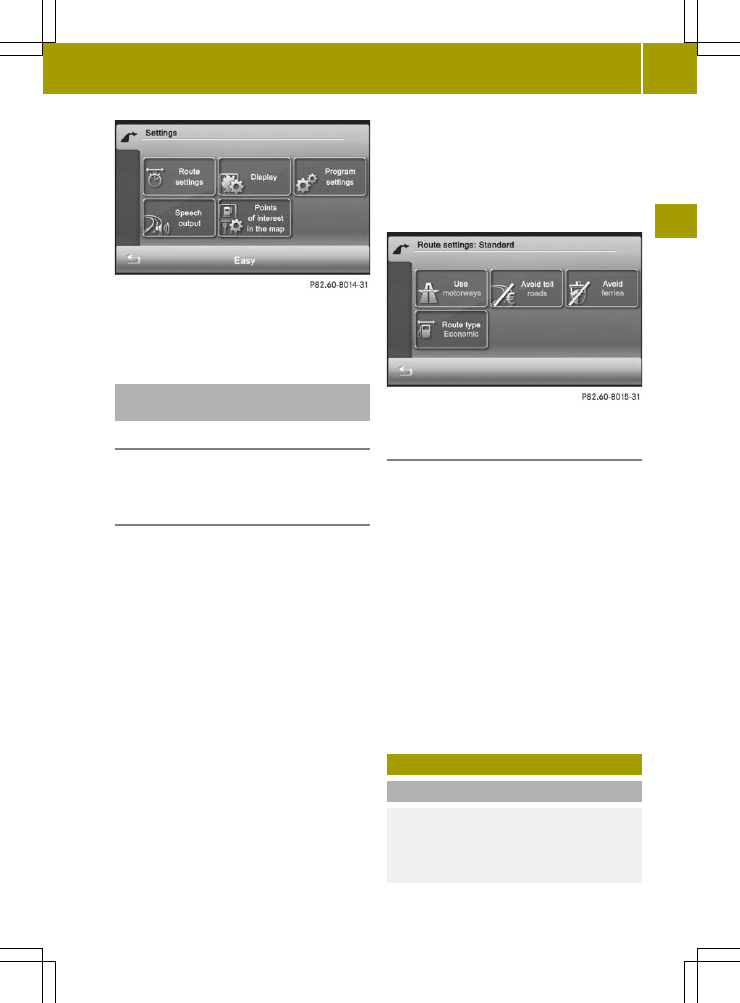

Settings menu (example: Expert mode)

Depending on the current mode, press

Easy

Expert

Setting the route options and route

type

Note

The route options and route type (Expert

mode) determine the route calculation.

Setting route options

Press

Route settings

in the settings

menu.

Depending on the mode selected, the

available route options are shown.
Easy mode: you can use/avoid highways,

toll roads and ferries (standard route).
Expert mode: in addition to the standard

route, there are two alternative routes

available for route calculation. You can

use/avoid freeways, toll roads and

ferries, as well as set the route type.

Easy mode: press one of the route

options.

Depending on the previous setting, use

or avoid the route options.

Press & to return to the settings menu.

Expert mode: press

Standard

Alternative 1

Alternative 2

The route options appear.

Press one of the route options.

Depending on the previous setting, use

or avoid the route options.

Route options menu (example: Expert mode)

Setting the route type (Expert mode)

Press

Route type

Press

Short

Quick

Economical

Press & twice to return to the settings

menu.

You can set the following route types:

Short route

: the device calculates a

route with the shortest possible

(minimized) distance.

Fast route

: the device calculates a

route with the shortest possible

(minimized) driving time.

Economic route

: economic route is an

optimized mix of the short and fast

routes.

Destination input
Introduction to destination entry

WARNING

For safety reasons, only enter a new

destination when the vehicle is stationary.

You could otherwise be distracted from the

Destination input

Navig

ation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

traffic conditions, cause an accident and

injure yourself and others.

The following destination entry options

are available:

entering a destination by address

entering a destination as geo-

coordinates

entering a destination from the previous

cities

entering a destination from the

favorites (destination memory)

entering a destination using the map

entering a point of interest

compiling a route with multiple

destinations

Entering a destination by address

Introduction

When entering an address as the

destination, you have the following

options:

entering the country, city/zip code,

street and house number

entering the country, city/zip code and

street

entering the country, city/zip code,

street and intersection

entering the country, city/zip code and

center

entering the country, city/zip code and

points of interest

entering the country, city/zip code

Country and city/zip code are sufficient to

start navigating. You can enter either a

city or a zip code. By entering further

address data such as the street and house

number, you can specify the destination

more precisely.

Note that you can only enter a street,

house number, intersection etc. once you

have entered a country and a city or zip

code.

You can only enter those cities, streets,

zip codes etc. that are stored in the

digital map. This means that for some

countries, you cannot enter zip codes, for

example.

Example: entering an address

The following is a step-by-step example of

how to enter an address in Expert mode. The

destination address is as follows:
Germany
Berlin
Unter den Linden/Friedrichstraße

(intersection)
You can of course enter any country, city,

street and house number desired and enter,

for example, your home address (My

address).

Calling up the address entry menu

Call up the navigation main menu

(

page 31).

Press

Enter address

The enter new destination menu appears.

"Entering a new destination" menu
:

To select the country

;

To enter a zip code

To enter the city

To enter a street name

To enter geo-coordinates (Expert mode)

Destination input

Navi

gati

on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Selecting the country

Press the country entry in the "Entering

a new destination" menu (

page 34), e.g.

Germany

You see the country list.

Press 9 or : to scroll in the list.

Press the desired country.

The country is selected and is now

entered in the "Entering a new

destination" menu.

Entering the city

Press the city entry in the "Entering a

new destination" menu (

page 34).

The input menu for the city appears.

Option 1

Enter

. Instructions for entering

characters can be found in the "Entering

characters in navigation mode" section

(

page 14).

As soon as the letter has been entered,

the three largest cities found can be

selected.

You can set the keyboard (

page 26).

Press

1xxxx Berlin

You can now enter the street name.

Option 2

Enter

As soon as the letter has been entered,

More hits

can be selected.

Press

More hits

A list shows the first three largest cities

that match the entry and then shows all

other entries in alphabetical order. The

cities are shown on the left-hand side of

the map.

Press

Hide map

to only show the list.

Press

Display on map

to show the map

and the list.

Press 9 or : to scroll in the list.

Press

1xxxx Berlin

You can now enter the street name.

Entering a street name

The menu also appears if you press the

street entry in the "Entering a new

destination" menu (

page 34).

Option 1:

Enter

UNT

. Instructions for entering

characters can be found in the "Entering

Destination input

Navigati

-------------------------------------------------------------------------------------------------------------------------------------------------------------

characters in navigation mode" section

(

page 14).

After entering

UNT

, the desired street is

shown in the first three entries.

Press

Unter den Linden

You can now enter a house number or an

intersection.

Option 2

Enter

UNT

Press

More hits

and select

Unter den

Linden

from the list.

You can now enter a house number or an

intersection.

Further entry options immediately after

calling up the menu:

Selection

Function

Berlin Center

Sets the destination to

the city center and

calls up the detailed

information menu

(

page 36).

Points of

interest

Enter a point of

interest

(

page 41).

Entering an intersection name

Press

Intersections

in the "Entering a

house number" menu.

The input menu for the intersection

appears. The first three side streets that

can be selected are shown in

alphabetical order.

Option 1:

Enter

. Instructions for entering

characters using street input as an

example can be found in the "Entering

characters in navigation mode" section

(

page 14).

Press

Friedrichstraße

The address is now complete and the

detailed information menu appears.

Option 2

Enter

Press

More hits

and select

Friedrichstraße

from the list.

The address is now complete and the

detailed information menu appears.

Detailed information menu

The menu shows the address entered and the

destination on map :.

Destination input

Navigation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Before calculating the route to the

destination entered, you can:

store the address as your home address

(

page 37)

store the address as a favorite

(

page 51)

view the destination on the map

(

page 37)

check/change the route options for the

address (

page 37)

Entering and saving your home address

You can either enter your home address for

the first time (option 1) or edit a

previously stored home address (option 2).

Option 1: enter the address, e.g. a city,

street and intersection.

After entering the address, press

home address

in the detailed

information menu.

An input menu appears.

You can set the keyboard (

page 26).

Enter a name for the home address.

Instructions for entering characters

using street input as an example can be

found in the "Entering characters in

navigation mode" section (

page 14).

Press

The destination is stored as the home

address in the favorites under the name

entered (

page 51).

Option 2: proceed as described under

"Option 1".

The

A favorite with this name

already exists. Do you want to

replace this file?

message appears.

Press

if you want to overwrite the home

address.

If you do not want to overwrite the home

address: press &.

Viewing the destination on the map

Press the map.

To return to the "Detailed information

menu": press &.

Calculating the route

Checking/changing route options
The detailed information menu appears

after the address has been entered. Before

starting the route calculation, you can

check and change the route options.

Press the symbol at the bottom right of

the detailed information menu

(

page 36).

The "Route options" menu appears

(

page 33) and shows the current

settings.

Change the route options.

Press & to return to the detailed

information menu.

Calculating the route

Press

in the detailed information

menu (

page 36).

The route to the destination is

calculated using the selected route

options. After the route has been

calculated, you will hear

Route

calculation completed

Destination input

Navi

gati

on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The map shows:

the destination address (at the top)

the route as a blue line

the selected route option (e.g.

standard) with the distance and

estimated journey duration to the

destination

Map after route calculation (Expert mode)
:

Address entered

;

Route calculated (light blue)

Selected route option

Selection

Function

Destination

information

Calls up the detailed

information menu.

Store the city as a

favorite or as the

home address

(

page 36).

Check/change the

route options

(

page 37).

Calculate

alternatives

(Expert mode)

Calculates two

additional

alternative routes.

Calculating alternative routes
Audio system navigation/multimedia

calculates two alternative routes in Expert

mode (e.g. short, fast).

Press

Calculate alternatives

The alternative routes are calculated.

After the alternative routes have been

calculated, you will hear

Route

calculation completed

The map shows the following routes on the

right:

standard (light blue)

alternative 1 (green)

alternative 2 (light brown)

Each route is shown with the distance and

estimated journey time to the

destination.

To view information about route/

alternative route =

=: press ã.

You see the following information:

length (distance)

journey time (estimated)

arrival time (estimated)

highways (length of the route used)

toll roads (length of the route used)

ferries (length of the route used)

Press & to close the display.

The ã symbol is shown in red if a route

option (e.g.

Avoid ferries

) that has

been selected for the route does not make

sense. Set the route options (

page 33).

To hide the alternative routes: press

Hide alternatives

To start route guidance: press

Entering a ZIP code

Press the entry with the zip code in the

"Entering a new destination" menu

(

page 34).

The input menu for the zip code appears.

Destination input

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Option 1

Enter a zip code, e.g.

10117

. Instructions

for entering characters can be found in

the "Entering characters in navigation

mode" section (

page 14).

As soon as the first number has been

entered, the first three cities found can

be selected.

Press

10117 Berlin

You can now enter the street name.

Option 2

Enter the first number, e.g.

As soon as the number has been entered,

More hits

can be selected.

Press

More hits

A list shows the three largest cities that

match the entry and then shows all other

entries in alphabetical order. The

cities are shown on the left-hand side of

the map.

Press

Hide map

to only show the list.

Press

Display on map

to show the map

and the list.

Press 9 or : to scroll in the list.

Press

1xxxx Berlin

You can now enter the street name.

Entering the house number

A house number can be entered after the

street name has been entered.

Enter a house number, e.g.

Instructions for entering characters can

be found in the "Entering characters in

navigation mode" section (

page 14).

As soon as the first number has been

entered, the first three entries found can

be selected.

Press

The detailed information menu appears

(

page 36).

Further entry options immediately after

calling up the menu:

Selection

Function

Middle of

the road

Sets the destination to

the middle of the road

and calls up the

detailed information

menu (

page 36).

Calls up a list from

which you can select an

entry. The detailed

information menu then

appears.

Intersections

Enter an

intersection

(

page 36).

Destination input

Navi

gati

on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Entering geo-coordinates (Expert

mode)

Press the globe at the bottom right of the

"Entering a new destination" menu

(

page 34).

The "Enter coordinates" menu appears.

You can enter the geo-coordinates as

degrees or in decimal notation.

Enter the geo-coordinates. Instructions

for entering characters can be found in

the "Entering characters in navigation

mode" section (

page 14). An example

entry is shown in the table.

To switch to decimal notation: press

decimal notation

To switch to degree notation: press

degree notation

Notation

Example input

(Berlin)

Degree notation

Latitude

N 52° 33' 40", 00

(N latitude)

Longitude

E 13° 17' 22", 00

(E longitude)

Decimal notation

Latitude

52.561111

Longitude

13.289444

To confirm the entry: press

The detailed information menu appears

(

page 36).

Selecting a destination from "Last

locations"

Audio system navigation/multimedia

automatically stores the last destinations

entered.

Press

Last locations

in the navigation

main menu (

page 31).

The "Last locations" destination memory

appears.

Expert mode: the first three entries

from the "Last locations" memory are

shown at the top of the "navigation" main

menu. These can be selected for fast

destination entry.

Press 9 or : to scroll in the list.

Press a destination address.

The detailed information menu appears

(

page 36).

You will find further information in the

"Last locations" section (

page 51).

Selecting a destination from favorites

Press

Favorites

in the navigation main

menu (

page 31).

The "Favorites" destination memory

appears. Your home address : is also

stored here.

Destination input

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Smart 2012. Audio system navigation, multimedia. Instruction - part 2
