Snowmobile Ski Doo REV SERIES (2004 year). Instruction - part 57





Section 06 TRANSMISSION
Subsection 02 (DRIVE PULLEY)

GENERAL

Some drive pulley components (return spring,
ramp) can be changed to improve vehicle perfor-
mance in high altitude regions. A service bulletin
will give information about calibration according
to altitude.

CAUTION: Such modifications should only be
performed by experienced mechanics since
they can greatly affect vehicle performance.
Verify spring specifications before installation.
Do not only refer to the spring color code.

NOTE: TRA drive pulley stands for Total Range
Adjustable drive pulley.

WARNING

Any drive pulley repairs must be performed
by an authorized Bombardier snowmobile
dealer. Sub-component installation and as-
sembly tolerances require strict adherence to
procedures detailed.

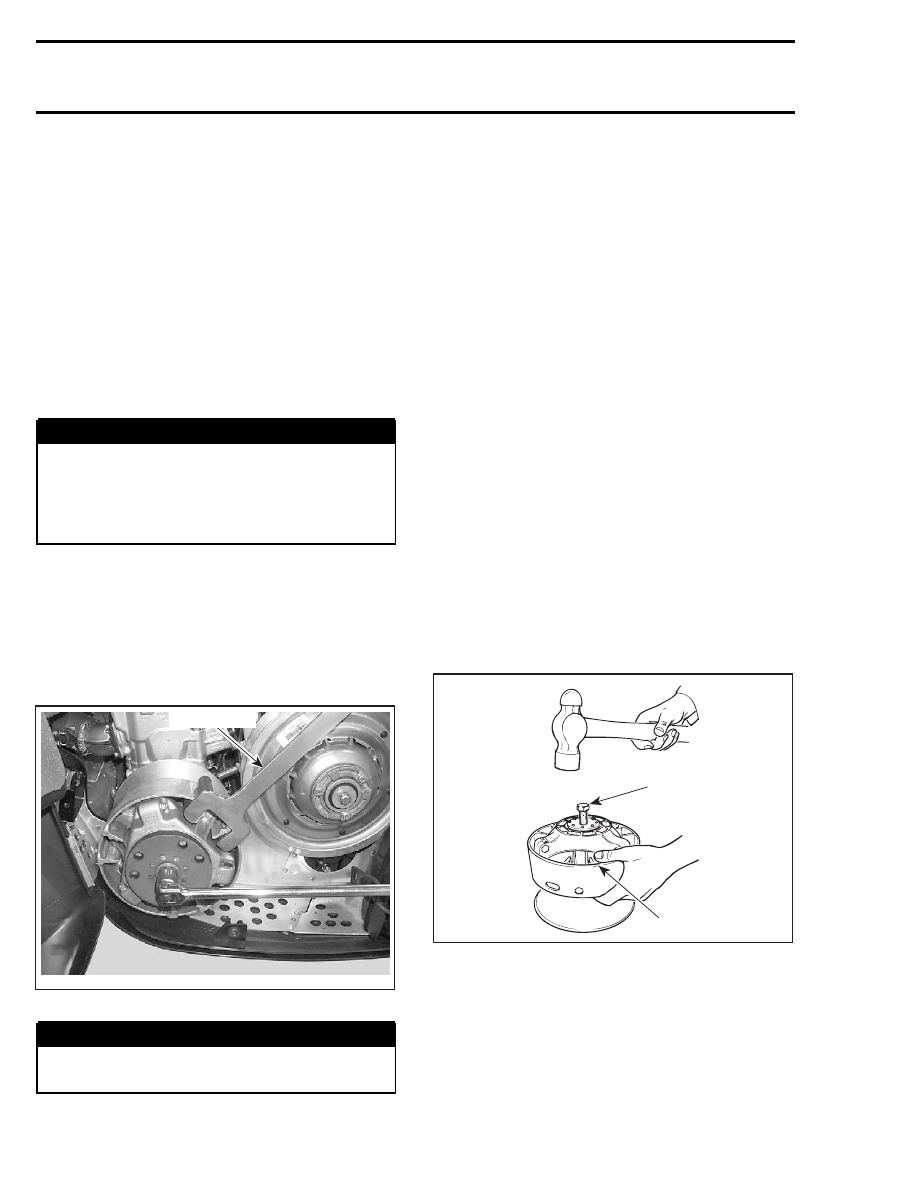

REMOVAL

30,31, Conical Spring Washer
and Screw

Secure drive pulley retainer (P/N 529 035 674) over
a sliding half tower.

A32D1WC

529 035 674

INSERT THE TOOL IN SLIDING FLANGE TOWER

WARNING

Never use any type of impact wrench at drive
pulley removal and installation.

Remove retaining screw.

To remove drive pulley ass’y and/or fixed half from
engine, use puller (P/N 529 022 400).

CAUTION: These pulleys have metric threads.
Do not use imperial threads puller. Always
tighten puller by hand to ensure that the drive
pulley has the same type of threads (metric vs
imperial) prior to fully tightening.

To Remove Drive Pulley Ass’y:

Retain drive pulley with drive pulley retainer
(P/N 529 035 674) .

Install puller in pulley shaft then tighten.

DISASSEMBLY

1,2, Screw and Ring Gear

CAUTION: Retaining screws must be heated
before disassembly.

Do not exceed 150°C

(300°F).

5,6, Fixed and Sliding Halves

CAUTION: Do not tap on governor cup.

Screw puller into fixed half shaft about 13 mm
(1/2 in). Raise drive pulley and hold it by the sliding
half while knocking on puller head to disengage
fixed half.

A16D01A

1

2

TYPICAL
1. Puller
2. Holding sliding half

NOTE: No components marking is required before
disassembling this drive pulley since it has factory
mark and arrows as indexing reference.

216

mmr2004-Rev

Section 06 TRANSMISSION

Subsection 02 (DRIVE PULLEY)

32, Cushion Drive

CAUTION: Do not disassemble cushion drive.
Governor cup and cushion drive are factory
balanced as an assembly.

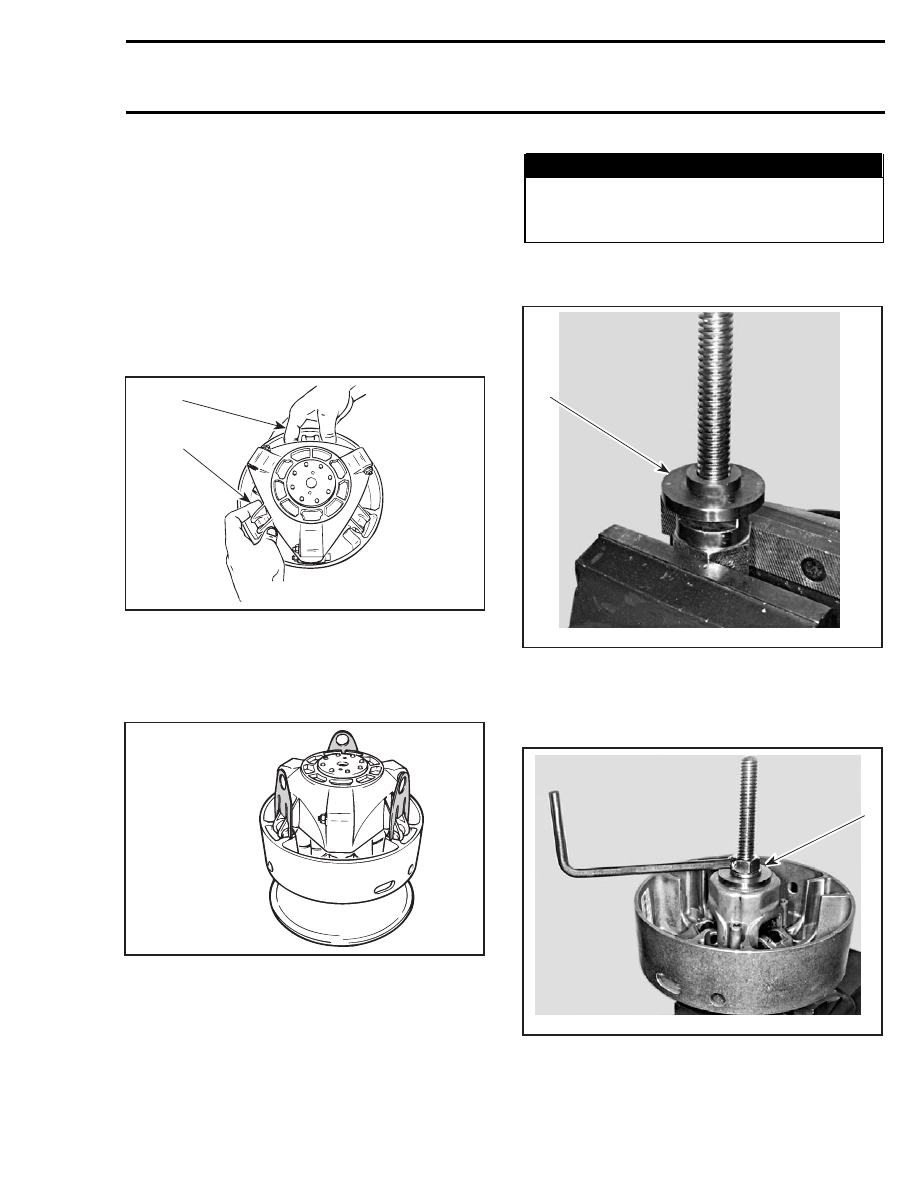

25,29, Slider Shoe and Governor Cup

Carefully lift governor cup until slider shoes come
at their highest position into guides.

Hold a slider shoe set then carefully lift its housing
and remove slider shoes. Proceed the same way
for other housings lifting one at a time.

A16D02A

1

2

1. Hold slider shoes
2. Lift one housing at a time

NOTE: To ease disassembly, forks (P/N 529 005
500) should be used to hold slider shoes prior to
removing governor cup.

A16B02A

529 005 500

19, Spring Cover Ass’y

It is pushed by clutch spring pressure.

WARNING

Clutch spring is very strong. Never attempt
to remove spring cover without the recom-
mended tools.

Use spring compressor (P/N 529 035 524).

Install support guide.

1

A03D3EA

1. Support guide

Install sliding half then a second support guide.
These support guides will prevent bushing dam-
ages.

A03D3FA

1

1. Support guide

mmr2004-Rev

217

Section 06 TRANSMISSION
Subsection 02 (DRIVE PULLEY)

Remove 3 Allen screws retaining spring cover
then unscrew compressor.

CLEANING

5,6, Fixed and Sliding Halves

Clean pulley halves and shaft with fine steel wool
and dry cloth.

5,29, Fixed Half/Crankshaft End and
Governor Cup/Fixed Half Post

Parts must be at room temperature before clean-
ing.

Using a paper towel with Pulley flange cleaner
(P/N 413 711 809) , clean crankshaft tapered end
and the taper inside the fixed half of the drive
pulley, crankshaft threads and retaining screw
threads.

Before installation of drive pulley, clean also crank-
shaft threads and retaining screw threads.

WARNING

This procedure must be performed in a well-
ventilated area.

CAUTION: Avoid contact between cleaner and
crankshaft seal because damage may occur.

Remove all hardened oil deposits that have baked
on crankshaft and pulley tapered surfaces with
coarse or medium steel wool and/or sand paper
no. 600.

CAUTION: Do not use any other type of abra-
sive.

Reclean mounting surfaces with paper towel and
cleaning solvent.

Wipe off the mounting surfaces with a clean, dry
paper towel.

CAUTION: Mounting surfaces must be free of
any oil, cleaner or towel residue.

7,20, Bushing

Only use petrol base cleaner when cleaning bush-
ings.

CAUTION: Do not use acetone to clean bush-
ing.

INSPECTION

Drive pulley should be inspected annually.

16,17, Thrust Washer and Roller

Check roller for roundness of external diameter.
Check thrust washer for thickness wear. Replace
as required.

CAUTION: Ensure rollers are in good condition.
Replace as required.

9,12, Fitting Bolt Ass’y and
Flanged Bushing

Check for wear, replace as required.

24,25, O-ring and Slider Shoe

Check if O-rings are cracked, cut or crushed. Re-
place as required.

Check slider shoes for wear. Replace if groove is
not apparent on top.

5,29, Fixed Half and Governor Cup

Inspect splines and free play between both parts.
Maximum free play is 0.5 mm (.020 in) measured
at calibration screw radius. Replace if required.

7,20, Sliding Half and Spring
Cover Bushing

Visually inspect coating. Replace if worn.

Sliding Half Bushing Replacement

NOTE: In case of worn out bushing, it is advisable
to replace whole sliding half ass’y as replacing just
the bushing may reduce the drive pulley perfor-
mance.

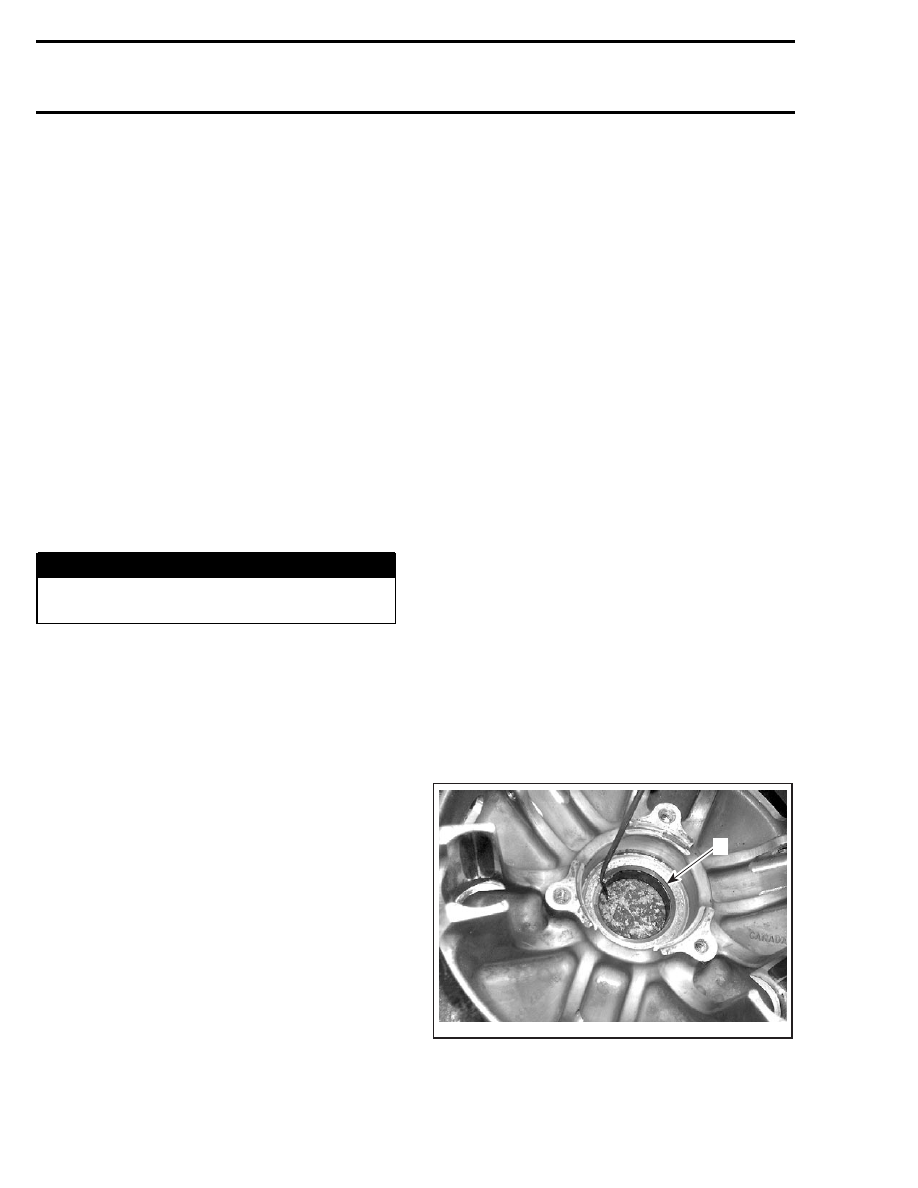

Remove circlip from the sliding half.

A32D2TA

1

1. Circlip

218

mmr2004-Rev

Section 06 TRANSMISSION

Subsection 02 (DRIVE PULLEY)

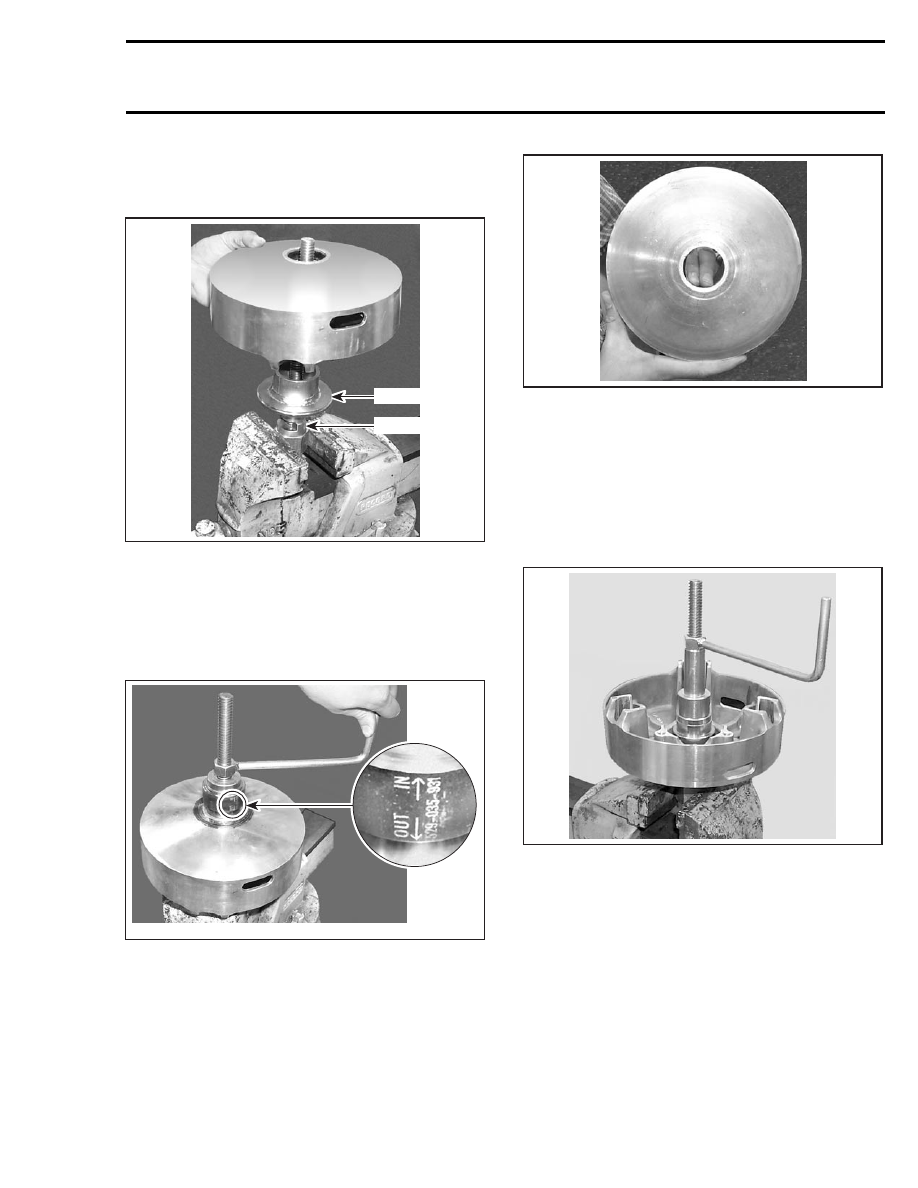

Secure the spring compressor (P/N 529 035 524)
in a vise. Mount tool (P/N 529 031 200) and the
sliding half ass’y on it.

A32D2UA

529 031 200
529 035 524

Use tool (P/N 529 035 931) to press out old bush-
ing.

NOTE: Make sure to use the tool (529 035 931)
as marked; to remove the bushing press using
the side marked “OUT”, as shown below in the
picture.

A32D2VA

Use a soft sand paper to clean sliding half bushing
mounting surface.

A32D2WA

Clean sliding half bushing mounting surface with
pulley flange cleaner (P/N 413 711 809).

To install a new bushing, secure the spring com-
pressor (P/N 529 035 524) in a vise and mount the
sliding half ass’y. Insert the bushing from inner
side of sliding half ass’y.

Mount tool (P/N 529 035 931) with side marked
“IN” to press in a new bushing.

A32D2XA

NOTE: Make sure that the bushing is well seated
on the sliding half ass’y.

mmr2004-Rev

219
