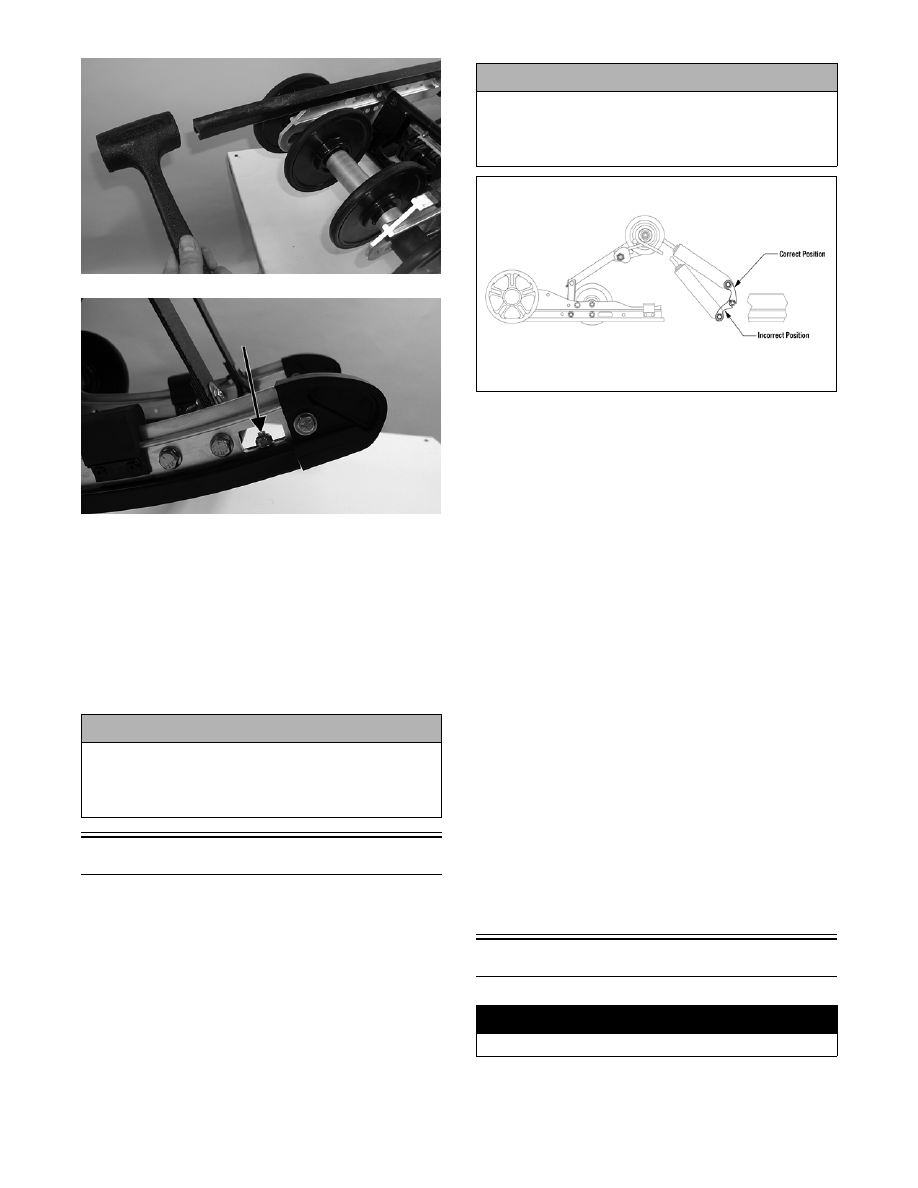

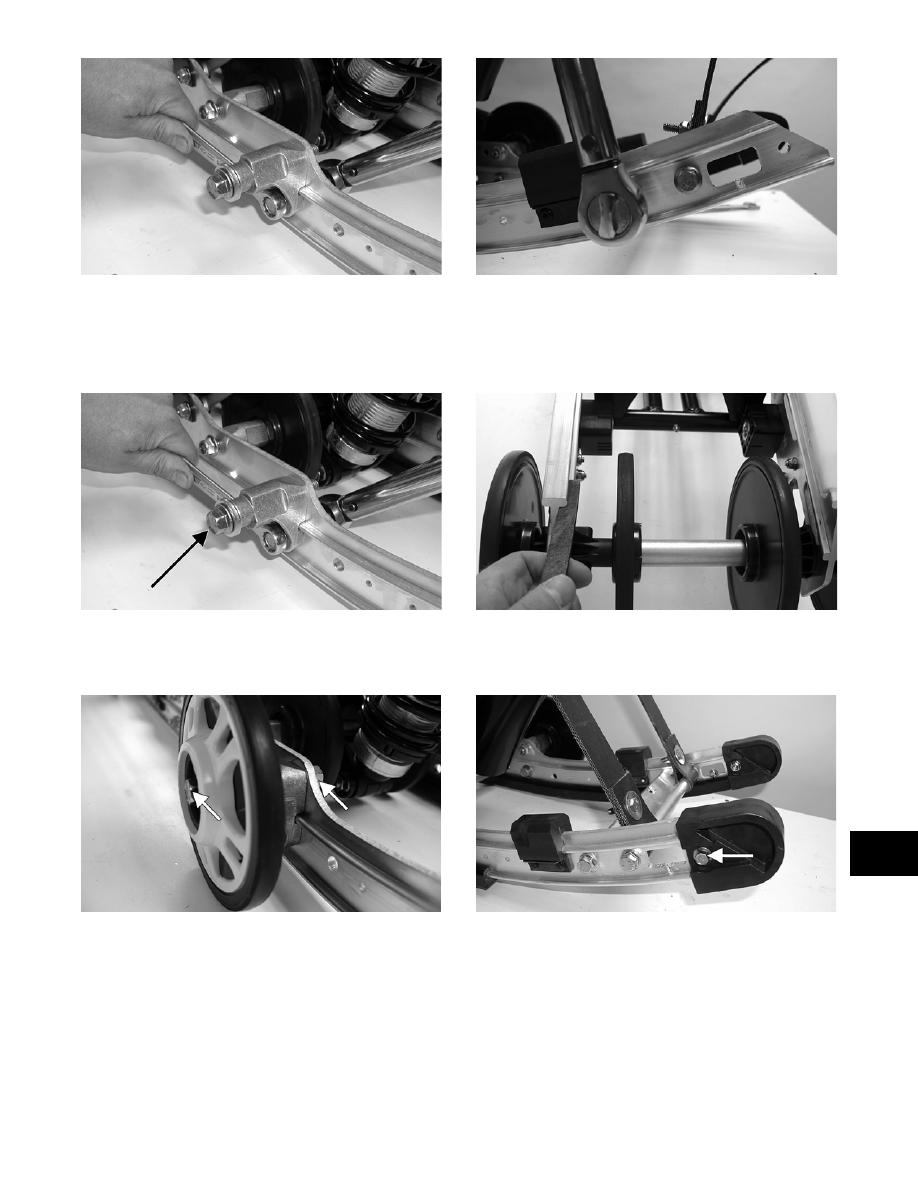

9-37 9 MS997 NOTE: To obtain proper alignment for the idler MS997A 11. Secure the outer and inner idler wheels to the mounting blocks with existing hardware. Tighten to specifications. MS050A 12. Secure the rail supports with cap screws (coated with blue Loctite #243). Tighten to specifications. MS061 NOTE: Apply a light coat of grease to the slide MS288 13. Secure the end cap onto the slide rail using a cap screw, flat washers, and a lock nut. Tighten to specifications. MS206A 14. From the back, start the wear strip onto the rail; then using a soft hammer, drive the wear strip for- ward into position. Secure with a machine screw and lock nut. Tighten to specifications. |
