LUBRICATION

37

19. When the fluid has completely

drained from the gear case, tip the

snowmobile back to the upright

position, remove the drain adapter,

and install and securely tighten the

drain plug; then remove the check/

fill plug.

20. Pour the exact amount (see specifi-

cation sheet) of Arctic Cat Syn-

thetic ACT Gear Case Fluid into

the check/fill hole; then install the
plug. Tighten securely.

21. Install the driven pulley; then

install the drive belt (see Drive

Belt sub-section) and the belt

guard.

22. Install the left-side access panel;

then close the access panel.

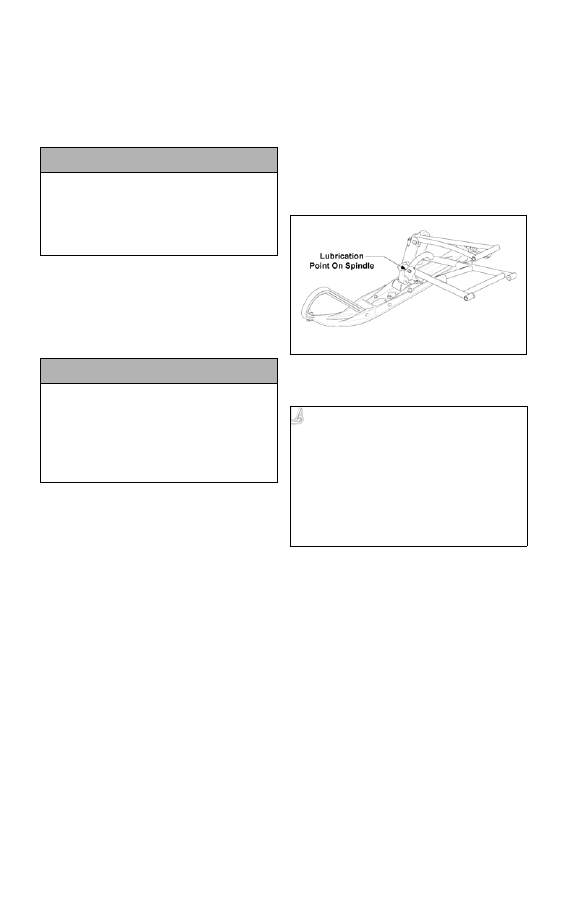

FRONT SUSPENSION

 NOTE: Arctic Cat recommends
that Arctic Cat Low-Temp Grease
(p/n 4639-365) be used for this pro-
cedure.

It is very important that the front sus-

pension is greased on a monthly basis

using low-temperature grease. The

front suspension should also be greased

after trailering the snowmobile on an

open trailer. Pump grease into the spin-

dle grease fitting (both sides) until

grease is noted coming out of the top

and bottom of the spindle. Wipe excess

grease from the spindle.

Crossfire/M-Series Models

0737-294

Bearcat/F-Series/

Z1/T-Series/TZ1 Models

741-335A

On the Crossfire/M-Series models,

pump grease into the upper steering

shaft grease fitting (located on each

side of the snowmobile directly below

the inner cap screw securing the upper

A-arm to the chassis) until grease is

noted coming out of the bottom of the

shaft. Wipe excess grease from the

shaft.

! CAUTION

The correct lubricant to use in the
gear case is Arctic Cat Synthetic
ACT Gear Case Fluid (p/n 4639-628).
Any substitute may cause serious
damage to the drive system.

! CAUTION

Do not add more or less than the
recommended amount of lubricant
to the gear case or damage to the
gear case will occur. Oil level
should be at the Oil Fill Level on
the gear case cover.

38

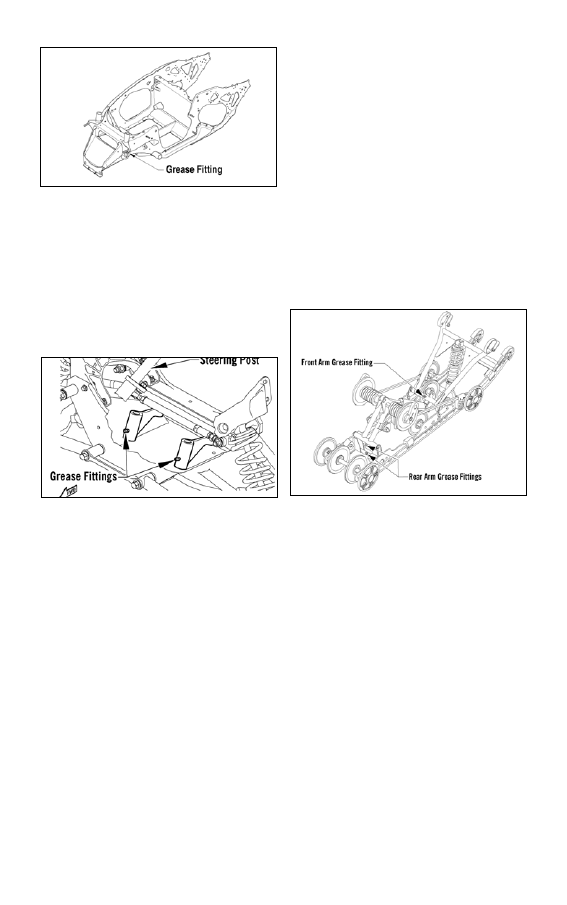

LUBRICATION

Crossfire/M-Series Models

0743-219

On the Bearcat/F-Series/Z1/T-Series/

TZ1 models, turn the handlebar to the

right; then from the right side, pump

grease into the steering arms until

grease is noted coming out of either

end of the arms. Wipe excess grease

from the arms.

Bearcat/F-Series/Z1/
T-Series/TZ1 Models

0741-440

REAR SUSPENSION

(Every 40 Operating

Hours)

 NOTE: Arctic Cat recommends
that Arctic Cat Low-Temp Grease
(p/n 4639-365) be used for this pro-
cedure.

 NOTE: Illustrated are the general
locations of grease fittings. Actual
locations will vary from model to
model.

1. Shut engine off and wait for all

moving parts to stop.

2. With the gas tank nearly empty

(less than 1/4 full), lay the snow-

mobile on its left side. A piece of

cardboard should be used to pro-

tect the finish on the hood and

belly pan.

3. Remove ice and snow buildup

from the skid frame to expose the

grease fittings.

0741-376

4. Lubricate the grease fittings with

low-temperature grease.

MAINTENANCE

39

MAINTENANCE

PERIODIC MAINTENANCE CHECKLIST

ITEM

INTERVAL PAGE

REMARKS

Brake System (Hydraulic)

Daily

53

Check for binding, leakage, and proper opera-
tion; lever firmness, travel, caliper, disc, and pads

Cooling System - Liquid

Daily

18,44 Check for leakage, damage, obstructions, cool-

ant level

Oil System

Daily

42-44 Check for leakage, damage, and injection/engine

oil level

Engine Oil (1100 cc STD)

2500 miles/

Seasonal

42

Change oil and filter

Engine Oil (1100 cc Turbo)

2000 miles/

seasonal

42

Change oil and filter

Battery

Daily

17,50 Check for proper charge and tight connections

Stop Switch

Daily

Check for proper operation

Hoses

Daily

Check for damage, leakage, and routing

Headlight & Taillight/Brakelight

Daily

65-69 Check for proper operation and cleanliness

Steering System

Daily

Check for proper operation, tightness of bolts,
and binding

Throttle Control System

Daily

32

Check for binding, sticking, proper operation,
throttle cable tension, and routing

Drive Belt

Daily

Monthly

56

Check for wear, cracks, and fraying
Check length and width dimensions

Ski Wear Bars

Daily

70

Check for wear and damage

Carburetors - Main Jets -
Adjustment Screws

Daily

Weekly

48

45-47

Install proper main jets
Adjust according to specifications

Electrical Wiring

Weekly

Check for wear, damage, tight connections, and
routing

Exhaust System

Weekly

17

Check for damage, leakage, and obstructions

Nuts, Bolts, Fasteners

Weekly

Check tightness

Recoil Starter

Weekly

Check rope for wear, fraying, and proper operation

Shock Absorbers

Weekly

19

Check for fluid leakage and damage

Spark Plugs (2-Stroke)

Weekly

49

Check center electrode insulator color, carbon,
and gap

Valve Clearance (1100 cc)

5000 miles/

Seasonal

50

Check/adjust

Suspension

Weekly

61

Check for damage, loose components, and
proper adjustment

Track Tension/Alignment

Weekly

58,60 Check/adjust as necessary

Wear Strips

Weekly

71

Check for wear and damage

Wires & Cables

Weekly

Check for wear, damage, and routing

Fuel System - Tank, Pump, In-
Line Filter, & Vent Hose

Weekly

Check for damage, wear, obstructions, and leak-
age

Fuel Filter (1100 cc)

5000 miles/

2 years

Replace

Air Cleaner/Filter
(1100 cc Turbo)

Weekly/

Seasonal

40

Check/Replace

APV System

Monthly

26

Check/adjust as necessary

ACT Drive Gear Case

Seasonal

35

Change drive fluid prior to storage

Heat Exchangers

Monthly

Check for wear, leakage, and damage

Drive Clutch/Driven Pulley

Monthly

18

Check for damage, abnormal noise, vibration,
binding, and sticking and clean off drive belt
deposits

Front & Rear Suspension

Monthly

37,38 Grease

40

MAINTENANCE

The longevity and safety of the snow-

mobile can be increased by making

periodic checks of the items in the pre-

ceding checklist.

If, at any time, abnormal noises, vibra-

tions, or improper working conditions

of any component of this snowmobile

are detected, DO NOT OPERATE

THE SNOWMOBILE. Take the snow-

mobile to an authorized Arctic Cat

Snowmobile dealer for inspection and

adjustment or repair. If not under war-

ranty, this service is at the discretion

and expense of the snowmobile owner.

The snowmobile should be taken to an

authorized Arctic Cat Snowmobile

dealer at the end of each snowmobiling

season for general inspection and for

off-season storage servicing. This

inspection and servicing is at the

expense of the snowmobile owner.

AIR CLEANER/FILTER

(1100 cc Turbo)

The air filter inside the air cleaner

housing must be kept clean to provide

good engine power and gas mileage. If

the snowmobile is used under normal

conditions, inspect the filter weekly

and replace the filter at the intervals

specified. If operated in adverse condi-

tions, inspect and service the filter

more frequently. Use the following

procedure to remove the filter and to

inspect and/or clean/replace it.

1. Remove the air cleaner cover; then

remove the air filter.

2. Clean the foam filter with warm

soapy water; then allow it to dry
thoroughly.

3. Clean any debris from inside the

air intake plenum.

4. Place the filter into the plenum.

5. Secure the air cleaner cover onto

the plenum.

FUEL SYSTEM

! CAUTION

Failure to inspect the air filter fre-
quently if the snowmobile is used
in adverse conditions can damage
the turbocharger/engine.

! CAUTION

Do not use compressed air to dry
the filter. Damage to the filter may
occur.

! CAUTION

A torn air filter can cause damage
to the turbocharger/engine. Con-
taminants may get inside the turbo-
charger/engine if the filter is torn.
Carefully examine the filter for
holes or tears before and after
cleaning it. Replace the filter with a
new one if it is torn.

! CAUTION

Do not run the engine without the
air filter installed. Severe damage to
the turbocharger/engine will occur.

! WARNING

Whenever any maintenance or
inspection is made on the fuel sys-
tem in which there may be fuel
leakage, there should be no weld-
ing, smoking, open flames, etc., in
the area.
