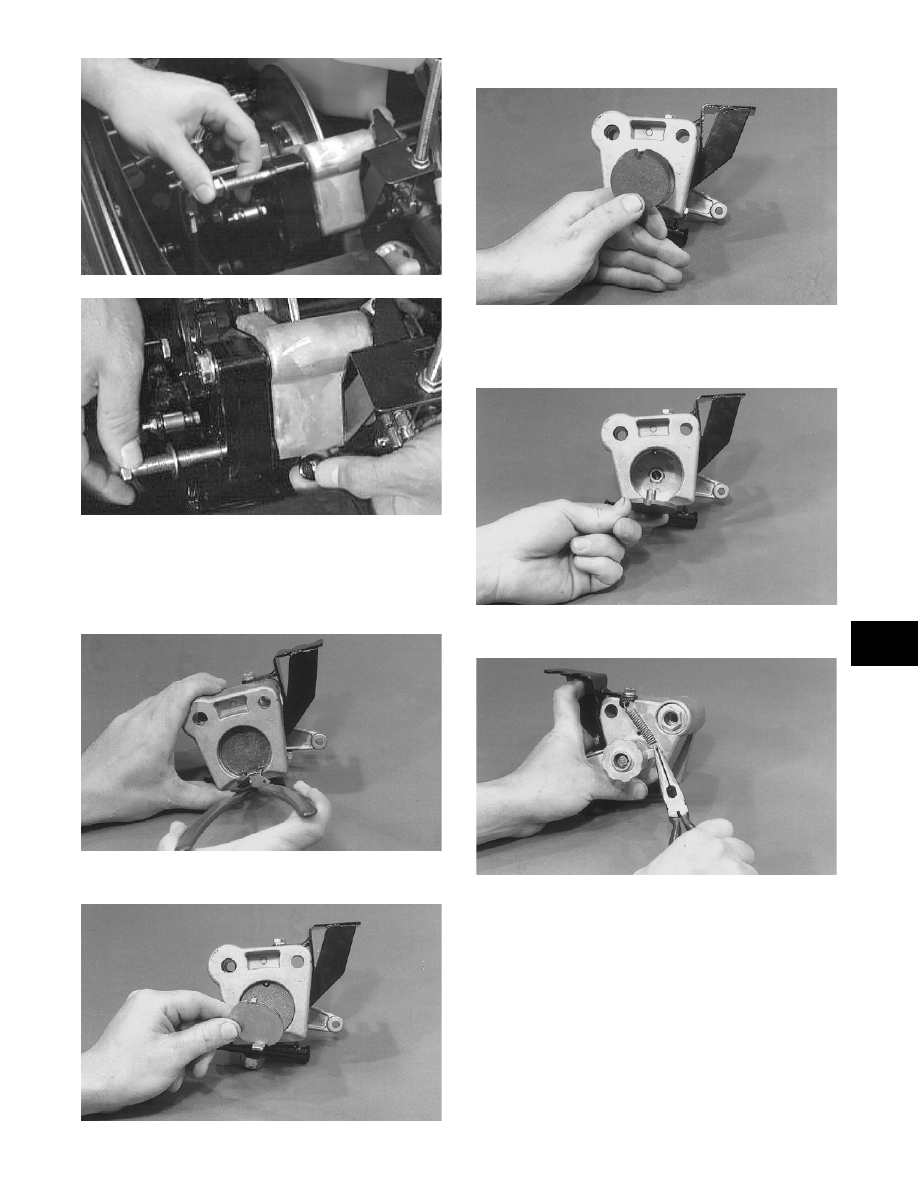

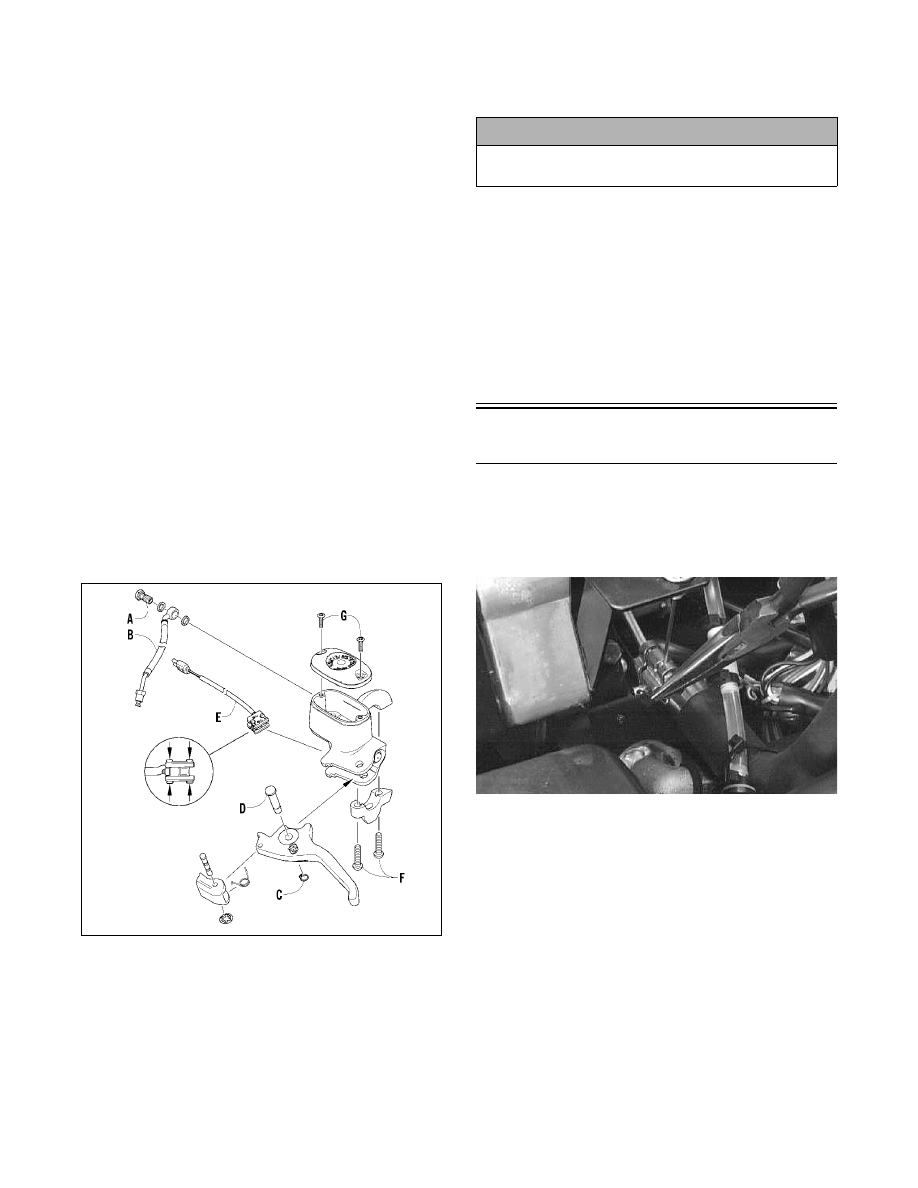

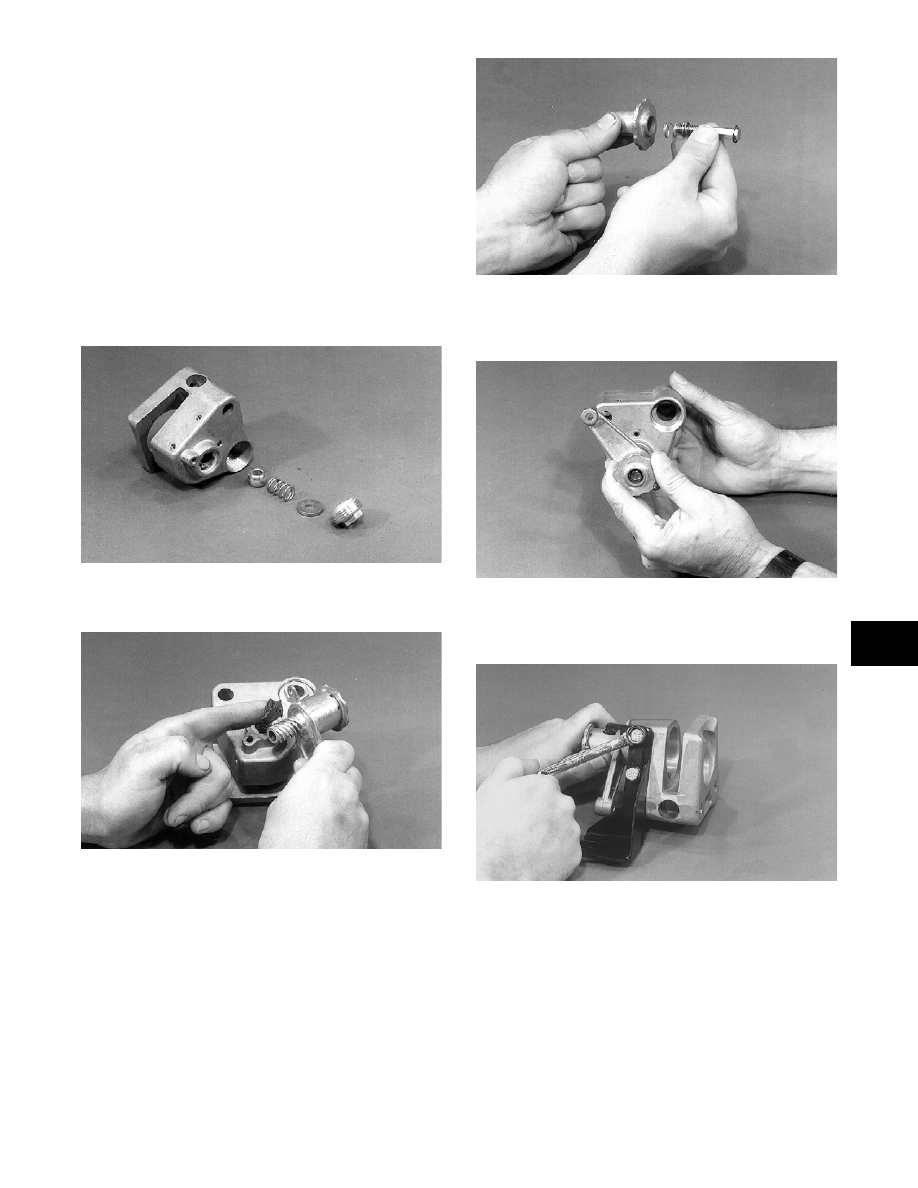

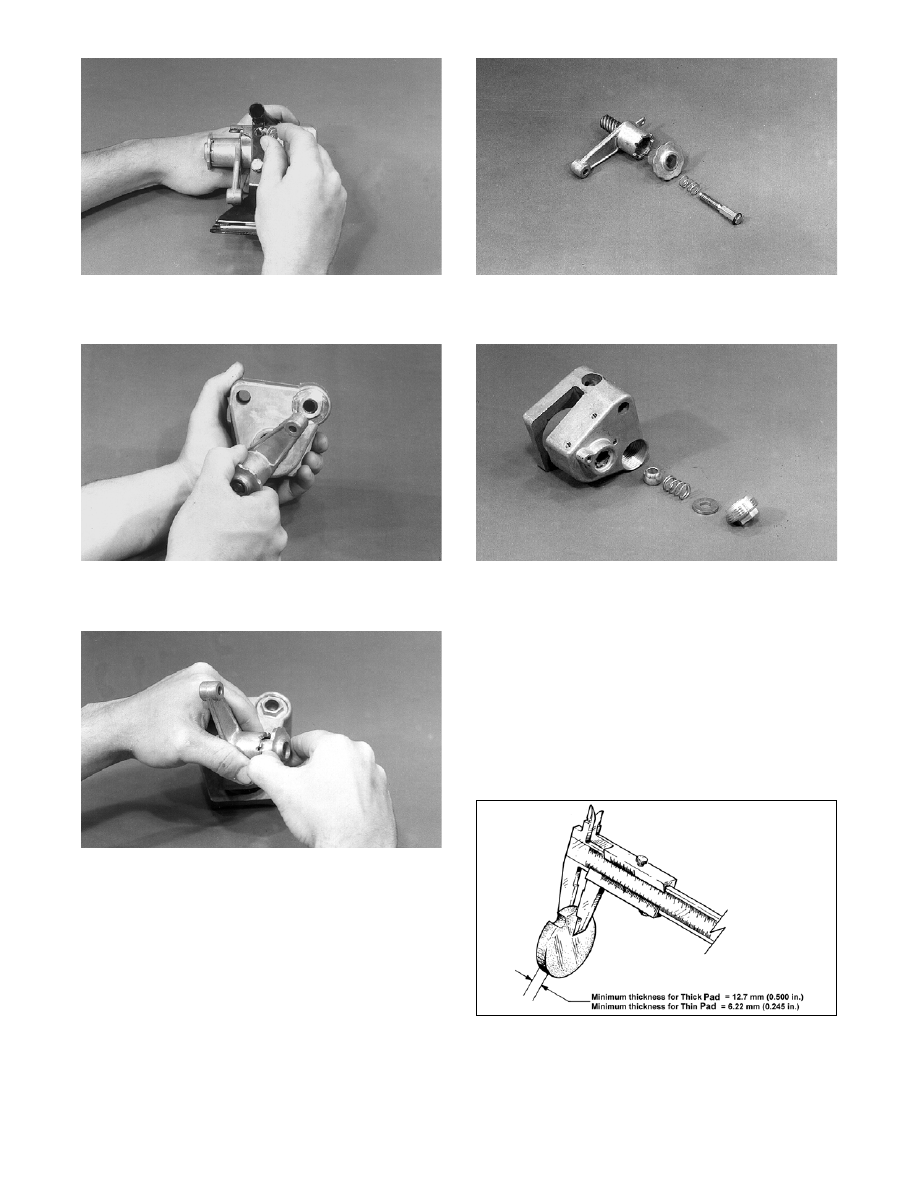

6-72 4. Using a small screwdriver, compress the tabs of the brakelight switch (E) to release it from the master cylinder. 5. Remove the two torx-head screws (F) and clamp securing the brake reservoir to the handlebar; then place a towel over the reservoir and remove the assembly from the handlebar. INSPECTING NOTE: Whenever a part is worn excessively, 1. Inspect the snap ring and pin securing the brake lever for wear or damage; then inspect the brake lever for cracks or damage. 2. Inspect the master cylinder reservoir and cover for cracks and leakage. NOTE: The master cylinder is a non-serviceable 3. Inspect the brake fluid hose for cracks, deteriora- tion, and the condition of the fittings (threaded and compression). INSTALLING 0742-152 1. Position the brake assembly on the handlebar. Secure with two torx-head screws (F) and clamp; tighten securely. 2. Install the brake fluid hose (B) to the master cylin- der with the banjo-fitting bolt (A) and two new crush washers. Tighten securely. 3. Install the brakelight switch (E) to the master cyl- inder. 4. Install the brake lever; then secure with pin (D) and snap ring (C). 5. Place the reservoir cover onto the master cylinder reservoir; then secure with the two torx-head screws (G). 6. Bleed the brake system (see Bleeding Brake Sys- tem in this sub-section). Brake System (Panther 370) REMOVING 1. Remove the cotter pin, washer, pin, and clevis from the brake actuator arm. AF297D 2. Remove the recoil starter rope from the brake cable bracket. 3. Loosen the jam nut on the brake cable and remove the cable from the bracket. 4. Loosen and remove the two mounting cap screws (account for the front alignment ball) and remove the brake caliper. ! CAUTION Always use new crush washers when installing the |
