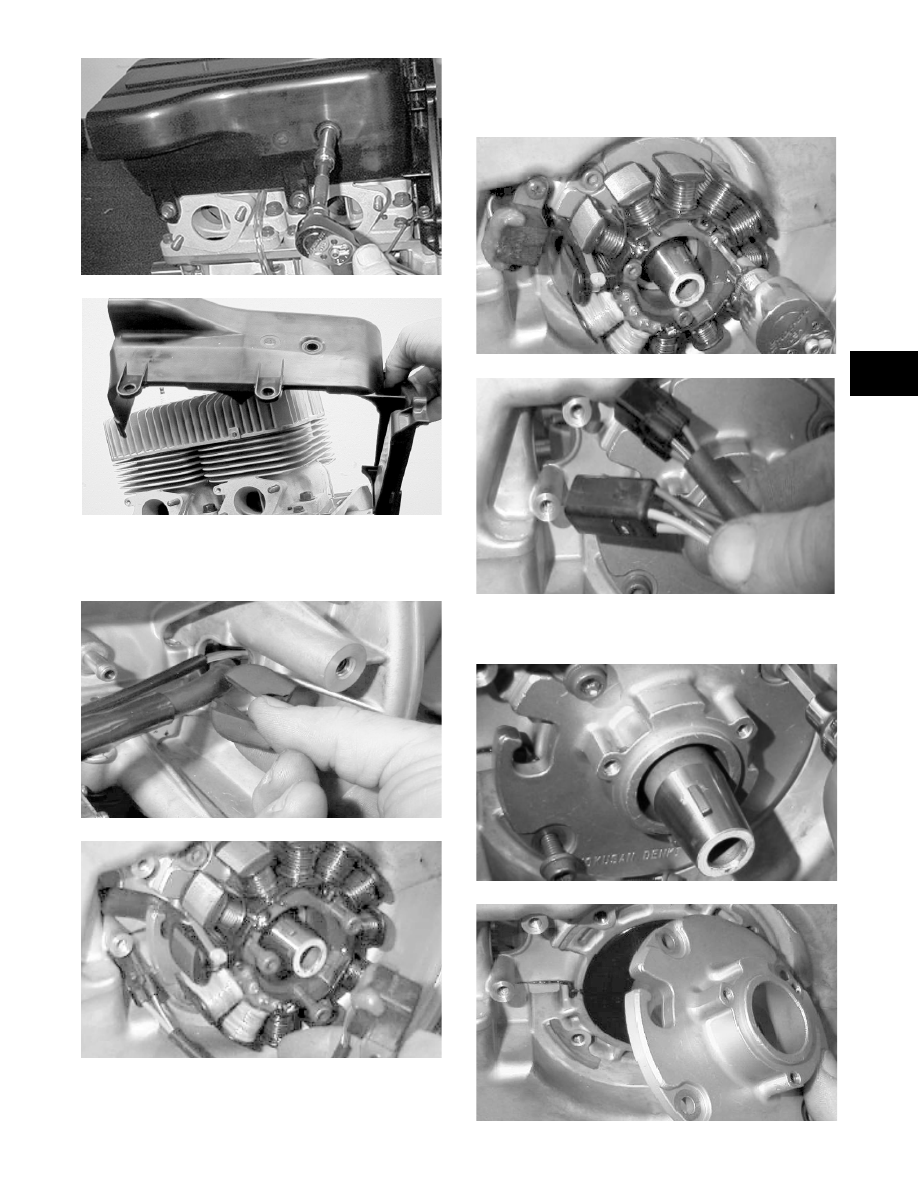

2-21 2 MD0277 MD0067 9. Remove the rubber insulator grommet from the crankcase; then remove two Phillips-head cap screws securing the ignition timing sensor. MD0075 MD0074 10. Remove the three Allen-head cap screws securing the stator and remove it along with the timing sen- sor; then carefully pull the wires through the hole in the crankcase. MD0072 MD0076 11. Remove the four Allen-head cap screws securing the stator plate. Remove the stator plate. MD0255 MD0078 |
