Snowmobile Arctic Cat (2007 year). Instruction - part 8

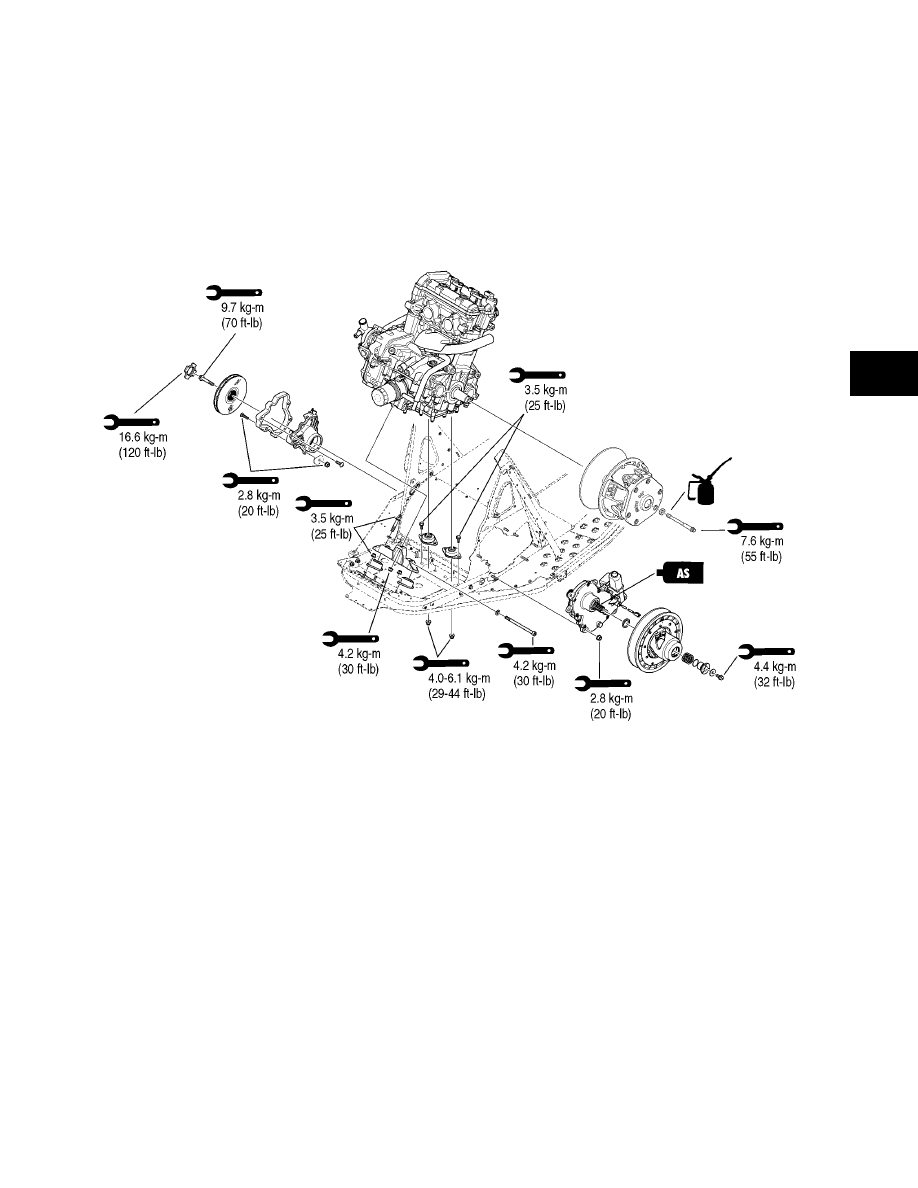

2-17

2

1100ccZ1RV

2-18

Engine

This engine section has been organized into sub-sec-

tions which show a progression for the complete

servicing of the Arctic Cat 4-stroke engines. For

consistency purposes, this section shows a complete

and thorough progression; however, for efficiency it

may be preferable to remove the engine as a com-

plete assembly, to remove and disassemble only

those components which need to be addressed, and

to service only those components. Also, some com-

ponents may vary from model to model. The techni-

cian should use discretion and sound judgment. For

engine-related servicing procedures, see Section 3

of this manual.

„ NOTE: Some illustrations and photographs used
in this section are used for clarity purposes only
and are not designed to depict actual conditions.

„ NOTE: Critical torque specifications are located
on pages 11-17 of this section.

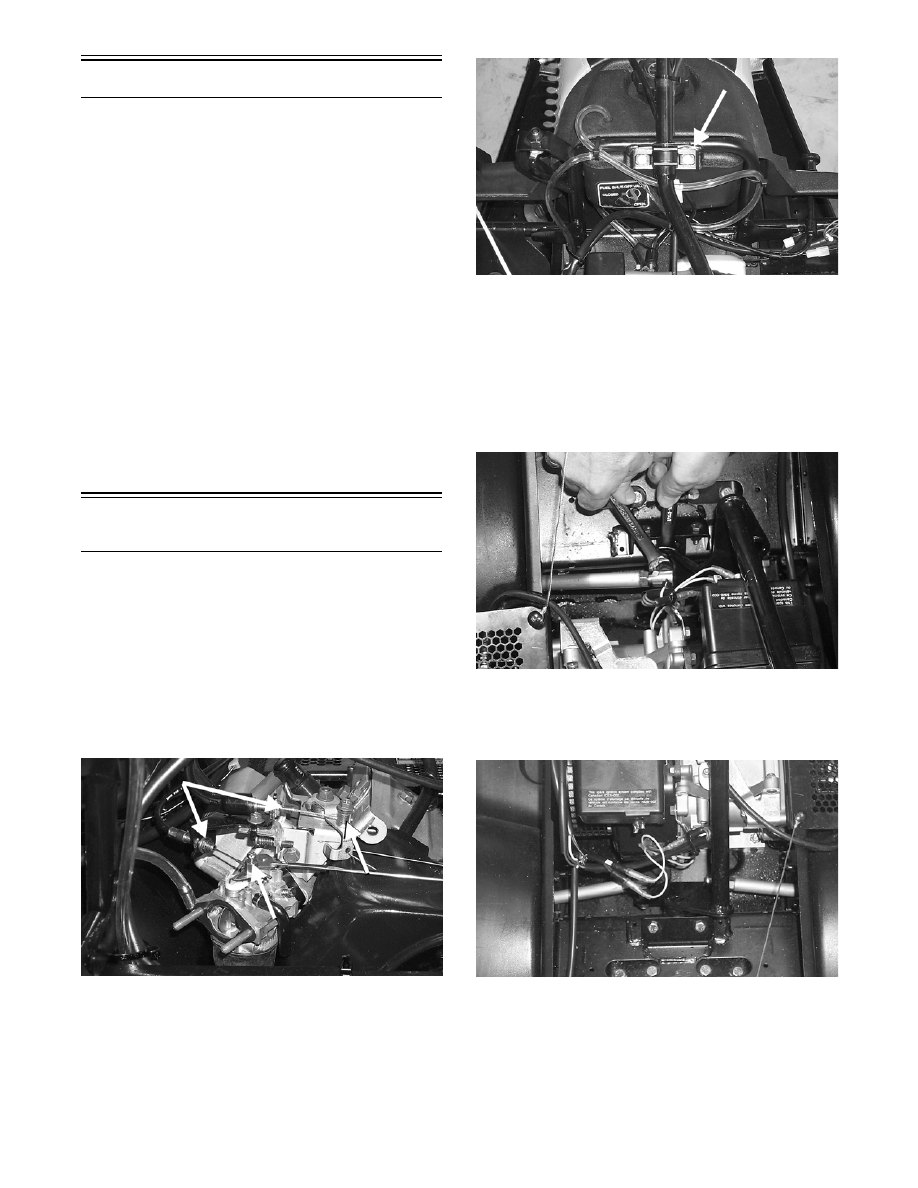

Removing Engine

(120 cc)

„ NOTE: The drive chain must be removed in order
to remove the engine (see Drive Chain and Sprock-
ets sub-section in Section 8).

1. Disconnect the choke and throttle cables from

the carburetor; then on each cable, loosen the

adjustment jam nut closest to the carburetor and

remove the cables from the bracket. Route the

cables out of the way.

A046A

2. Remove the two cap screws securing the steer-

ing post to the steering post support. Account

for two bearing halves, two lock nuts, and a

bearing retainer.

A023A

3. Pull the steering post up and back and then out

of the lower steering post bearing.

4. Remove the two lock nuts securing the tie rods

to the steering post; then remove the tie rods

from the steering post. Place the steering post

out of the way on the right-hand side of the

engine compartment.

A024

5. Cut the cable tie; then disconnect all wires (a

total of four) at the front of the engine. Route

them out of the way.

A047

6. Turn the gas tank shut-off valve to the CLOSED

position.

2-19

2

7. Disconnect the fuel hose from the carburetor.

„ NOTE: Be prepared to wipe up any fuel spillage.

8. Pull the recoil starter rope out approximately 60

cm (24 in.); then tie a slip-knot in the starter

rope below the console and allow the rope to

slowly retract against the starter case.

9. Remove the knot at the handle and remove the

handle; then thread the rope through the bushing

in the console.

10. At this point, scribe a line at the front of the

engine and measure the distance between the

crankshaft and the driveshaft. Record the mea-

surement for installing purposes.

A048

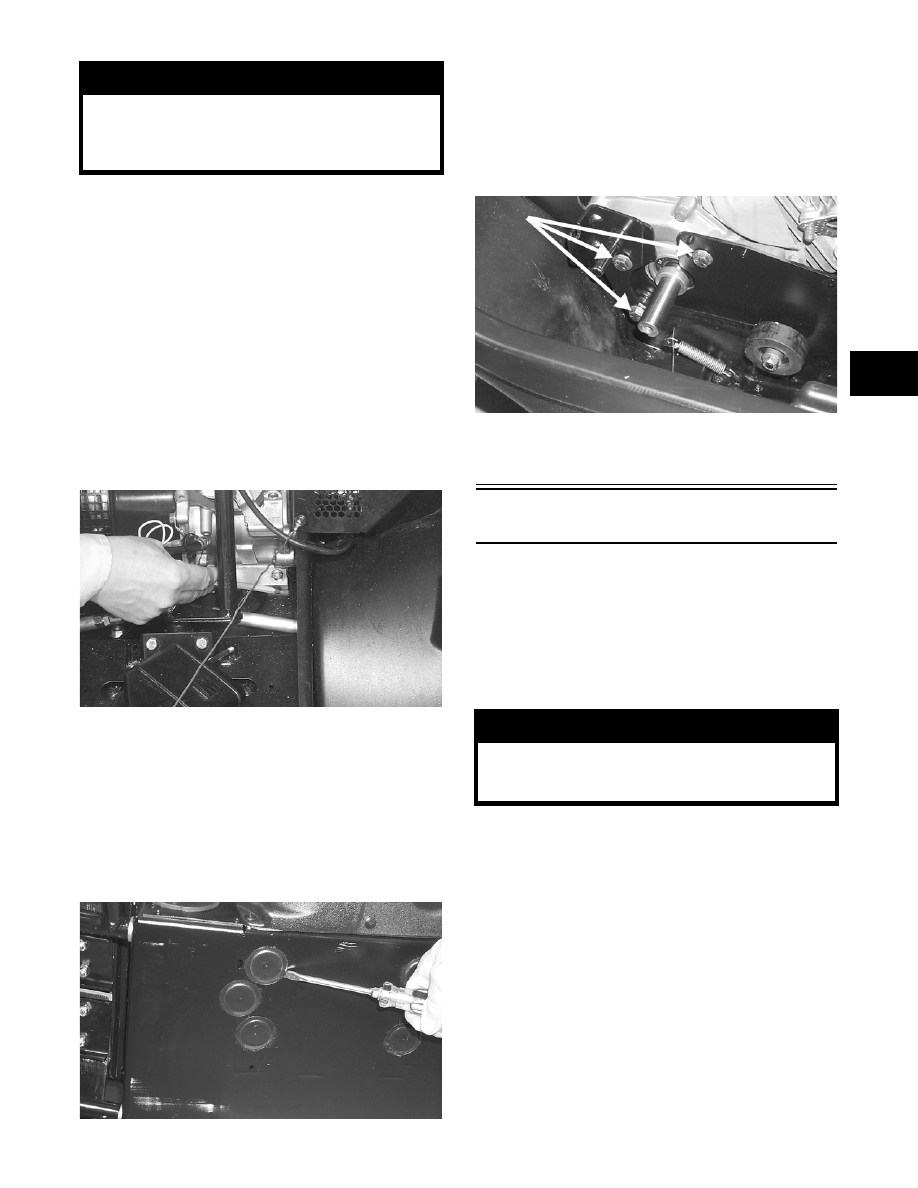

11. Lay the snowmobile on its side.

„ NOTE: A piece of cardboard should be used to
protect the finish.

12. Using a flat-blade screwdriver, remove the four

belly pan plugs covering the engine mounting

cap screws; then remove the cap screws.

Account for eight washers and four lock nuts.

A049

„ NOTE: The front center plug is to access the oil
drain plug.

13. Place the snowmobile in the upright position;

then on the left-hand side of the engine, remove

the three cap screws securing the engine and

brake bracket to the front end.

A050A

14. Remove the engine from the engine compart-

ment.

 Removing Engine

(660 cc)

1. Remove the negative cable from the battery;

then remove the positive cable. Remove the bat-

tery hold-down plate and the battery vent hose;

then remove the battery.

„ NOTE: There is no vent hose on the turbo-model
battery.

2. Remove the drain access plug from bottom of

belly pan; then remove the oil drain plug to

drain the oil.

3. Disconnect the two instrument panel electrical

connectors near the front of the hood.

! WARNING

Whenever any maintenance or inspection is made
on a fuel system when there may be fuel leakage,
there should be no welding, smoking, open flames,
etc., in the area.

! WARNING

Battery acid is harmful if it contacts eyes, skin, or
clothing. Care must be taken whenever handling a
battery.

2-20

MD1419

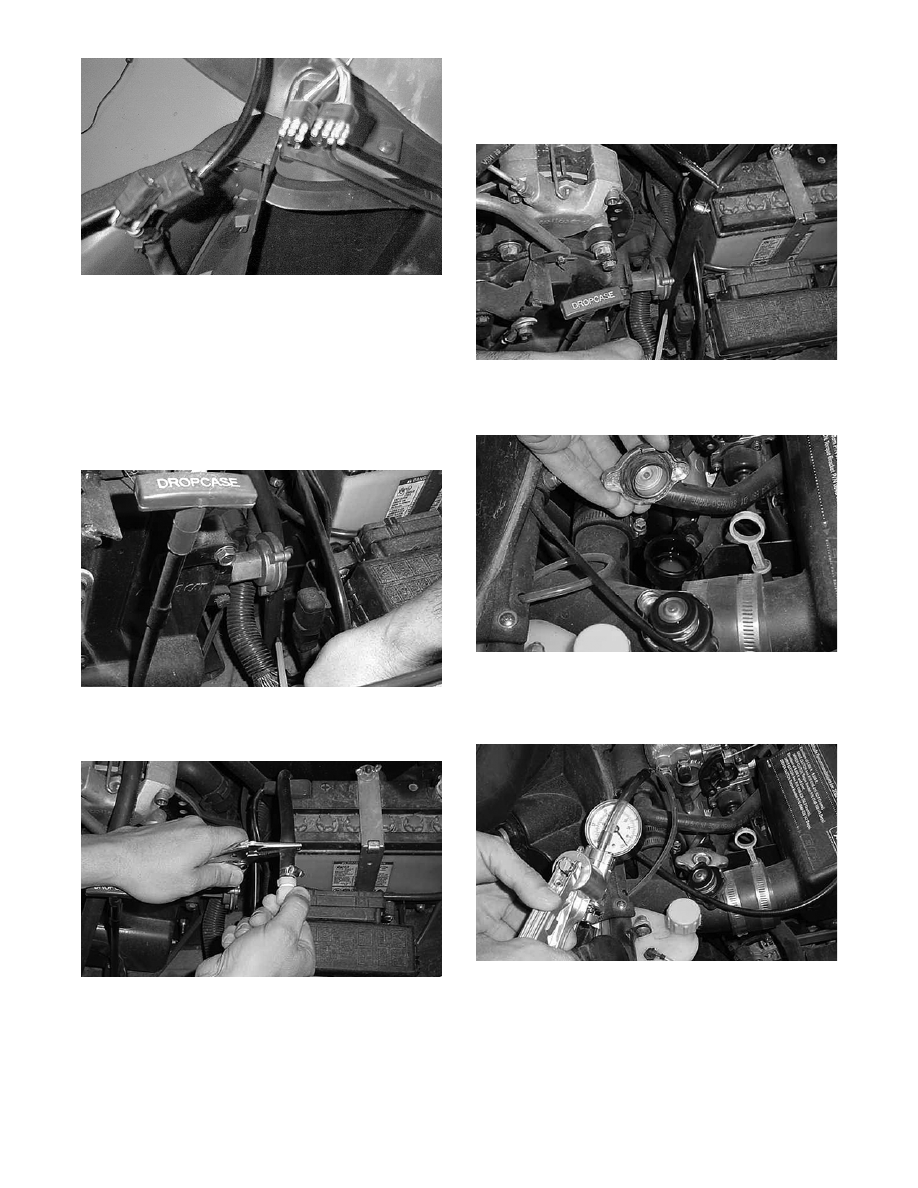

4. Place a drain pan under the right-side belly pan

and position the pan in front of the chain case.

5. Locate and disconnect the air silencer drain hose

from the fitting at the bottom of the belly pan in

front of the chain case; then cut the cable tie that

secures the coolant drain hose to the engine

coolant hose on the timing cover side of the

engine compartment.

AO175

6. Using a suitable clamping device, pinch off the

coolant drain hose and remove the drain plug.

AO176

7. Using a length of ½ in. I.D. hose, slide it over

the end of the coolant drain hose; then attach the

other end to the air silencer drain hose fitting

located in the bottom of the belly pan.

AO177

8. Remove the radiator cap and install non-pressur-

ized Coolant Cap (p/n 0644-156).

AO178

9. Apply five to eight psi to the coolant system

through the coolant overflow tube and continue

until the coolant stops draining from the system.

AO179

10. On the Bearcat W/T, remove the speedometer

cable from the speedometer; then cut the cable

ties securing the cable to the hood.
