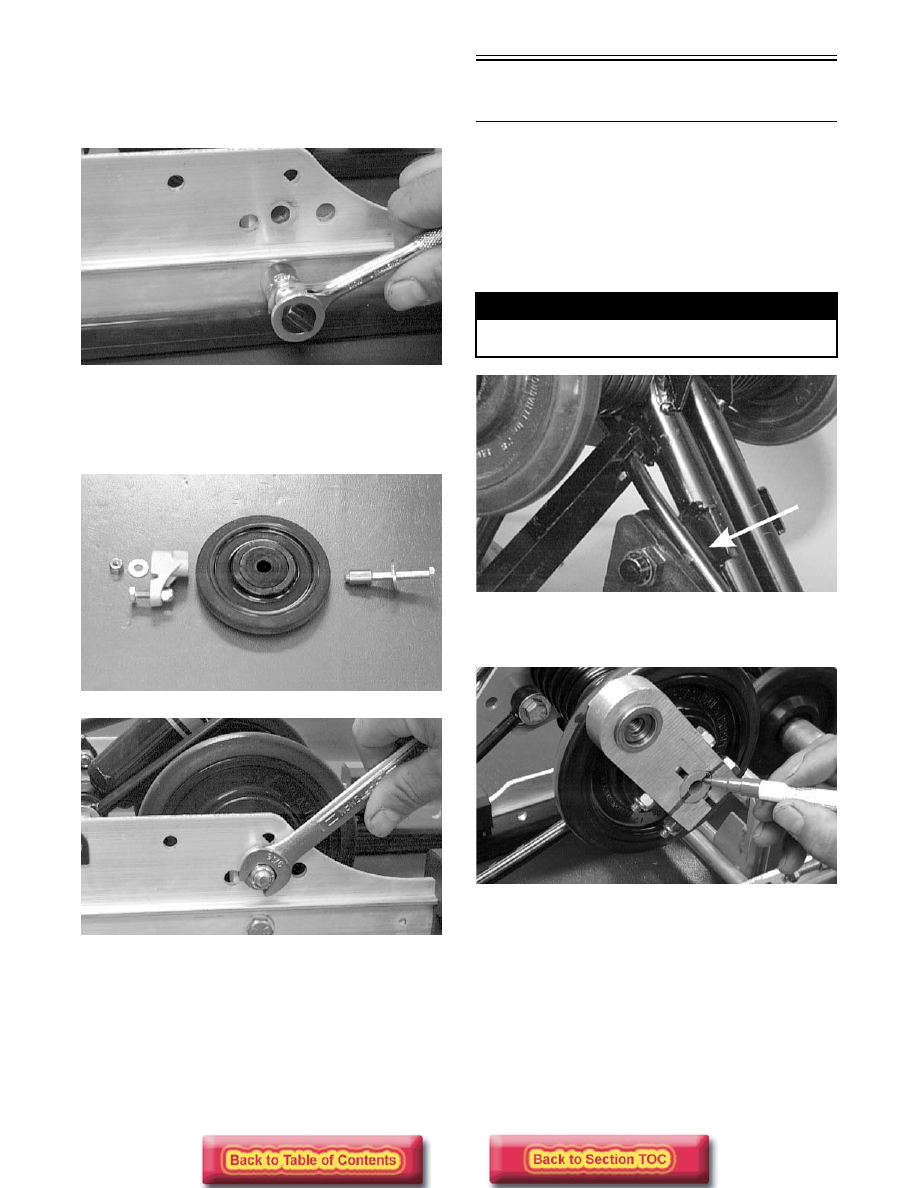

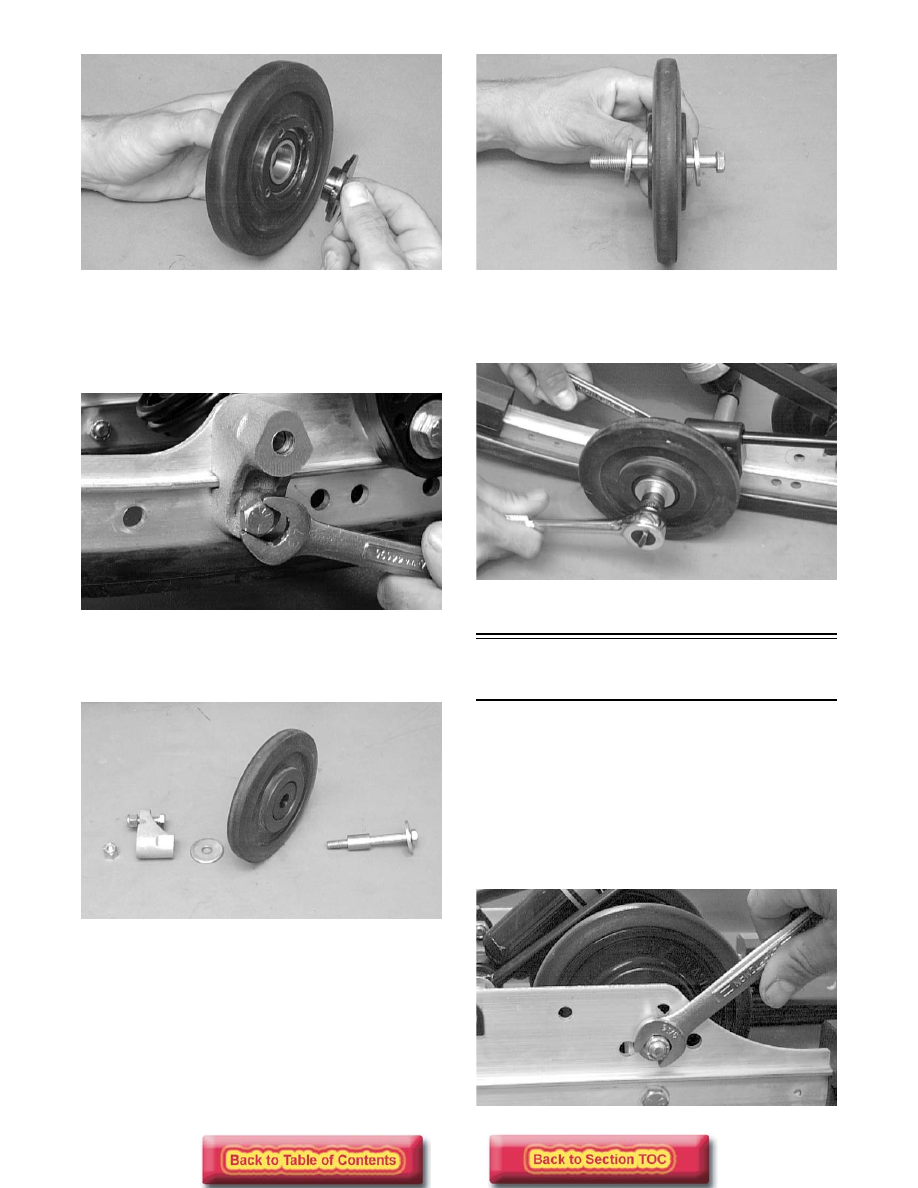

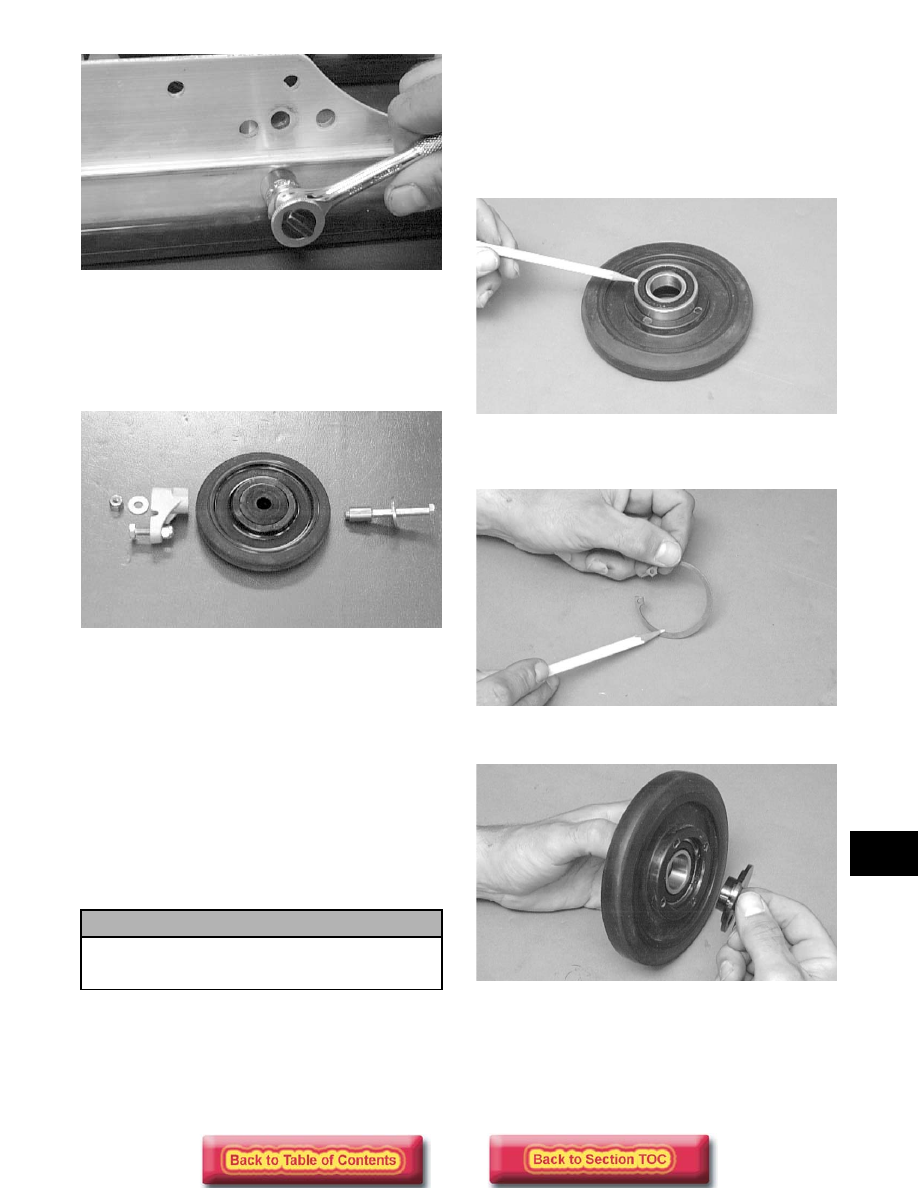

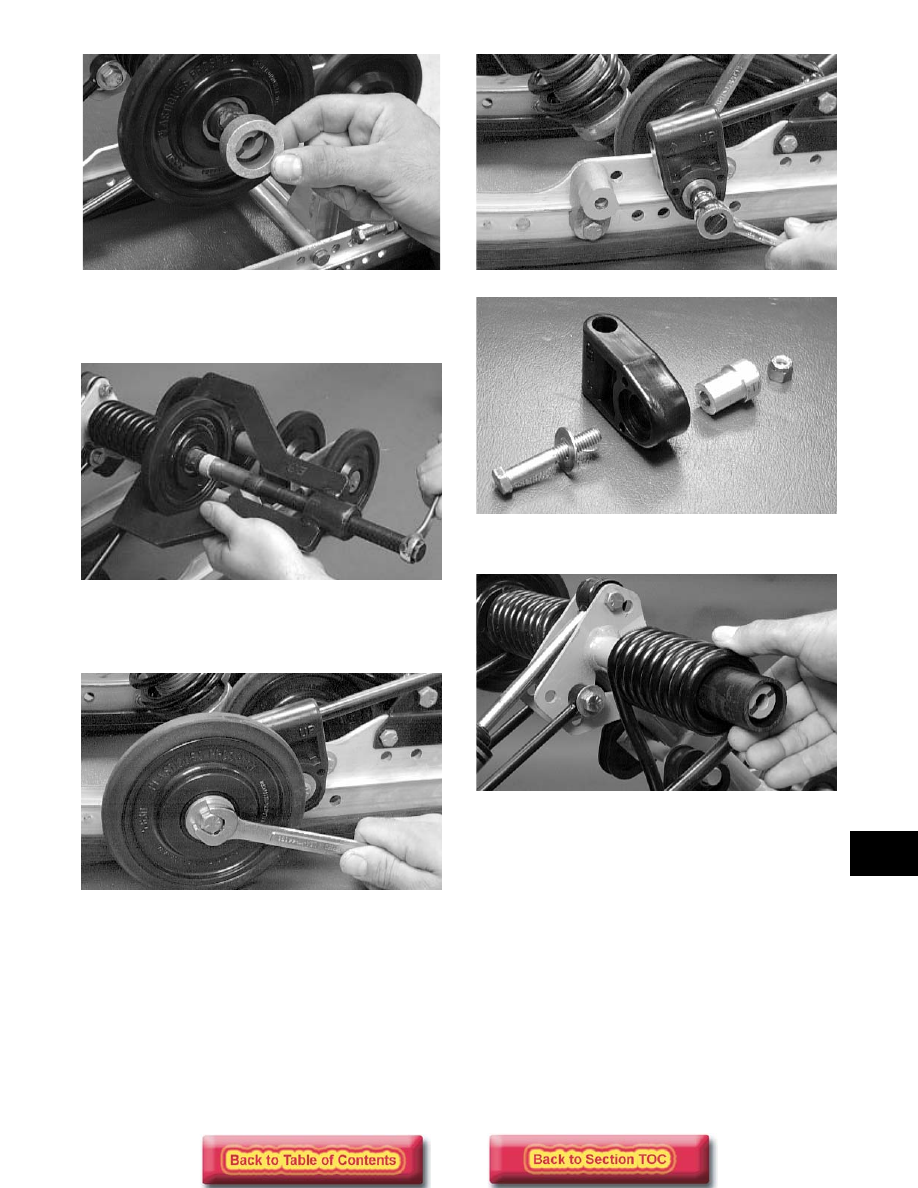

9-56 AG540D INSTALLING 1. Secure the mounting block on the slide rail with a cap screw and lock nut. Tighten to 3.2 kg-m AG686D 2. Place the idler wheel and axle against the mount- ing block making sure there is a flat washer on AG622D AG623D 3. Secure the idler wheel assembly with a cap screw and a lock nut. Tighten cap screws to 3.2 kg-m AG618D Rear Inner Idler Wheels NOTE: The skid frame does not have to be removed for this procedure. REMOVING 1. Remove the cap screws and lock washers securing the rear inner idler wheel and the idler wheel AG672D |
