Snowmobile Arctic Cat (2004 year). Instruction - part 127





9-24

0738-565

0738-650

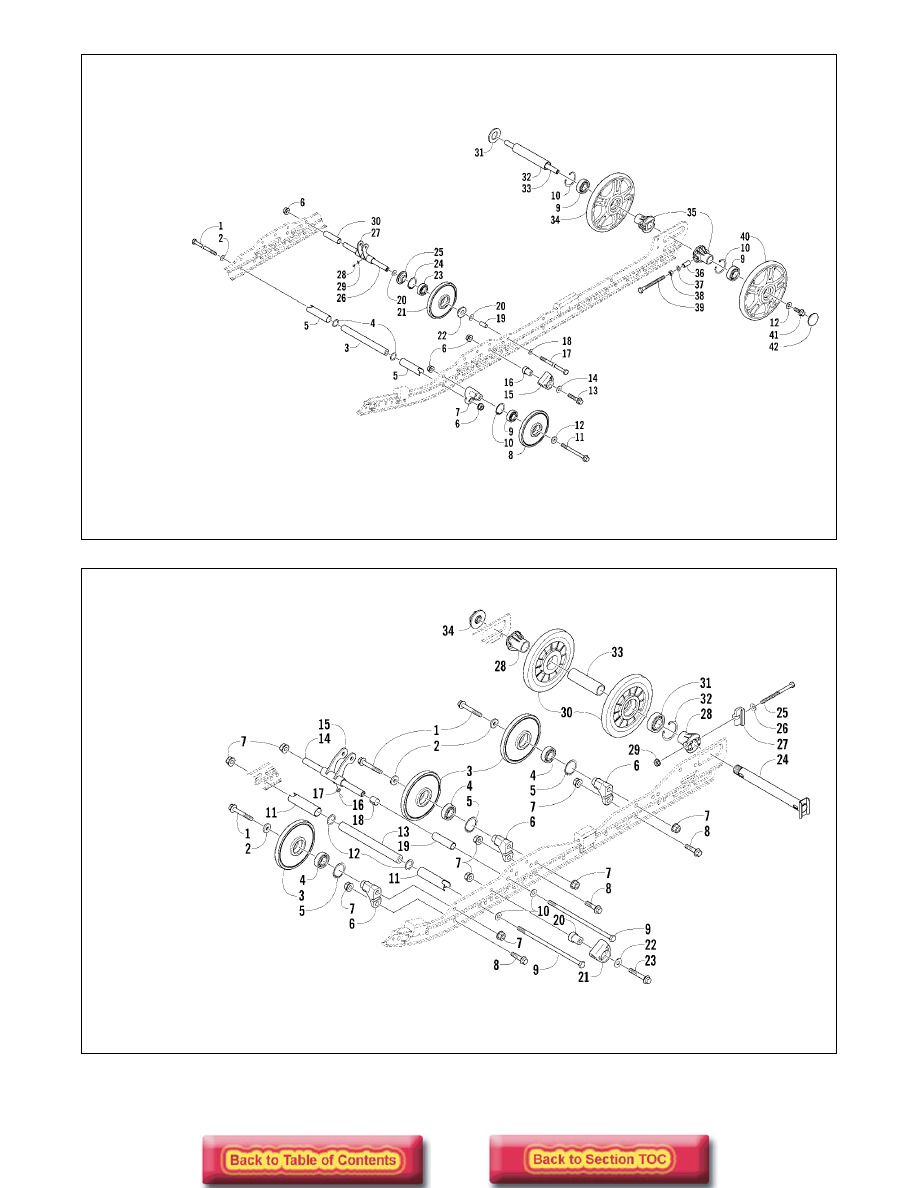

KEY

1. Cap Screw
2. Washer
3. Axle
4. Washer
5. Spacer
6. Lock Nut
7. Mounting Block
8. Idler Wheel
9. Bearing

10. Retaining Ring
11. Cap Screw
12. Washer
13. Cap Screw
14. Washer
15. Spring Slide
16. Slide Block
17. Cap Screw
18. Washer
19. Spacer
20. Washer
21. Idler Wheel
22. Insert
23. Bearing
24. Retaining Ring
25. Insert
26. Axle
27. Pivot
28. Grease Fitting
29. Washer
30. Spacer
31. Washer
32. Spacer
33. Axle
34. Idler Wheel
35. Bushing
36. Spacer

37. Lock Washer
38. Nut
39. Cap Screw
40. Idler Wheel
41. Cap Screw
42. Cap

Style C

KEY

1. Cap Screw
2. Washer
3. Idler Wheel
4. Bearing
5. Retaining Ring
6. Mounting Block
7. Lock Nut
8. Cap Screw
9. Cap Screw

10. Washer
11. Spacer
12. Washer
13. Axle
14. Axle
15. Pivot
16. Grease Fitting
17. Washer
18. Bearing
19. Spacer
20. Slide Block
21. Spring Slide
22. Washer
23. Cap Screw
24. Axle
25. Cap Screw
26. Washer
27. Adjuster
28. Bushing
29. Lock Nut
30. Idler Wheel
31. Bearing
32. Retaining Ring
33. Spacer
34. Nut

Style D

9-25

9

Repair Procedure 1 -

Track/Rear Suspension

This Track/Rear Suspension sub-section (Repair Pro-
cedure 1) has been organized so each procedure can be
completed individually and efficiently. Each sub-sec-
tion has (as necessary) Removing, Disassembling,
Cleaning and Inspecting, Assembling, and Installing
procedures. Some components may vary from model
to model. The technician should use discretion and
sound judgment when removing and installing compo-
nents.

„

NOTE: Some illustrations and photographs used

in this sub-section are used for clarity purposes
only and are not designed to depict actual condi-
tions.

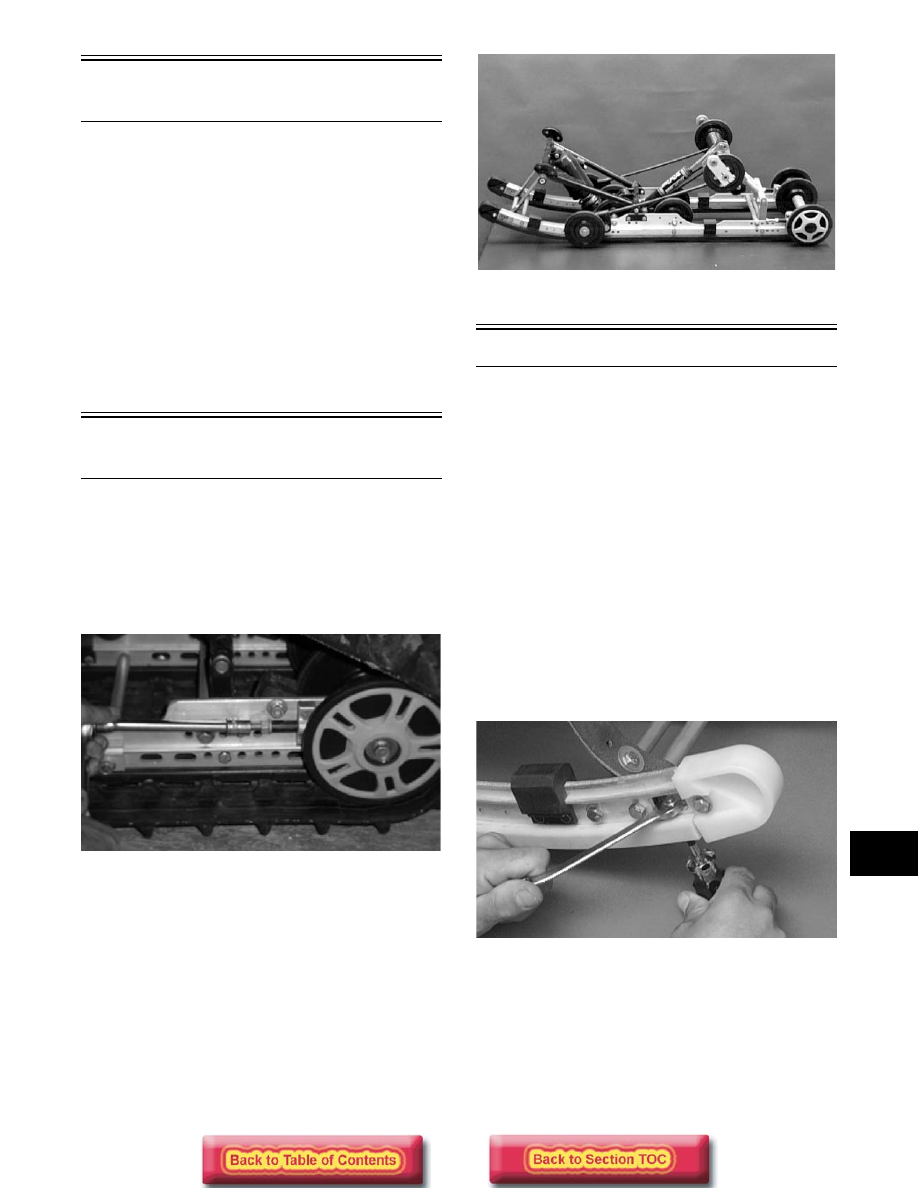

Removing

Skid Frame

„

NOTE: Many service procedures can be per-

formed without removing the skid frame. Closely
observe the note introducing each sub-section for
this important information.

1. Loosen the jam nuts and two track-tension adjust-

ing bolts.

FS082

2. Place a support stand under the rear bumper; then

while holding the flared bushing, remove the rear
cap screws securing the skid frame to the tunnel.
Account for lock washers and flat washers.

„

NOTE: The support stand should hold the snow-

mobile level but not raised off the floor.

3. Remove the front cap screws securing the skid

frame to the tunnel. Account for a flat washer and
a lock washer.

4. Remove the support stand; then tip the snow-

mobile onto one side using a piece of cardboard to
protect against scratching. Remove the skid frame.

AG671D

Wear Strips

REMOVING

„

NOTE: It is possible to remove and install a wear

strip without removing the skid frame. To do this,
remove the machine screw and lock nut securing
the wear strip at the front of the slide rail; then
align the wear strip with openings (windows) in the
track and drive it rearward off the slide rail. Apply
low-temperature grease to the new wear strip and
slide rail; then align the wear strip with openings
(windows) in the track and drive it forward onto the
slide rail. Secure with the machine screw and lock
nut.

„

NOTE: The skid frame should be removed for

this procedure (see Removing Skid Frame in this
sub-section).

1. Remove the machine screw and lock nut securing

the wear strip to the front of the slide rail.

AG504D

2. Using a pipe wrench and starting from either end,

hook the edge of the wear strip with the pipe
wrench jaw and twist the wear strip off the slide
rail. Move the pipe wrench 7.5 cm (3 in.) and
again twist the wear strip off the rail. Repeat this
procedure until the wear strip is free of the rail.

„

NOTE: The wear strip can also be driven off the

slide rail; however, it is quicker to use a pipe
wrench.

9-26

AG505D

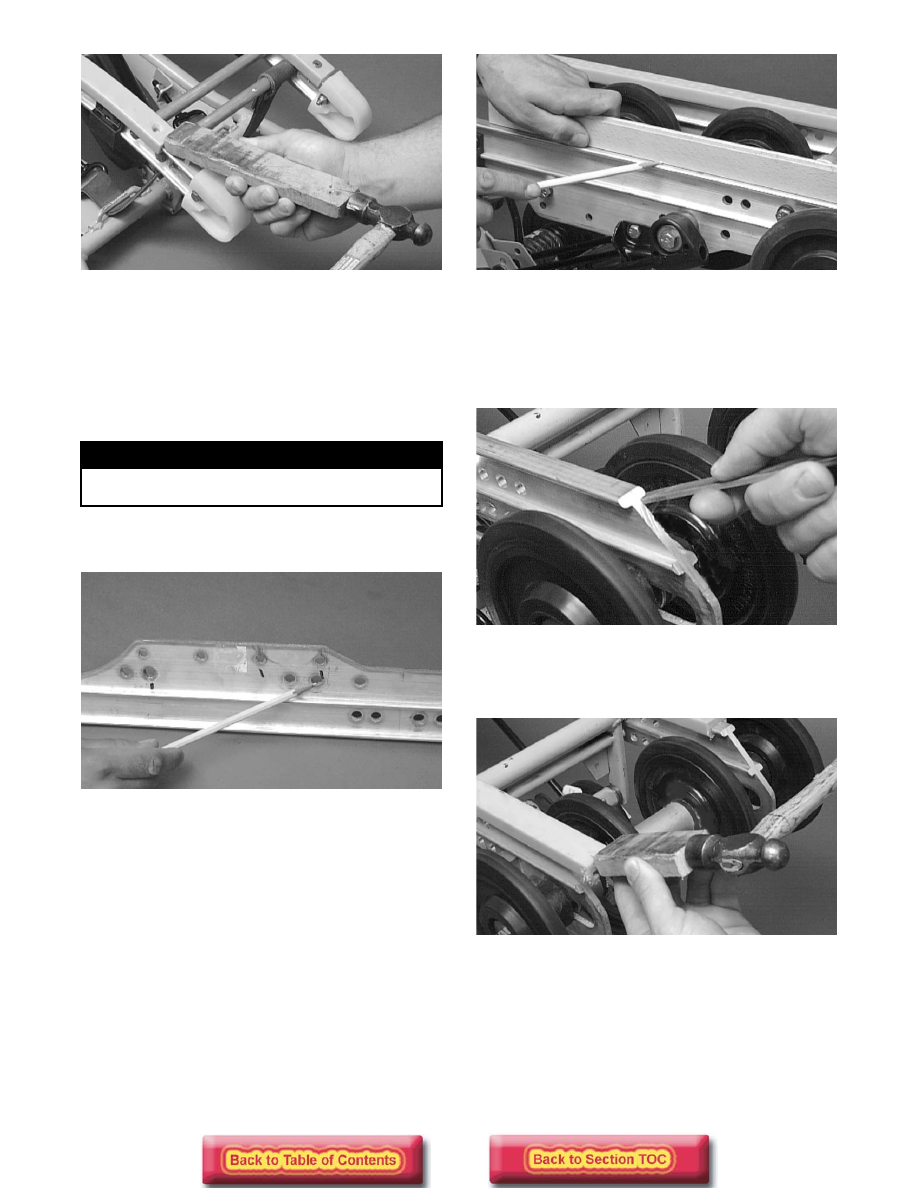

CLEANING AND INSPECTING

„

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Clean the slide rail using parts-cleaning solvent

and compressed air.

2. Inspect the slide rail for cracks. If any cracks are

found, replace the slide rail.

AG529D

3. Using a straightedge, inspect the slide rail for any

unusual bends. Place the straightedge along the
bottom surface of the slide rail. If the rail is found
to be bent, it must be replaced.

AG536D

INSTALLING

„

NOTE: Apply a light coat of grease to the slide

rail surface to aid in installing a new wear strip. If
there are any sharp edges on the lower portion of
the rail, use a file to remove them.

AG534D

1. From the back, start the wear strip onto the rail;

then using a block of wood and a hammer, drive
the wear strip forward into position.

AG535D

2. Secure with a machine screw and lock nut.

Tighten to 1.1 kg-m (8 ft-lb).

! WARNING

Always wear an approved pair of safety glasses
when using compressed air.

9-27

9

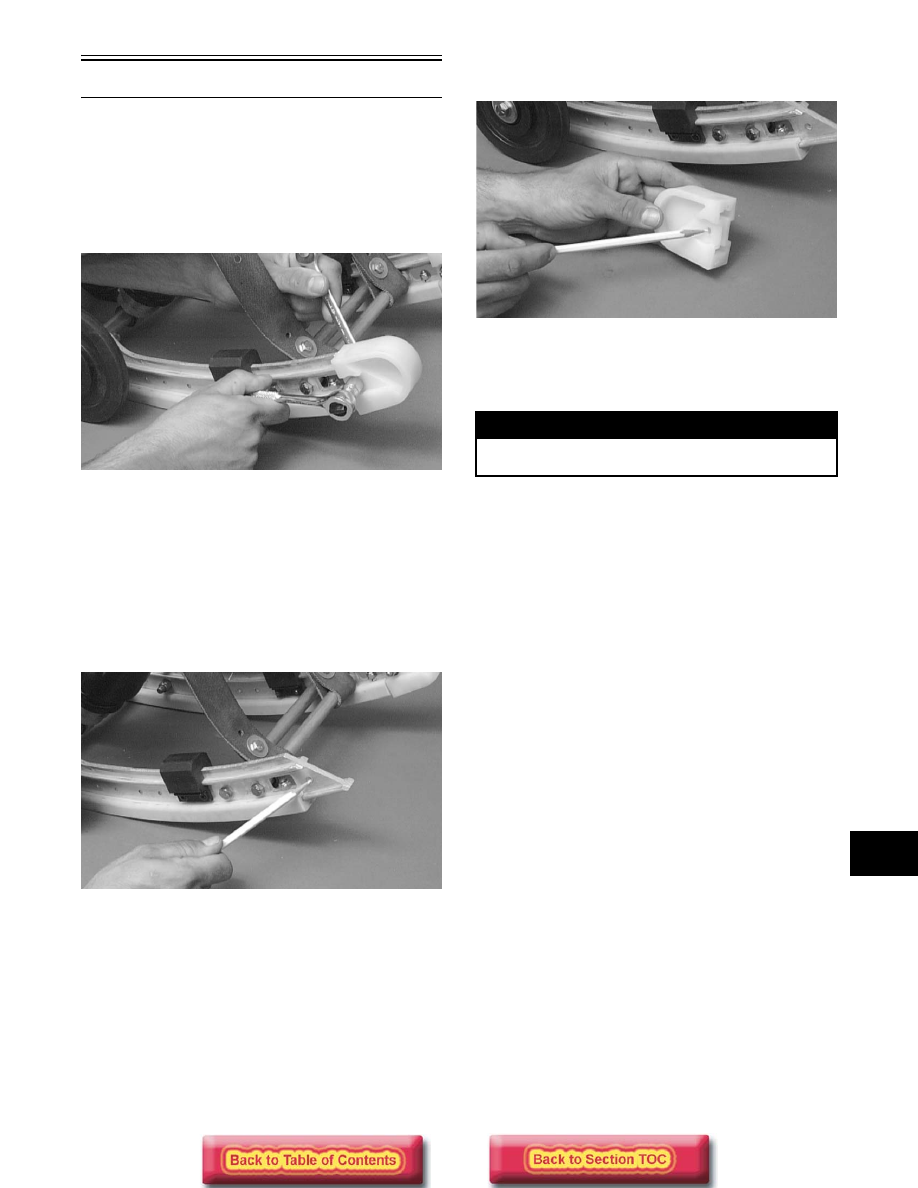

End Caps

„

NOTE: The skid frame does not have to be

removed for this procedure.

REMOVING

1. Remove the lock nut, washers, and cap screw

securing the end cap.

AG506D

2. Using a hammer, tap the end cap off the rail.

CLEANING AND INSPECTING

„

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Inspect the end cap area of the slide rail for cracks

and wear.

AG507D

2. Inspect the end cap for any signs of cracking or

wear.

AG508D

3. Clean both the slide rail area and the end cap.

Using compressed air, clean the areas of dirt and
gravel.

4. Inspect the cap screw for cracked, stretched, or

damaged threads. Use a new lock nut when assem-
bling.

INSTALLING

1. Position the end cap on the slide rail; then align the

hole in the end cap with the hole in the slide rail.

2. Secure with a cap screw, washers, and lock nut.

Tighten to 1.1 kg-m (8 ft-lb).

! WARNING

Always wear an approved pair of safety glasses
when using compressed air.
