Snowmobile Arctic Cat (2002 year). Instruction - part 159





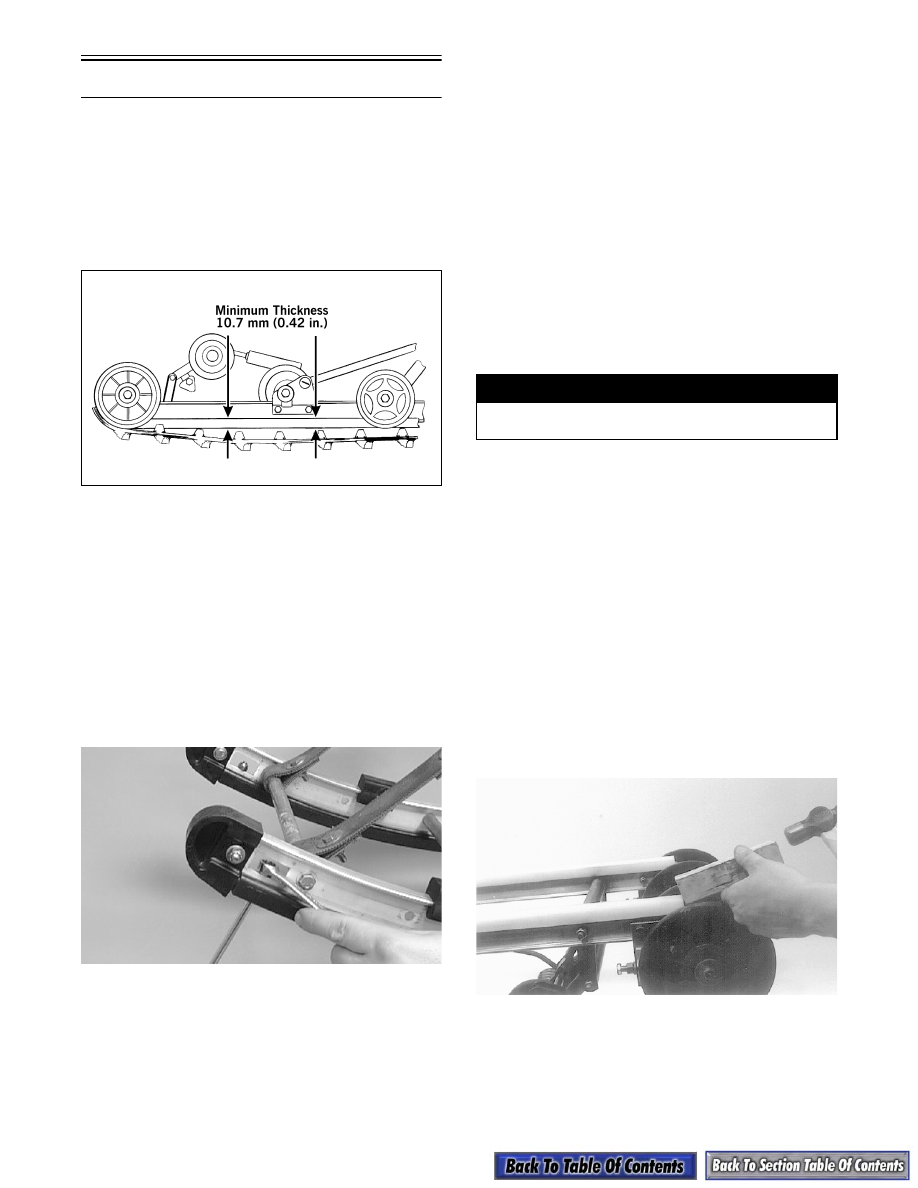

9-114

Wear Strip

„

NOTE: The skid frame should be removed for

this procedure.

„

NOTE: Prior to removing the wear strips, inspect

each wear strip for wear. The wear strip must be
10.7 mm (0.42 in.) thick or thicker. If the wear strip
measurement is less than specified, replacement
of both wear strips is necessary.

0727-726

„

NOTE: It is possible to remove and install a wear

strip without removing the skid frame. To do this,
remove the machine screw and lock nut securing
the wear strip at the front of the slide rail; then
align the wear strip with openings (windows) in the
track and drive it rearward off the slide rail. Apply
low-temperature grease to the new wear strip and
slide rail; then align the wear strip with openings
(windows) in the track and drive it forward onto the
slide rail. Secure with the machine screw and lock
nut tightened to 1.1 kg-m (8 ft-lb).

1. Remove the machine screw and lock nut securing

the wear strip to the front of the slide rail.

AG298D

2. Using a pipe wrench and starting from either end,

hook the edge of the wear strip with the pipe

wrench jaw and twist the wear strip off the slide

rail. Move the pipe wrench 7.5 cm (3 in.) and

again twist the wear strip off the rail. Repeat this

procedure until the wear strip is free of the rail.

„

NOTE: The wear strip can also be driven off the

slide rail; however, it is quicker to use a pipe
wrench.

CLEANING AND INSPECTING

„

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Clean the slide rail using parts-cleaning solvent

and compressed air.

2. Inspect the slide rail for cracks. If any cracks are

found, replace the slide rail.

3. Using a straightedge, inspect the slide rail for any

unusual bends. Place the straightedge along the

bottom surface of the slide rail. If the rail is found

to be bent, it must be replaced.

4. Place the straightedge along the side of the slide

rail. If rail is found to be bent, it must be replaced.

INSTALLING

„

NOTE: Apply a light coat of grease to the slide

rail surface to aid in installing new wear strips.

1. Starting from the back, start the wear strip onto the

rail; then using a block of wood and a hammer,

drive the wear strip forward into position.

AG070

2. Secure with a machine screw (coated with red

Loctite #271) and lock nut. Tighten to 1.1 kg-m

(8 ft-lb).

! WARNING

Always wear safety glasses while using com-
pressed air.

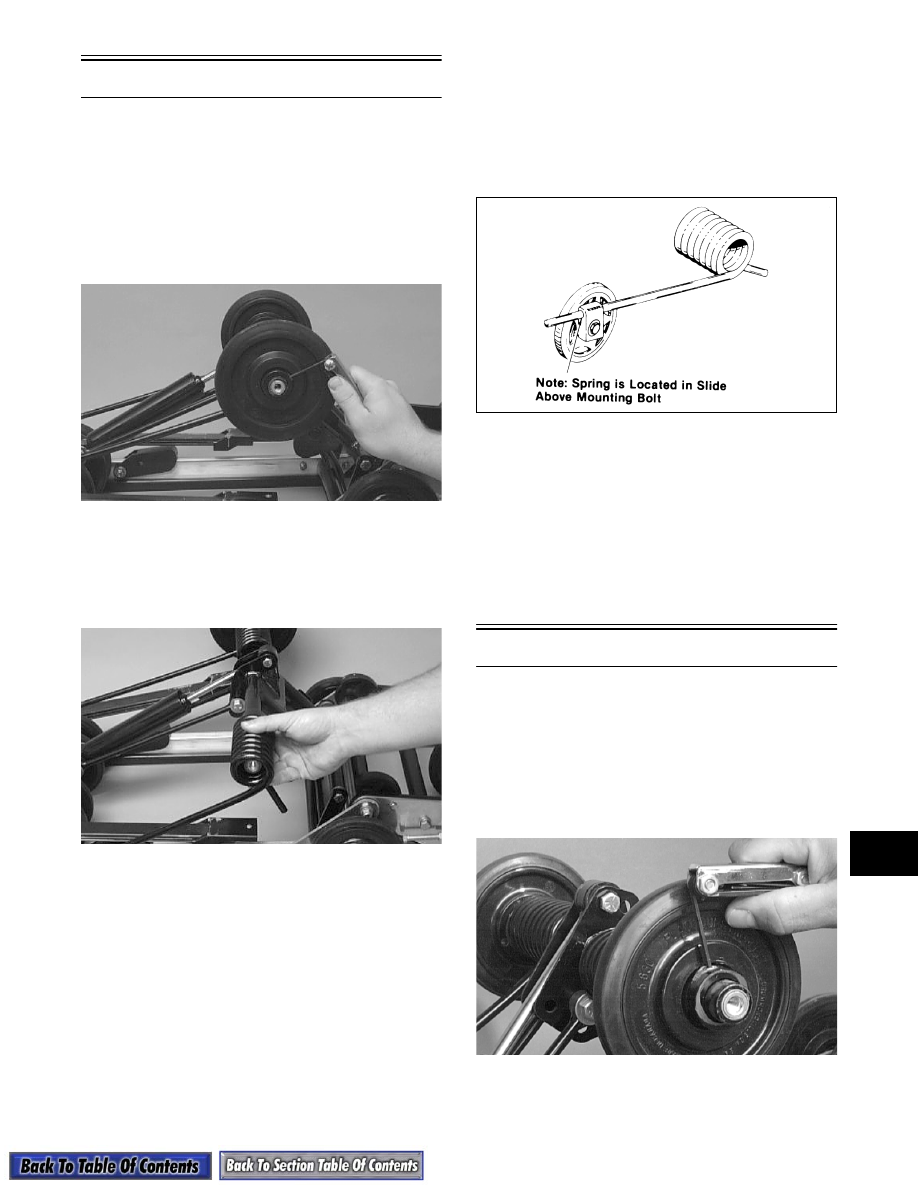

9-115

9

Rear Spring

„

NOTE: The skid frame must be removed for this

procedure (see Removing Skid Frame in this sub-
section)

DISASSEMBLING

1. Remove the set screw from the lock collar secur-

ing the upper idler wheel to the rear arm; then

remove the lock collar and idler wheel.

AG307D

„

NOTE: It may be necessary to use the Idler

Wheel Puller Kit (p/n 0644-122).

2. Slide the spring and the plastic sleeve off the rear

arm.

AG308D

3. Repeat steps 1-2 for the other rear spring.

INSPECTING

„

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Inspect the spring slide, washers, and shaft area for

wear.

2. Inspect the spring adjusting cams (spring adjuster

blocks) for cracks.

ASSEMBLING

1. Slide the spring and plastic sleeve onto the rear

arm.

2. Position the long spring leg into the spring slide.

Make sure the spring is located above the spring

slide mounting bolt.

0727-896

3. Install the idler wheel with the snap ring facing

inward on the rear arm and secure with a lock col-

lar and set screw.

4. Repeat steps 1-3 for the other rear spring.

„

NOTE: When installing the opposite side spring,

make sure the adjusting cam (spring adjuster
block) is set in the same position.

Rear Arm

„

NOTE: The skid frame must be removed for this pro-

cedure (see Removing Skid Frame in this sub-section).

DISASSEMBLING

1. Remove the set screw from the lock collar secur-

ing the upper idler wheel to the rear arm; then

remove lock collar and idler wheel.

AG625D

„

NOTE: If an idler wheel is tight on the rear arm,

use the Idler Wheel Puller Kit (p/n 0644-122) to
remove the idler wheel.

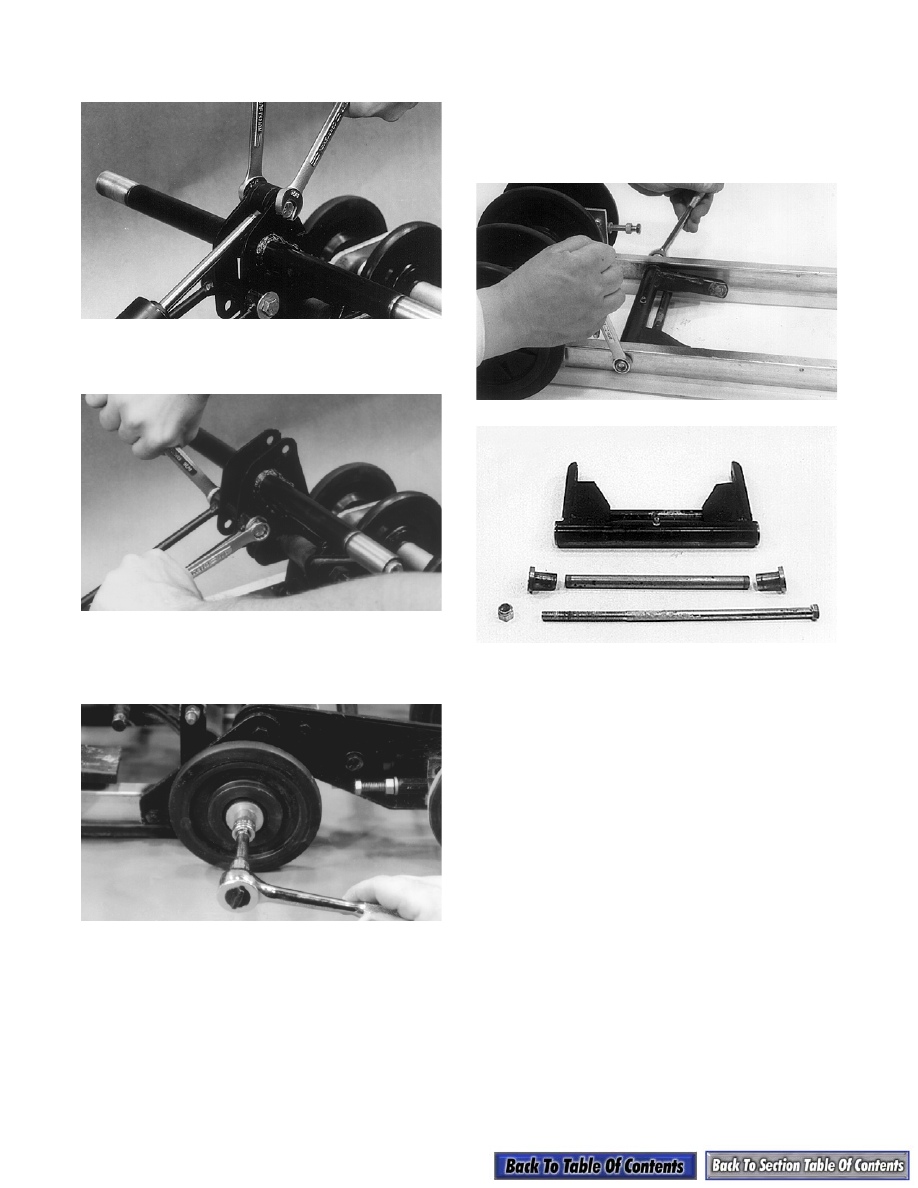

9-116

2. Remove the cap screw and lock nut securing the

upper shock eyelet to the rear arm.

AG309

3. Remove the cap screw and lock nut securing the

upper shock link to the rear arm.

AG310

4. Remove the cap screw and large flat washer secur-

ing the center pivot idler wheels; then remove the

wheels.

AG600

5. Remove the lock nut and cap screw securing the

rear arm at its center pivot point. Account for two

axles and a center tube.

6. Remove the lock nut, washer, and cap screw

securing the limiter strap to the rear arm. Remove

the limiter strap.

7. Remove the lock nut and cap screw securing the

lower arm to the slide rails. Twist the arm forward

and from between the slide rails.

AG083

AG084

CLEANING AND INSPECTING

„

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Clean the bearings with a clean cloth.

2. Inspect each idler wheel and plastic hub for cracks

or damage.

3. Rotate the idler wheel bearings (by hand) and

inspect for binding or roughness.

4. Inspect the bushings (located in the arm pivot

area) for wear or damage.

5. Inspect all welds and the tubing of the upper arm

for cracks or unusual bends.

6. Inspect the two adjusting cams (spring adjuster

blocks) for damage.

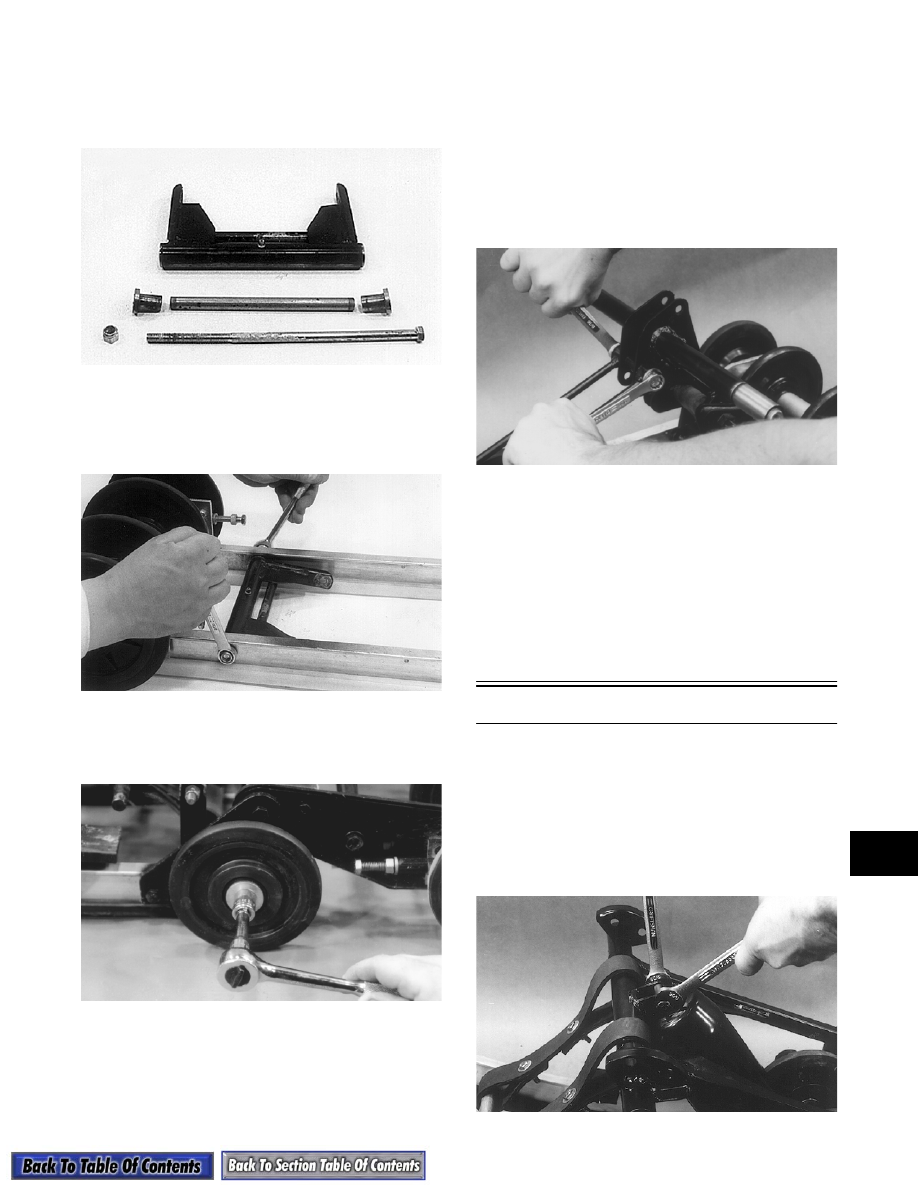

9-117

9

ASSEMBLING

1. Apply grease to the bushings and axles; then place

the axle tube and the two axles into position in the

lower arm.

AG084

2. Place the lower rear arm into position between the

slide rails; then secure with a cap screw (coated

with red Loctite #271) and lock nut. Tighten to

3.2 kg-m (23 ft-lb).

AG083

3. Place the center pivot idler wheels into position

and secure each with a large flat washer and cap

screw. Tighten to 3.2 kg-m (23 ft-lb).

AG600

4. Position the upper arm with axles into the lower

arm; then secure with a cap screw and lock nut.

Tighten to 3.2 kg-m (23 ft-lb).

5. Place the limiter strap into position around the

upper and lower arm tubes and secure with cap

screw, washers, and lock nut. Tighten to 1.1 kg-m

(8 ft-lb).

6. Position the shock links into the upper hole of the

rear arm bracket. Place a spacer between the cen-

ter of the brackets and push the cap screw through

the shock link, spacer, bracket, and remaining

shock link. Secure with a washer and lock nut.

Tighten to 3.2 kg-m (23 ft-lb).

AG310

7. Place the shock eyelet between the upper idler arm

brackets and secure with a cap screw and lock nut.

Tighten to 3.2 kg-m (23 ft-lb).

„

NOTE: Do not over-tighten the shock cap screws

as the shock eyelets must be free to pivot.

8. Grease the pivot tubes of the upper and lower

arms.

Front Arm

„

NOTE: The skid frame must be removed for this

procedure.

DISASSEMBLING

1. Remove the cap screw securing the upper shock

absorber eyelet to the front arm. Pull the shock

eyelet free of the bracket.

AG303
