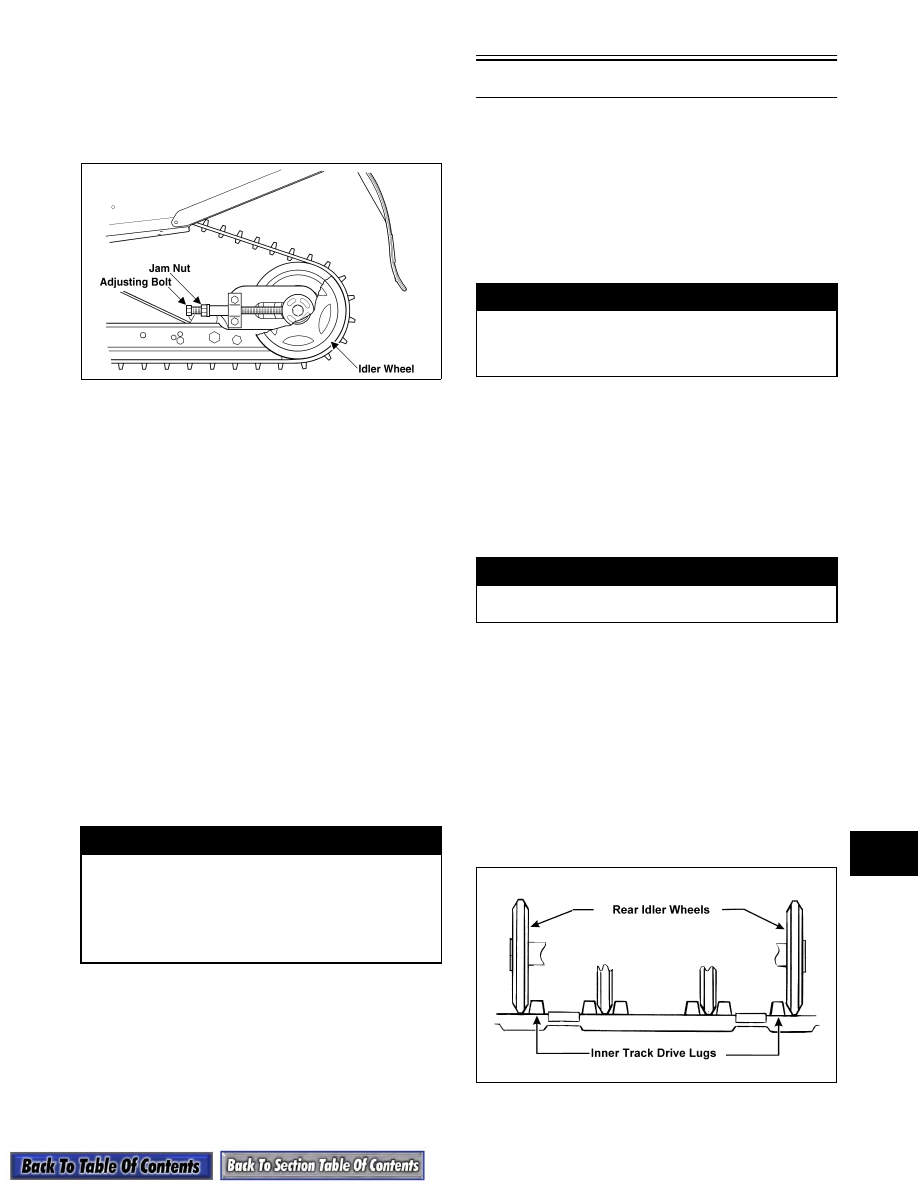

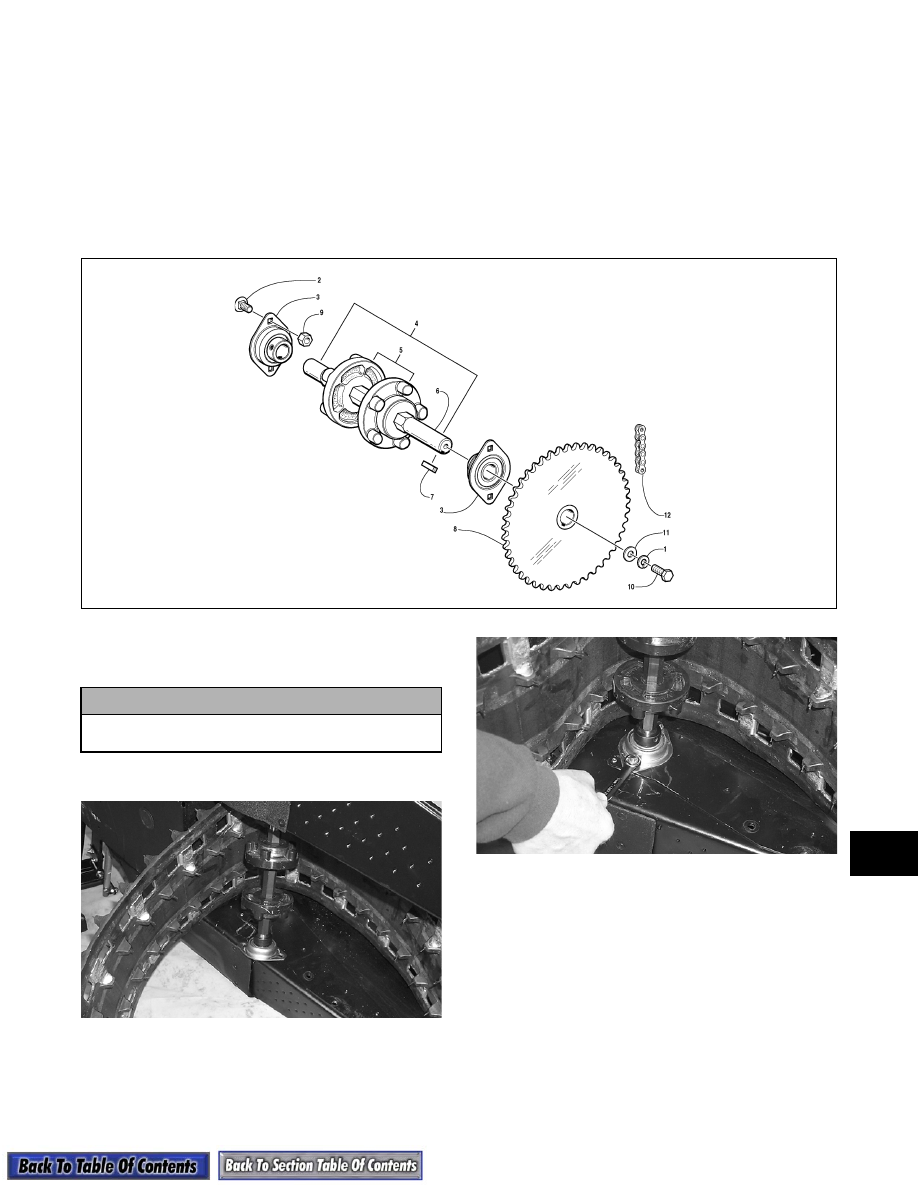

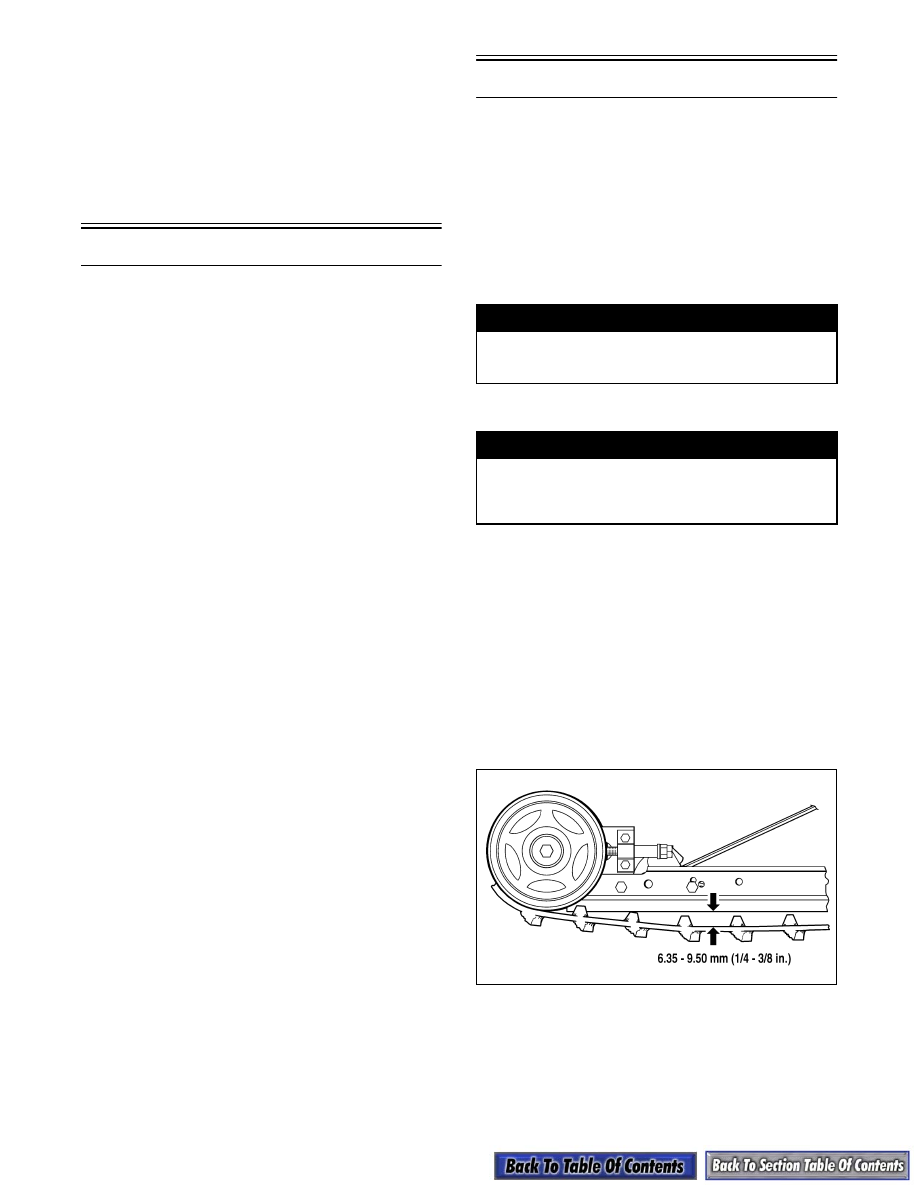

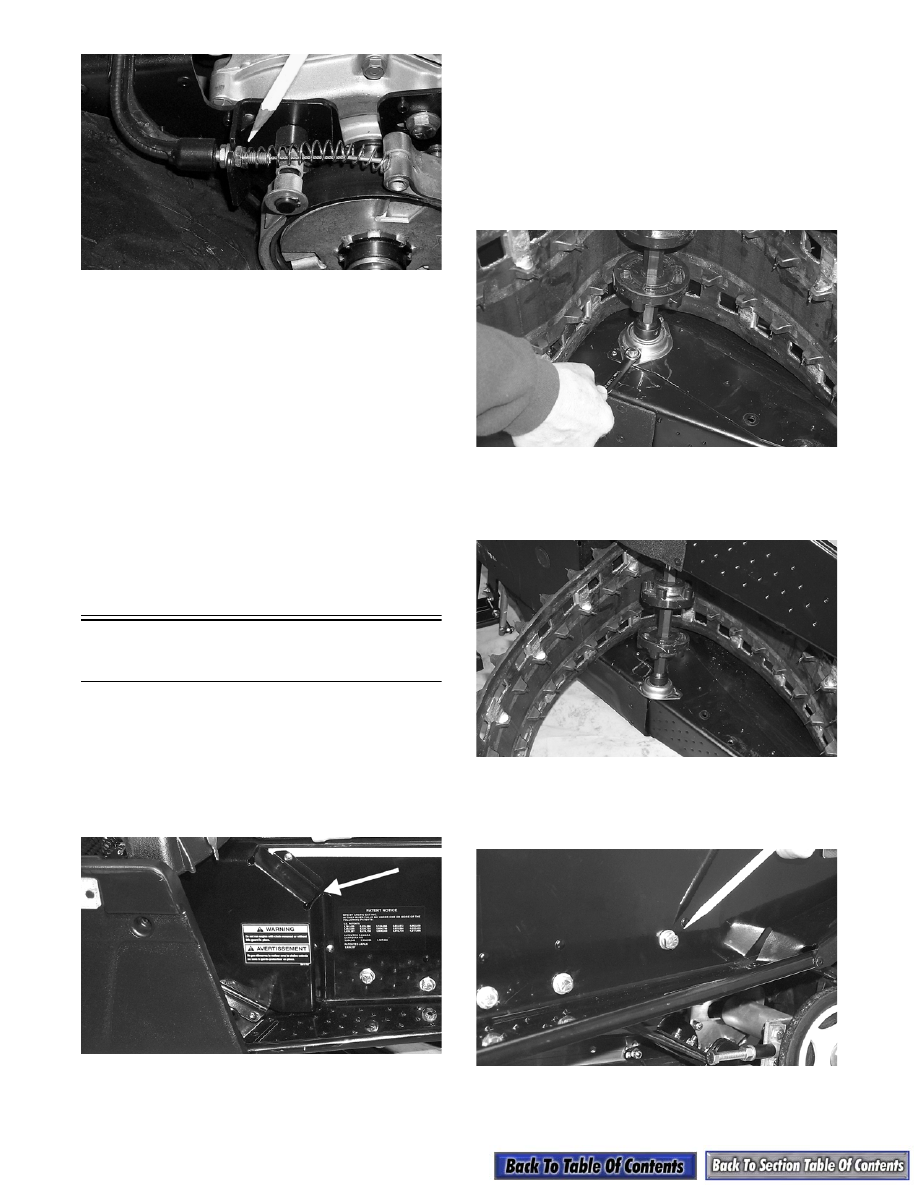

9-46 A005 5. Compress and hold the brake lever; then install the cap screw (coated with blue Loctite #243) and washer securing the rear chain sprocket. Tighten the cap screw securely; then release the lever. 6. Place the exhaust gasket into position on the engine exhaust studs. 7. Place the muffler into position in the engine com- partment; then press down on the muffler and swing the intake pipe onto the engine exhaust studs. Secure with two nuts and the hold-down spring. 8. Place the front and rear chain guards into position making sure the hood cable is properly positioned. Tighten securely. Drive Chain, Track, and Driveshaft NOTE: The skid frame must be removed for this procedure. REMOVING 1. Remove the five machine screws securing the rear chain guard; then remove the guard. A017A 2. Compress and hold the brake lever; then remove the cap screw securing the rear chain sprocket to the driveshaft. Release the lever. 3. Slide the chain sprocket off the driveshaft and set aside. Account for the key. 4. Remove the four lock nuts securing the drive sprocket bearings to the tunnel; then remove the four carriage bolts from the tunnel. A021 5. Position the bearing flanges so they are directed towards the rear; then spread the tunnel slightly and slide the driveshaft assembly out of the tunnel. A022 6. Remove the cap screws securing the upper idler wheel assembly to the tunnel; then remove the assembly from the tunnel. A013 7. Remove the track from the tunnel. |
