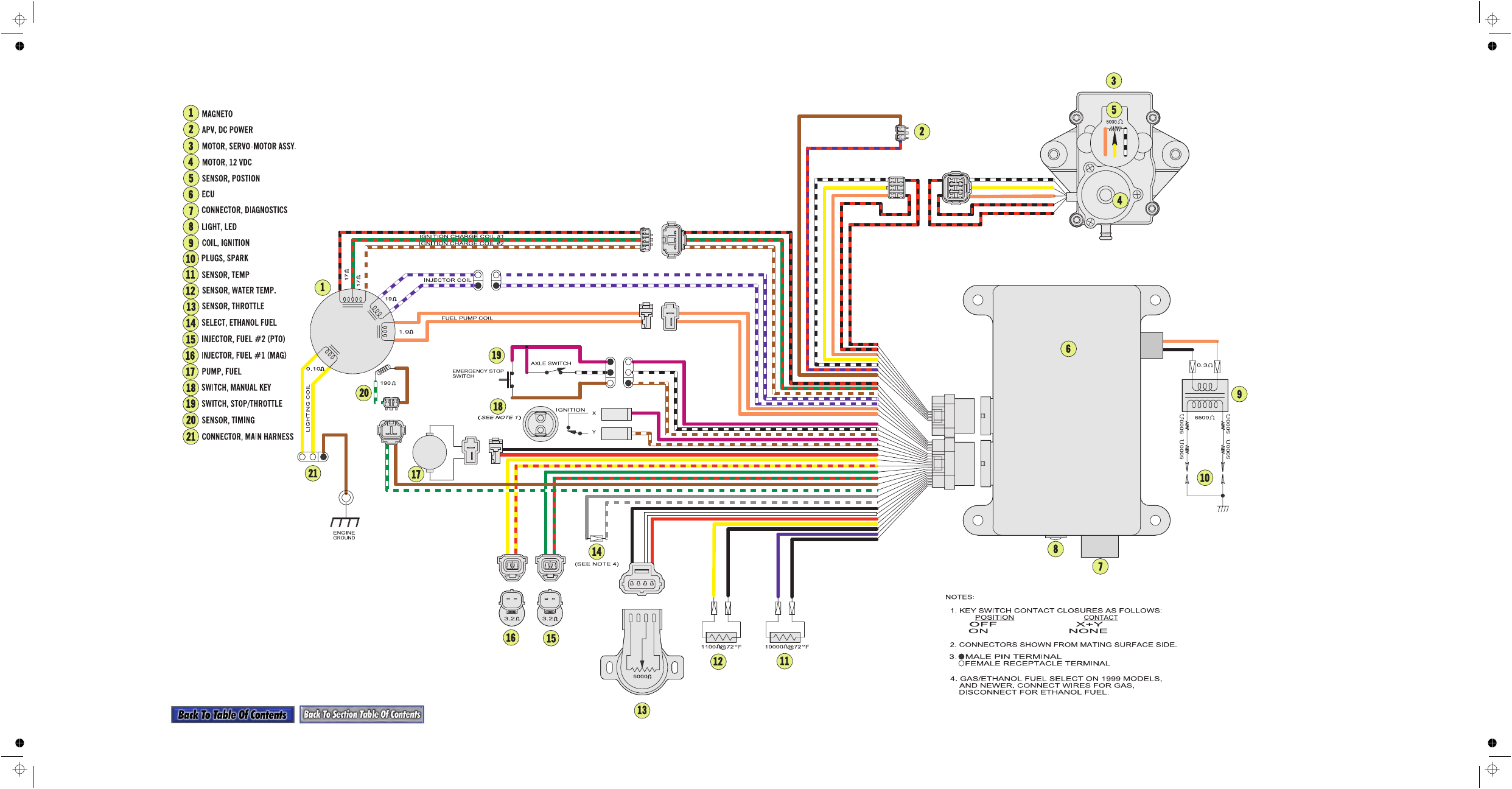

0737-379

5-67

Harness K

6-2

Brakelight Switch

(Hydraulic System)

TESTING/REMOVING

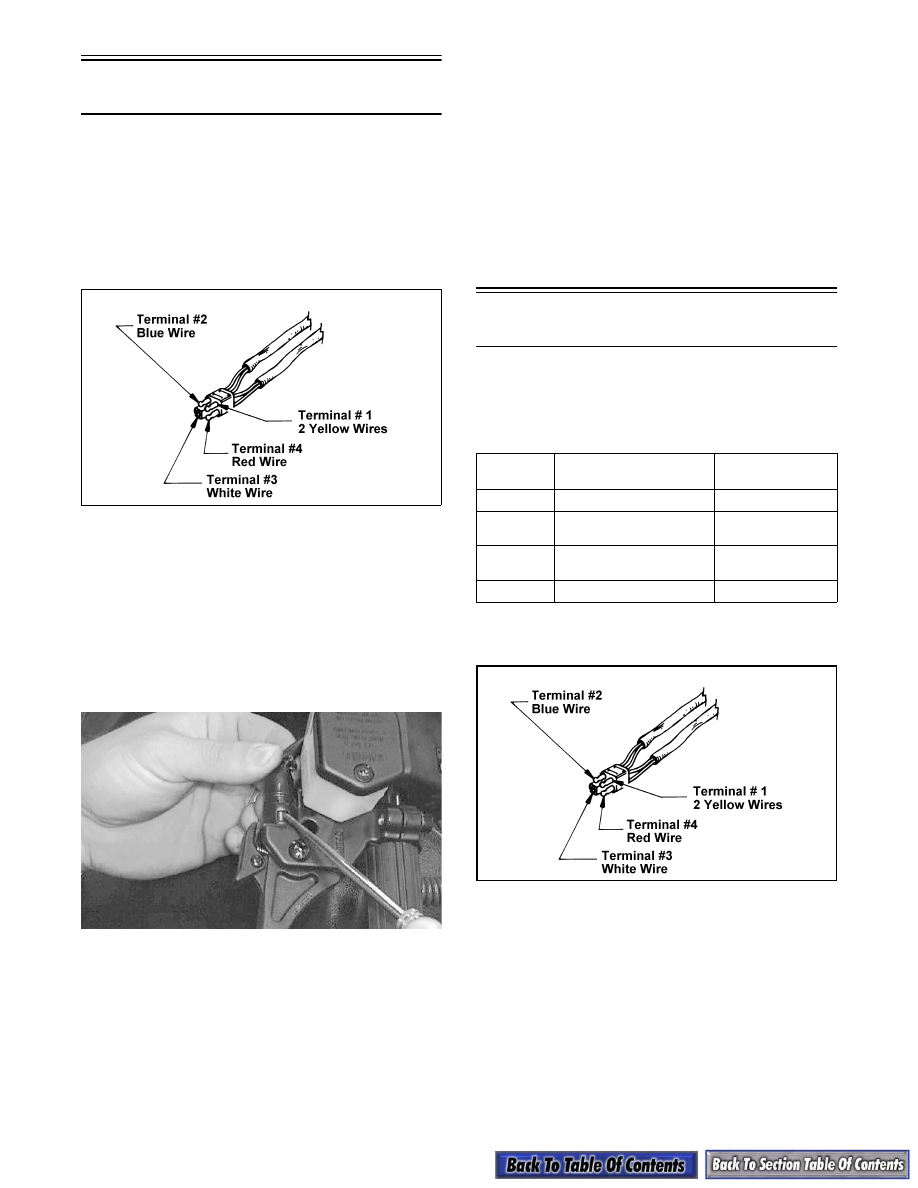

1. Disconnect the wiring harness from the brake

control.

2. To test the brakelight switch, connect one tester

lead to the #1 terminal; then connect the other lead

to the #4 terminal.

727-650A

3. With the brake lever compressed, the meter must

read resistance. With the brake lever released, the

meter must read no resistance. If the meter does

not read as specified, the brakelight switch is

defective and must be replaced.

4. To remove the switch, use a small screwdriver to

compress the plastic locking tabs by pushing in on

the tabs; then slide the switch free of the brake

control.

AF201D

INSTALLING

1. Slide the brakelight switch into the brake control

assembly until the self-locking tabs snap into

position. Give the switch body a light pull to make

sure the switch is properly secured.

2. Connect the switch harness to the main wiring

harness. Position the wires so they will not be

either pinched or come in contact with any moving

components. Start the engine and check the switch

for proper operation.

Brakelight Switch

(Mechanical System)

TESTING/REMOVING

1. Disconnect the wiring harness from the brake

control.

2. Connect one tester lead to the #1 terminal; then

connect the other lead to the #4 terminal.

727-650A

3. With the brake lever compressed, the meter must

read less than 1 ohm of resistance. With the brake

lever released, the meter must read no resistance.

If the meter does not read as specified, the

brakelight switch is defective and must be

replaced.

4. Use a small screwdriver to compress the plastic

locking tabs by pushing in on the tabs; then slide

the switch free of the brake control.

Terminal

Corresponding Wire

Color

Wire Usage

1

Yellow

Power Supply

2

Blue

Headlight -

High Beam

3

White

Headlight -

Low Beam

4

Red

Brakelight

6-3

AF907D

INSTALLING

1. Slide the brakelight switch into the brake control

assembly until the self-locking tabs snap into

position. Give the switch body a light pull to make

sure the switch is properly secured.

2. Connect the switch harness to the main wiring

harness. Position the wires so they will not be

either pinched or come in contact with any moving

components. Start the engine and check the switch

for proper operation.

Headlight

Dimmer Switch

TESTING

1. Disconnect the headlight dimmer switch plug

(located next to the air-intake silencer).

2. Use the tester connections indicated in the

following chart. If the meter does not read as

specified, the headlight dimmer switch is defective

and must be replaced.

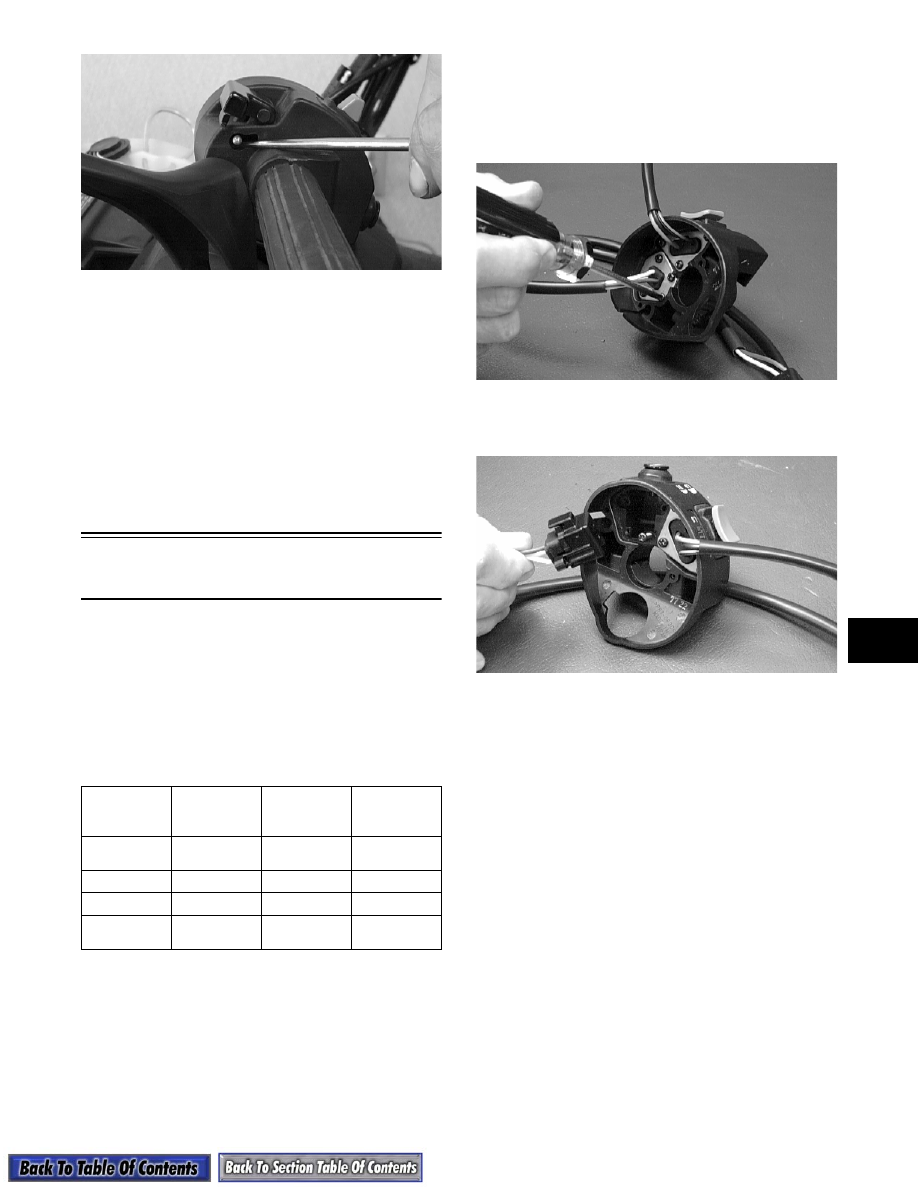

REMOVING

1. Remove the handlebar pad.

2. Remove the screws from the cover plate securing

the dimmer switch.

AF908D

3. Remove the plate and lift the switch free of the

control.

AF909D

INSTALLING

1. Place the dimmer switch into the control and

secure with the cover plate and screws.

2. Connect the four-prong plug; then install and

secure the handlebar pad.

Position

Lead to

Terminal

(Wire Color)

Lead to

Terminal

(Wire Color)

Meter

Reading

High Beam

1 (Yellow)

2 (Blue)

Less than 1

ohm

High Beam

1 (Yellow)

3 (White)

OL

Low Beam

1 (Yellow)

2 (Blue)

OL

Low Beam

1 (Yellow)

3 (White)

Less than 1

ohm

6
