Snowmobile Arctic Cat (2002 year). Instruction - part 46





3-7

3

AN231

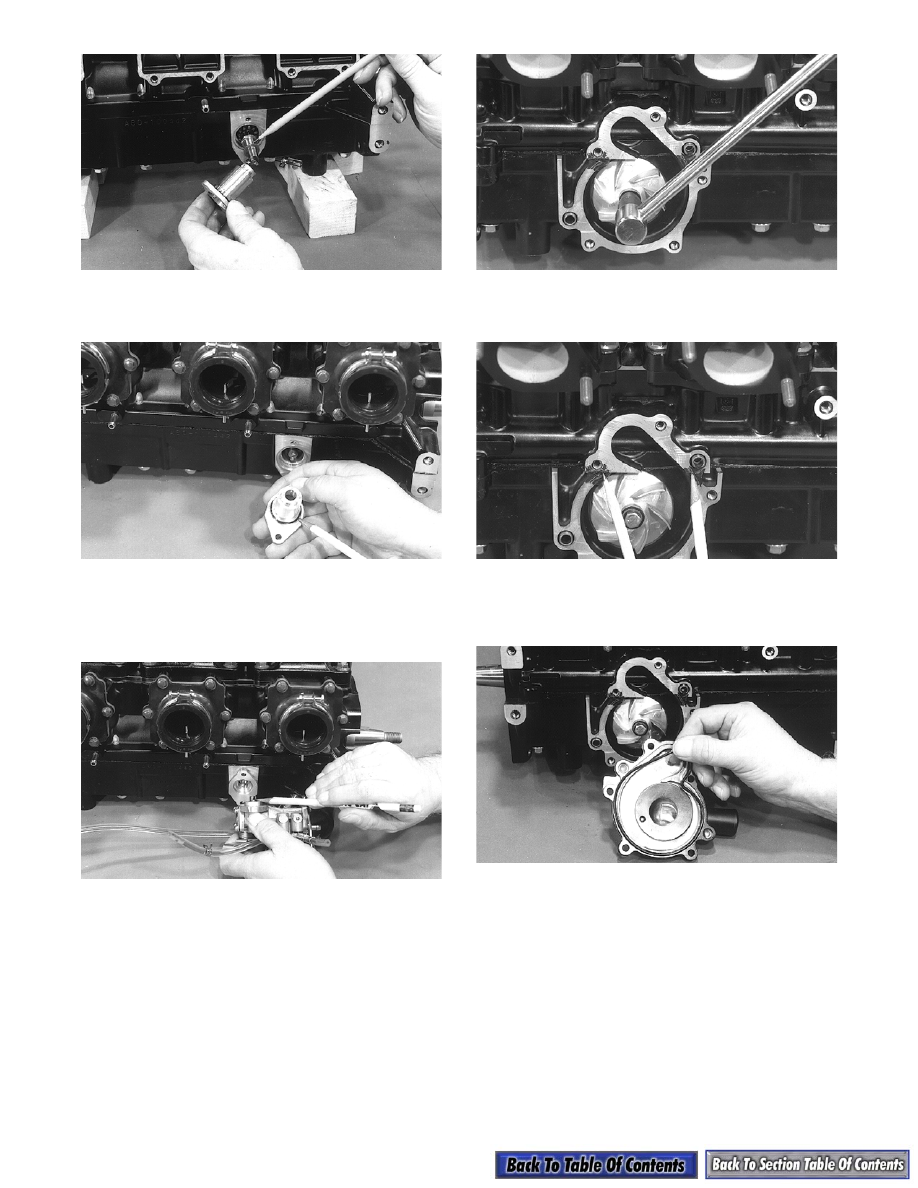

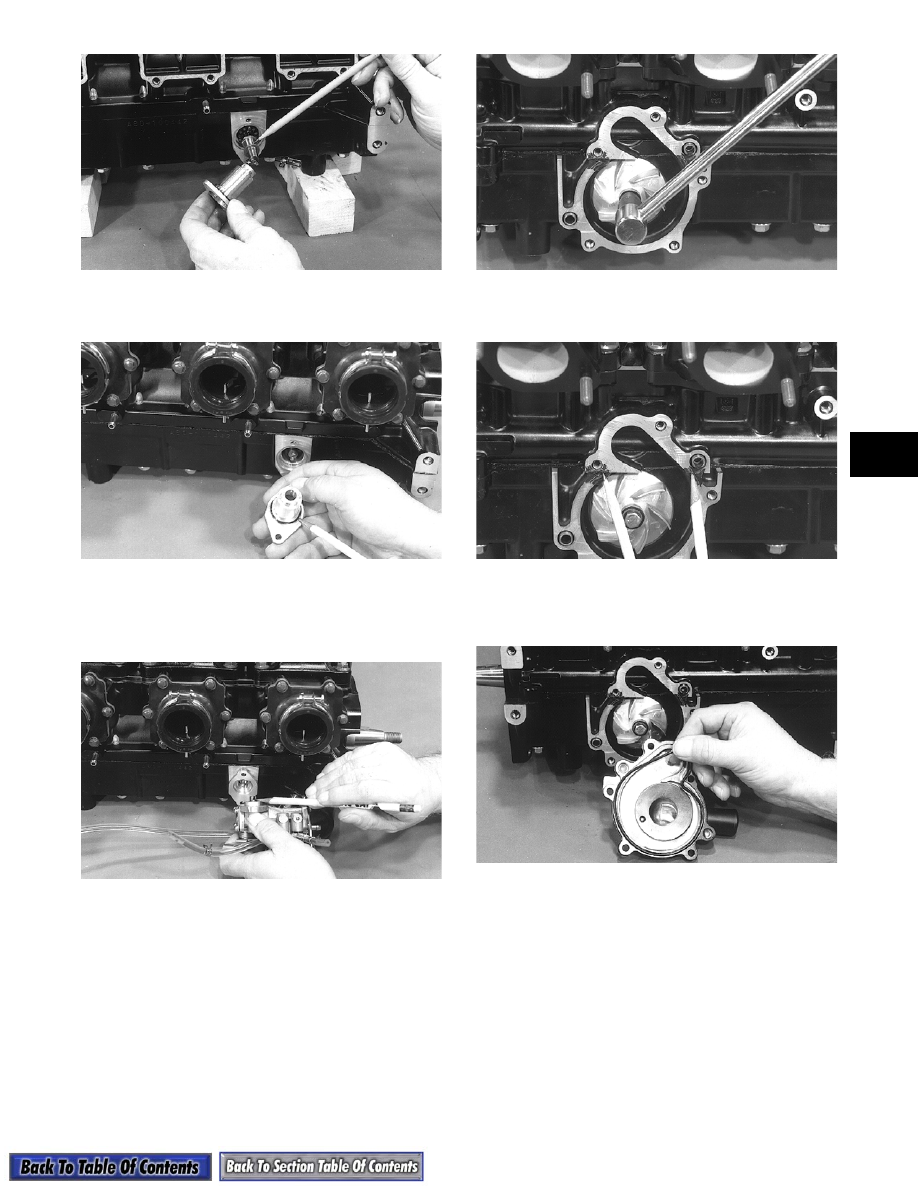

7. Install the oil-injection pump retainer O-ring and

retainer.

AN184

8. Install the O-ring and the oil-injection pump.

Make sure the pump shaft and oil pump align.

Secure with two screws and washers. Tighten the

two screws to 0.7 kg-m (5 ft-lb).

AN183

9. Place the lower check valve into position; then

secure with the gaskets and union cap screw.

Tighten securely.

10. Place the impeller into position and secure with a

cap screw and washer. Be sure the rubber side of

the washer is directed towards the impeller. Apply

blue Loctite #242 to the threads of the cap screw

and tighten to 0.8-1.2 kg-m (6-9 ft-lb).

AN178

11. Apply sealant to the crankcase seam; then install

the alignment pins into the crankcase (if removed).

AN179

12. Position the O-ring into the water pump cover;

then install the cover. Secure with the screws.

Tighten to 1.1 kg-m (8 ft-lb).

AN180

13. Set the engine down into position and secure to the

front-end assembly. Tighten to specifications.

14. Connect the coolant hose to the water pump cover

and secure with the clamp.

15. Install the throttle body/carburetors and secure

with clamps.

16. Install the expansion chamber and secure with

springs.

„

NOTE: When installing the springs, the long

hook portion of the spring must be attached to the
exhaust manifold or premature spring failure will
result.

3-8

17. Install the thermostat hose and fill the cooling

system with antifreeze. Start and run the engine.

Check for leaks and recheck the cooling system to

make sure it has been properly filled.

Repairing Water Pump

(600 cc Triple)

REMOVING AND DISASSEMBLING

„

NOTE: A bleed hole is located at the bottom of

the water pump housing. If there are any signs of
coolant leakage from the bleed hole, the water
pump seals must be replaced. When servicing the
water pump, use Water Pump Bearing and Seal Kit
(p/n 0644-084).

1. Mark the three expansion chambers for assembly

purposes; then remove the expansion chambers

from the engine compartment.

2. Attach a long piece of fuel hose to the engine

coolant drain (located on the front lower half of

the crankcase). Route the fuel hose outside the

engine compartment and into a container. Open

the drain and remove the filler cap. Once the

coolant stops flowing, remove the hose and tighten

the drain valve.

3. Remove the coolant hose from the water pump

cover.

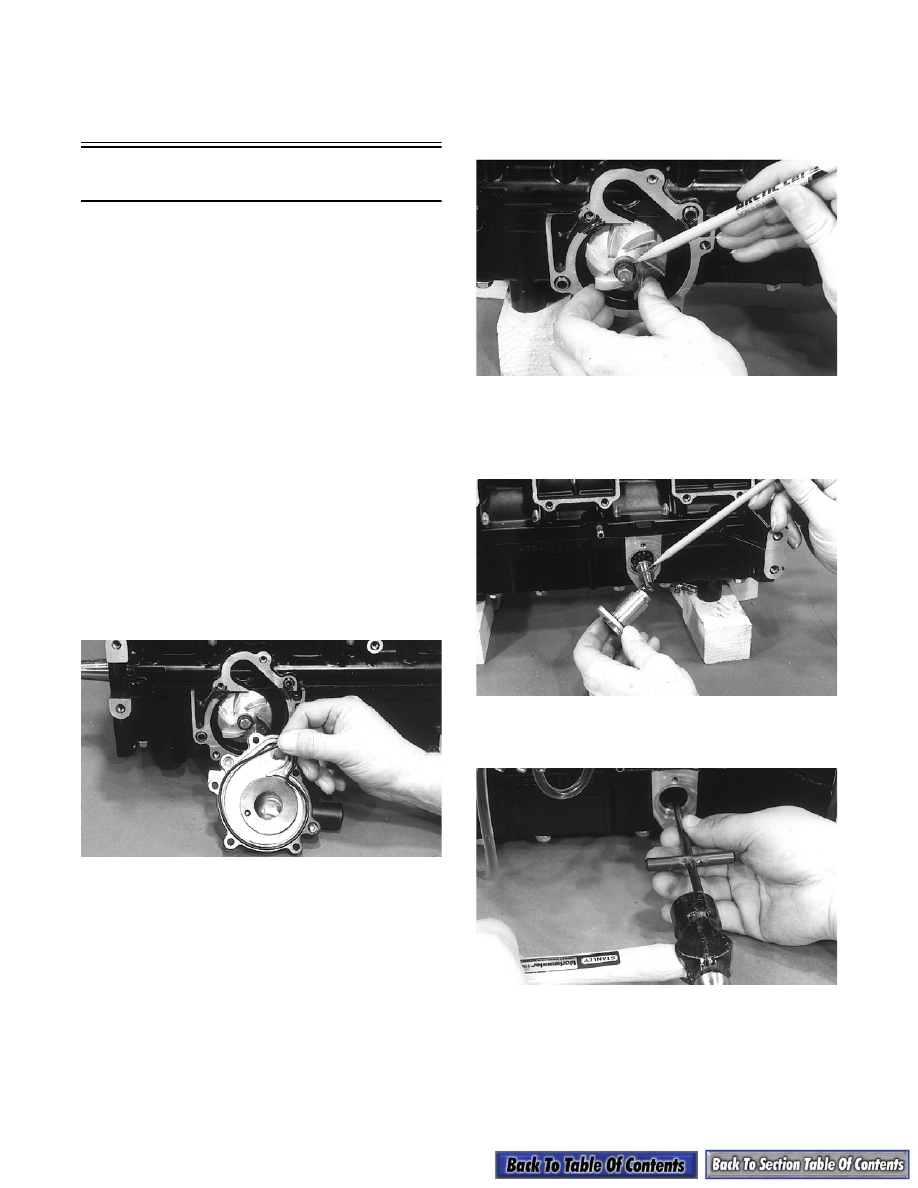

4. Remove the water pump cover and account for the

O-ring seal.

AN180

5. Mark the three carburetors for assembly purposes.

Loosen the carburetor flange clamps; then remove

the three carburetors and lay to the side.

6. Remove the cap screws securing the engine to the

front-end assembly. Remove the hose from the

thermostat housing and tip the engine forward.

7. Remove the screws securing the oil pump and pull

the oil pump from the engine. Leave the oil pump

hose and cable attached.

8. Remove the cap screw securing the impeller.

9. Pull the impeller from the shaft. If the impeller

wont slide off the shaft, start the cap screw into the

shaft and tap on the cap screw driving the shaft

back out of the impeller.

AN232

10. Remove the oil pump retainer and shaft from the

opposite side of the crankcase. Account for the

thrust washer located between the retainer and

shaft flange.

AN231

11. Using the long seal driver, drive the water pump

seal from the crankcase.

AN250

12. Remove the snap ring securing the inner seal in the

crankcase.

3-9

3

AN249

13. Using the hooked end of the long seal driver, pull

the inner seal free of the crankcase.

ASSEMBLING AND INSTALLING

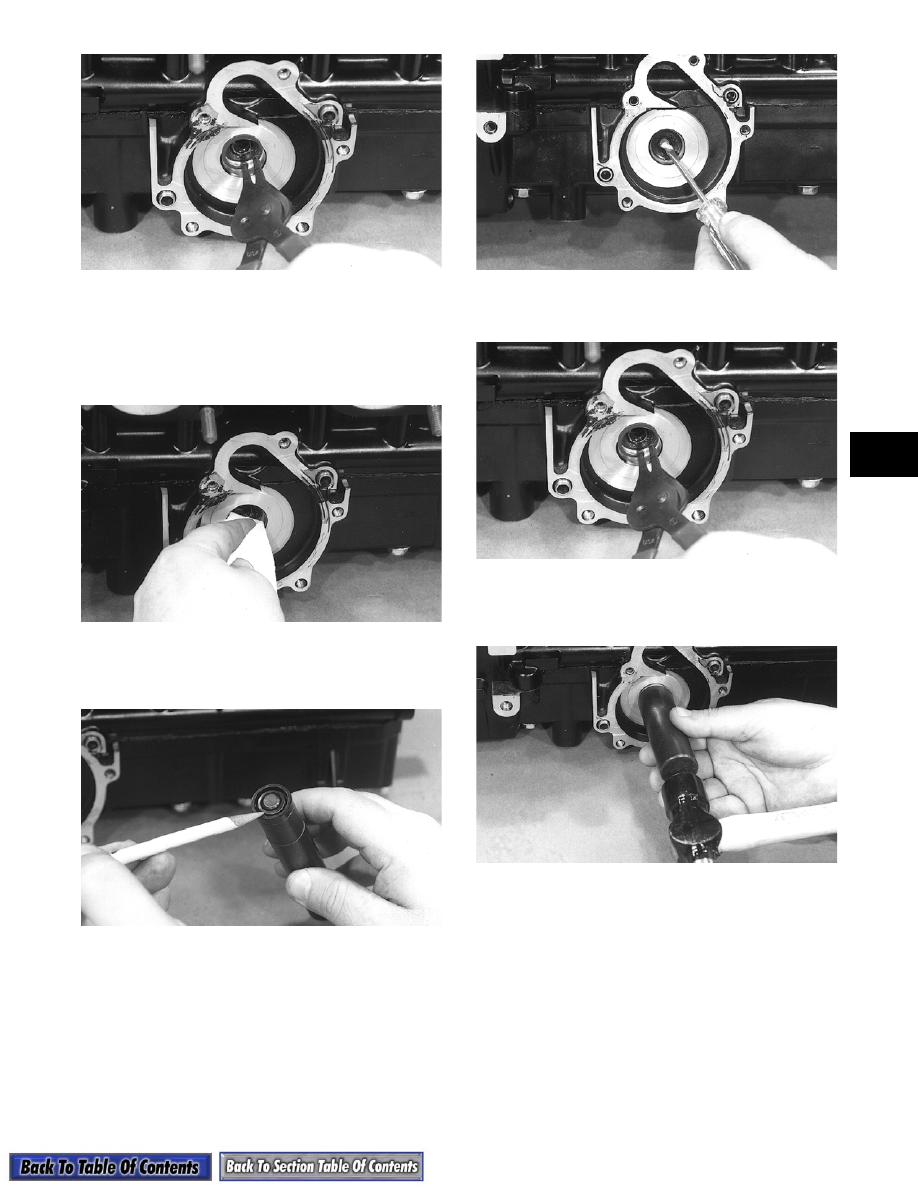

1. Wipe the seal area clean using a clean rag.

AN248

2. Position the inner seal onto the seal driver (spring

side towards the crankshaft). Gently tap into

position.

AN259

3. Apply a thin coat of grease to the inner seal lips.

AN262

4. Install the snap ring securing the inner seal in the

crankcase.

AN249

5. Using the seal driver, carefully install the outer

water pump seal. Gently tap the seal down into

position until it seats itself against its flange.

AN261

6. Apply a light coat of grease to the sealing surface

of the oil pump driveshaft; then install Oil Seal

Installation Tool (p/n 0644-219) at the end of the

shaft. Twist the shaft as it is pushed through the oil

and water pump seals; then remove the tool.

Position the shim on the oil pump end of the shaft.

3-10

AN231

7. Install the oil-injection pump retainer O-ring and

retainer.

AN184

8. Install the O-ring and the oil-injection pump.

Make sure the oil-pump shaft and oil pump align.

Secure with two screws and washers. Tighten the

two screws securely.

AN183

9. Place the impeller into position and secure with a

cap screw and washer. Be sure the rubber side of

the washer is directed towards the impeller. Apply

blue Loctite #242 to the threads of the cap screw

and tighten to 0.8-1.2 kg-m (6-9 ft-lb).

AN178

10. Apply sealant to the crankcase seam; then install

the alignment pins into the crankcase if removed.

AN179

11. Position the O-ring into the water pump cover;

then install the cover. Secure with five screws.

Tighten securely.

AN180

12. Fill the cooling system with antifreeze. Start and

run the engine. Check for leaks and recheck the

cooling system to make sure it has been properly

filled.
