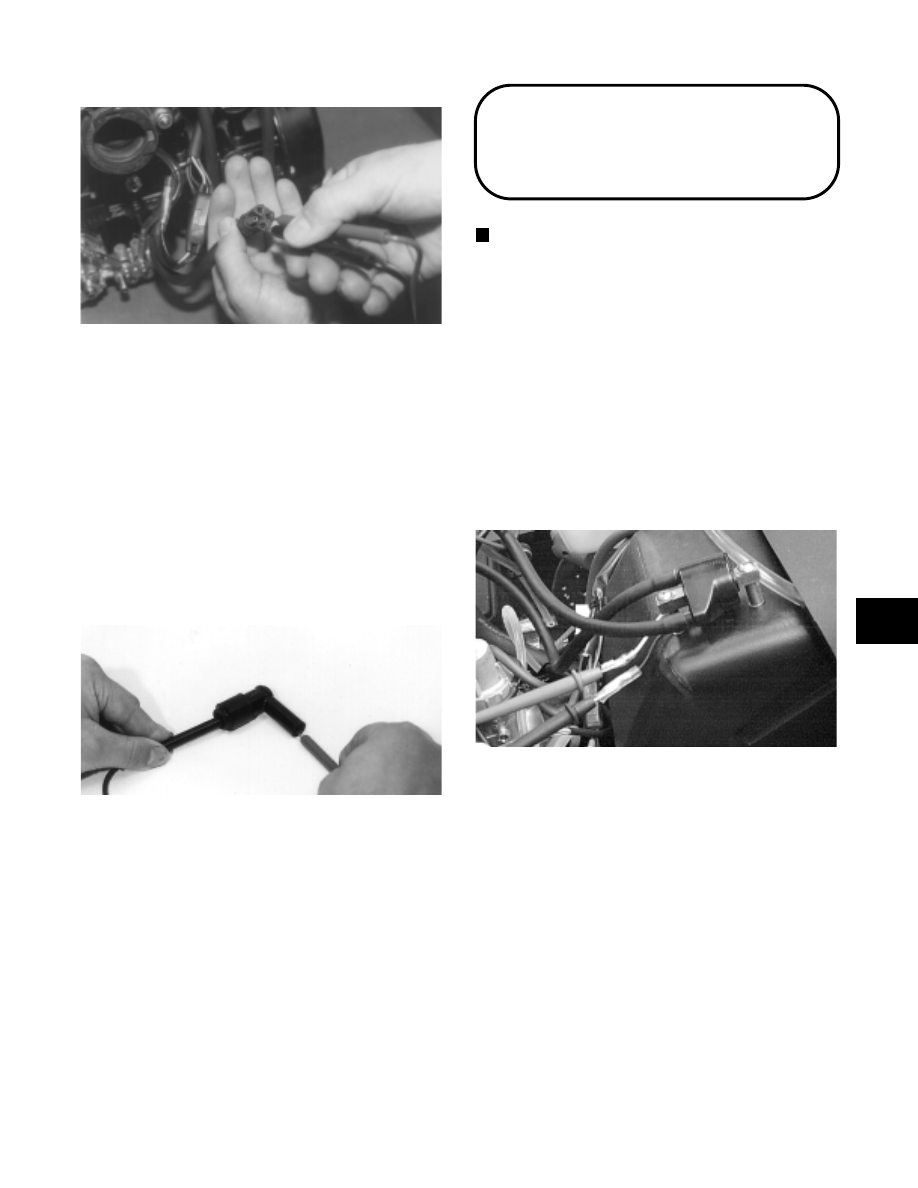

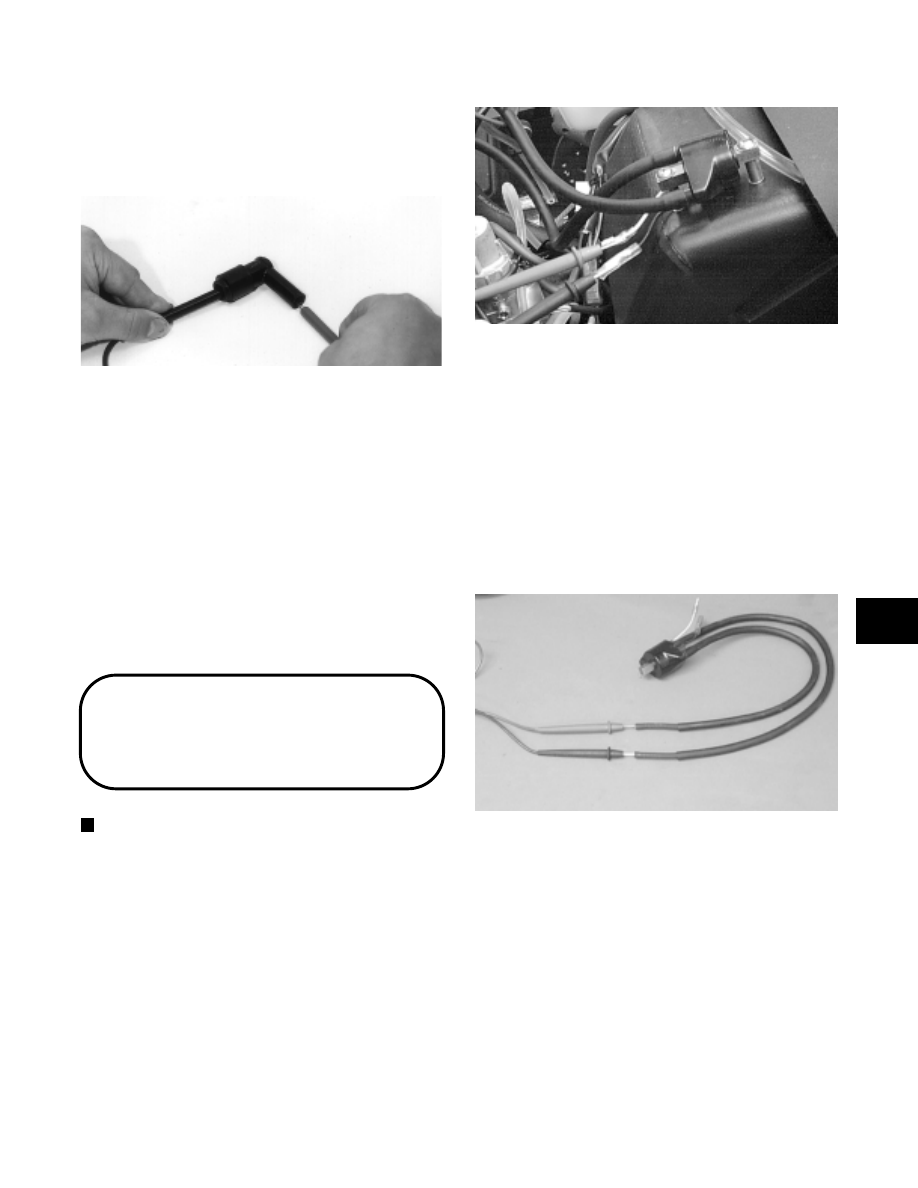

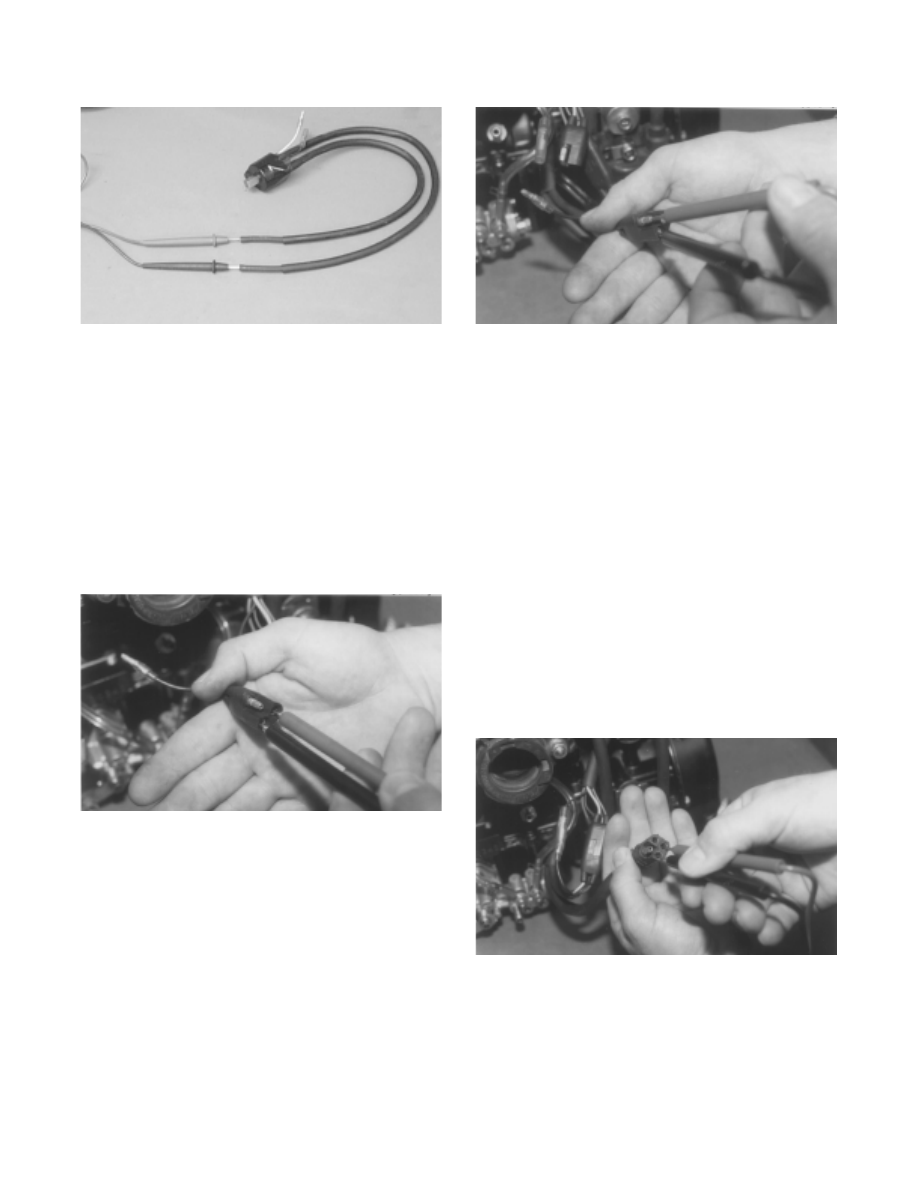

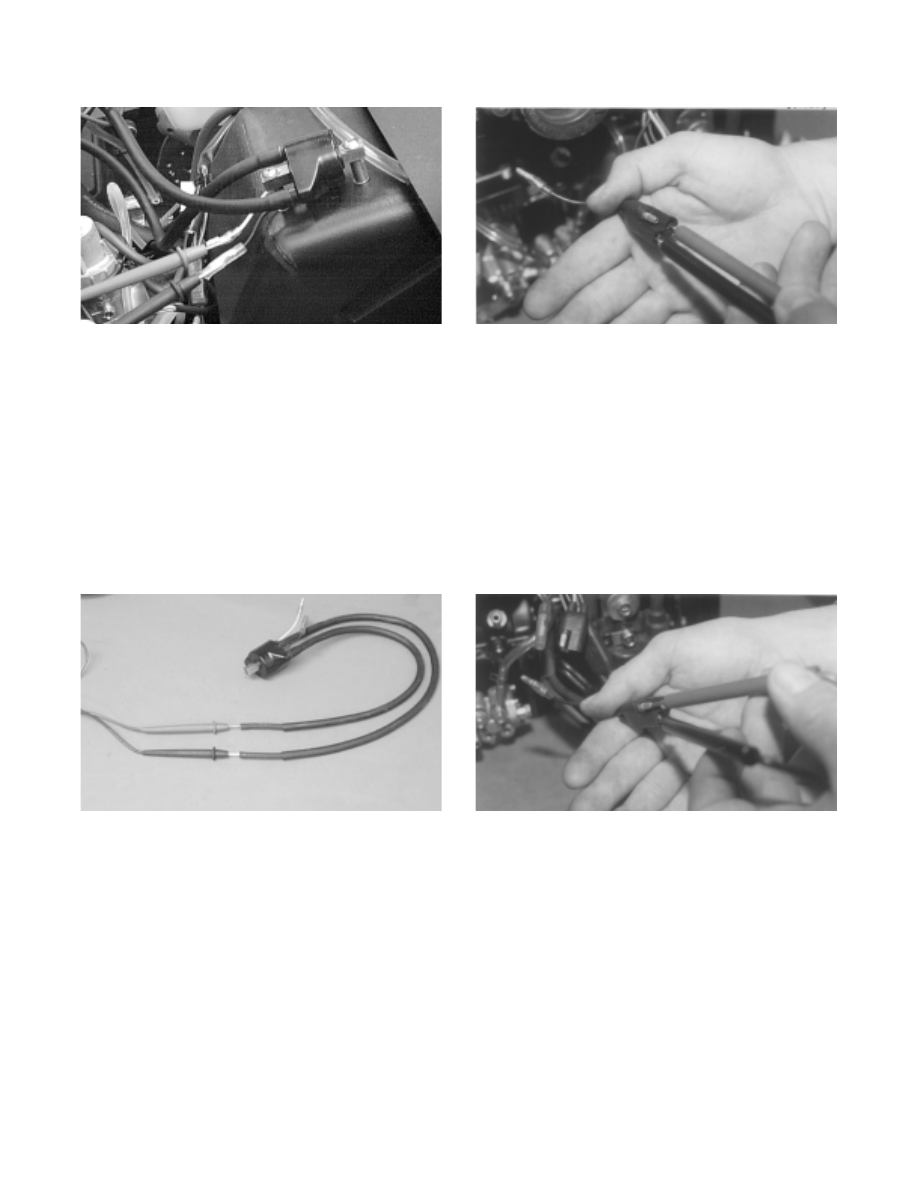

Fig. 5-33 AK051D 4. Ignition coil primary resistance must be between 0.25-0.34 ohm. IGNITION COIL (SECONDARY) 1. Remove the spark-plug caps from the high tension wires. 2. Set the selector in the X1K position. 3. Connect the red meter lead to one high tension wire; then connect the black meter lead to the other high Fig. 5-34 AK050D 4. Ignition coil secondary resistance must be between 6800-10,200 ohms. CHARGE COIL (1) 1. Disconnect the triple-wire plug from the CDI unit to the magneto. 2. Set the selector in the X100 position. 3. Connect the red meter lead to the red/white wire in the plug; then connect the black meter lead to the Fig. 5-35 AK014 4. Charge coil (1) resistance must be between 128-192 ohms. CHARGE COIL (2) 1. Disconnect the triple-wire plug from the CDI unit to the magneto. 2. Set the selector in the X1 position. 3. Connect the red meter lead to the black/red wire in the plug; then connect the black meter lead to the Fig. 5-36 AK013 4. Charge coil (2) resistance must be between 13.6-20.4 ohms. LIGHTING COIL 1. Disconnect the main wiring harness from the engine. 2. Set the selector in the X1 position. 3. Connect the two meter leads to each of the yellow leads in the connector from the engine. 5-30 |
