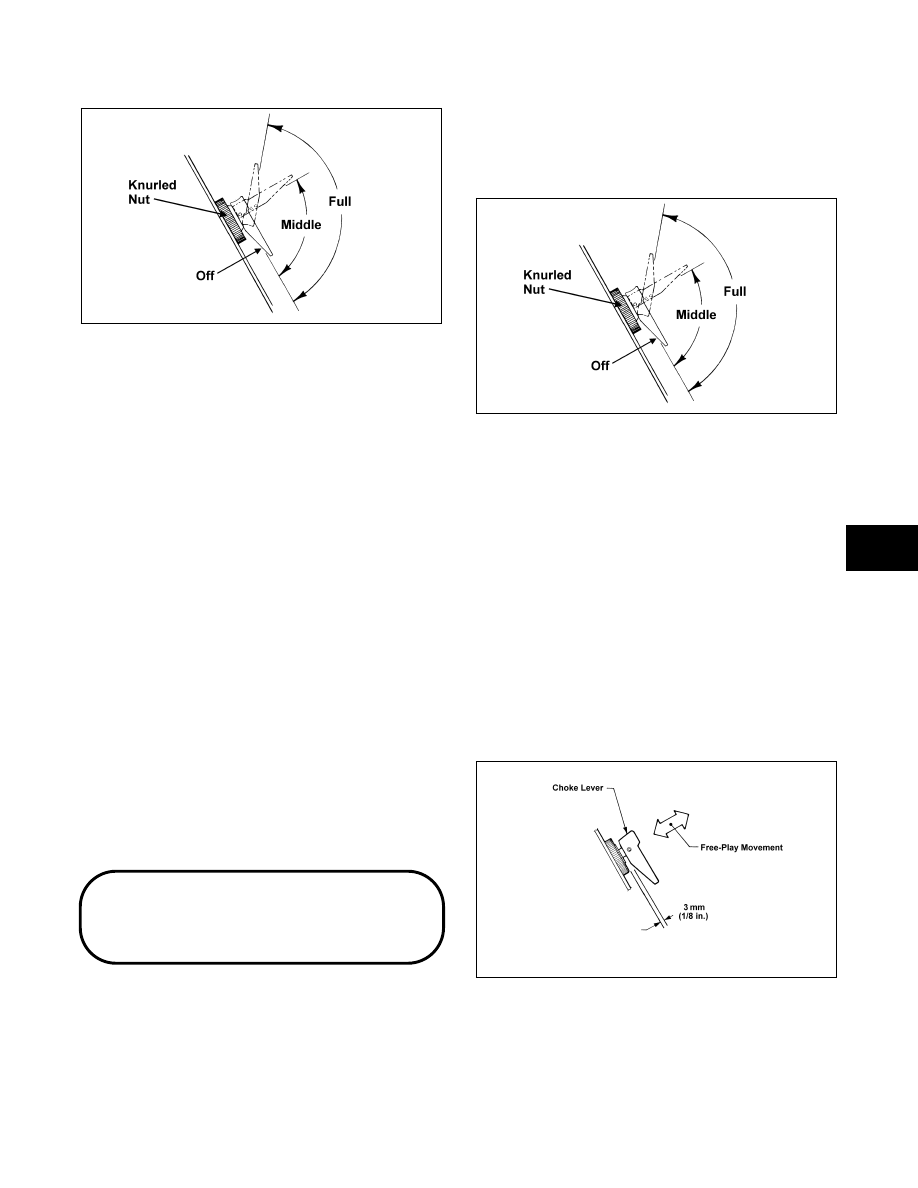

Fig. 4-94

725-001A

6. Slide the choke lever housing from the console.

7. Cut any cable ties used to secure the choke cable

and remove the choke cable from the engine
compartment.

INSTALLING

1. Position the choke lever in the middle-choke

position; then from the back side of the console,
insert the choke lever housing through the console.
Secure with the knurled nut.

2. Route the choke cable from the console to each

carburetor; avoid any sharp bends or moving parts.

3. Install each brass choke cable housing onto the

cable end; then install each spring and brass
plunger.

4. Place the lock tab washer on each brass housing and

insert a choke plunger into each carburetor.

5. Thread each brass choke cable housing into each

carburetor and tighten. Bend the lock tab up to
secure the brass housing. Adjust the choke cable
(see appropriate Adjusting Carburetors in this
sub-section).

6. Place the console into position and secure with the

screws.

Choke Cable

(TM-Style)

REMOVING

1. Loosen the jam nuts securing the choke cable to the

bracket.

2. Remove the cable from the starter plunger lever.

3. Position the choke lever in the middle-choke

position; then remove the knurled nut securing the
choke housing to the console.

Fig. 4-95

725-001A

4. Remove the console.

5. Slide the choke cable from the console.

INSTALLING

1. Position the choke lever in the middle-choke

position; then from the back side of the console,
insert the choke lever housing through the console.
Secure with the knurled nut.

2. Route  the  choke  cable  from the  console  to  the

carburetors; avoid any sharp bends or moving parts.

3. Install the choke cable into the bracket; then secure

with jam nuts making sure the choke lever has 3 mm
(1/8 in.) free-play between the edge of the lever and
the housing.

Fig. 4-96

732-848B

4. Place the console into position and secure.

4

4-27

2000 CARBURETOR SPECIFICATIONS

MODEL

TYPE

PRODUCTION

MAIN JET

1

NEEDLE

JET

JET NEEDLE

PILOT JET

CUTAWAY

VENT

SYSTEM

PILOT CIRCUIT

SCREW

(TURNS OUT)

LOW

HIGH

LOW

HIGH

LOW

HIGH

LOW

HIGH

Panther 340

VM-32

310

P-6 (159)

6DH2-4

6DH2-4

25

35

2

2.5

2.5

External

1 1/2

1 1/2

Bearcat 340

VM-32

300

P-6 (159)

6DH2-5

6DH2-3

2

30

35

2

2.5

2.5

External

1

1

Bearcat 440 I

VM-34

340

P-4 (166)

6DH7-4

6DH7-3

2

6DH7-2

3

30

30

3.0

3.0

External

1

1

Panther 440

VM-34

280

P-4 (480)

6DH2-3

6DH2-2

2

25

30

2.5

2.5

External

1

1

Bearcat 440 II

VM-34

300

P-4 (480)

6DH2-3

6DH2-2

2

30

30

2.5

2.5

External

1

1

Z 370

VM-32

240

P-6 (159)

6DH7-3

6DH7-3

40

40

2.5

2.5

External

1

1

Z 440

VM-34

320

P-4 (166)

6DH7-4

6DH7-3

2

6DH7-2

3

35

35

3.0

3.0

External

1

1

ZL 440

VM-36

260

Q-5 (480)

Q-3 (480)

2

6DH7-3

6DH7-3

40

40

3.0

3.0

External

1

1

ZL 500
ZR 500

VM-38

350

Q-2 (480)

P-6 (480)

2

P-5 (480)

3

6DH41-3

6DH41-2

2

35

40

2

45

3

2.5

2.5

External

1

1 1/2

2

1

3

ZL 600
ZR 600

TM-38

350

Q-2

(Fixed)

9EGY1-57-4

9DH2-4

2

9DH2-3

3

35

40

2

45

3

3.0

3.0

External

2

2 1/2

2

3

3

Bearcat Wide Track

VM-38

340

P-2 (480)

P-0 (480)

2

6DH8-3

6DH8-2

2

40

40

3.0

3.0

External

1

1

Panther 550
ZL 550

VM-38

330

P-2 (480)

P-0 (480)

2

6DH8-3

6DH8-22

40

40

3.0

3.0

External

1

1

Triple Touring 600
ZRT 600

VM-36

360

P-2 (480)

O-8 (480)

2

O-6 (480)

3

6DH8-3

6DH8-2

3

40

45

2

2.0

2.0

External

1 1/2

1/2

ZRT 800

TM-38

350

Q-0

(Fixed)

9DFH1-56-3

9DFH2-58-3

2

9DFH2-59-3

3

35

45

3

3.5

3.5

External

1 1/2

1 3/4

2

1 1/2

3

Pantera 1000
Thundercat

TM-38

320

Q-0

(Fixed)

9DFH3-56-3

9DFH2-58-32

9DFH2-59-3

3

35

35

3.0

3.0

External

2

1 3/4

2

2 1/4

3

ZL 700
ZR 700

TM-40

320

Q-4

(Fixed)

9DH5-61-3

9EH7-62-3

2

9EH7-62-2

3

40

40

2.0

2.0

External

1 1/2

2 1/2

Powder Special
700 (w/Altitude
Compensator)

TM-40

330

Q-2

(Fixed)

9EH6-59-4

9EH6-59-4

40

40

2.0

2.0

External

2 1/2

2 1/2

Powder Special
600 (w/Altitude
Compensator)

TM-38

390

Q-2

(Fixed)

9EGJ1-57-3

9EGJ1-57-3

40

40

3.0

3.0

External

2 1/4

2 1/4

Thundercat M/C*

TM-38

320

260

2

Q-0

(Fixed)

9DFH3-56-3

9DFH2-58-3

2

9DFH2-59-3

3

35

35

3.0

3.0

External

2

1  3/4

2

2 1/4

3

1 Refer to Main Jet Chart Decal
2 Elevations over 1524 m

(5000 ft) above sea level

3 Elevations over 2743 m

(9000 ft) above sea level

*

Initially set up at the
factory for operation between
5000-9000 feet

MODEL

TYPE

MAIN

JET

MAIN AIR

JET

PILOT

OUTLET

PILOT

JET

THROTTLE

VALVE

PILOT SCREW

(TURNS OUT)

Kitty Cat

BV-18

72.5

1.0

1.0

40

100

1

Z 120

BV-18

72.5

1.5

1.0

37.5

130

1 1/4

4-28

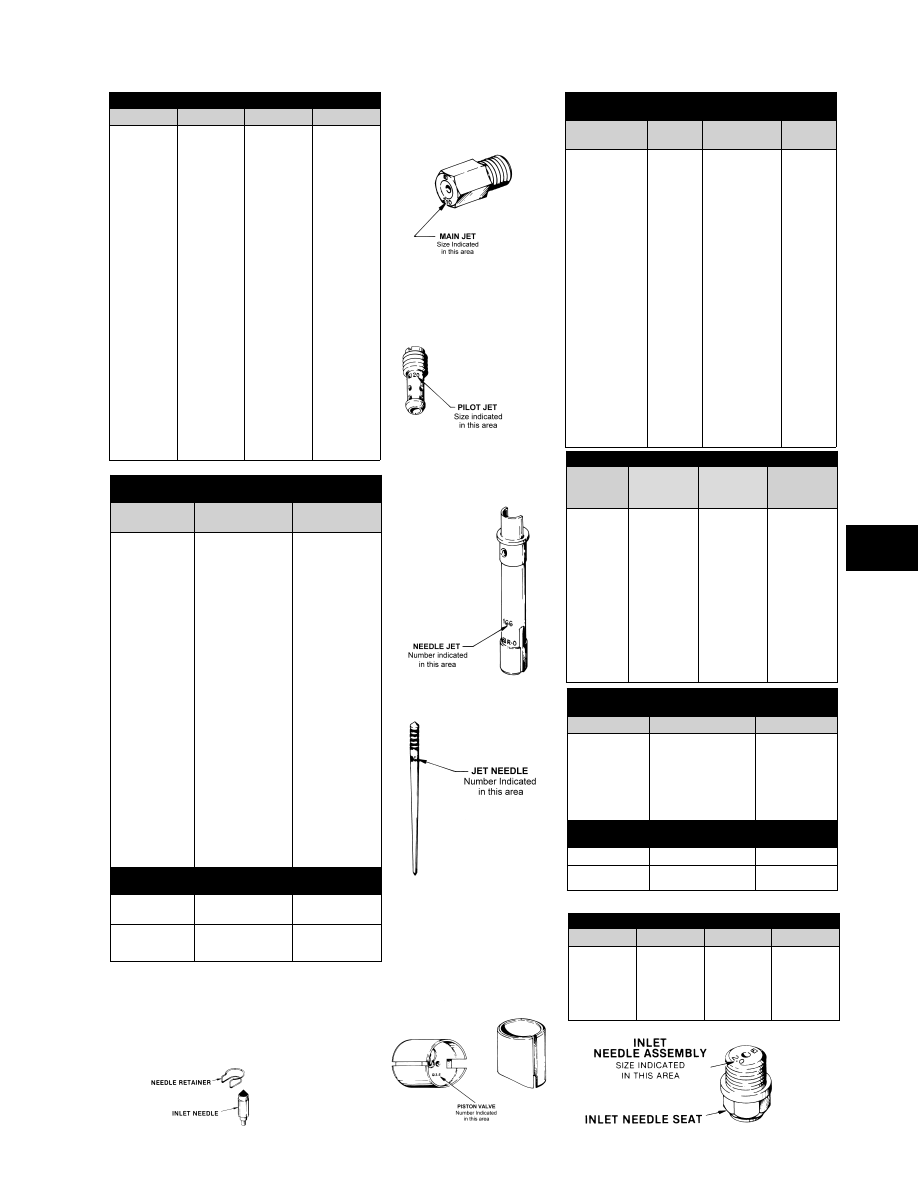

MIKUNI TUNING COMPONENTS

MAIN JETS AVAILABLE

JET

P/N

JET

P/N

120

6505-270

390

6505-078

130

6505-216

400

6505-124

140

6505-217

410

6505-212

150

6505-168

420

6505-125

160

6505-064

430

6505-146

170

6505-065

440

6505-126

180

6505-056

450

6505-147

190

6505-066

460

6505-127

200

6505-144

470

6505-148

210

6505-145

480

6505-149

220

6505-137

490

6505-150

230

6505-067

500

6505-151

240

6505-079

520

6505-530

250

6505-068

530

6505-170

260

6505-017

540

6505-531

270

6505-069

560

6505-172

280

6505-080

580

6505-211

290

6505-123

590

6505-173

300

6505-128

600

6505-532

310

6505-136

620

6505-174

320

6505-074

640

6505-533

330

6505-070

650

6505-534

340

6505-076

660

6505-535

350

6505-071

680

6505-169

360

6505-038

700

6505-536

370

6505-072

710

6505-537

380

6505-077

720

6505-538

PISTON VALVES AVAILABLE

(VM-Style)

SLIDE

CARBURETOR

SIZE (mm)

P/N

2.0

28-30

6505-048

3.0

28-30

6505-161

3.0

30

6505-510

3.5

30

6505-528

1.5

32-34

6505-256

2.5

32-34

6505-246

3.0

32-34

6505-439

3.5

32-34

6505-248

2.5

34

6505-500

2.5

34

6505-614*

3.0

34

6505-507

3.0

34

6505-561*

2.0

36

6505-177

3.0

36

6505-592*

2.5

38

6505-254

3.0

38

6506-643

3.5

38

6505-436

3.5

38

6505-525

3.5

38

6505-526

3.5

38

6505-554

3.5

38

6505-613*

4.0

38

6505-504

3.5

40

6505-575*

1.0

40-44

6505-092

2.0

40-44

6505-179

2.5

40-44

6505-570

3.5

40-44

6505-548

PISTON VALVES AVAILABLE

(TM-Style)

SLIDE

CARBURETOR

SIZE (mm)

P/N

2.0

38

6506-119

3.0

38

6506-120

3.5

38

6506-210

* For models with carburetor switch.

NEEDLE JETS AVAILABLE

(VM-Style)

NEEDLE

JET

P/N

NEEDLE

JET

P/N

O-6 (480)

6505-931

Q-2 (480)

6505-641

O-8 (182)

6505-181

Q-3 (480)

6505-599

O-8 (480)

6505-824

Q-4 (166)

6505-214

P-0 (159)

6505-155

Q-4 (480)

6505-636

P-0 (166)

6505-007

Q-5 (159)

6505-119

P-0 (169)

6505-051

Q-5 (166)

6505-520

P-0 (480)

6505-598

Q-5 (480)

6505-580

P-2 (480)

6505-600

Q-6 (166)

6505-506

P-4 (159)

6505-221

Q-8 (480)

6506-112

P-4 (166)

6505-502

R-0 (166)

6505-505

P-4 (480)

6505-540

Z-4 (224)

6505-808

P-4 (169)

6505-164

Z-5 (224)

6505-541

P-5 (480)

6505-542

Z-6 (224)

6505-597

P-6 (159)

6505-247

Z-8 (224)

6505-572

P-6 (166)

6505-268

Z-9 (224)

6505-618

P-6 (480)

6505-539

AA-0 (224)

6505-544

P-6 (251)

6505-235

AA-1 (224)

6505-609

P-8 (159)

6505-298

AA-2 (224)

6505-545

P-8 (166)

6505-433

AA-3 (224)

6505-604

P-8 (480)

6505-543

AA-4 (224)

6505-605

Q-0 (159)

6505-260

AA-5 (224)

6505-099

Q-0 (166)

6505-190

AA-8 (224)

6505-571

Q-0 (480)

6505-529

BB-0 (224)

6505-182

Q-2 (166)

6505-508

BB-5 (224)

6505-180

JET NEEDLES AVAILABLE

JET

NEEDLE

(VM-Style)

P/N

JET

NEEDLE

(TM-Style)

P/N

6CH3

6505-519

9CFH1

6506-116

6DH2

6505-252

9DH2

6506-110

6DH3

6505-509

9DH5

6506-114

6DH4

6505-003

9DEH1

6506-118

6DH7

6505-215

9DEH2

6506-115

6DH8

6505-236

9EGY1

6506-192

7DJ2

6505-549

9EHO9

6506-173

7DH2

6505-097

9EH2

6506-111

7DH5

6505-641

9EH6

6506-117

9EH7

6506-113

9DFH1

6506-221

9DFH2-58

6506-200

9DFH2-59

6506-201

9DFH3

6506-186

INLET NEEDLE ASSEMBLIES AVAILABLE

(VM-Style)

SEAT DIA.

CARB. SIZE (mm)

P/N

1.5 mm (Steel)

28, 30, 32, 34

6505-026

1.5 mm (Viton)

28, 30, 32, 34

6505-160

1.5 mm (Steel)

28 — 34 GVM

6505-245

1.5 mm (Steel)

36, 38, 40, 44

6505-103

1.5 mm (Viton)

36, 38, 40, 44

6505-171

1.8 mm (Viton)

36, 38, 40, 44

6505-175

2.0 mm (Viton)

36, 38, 40, 44

6505-176

INLET NEEDLE ASSEMBLIES AVAILABLE

(TM-Style)

SEAT DIA.

CARB. SIZE (MM)

P/N

1.5 mm (Steel)

38

6506-121

1.8 mm (Steel)

40

6506-144

PILOT JETS AVAILABLE

JET NO.

P/N

JET NO.

P/N

17.5

6505-218

35

6505-029

20

6505-138

40

6505-047

22.5

6505-310

45

6505-278

25

6505-075

50

6505-262

27.5

6505-503

52.5

6505-261

30

6505-073

55

6505-255

4

4-29

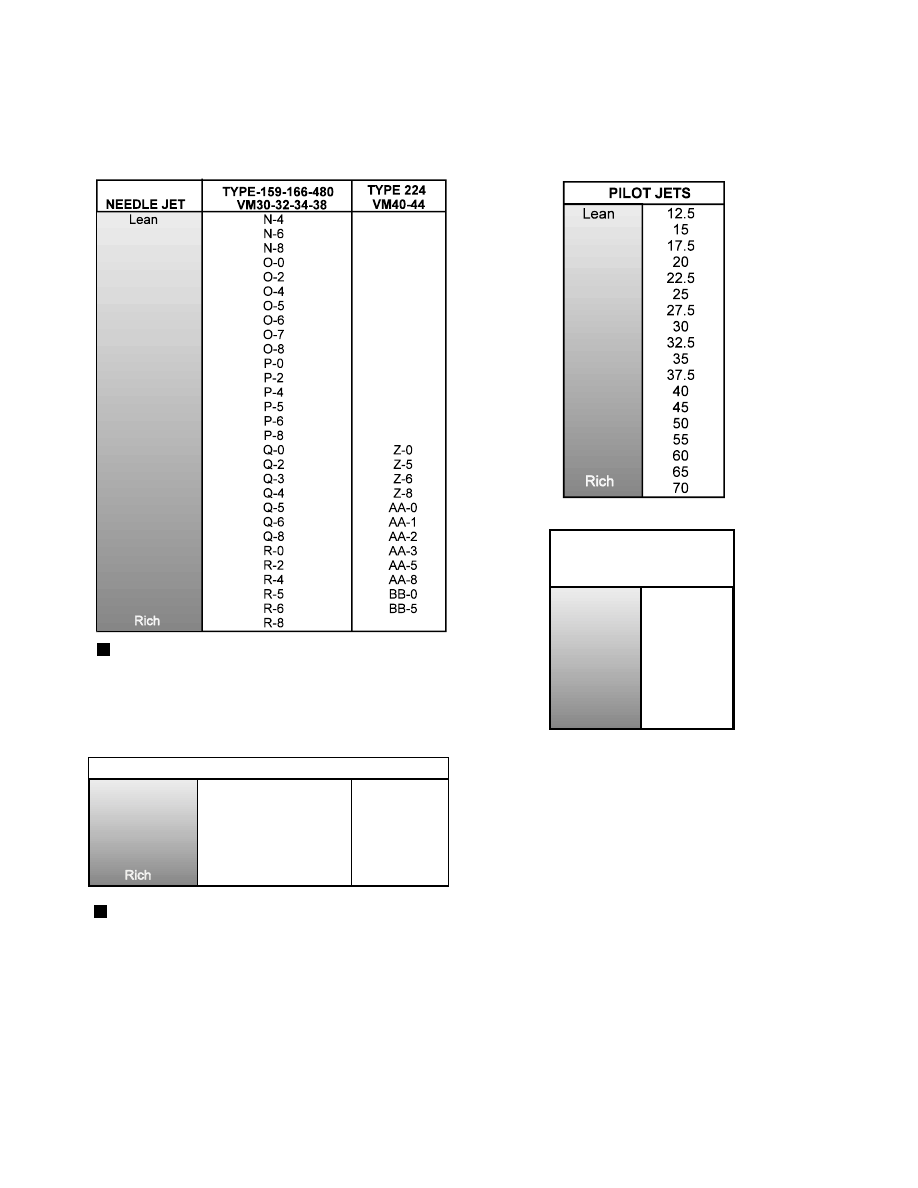

MAJOR TUNING COMPONENTS

To assist you in selecting four major tuning components of the VM-style and TM-style
carburetors, we have listed the jet needles, needle jets, pilot jets, and piston/throttle valves
(slides) on charts below according to their size.

NOTE: The above needle jets may come in

different types; for example, (159) - (166) -
(480) - (224). When selecting a new needle jet,
use the correct series or type.

S

JET NEEDLES (VM-Style)

Lean

6DH2
6DH3
6DH4
6DH7
6DH8

6DH41
6EGJ1

7F7

7DH2

7F6

7DH3
7DH5

7H2

7J2

NOTE: The above chart shows the average

performance of a given needle between 1/4
and 3/4 throttle. Needles are constructed in
such a way that at any given point, the needle
could be richer or leaner than the rating it has.

PISTON/THROTTLE

VALVES (SLIDES)

Lean

Rich

4.0
3.5
3.0
2.5
2.0
1.5
1.0

4-30















Content   ..  50  51  52  53   ..
