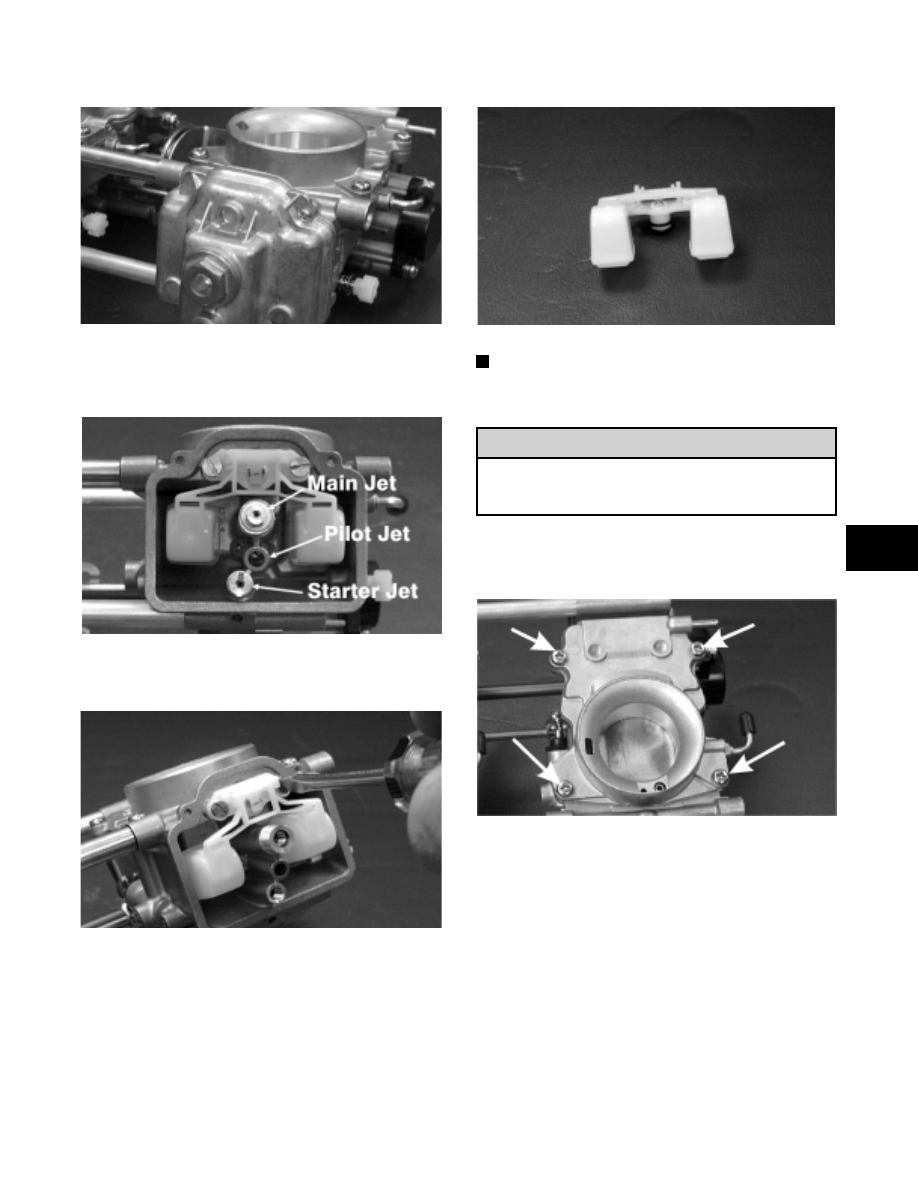

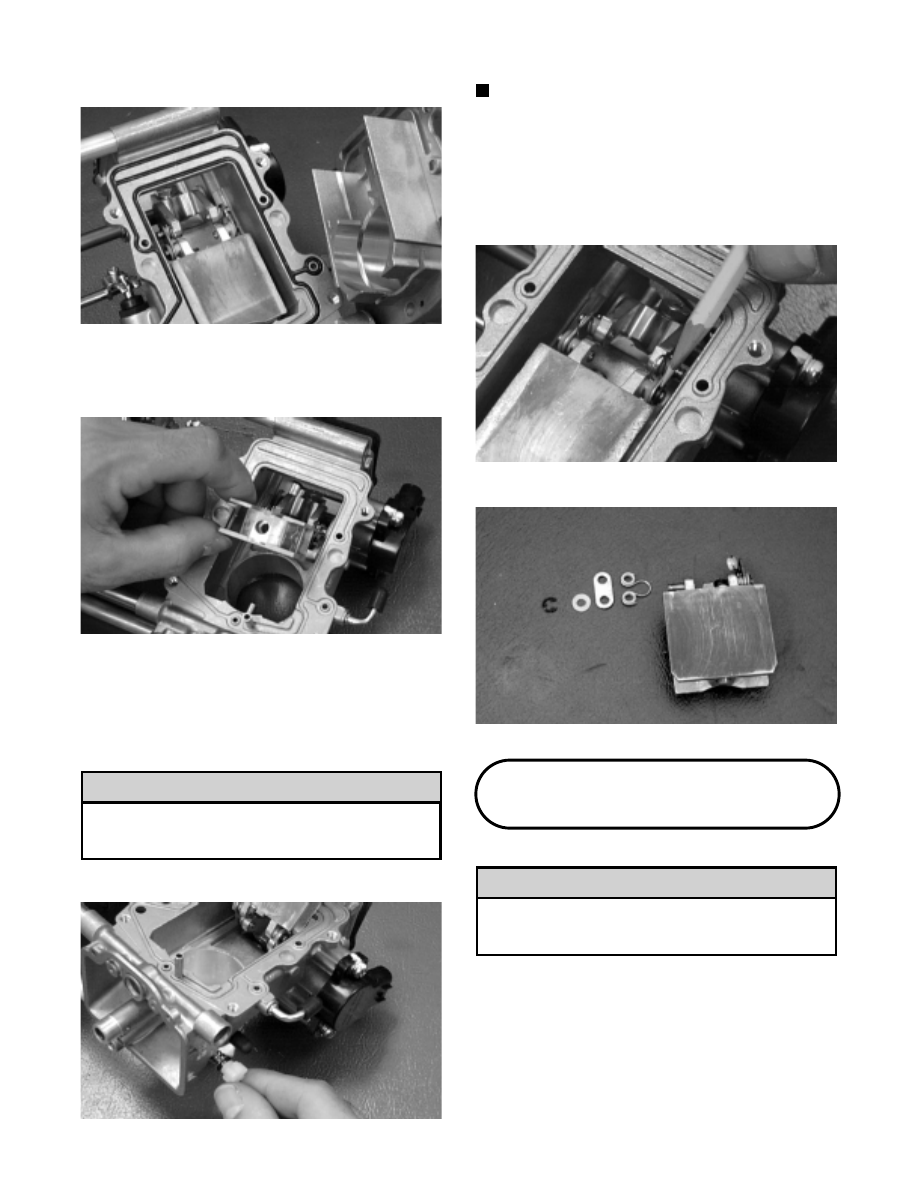

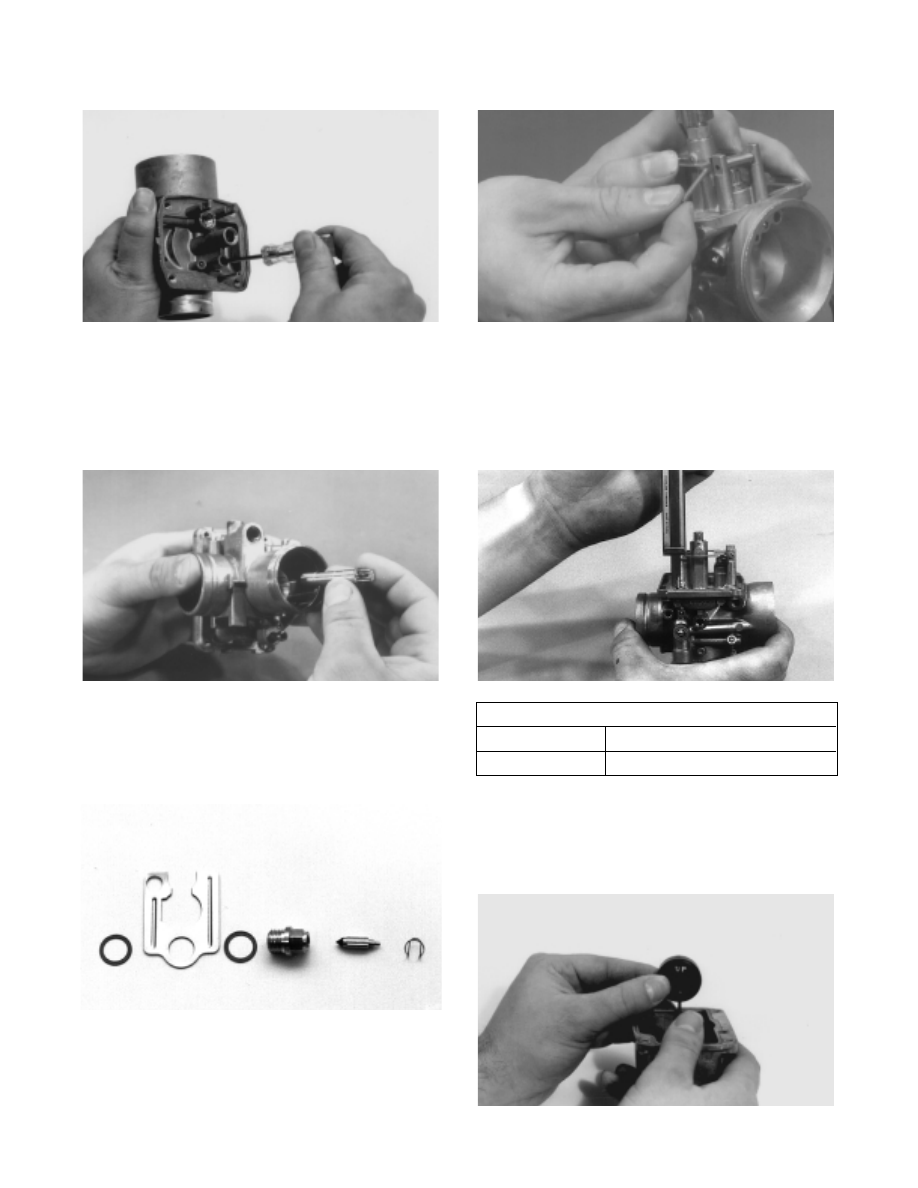

Fig. 4-37 AH618D 5. Remove the main jet (with washer), pilot jet, and starter jet. Fig. 4-38 AH619DA 6. Remove the screws securing the float assembly. Fig. 4-39 AH620D 7. Remove the float assembly by lifting it up and out of the mixing body. Account for the O-ring. Fig. 4-40 AH621D NOTE: It may be necessary to use a spray lubricant such as WD-40 to aid in removing the float To remove the throttle valve, the jet needle must 8. Remove the Phillips-head screws securing the funnel assembly to the mixing body. Fig. 4-41 AH622DA 9. Move the throttle lever to the full-open position; then remove the funnel assembly. Account for the ! CAUTION 4 4-11 |
