EXHAUST GAS TEMPERATURE

MODEL

PROBE LOCATION**

NORMAL

PRE-IGNITION

in.

mm

°F

°C

°F

°C

Wildcat (89-96),

ZR 700 (94-95, 99-2000)

Powder Special 700 (99-2000)

1**

25.4

1120

604

1180

638

El Tigre 6000 (87-89)

1**

25.4

1200

649

1300

705

El Tigre EXT (90-91)

1**

25.4

1160

627

1250

677

El Tigre EXT (89)

1**

25.4

1105

596

1200

649

Prowler (90-94)

1**

25.4

1150

621

1250

677

Pantera (90-92)

1**

25.4

1150

621

1250

677

EXT 550 EFI (93), Prowler (95),

Pantera (93-94)

1**

25.4

1150

621

1250

677

Jag Z (92-94), Z 440 (95-2000),

Bearcat 440 (95-2000)

1**

25.4

1086

586

1100

593

Prowler Special (91-92),

ZR 440 (94-98)

1**

25.4

1150

621

1250

677

Jag 440 (86-89)

1**

25.4

1112

600

1200

649

Cougar (88-90)

1**

25.4

1230

666

1250

677

Cougar (91-94), ZL 440 (97-2000)

Jag & Panther L/C (96)

1**

25.4

1150

621

1250

677

Panther (88)

1**

25.4

1230

666

1300

705

EXT 550 (91-93), Bearcat 550

(95-2000), Cougar (95-98),

Cheetah 550 (94),

Panther 550 (99-2000)

1**

25.4

1150

621

1250

677

Jag 440 F/C (90-2000)

1**

25.4

1150

621

1250

677

Panther 440 F/C (89-2000)

1**

25.4

1150

621

1250

677

EXT 580 Z (93), ZR 580 (94-97),

EXT 580 (95-98),

Pantera 580 (95-2000)

1**

25.4

1150

621

1250

677

Thundercat 900 (93-97),

ZRT 800 (95-2000),

Pantera 800 (99-2000)

5**

127

1230

666

1300

705

ZRT 600 (95-2000) (3 cyl),

Triple Touring 600 (99-2000)

2.5**

63.5

1200

649

1350

732

ZL 500 (98-2000),

ZR 500 (98-2000),

Powder Special 500 (99-2000)

3.937*

100*

1055

568

1100

593

Powder Special 600 (99-2000),

ZL 600 (99-2000),

ZR 600 (98-2000)

3.937*

100*

1115

602

1200

649

Thundercat 1000 (98-2000)

3.937*

100*

1175

635

1250

677

Z 370 (99-2000)

1**

25.4

1086

586

1100

593

* Measuring from the piston skirt out.

** Probe location measured down the exhaust manifold from the gasket surface of the flange.

2

2-145

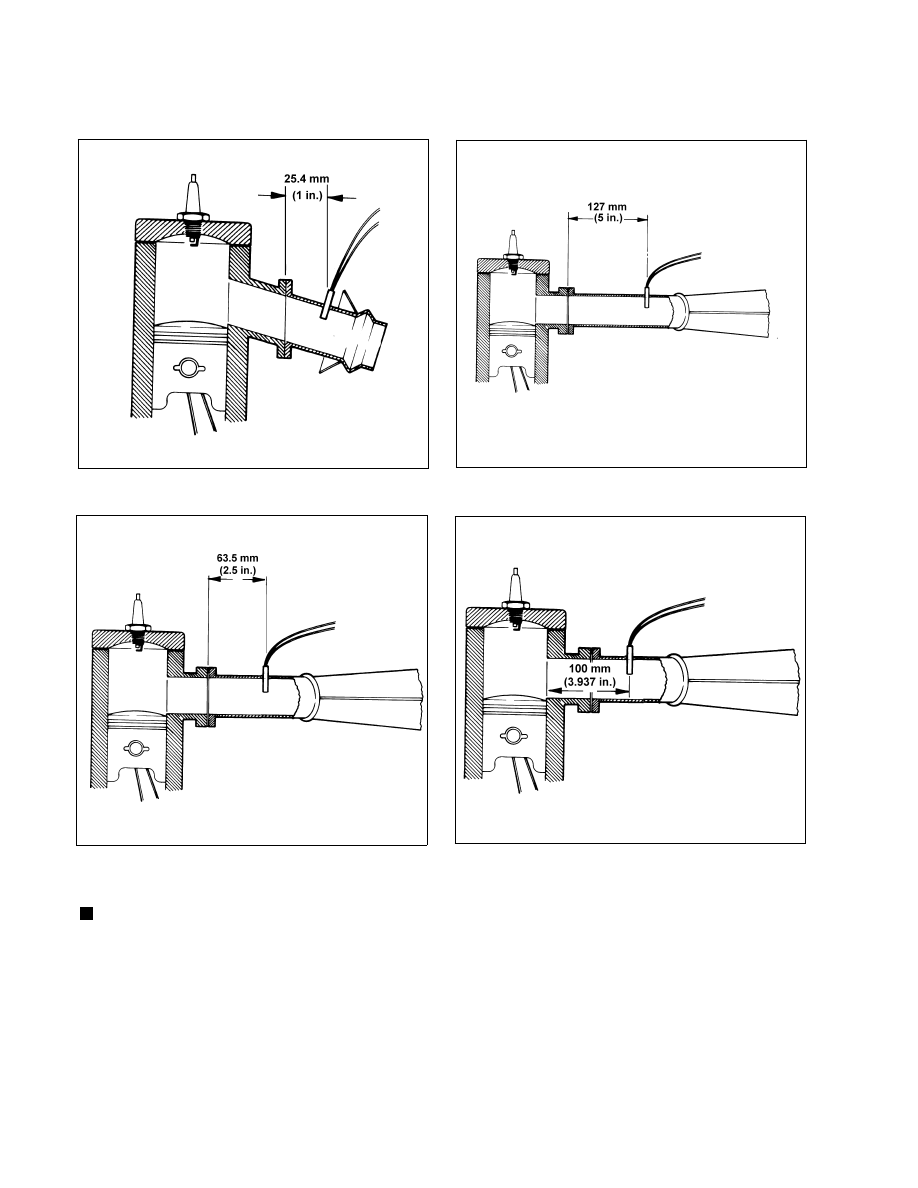

EXHAUST GAS TEMPERATURE

PROBE LOCATION

0730-217

0730-216

730-216A

730-216B

NOTE: Refer to Exhaust Gas Temperature chart (page 2-145) for specific MODEL designation and

PROBE LOCATION specifications.

2-146

SECTION 3 — ENGINE-RELATED ITEMS

TABLE OF

CONTENTS

Axial Fan/Belt . . . . . . . . . . . . . . . . . .

3-2

Repairing Water Pump (Twin) . . . . . . . . . .

3-5

Repairing Water Pump (600 cc Triple)

. . . . .

3-8

Repairing Water Pump (800/1000 cc)

. . . . . 3-11

Pressure Testing Engine . . . . . . . . . . . . 3-13
Liquid Cooling System . . . . . . . . . . . . . 3-14
Recoil Starter . . . . . . . . . . . . . . . . . . 3-18

3

3-1

Axial Fan/Belt

REMOVING FAN

1. Remove the four cap screws securing the recoil

starter to the fan case.

2. Remove the three cap screws securing the recoil

starter pulley and fan drive pulley to the flywheel;
then remove the recoil starter pulley and fan drive
pulley.

3. Remove the three cap screws and four flange nuts

securing the fan case assembly to the engine; then
remove the fan case from the engine compartment.

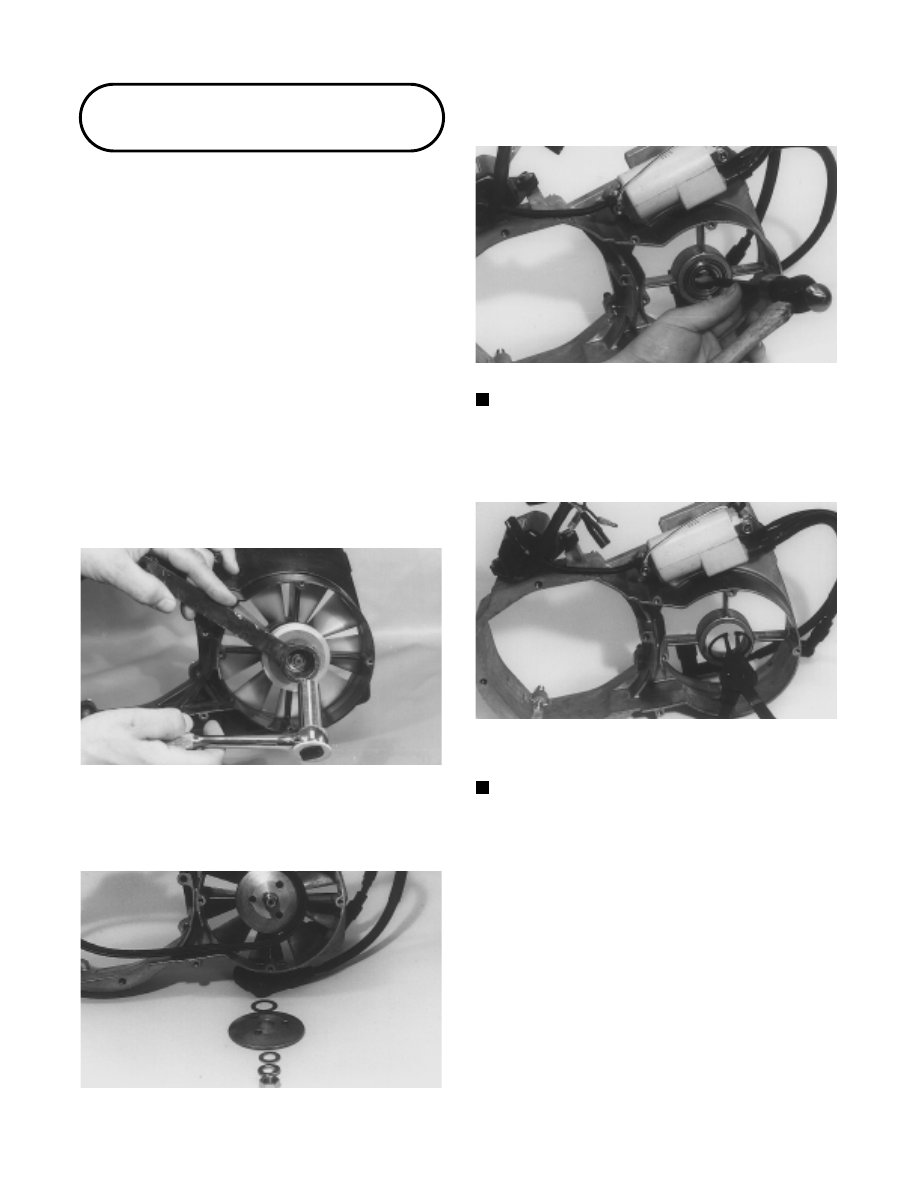

DISASSEMBLING

1. Remove the fan cover; then remove the belt.

2. Using the Fan Spanner Wrench (p/n 0644-139),

remove the nut, lock washer, and washer securing
pulley halves.

Fig. 3-1

AB102

3. Slide the outer pulley half, shim(s), fan belt, and

inner pulley half off the shaft and account for the
key and the fan belt.

Fig. 3-2

A908

4. Remove the fan with shaft.

5. Drive the bearings from the fan case and account for

the spacer between the bearings.

Fig. 3-3

A910

NOTE: A circlip is positioned between the

bearings. The bearings must be driven from the
center to the outside of the fan case.

6. Remove the circlip from the fan case.

Fig. 3-4

A911

CLEANING AND INSPECTING

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Clean all axial fan components.

2. Inspect the fan case and shaft threaded areas for

damage or stripped threads; then check the shaft
keyway and key for excessive wear.

3. Inspect the fan for broken, bent, or damaged vanes.

4. Inspect the bearings for smooth rotation.

5. Inspect the pulley halves for cracks, gouges, or

other damage.

6. Inspect the fan belt for cracks, tears, or fraying.

3-2
