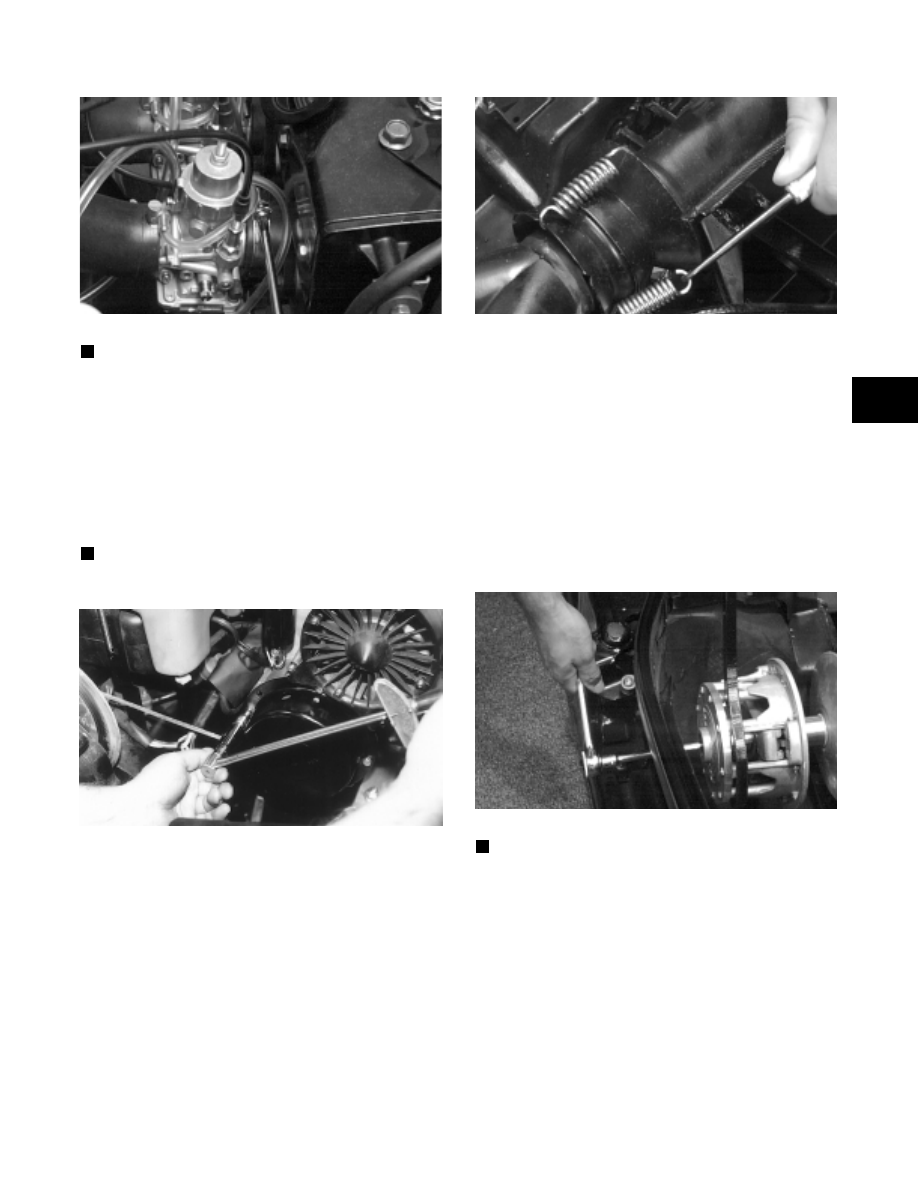

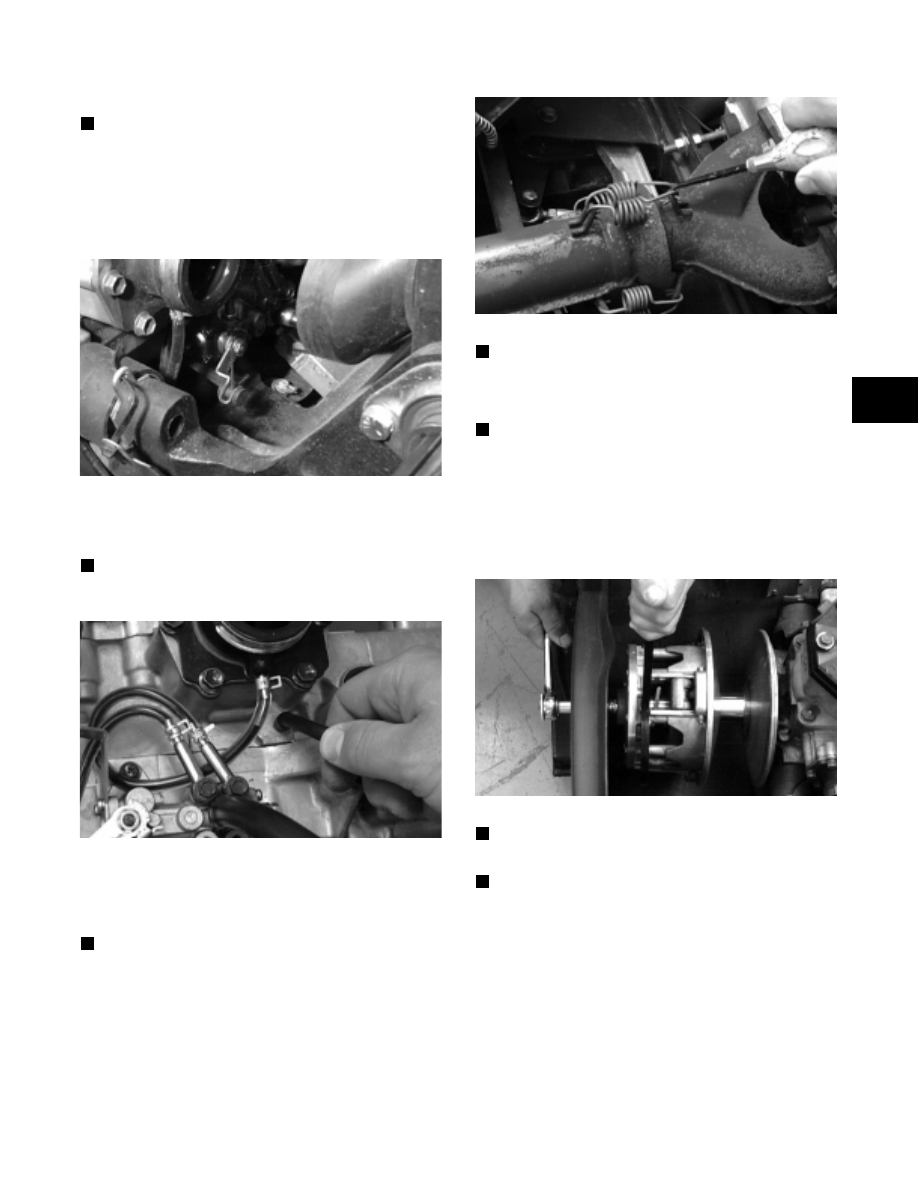

Fig. 2-440 AH283D NOTE: At this point, check oil-injection system synchronization (see Section 4). 8. Connect the impulse hose to the crankcase, the main wiring harness, the CDI unit wiring harness, and the 9. Place the recoil starter into position and secure with four cap screws and lock washers. Tighten to 0.7 NOTE: If equipped with electric start, secure the battery ground cable with the rear cap screw. Fig. 2-441 AB073 10. Place the expansion chamber and grafoil gasket into position and secure with springs. Fig. 2-442 AB105D 11. On the Panther/Z models, place the engine mount shims into position between the torque bumper and 12. On the Bearcat models, install and adjust the torque bumper to allow a clearance between the engine and 13. Place the drive clutch into position on the crankshaft; then install the lock washer and bolt. Fig. 2-443 AF477D NOTE: Apply a coat of Anti-Seize Thread Compound (p/n 0678-146) to the keyway end of the 14. Install the driven pulley and alignment washers. Secure with a cap screw and washer tightened to 2 2-121 |
