Snowmobile Yamaha Phazer PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW. Instruction - part 10





2-28

INSP

ADJ

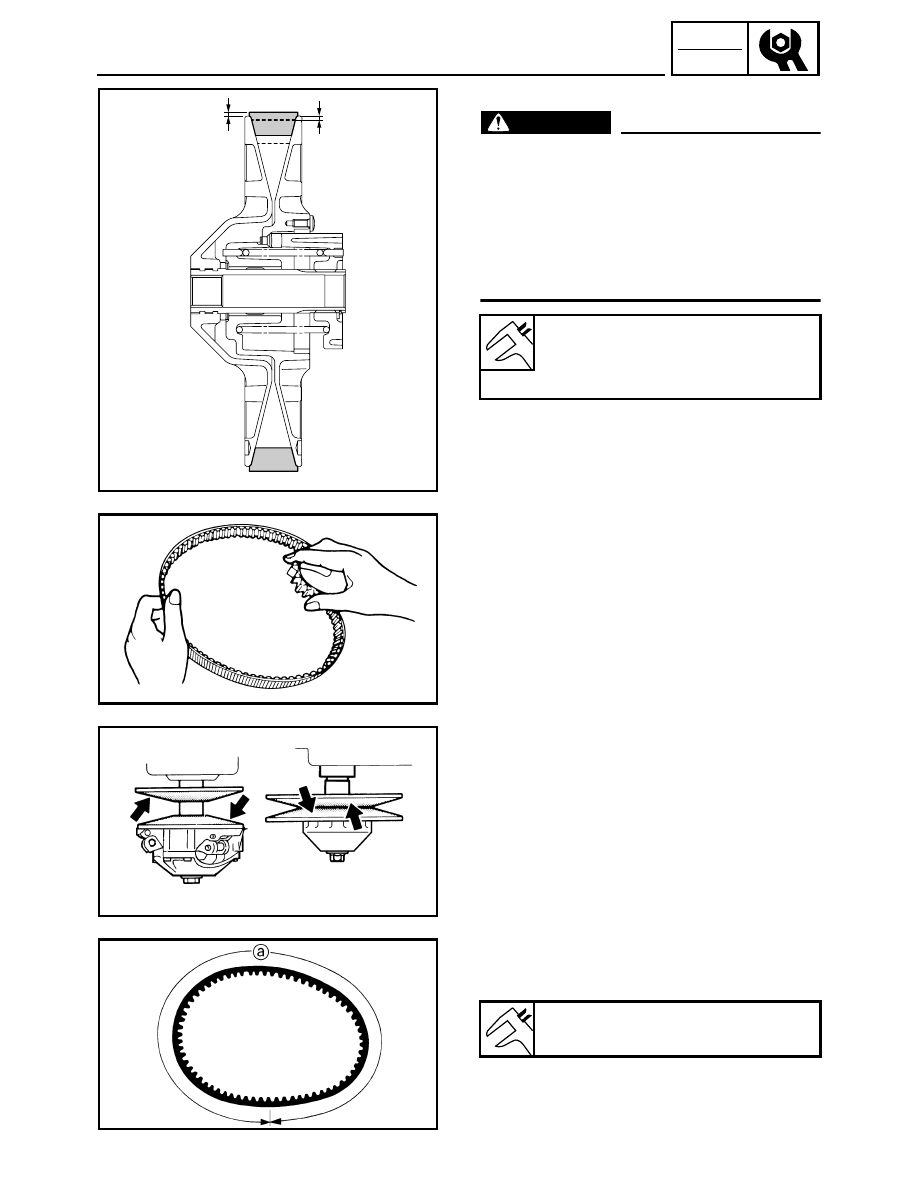

DRIVE V-BELT

DRIVE V-BELT

WARNING

When installing the new V-belt, make sure that
it is positioned from 1.5 mm (0.06 in) above
the edge of the secondary sheave to –0.5 mm
(–0.02 in) below the edge

a.

If the V-belt is not positioned correctly, the
clutch engagement speed will be changed. The
machine may move unexpectedly when the
engine is started.

New belt width:

34.1 mm (1.34 in)

Belt wear limit width:

32.5 mm (1.28 in)

a

a

1. Inspect:

• Drive V-belt

Cracks/damage/wear

→ Replace.

Oil or grease on the V-belt

→ Check the pri-

mary and secondary sheaves.

2. Inspect:

• Primary sheave
• Secondary sheave

Oil or grease on the primary and secondary
sheaves

→ Use a rag soaked in lacquer thin-

ner or solvent to remove the oil or grease.
Check the primary and secondary sheaves.

3. Measure:

• Drive V-belt circumference

Out of specification

→ Replace.

V-belt circumference:

1,132 ~ 1,138 mm (44.6 ~ 44.8 in)

2-29

INSP

ADJ

ENGAGEMENT SPEED CHECK/

PARKING BRAKE ADJUSTMENT

ENGAGEMENT SPEED CHECK

1. Place the machine on a level surface of hard-

packed snow.

2. Inspect:

• Clutch engagement speed

Inspection steps:

• Start the engine, and open the throttle lever

gradually.

• Check the engine speed when the machine

starts moving forward.
Out of specification

→ Adjust the primary

sheave.

Engagement speed:

PZ50/PZ50GT/PZ50FX:

3,700 ~ 4,100 r/min

PZ50M “USA/Canada”:

4,100 ~ 4,500 r/min

PZ50M “Europe”:

3,900 ~ 4,300 r/min

PZ50VT “USA/Canada”:

3,300 ~ 3,700 r/min

PZ50VT “Europe”/PZ50MP:

2,900 ~ 3,300 r/min

PARKING BRAKE ADJUSTMENT

1. Remove:

• Right side cover

Refer to “COWLINGS” in CHAPTER 3.

2. Measure:

• Parking brake cable distance

Out of specification

→ Adjust.

Parking brake cable distance:

43.5 ~ 46.5 mm (1.713 ~ 1.831 in)

2-30

INSP

ADJ

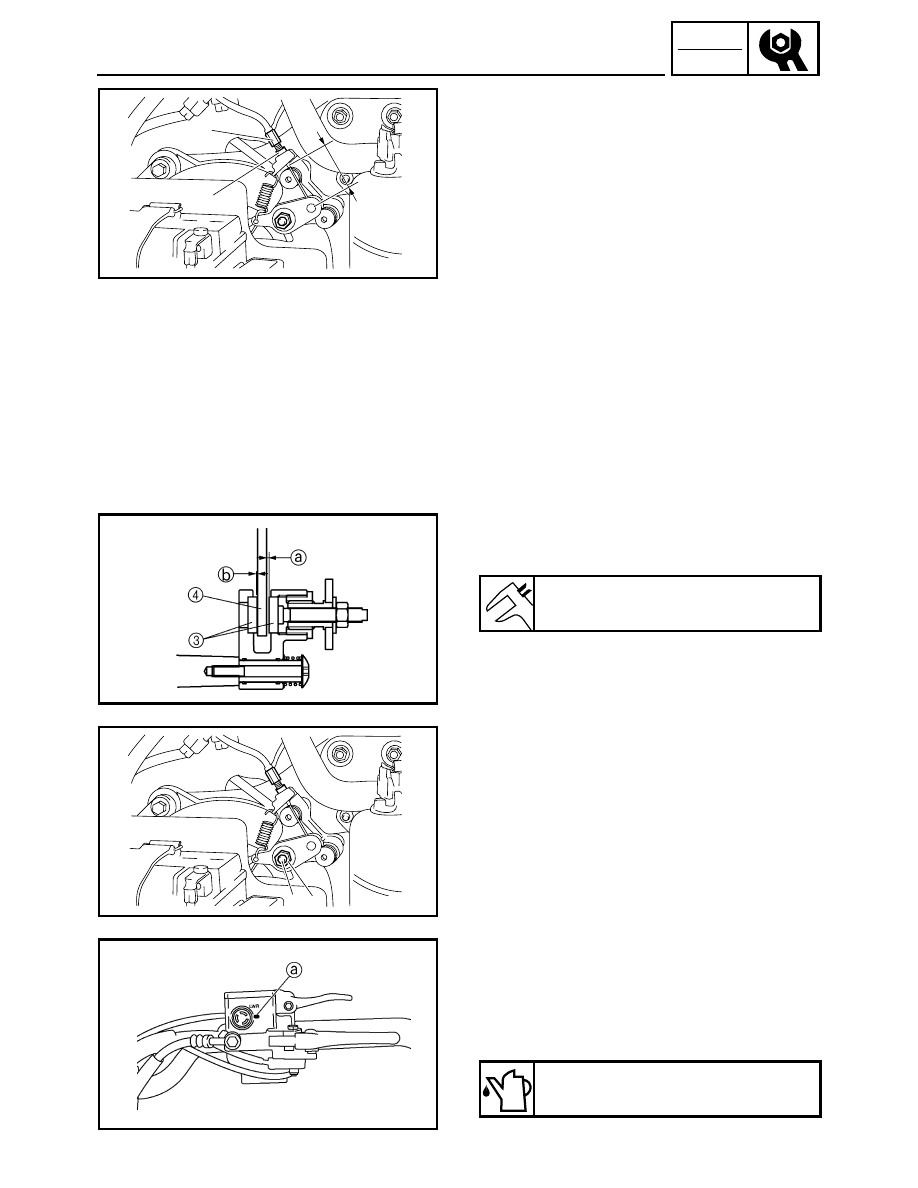

PARKING BRAKE ADJUSTMENT/

BRAKE FLUID LEVEL INSPECTION

3. Adjust:

• Parking brake cable

Adjustment steps:

• Loosen the locknut 1.
• Turn the adjuster 2 in or out until the specified

distance

a is obtained.

• Tighten the locknut.

Turning in

 Distance a is increased.

Turning out

 Distance a is decreased.

a

1

2

4. Measure:

• Brake pad clearance (

a + b)

Out of specification

→ Adjust.

5. Adjust:

• Brake pad clearance

Adjustment steps:

• Loosen the locknut 1.
• Turn the adjuster 2 in or out until the specified

clearance between the brake pad 3 and brake
disc 4 is obtained.

• Tighten the locknut.

Brake pad clearance (

a + b):

1.5 ~ 2.0 mm (0.059 ~ 0.079 in)

1

2

BRAKE FLUID LEVEL INSPECTION

1. Place the machine on a level surface.
2. Check:

• Fluid level

Fluid level is under the lower level line

a →

Fill to the proper level.

Recommended brake fluid:

DOT 4

2-31

INSP

ADJ

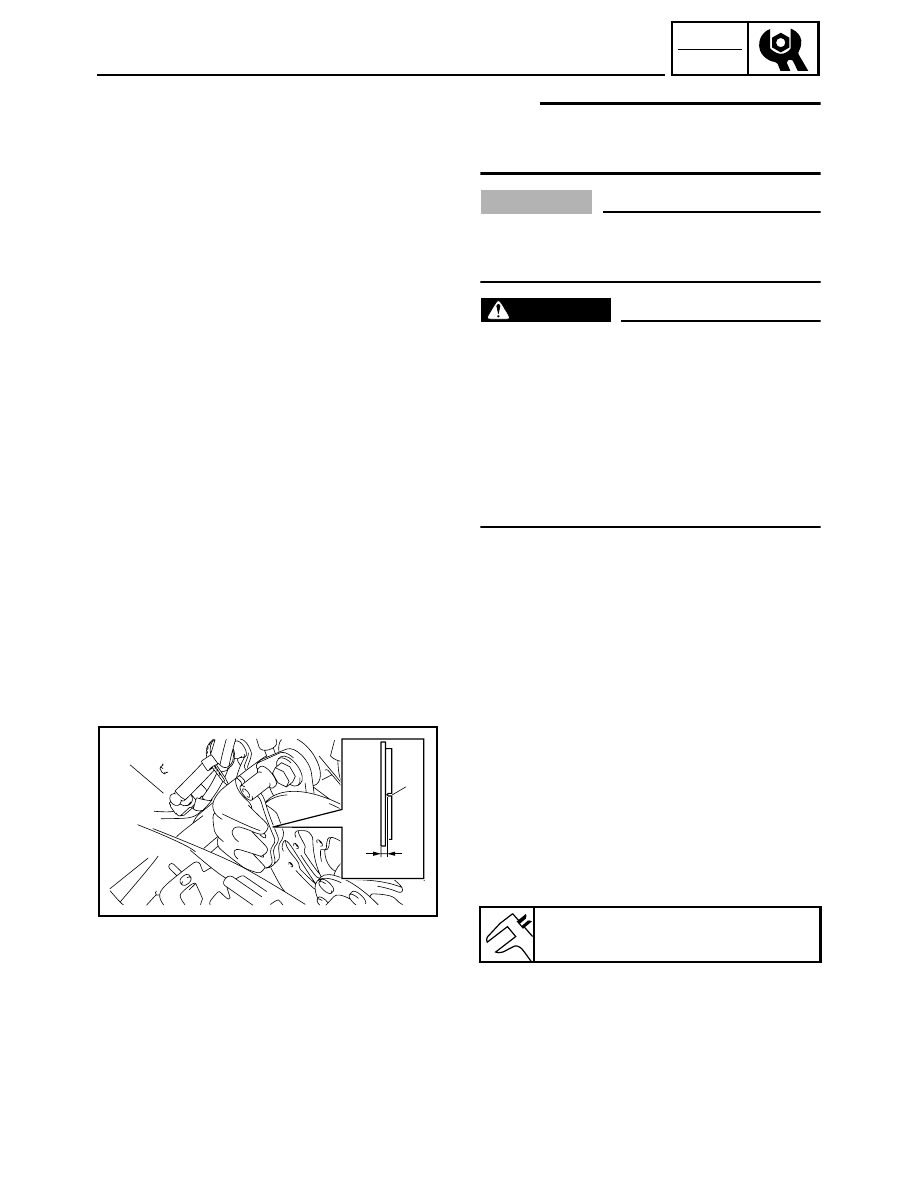

BRAKE FLUID LEVEL INSPECTION/

BRAKE PAD INSPECTION

NOTE:

For a correct reading of the brake fluid level, make
sure that the top of the handlebar brake master cyl-
inder reservoir is horizontal.

CAUTION:

Brake fluid may corrode painted surfaces or
plastic parts. Always clean up spilled fluid
immediately.

WARNING

• Use only the designated brake fluid. Other flu-

ids may deteriorate the rubber seals, causing
leakage and poor brake performance.

• Refill with the same type of fluid. Mixing fluids

may result in a harmful chemical reaction
leading to poor brake performance.

• When refilling, be careful that water does not

enter the brake master cylinder reservoir.
Water will significantly lower the boiling point
of the fluid and may cause vapor lock.

BRAKE PAD INSPECTION

1. Remove:

• Right side cover

Refer to “COWLINGS” in CHAPTER 3.

2. Apply the brake lever.
3. Inspect:

• Brake pad wear

Wear indicator 1 nearly contacts the brake
disc

→ Replace as a set.

Wear limit:

4.7 mm (0.19 in)

a

1
