Snowmobile Yamaha Phazer PZ50 (2007-2008 year). Instruction - part 85





8-52

+

ELEC

COOLING SYSTEM (PZ50M/PZ50VT/PZ50MP)

TROUBLESHOOTING

Check the main fuse, ignition fuse, and radiator fan
motor fuse.
Refer to “FUSE INSPECTION” in CHAPTER 2.

Check the battery.
Refer to “BATTERY INSPECTION” in CHAPTER 2.

Check the stator coil.
Refer to “CHARGING SYSTEM”.

Check the main switch.
Refer to “IGNITION SYSTEM”.

Check the radiator fan motor.

Check the radiator fan motor relay.

Check the coolant temperature sensor.
Refer to “SIGNAL SYSTEM”.

Check the load control relay.
Refer to “LIGHTING SYSTEM”.

Correct the connection and/or replace the rectifier/
regulator and/or the ECU.

THE RADIATOR FAN MOTOR DOES NOT MOVE

OK

FAULTY

Replace the main fuse, ignition fuse, and/or radia-
tor fan motor fuse.

OK

OUT OF SPECIFICATION

Replace and/or charge the battery.
Refer to “BATTERY INSPECTION” in CHAPTER
2.

OK

OUT OF SPECIFICATION

Replace the stator coil assembly.

OK

NO CONTINUITY

Replace the main switch.

OK

FAULTY

Replace the radiator fan motor.

OK

FAULTY

Replace the radiator fan motor relay.

OK

FAULTY

Replace the coolant temperature sensor.

OK

FAULTY

Replace the load control relay.

8-53

+

ELEC

COOLING SYSTEM (PZ50M/PZ50VT/PZ50MP)

RADIATOR FAN MOTOR

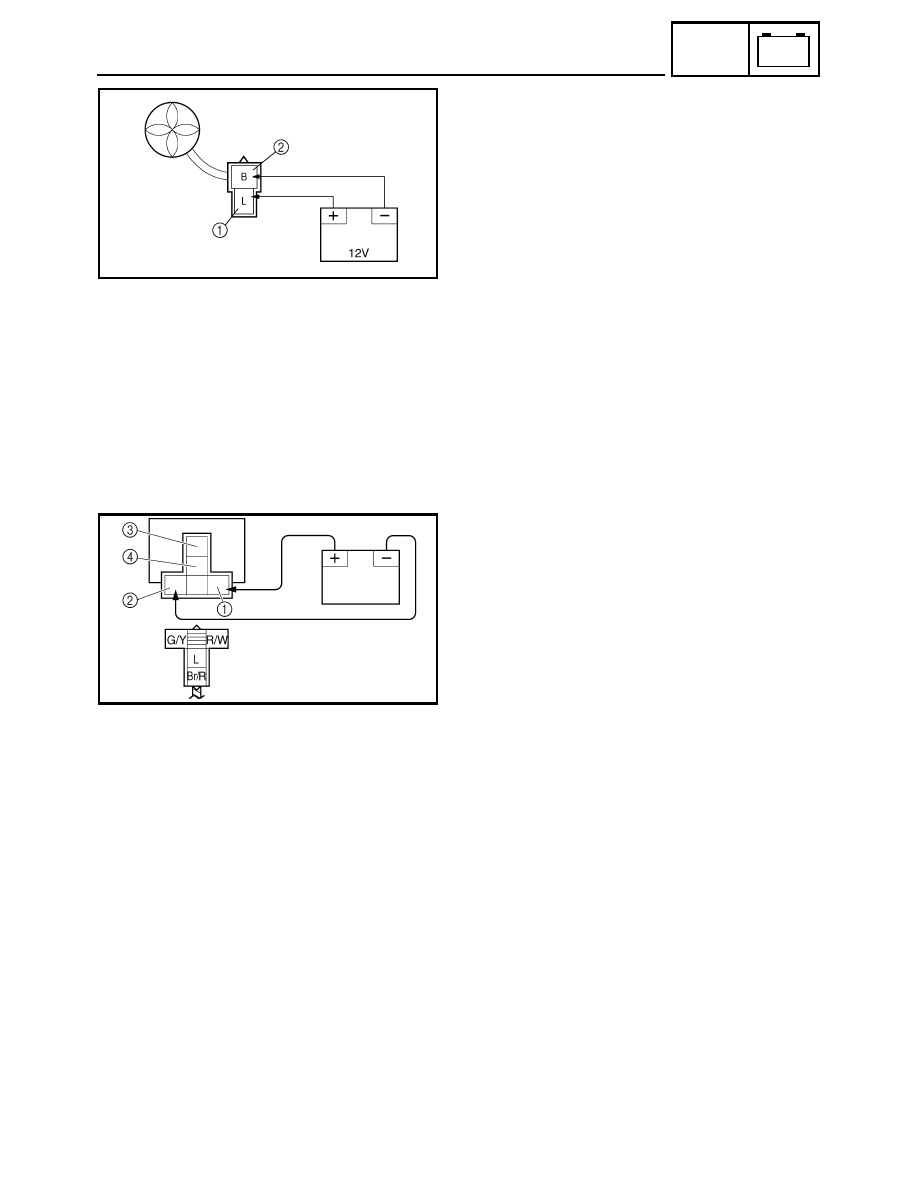

1. Disconnect:

• Radiator fan motor coupler

2. Connect:

• Battery

3. Inspect:

• Radiator fan motor

Does not move

→ Replace the radiator fan

motor.

Positive battery terminal

 Blue 1

Negative battery terminal

 Black 2

RADIATOR FAN MOTOR RELAY

1. Remove:

• Radiator fan motor relay

Inspection steps:

• Connect the pocket tester (

Ω × 1) and battery

(12 V) to the radiator fan motor relay terminals
as shown.

• If radiator fan motor relay does not have conti-

nuity between the brown/red and blue terminals,
replace it.

Positive battery terminal

 Red/White 1

Negative battery terminal

 Green/Yellow 2

Positive tester probe

 Brown/Red 3

Negative tester probe

 Blue 4

8-54

+

ELEC

DRIVE/R

EVERSE SELECT

ING SYSTEM

(PZ50GT

/PZ50FX/PZ

50M/PZ50VT

/PZ50MP)

DRIVE/REVERSE SELECTING SYSTEM (PZ50GT/PZ50FX/PZ50M/PZ50VT/PZ50MP)

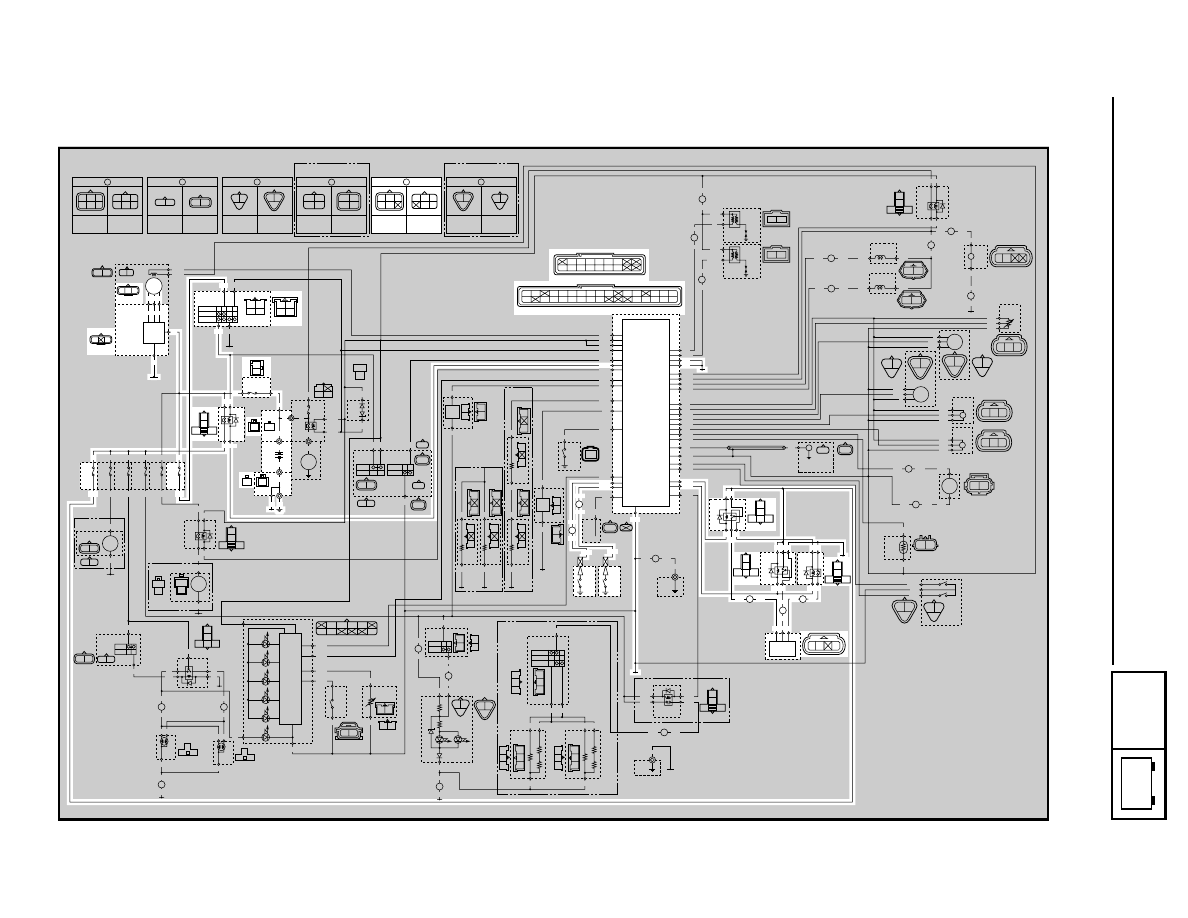

CIRCUIT DIAGRAM

B

R/L

(20A)

R/W

R/W

R/W

O R/W

(BLACK)

O

O

O

B

L/W
