7-14

FI

FUEL INJECTION SYSTEM

TROUBLESHOOTING DETAILS

This section describes the measures per fault code number displayed on the meter. Check and service the
items or components that are the probable cause of the malfunction following the order given.
After the check and service of the malfunctioning part have been completed, reset the meter display accord-
ing to the reinstatement method.
Fault code No.:

Code number displayed on the meter when the engine failed to work normally. (Refer to “Fault code
table”
.)

Diagnostic code No.:

Code number to be used when the diagnostic mode is operated. (Refer to “DIAGNOSTIC MODE”.)

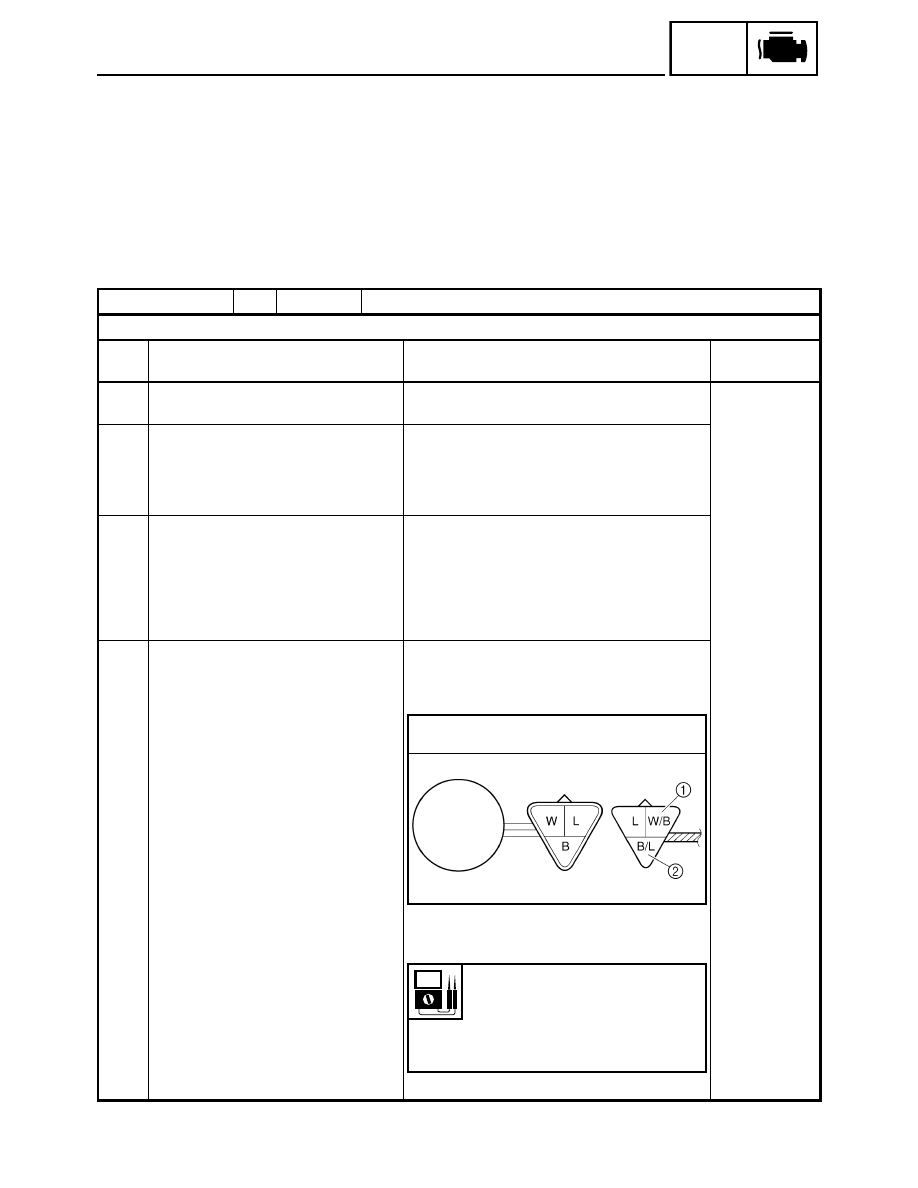

Fault code No.

11

Symptom

No normal signals are received from the cylinder identification sensor.

Diagnostic code No. – –

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Installed condition of cylinder identifica-
tion sensor.

Check for looseness or pinching.

Starting the
engine and
operating it at
idle.

2

Connections

Cylinder identification sensor coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

3

Open or short circuit in wire harness.

Repair or replace if there is an open or short cir-
cuit.
Between cylinder identification sensor coupler
and ECU coupler.

Blue – Blue
White/Black – White/Black
Black/Blue – Black/Blue

4

Defective cylinder identification sensor.

Replace if defective.
1. Connect the pocket tester (DC 20 V) to the cyl-

inder identification sensor coupler terminals as
shown.

2. Turn the main switch on.
3. Measure the cylinder identification sensor out-

put voltage.

4. Is the cylinder identification sensor OK?

Positive tester probe

 White/Black 1

Negative tester probe

 Black/Blue 2

Cylinder identification sensor out-
put voltage:

When sensor is on:

4.8 V or more

When sensor is off:

0.8 V or less

7-15

FI

FUEL INJECTION SYSTEM

Fault code No.

12

Symptom

No normal signals are received from the crankshaft position sensor.

Diagnostic code No. – –

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Installed condition of crankshaft position
sensor.

Check for looseness or pinching.

Cranking the
engine.

2

Connections

Crankshaft position sensor coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

3

Open or short circuit in wire harness.

Repair or replace if there is an open or short cir-
cuit.
Between crankshaft position sensor coupler and
ECU coupler.

Gray – Gray
Black/Blue – Black/Blue

4

Defective crankshaft position sensor.

Replace if defective.
Refer to “CRANKSHAFT POSITION SENSOR” in
CHAPTER 8.

7-16

FI

FUEL INJECTION SYSTEM

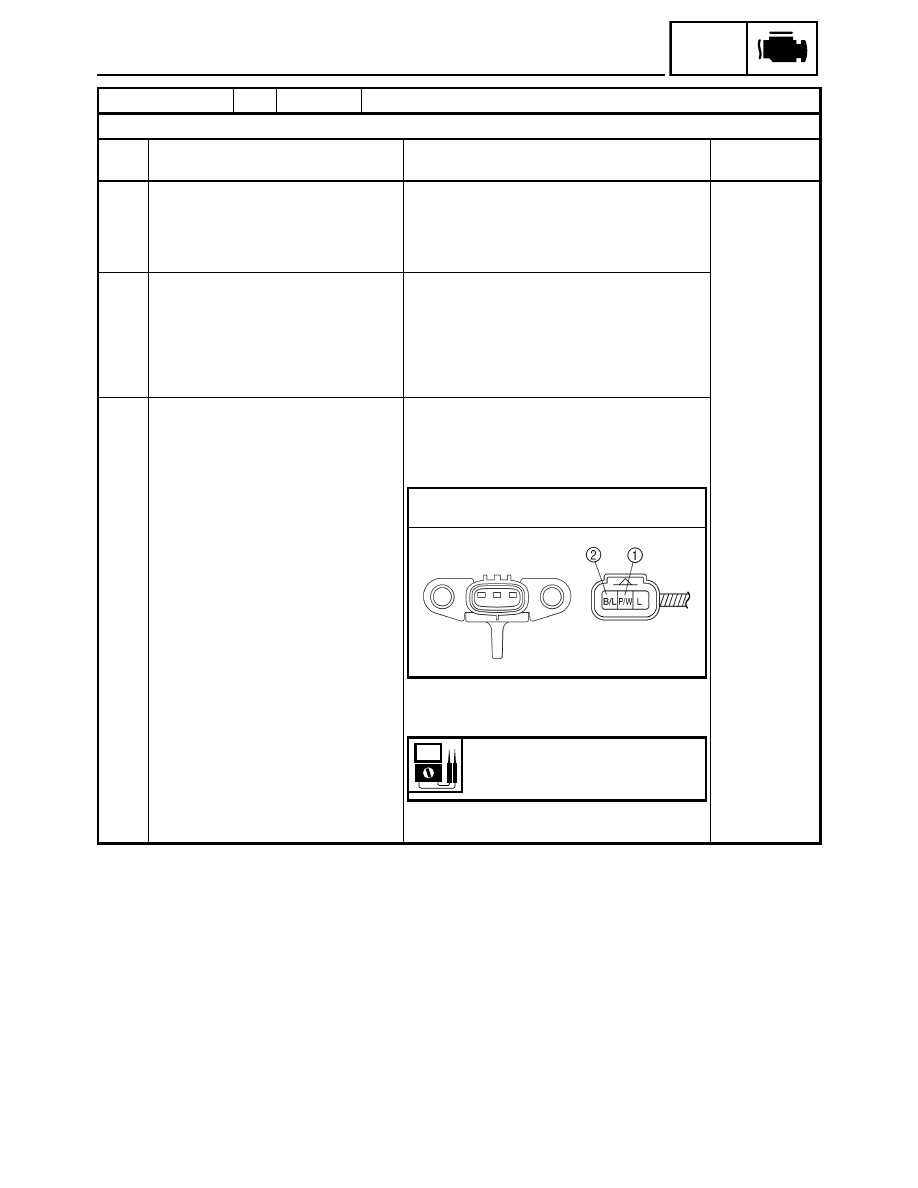

Fault code No.

13

Symptom

Cylinder-#1 intake air pressure sensor: open or short circuit detected.

 Diagnostic code No. 03 (cylinder-#1 intake air pressure sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Connections

Cylinder-#1 intake air pressure sen-
sor coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

Turning the
main switch on.

2

Open or short circuit in wire harness.

Repair or replace if there is an open or short cir-
cuit.
Between cylinder-#1 intake air pressure sensor
coupler and ECU coupler.

Black/Blue – Black/Blue
Pink/White – Pink/White
Blue – Blue

3

Defective cylinder-#1 intake air pressure
sensor.

Execute the diagnostic mode (code No. 03).
Replace if defective.
1. Connect the pocket tester (DC 20 V) to the cyl-

inder-#1 intake air pressure sensor coupler
terminals as shown.

2. Turn the main switch on.
3. Measure the cylinder-#1 intake air pressure

sensor output voltage.

4. Is the cylinder-#1 intake air pressure sensor

OK?

Positive tester probe

 Pink/White 1

Negative tester probe

 Black/Blue 2

Cylinder-#1 intake air pressure
sensor output voltage:

2.55 ~ 4.25 V

7-17

FI

FUEL INJECTION SYSTEM

Fault code No.

14

Symptom

Cylinder-#1 intake air pressure sensor: hose system malfunction (clogged
or detached hose).

Diagnostic code No. 03 (cylinder-#1 intake air pressure sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Cylinder-#1 intake air pressure sensor
hose is detached, clogged, kinked, or
pinched.
Cylinder-#1 intake air pressure sensor
malfunction at intermediate electrical
potential.

Repair or replace the sensor hose.
Inspect and repair the connection.

Starting the
engine and
operating it at
idle.

2

Connections
Cylinder-#1 intake air pressure sensor
coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

3

Defective cylinder-#1 intake air pressure
sensor.

Execute the diagnostic mode (code No. 03).
Replace if defective.
Refer to “Fault code No. 13”.

Fault code No.

15

Symptom

Throttle position sensor: open or short circuit detected.

Diagnostic code No. 01 (throttle position sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Installed condition of throttle position
sensor.

Check for looseness or pinching.
Check that it is installed in the specified position.
Refer to “THROTTLE BODY”.

Turning the
main switch on.

2

Connections

Throttle position sensor coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

3

Open or short circuit in wire harness.

Repair or replace if there is an open or short cir-
cuit.
Between throttle position sensor coupler and
ECU coupler.

Black/Blue – Black/Blue
Yellow – Yellow
Blue – Blue

4

Throttle position sensor lead wire open
circuit output voltage check.

Check for open circuit and replace the throttle
position sensor.

Black/Blue – Yellow

Open circuit item

Output voltage

Ground wire open cir-
cuit

5 V

Output wire open circuit  0 V

Power supply wire
open circuit

0 V

5

Defective throttle position sensor.

Execute the diagnostic mode (code No. 01).
Replace if defective.
Refer to “THROTTLE BODY”.
