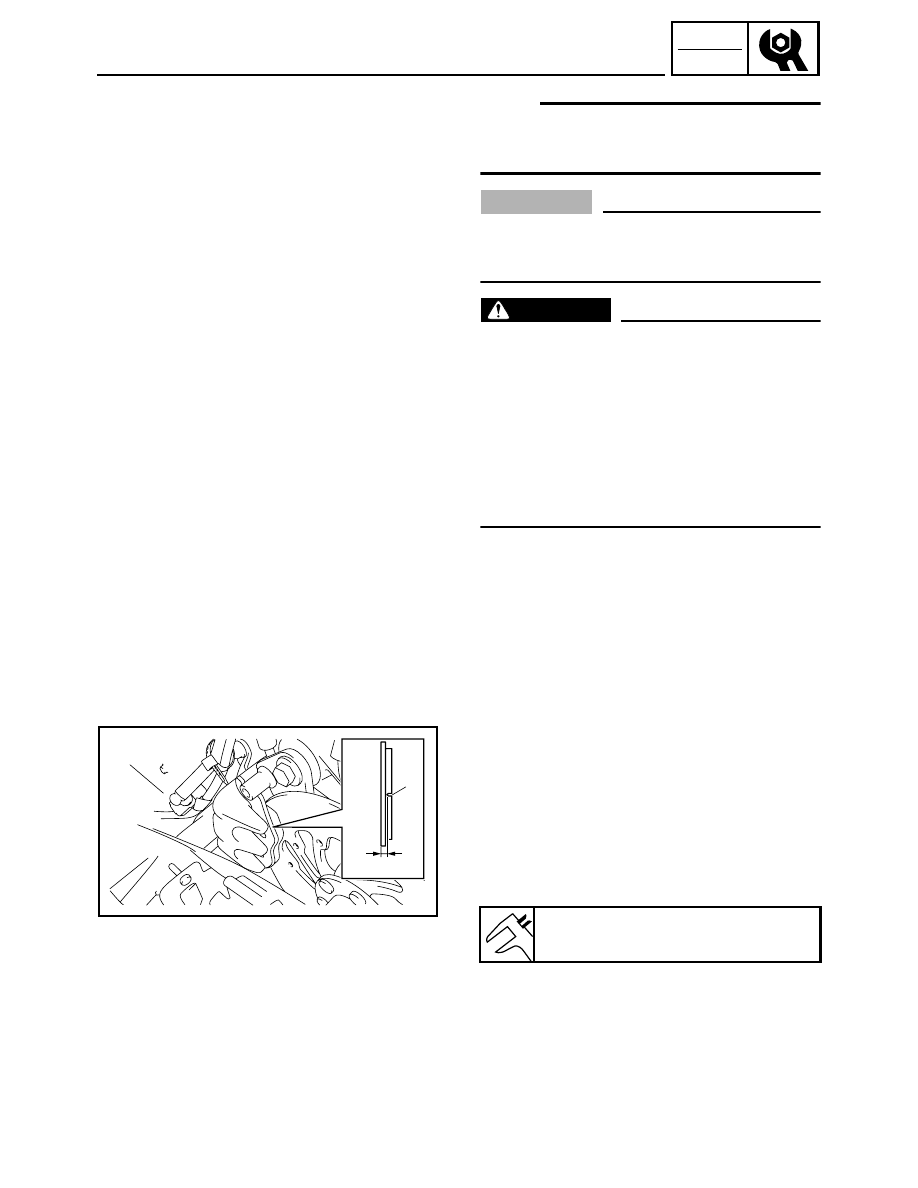

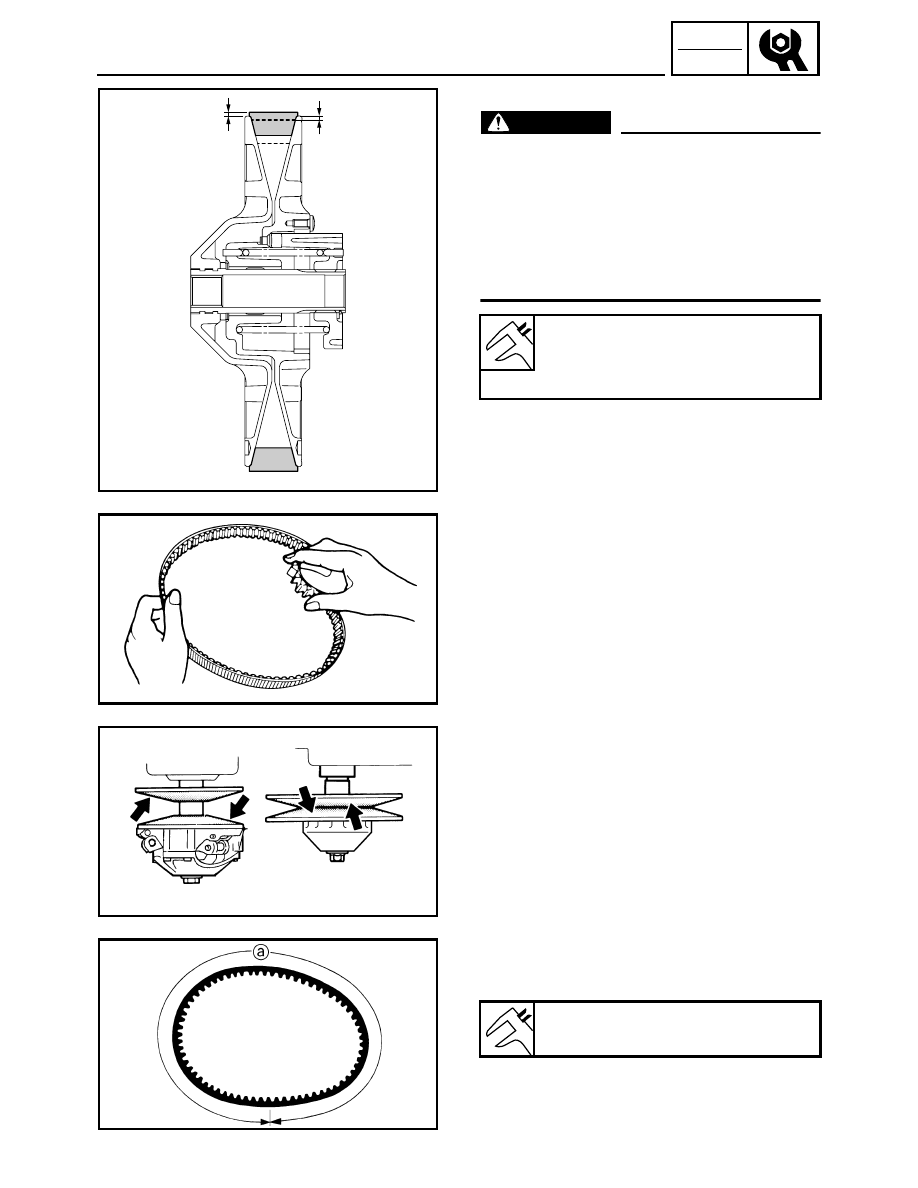

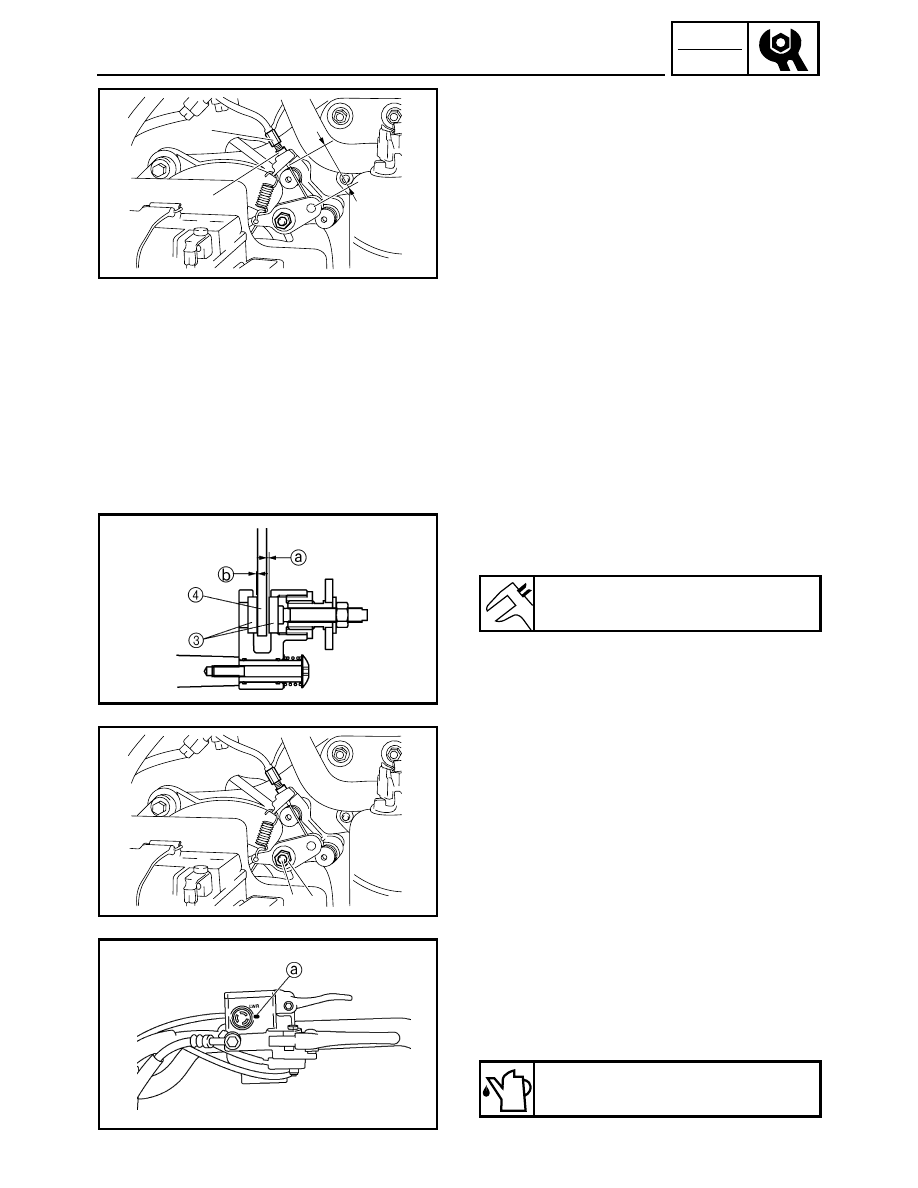

2-28 INSP ADJ DRIVE V-BELT WARNING When installing the new V-belt, make sure that a. If the V-belt is not positioned correctly, the New belt width: 34.1 mm (1.34 in) Belt wear limit width: 32.5 mm (1.28 in) a a 1. Inspect: • Drive V-belt Cracks/damage/wear → Replace. Oil or grease on the V-belt → Check the pri- mary and secondary sheaves. 2. Inspect: • Primary sheave Oil or grease on the primary and secondary → Use a rag soaked in lacquer thin- ner or solvent to remove the oil or grease. 3. Measure: • Drive V-belt circumference a Out of specification → Replace. V-belt circumference: 1,132 ~ 1,138 mm (44.6 ~ 44.8 in) |
