Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 44





5.18

Final Drive/Brake System

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

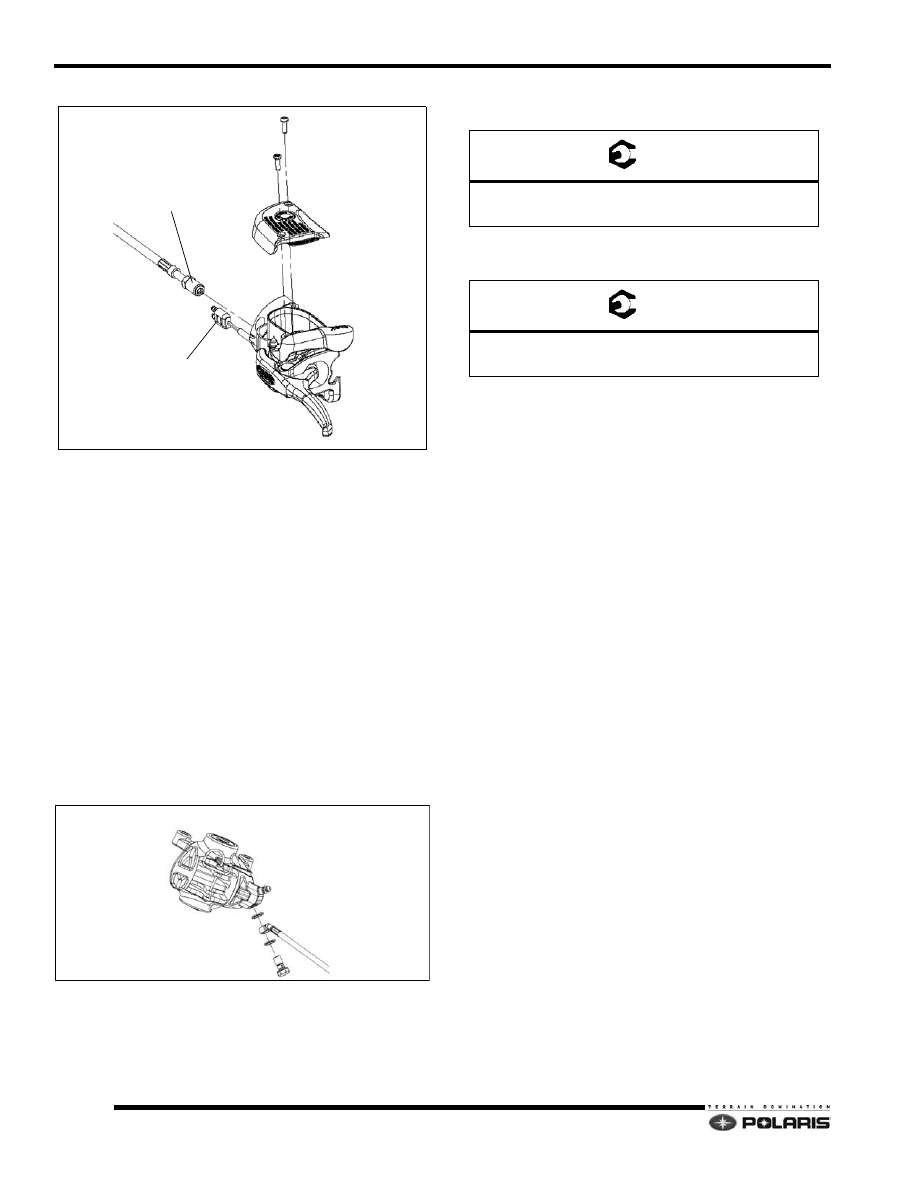

Brake Line Replacement

Follow these steps if the brake line is to be replaced.

1.

Drain the brake system by attaching a clear hose to
the caliper bleed fitting.

2.

Attach the other end to a Mity Vac or similar vacuum
tool.

3.

Bleed the system of brake fluid.

4.

Note the orientation of the brake line. The brake line
will need to be replaced in the same orientation.
Remove the brake line from the caliper assembly. Use
a shop towel to catch any remaining brake fluid in the
hose.

5.

On Cyclone master cylinders, remove the banjo bolt,
washers and fitting from reservoir.

6.

On combined master cylinder, loosen the brake line
from the master cylinder 1/4 to 1/2 turn.

7.

Remove the 4 screws that hold the master cylinder to
the handlebar. This will separate the master cylinder
from the switch pack.

8.

Unplug the brake light switch harness from the master
cylinder.

9.

Remove the brake line from the master cylinder.

10. Install new brake line on caliper and orientate it as

noted in step 4.

11. Insert the new brake line and install into the master

cylinder. Torque the brake line to specification.

12. Tighten the brake line into the master cylinder in an

orientation so that the line does not have any sharp
bends when it is installed on the handlebar.

13. Route the brake light switch in the harness correctly.

BRAKE SWITCH

BRAKE HOSE FITTING

COMBINED MASTER CYLINDER SHOWN

T

Brake Caliper Banjo Bolt:

240-264 in-lb (27-30Nm)

T

Brake Line-to-Master Cylinder:

 240-264 in-lb (27-30Nm)

5.19

Final Drive/Brake System

5

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

14. On combined master cylinders, place the switch pack

with the master cylinder onto the handle bar. Two
smaller screws should be placed on the top and the
longest screw is placed on the lower right.

15. Follow the bleeding procedure. See “Brake Fluid

Replacement & Bleeding” on page 5.16.

16. Test brake system prior to returning vehicle to service.

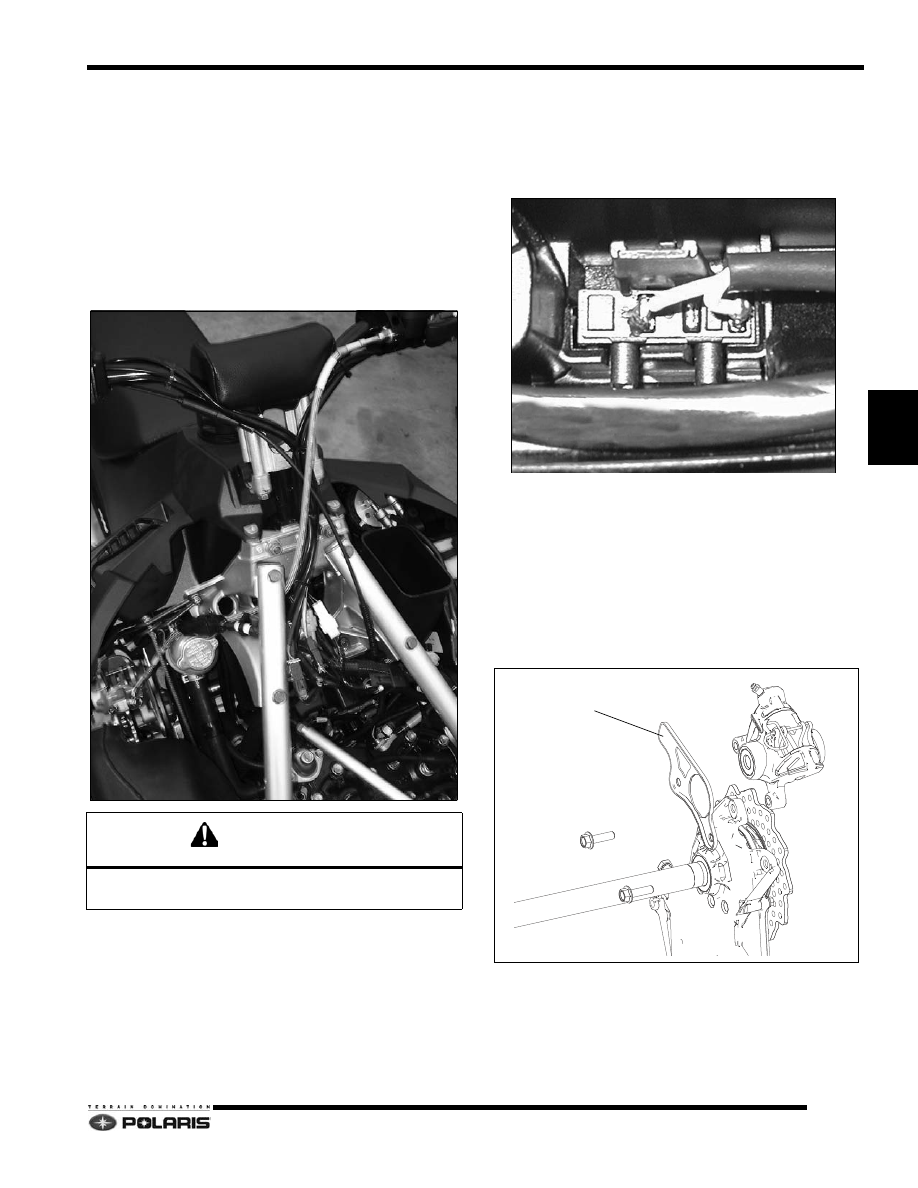

Brake Hose Routing

Route brake hose over steering block, under right over
structure tube, and behind coolant surge tank.

Combined MC Brake Light Switch

Replacement

1.

Remove the 4 screws that hold the master cylinder to
the handlebar. This will separate the master cylinder
from the switch pack.

2.

Unplug the brake light switch harness from the master
cylinder.

3.

Replace faulty brake light switch into the master
cylinder and route wires correctly.

4.

Plug the brake switch back into the harness.

5.

Replace the master cylinder to the switch pack and
insert the smaller screws on the top, the longest one
goes into the lower right side.

Phantom Brake Caliper Removal

1.

Remove the two caliper bolts that hold the caliper and
silencer bracket to the chaincase.

NOTE: DC-CFI-2 models with Phantom calipers do
not feature silencer bracket. Washers are installed in
its place.

CAUTION

Do not pinch brake hose between over structure tubes

and steering block or between hood and hood mounts.

SILENCER BRACKET
600 RUSH DC-CFI-4 MODELS ONLY
ALL OTHER PHANTOM=WASHERS

5.20

Final Drive/Brake System

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

2.

Remove the caliper from the chaincase. Tie the
caliper to the overstructure. Do not allow the brake
caliper to hang from the brake hose.

Phantom Brake Caliper Installation

1.

Apply Loctite® 242™ and replace caliper bolts, and
silencer bracket or washers if equipped. Torque bolts
to specification.

2.

Place the brake line on the caliper in the same
orientation as it was before it was removed.

3.

Clean the threads of the banjo bolt and the threads in
the caliper.

4.

Follow Brake Line Replacement. See “Brake Line
Replacement” on page 5.18.

5.

Install banjo bolt into the caliper and torque it to
specification.

6.

Bleed the brakes. See “Brake Fluid Replacement &
Bleeding” on page 5.16.

7.

Test brake system prior to returning vehicle to service.

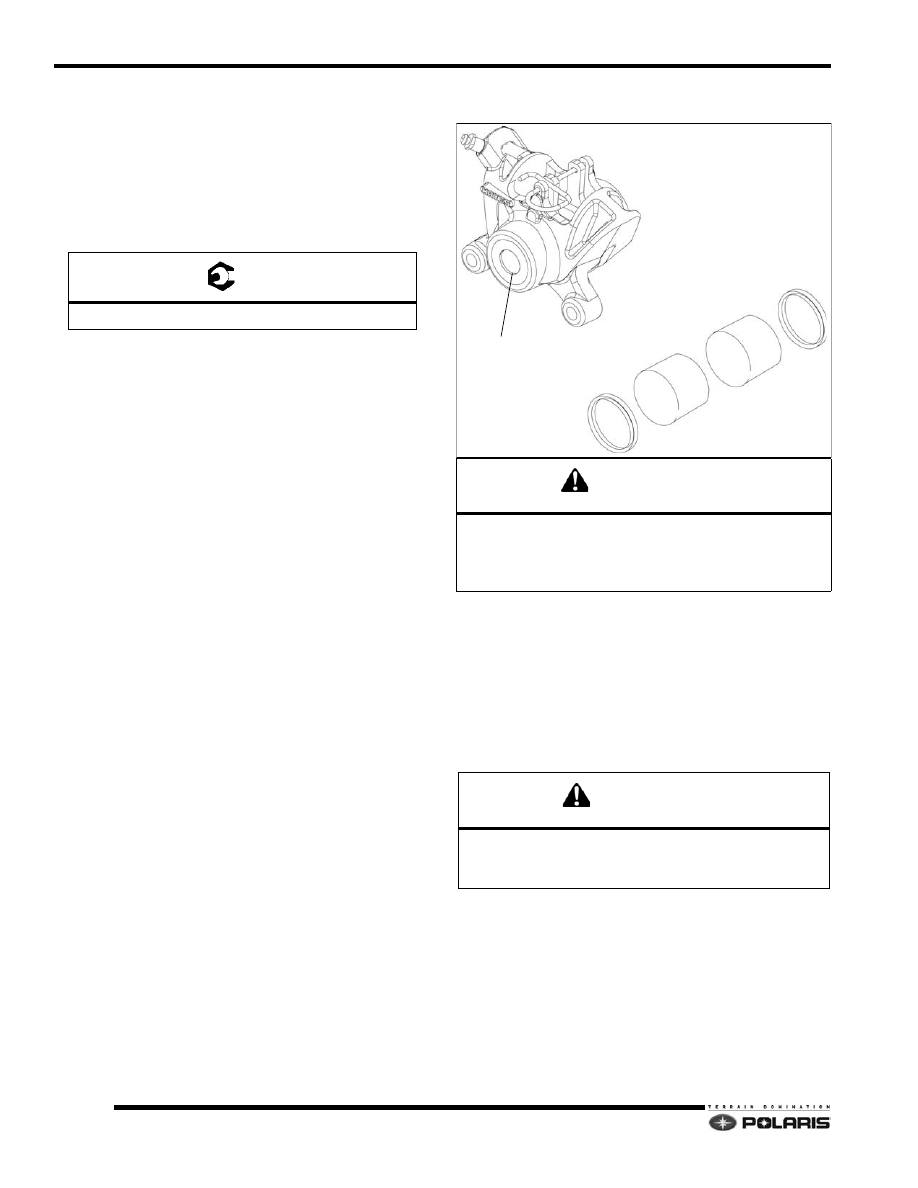

Phantom Brake Caliper Piston and Seal

Replacement

1.

Remove the brake hose from the caliper. Drain the
brake fluid into a jar or suitable container.

2.

Rotate and remove the brake pad retaining pin and
then remove the brake pads. Remove the caliper from
the chaincase.

3.

Hold the caliper over the brake fluid jar and then push
the pistons back into the caliper. This will push the
brake fluid in the caliper out of the brake hose banjo
fitting hole.

4.

Clamp the end of a 1/4” thick 2” x 10” piece of steel to
the workbench. Allow the piece of steel to hang off of
the bench by 4 - 5”.

T

Caliper Bolts: 40 ft-lb (54 Nm)

CAUTION

NEVER RE-USE PISTON SEALS. ALWAYS REPLACE

WITH NEW PARTS.

DO NOT ATTEMPT TO SAND OR POLISH A CALIPER

PISTON.

CAUTION

NEVER RE-USE BRAKE FLUID. USED BRAKE FLUID

MAY CONTAIN AIR BUBBLES. ALWAYS USE NEW

BRAKE FLUID FROM A UNOPENED CONTAINER.

PISTONS

PISTON SEAL

PISTON SEAL

CALIPER BORE PLUG
DO NOT PUSH OR MOVE!

5.21

Final Drive/Brake System

5

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

5.

Position the caliper over the steel plate with the plate
firmly against one of the retracted pistons.

6.

Insert a rubber-tipped air nozzle into the brake hose
inlet port and apply compressed air to push out the
piston.

7.

To remove the second piston, lay a rubber sheet on
the steel plate and position the caliper over the rubber
sheet to seal the open piston bore. Repeat STEP 7.

8.

Using a plastic or wood pick, remove both piston seals
from the caliper bores. Discard the seals.

9.

Clean the caliper and pistons with denatured alcohol
and dry with either compressed air or a lint-free rag.

10. Inspect the caliper bores and pistons for pitting, heavy

scoring or corrosion. Replace parts if heavily scored
or pitted.

11. To assemble the caliper, lubricate two new piston

seals with new brake fluid. Install each seal by
inserting one point of the seal into the bore groove,
and then work the seal around the groove with your
index finger. Do not twist, or rip the seals.

12. Coat the piston thoroughly with new brake fluid.

Evenly insert each piston into the bores, working each
in by hand carefully and slowly. Push each piston
down until bottomed out.

13. Reinstall the brake caliper on to the chaincase.

Torque fasteners to specification.

14. Inspect both brake pads prior to installation. If they are

within the pad wear specification, reinstall into caliper.

15. Install the brake hose using the same routing and

orientation noted during removal. Torque fitting to
specification.

16. Fill and bleed the brake system of air. See “Brake

Fluid Replacement & Bleeding” on page 5.16.

17. Test brake system prior to returning vehicle to service.

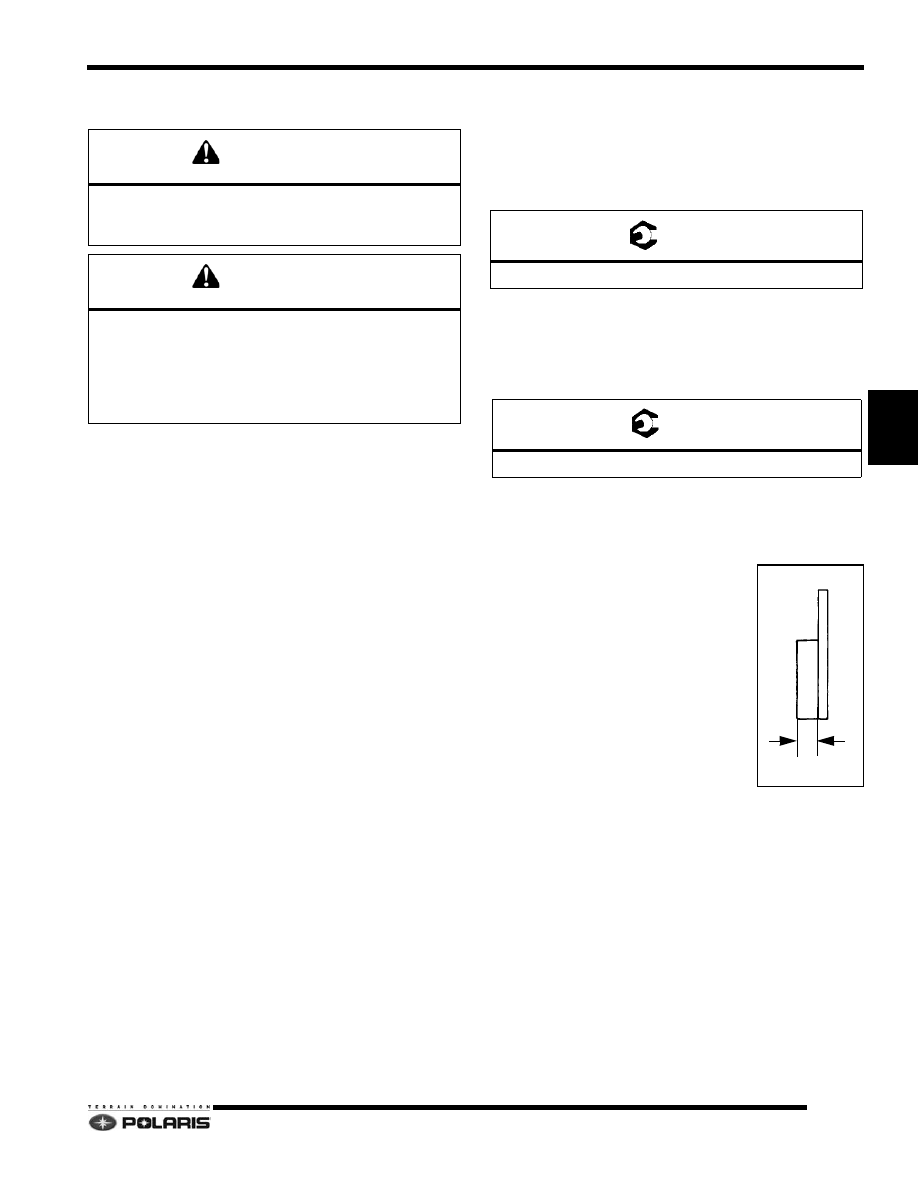

Phantom Brake Pad

Replacement

Brake pads need to be replaced if the
thickness of the friction material is less
than 1/16" (.0625") / 1.5mm.

1.

Remove brake pad retaining pin.

2.

Remove the brake pads.

3.

Inspect the brake disc for any wear.

4.

Replace brake pads in reverse
order of removal.

5.

Test brake system prior to returning
vehicle to service.

CAUTION

DO NOT PUSH ON THE CALIBER BORE PLUG.

DOING SO WILL BREAK THE PLUG SEAL AND

REQUIRE CALIPER REPLACEMENT.

WARNING

TO AVOID POSSIBLE INJURY, DO NOT PLACE

FINGERS BETWEEN PISTONS TO ATTEMPT TO

CATCH THEM WHEN APPLYING COMPRESSED

AIR.

WEAR EYE PROTECTION WHEN APPLYING

COMPRESSED AIR TO CALIPER.

T

Caliper Mounting Screws: 18-20 ft-lb (24-27 Nm)

T

Caliper Banjo Bolt: 240-264 in-lb (27-30Nm)

1/16(.0625") / 1.5mm

Brake Pad
