Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 27





4.4

Cleanfire Fuel Injection

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

ENGINE PROTECTION FEATURES

Engine Temperature RPM Limit

The ECU will illuminate the instrument cluster engine hot
LED when it determines the engine is overheating. The
ECU will flash the hot LED and enable a RPM misfire if it
determines continued engine operation will cause serious
engine damage. The ECU makes this determination
based on current engine coolant temp, engine RPM, and
throttle position.

NOTE:  * = Only minimum (idle) and maximum (WOT)
parameters listed.

The driver must take immediate action to cool the engine
once the hot LED is illuminated. Drive the snowmobile in
loose, un-packed snow to cool the engine. If trail
conditions are poor, turn the engine off and allow it to cool.

When the engine is cool, check the coolant level in the
surge bottle (reservoir). Only add coolant when the engine
is sufficiently cooled. Never add coolant when engine is
hot.

If the snowmobile must be operated while the indicator
LED is illuminated, drive slowly and stop the engine
frequently to allow it to cool down.

Continued engine operation with the engine hot LED
illuminated may cause serious engine damage. If the ECU
determines serious engine damage may occur, the hot
lamp will flash and an engine RPM misfire will be enabled.

The ECU will also register and accumulate (count the
number of occurrences) DTCs (110/0 or 110/16) if the
engine overheats or goes into the overheat misfire mode.

Engine Overheating Troubleshooting

If the hot lamp is illuminated or flashing with the engine
overheat RPM misfire enabled, reference the table below.

Engine Temperature Limit Modes

MODEL

HOT



LAMP

MODE

THRESHOLD

*

600/800

DC-CFI 2/4

Hot Lamp ON

Hot Lamp Illuminates:

Idle = 230° F/110° C

WOT = 185° F/85° C

Hot Lamp
FLASH

Hot Lamp Flashes

RPM Misfire at:

Idle = 239° F/115° C

WOT = 208° F/98° C

CAUSE



OF



OVERHEAT

SOLUTION

Riding in poor conditions

Ride snowmobile on good
snow (loose, fresh, un-packed
snow)

Low coolant level

Allow engine to cool. Refill
coolant surge bottle to COLD
line

Incorrect coolant/mix ratio

Use 60/40 (propylene glycol/
distilled water mixture

Air in cooling system

Bleed cooling system

Heat exchangers/hoses
damaged or plugged

Inspect components for
damage, hose kinks, etc.

Thermostat malfunctioning

Inspect thermostat for proper
operation

Water pump malfunctioning

Inspect coolant flow

Cylinder base gaskets/o-rings
damaged.

Pressure test cooling system.
Verify system holds pressure/
pressure does not leak into
cylinders

Snow flap damaged or
removed

Inspect rear snow flap
assembly. Verify flap(s) are not
damaged or missing

Vehicle use

Verify vehicle is not overloaded
during operation (high load/
high engine RPM and low
ground speed)

Track condition/tension

Verify track is not missing lugs.
Set correct track tension

4.5

Cleanfire Fuel Injection

4

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

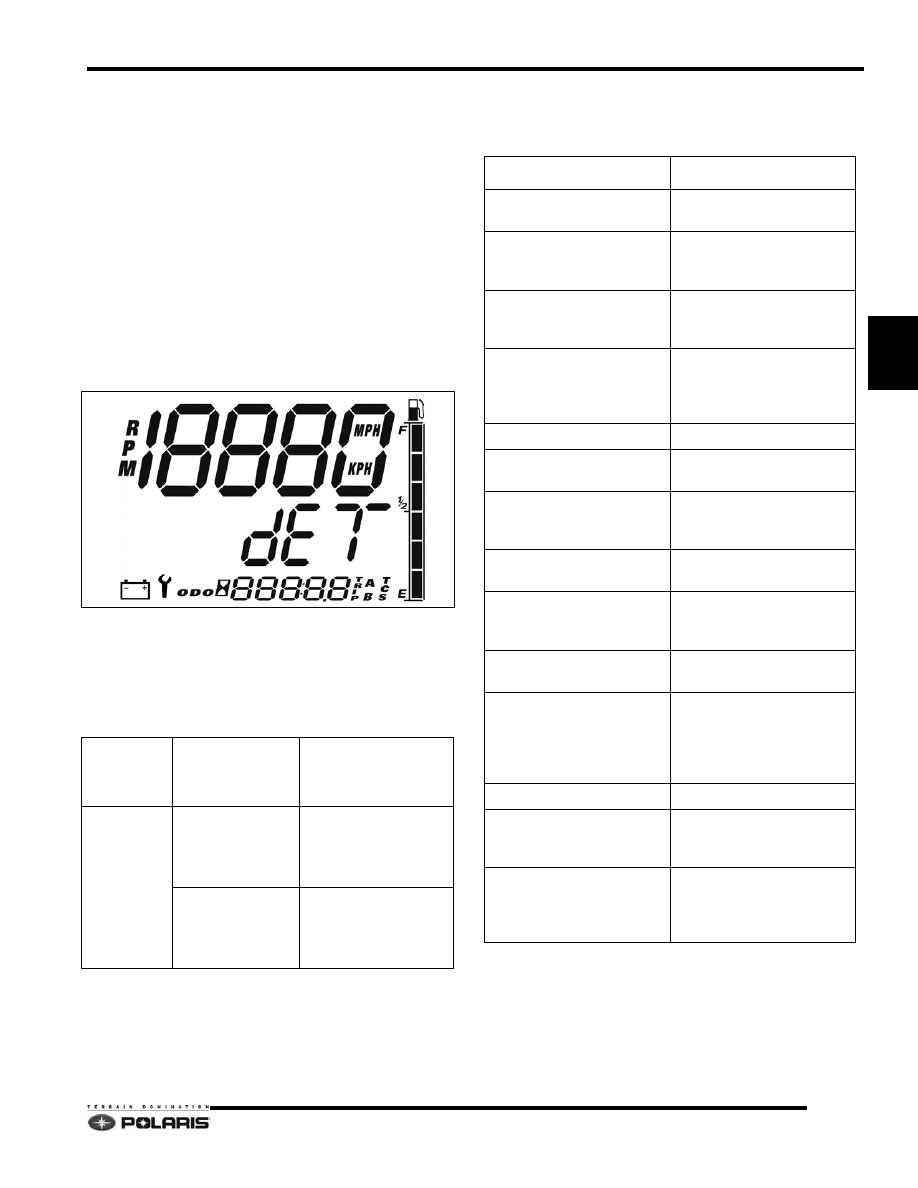

Detonation Protection (DET)/RPM Limit

When DET is sensing and taking action to reduce
detonation, the driver may notice a drop in engine RPM
and/or reduced performance.

The ECU will illuminate the instrument cluster check
engine LED and display “dET” on the LCD screen
whenever the DET system is active.

If the ECU determines the detonation cannot be controlled
by normal means and further operation may cause engine
damage, the check engine LED will flash, the instrument
cluster will display “dET”, and the ECU will limit the
maximum engine speed to 6,500 RPM. The RPM limit will
remain active until the driver turns off and restarts the
engine.

If the detonation RPM limit occurs, a diagnostic trouble
code (DTC) will be registered. Digital Wrench will display
one of the following codes: 1352/0 (P1336), 1352/16
(P2336), 1353/0 (P1337), or 1353/16 (P2337).

DET Troubleshooting

If the check engine LED is illuminated and/or flashing with
“dET” displayed on the instrument cluster, reference the
following table.

NOTE: A DET Troubleshooting flowchart is located
at the end of the chapter.

DET Protection RPM Limit Modes

MODEL

CHECK



ENGINE



LED

/

INSTRUMENT



CLUSTER



MODE

RPM



LIMIT

600/800

DC-CFI-2/4

Check engine

LED illuminated/

“dET” displayed

on LCD

Driver may notice

slight drop in engine

RPM/power

Check engine

LED flashing/

“dET” displayed

on LCD

6,500 RPM Misfire

Turn off engine to

reset.

CAUSE



OF



DET



ACTIVATION

SOLUTION

Low fuel/no fuel in tank

Refill tank with recommended
fuel

Incorrect ethanol/non-ethanol
fuel resistor installed

Verify correct fuel selector
resistor installed for fuel type in
tank

Poor quality fuel/water in fuel

Replace with higher quality
fuel. Recommended 91 octane
minimum

Alcohol-based fuel additives
used with ethanol fuel

Do not use deicers or additives
that contain any form of alcohol
when using ethanol-blended
fuel

Restricted fuel filter

Replace fuel filter

Low fuel pressure

Verify fuel pressure is 58 psi (4
BAR) at idle and while riding

Low fuel injector voltage

Verify fuel injection circuit is at
16 VDC when engine is
running

Faulty/plugged fuel injector

Use Digital Wrench to
troubleshoot

VES system malfunctioning

Verify valves are not stuck
open, vent hoses are not
frozen or plugged

Knock sensor malfunctioning

Verify knock sensor screw
torque is set to specification

Air leaks

Verify air intake system is
sealed. Check throttle body
boots for cracks/tears/loose
parts. Remove after-market air
intake system.

Engine/exhaust modifications Remove modifications

Engine coolant temperature
high

Check cooling system. Ride
snowmobile on loose, un-
packed snow

Mechanical failure

Verify crankcase seals are
good (not leaking). Verify
engine in good condition.
Check spark plugs.

4.6

Cleanfire Fuel Injection

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

CLEANFIRE™ FUEL INJECTION

System Overview

System components include:

• ECU: The ECU controls the ignition / fuel injection

angle, chassis/battery relays, and supplies the
MFD gauge with tachometer, water temperature,
PERC, HOT, DET, and diagnostic information.

• Stator: Stator lighting charge coil split into two

independent circuits; one for DC power (Chassis)
and one for AC power (Lighting).

• Flywheel: Flywheel is forged. Fan cover is

removed from flywheel.

• CFI Regulator / Rectifier: Supplies power to the

ECU, fuel pump “boost power”, MFD, LED tail
lamp, and accessory DC power points.

• Capacitor: The capacitor suppresses voltage

spikes and ensures consistent voltage throughout
the DC-CFI (RED-RED/WHT) circuits.

• Chassis Relay: The chassis relay on DC-CFI

models supplies power to the MFD gauge,
accessory plug and DC power test plug.

• Ignition Coils: Provide ignition energy to each

spark plug. Both coils are fired at the same time.

• Fuel Injectors (4 Injector): This system features

a set of fuel injectors mounted to the crankcase,
and a set of fuel injectors mounted to the cylinders
(ports).

• Fuel Injectors (2 Injector): This system features

a set of fuel injectors mounted to the cylinders
(ports).

• Detonation Sensor: Located on the cylinder

head, the detonation sensor transforms internal
acoustic information into a signal the ECU uses to
determine the amount of engine knock.

• Exhaust Valve Solenoid: Activated by the ECU,

the solenoid controls the VES venting. When
powered, the solenoid is open allowing cylinder
pressure to vent, and the exhaust valves remain
closed (down). When power is removed, the
solenoid closes and the exhaust valves will lift.

• Throttle Position Sensor (TPS): The TPS relays

the position of the throttle plates (operator throttle
input) to the ECU.

• Coolant Temperature Sensor: Relays the engine

temperature to the ECU.

• Exhaust Temperature Sensor: Relays the

temperature of the exhaust pipe to the ECU.

• Temperature / Manifold Air Pressure

(T-MAP) Sensor: Relays the current intake air
temperature and ambient air pressure to the ECU.
The sensor is located on the airbox.

• Vehicle Speed Input: The ECU monitors the

vehicle speed supplied by the vehicle speed
sensor.

• Fuel Pump: Supplies fuel to the fuel injectors.

Power to the fuel pump is supplied by the
regulator / rectifier.

• Diagnostic Connector: The ECU can

communicate with the Polaris Digital Wrench
software and can be re-flashed, monitored and will
display trouble codes.

• AC Regulator/Battery Charge Rectifier: The

head lamps and hand/thumb warmers are
powered by AC voltage. If snowmobile is
equipped with electric start, the regulator/rectifier
supplies DCV to charge the battery.

CAUTION

CFI and DC-CFI ECUs cannot be interchanged. Serious

engine damage may occur.

4.7

Cleanfire Fuel Injection

4

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

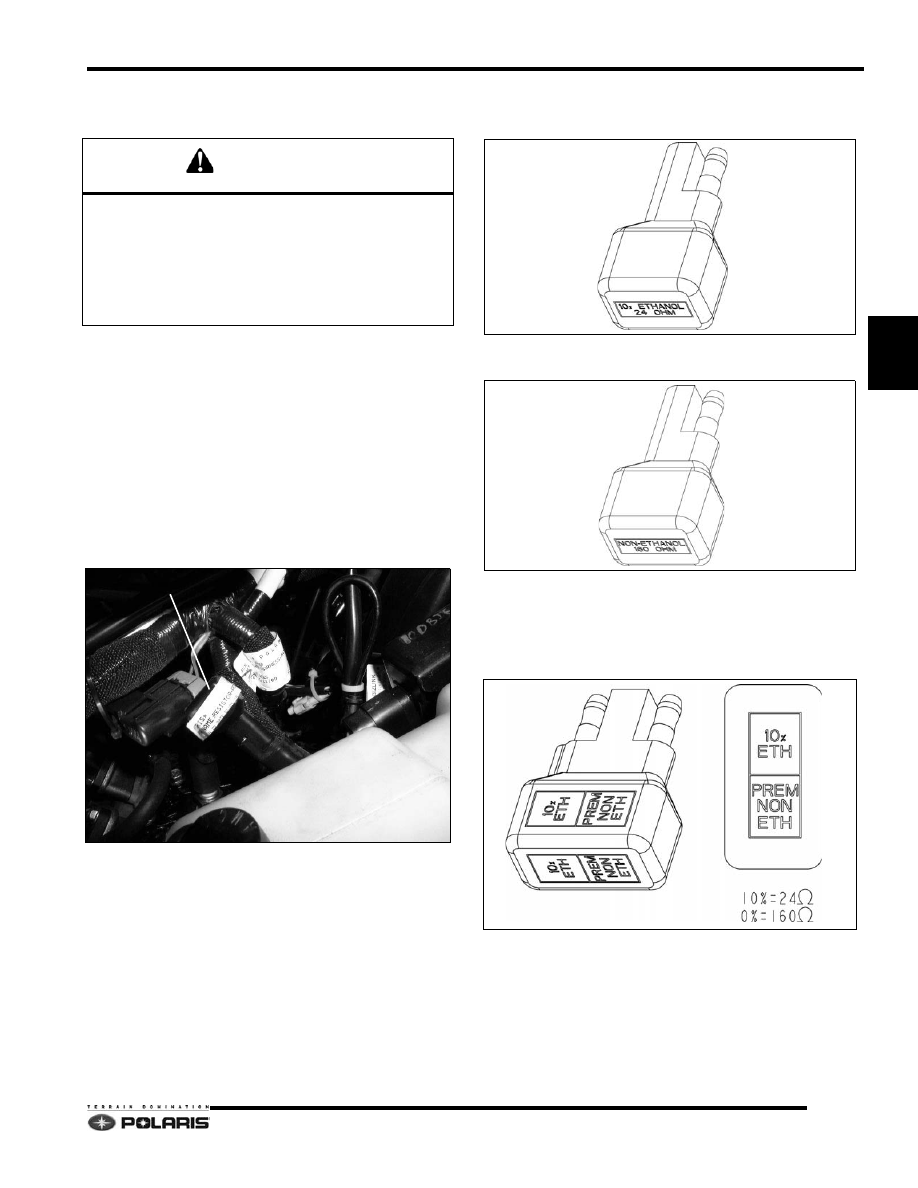

DC-CFI-2/4 Fuel Select Modes

DC-CFI-2/4 models allow the operator to select between
91+ octane non-oxygenated fuels or <91 octane or
oxygenated fuels.

The fuel selector resistor plug is located on the main wiring
harness attached to the over structure behind the left-side
door panel

When using <91 octane, oxygenated, or when unsure of
the fuel type inside the fuel tank, plug the 10% ETHANOL/
24 OHM resistor into the fuel selector plug.

When using 91+ non-oxygenated fuels, install the NON-
ETHANOL/160 OHM resistor into the fuel selector plug.

<91/10% ETHANOL/24 OHM Resistor Plug

Part Number =2411280 (Installed at the factory.)

91+ NON-ETHANOL/160 OHM Resistor Plug

Part Number =2411282 (Included in tool kit.)

Dual Resistor Fuel Selector Plug

2012 models are equipped with one fuel selector plug
featuring dual resistors. The part number for the plug is
2411631 and it can be used on all DC-CFI models.

CAUTION

Always verify the ETHANOL resistor plug is installed in

the selector plug if unsure of fuel type. Severe engine

damage may occur if the PREMIUM resistor plug is

installed when using ethanol-blended fuel.

Never use fuels containing more than a 10% ethanol

blend.

Lock Screw

FUEL RESISTOR PLUG

OIL TANK

Lock Screw

Lock Screw
