3.42

Engine/Cooling/Exhaust

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

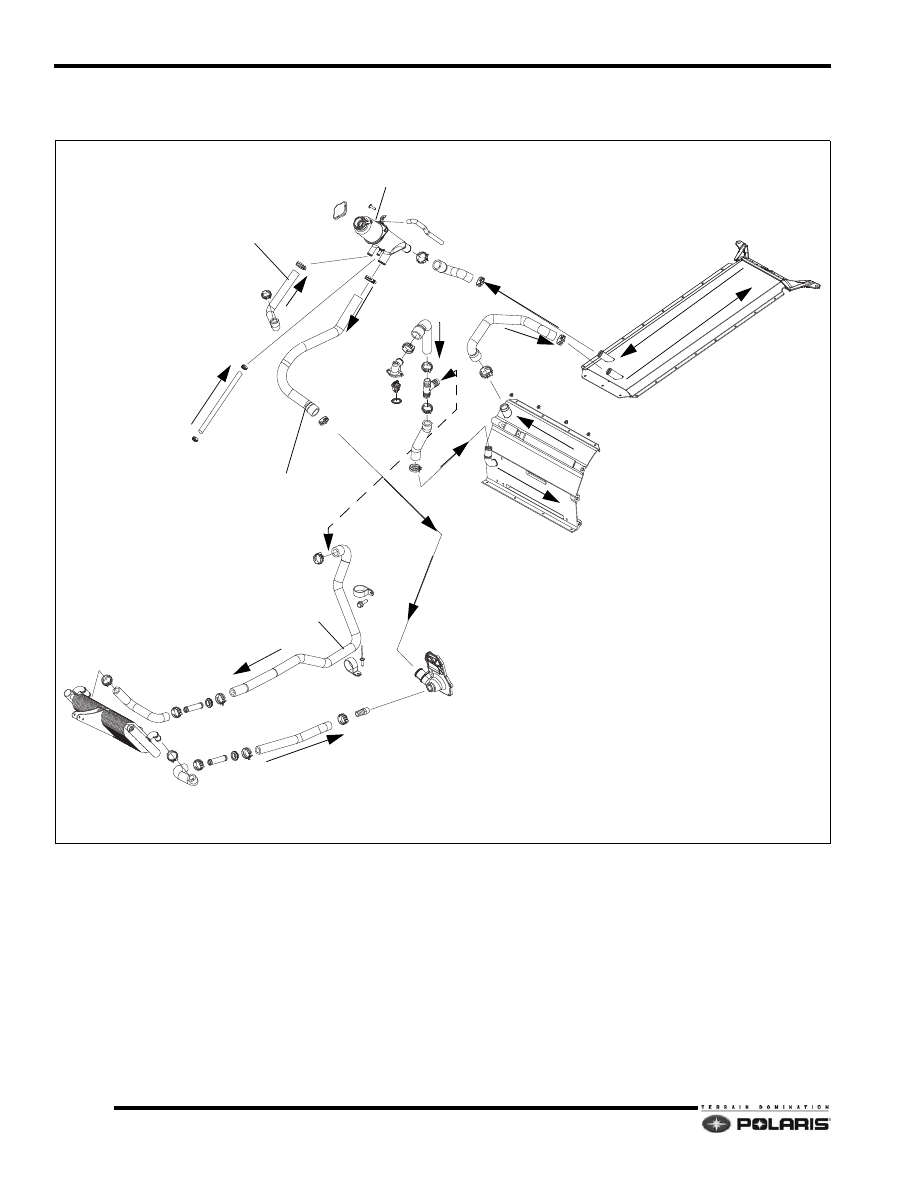

2010 600 RUSH Cooling System

NOTE: When the thermostat is closed, engine
coolant is bypassed back to the surge bottle.




When the thermostat is open, the bypass circuit is
closed. Engine coolant is routed to the front heat
exchanger, front tunnel cooler, and rear tunnel cooler.




Thermostat opening temperature is 120° F (49° C).

REAR TUNNEL COOLER

FRONT TUNNEL COOLER

SURGE BOTTLE

HOSE (TEE-TO-HEAT EXCHANGER)

HEAT EXCHANGER

HOSE (BYPASS-TO-SURGE TANK)

HOSE (THROTTLE BODY-TO-SURGE TANK)

HOSE (SURGE TANK-TO-WATER PUMP)

BYPASS CIRCUIT ONLY ACTIVE WHEN THERMOSTAT IS CLOSED
FRONT EXCHANGER, FRONT TUNNEL COOLER, AND REAR TUNNEL COOLER CIRCUITS ACTIVE WHEN THERMOSTAT IS OPEN

WATER PUMP COVER

BARBED NOZZLE

3.43

Engine/Cooling/Exhaust

3

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

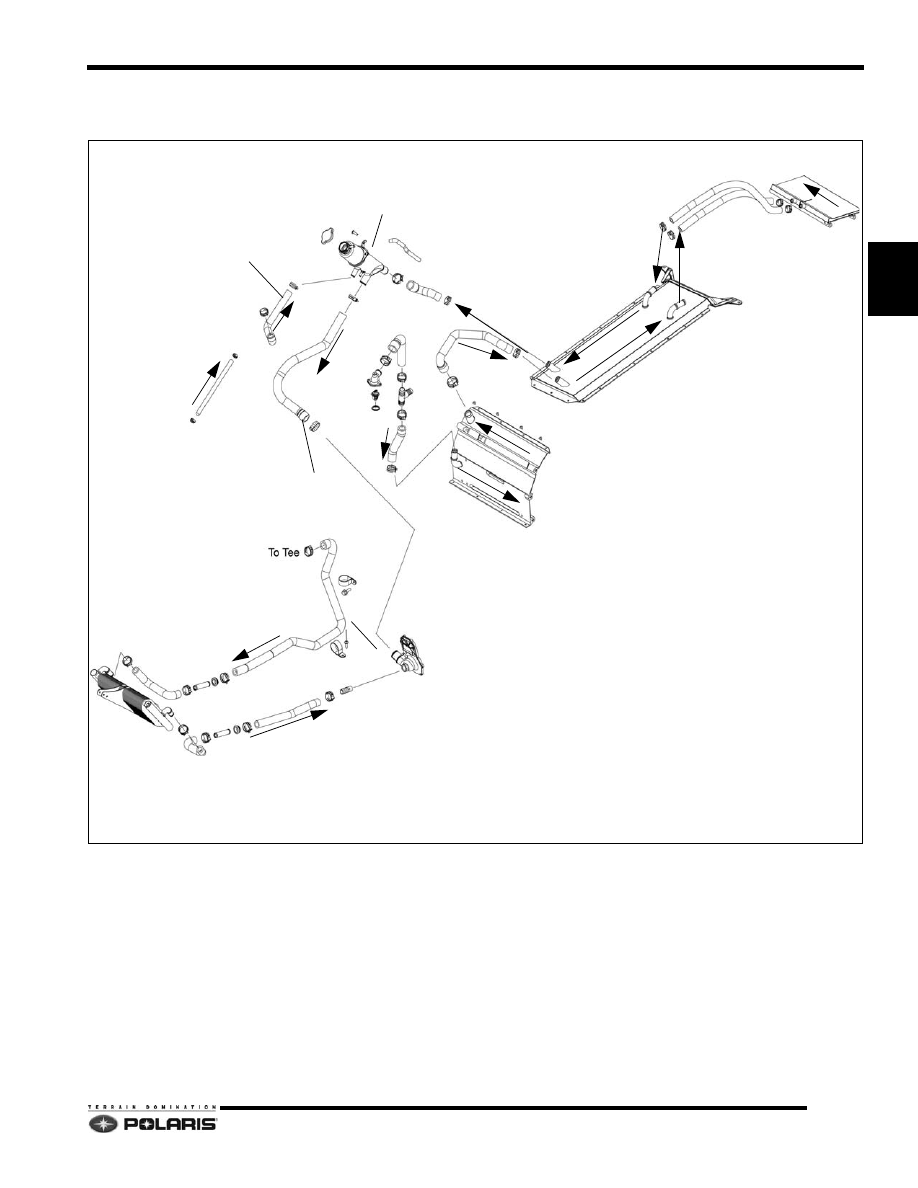

2011 600 RUSH Cooling System

NOTE: When the thermostat is closed, engine
coolant is bypassed back to the surge bottle.




When the thermostat is open, the bypass circuit is
closed. Engine coolant is routed to the front heat
exchanger, front tunnel cooler, tunnel cooler, and
mid-flap coolers.




Thermostat opening temperature is 120° F (49° C).

REAR TUNNEL COOLER

FRONT TUNNEL COOLER

SURGE BOTTLE

HOSE (TEE-TO-HEAT EXCHANGER)

HEAT EXCHANGER

HOSE (BYPASS-TO-SURGE TANK)

HOSE (THROTTLE BODY-TO-SURGE TANK)

HOSE (SURGE TANK-TO-WATER PUMP)

BYPASS CIRCUIT ONLY ACTIVE WHEN THERMOSTAT IS CLOSED
FRONT EXCHANGER, FRONT TUNNEL COOLER, AND REAR TUNNEL COOLER CIRCUITS ACTIVE WHEN THERMOSTAT IS OPEN

WATER PUMP COVER

BARBED NOZZLE

MID FLAP COOLER

3.44

Engine/Cooling/Exhaust

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

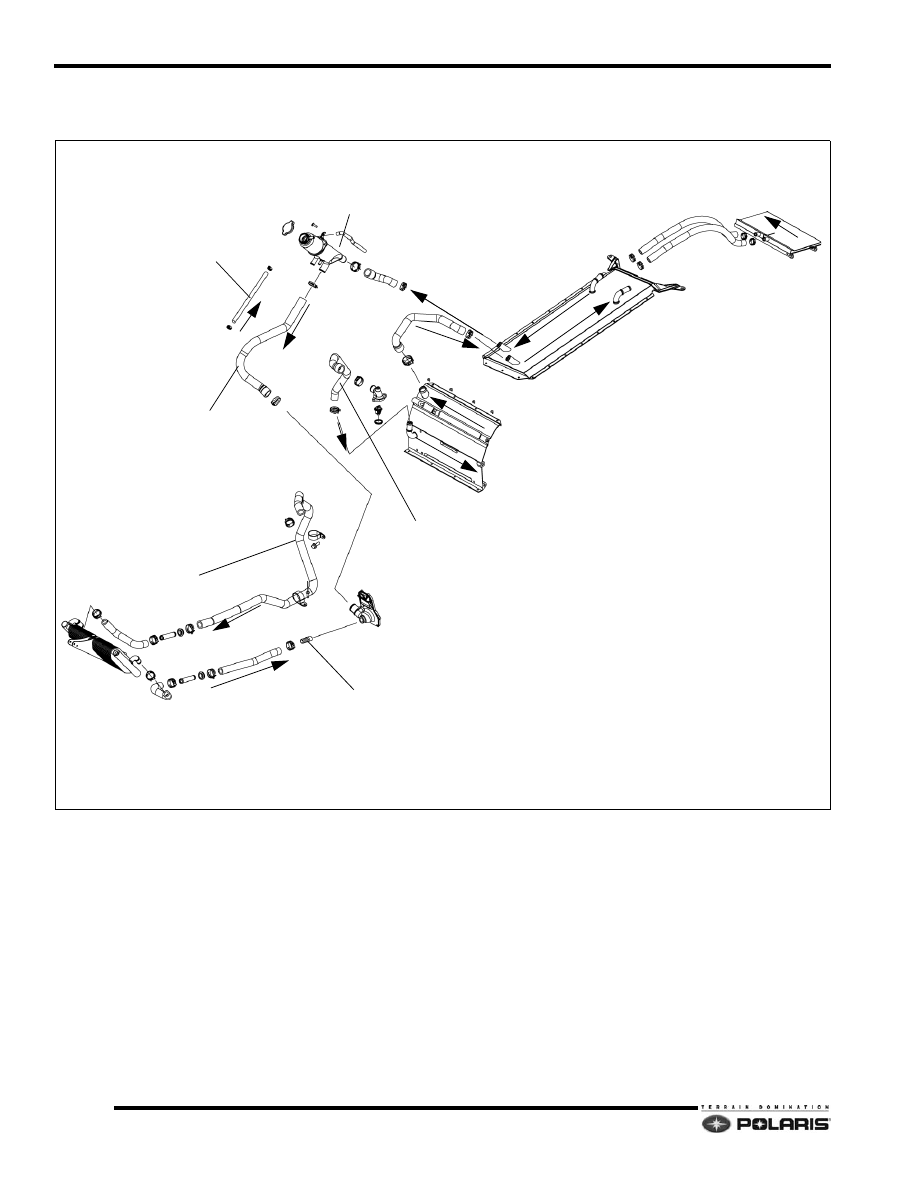

2011 800 RUSH Cooling System

NOTE: Front heat exchanger circuit always active.
Front tunnel cooler, tunnel cooler, and mid-flap cooler
only active when thermostat is open.




Models feature 2mm thermostat bleed hole.




Thermostat opening temperature is 120° F (49° C).

REAR TUNNEL COOLER

FRONT TUNNEL COOLER

SURGE BOTTLE

HOSE (CYLINDER BYPASS

HEAT EXCHANGER

HOSE (THROTTLE BODY-TO-SURGE TANK)

HOSE (SURGE TANK-TO-WATER PUMP)

WATER PUMP COVER

BARBED NOZZLE

-TO-HEAT EXCHANGER)

HOSE (THERMOSTAT OUTLET-TO REAR COOLERS)

MID FLAP COOLER

3.45

Engine/Cooling/Exhaust

3

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

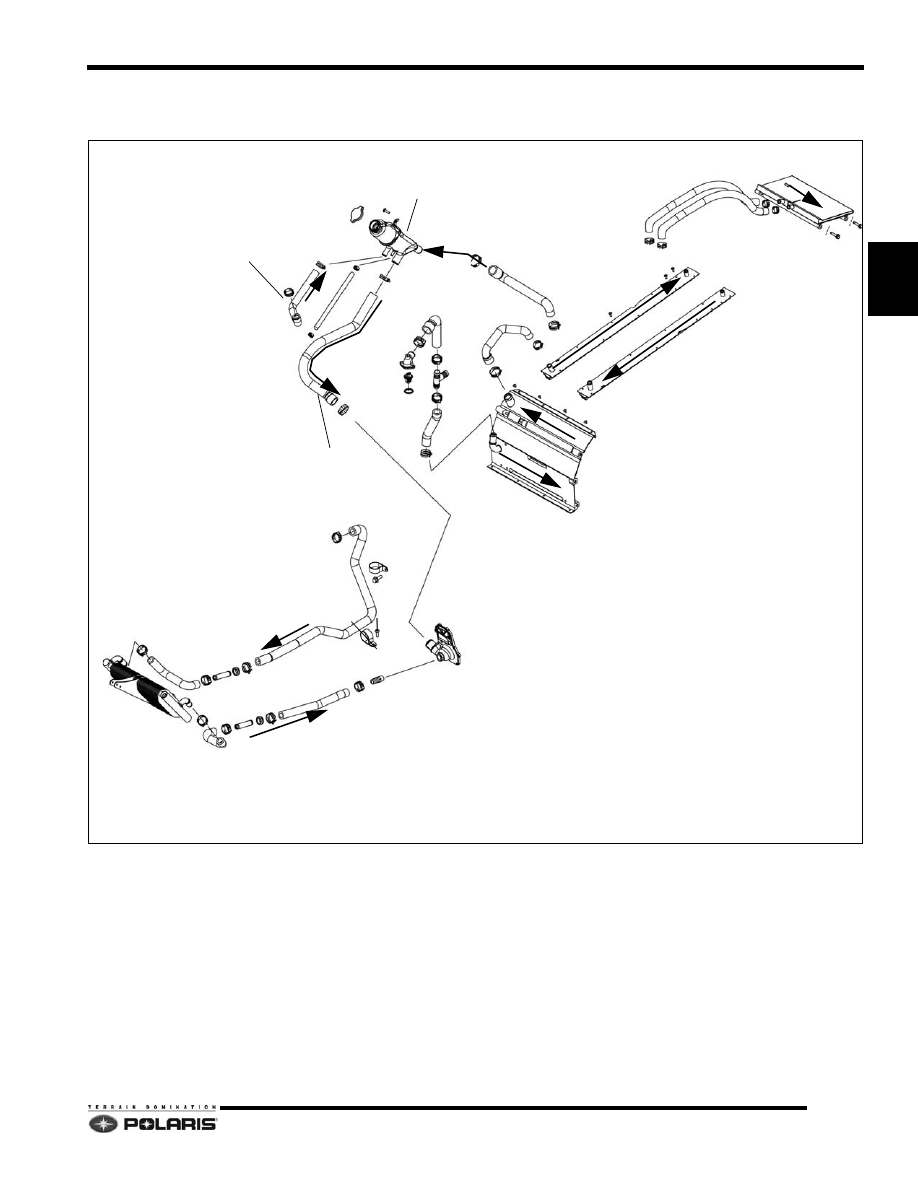

2012 600 RUSH/Switchback Cooling System

NOTE: When the thermostat is closed, engine
coolant is bypassed back to the surge bottle.




When the thermostat is open, the bypass circuit is
closed. Engine coolant is routed to the front heat
exchanger, front tunnel cooler, tunnel coolers, and
mid-flap coolers.




Thermostat opening temperature is 120° F (49° C).

WEAR STRIPCOOLERS

FRONT TUNNEL COOLER

SURGE BOTTLE

HOSE (TEE-TO-HEAT EXCHANGER)

HEAT EXCHANGER

HOSE (BYPASS-TO-SURGE TANK)

HOSE (THROTTLE BODY-TO-SURGE TANK)

HOSE (SURGE TANK-TO-WATER PUMP)

BYPASS CIRCUIT ONLY ACTIVE WHEN THERMOSTAT IS CLOSED
FRONT EXCHANGER, FRONT TUNNEL COOLER, AND REAR TUNNEL COOLER CIRCUITS ACTIVE WHEN THERMOSTAT IS OPEN

WATER PUMP COVER

BARBED NOZZLE

MID FLAP COOLER
