Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 19





3.26

Engine/Cooling/Exhaust

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

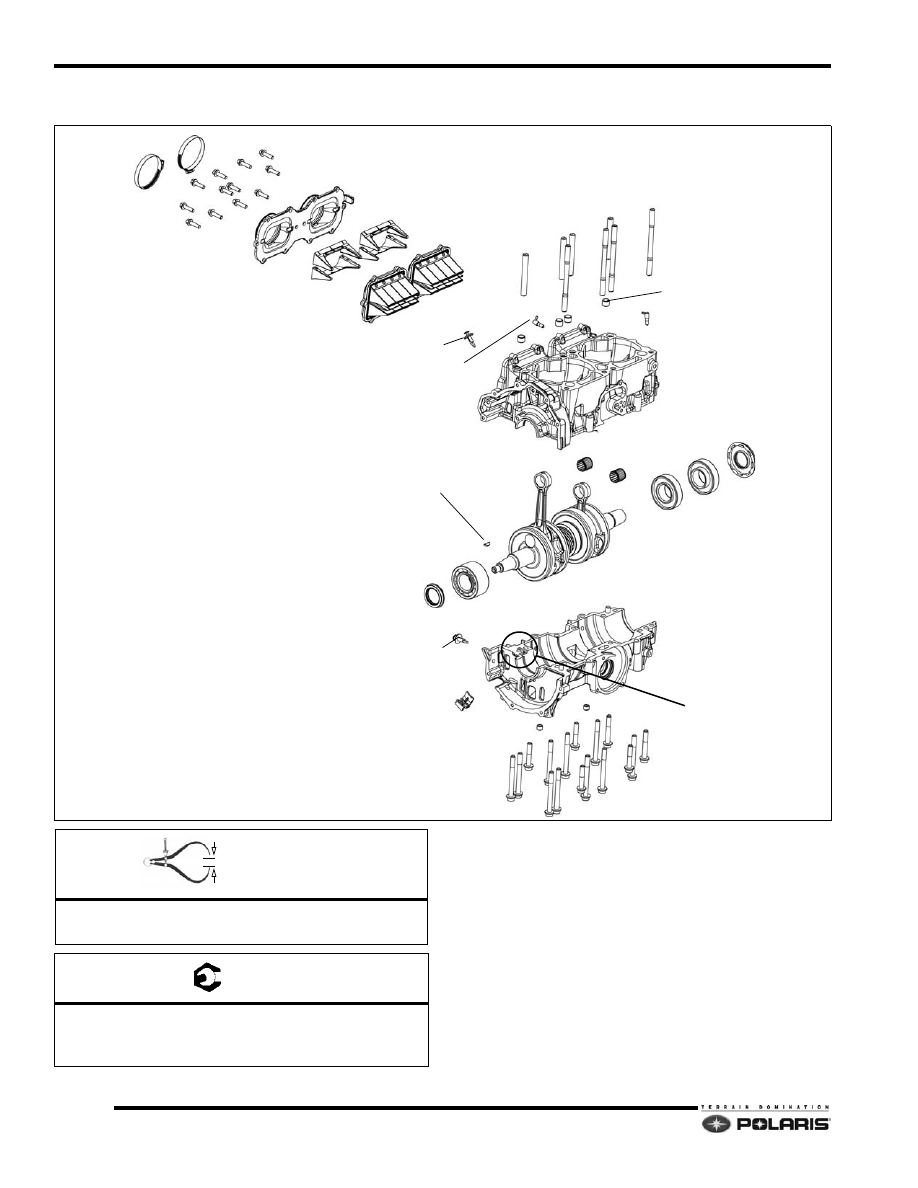

600 Crankcase/Crankshaft Assembly

GEAR CLAMPS

INTAKE BOOT

REED STUFFERS

REED BLOCKS

CYLINDER STUDS

NEEDLE BEARINGS

PTO SEAL

MAG SEAL

MAG BEARING

PTO BEARINGS

FLYWHEEL KEY

CRANKSHAFT

OIL INJECTION CHECK VALVE QTY. 5

ALIGNMENT DOWELS

A

B

C

TRIGGER COIL WIRE RETAINER

STATOR WIRE HARNESS RETAINER

TRIGGER COIL WIRE RETAINER

DO NOT FILL MAG

BEARING OIL

GALLERY WITH CASE

SEALANT

In. / mm.

Long Stud Height (Exhaust side): 4.13" (105mm)

Small Stud Height (Intake side): 2.16" (55mm)

T

A: 9 ft-lb (12 Nm)

B: 22 ft-lb (30 Nm)

C: 10 ft-lb (13 Nm) - Apply Pipe Sealant

3.27

Engine/Cooling/Exhaust

3

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

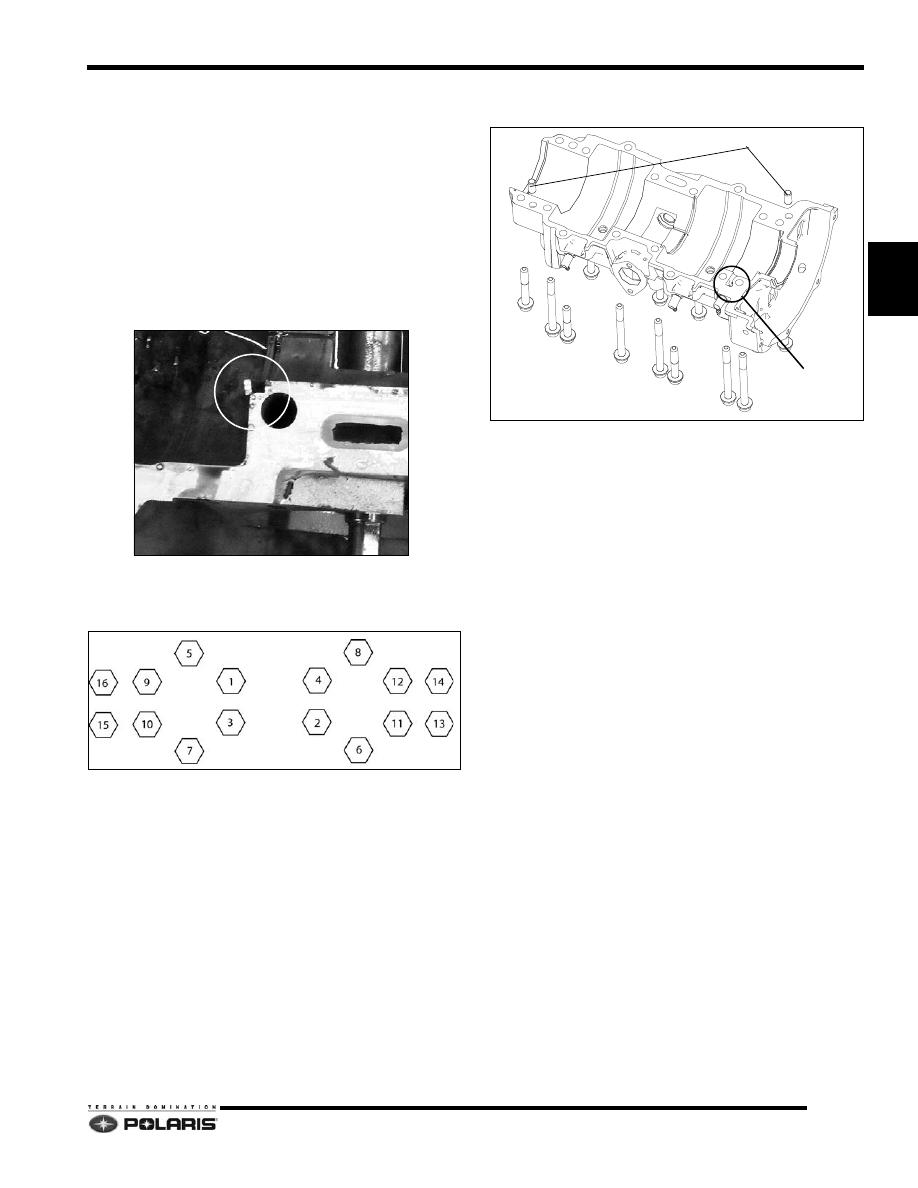

Disassembly / Assembly Process

1.

Remove the engine from the engine compartment.

2.

Follow the process for removing the cylinder head,
cylinders, pistons, flywheel / recoil housing, and the
water / oil pump.

3.

Remove the intake boots, reed stuffers, and reed
assemblies from the intake tracks. Discard any seals
or gaskets.

NOTE:  The crankcase ring land damage shown in the
corresponding photo is caused by improper
crankcase separation or crankshaft removal.

4.

Remove all crankcase fasteners except ones marked
5-6-7-8 indicated below. Loosen these 4 bolts to
reveal about a 1/6"-1/8" bolt gap.

5.

Once loosened, carefully and lightly tap on the bolts
to separate the crankcase halves.

6.

Discard the PTO and MAG crankshaft seals.

7.

Remove the crankshaft by pulling it straight up and
out. Inspect as required.

8.

Thoroughly clean the two crankcase mating surfaces
with carburetor cleaner and a gasket remover. Flush
out the crankcase galleries.

9.

Reinstall the crankshaft back into the lower crankcase
using two new crankcase seals. Verify the two
crankcase dowels are installed in the lower
crankcase.

10. Apply a thin bead of Three Bond 1217H to the lower

crankcase mating surface. Install the upper
crankcase.

NOTE:  Do not over-apply sealant in oil injector area.
Doing so may block the oil passage.

11. Loosely install the crankcase fasteners, then torque to

the specifications at the beginning of the chapter. Use
the correct torque sequence when tightening the
screws.

12. Liberally coat the crankshaft bearings and

components with Polaris two-stroke engine oil.

DO NOT FILL MAG

BEARING OIL

GALLERY WITH

CASE SEALANT

DOWELS

3.28

Engine/Cooling/Exhaust

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

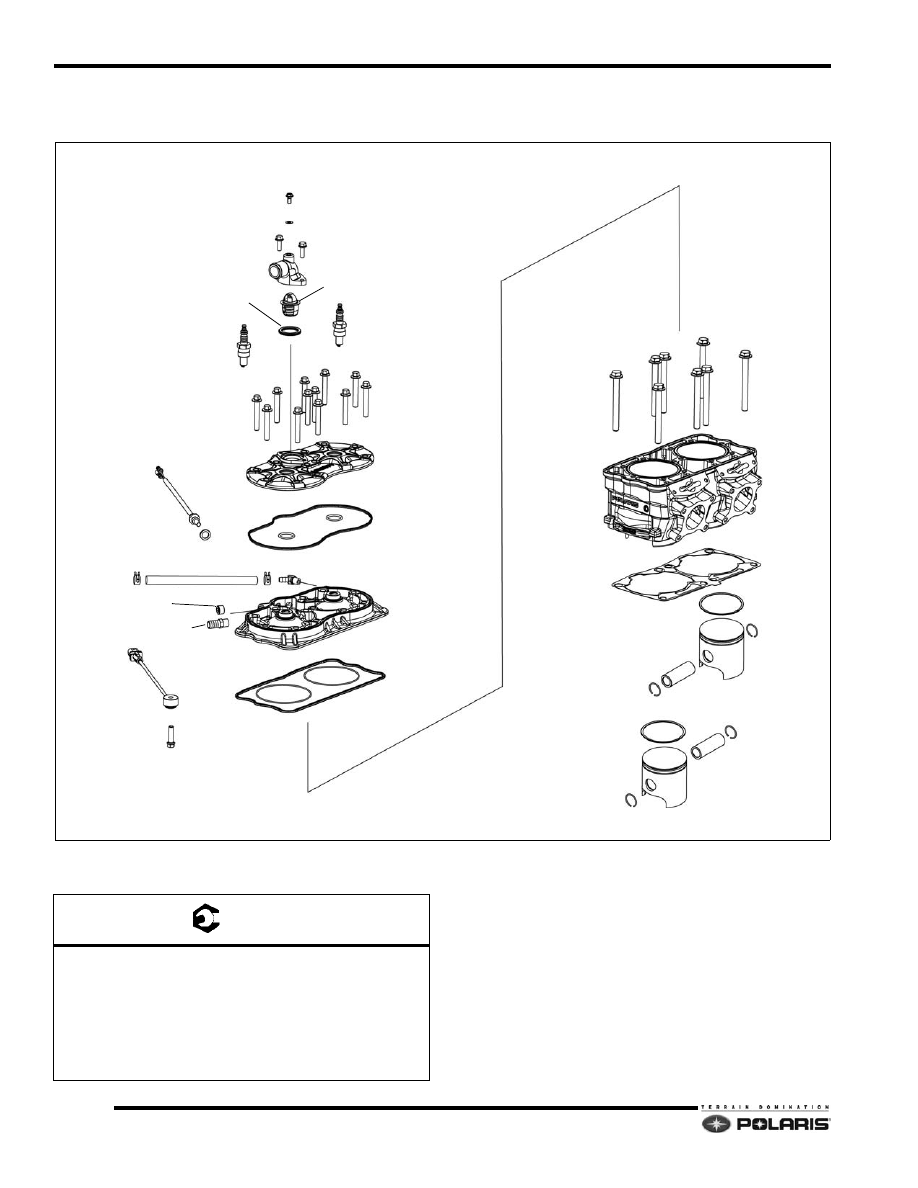

800 DC-CFI-2 Cylinder Head/Cylinder/

Pistons

BLEED SCREW

THERMOSTAT COVER

THERMOSTAT

SPARK PLUGS

GASKET

HEAD COVER

TEMP. SENSOR

THROTTLE BODY HOSE

PLUG*

BYPASS NOZZLE*

KNOCK SENSOR

PISTON

C-CLIP

PISTON RINGS

PISTON PIN

BASE GASKET

CYLINDER

CYLINDER HEAD

O-RINGS

* = SEE PLUG / BYPASS MATRIX

O-RINGS

A

B

D

E

F

T

A: 70 in-lb (8 Nm)

B: 9 ft-lb (12 Nm) - Apply Loctite® 242™

C: 25 ft-lb (34 Nm) - Apply Loctite® 242™

D: 18 ft-lb (24 Nm) - Apply Pipe Sealant

E: 168 in-lb (19 Nm) - Clean and Dry

(DO NOT OVER/UNDER TORQUE SCREW.)

F: 42 ft-lb (57 Nm)

3.29

Engine/Cooling/Exhaust

3

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Cylinder Head/Cylinder/Piston Notes

800 pistons feature two different rings thicknesses. The
upper ring is 1.8mm thick, while the lower ring is 1.5mm
thick.

Some 800 DC-CFI-2 engines feature a coolant bypass
nozzle on the cylinder head. Reference table below.

800 DC-CFI-2 Cylinder Head/Cylinder/

Pistons Disassembly/Assembly

1.

Remove the coolant from the engine using a siphon,
wet/dry vac, or drain pan.

2.

Remove the air box, exhaust pipe and resonator from
the engine compartment.

3.

Remove the high tension wires and spark plugs from
the cylinder head.

4.

Remove the thermostat housing outlet cooling hose
from the housing.

5.

Loosen all, then remove all head cover fasteners.
Clean the fastener threads to remove any thread
locking residue.

6.

Discard the head cover and cylinder head o-rings.
Always use new o-rings during assembly.

7.

Inspect the cylinder head / combustion domes for any
damage. Measure cylinder head flatness. Replace
cylinder head if required.

8.

Remove the fuel rail and fuel injectors from cylinder.
See “Fuel Rail/Injector Removal and Installation” on
page 4.24.

NOTE: Leave the exhaust Y-pipe attached to the
cylinder assembly. Remove Y-pipe after removing
cylinder from crankcase.

9.

Loosen all, then remove the cylinder bolts. Clean the
bolt threads to remove any thread locking residue.

10. Carefully pull the cylinder upwards taking care not to

drop the pistons and rods abruptly against the
crankcase.

11. Remove the cylinder base gasket. Use a gasket

scraper to clean the gasket residue from the
crankcase and cylinder base.

12. Inspect the cylinder walls. Nicasil cylinders can only

be lightly honed using a 320 grit stone. Damage that
cannot be removed with a light hone requires cylinder
replacement or re-chroming.

13. Inspect the crankcase and cylinder mating surfaces

for warping.

14. The assembly process is the reverse of disassembly.

15. Always use new gaskets and o-rings during

assembly. Liberally coat the inside of each cylinder
bore and the outside of each piston with Polaris two-
stroke engine oil.

16. Always refresh the cylinder crosshatch pattern using

a 320 grit stone. See “Cylinder Honing” on page 3.14.

17. When installing a piston into a cylinder, verify each

piston ring opening is located at each piston ring
locating pin. Squeeze the top ring, then carefully slide
the cylinder over the compressed ring. Do the same
with the bottom ring.

18. Follow the torque specifications and torque

sequences located at beginning of chapter when
tightening fasteners.

Piston Matrix

Engine Model

Piston PN

Piston ID

S4139-8044-OO8G

S4229-8044-OO8G

S4092-8044-OO8G

S4360-8044-OL8G

S4361-8044-OL8G

S4359-8044-OL8G

2204322

3305 or 3335

Plug / Bypass Matrix

Engine Model

Cylinder Head

Plug

Cylinder Head

Bypass Nozzle

S4139-8044-OO8G

S4229-8044-OO8G

S4360-8044-OL8G

S4361-8044-OL8G

X

S4092-8044-OO8G

S4359-8044-OL8G

X
