Clutch System

n

Drive Belt Condition

Belt width and length must match the center distance of the clutches and
sheave width of the drive clutch. For this reason, Polaris recommends
that only O.E.M. belts be used. Other belts may match the dimensions,
but can drastically change the shift pattern, resulting in poor perfor-
mance. See Drive Belt Troubleshooting on page 117.

Periodically check the condition and tension of the drive belt, and
always carry a spare. Inspect the belt for signs of excessive wear: frayed
edges, missing cogs, cracks and excessive looseness. Replace the belt if
any of these conditions exist.

NOTE:

A worn belt will continue to function, but will not deliver maximum per-

formance. Always carry a spare belt in case of an emergency.

For improved drive-away during extremely cold temperatures, remove
the belt and warm it to room temperature. Reinstall it before starting the
snowmobile.

Drive Belt Installation

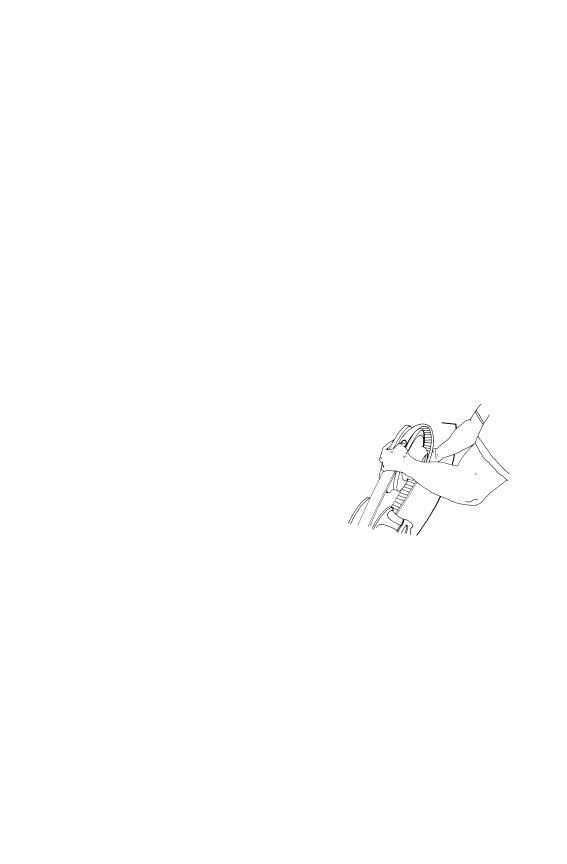

1. Drop the drive belt over the drive

clutch and pull back the slack.

NOTE:

To ensure satisfactory belt life,

install belts so they operate in

the same direction of rotation by

positioning the identification

numbers so that you can read

them. If required, separate the

sheaves as outlined in the belt

removal procedures.

2. Rotate the L-wrench counter-clockwise to tighten the sheaves while

working the belt to the outer edge of the sheaves.

3. Remove the wrench and store it in the tool kit.

4. Reinstall the side panel.

5. Close and secure the hood.

98

MAINTENANCE

Clutch System

Drive Belt Removal

1. Stop the engine after operating in a forward motion.

NOTE:

For easier accessibility, make sure the clutch tool access hole is visible

between the 11:00 and 2:00 positions of the clutch sheave.

2. Turn the ignition key off.

Wait for the engine to come
to a complete stop.

3. Lock the parking brake.

4. Open the hood.

5. Remove the left side panel.

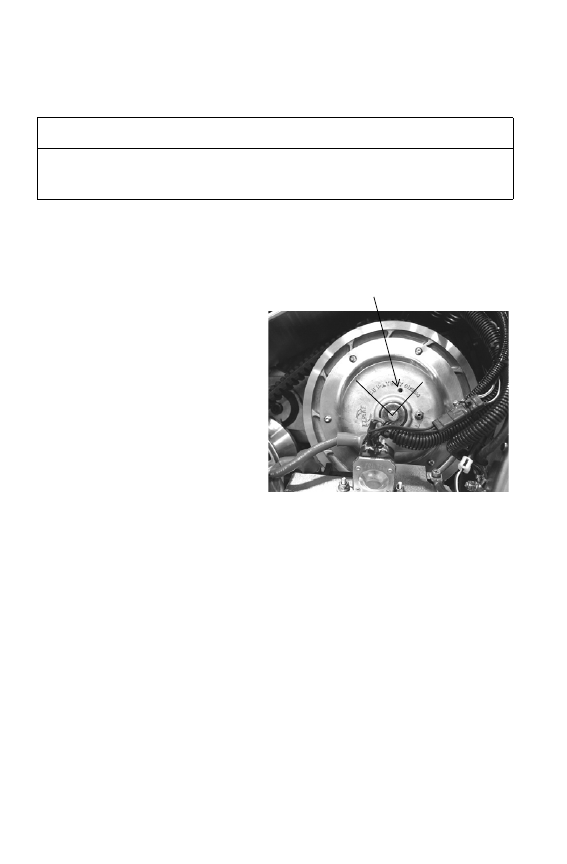

6. Locate the L-wrench in the

tool kit. Install the wrench
into the open threaded access
hole in the outer sheave of
the clutch.

7. Turn the wrench clockwise

until the sheaves open far
enough to remove the belt.

CAUTION

Do not attempt to remove the drive belt after operating in reverse. The snow-

mobile must be stopped after forward motion to prevent damage to compo-

nents during belt removal.

11:00

2:00

Access Hole

99

MAINTENANCE

Clutch System

n

Drive Belt Deflection

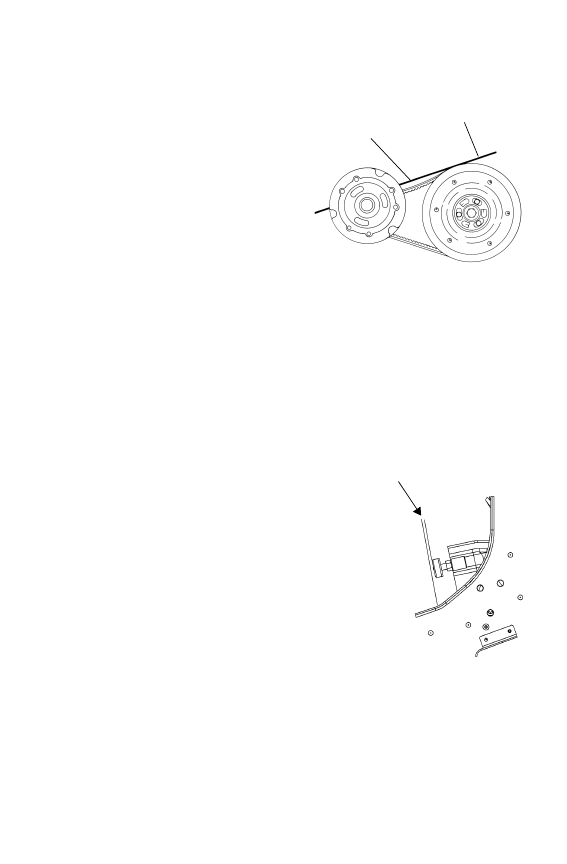

Measure belt deflection with both
clutches at rest and in their full
neutral position.

Place a straight edge on the belt
and apply downward pressure
while measuring at point A. This
measurement should be 1 1/4"
(3.2 cm).

Drive Belt Adjustment

1. Install the L-wrench into the open threaded hole in the outer sheave

of the clutch (see page 98). Turn the wrench clockwise slightly to
remove pressure from the sheaves.

2. Loosen the 7/16" jam nut.

3. Using a 1/8" Allen wrench, turn the set screw inward (clockwise) to

increase the distance between the sheaves or outward (counter-
clockwise) to decrease the distance.

4. Tighten the jam nut. Store the L-wrench in the tool kit.

Torque Stop

Periodically check torque stop clear-
ance. With clutches in proper align-
ment, measure rear torque stop
clearance from the engine case. Rear
torque stop clearance should be .010"-
.030" (.25-.75mm). Adjust if neces-
sary. Secure the nut.

Straight

Edge

Measure

A

.010"-.030"



(.25-.75 mm)

100

MAINTENANCE

Track Replacement

When replacing the track, always install a track having the lug size rec-
ommended for your model. See your Polaris dealer.

Track Inspection

1. Using a hoist, safely lift and sup-

port the rear of the snowmobile
off the ground.

2. Rotate the track by hand to check

for damage.

3. Carefully examine the track along

the entire length of each rod.
Bend the track to check for
breakage.

4. Replace the track if any rod dam-

age is found.

CAUTION

Installing tracks with larger lugs on machines equipped with coolers will result

in damage to the cooler or tunnel. Always install a track having the lug size

recommended for your model.

WARNING

Broken track rods can cause a rotating track to come off the machine, which

could cause serious injury or death. Never operate with a damaged track.

Never rotate a damaged track under power.

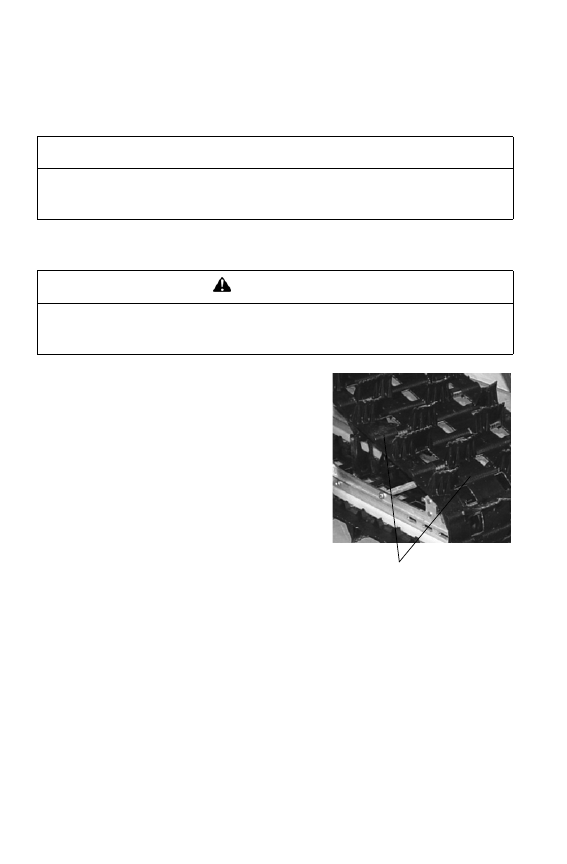

Rods
