Snowmobile Polaris IQ (2007-2008 year). Instruction - part 51





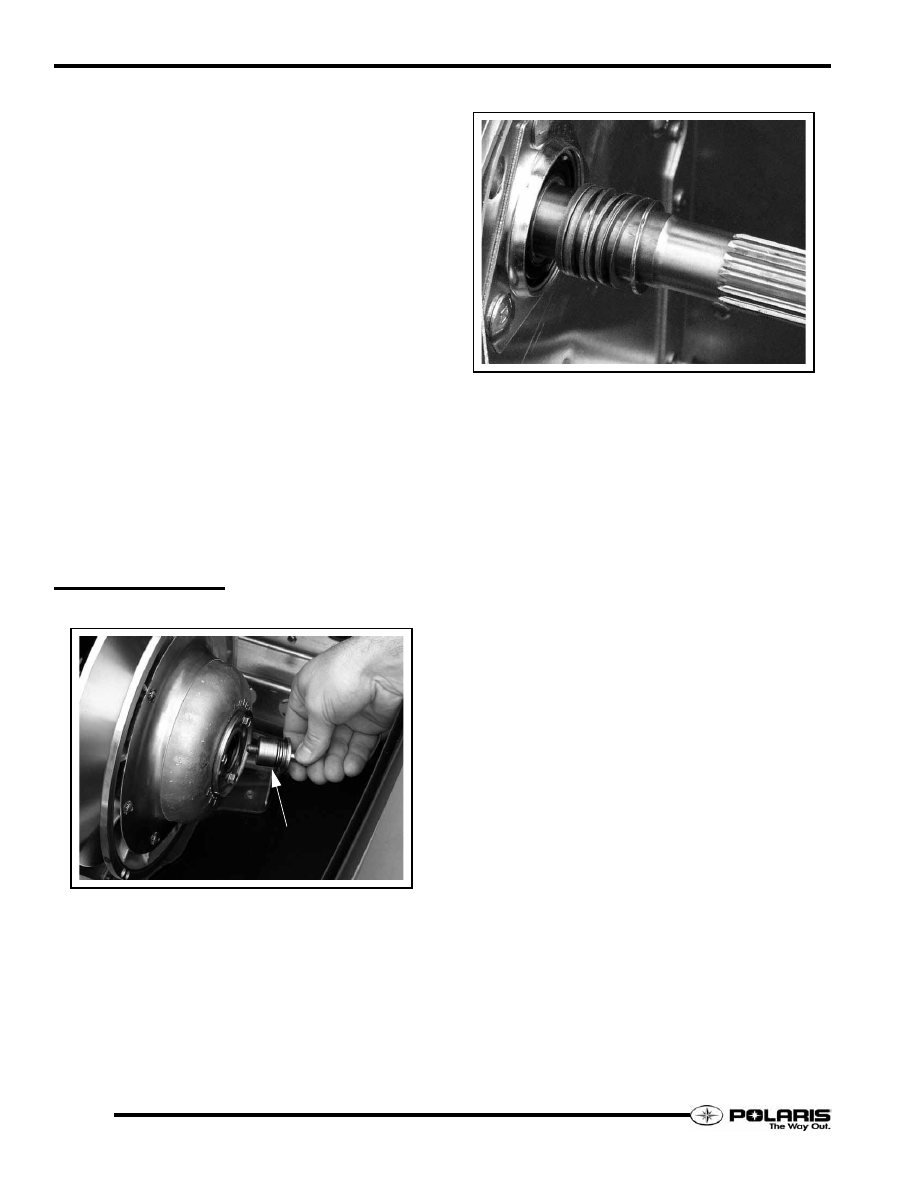

7.18

PVT System

Drive Clutch Installation

NOTE: Always clean the clutch taper before re-
installing clutch on engine.

1.

Place a clutch taper reamer (PN 2870576) in a vise and
lubricate the cutting edges with cutting oil. Clean the
clutch taper by manually rotating the clutch clockwise on
the reamer one or two revolutions. Only use the weight of
the clutch and do not push down on the clutch while
turning.

2.

Check crankshaft taper for galling or scoring. If necessary
clean the taper evenly with 200 grit emery cloth.

3.

The clutch taper and the crankshaft taper should be clean
and dry. Do not use harsh cleaners which may cause clutch
taper to corrode, or damage the crank seal.

4.

Clean clutch taper with lacquer thinner or isopropyl
alcohol.

5.

Slide clutch onto crankshaft taper.

6.

Install the retaining bolt with all spacers and washers or o-
rings that were on the bolt when it was removed.

7.

Hold the clutch with the holding wrench PN 931417-A.

8.

Torque bolt to specification.

9.

Run engine then re-torque the retaining bolt to
specification.

DRIVEN CLUTCH

Driven Clutch Removal

1.

Remove the drive belt.

2.

Apply and lock the parking brake.

3.

Remove the driven clutch bolt and washers (A).

NOTE:  Count the number and location of the spacer
washers located on the fastener and behind the
clutch.

4.

Slide the driven clutch off the jackshaft.

5.

Inspect the splines and replace jackshaft if damage is found.

Driven Clutch Installation

1.

Install the driven clutch bolt with the same amount of
washers at removal.

2.

Torque the bolt to specification.

3.

Check for correct belt deflection.

A

7.19

PVT System

7

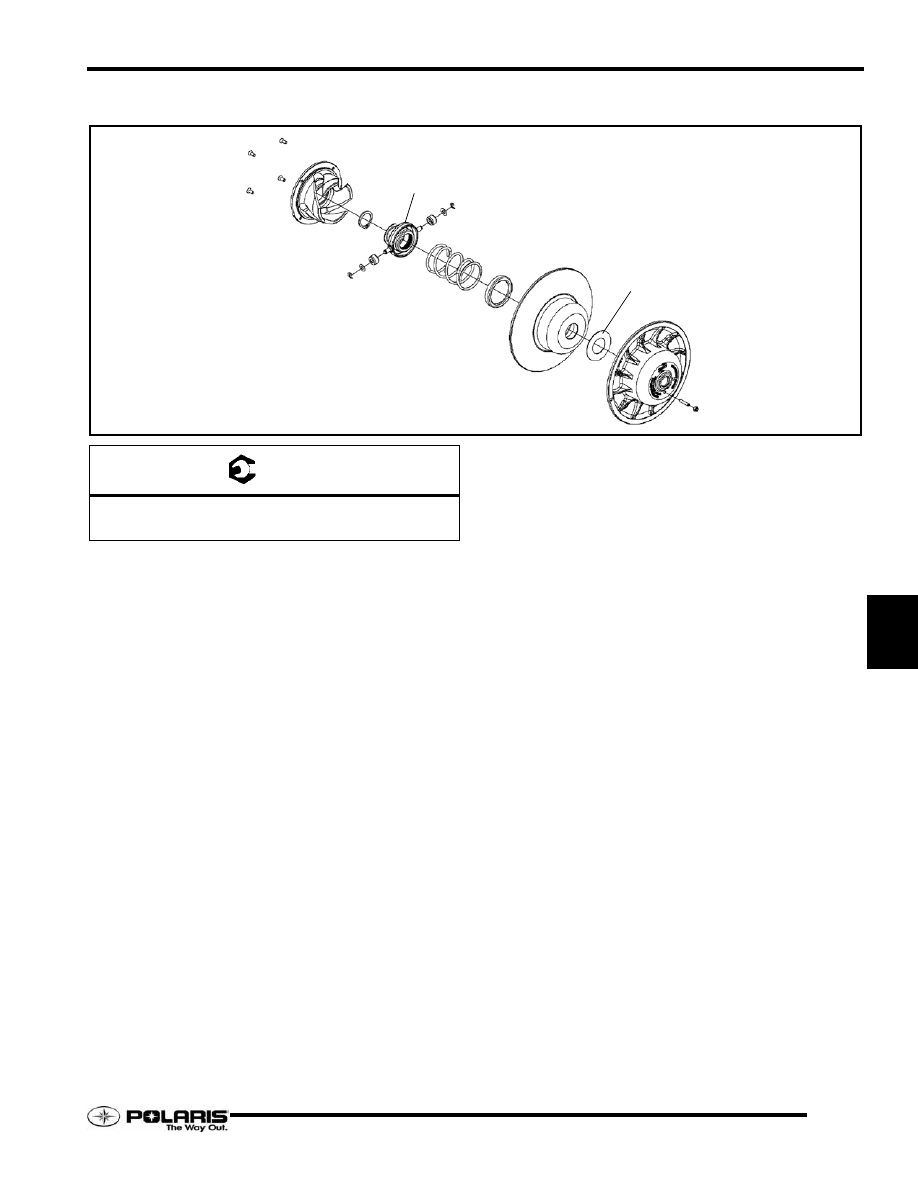

Team LWT Components

Disassembly and Assembly Process

1.

Remove the screws from the helix, then carefully pry the
helix out of the moveable sheave.

2.

Install the clutch in the clutch compressor fixture, PN
8700220. Install the extensions, PN PS-45909.

3.

Wearing eye protection, carefully compress the roller
assembly to gain access to the snap ring. Remove the snap
ring.

4.

Slowly release the fixture arm to remove the roller
assembly and spring. Disassembly the clutch sheaves.

5.

Inspect the sheaves for abnormal wear. Clean sheave faces
with a Scotch Brite pad and a solution of warm, soapy
water.

6.

Inspect spring, spring cup, spacer and rollers for wear and
replace as required.

7.

To assemble the clutch, slide the components back on to the
stationary sheave shaft.

8.

Align the notch in the roller assembly with row of double
splines on the shaft. Slowly compress the spring and roller
assembly down on to the shaft. Install the snap ring making
sure it is fully seated in the groove.

9.

Install the helix by aligning the rollers with the ramps. Push
the helix down into the sheave while keeping the screws
holes aligned.

10. Install and torque helix fasteners to 60 - 80 in. lbs. (7 - 9

Nm).

HELIX

SNAP RING

SPRING

SPRING CUP

MOVEABLE SHEEVE

DEFLECTION SPACER

STATIONARY SHEEVE

BELT DEFLECTION SCREW

ROLLER ASSEMBLY

SCREWS

T

Helix Fasteners = 60 - 80 In.Lbs. (7 - 9 Nm)

Driven Clutch Retaining Fastener = 17 Ft.Lbs. (23 Nm)

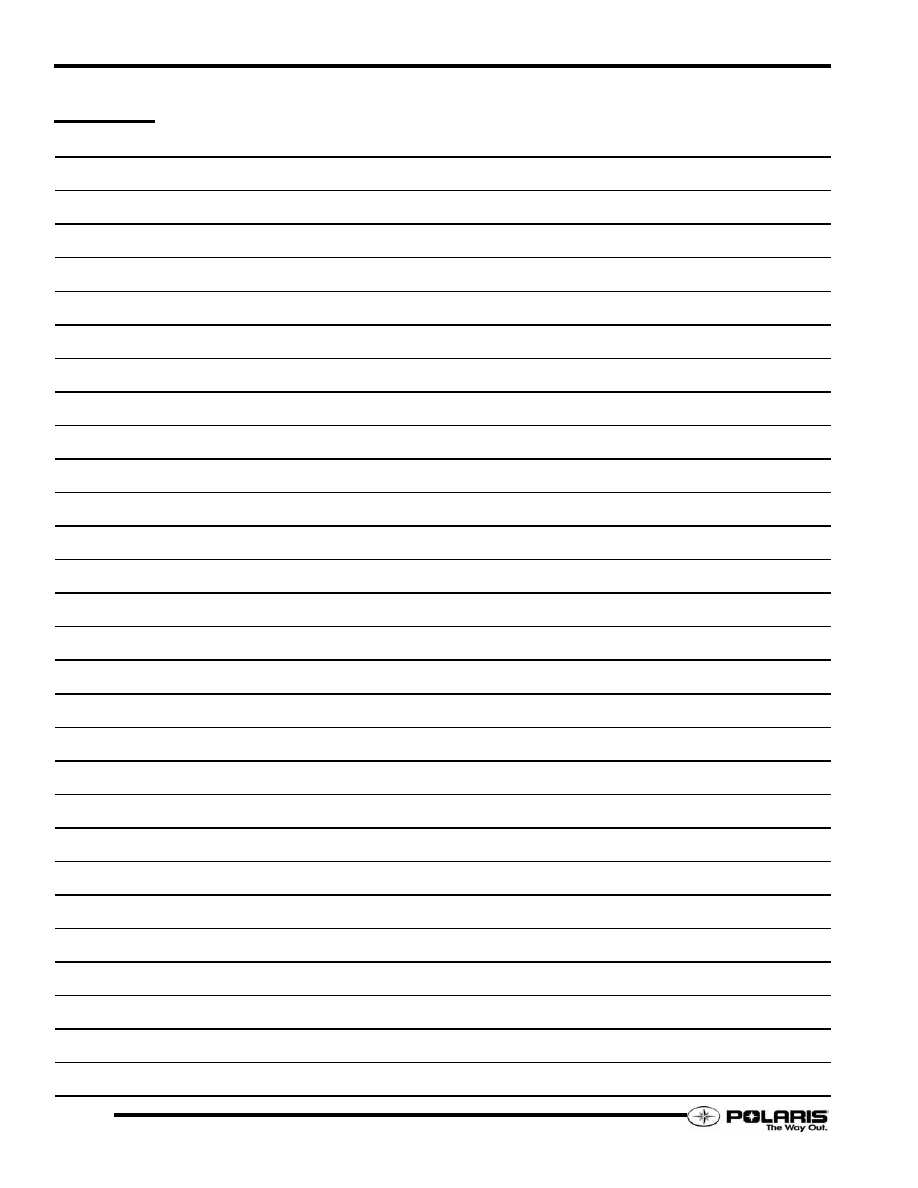

NOTES

PVT System

7.20

Steering and Suspensions

8.1

CHAPTER 8

Steering and Suspensions

8

OVERVIEW / SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2
CAMBER / TOE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2
SPRINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 8.2
ADJUSTABLE SHOCKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3
FRONT SUSPENSION TYPE BY MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3
REAR SUSPENSION TYPE BY MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3
SUSPENSION MOUNTING FASTENER TORQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3
IQ REAR SUSPENSION SHOCK ROD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4
IQ REAR TRACK SHOCK PIVOT ORIENTATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4

FRONT SUSPENSION ASSEMBLY ILLUSTRATIONS  . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5

IQ FRONT SUSPENSION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5
IQ FIXED STEERING POST ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6
IQ RIDER SELECT STEERING POST ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7
IQ STEERING LINKAGE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8
HANDLEBAR ASSEMBLIES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.9

ADJUSTMENT PROCEDURES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.10

SETUP AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10
ALIGNMENT BAR SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10
CAMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.10
ROD ENDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11
ROD END ENGAGEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11
CAMBER ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11
HANDLEBAR CENTERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11
TOE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.11

DISASSEMBLY AND ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.12

SPINDLE REMOVAL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12
SPINDLE ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12
SPHERICAL BEARING REPLACEMENT  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12
UPPER / LOWER CONTROL ARM REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12
UPPER / LOWER CONTROL ARM INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.12

REAR SUSPENSION ASSEMBLY ILLUSTRATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . .  8.13
REAR SUSPENSION OPERATION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.36

OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.36
WEIGHT TRANSFER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.36
COUPLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.36

REAR SUSPENSION ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.37

ADJUSTMENT PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.37
REAR SUSPENSION RIDE HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.37
SCISSOR STOP ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.37
LIMITER STRAP ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.38
TORSION SPRING ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.38
IQ 121 HEAVY TORSION SPRING INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.39

M-10 SUSPENSION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.40
RAIL SLIDERS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.42

WEAR LIMIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.42
REMOVAL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.42
BREAK-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.42

REAR SUSPENSION REMOVAL AND INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . .  8.42

REMOVAL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.42
INSTALLATION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.42
