Snowmobile Polaris IQ (2007-2008 year). Instruction - part 18





3.12

Maintenance

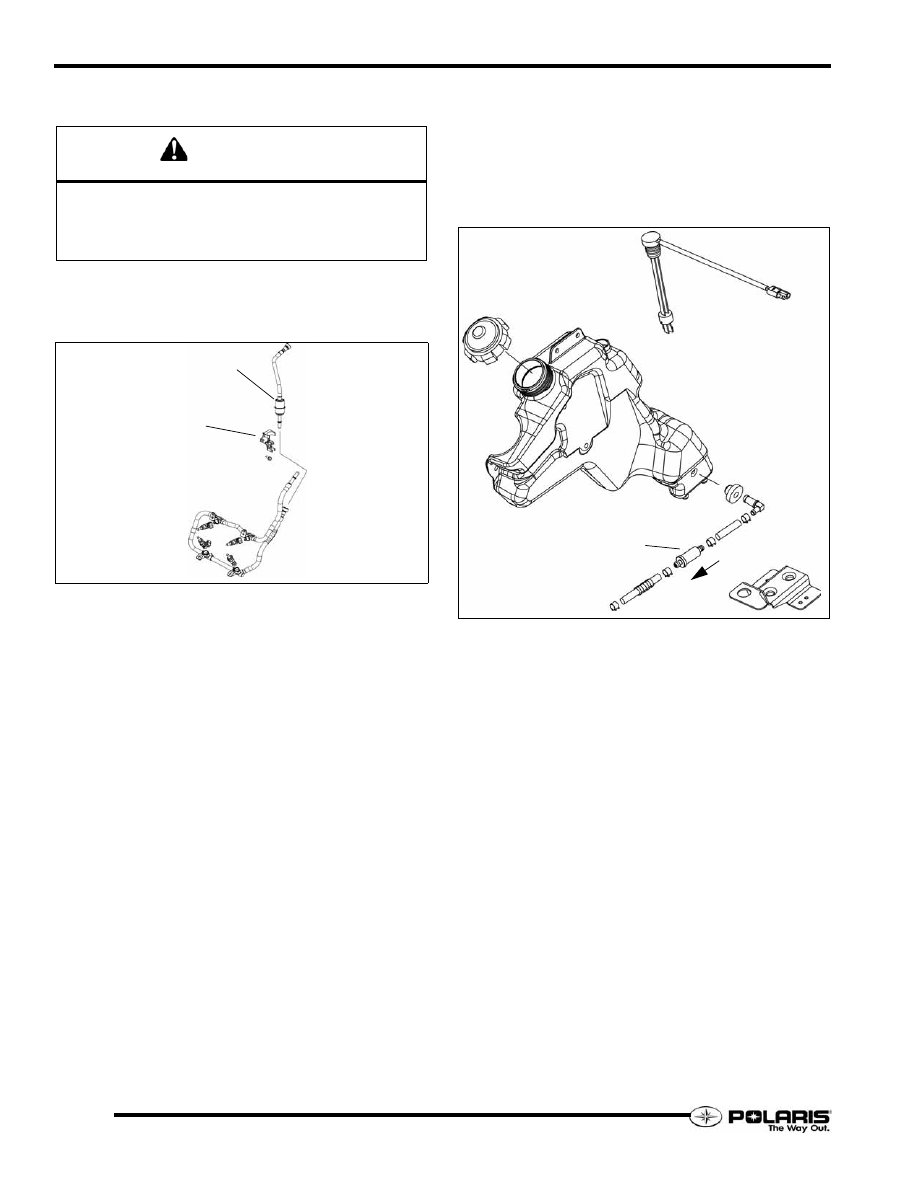

Fuel Filter - CFI Models

1.

The fuel filter should be replaced as outlined in the
periodic maintenance table. For information involving de-
pressurizing the fuel system and disconnecting fuel hoses,
See “Cleanfire™ Fuel Injection” on page 4.15.

2.

After de-pressurizing the fuel system and disconnecting the
fuel hoses, remove the fuel filter cartridge from the bracket.
Dispose of any fuel in an appropriate container, then
discard assembly.

3.

When re-connecting the fuel hoses, verify the connections
are secure by firmly pulling on the two hose connections.
Push the filter cartridge back into the bracket.

4.

To prime the fuel system after installing a new filter,
connect a 12 volt Vdc battery to the fuel pump prime plug.
See “Diagnostic Plugs” on page 11.18.

Oil Filter

All models feature an inline oil filter located between the oil
reservoir and oil pump. Always bleed the oil supply hose and oil
pump of air after replacing the filter.

Install the oil filter so that the directional arrow points towards
the oil pump.

WARNING

When removing the fuel filter fuel spillage will occur. Be

sure to work in a well ventilated area away from

anything which may cause the fuel to ignite such as an

open flame, heaters, trouble lights or cigarettes.

FUEL FILTER / SUPPLY HOSE

FUEL FILTER BRACKET

OIL LEVEL SENDER

VENTED CAP

GROMET

FILTER

3.13

Maintenance

3

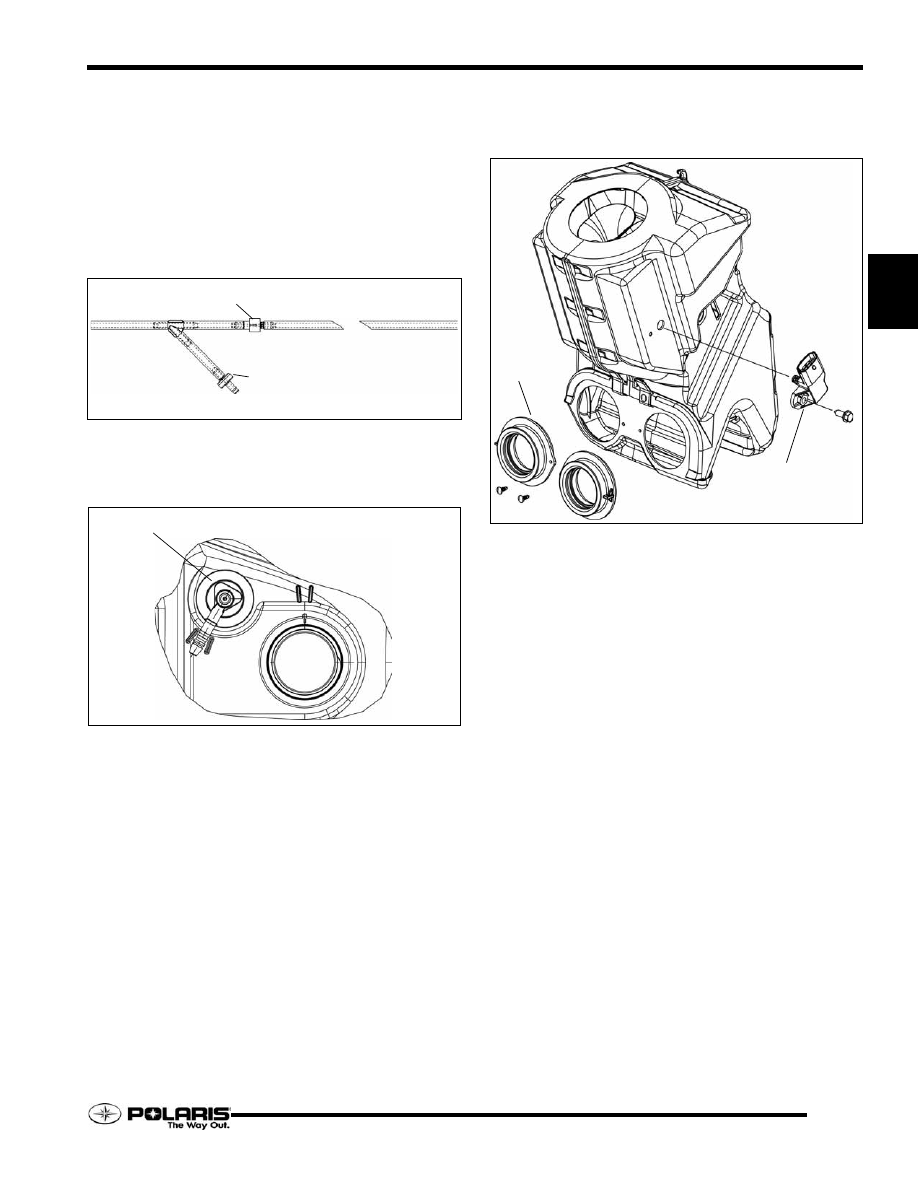

Fuel Tank Vent System

All models feature a fuel tank vent / vacuum check valve system.
There are two systems used depending on the model year of the
snowmobile.

On some models, the vent / vacuum check  valve system
resembles the illustration below.

When inspecting the system, verify the hoses are not cut or
kinked.

Some models feature a rollover check valve / vent / vacuum
check valve assembly bonded to the inside of the fuel tank. The
rollover check valve prevents fuel from escaping the tank in the
event of a vehicle rollover.

The rollover check valve is not serviceable. When inspecting the
system, verify the hose is not kinked.

Air Intake Box / Pre-Filters

Inspect the inside of the air intake box and pre-filters for foreign
material and/or damage.

NOTE: All 2007 and some 2008 CFI models were
manufactured with a two-piece airbox where an
adapter plate was secured to the throttle body. The
airbox then snapped into the adapter plate to make
the airbox assembly.
The two-piece air box is no longer available. A one-
piece air box is the direct replacement. The new air
box features adaptor boots that are pinned to the air
box. A set of gear clamps secure the boots to the
throttle body assembly.

Inspect the console-mounted pre-filters for damage, and foreign
material. Replace filter(s) or clean if required.

VENT CHECK VALVE

VACUUM CHECK VALVE
(“VAC” FACES “Y” FITTING)

(ARROW POINTS AWAY FROM TANK)

ROLLOVER VALVE

ONE-PIECE CFI AIR BOX

PRESS./TEMP. SENSOR

ADAPTOR
BOOTS

PINS

3.14

Maintenance

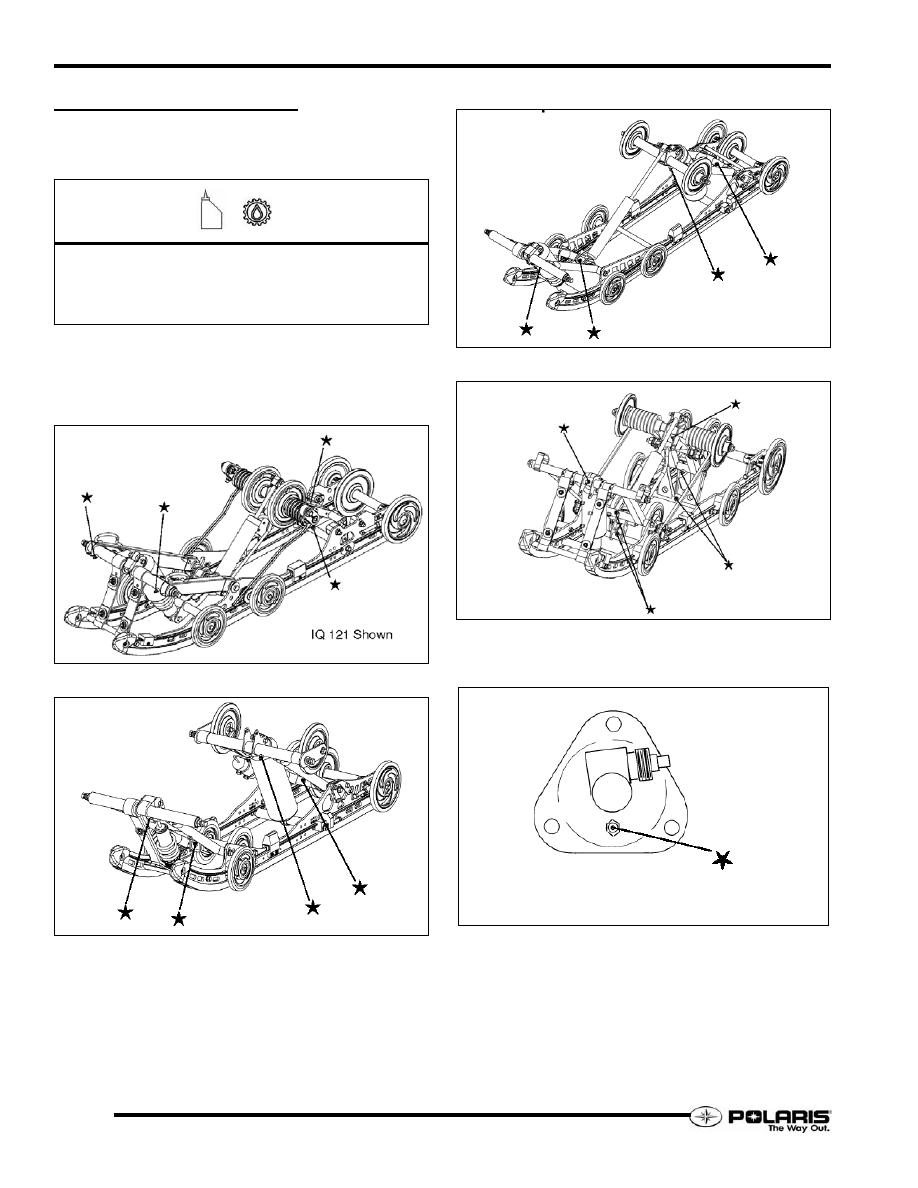

CHASSIS LUBRICATION

Chassis, suspension and mechanical grease points should be
lubricated Polaris Premium All Season Grease.

Rear Suspension

Lubricate grease zerks with Premium All Season Grease.

IQ 121 / 136 Coupled / 136 Comfort

M-10 128

M-10 136

IQ RMK

Driveshaft Bearing

Lubricate with Premium All Season Grease.

=

Polaris Premium All Season Grease

Part Numbers:

3oz. Grease Gun Kit = 2871312

14oz. Tube = 2871423

IQ Shift Shown

3.15

Maintenance

3

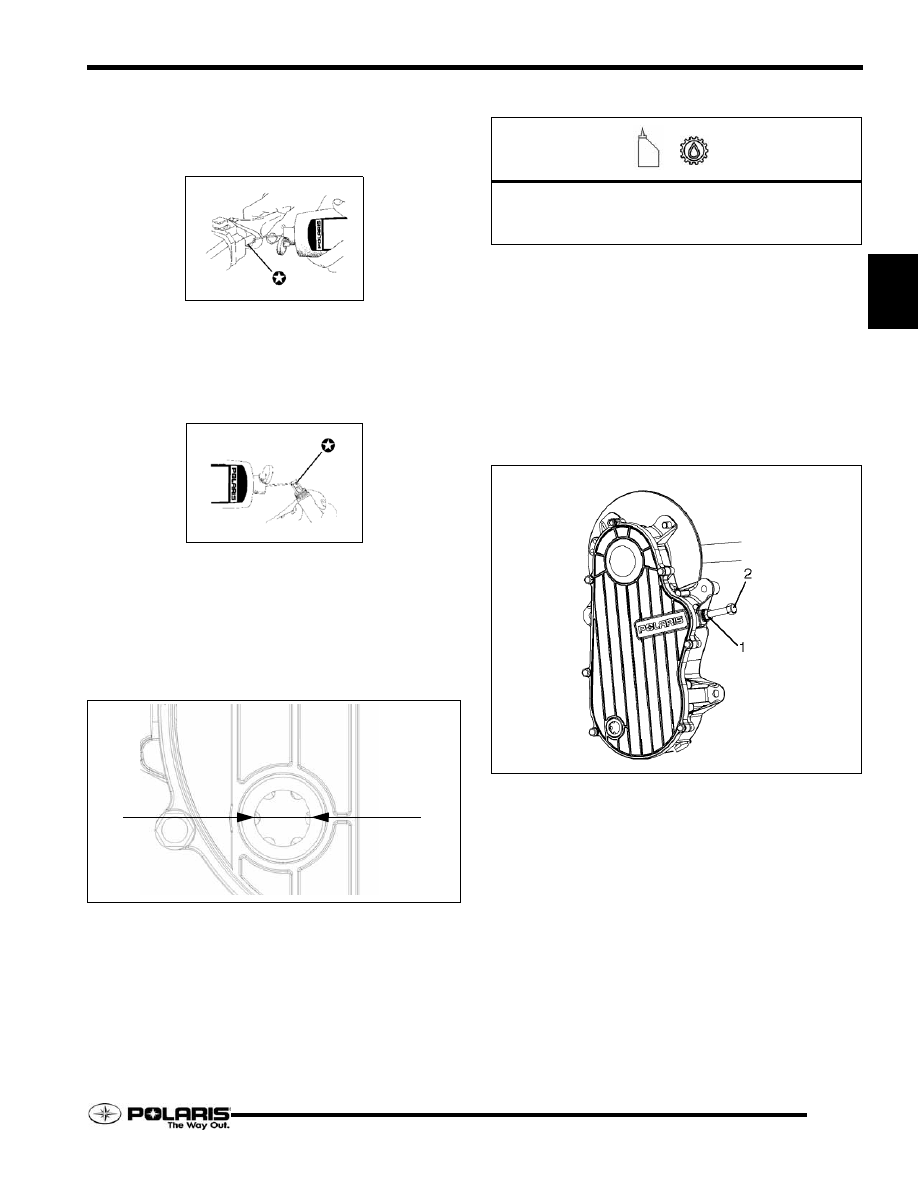

Throttle Cable

Lubricate the throttle cable lightly with fresh oil. With the
engine off, turn the handlebars to the left and lubricate well as
shown.

Choke And Choke Cable

Lubricate the choke slide and cables lightly with oil or grease.
Before turning the engine off, operate the choke intermittently
to draw moisture out of the choke plunger area and reduce the
possibility of the choke becoming frozen.

Chaincase Oil Level Check

Maintain the oil level at the mid-point of the sight glass.

1.

Position the vehicle on a level surface.

2.

Verify the oil level is in the middle of the sight glass.

3.

Add the recommended oil as needed at the fill plug. Do not
overfill.

Chaincase Oil Replacement

1.

Locate the chaincase drain plug on the bottom of the
nosepan.

2.

Place an oil catch pan under the drain plug.

3.

Remove the drain plug and drain the oil into the catch pan.

4.

Clean the magnetic plug to remove metal shavings.

5.

Install drain plug and hand-tighten. Do not over-tighten the
drain plug.

6.

Fill chaincase with oil at the fill plug location.

Drive Chain Tension Adjustment

1.

Rotate the driven clutch counterclockwise to move all of
the slack in the chain to the tensioner side. Lock the
parking brake, or have an assistant hold the brake lever.

2.

Loosen the adjuster bolt jam nut (1).

3.

Finger tighten the adjuster bolt (2) until it con no longer be
adjusted by hand, then back 1/4 turn.

4.

Tighten the jam nut while holding the adjuster bolt. torque
to 21 ft.lbs. (28 Nm).

5.

Release the brake lever lock.

A

=

Chaincase Oil Capacity = 11oz. (325.3 ml)

Recommended Lubricants:

Chaincase = Polaris Synthetic Chaincase Lubricant
