Snowmobile Polaris XCF SP EDGE Model S01NX4FS (2001 year). Instruction - part 8





C2

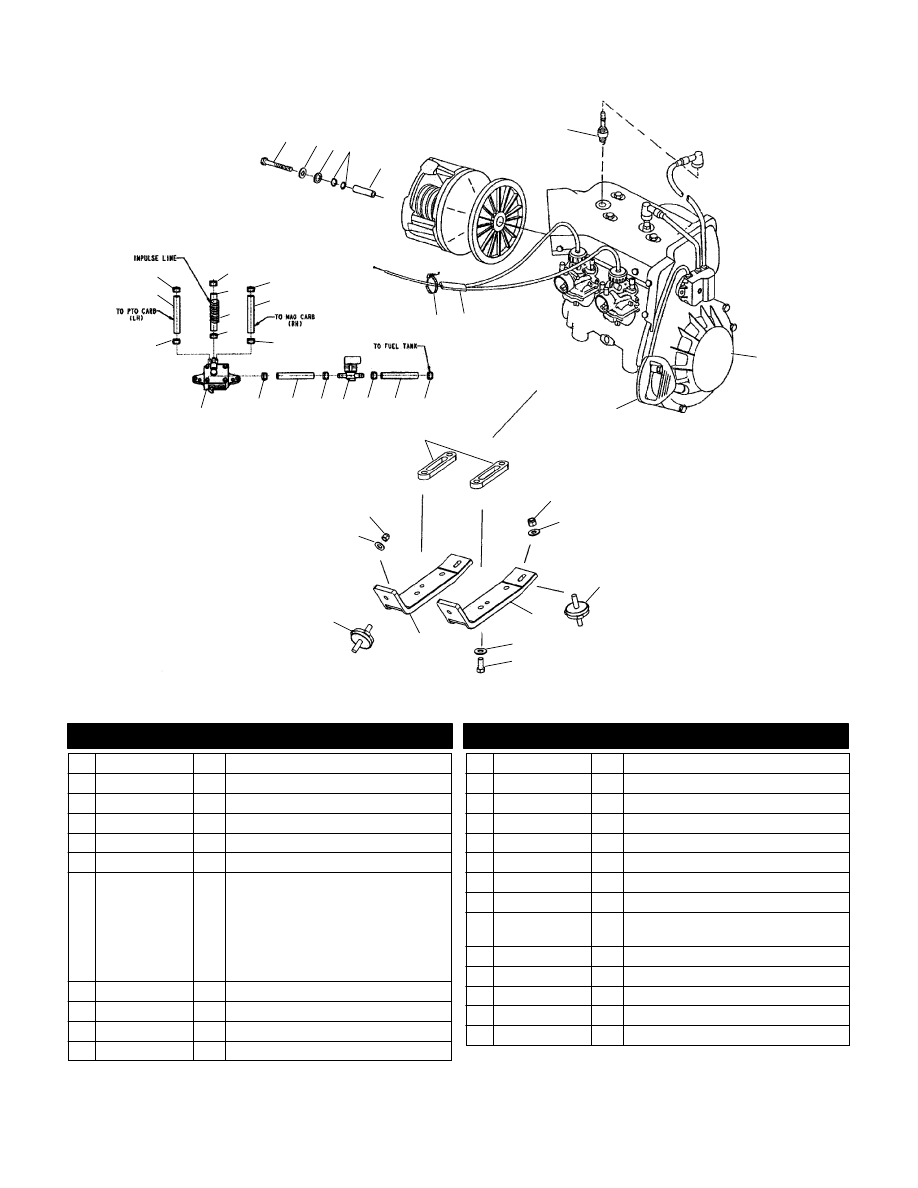

ENGINE MOUNTING

XCF SP EDGE S01NX4FS

1

2 3

6

7

8

14

12

13

11

20

24 25

19

22

4

5

21

16

10

15

9

17

18

10

9

23

11

17

17

17

17

17

17

17

18

18

18

21

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7517776

1 Screw

2 7575202

1 Washer

3 5010287

1 Washer, Clutch Retainer, Short

4 5410507

2 O-Ring, Clutch Bolt

5 5020513

1 Spacer, Clutch Bolt

6 3070163

2 Spark Plug, NGK BR9ES

7 3085944

1 Engine, Short Block (EC45PM020)

NOTE:

The Short Block assembly con-

tains a crankcase assembly, cylinder

and cylinder head assembly, and a piston

and crankshaft assembly. Prior authori-

zation is required for warranty consider-

ation.

8 5431499

1 Handle, Recoil

9 7542451

4 Nut, Nylok

10 7555893

4 Washer, Flat

11 3021116

4 Mount, Engine, 3 Tab

12 5245276

1 Strap, Engine Mount, RH

13 7553101

4 Washer, Spring Lock

14 7517911

4 Screw

15 5245275

1 Strap, Engine Mount, LH

16 5245389

2 Spacer, Engine

17 7080307

8 Clamp

18 8350018-600

AR Line, Fuel

19 7052248

1 Valve, Fuel Shut-Off

20 --------------

1 Asm., Fuel Pump (See Fuel Pump Pg.

C11, Ref. 3)

21 7080003

2 Clamp, Hose, Red

22 8450040-600

AR Line, Fuel

23 8360052-15

1 Tubing, Convoluted

24 7080138

1 Cable Tie

25 7080916

1 Cable, Throttle

10/00

C3

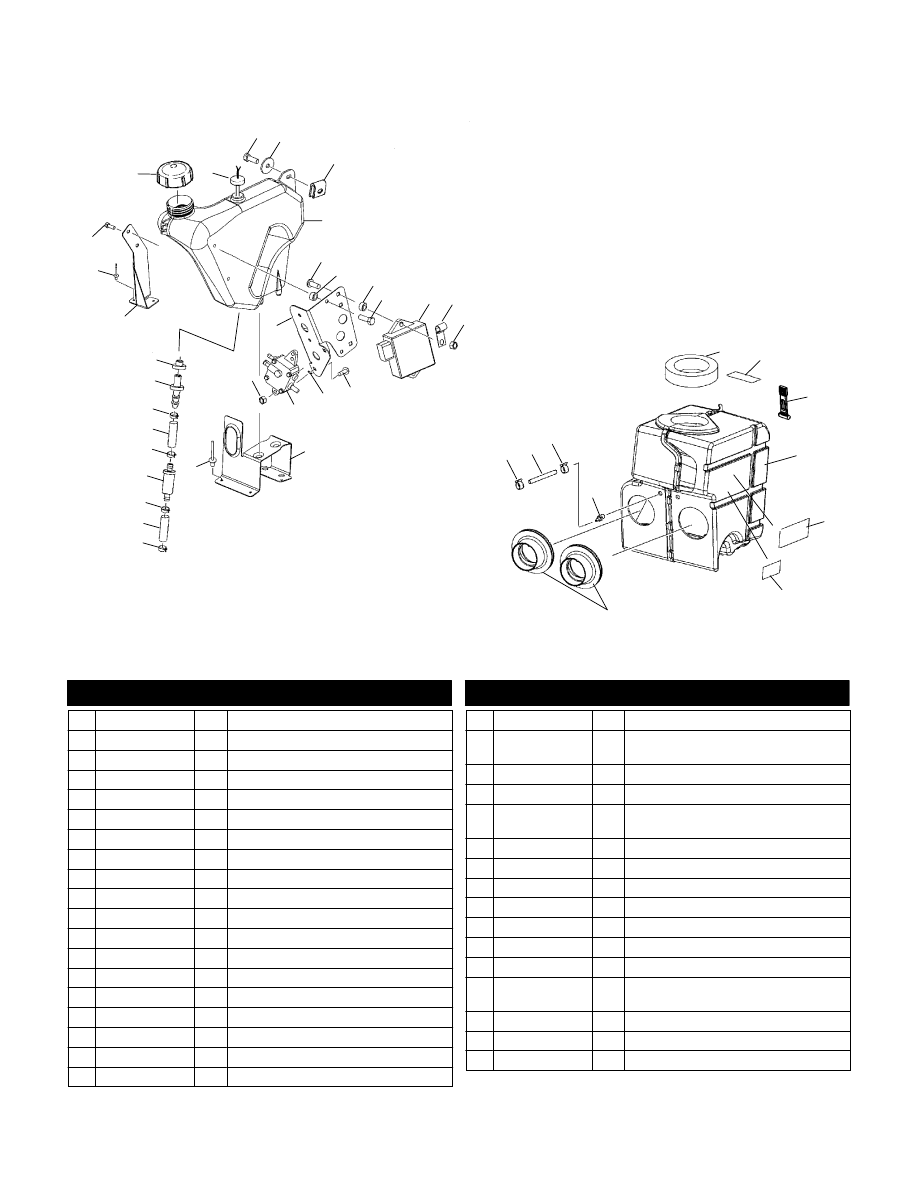

OIL TANK / AIRBOX

XCF SP EDGE S01NX4FS

29

33

32

31

35

27

28

30

26

34

26

23

1

12

13 14

15

16

11

17

19

20

18

21 22

10

24

25

3

5

17

10

6
7

8

9

4

2

3

7

7

7

8

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 1240094

1 Cap, Oil

2 7517615

2 Screw

3 7661637

9 Rivet

4 5245611

1 Bracket, Oil Bottle, Reinforced

5 7052028

1 Grommet, Flanged

6 7052207

1 Fitting, Straight

7 7080307

4 Clamp, Hose

8 8450003-1525

AR Hose

9 2530009

1 Filter

10 7542122

4 Nut, Nylok

11 5245395

1 Bracket, Coil Mount

12 4110134

1 Sensor, Oil Level

13 7512276

1 Bolt

14 7555931

1 Washer, Flat

15 7670096

1 Nut, Chimney

16 5434172

1 Tank, Oil

17 7512263

4 Bolt, Carriage

18 7555932

2 Washer, Nylon

19 5431928

2 Bumper

20 7517658

2 Screw

21 --------------

1 Kit - CDI

(See Magneto Pg. C13, Ref. 4)

22 7080884

1 J-Clip

23 7670021

2 Nut, Speed

24 --------------

1 Asm., Fuel Pump

(See Fuel Pump Pg. C11, Ref. 3)

25 5245393

1 Bracket, Oil Bottle, Lower

26 7080307

6 Clamp, Hose

27 8450003-1525

AR Line, Oil

28 7052127

2 Fitting, Lubrication

29 5811882

1 Foam, Air Box, Chimney

30 7075351

1 Decal - Caution, Air Box

31 5433150

1 Strap, Air Box, Top

32 1253407

1 Asm., Air Silencer

(Incl. 27,35 & Decals)

33 7073820

1 Decal - Adjustable Driven Clutch

34 7073426

1 Decal - Greasing

35 5411665

1 Boot, Carburetor Mount

10/00

C4

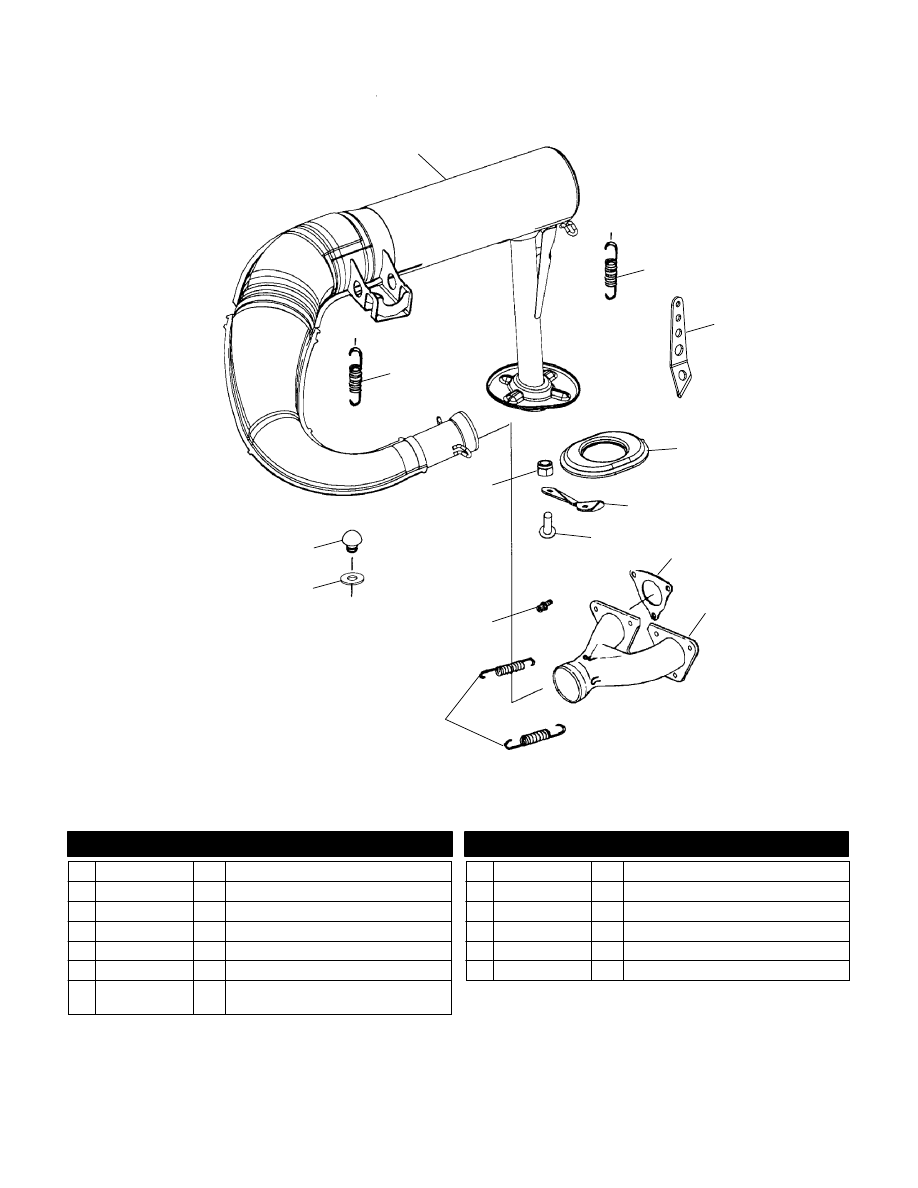

EXHAUST SYSTEM

XCF SP EDGE S01NX4FS

1

9

10

8

7

4

5

6

11

2

12

13

2

3

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 1261148-029

1 Muffler

2 7042029

3 Spring

3 5245453

1 Bracket, Retainer

4 5411902

1 Boot, Exhaust

5 5243929

1 Deflector, Snow

6 7512394

2 Bolt, Carriage

7 --------------

2 Gasket, Exhaust

(See Cylinder Pg. C6, Ref. 5)

8 1261143-029

1 Manifold

9 7041687

2 Spring, Exhaust

10 7517555

6 Screw

11 7542321

2 Nut, Flange

12 5411576

1 Dampener, Vibration

13 7556004

AR Washer

10/00

C5

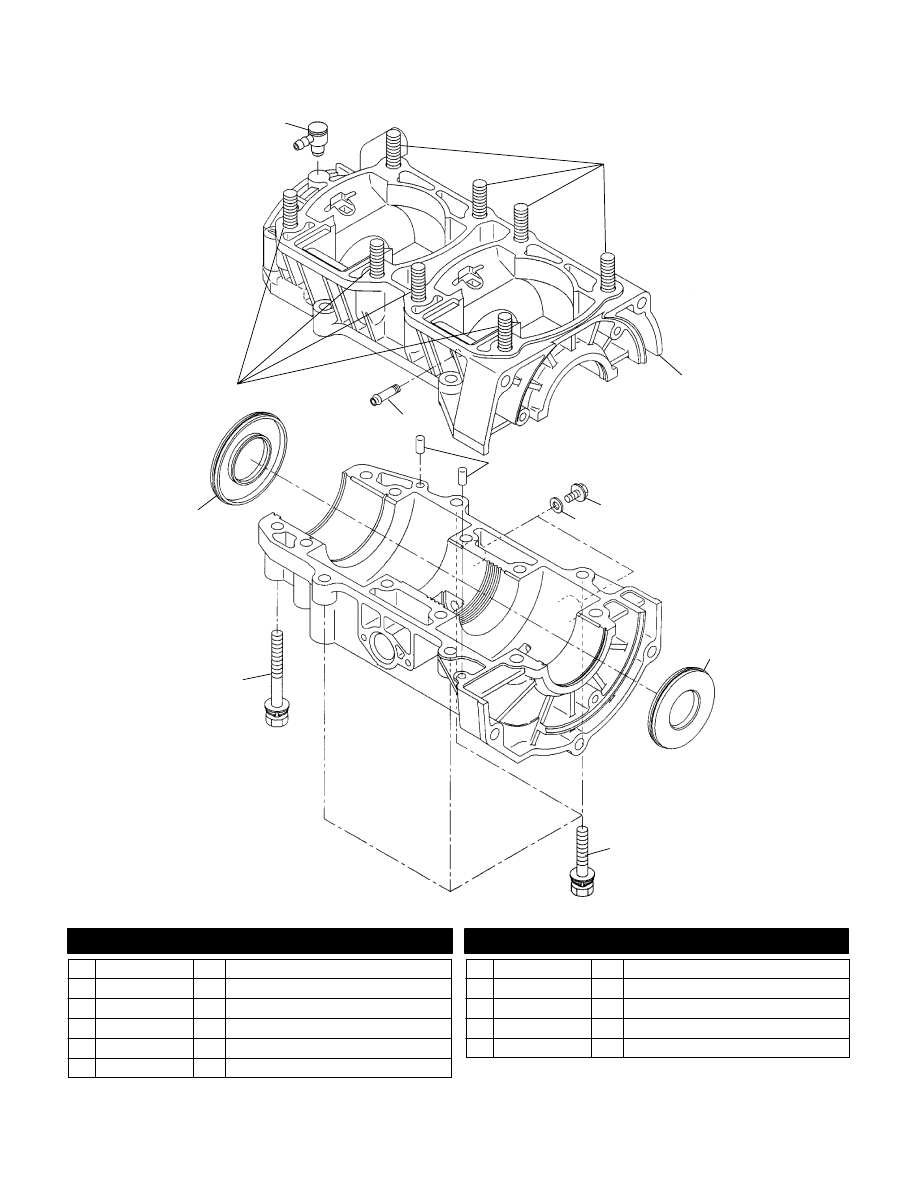

CRANKCASE

XCF SP EDGE S01NX4FS

3

11

9

10

5

7

6

2

2

4

8

1

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3085462

1 Nipple

2 3085713

8 Stud

3 3083798

1 Pipe (Pulse)

4 3087108

1 Asm., Crankcase (Incl. 2-5,9,10)

5 3080103

2 Pin, Dowel

6 3083568

2 Bolt, Flange

7 3082758

2 Gasket, Aluminum

8 3085664

1 Seal, Oil

9 3084225

4 Bolt and Washer

10 3084670

10 Bolt and Washer

11 3085663

1 Seal, Oil

10/00
