Snowmobile Polaris XCF SP EDGE Model S01NX4FS (2001 year). Instruction - part 1





PARTS MANUAL PN 9916162 and MICROFICHE PN 9916163 10/00

XCF SP EDGE

Model #S01NX4FS

E

2000 Polaris Sales Inc.

A3

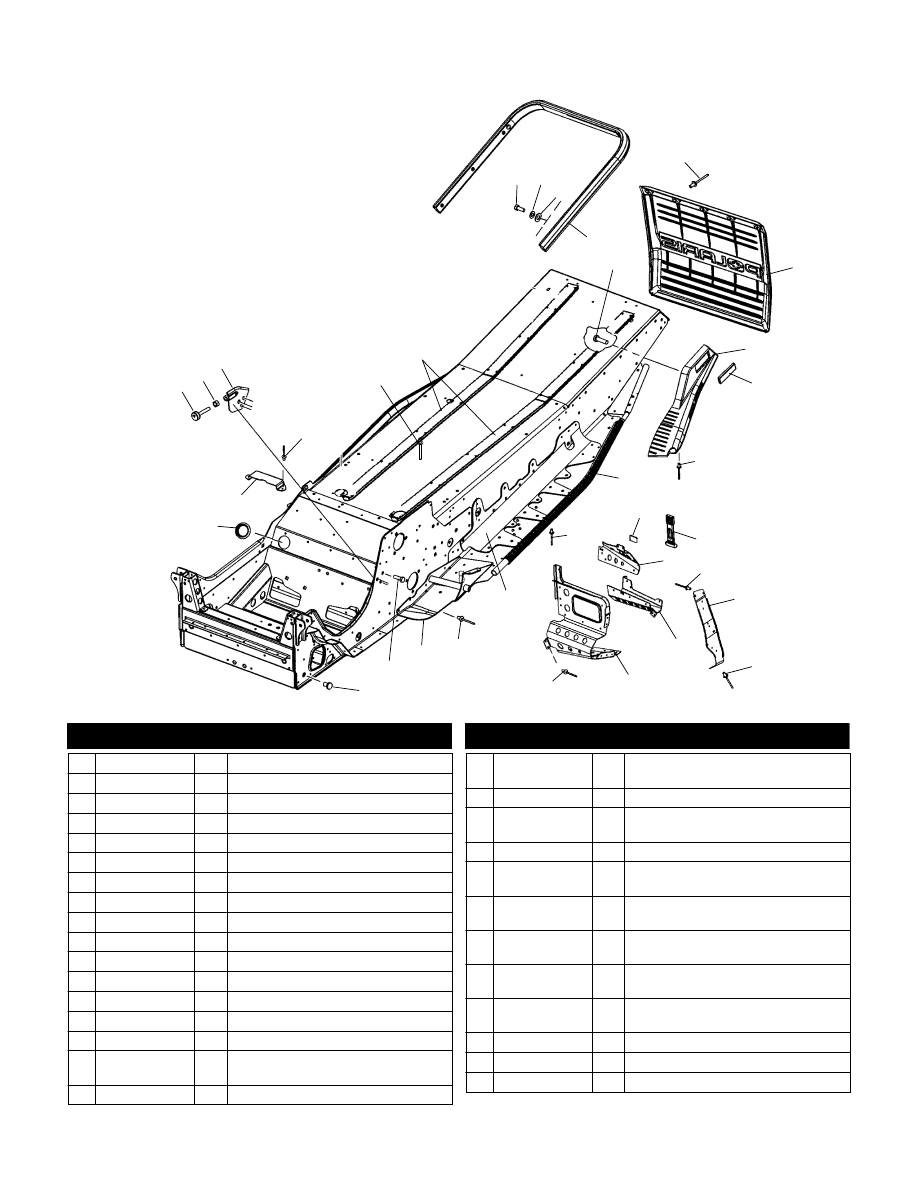

CHASSIS

XCF SP EDGE S01NX4FS

28

1

2

3

8 9

10

11

14

18

16

12

15

13

17

21

23

25

4

4

4

22

26

20

7

6

4

24

5

13

4

27

4

E

2000 Polaris Sales Inc.

19

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1013456-309

1 Asm., Tunnel/Bulkhead

1 3021104

1 Stop, Torque

2 7542404

1 Nut

3 1013507

1 Stop, Torque

4 7661637

44 Rivet

5 7080934

2 Plug

6 7621432

28 Rivet

7 5132346

2 Exchanger, Strip, Wear

8 7512240

6 Bolt

9 7552801

6 Washer, Spring Lock

10 7558301

6 Washer, Flat

11 2632165-309

1 Bumper, Rear

12 7517441

4 Screw

13 7621472

13 Rivet

14 5433521-1106

1 Flap, Snow

15 5433519-070

5433520-070

1

1

Skirt, Snow, LH

Skirt, Snow, RH

16 2670133

2 Reflector, Red

17 5132903

5132904

1

1

Grip, Tunnel Roll, LH

Grip, Tunnel Roll, RH

18 5521238

1 Extrusion, Clutchguard

19 5245619

5245620

1

1

Mount, Console, Upper, LH

Mount, Console, Upper, RH

20 5433150

2 Strap, Hood Latch

21 5242741

5242742

1

1

Support, Footrest, LH

Support, Footrest, RH

22 5245457

5245458

1

1

Mount, Console, Toe Clip, LH

Mount, Console, Toe Clip, RH

23 5245288

5242740

1

1

Footrest, LH

Footrest, RH

24 5245231-309

5245232-309

1

1

Brace, Tunnel, LH

Brace, Tunnel, RH

25 1013503

1013504

1

1

Mount, Trailing Arm, LH

Mount, Trailing Arm, RH

26 7517632

3 Screw

27 7080416

2 Plug

28 5245398-067

1 Bracket, Mount, Airbox

10/00

A4

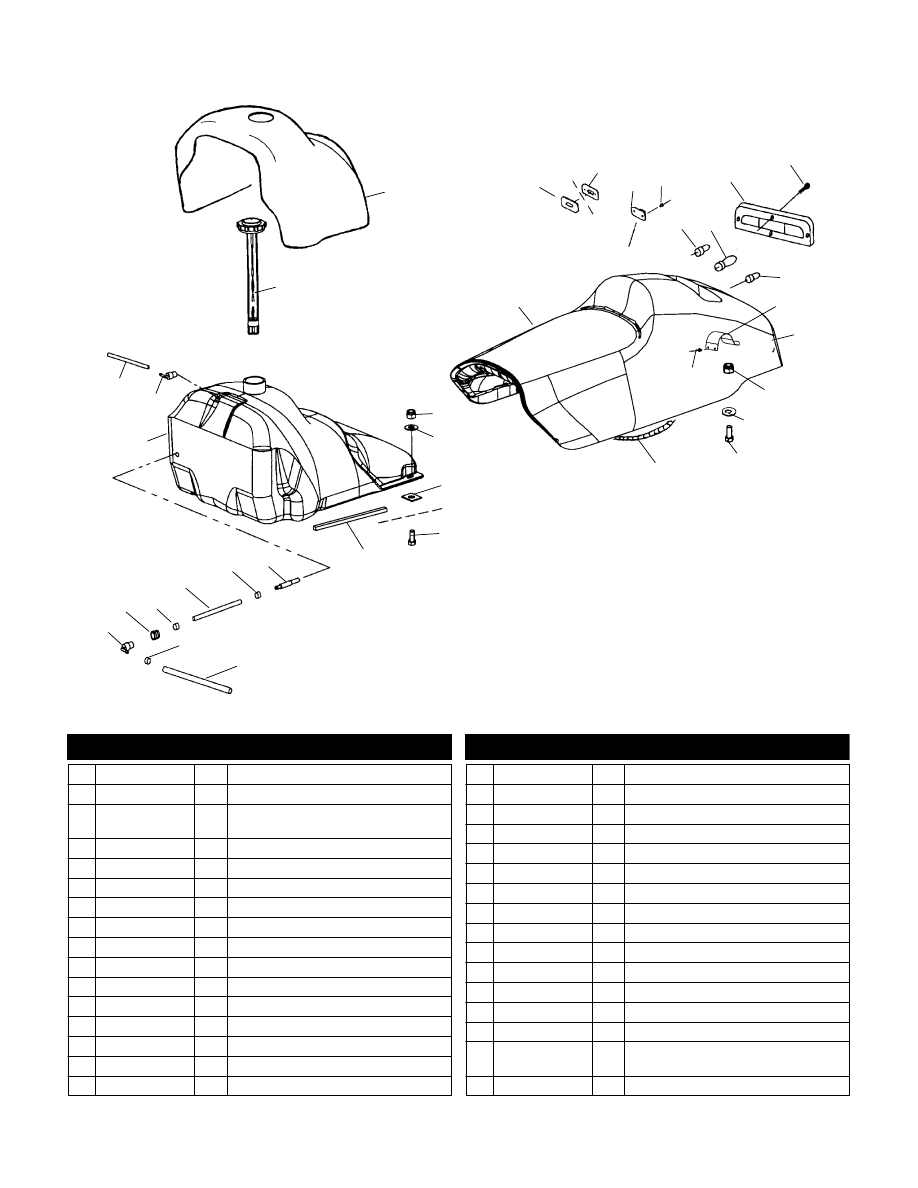

SEAT AND GAS TANK

XCF SP EDGE S01NX4FS

3

18

9

13

10

17

1

31

32

30

28

26

25

29

8

8

4

5

7

6

11

24

20

29

27 28

14

12

23

19

21

22

16

15

2

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 2511195-070

1 Cap, Fuel

2 2682821

1 Asm., Tank Cover

3 2682742

2682578

1

1

Asm., Seat (Incl. 3-13,18)

Cover, Seat

4 7080550

2 Grommet, Relatch, Bottom

5 7080549

2 Grommet, Relatch, Top

6 7080548

2 Relatch w/Hole, Twist Lock

7 7621337

4 Rivet

8 4030024

2 Bulb, Taillight

9 4030045

1 Bulb, Brakelight

10 5430423

1 Lens

11 7511840

4 Screw

12 5243185

1 Retainer, Tool Pouch Clip

13 5433341

1 Housing, Taillight

14 7621472

2 Rivet

15 7547114

2 Nut, Weld

16 7558301

2 Washer, Flat

17 7512242

2 Screw

18 2460399

1 Harness, Taillight

19 7542122

2 Nut, Nylok

20 7555960

2 Washer, Flat

21 7670021

2 Nut, Speed

22 7512193

2 Bolt, Carriage

23 5810063

2 Cushion, Tank

24 8350018

AR Line, Fuel

25 7080307

1 Clamp, Hose

26 7052259

1 Fitting

27 7052028

1 Grommet, Flanged

28 7080402

2 Ring, Compression

29 8350019-600

AR Line, Fuel

30 7052243

1 Pickup w/Filter, Fuel

31 2520170

1 Asm., Fuel Tank, Translucent

(Incl. 30-32)

32 7052095

1 Fitting

10/00

A5

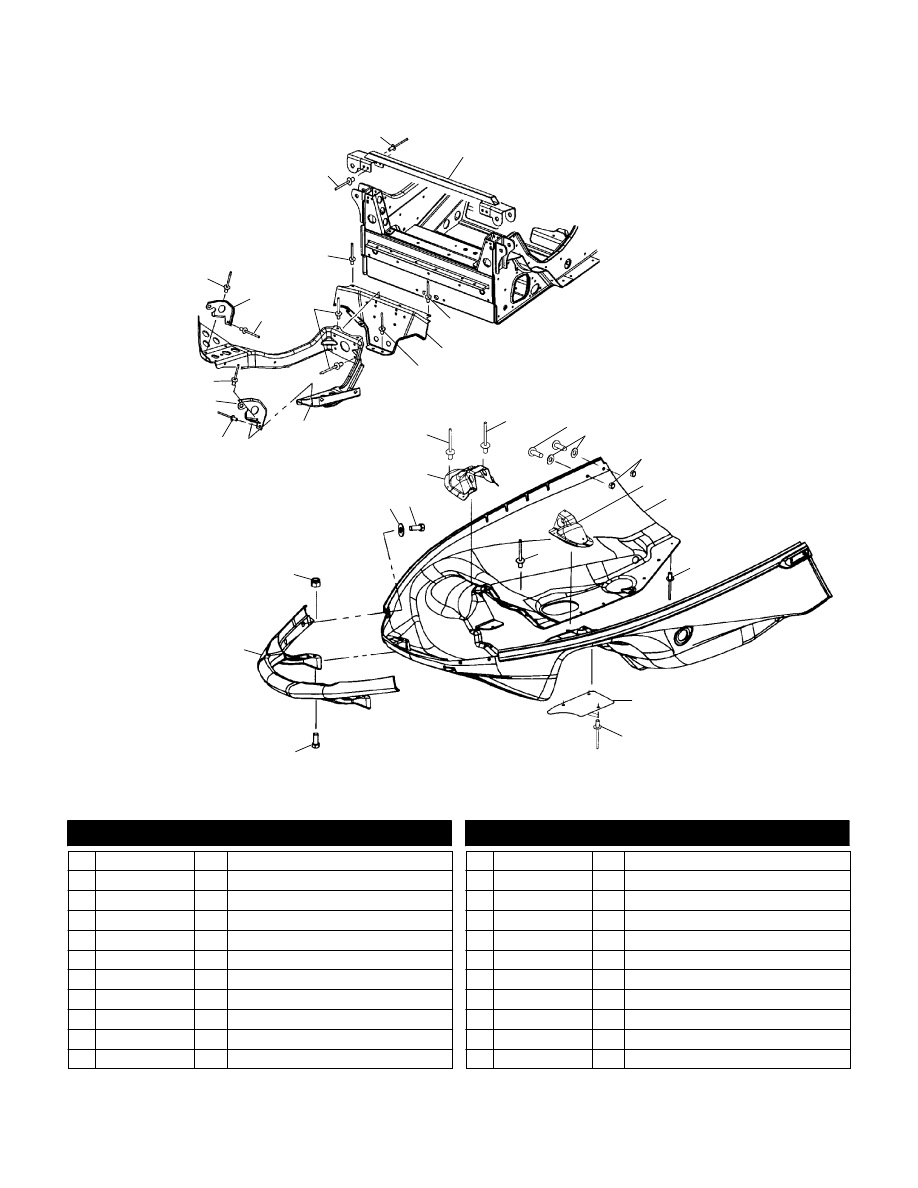

NOSEPAN

XCF SP EDGE S01NX4FS

1

1

2

6

5

17

3

14

11

13

10

7

3

12

1

1

16

15

21 20

19

8

18

9

4

1

1

3

3

3

1

22

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7661637

24 Rivet

2 5243992-067

1 Hinge, Pivot, Lower, RH

3 7621467

16 Rivet

4 1013477-067

1 Brace, Cross

5 5245238-067

1 Bracket, Radius Rod Support

6 5244050

1 Brace, Pan, Lower

7 5243991-067

1 Hinge, Pivot, Lower, LH

8 7621479

8 Rivet

9 5434102

1 Cover, Shock Tower, RH

10 7517312

4 Screw

11 7552801

4 Washer, Spring Lock

12 7542153

2 Nut, Nylok

13 5433518-070

1 Bumper, Front

14 7512163

2 Bolt

15 7621472

3 Rivet

16 5243849

1 Shield, Heat

17 5434133-293

1 Nosepan

18 5434101

1 Cover, Shock Tower, LH

19 7542122

4 Nut, Nylok

20 7555827

4 Washer

21 7515166

4 Screw

22 7621418

2 Rivet

10/00
