Snowmobile Polaris Widetrak LX (2014 year). Instruction - part 13





53

OPERATION

Oil

Low Oil Level

Always do a visual check of the oil level when refueling. When the oil
reaches the low level mark, add the recommended oil to the tank. See
page 47 for oil recommendations.

The POLARIS oil cap on the oil tank may be vented to allow proper oil
flow. See your POLARIS dealer for recommended replacement parts.

Carburetion

NOTICE: Making non-recommended adjustments could result in vehicle or

engine damage as well as denial of warranty claims. We recommend
that all carburetor adjustments be performed by your POLARIS
dealer.

Proper carburetor adjustment is critical. A lean mixture (too much air,
too little fuel) may result in piston burning, bearing failure, or complete
engine failure. A rich mixture (too much fuel, too little air) may foul
plugs and cause generally poor engine performance. A lean mixture may
be caused by things like fuel line restrictions, foreign matter in the
carburetor or clogged fuel filters. A rich mixture may be caused by snow
build-up on the pre-filter in the air intake system. Either condition may
be caused by improper carburetor adjustment.

54

OPERATION

Carburetion

Jetting Guidelines

Changes in altitude and temperature affect air density, which is the
amount of oxygen available for combustion. In low elevations and cold
temperatures, the air has more oxygen. In higher elevations and higher
temperatures, the air is less dense.

All carburetors have been pre-set at the factory to the settings indicated
by the shaded cells of the jetting chart on page 105. Carburetors must be
re-calibrated if the snowmobile is operated outside this production
temperature and/or altitude range. The main jet installed in production is
not correct for all altitudes and/or temperatures. The number stamped in
the end of the main jet indicates the jet size that was installed at the time
of manufacture.

NOTICE: Using non-recommended jets and/or needles can result in shorter

engine life, lower fuel economy, increased emissions and poor
performance and drivability. Always use POLARIS-recommended jets
and needles.

It’s the owner’s responsibility to ensure that the correct jets are installed
in the snowmobile for a geographical area. Be very careful when jetting
down in warm weather. As the weather turns colder it will be necessary
to re-jet upward to prevent engine damage. When selecting the proper
main jet always use the lowest elevation and temperature that is likely to
be encountered.

55

OPERATION

Engine Stop Switch

Push down on the engine
stop switch to stop the
engine in an emergency.
This will ground out the
ignition and bring the
engine to a quick stop.
To restart the engine, the
switch must be pulled up
to the ON position.

Throttle Safety Switch

The throttle safety switch is designed to stop the engine whenever all
pressure is removed from the throttle lever and the throttle cable or
valves do not return to the normal closed position. Test the throttle
safety switch system daily before operation.

WARNING! Operating the snowmobile with a faulty throttle safety switch can
result in serious injury or death in the event of an accident. If the throttle safety
switch does not shut off the engine during a carburetor/throttle system
malfunction, immediately push down the engine stop switch. Do not start the
engine again until the malfunction has been corrected by your dealer.

Test the throttle safety switch
system daily before operation.

1. Sit on the seat.

2. Start the engine and allow it

to idle.

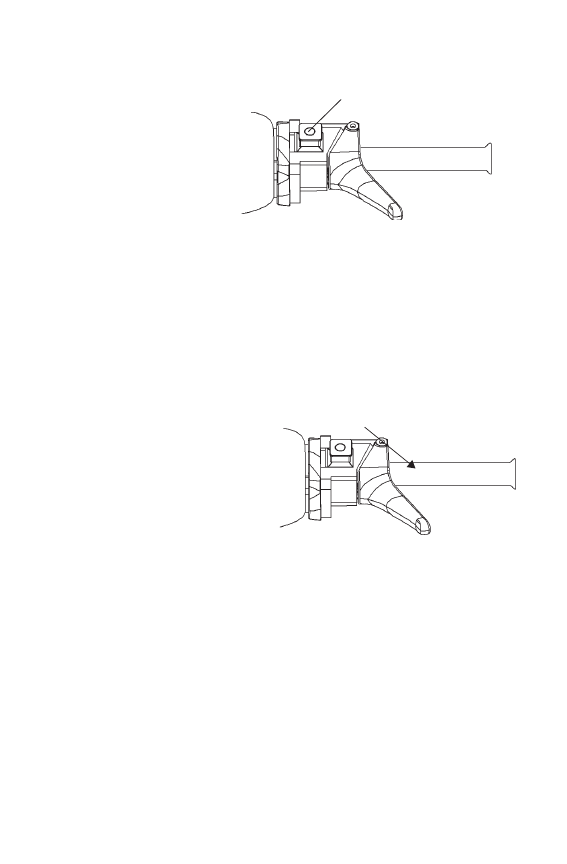

3. Hold the throttle lever pin

stationary by exerting pres-
sure on the pivot pin in the direction shown in the illustration.

4. Apply a slight amount of throttle. A properly functioning switch

must shut down the engine.

Stop Switch

56

OPERATION

Throttle Lever

WARNING! An improperly functioning throttle lever may cause erratic
snowmobile behavior and loss of control, which could result in serious injury or
death. If the throttle lever does not work properly, DO NOT start the engine.

If the engine stops abruptly when the throttle lever is released:

1. Turn the ignition switch to OFF.

2. Visually inspect the throttle cable and carburetor(s) to determine

what caused the safety switch to activate.

3. Test the throttle lever by compressing and releasing it several times.

The lever and cable must return to the idle position quickly and
completely.

4. If the throttle lever operates properly, turn the ignition switch on and

go through normal starting procedures.

5. If the engine doesn’t start, take the snowmobile to an authorized

POLARIS dealer for service.

Tip: Excessive free play in the throttle cable may cause the safety switch to

activate, preventing the engine from starting. If this occurs, return the
snowmobile to an authorized POLARIS dealer for service.

If an emergency exists and it’s necessary to start the engine, the throttle
safety switch and engine stop switch may be disconnected from the wire
harness. When these switches are disconnected, the ignition key switch
must be used to shut off the engine. DO NOT continue to operate the
snowmobile with the throttle safety switch disconnected. Return the
snowmobile to an authorized POLARIS dealer for service as soon as
possible.
