Snowmobile Polaris WIDETRAK LX Model S03SU4BS (2003 year). Instruction - part 4





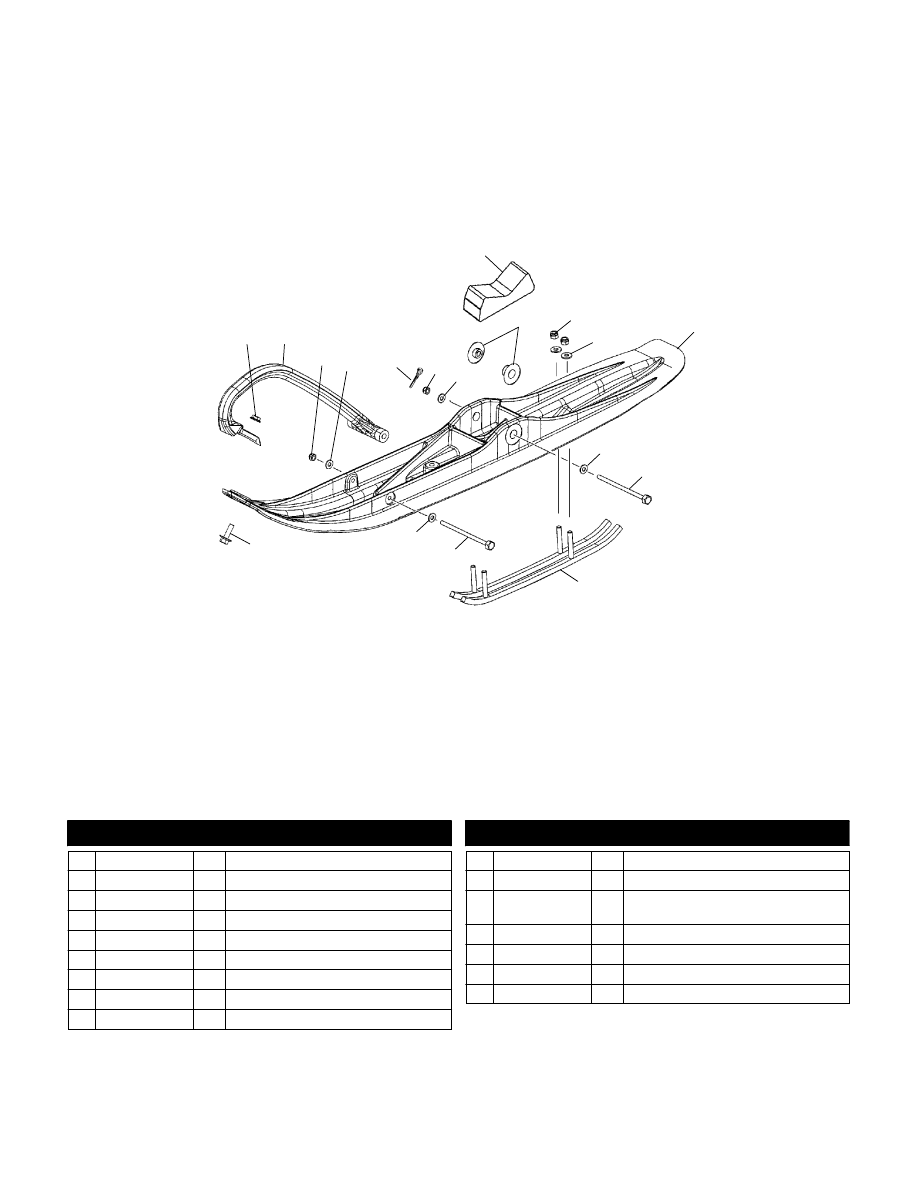

A14

SKI

WIDETRAK LX S03SU4BS

12

14

13

4

15

16

2

1

6

3

9

4

10

11

8

7

7

5

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7542321

2 Nut, Flange

2 5434165-070

2 Toe, Ski, Plastic, Black

3 7542439

2 Nut, Nylok

4 7558301

4 Washer

5 7661209

2 Pin, Cotter

6 7542438

2 Nut

7 7556130

4 Washer

8 5132637

4 Bushing

9 5412018

2 Stop, Rubber

10 7542324

8 Nut, Nylok

11 7555843

8 Washer

12 1821337--070

1821338--070

1

1

Ski, LH (Incl. 8)

Ski, RH (Incl. 8)

13 7515462

2 Screw

14 2874334

2 Kit, Skag, 4-inch, 60 Degree

15 7515514

2 Screw

16 7518070

2 Screw

7/02

B1

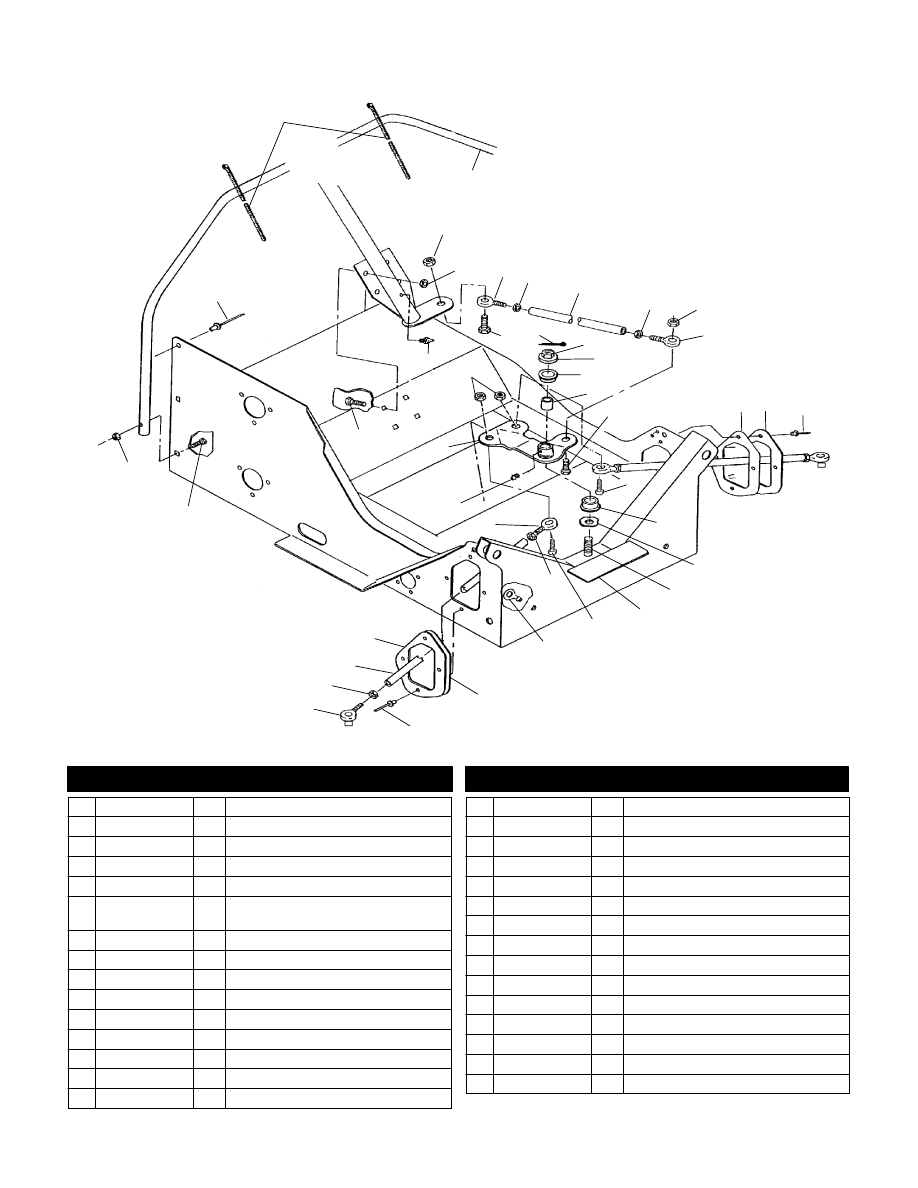

STEERING

WIDETRAK LX S03SU4BS

2

18

19

20

21

6

22

11

25

26

27

14

6

10

9

3

6

6

3

3

29

13

15

14

17

16

30

7

4

12

12

23

28

5

8

11

10

9

24

1

28

24

8

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7080804

2 Cable Tie, Releasable

2 1012729-067

1 Hoop, Steering

3 7542403

4 Nut, FLEXLOC

4 7542303

4 Nut, FLEXLOC

5 7060167

1 Rod End, RH

6 7542424

7542401

3

3

Nut, LH

Nut, RH

7 5334113-067

1 Rod, Drag Link

8 7060166

3 Rod End, LH

9 7621323

10 Rivet

10 5222942-067

2 Plate, Boot Seal

11 5410761

2 Boot, Tie Rod

12 7515528

2 Screw

13 5010463

1 Bushing

14 3563907

2 Bushing

15 7555721

1 Washer

16 7542703

1 Nut, FLEXLOC

17 7661203

1 Pin, Cotter

18 7661637

1 Rivet

19 7542103

4 Nut, FLEXLOC

20 7512275

4 Bolt

21 7060174

2 Rod End, RH

22 5020878

2 Tie Rod

23 4020139

3 Clip, Rosebud

24 7515540

2 Screw

25 5630563

1 Block, Steering

26 7512682

1 Screw

27 7555735

1 Washer, Wave

28 7080433

2 Fitting, Lubrication

29 1822217

1 Asm., Center Steering Arm (Incl. 14,28)

30 7517428

4 Bolt

7/02

B2

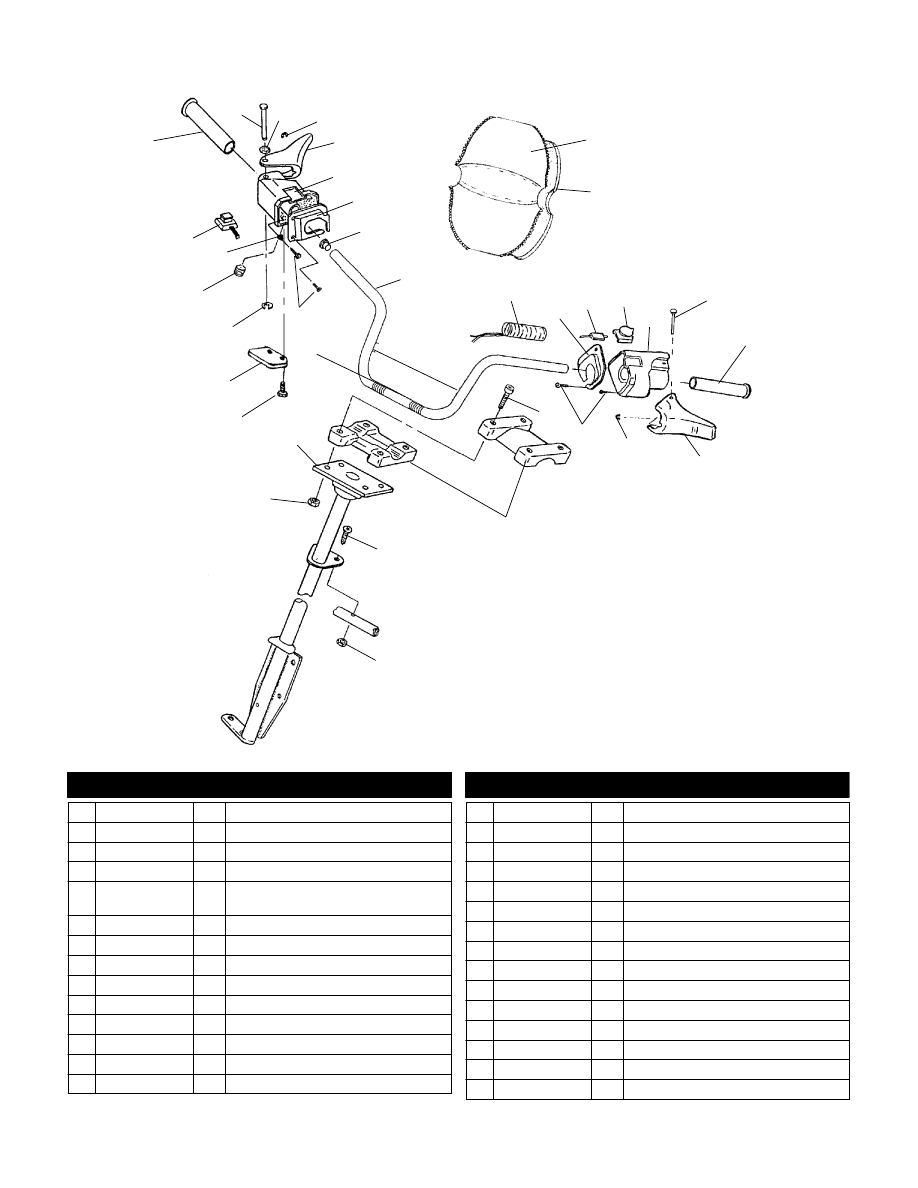

STEERING - HANDLEBAR

WIDETRAK LX S03SU4BS

1

1

2

4

5

6

7

8

9

10

11

12

13

14

6

15

16

17

18

19

20

21

24

23

26

18

3

27

29

7

25

22

28

18

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 5432634

2 Grip, Handlebar

2 7661624

1 Pin, Retaining

3 7555730

2 Washer

4 7710401

1 Ring, Retaining

5 2010171

5432970

1

1

Asm., Heater Lever, Hi/Lo

Lever, Throttle

6 5431592

2 Block, Throttle/Brake

7 5430604

2 Adaptor, Block

8 5431096

2 Plug

9 1823135-067

1 Handlebar

10 2690146

1 Asm., Handlebar Cover

11 5811179

1 Foam, Handlebar Pad

12 2460311

2 Grip Heater, Hi/Lo

13 4110105

1 Switch, Brake Light

14 4110104

1 Switch, Dimmer

15 7661617

1 Rivet

16 5430602

1 Lever, Brake

17 7670044

1 Clip, Speed, U-Type

18 7511848

12 Screw

19 7517238

4 Screw

20 5630187-067

2 Block, Handlebar

21 7517377

2 Screw

22 7542103

2 Nut, FLEXLOC

23 7542122

4 Nut, Nylok

24 1823182-067

1 Post, Steering

25 5432261

1 Holder, Wire

26 7710503

1 Ring, Retaining

27 7512465

2 Screw, Set

28 7555727

2 Washer

29 4110106

1 Switch, Auxiliary Shut-Off

4/01

B3

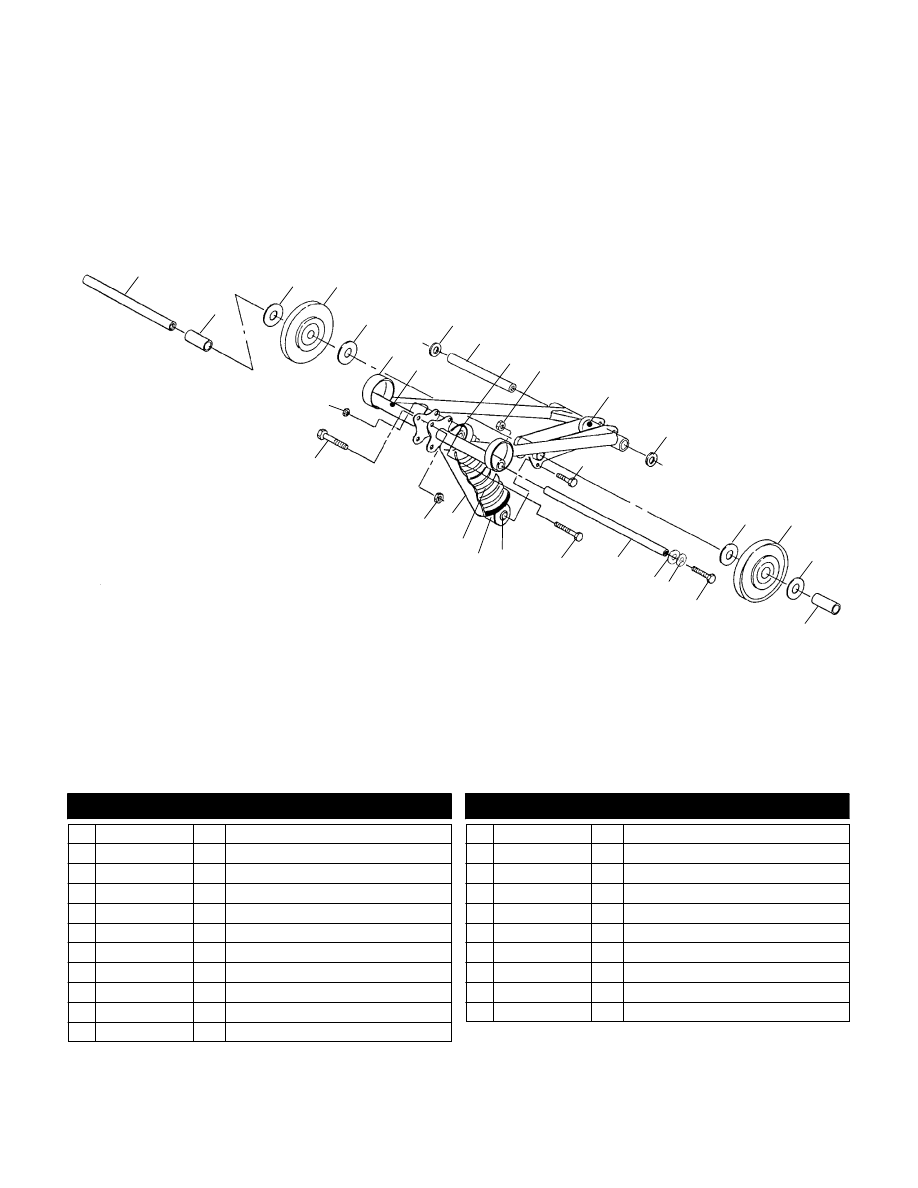

FRONT TORQUE ARM

WIDETRAK LX S03SU4BS

2

3

3

4

4

2

5

9

11

11

12

15

16

17

18

19

21

20

10

10

13

14

1

8

3

3

6

6

7

7

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 5020720

1 Shaft, Spanner

2 5333012

2 Spacer

3 7556301

4 Bushing

4 1543018

2 Asm., Bogie Wheel

5 1541044-067

1 Arm, Torque, Front

6 7080424

2 Fitting, Lubrication

7 7555823

2 Washer, Flat

8 5132239

1 Shaft, Pivot

9 5630580

1 Retainer, Spring, Slotted

10 7542411

2 Nut, FLEXLOC

11 7515433

2 Screw

12 7517435

2 Screw

13 7552603

2 Washer, Spring Lock

14 7555893

2 Washer, Flat

15 5020909

1 Shaft, Mounting

16 7041742

1 Shock, Suspension, Center

17 5245067-067

1 Retainer, Spring

18 7041712-067

1 Spring, Front Track

19 5430671

1 Shield, Spring

20 7542439

1 Nut, Nylok

21 7515438

1 Screw

5/00
