Snowmobile Polaris Widetrak LX (2015 year). Instruction - part 20





82

MAINTENANCE

Clutch System

Drive Belt Condition

Belt width and length must match the center distance of the clutches and
sheave width of the drive clutch. For this reason, POLARIS
recommends that only O.E.M. belts be used. Other belts may match the
dimensions, but can drastically change the shift pattern, resulting in
poor performance. See Belt Troubleshooting on page 108.

Periodically check the condition and tension of the drive belt, and
always carry a spare. Inspect the belt for signs of excessive wear: frayed
edges, missing cogs, cracks and excessive looseness. Replace the belt if
any of these conditions exist.

Tip: A worn belt will continue to function, but will not deliver maximum

performance. Always carry a spare belt in case of an emergency.

For improved drive-away during extremely cold temperatures, remove
the belt and warm it to room temperature. Reinstall it before starting the
snowmobile.

83

MAINTENANCE

Clutch System

Drive Belt Removal

1. Stop the engine after operating in a forward motion.

NOTICE: Do not attempt to remove the drive belt after operating in reverse. The

snowmobile must be stopped after forward motion to prevent damage
to components during belt removal.

2. Turn the ignition key off. Wait for the engine to stop completely.

3. Lock the parking brake (if equipped).

4. Open the hood.

5. Remove the clutch guard retaining pin and open the clutch guard.

6. Rotate the driven clutch counterclockwise 1/4 turn by hand to

ensure forward engagement before attempting to remove the belt.

7. Locate the L-wrench in the tool kit. Install the wrench into the open

threaded hole in the outer sheave of the clutch.

8. Turn the wrench clockwise until the sheaves open far enough to

remove the belt. If the wrench does not turn readily, rotate the
driven clutch counterclockwise an additional 1/4 turn by hand and
try again.

9. Grasp the belt at the lower edge and remove it.

84

MAINTENANCE

Clutch System

Drive Belt Installation

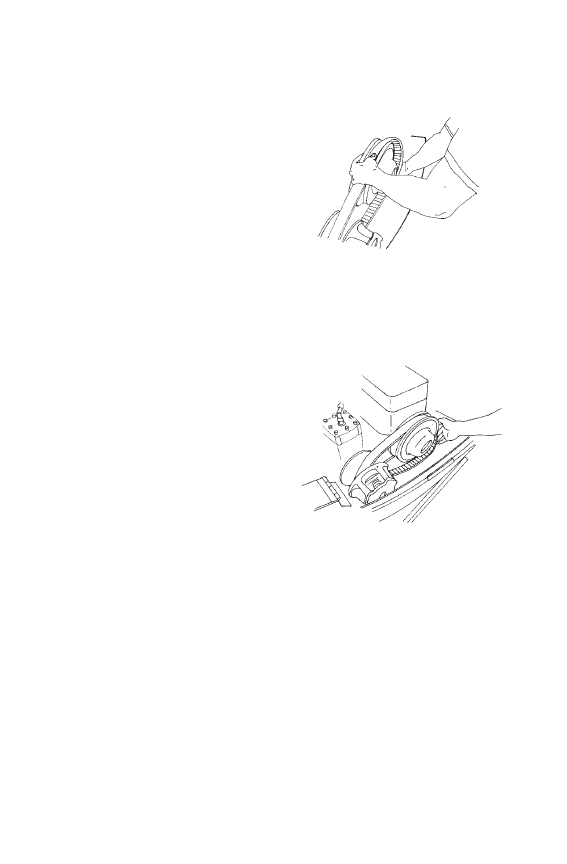

1. Drop the drive belt over the

drive clutch and pull back the
slack. The belt cord line should
be flush with, or slightly above,
the outer circumference of the
driven clutch sheaves. The belt
will seat itself in the driven
clutch during the break-in
period. Adjust the belt ride-out
after the break-in period by
readjusting belt deflection.

Tip: To ensure satisfactory belt life, install belts so they operate in the same

direction of rotation by positioning the identification numbers so that you
can read them. If required, separate the sheaves as outlined in the belt
removal procedures.

2. Rotate the L-wrench counter-

clockwise to tighten the sheaves
while working the belt to the
outer edge of the sheaves.

3. Remove the wrench.

4. Close the clutch guard and

reinstall the retaining pin.

5. Close and secure the hood and

release the parking brake.

6. Break in the new belt. See page

48.

85

MAINTENANCE

Clutch System

Drive Belt Deflection

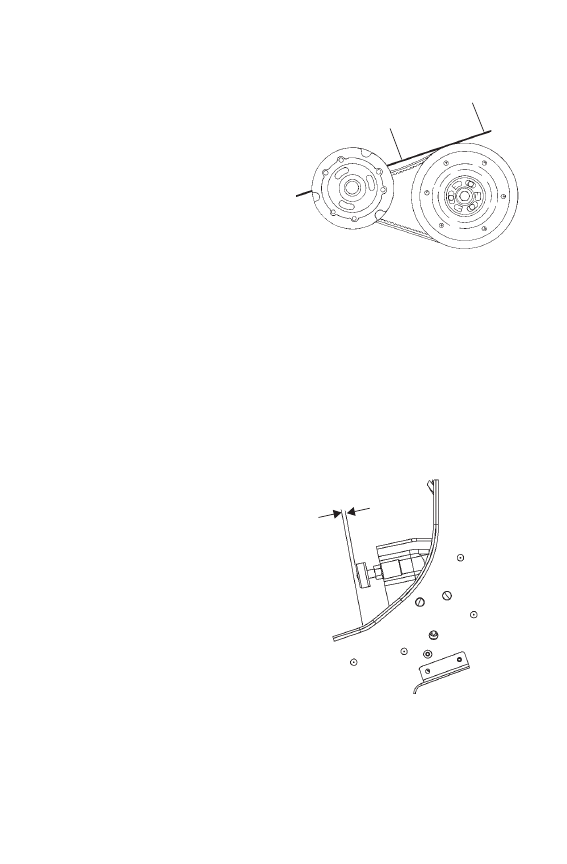

Measure belt deflection with
both clutches at rest and in their
full neutral position.

Place a straight edge on the belt
(1) and apply downward
pressure while measuring at
point 2. This measurement
should be 1 1/4 inches (32 mm).

Drive Belt Adjustment

Belt deflection should be adjusted without removing the clutch from the
jackshaft.

1. Loosen the 7/16-inch jam nut on the belt width adjuster.

2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as

needed.

Tip: Turn the set screw in (clockwise) to increase the distance between the

sheaves and out (counterclockwise) to decrease the distance.

3. Tighten the jam nut.

Torque Stop

Periodically check torque stop
clearance. With clutches in
proper alignment, the torque stop
clearance should be. 010-.030
inch (.25-.75 mm) from the
engine case.

Adjust if necessary, and lock the
jam nut.

1

2

.010-.030 in.

(.25-.75 mm)
