Snowmobile Polaris Widetrak LX (2015 year). Instruction - part 6





26

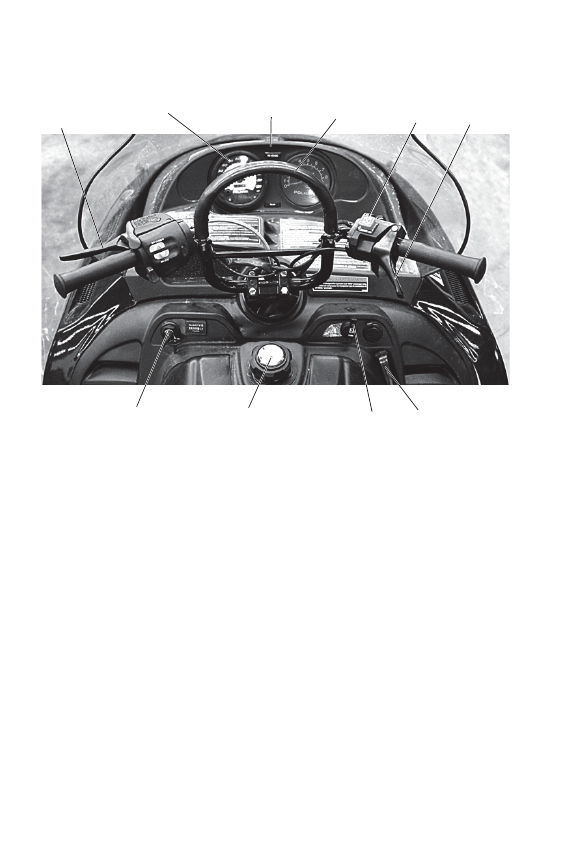

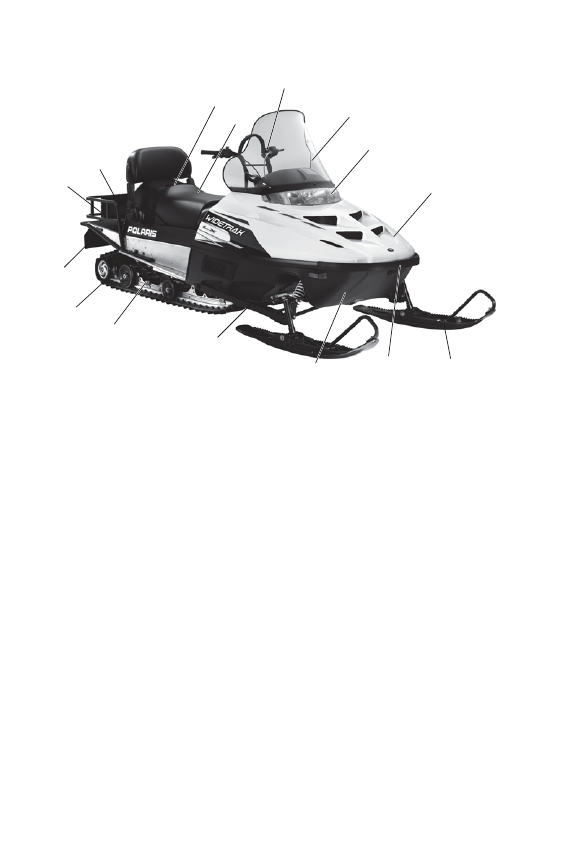

FEATURES AND CONTROLS

1.

Fuel Filler Cap (may include a fuel gauge)

2.

Ignition Switch

3.

Brake Lever

4.

Speedometer (may include indicator/warning lights)

5.

Reverse Indicator

6.

Mountain Bar

7.

Engine Stop Switch (see page 55)

8.

Throttle Control

9.

Recoil Starter Handle

10. Choke

5

4

3

2

1

9

7

8

6

General Representation

10

27

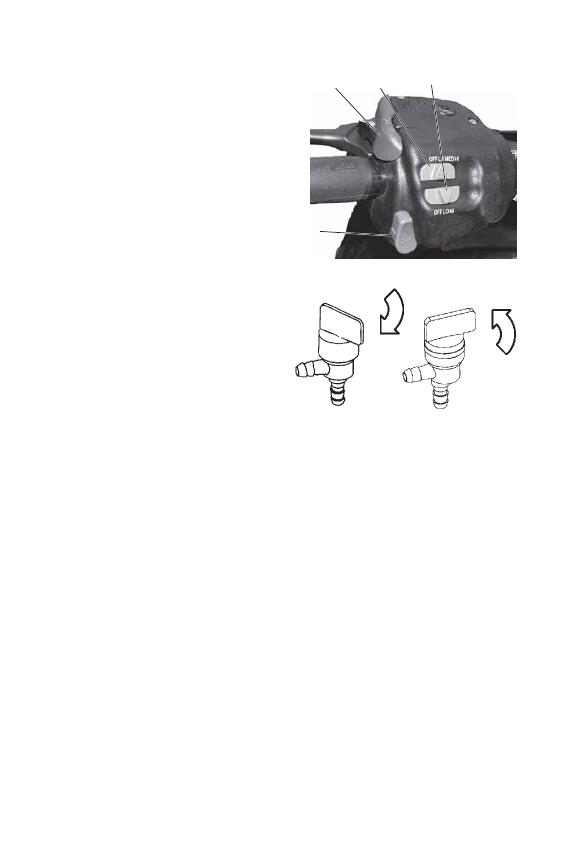

FEATURES AND CONTROLS

Some POLARIS snowmobiles are
equipped with special features.
Controls for these features are
illustrated on this page. Not all
models come with these features.

1.

Headlight Dimmer Switch

2.

Parking Brake Lock

3.

Handlebar Grip Warmer
Switch

4.

Thumbwarmer Switch

Fuel Valve

The fuel valve is located under
the hood. Turn the fuel valve
off whenever the snowmobile
is stored or parked.

1. Turn the valve clockwise to

turn off the fuel supply.

2. Turn the valve counter-

clockwise to turn on the
fuel supply.

2

4

3

1

ON

OFF

28

FEATURES AND CONTROLS

1.

Hood

2.

Headlight

3.

Windshield

4.

Handlebar

5.

Operator Seat

6.

Passenger Hand Hold Strap

7.

Cargo Rack

8.

Taillights

9.

Snow Flap

10. Track
11. Suspension
12. Trailing Arm
13. Nosepan
14. Front Bumper (do not use for pulling or dragging the snowmobile)
15. Skis

14

1

2

3

4

5

6

8

9

11

10

12

15

13

7

29

FEATURES AND CONTROLS

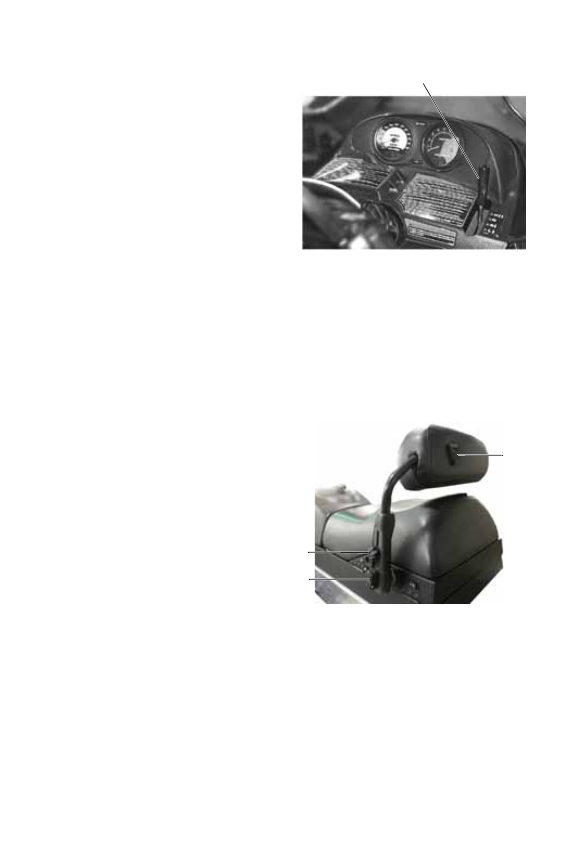

Shifter

For normal operation, place the
transmission in high gear.
Whenever towing or operating
with a heavy load, place the
transmission in low gear. See
page 59.

NOTICE: When operating in low

gear, never exceed 25
MPH (40 km/h). Serious
engine damage may occur.

Backrest

The backrest can be adjusted for rider comfort. Whenever making
adjustments, always make sure all lock levers are securely locked before
operating.

Tip: If an adjustment is difficult after releasing lock levers, rotate the levers to

relieve tension, then make the adjustment.

Height Adjustment

1. Lift the upper lock levers (1)

on both backrest supports to
release the locks.

2. Raise or lower the backrest to

the desired position.

3. Push the lock levers inward to

secure the locks.

Angle Adjustment

1. Lift the lock lever at the

center of the backrest (3).

2. Tilt the backrest forward or

rearward to the desired position.

3. Push the lock lever inward to secure the lock.

Operator/Passenger Conversion

1. Lift the lower lock levers (2) on both backrest supports to release

the locks.

2. Move the backrest forward for operator use or rearward for

passenger use.

3. Push the lock levers inward to secure the locks.

Shifter

1

2

3
