Polaris Scrambler 850 / Scrambler XP 1000 EPS (2018 year). Instruction - part 11





DRIVING ON A SIDEHILL (SIDEHILLING)

Driving on a sidehill is not recommended. Improper procedure could cause loss
of control or overturn. Avoid crossing the side of any hill unless absolutely
necessary.
If crossing a sidehill is unavoidable, follow these precautions:

1. Slow down.

2. Avoid crossing the side of a steep hill.

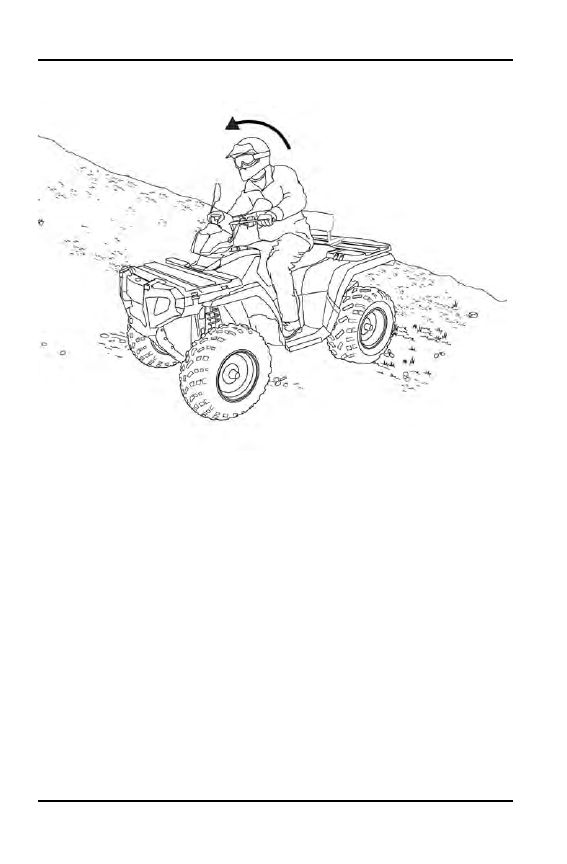

3. Lean into the hill, transferring your upper body weight toward the hill while

keeping your feet on the footrests.

4. If the vehicle begins to tip, quickly turn the front wheel downhill, if possible,

or dismount on the uphill side immediately!

50

OPERATION

TURNING AROUND ON A HILL (K-TURN)

If the vehicle stalls while climbing a hill, never back it down the hill! Use the K-
turn to turn around.

1. Stop and lock the parking brake while keeping body weight uphill.

2. Always move the 4X4 switch to ADC 4X4 before ascending or descending a

hill. See page 39.

3. Leave the transmission in forward and shut off the engine.

4. Dismount on the uphill side of the vehicle, or on the left if the vehicle is

pointing straight uphill.

5. Staying uphill of the vehicle, turn the handlebars full left.

6. While holding the brake lever, release the parking brake lock and slowly

allow the vehicle to roll around to your right until it's pointing across the hill or
slightly downward.

7. Lock the parking brake. Remount the vehicle from the uphill side, keeping

body weight uphill. Start the engine with the transmission still in forward.

8. Release the parking brake and proceed slowly, controlling speed with the

brake lever, until the vehicle is on more level ground.

51

OPERATION

DRIVING THROUGH WATER

Your ATV can operate through water with a maximum recommended depth
equal to the bottom of the footrests. Follow these procedures when operating
through water:

1. Determine water depths and current before entering water.

2. Choose a crossing where both banks have gradual inclines.

3. Avoid operating through deep or fast-flowing water.

NOTICE

Major engine damage can result if the vehicle is not thoroughly inspected

after operation in water. Perform the services outlined in the maintenance

chart. See page 86. The following areas need special attention: engine oil,

transmission oil, demand drive fluid and all grease fittings.

If the vehicle tips or overturns in water, or if the engine stops during or after

operating in water, service is required before starting the engine. Your

POLARIS dealer can provide this service. If it's impossible to bring the vehicle

in before starting the engine, perform the service outlined in the Vehicle

Immersion section of this manual, and take the vehicle in for service at the

first opportunity.

52

OPERATION

4. After leaving water, test the brakes. Apply them lightly several times while

driving slowly. The friction will help dry out the pads.

If it’s unavoidable to enter water deeper than the footrest level:

• Proceed slowly. Avoid rocks and obstacles.
• Balance your weight carefully. Avoid sudden movements.
• Maintain a steady rate of speed. Do not make sudden turns or stops. Do not

make sudden throttle changes.

DRIVING OVER OBSTACLES

Follow these precautions when operating over obstacles:

1. Always check for obstacles before operating in a new area.

2. Look ahead and learn to read the terrain. Be constantly alert for hazards

such as logs, rocks and low hanging branches.

3. Travel slowly and use extra caution when operating on unfamiliar terrain. Not

all obstacles are immediately visible.

4. Never attempt to operate over large obstacles, such as rocks or fallen trees.

DRIVING IN REVERSE

Follow these precautions when operating in reverse:

1. Always check for obstacles or people behind the vehicle.

2. Always avoid backing downhill.

3. Back slowly.

4. Apply the brakes lightly for stopping.

5. Avoid turning at sharp angles.

6. Never open the throttle suddenly.

7. Do not use the override switch unless additional wheel speed is required for

vehicle movement. Use the override with caution as rearward vehicle speed
is greatly increased. Do not operate at wide open throttle. Operate the
throttle just enough to maintain a desired speed.

NOTICE

Excessive throttle operation while in the speed limit mode may cause fuel to

build in the exhaust, resulting in engine popping and/or engine damage.

53
