ELECTRICAL

8.18

TPS (Throttle Position Sensor)

Some Polaris snowmobiles are manufactured with Throttle Position Sensors (TPS). The TPS comes set from
the factory and should not need adjustment. However, upon removal of the TPS, you must mark the TPS position
on the carburetor and replace it in the exact same position as removal. Polaris has developed a TPS test kit for
aid in setting the Throttle Position Sensor to specification.

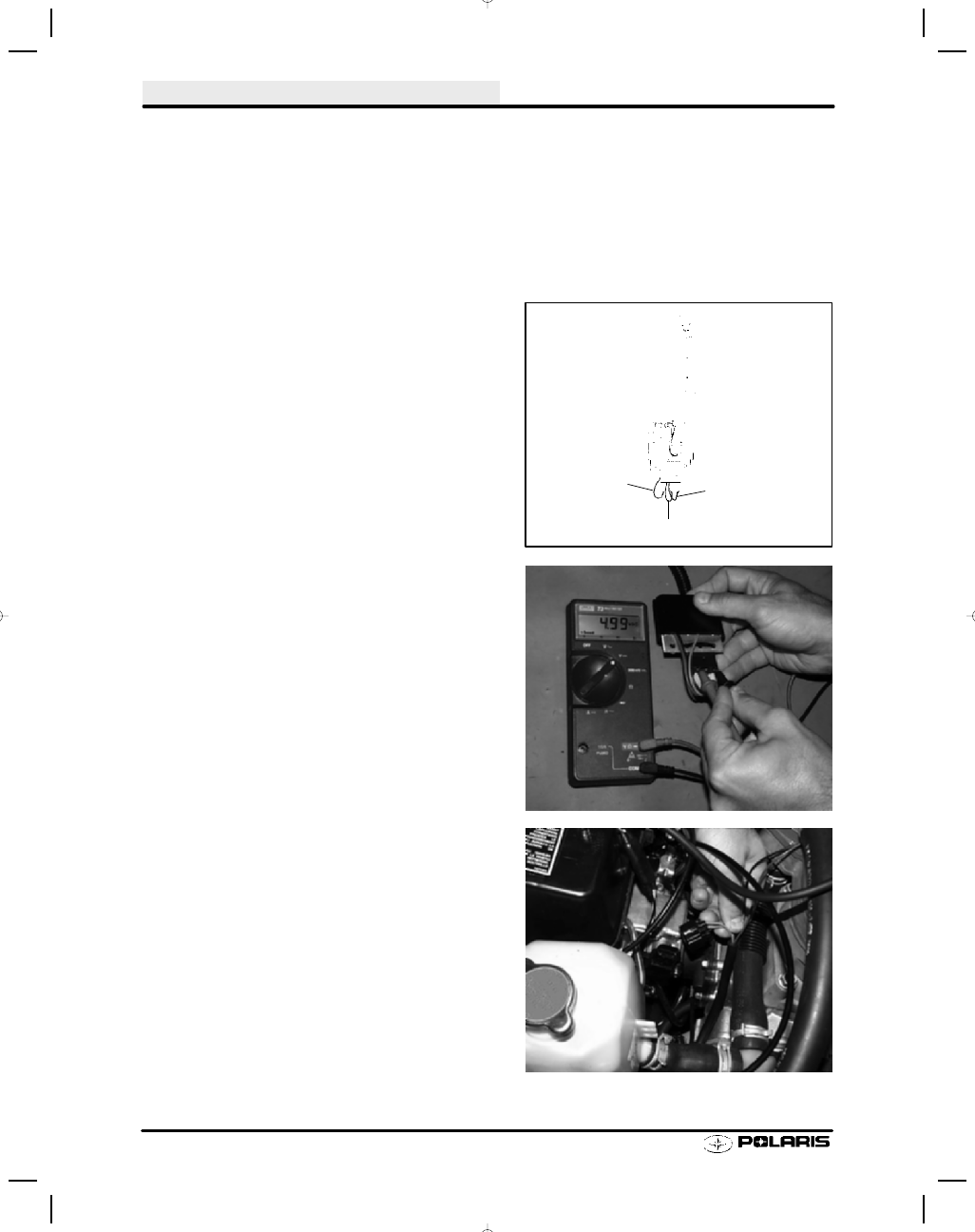

TPS Testing

1.

Illustration at right shows the TPS sensor kit PN
2201519.

2.

Make sure your 9 volt battery is in good condition
by inserting the black volt meter probe from your
Fluket meter in the black terminal and the red
probe into the pink terminal. Voltage should read
4.99 to 5.01 volts. If not, try a new 9 volt battery.

3.

Remove the connector from the TPS.

Red

Black

Pink

ELECTRICAL

8.19

TPS (Throttle Position Sensor)

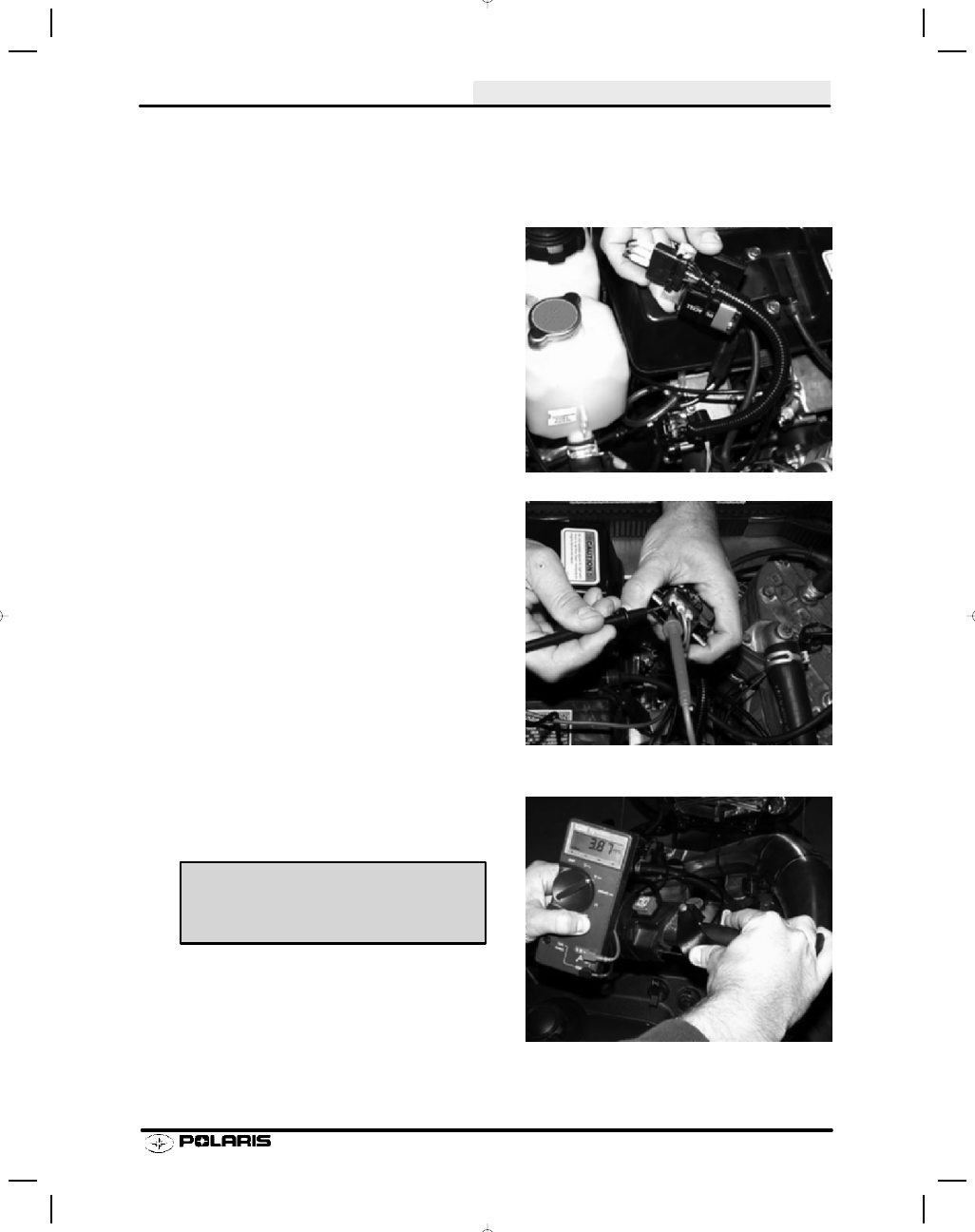

TPS Testing - Continued

4.

Install test harness connector on TPS.

5.

Insert red voltmeter lead into yellow terminal, and
black lead to black terminal. Slowly open throttle
and check for smooth voltage change.

NOTE: The fluke meter will change scales and show
O.L. mometarily when throttle is opening.

6.

Voltage at yellow terminal should be 4.0 volts

at

Wide Open Throttle for domestic engines, If not,
the TPS must be adjusted.

TPS Volts at Wide Open Throttle -
Polaris Domestic Engines:

4.0 -- 4.2 Volts

ELECTRICAL

8.20

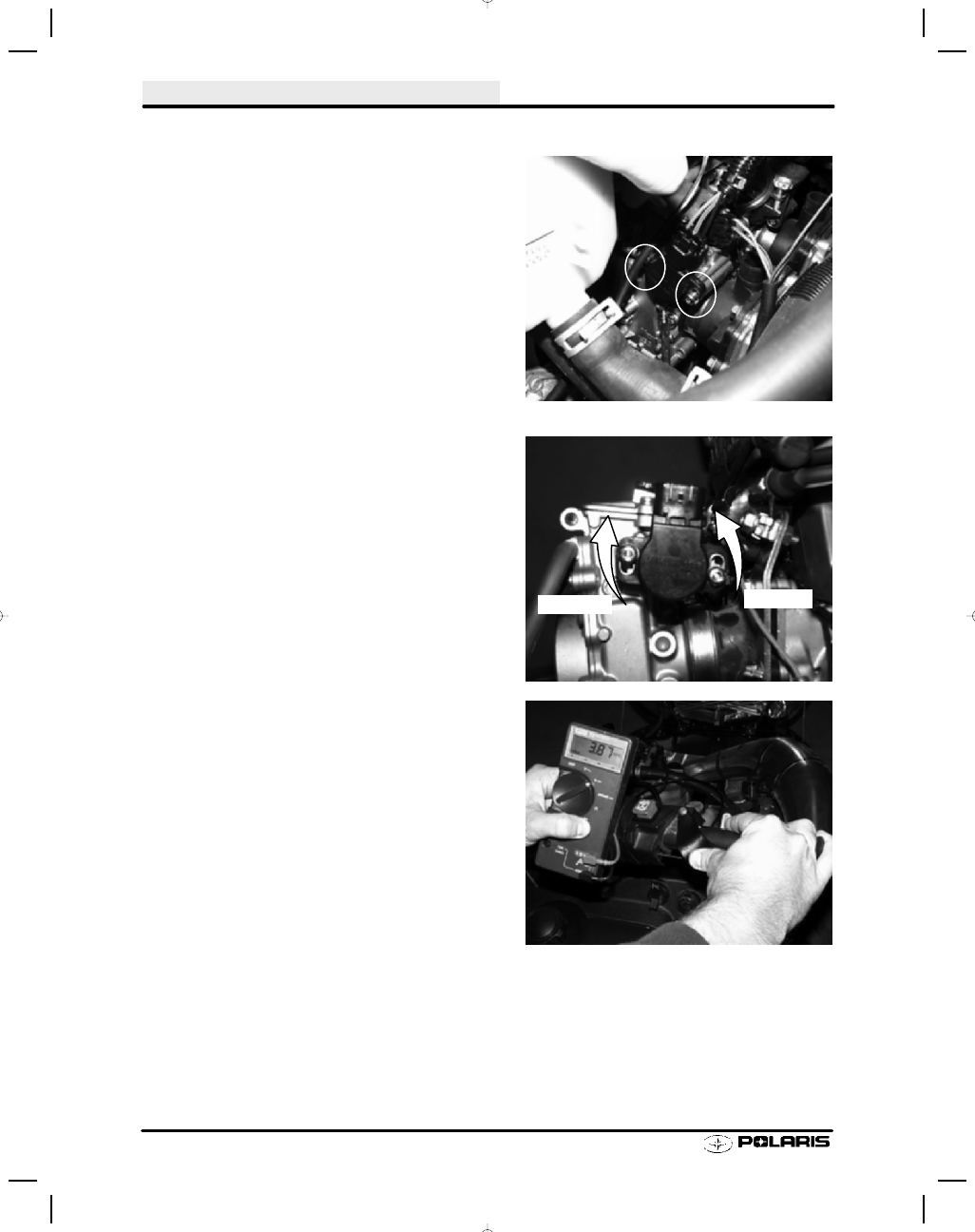

TPS Adjustment

1.

Loosen the two screws that hold the TPS on the
carburetors using a Torxt T25 bit with tamper
resistant hole in bit.

2.

Turn the TPS clockwise to decrease voltage, or
counterclockwise to increase voltage.

3.

When the TPS is set to the desired voltage, tighten
the holding screws and verify voltage is 4.0 --4.2
volts

at Wide Open Throttle for Polaris domestic

engines.

Decrease

Increase

ELECTRICAL

8.21

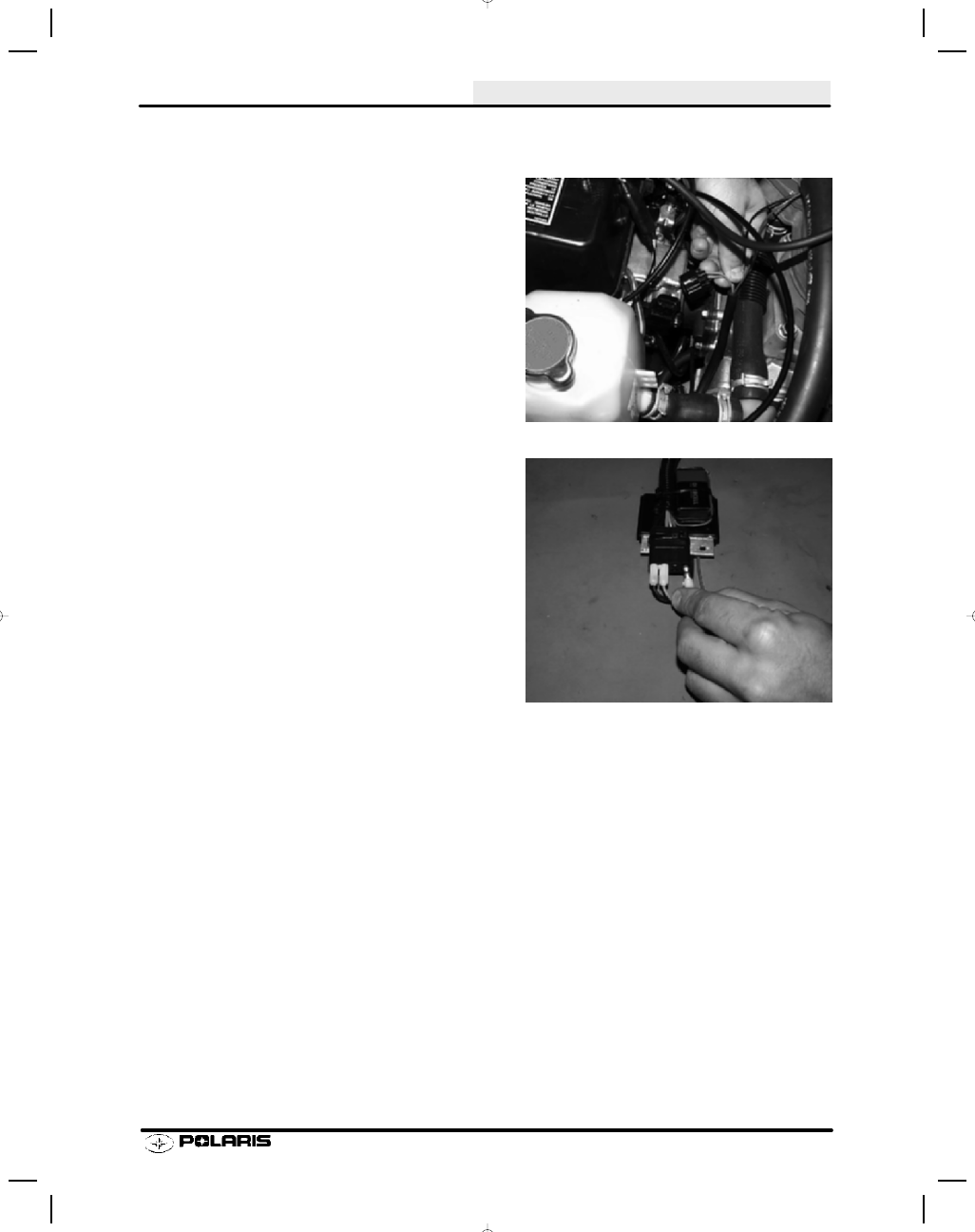

TPS Adjustment - Continued

4.

When the TPS is set and voltage is verified,
remove the tester and re-install the snowmobile
TPS harness.

5.

When storing the TPS tester, remove the red
terminal of the tester and insert it in the blank
terminal of the harness.
