Snowmobile Polaris FRONTIER TOURING S04NT7DS (2004 year). Instruction - part 11





C13

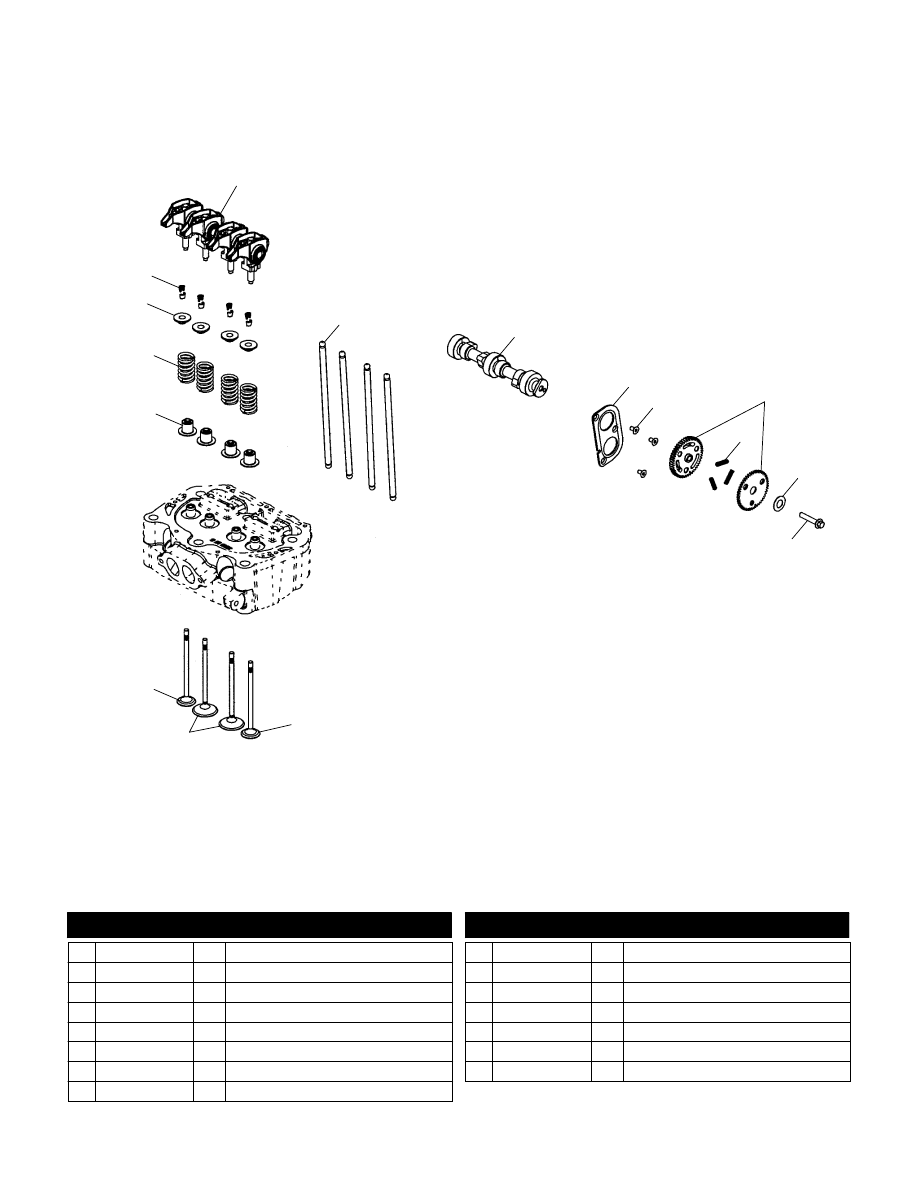

INTAKE and EXHAUST

FRONTIER TOURING S04NT7DS

14

15

1

10

5

9

3

2

4

12

13

10

11

8

7

6

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 1202169

4 Asm., Rocker Arm

2 5132402

4 Pushrod

3 2202134

1 Kit, Camshaft

4 5244286

1 Plate, Thrust

5 7517598

3 Screw

6 2202145

1 Kit, Gear Set

7 7041999

3 Spring, Compression

8 7556183

1 Washer, Spring

9 7517865

1 Screw

10 5133363

2 Valve, Exhaust

11 5132696

2 Valve, Intake

12 5411895

4 Seal, Valve Guide

13 7041969

4 Spring, Valve

14 5131413

4 Retainer, Spring

15 5910042

8 Retainer, Lock, Valve Stem

7/02

C14

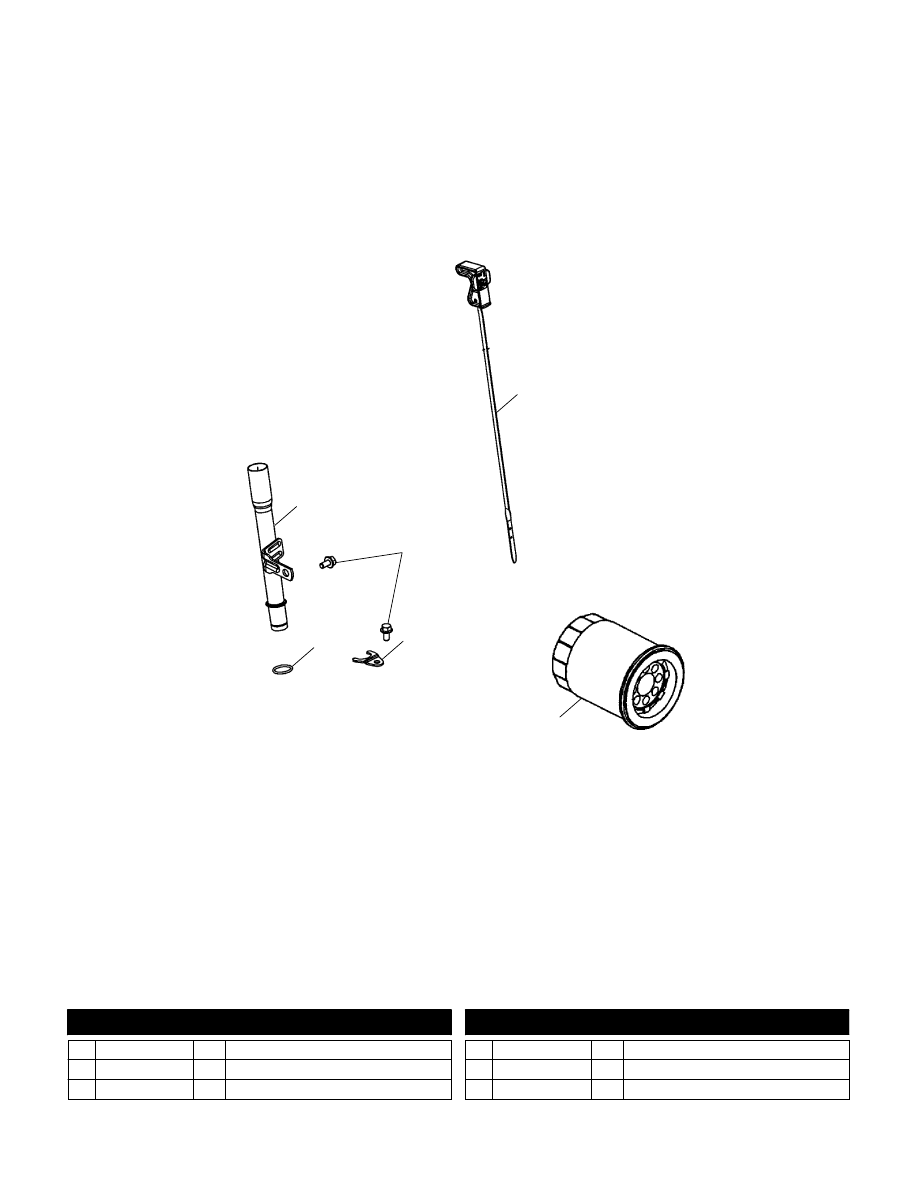

OIL DIPSTICK and FILTER

FRONTIER TOURING S04NT7DS

5

4

3

1

2

6

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 1202579

1 Asm., Dipstick

2 1202141

1 Asm., Tube, Oil Filler

3 7517795

2 Screw

4 5812016

1 Seal, O-Ring

5 5245805

1 Clamp, Oil Fill Tube

6 2540006

1 Filter, Oil

1/02

D1

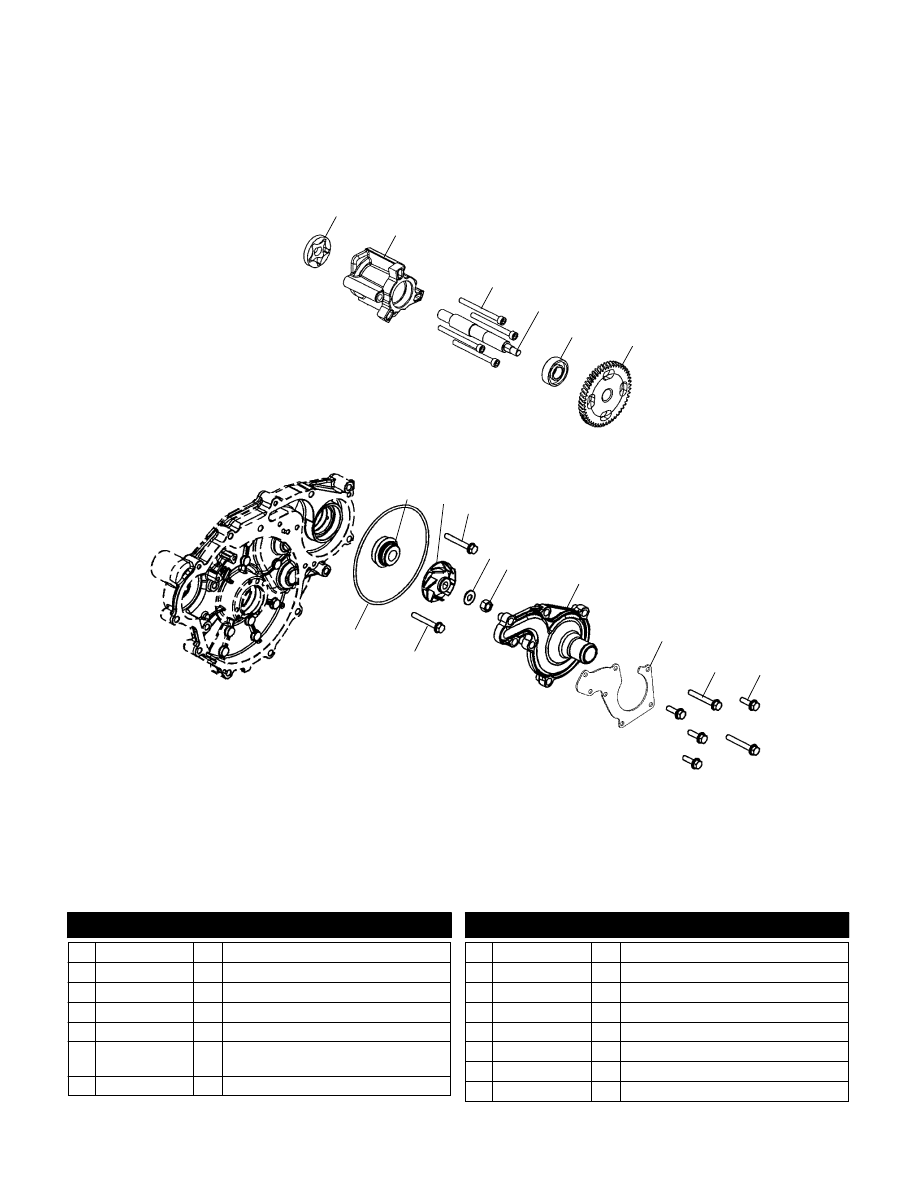

OIL PUMP/WATER PUMP

FRONTIER TOURING S04NT7DS

7

9

14

12

15

8

9

10 11

9

1

2

3

4

6

5

13

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 1202079

1 Asm., Gerotor

2 5131426

1 Housing, Oil Pump

3 7517807

4 Screw

4 5131419

1 Shaft, Oil/Water Pump

5 3584404

1 Bearing, Ball

6 --------------

1 Kit, Gear Set

(See Intake & Exhaust Pg. C13, Ref. 6)

7 3610075

1 Seal, Water Pump

8 5433684

1 Impeller, Water Pump

9 7517950

2 Screw

10 7555874

1 Washer, Flat

11 7546804

1 Nut, Hex, Nyloc

12 1202070

1 Asm., Cover Waterpump

13 5246885

1 Bracket, Cover, Water Pump

14 7516823

5 Screw

15 5812048

1 Seal, O-Ring

9/02

D2

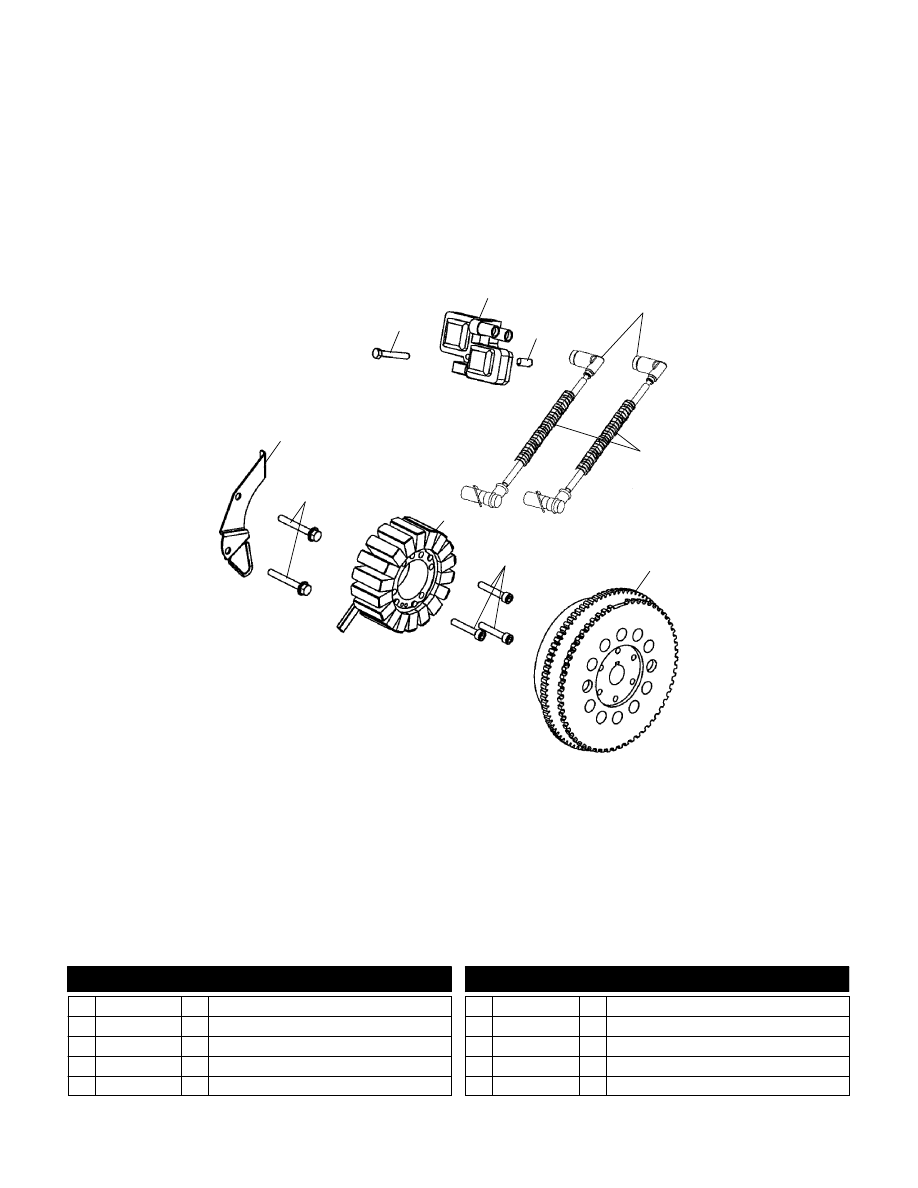

MAGNETO

FRONTIER TOURING S04NT7DS

6

7

10

8

9

1

2

4

3

5

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7517263

1 Screw

2 4010425

1 Coil, EFI

3 5133658

1 Spacer, Coil

4 4010784

2 Wire, Spark Plug

5 4010051-15

2 Conduit, Convoluted

6 4010632

1 Flywheel

7 7517848

3 Screw

8 4010426

1 Stator

9 7517950

2 Screw

10 5245364

1 Stator, Bracket, Wire, Hold, Down

9/02
