Snowmobile Polaris EDGE / WIDETRAK (2007-2012 year). Instruction - part 57





8.30

Steering and Suspension Systems

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

REBUILDABLE SHOCKS

Shock Rebuilding Tools

Special Tools

PART NUMBER

DESCRIPTION

2200421

Gas Shock Recharging Kit

2201639

Shock Shaft Seal Protector .50" Diameter

2201640

Shock Shaft Seal Protector .625" Diameter

2870623

Shock Absorber Spring Compression Tool

2870803

Shock Spring Pre-Load Adjustment Tool

PS-45259

Gas Fill Tool

9917736

VIDEO-Rebuilding Mono Tube Shocks

9917737

VIDEO-Rebuilding Remote Reservoir Shocks

Ryde FX Shock Special Tools

PART NUMBER

DESCRIPTION

PS-45259

Gas Fill Tool and Gauge (Incl. 5 needles)

PS-45259-1

Gas Fill Needles replacement pack

PS-45259-2

Gas Fill Gauge (replacement)

PS-45260

Lower Retainer Wrench

PS-45261

IFP Positioning / Extraction tool

PS-45262

Cylinder Head Wrench

PS-45263

Wear Band Tool

PS-45629

Arvin Shock Body Holder

PS-45280

Shock Collar Tool

PS-45821

Shock Reservoir Holder

2877143

Air 2.0 Hand Pump w/ 2 Schrader Valves

2203910

Schrader Valve Kit (2 Qty.)

FOX Shock Special Tools

PART NUMBER

DESCRIPTION

2871021

Shock Body Holding Tool

2871352

Shock Rod Holding Tool .50" Diameter Rod

2872429

Shock Rod Holding Tool .625" Diameter Rod

2871232

Fox Shock Spanner

2871351

Fox Shock IFP Depth Tool

PS-44925

Fox Inner Tube Puller PS 2

8.31

Steering and Suspension Systems

8

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

Ryde FX™ Shock Valve Part Numbers

PART NUMBER

SIZE

THICKNESS

1700080

0.700

0.004

1700086

0.800

1700092

0.900

1700081

0.700

0.006

1700087

0.800

1700093

0.900

1700121

1.000

1700129

1.100

1700134

1.250

1700139

1.300

1700094

0.900

0.008

1700122

1.000

1700130

1.100

1700135

1.250

1700140

1.300

1700082

0.700

0.009

1700088

0.800

1700083

0.700

0.010

1700089

0.800

1700095

0.900

1700126

1.000

1700131

1.100

1700136

1.250

1700141

1.300

1700084

0.700

0.012

1700090

0.800

1700096

0.900

1700127

1.000

1700132

1.100

1700137

1.250

1700142

1.300

1700085

0.700

0.015

1700091

0.800

1700120

0.900

1700128

1.000

1700133

1.100

1700138

1.250

1700143

1.300

8.32

Steering and Suspension Systems

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

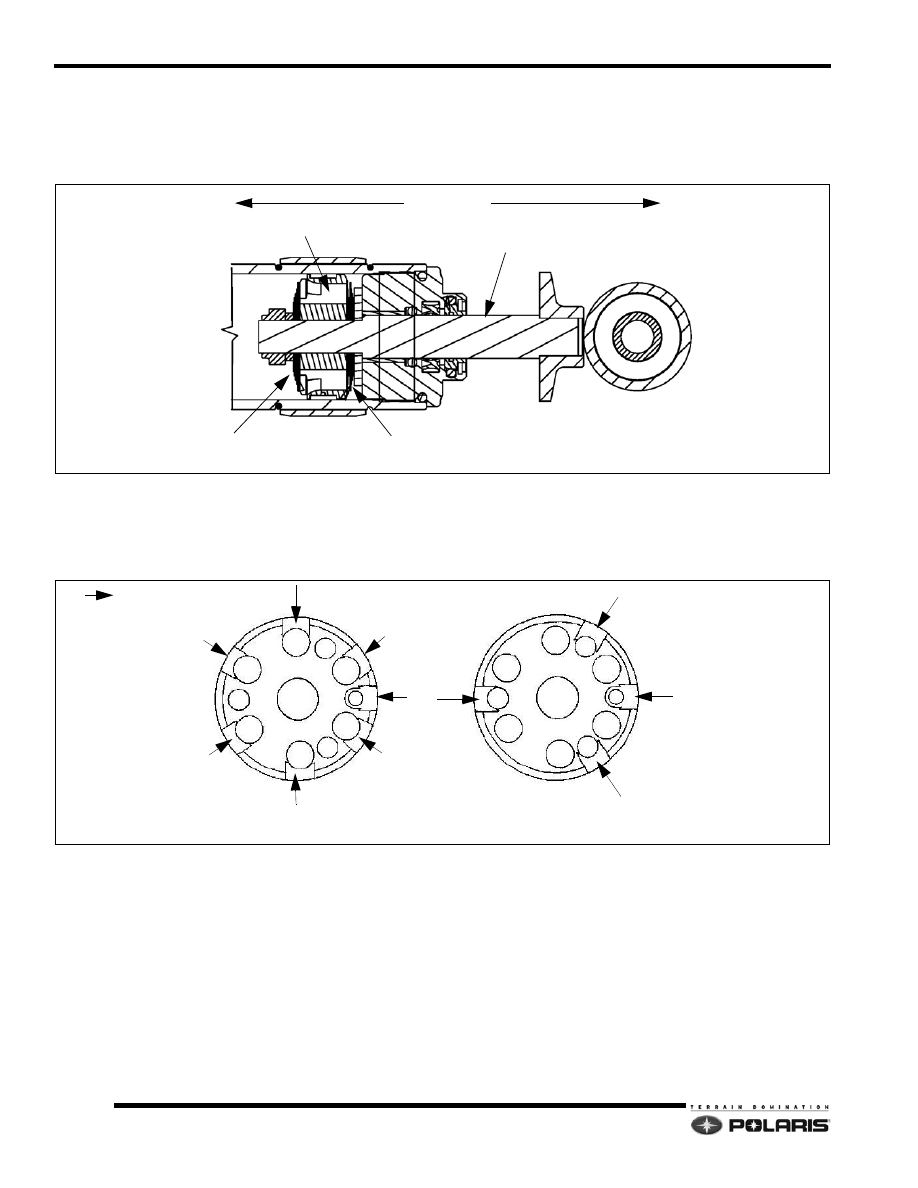

Valve Shim Arrangement

Shown below is an example of how valving stacks are
arranged.

NOTE: The rebound and compression valve stacks
will always be positioned as shown in the illustration,
regardless of how the shock assembly is installed on
the snowmobile.

Piston Orientation

The face of the piston with the greater number of relief
ports will always face the rebound valve stack

NOTE: On some Walker Evans™ shocks, piston is
color-coded.
Blue = COMPRESSION SIDE
Red = REBOUND SIDE.

PISTON

COMPRESSION VALVE STACK

REBOUND VALVE STACK

SHOCK ROD

FULLY EXTENDED

FULLY COMPRESSED

SHOCK ROD

= Relief Port

Faces Rebound Stack

Faces Compression Stack

8.33

Steering and Suspension Systems

8

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

Rebuildable IFS Shock Specifications

Shock Valve Shim Stack Configurations

NOTE:  All measurements are in inches.

NOTE:  Valve shim stacks listed as they would appear
on the shaft when shock rod is locked in a table vise
(eyelet down, threaded end up).

Rebuildable IFS Shocks

SHOCK

PN

BRAND

Extended

Length (in)

Collapsed

Length (in)

Stroke

(in)

Shock

Rod (in)

IFP Depth

(in)

Nitrogen

PSI

7043082

Ryde FX

16.25

11.0

5.25

.49

6.27

280

IFS Shocks

SHOCK 7043082

REBOUND

.8 x .010
.9 x .010
1.0 x .010
1.1 x .010
1.25 x .006

Piston
Orifice

.093

COMPRESSION

1.3 x .008
1.25 x .008
.9 x .006
1.3 x .010
1.25 x .008
1.1 x .010
1.0 x .012
.9 x .012
.8 x .012
