FEATURES AND CONTROLS

Component Locations

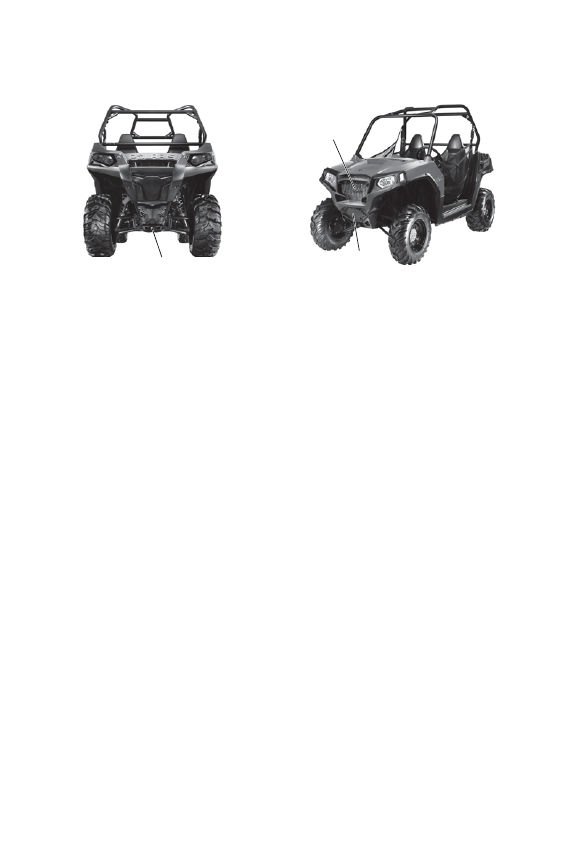

Trailer Receiver Hitch Bracket

This vehicle is equipped with a receiver hitch bracket for a trailer hitch.
Trailer towing equipment is not supplied with this vehicle.

To avoid injury and property damage, always heed the warnings and
towing capacities outlined on pages 68-70.

Radiator Access/Grill Removal

The front grill can be removed to clean debris from the radiator. Push
down on the two tabs and pivot the grill outward to remove it.

Service Access Panels

The engine access panel is located behind the seats on the frame of the
vehicle. Remove the seats and remove the access panel to reach some
serviceable engine components

The rear access panel is located in the bed of the cargo box. Remove this
access panel to access the air box and spark plug.

Receiver Hitch

Brush

Guard

Radiator

FEATURES AND CONTROLS

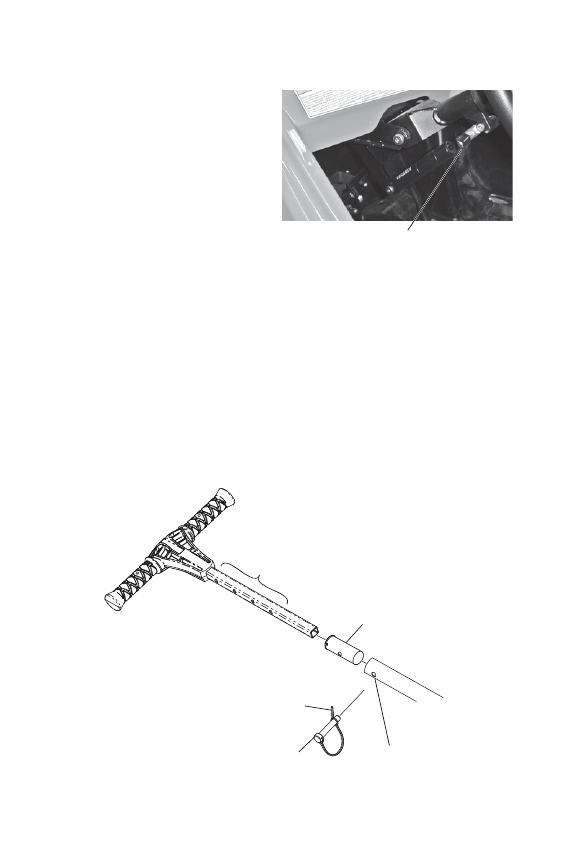

Steering Wheel

The steering wheel can be tilted
upward or downward for rider
preference.

Lift and hold the steering wheel
adjustment lever while moving
the steering wheel upward or
downward. Release the lever
when the steering wheel is at the
desired position.

Passenger Hand Hold

Always adjust the hand hold to a comfortable position for your
passenger before operating. Make sure the adjustment pin and retainer
are securely installed after making adjustments.

1. Remove the retainer from the end of the adjustment pin.

2. Remove the pin from the post.

3. Slide the post inward or outward to the desired position.

4. Reinstall the pin through the post mounting hole, adapter bushing

hole, both post adjustment holes and lastly through the remaining
bushing hole and post mounting hole.

5. Reinstall the retainer to the pin.

Adjustment Lever

Adju

stm

ent

Pos

ition

les

Post Mounting

Holes

Adjustment

Retainer

Adapter

Bushing

FEATURES AND CONTROLS

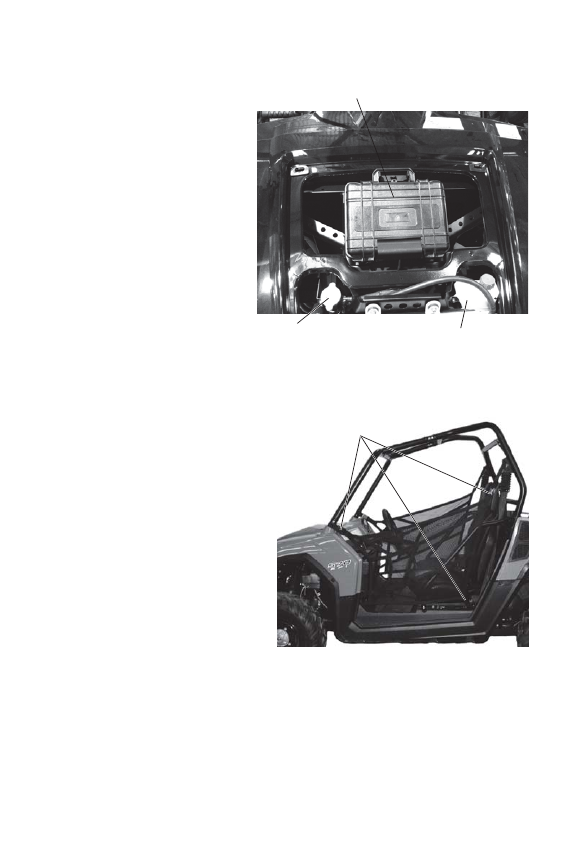

Hood

Remove the hood to access
the radiator cap, coolant
overflow bottle and sealed
storage box (LE model).

1. Turn the hood fasteners

1/4 turn.

2. Grasp the upper hood

edge and pull upward to
disengage the hood from
the vehicle.

3. Pivot the hood forward

and lift upward to
disengage the lower
hood hooks.

4. Lift the hood away from

the vehicle.

Cab Nets

All RZR models are equipped
with cab nets, which may differ
slightly in appearance from
those shown.

Riding in this vehicle without
using the cab nets (or doors, if
equipped) increases the risk of
serious injury or death in the
event of an accident or rollover.
Cab nets (or doors) must be
used by both operator and pas-
sengers at all times. Make sure
all latches are secure before
operating the vehicle.

Always inspect cab nets and latches for tightness, wear and damage
before each use of the vehicle. Use the strap adjusters to tighten any
loose straps. Promptly replace worn or damaged cab nets and latches
with new cab nets and latches.

Sealed Storage Box

(LE Only)

Radiator

Cap

Overflow

Bottle

Cab Net Latches

FEATURES AND CONTROLS

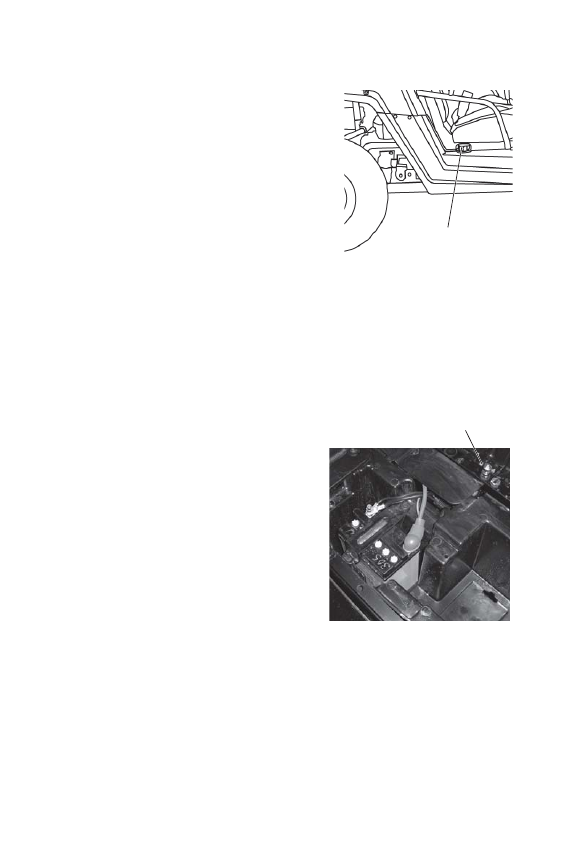

Fuel Cap

The fuel tank filler cap is located on the right
side of the vehicle near the passenger seat.
When refueling, always use either leaded or
unleaded gasoline with a minimum pump
octane number of 87 R+M/2 octane. Do not
use fuel with ethanol content greater than 10
percent, such as E-85 fuel.

Seats

Before operating the vehicle, always push
down on all seat backs to ensure the latches
are secure.

Seat Adjustments

Loosen (do not remove) the four screws located on the seat bottom.
Slide the seat forward or rearward to the desired position. Tighten the
screws to 4 ft. lbs. (5.4 Nm). Do not overtighten.

Seat Removal

1. Pull up on the seat latch lever located

under the rear edge of the seat.

2. Tilt the seat forward.

3. Lift the seat upward to remove it from

the vehicle.

4. Reverse this procedure to reinstall the

seat. Make sure the seat tabs at the
front edge of the seat slide under the
seat retainer bar.

5. Press down firmly at the rear of the

seat to engage the rear latch.

Fuel Cap

Seat Latch
