MAINTENANCE

Gearcases

Demand Drive Unit (Front Gearcase)

Fluid Change
The drain plug is located on the bottom of the gearcase.
1. Remove the fill plug.
2. Place a drain pan under the drain plug.
3. Remove the drain plug. Allow the fluid to drain completely.
4. Clean the drain plug.
5. Reinstall the drain plug. Torque to specification.
6. Add the recommended fluid to the bottom thread of the fill plug

hole.

7. Reinstall the fill plug. Torque to specification.
8. Check for leaks. Discard used fluid properly.

97

MAINTENANCE

Gearcases

Transmission (Main Gearcase)

Always check and change the fluid at the intervals outlined in the

Periodic Maintenance Chart beginning on page 85. Refer to the

Gearcase Specifications Chart on page 98 for recommended lubricants,

capacities and torque specifications.

Fluid Check
The fill plug is located on the rear of

the gearcase. Maintain the fluid level at

the bottom of the fill plug hole.
1. Position the vehicle on a level

surface.

2. Remove the fill plug. Check the

fluid level.

3. Add the recommended fluid to the

bottom of the fill plug hole. Do not

overfill.

4. Reinstall the fill plug. Torque to

specification.

Fluid Change

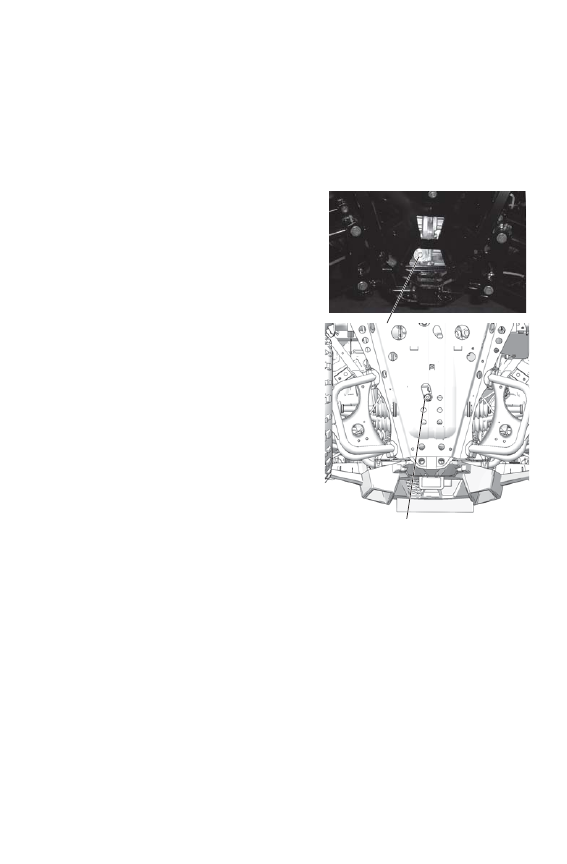

The drain plug is located on the bottom

of the gearcase between the rear tires.

Access the drain plug through the drain

hole in the skid plate.
1. Remove the fill plug.
2. Place a drain pan under the drain

plug. Remove the drain plug. Allow the fluid to drain completely.

3. Clean the drain plug. Reinstall the drain plug. Torque to

specification.

4. Add the recommended fluid to the bottom of the fill plug hole. Do

not overfill.

5. Reinstall the fill plug. Torque to specification.
6. Check for leaks. Discard used fluid properly.

Fill Plug

Drain Plug

(between rear tires)

98

MAINTENANCE

Gearcases

Gearcase Specification Chart

Use of other fluids may result in improper operation of components. See

page 134 for the part numbers of POLARIS products.

Spark Plug

Spark Plug Gap/Torque

NOTICE: Using non-recommended spark plugs can result in serious engine

damage. Always use POLARIS-recommended spark plugs. Refer to

the specifications section beginning on page 132.

Spark plug condition is indicative of engine operation. The spark plug

firing end condition should be read after the engine is warmed up and

the vehicle is driven at higher speeds. Immediately check the spark plug

for correct color. See page 99.

CAUTION! A hot exhaust system and engine can cause burns. Wear

protective gloves when removing a spark plug for inspection.

Gearcase

Lubricant

Capacity

Fill Plug

Torque

Drain Plug/

Level Check

Plug Torque

Transmission

(Main Gearcase)

AGL Gearcase

Lubricant &

Transmission

Fluid

44 oz. (1300 ml)

10-14 ft-lbs

(14-19 Nm)

10-14 ft-lbs

(14-19 Nm)

Demand Drive Unit

(Front Gearcase)

Demand Drive

Fluid

9 oz. (265 ml)

8-10 ft-lbs

(11-13.6 Nm)

8-10 ft-lbs

(11-13.6 Nm)

Electrode Gap

New Plug Torque

Used Plug Torque

0.8 +/- 0.1 mm

9 ft. lbs. (12 Nm)

9 ft. lbs. (12 Nm)

99

MAINTENANCE

Spark Plug

Spark Plug Removal and Replacement

1. Remove the cargo box access panel.
2. Remove the spark plug cap.
3. Using the spark plug wrench provided in the tool kit, remove the

plug by rotating it counter-clockwise.

4. Reverse the procedure for spark plug installation. Torque to

specification. See page 98.

Spark Plug Condition

Normal Plug
The normal insulator tip is gray, tan or light brown. There will be few

combustion deposits. The electrodes are not burned or eroded. This

indicates the proper type and heat range for the engine and the service.

Wet Fouled Plug
The wet fouled insulator tip is black. A damp oil film covers the firing

end. There may be a carbon layer over the entire nose. Generally, the

electrodes are not worn. General causes of fouling are excessive oil, use

of non-recommended injection oil or incorrect throttle body

adjustments.
