Snowmobile Polaris 2006 - 2007 FS / FST. Instruction - part 7





1.23

Model Specifications

1

Rev. 1 07/2006

Table 1-84: Electrical

Alternator Output
Operating Voltage
Watts @ 13.5 Vdc (Total)
Watts @ 13.5 Vdc (After EMS)
Amps @ 13.5 Vdc (No Load)

13.5 - 14.5 Vdc

780
630

60

Ignition Timing

Variable

Spark Plug Gap in.(mm)

.029 (.75)

Spark plug

Champion RC7PYCB

(PN 0451967)

Table 1-85: Track

Width - Inches (cm)

15 (38)

Length - Inches (cm)

144 (365.7)

Lug Height - Inches (cm)

1.25 (3.175)

Track tension sag in/cm with
10 lbs/4.54kg placed 16 in/
40cm ahead of rear idler
shaft

3/8

″ - 1/2″ (1 - 1.3cm)

Table 1-86: Front Suspension

Suspension Type

IQ

Shocks

Fox HPG w/IFP

(Rebuildable)

Spring Rate
lbs/in (N/mm)

120 (21)

Spring Installed Length
in (cm)

11.17 (28)

Front Vertical Travel
in (cm)

10 (25.4)

Ski Center Distance
in (cm)

42.5 (108)

Camber - in (cm)

2.25

± 0.31 (57.2 ± 0.79)

Toe Out - in (cm)

0 - 0.12 (0 - 0.31)

Table 1-87: Rear Suspension

Suspension Type

IQ Switchback 144

Front Track Shock (FTS)

Fox HPG w/IFP

(Rebuildable)

FTS Spring Rate
lbs/in (N/mm)

170 (30)

FTS Spring Installed
Length in (cm)

7.25 (18.4)

Rear Track Shock (RTS)

Fox HPG w/IFP /

Compression Adjustable

(Rebuildable)

Rear Travel in (cm)

16.5 (41.9)

Torsion Springs

.359 Square - 77°

NOTES

Model Specifications

1.24

Rev. 1 07/2006

General Information

2.1

CHAPTER 2

General Information

2

Rev. 1 07/2006

VIN (VEHICLE IDENTIFICATION NUMBER)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2

VIN ORGANIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
TUNNEL DECAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2

PUBLICATION PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3

2006 PART NUMBERS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
2007 PUBLICATION PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4

TAP DRILL SIZES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5

SAE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
METRIC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5

SAE / METRIC EQUIVALENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5

DECIMAL EQUIVALENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
CONVERSION TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6

FASTENER INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7

STANDARD BOLT SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7

GASOLINE INFORMATION  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8

GASOLINE VOLATILITY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8

2.2

General Information

Rev. 1 07/2006

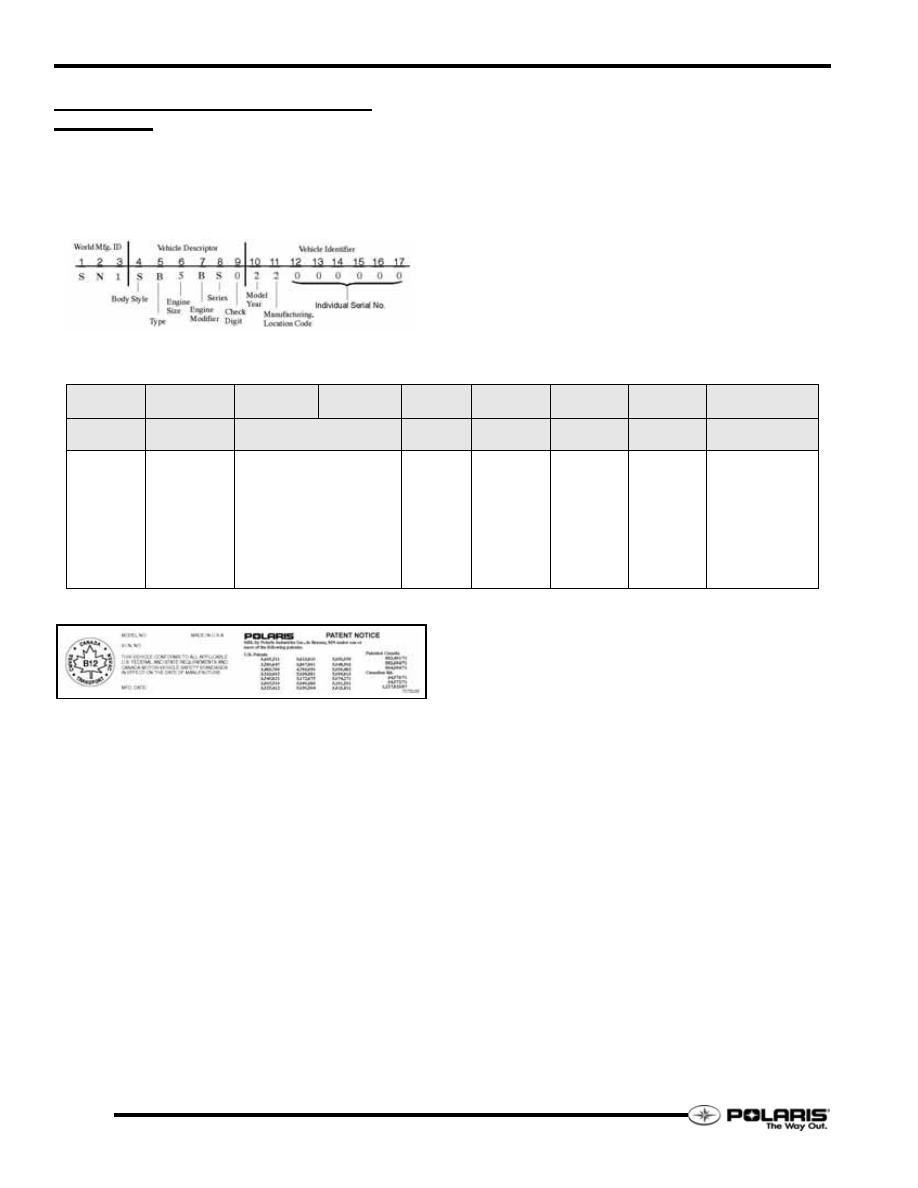

VIN (VEHICLE IDENTIFICATION
NUMBER)

VIN Organization

A 17-digit Vehicle Identification Number (VIN) is stamped into
the right-hand side of the tunnel. The VIN is organized as
follows:

Digits 1-3: World Manufacturer Identifier. For Polaris, this is
SN1.

Digits 4-9: Vehicle Descriptor Section.

Digits 10-17: Vehicle Indicator Section.

Digits 4-8 of the VIN identify the body style, type, engine type,
and series. The VIN and the model number must be used with
any correspondence regarding service or repair.

TUNNEL DECAL

The VIN should be referred to in any correspondence regarding
warranty, service or replacement parts. The machine model and
serial number identification decal is located on the right front
side of the tunnel. The serial number is permanently stamped
into the tunnel. The model number is embossed on the decal.

VIN Vehicle Descriptor (4th - 8th digits)

4th

5th

6th

7th

8th

9th

10th

11

12-17

Body Style

Type

Engine Modifier

Series

Ck digit

Model Year

Asm Line

Ser #

P = IQ

D = Classic
P =
Performanc
e
S =
Switchback
T = Touring

7E = 750 NA

7F = 750 Turbo

E = Europe

S = Standard

Check Digit

6 = 2006
7 = 2007
8 = 2008
9 = 2009

A
B
C
D

Serial Number
