Snowmobile Polaris 600 RMK F/O, 700 RMK F/O, 800 RMK F/O (2004 year). Instruction - part 5





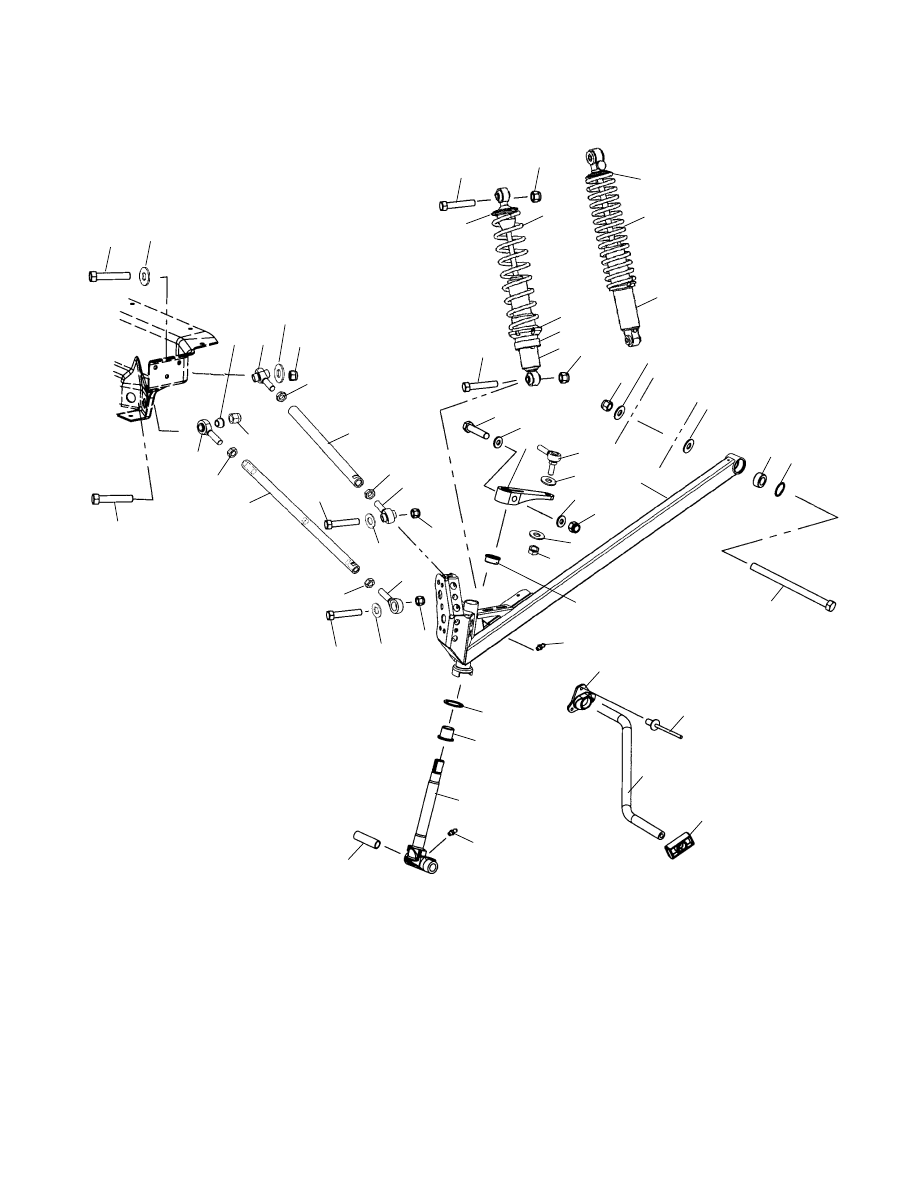

B3

FRONT SUSPENSION

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

11

15

18

20

21

6

27

28

25

29

24

22

30

31

32

33

34

35

40

39

38

37

36

44

45

47

43

10

50

8

1

9

11

11

20

12

11

11

19

23

13

26

6

19

4

14

16

17

49

48

3

7

23

43

42

41

46

2

5

13

15

18

E

2003 Polaris Sales Inc.

B4

FRONT SUSPENSION

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7517980

2 Bolt

2 7556212

2 Washer

3 5132454

2 Bushing, Spacer

4 7061081

2 Rod End, Radius, LH

5 7555852

2 Washer, Flat

6 7547066

4 Nut, Nylon

7 7547117

2 Nut, Jam, LH

8 5133543-385

5133691

2

2

Tube, Radius, Rod, Upper, Cloud Silver

Tube, Radius, Rod, Upper (Vert. Escp.)

9 7542520

2 Nut, Jam

10 7061061

7061104

2

2

Rod End, Radius

Rod End, RH (Vertical Escape)

11 7542439

10 Nut, Nylok

12 7515433

2 Screw

13 5630580

2 Retainer, Spring, Slotted

14 7515415

2 Screw

15 7041551-067

7042314-293

2

2

Spring, Compression (Nitrex)

Spring, Compression (IFP)

16 5431734

2 Ring, Spring Preload, (Nitrex)

17 1500063

2 Retainer, Spring, Body, Threaded, (Nitrex)

18 7042197

7042249

2

2

Shock, IFS, (Nitrex)

Shock, IFS (See Pg. C9)

19 7517583

4 Screw

20 7555832

4 Washer

21 5133060

2 Arm, Steering

22 7061086

2 Rod, End, RH

23 7555797

4 Washer, Flat

24 1821201-293

1821202-293

1821201-216

1821202-216

1821260-293

1821261-293

1821260-216

1821261-216

1

1

1

1

1

1

1

1

Asm., Trailing Arm, Red, LH (Incl. 27,28)

Asm., Trailing Arm, Red, RH (Incl. 27,28)

Asm., Trailing Arm, Yellow, LH (Incl. 27,28)

Asm., Trailing Arm, Yellow, RH

(Incl. 27,28)

Asm., Trailing Arm, I Red, LH

(Incl. 27,28)(Vertical Escape)

Asm., Trailing Arm, I Red, RH

(Incl. 27,28)(Vertical Escape)

Asm., Trailing Arm, Yellow, LH

(Incl. 27,28)(Vertical Escape)

Asm., Trailing Arm, Yellow, RH

(Incl. 27,28)(Vertical Escape)

25 7555820

2 Washer, Flat

26 5132364

2 Cup, Mount, Trailing Arm

27 7061042

2 Bearing, Spherical

28 7710437

2 Ring, Retaining

29 7512099

2 Screw

30 3573909

2 Bushing, Flange

31 7080433

2 Fitting, Lubrication

32 5433814

2 Bushing, Torsion Bar

33 7621452

6 Rivet

34 5245217-067

5246871-067

1

1

Bar, Torsion

Bar, Torsion (Vertical Escape)

35 5434371

5412063

2

2

Slide, Torsion Bar

Slide, Sway Bar (Vertical Escape)

36 5010158

2 Bushing

37 7080306

2 Fitting, Lubrication, w/Ball

38 6230225-067

2 Shaft, w/Steering Stop, Spindle

39 3574208

2 Bushing, Flanged

40 7556509

2 Bushing

41 7517906

2 Bolt

42 7556213

2 Washer

43 7547216

2 Nut, Nylok

44 7061052

7061103

2

2

Rod End, Radius, RH, Lower

Rod End, RH (Vertical Escape)

45 7542711

2 Nut, Jam

46 7556153

2 Washer

47 5132953

2 Tube, Radius Rod, Lower

48 7547028

2 Nut, Jam

49 7061087

2 Rod End, Radius, LH, Lower

50 7518041

2 Bolt

5/03

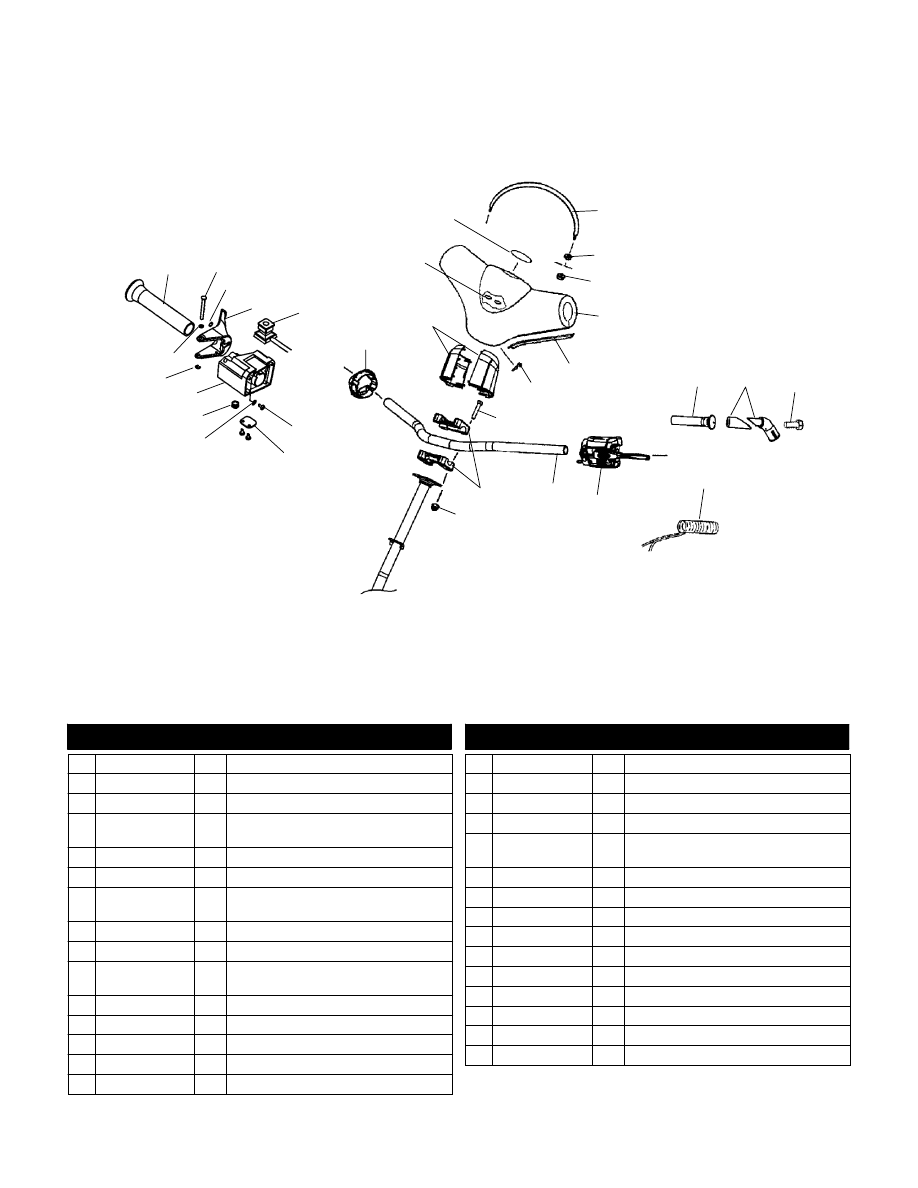

B5

STEERING - HANDLEBAR

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

1

2

3

4

28

6

7

8

9

10

11

12

13

14

15

22

21

20

17

18

19

25

29

27

26

5

30

24

16

23

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 5412195

2 Grip, Handlebar, Short, Cut

2 7661624

1 Pin, Retaining

3 7710503

1 Ring, Retaining

4 5432970

2010171

1

1

Lever, Throttle

Asm., Lever w/Heater, HI/LO

5 4110106

1 Switch, Auxiliary Shut-Off, Closed

6 5433345

1 Adaptor, Block, Throttle

7 5434145

5434146

1

1

Collar, Console, LH

Collar, Console, RH

8 7670106

2 Nut, Push-On

9 5434179

1 Emblem, Star

10 5243396-070

5243396-293

1

1

Bar, Mountain, Black

Bar, Mountain, Red

11 7547107

2 Nut, Jam

12 7542344

2 Nut, Nylok

13 5433330

1 Cover, Handlebar

14 5433160-070

2 Slide, Handlebar Cover

15 4010287

2 Clip, Dart, Nylon

16 7517238

4 Screw

17 2872482-070

2 Hook, Handlebar, 45 Degree, Black

18 7517834

2 Screw, Socket Head

19 2461027

2 Heater, Grip, Lo/Med/Hi

20 --------------

1 Asm., Control, LH

(See Brake Pg. A14, Ref. 13)

21 1821231--067

1 Handlebar

22 5630187--067

2 Block, Handlebar

23 7542122

4 Nut, Nylok

24 7511848

8 Screw

25 5432261

1 Holder, Wire

26 7555727

1 Washer

27 7512465

1 Screw, Set

28 5431592

1 Block, Throttle/Brake

29 7710401

1 Ring, Retaining

30 7555730

2 Washer

3/03

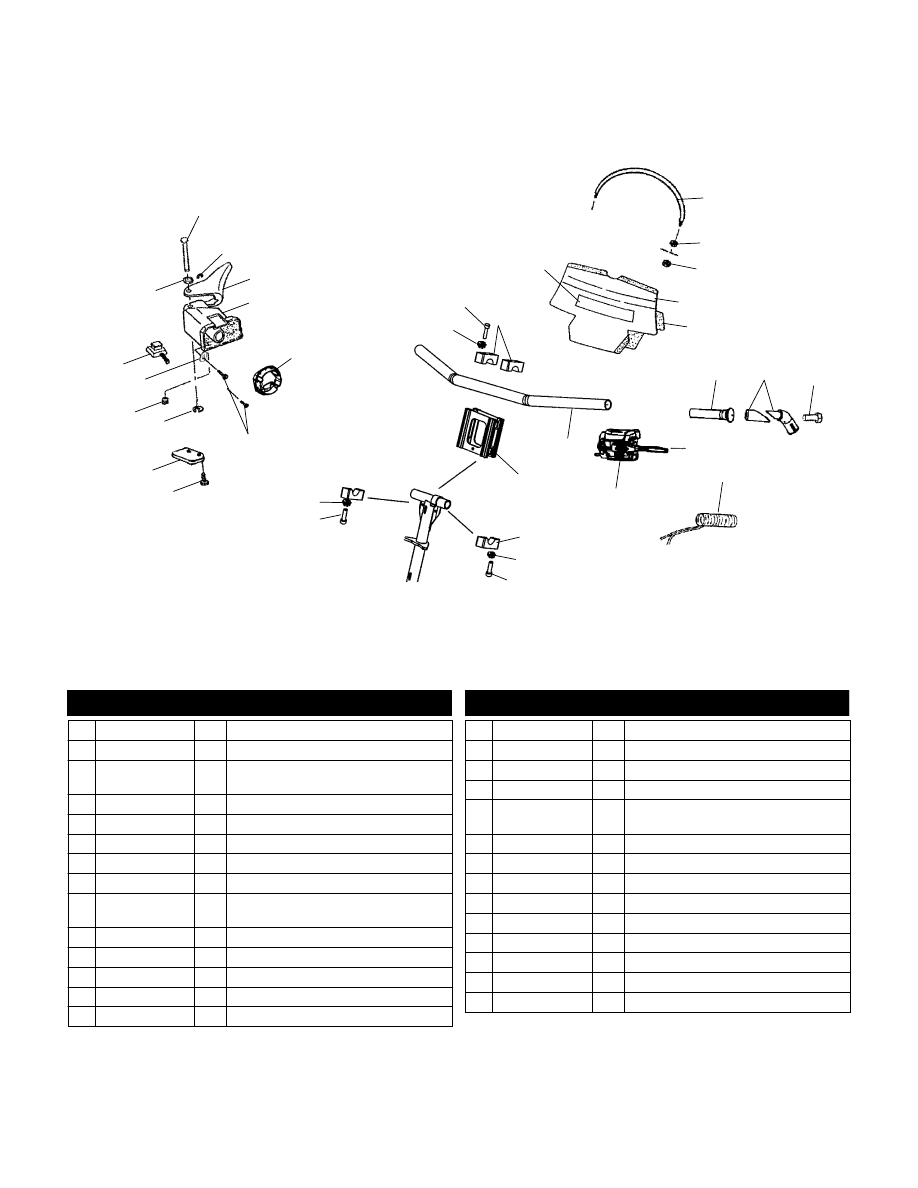

B6

STEERING-HANDLEBAR

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

22

6

7

7

6

8

23

24

25

26

27

28

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7661624

1 Pin, Retaining

2 7710503

1 Ring, Retaining

3 5432970

2010171

1

1

Lever, Throttle

Lever w/Heater

4 5431592

1 Block, Throttle/Brake

5 5433345

1 Adaptor, Block

6 7558402

8 Washer, Flat

7 7512329

8 Screw

8 5631311

4 Clamp, Handlebar Retainer

9 7170712

2200891

1

1

Decal, “POLARIS”, Handlebar Pad

Kit, Decal Application Solution

10 5243396-293

1 Bar, Mountain, Red

11 7547107

2 Nut, Jam

12 7542344

2 Nut, Nylok

13 2683080

1 Cover, Handlebar

14 5812473

1 Pad, Handlebar

15 5412195

2 Grip, Handlebar Cut

16 2872482-070

2 Asm., Handlebar Hook, Black

17 7517834

2 Screw, Socket Head

18 2461027

2 Heater, Grip, Lo/Med/Hi

19 --------------

1 Asm., Control, LH

(See Brake Pg. A14, Ref. 13)

20 1821231--067

1 Handlebar

21 5133794

2 Block, Handlebar Riser

22 7511848

8 Screw

23 5432261

1 Holder, Wire

24 7710401

1 Ring, Retaining

25 7512465

1 Screw, Set

26 7555727

1 Washer

27 4110106

1 Switch, Auxiliary Shut-Off

28 7555730

2 Washer

3/03
